Within this study, the authors use human mesenchymal stem cells incubated with silver nanoparticles (AgNPs) as a model system to systematically investigate the advantages and drawbacks of the fast imaging delayed extraction mode for two-dimensional and three-dimensional (3D) analyses at the cellular level. The authors compare the delayed extraction mode with commonly employed measurement modes in terms of mass and lateral resolution, intensity, and dose density. Using the delayed extraction mode for single cell analysis, a high mass resolution up to 4000 at m/z =184.08 combined with a lateral resolution up to 360 nm is achieved. Furthermore, the authors perform 3D analyses with Ar-clusters (10 keV) and O2+ (500 eV) as sputter species, combined with Bi3+ and delayed extraction for analysis. Cell compartments like the nucleus are visualized in 3D, whereas no realistic 3D reconstruction of intracellular AgNP is possible due to the different sputter rates of inorganic and organic cell materials. Furthermore, the authors show that the sputter yield of Ag increases with the decreasing Ar-cluster size, which might be an approach to converge the different sputter rates.

Beside conventional applied methods such as light- and electron-microscopy, mass spectrometry imaging becomes increasingly important for cellular analyses as specific and untargeted chemical information is obtained as part of the image.1–3 Compared to desorption electrospray ionization and matrix-assisted laser desorption/ionization (MALDI), time of flight secondary ion mass spectrometry (ToF-SIMS) provides the best lateral resolution, and in contrast to MALDI,4 real 3D information is accessible. The lateral resolution of ToF-SIMS is only exceeded by NanoSIMS, a special SIMS instrument, which works with a magnetic sector mass analyzer, applies oxygen or cesium primary ion beams (not pulsed), and offers high sensitivity as well as nanoscale resolution better than 50 nm.5 NanoSIMS is suitable for isotopic and trace element analysis but is also increasingly applied in life sciences.6–8 Specifically in combination with transmission electron microscopy (TEM), NanoSIMS can provide very precise and detailed information on cell morphology and subcellular processes and, if combined with isotopic labeling, on the localization of different molecules within the cell compartments.9,10 However, NanoSIMS analyses are limited by the number of simultaneously detectable elemental masses, time consumption, and the need for extensive sample preparation. Therefore, ToF-SIMS is a more versatile technique, providing a broad mass range and the possibility of 3D analysis.

Nevertheless, using common measurement modes, ToF-SIMS provides either a submicrometer lateral resolution or a mass resolution of several thousands.11,12 However, the delayed extraction of the secondary ions enables the combination of high lateral and high mass resolutions. A lateral resolution of 400 nm and a mass resolution of 10 000 at m/z 385.4 using delayed extraction were shown by Vanbellingen et al. on tissue sections.11 The principle of delayed extraction is commonly used in the MALDI community to reduce the uncontrolled decay of molecular ions in the extraction phase.13–15 Collision and fragmentation of the generated ions in the field free space are minimized, and as an additional benefit, the mass resolution increases.16 Therefore, the principle of delayed extraction is also a promising strategy for ToF-SIMS analysis, preferable for instruments equipped with a reflectron analyzer. Ion extraction is decoupled from the ion generation process by switching off the extraction voltage for several hundred ns after the primary ion pulse. A field free emission of secondary particles in a plume is obtained, and the long primary ion pulse, commonly required for high lateral resolution imaging, does not restrict the mass resolution anymore. In addition, Lee et al. described the positive effect of delayed extraction for the analysis of conductive samples by topography.17 The field free emission allows secondary ions from the side of the substrate to drift away from the sample surface before the extraction voltage is switched on. Therefore, the extraction is less influenced by topographic field effects and the amount of collectable ions from the side is increased; less shadow effects appear, and sharper images are obtained. However, in general, a significant reduction of detectable secondary ions has to be considered, as only ions directly located below the analyzer entrance are collected and fast ions of lower masses can leave the extraction zone within the field free delay time.11,17,18 To conclude, ToF-SIMS combined with delayed extraction is a very promising candidate for subcellular analyses with a high lateral and mass resolution.19

In 2007, Fletcher et al. published the first example for 3D imaging of a single cell using ToF-SIMS with C60+ as ion beam.20 Mass peaks of cholesterol, other lipids, and fatty acids were used for the first three dimensional imaging of an oocyte. Soon after, Breitenstein et al. used a more focused Bi3+ ion beam for analysis and C60+ for sputtering animal cells.21 Different signals were gained to identify and reconstruct the nucleus and other compartments of the cell. One year later, Vaidyanathan et al. were able to localize pigmented antibiotics in bacteria using C60+.22 The detection of pharmaceutical compounds and their metabolites in single cells using ToF-SIMS without delayed extraction was achieved by Passarelli et al. in 2015.23 Using Ar2000+ for sputtering, an unlabeled drug compound was detected and localized in the membrane and subsurface region of the cell. 3D images of the drug metabolite and the cell regions were generated. Besides, the localization of nanoparticles in cells and tissue is the subject of several studies.24–31 In 2014, Angerer and Fletcher detected TiO2 nanoparticles in single cells as particles of about 5 μm in diameter distributed throughout the cells.24 3D reconstruction is reported to be challenging due to differences in the sputter rates between natural organic and TiO2-rich regions. Beyond that, in 2015, Kokesch-Himmelreich et al. showed for the first time that it is also possible to detect organic nanoparticles in cells by ToF-SIMS.31 In 2017, Veith et al. used ToF-SIMS for direct detection of SiO2 nanomaterials in rat lung tissue.30 The same nanoparticle distribution was observed using fluorescence microscopy. Therefore, labels are not mandatory to detect nanomaterials in tissue. This direct detection makes ToF-SIMS even more attractive for nanotoxicological studies. In the same year, functionalized gold nanoparticles were visualized in single cells by Bloom et al. using C60+ cluster-SIMS and information on the drug pathway and mechanism was obtained.25 The functionalization compound and the gold nanoparticles did not appear in the same cell regions, and so, cleavage after cell uptake was proposed. In 2016, Nees et al. investigated the effects of silver nanoparticles (AgNPs) on dog kidney cells, using laser postionization secondary neutral mass spectrometry (laser-SNMS) and ToF-SIMS in combination with Ar-cluster ion sputtering and Bi3+ primary ions for analysis.27 Laser-SNMS was used due to the reported low ionization efficiency of silver. The Ar-cluster ion beam allowed a high sample removal rate in combination with low molecular degradation. AgNPs were mainly detected close to the cell nucleus but were not removed during the abrasion of the cell due to different sputter rates of organic and inorganic compounds.

AgNPs are widely used due to their antibacterial effect, for example, in wound dressings, catheters, and antibacterial coatings for implants to prevent infections.32 Nevertheless, their effect on the human body is still not completely understood. Exact localization of the AgNPs in single cells after in vitro exposition is one step to understand their impact on the human body.33–35 To estimate possible health risks through AgNP in coatings of implants, the influence of AgNP on cell stress, viability, proliferation, and differentiation of primary human mesenchymal stem cells (hMSCs) was examined in two studies in 2014 by Pauksch et al.28,29 Below the cytotoxic concentration, no influence on cell differentiation but an increase in cell stress was observed. In addition, AgNP accumulation in the cells was detected using ToF-SIMS.

The objective of the present study is to use the delayed extraction mode for analyses at the cellular level and to determine the benefits and limitations of this mode. We use hMSCs incubated with AgNP as a model system and intend a more accurate visualization of the AgNP within the cells in 2D and 3D. Therefore, we optimize the delayed extraction mode for cellular analyses and compare the achieved resolution as well as the measurement conditions with the spectrometry and imaging mode. Additionally, we perform 3D analyses with delayed extraction and use Ar-clusters and O2+ to remove the cells with the aim of a detailed 3D visualization of the AgNP inside the cells.

Two thousand hMSCs per cm2 were grown on silicon wafers with (111) orientation and antimony as a dopant (CrysTec Kristalltechnologie, Germany) in the presence of 12 μg of AgNP/g growth medium at 37 °C and 6% CO2 for 4 days. Before the incubation, the hMSCs were kept under the same conditions in growth medium without AgNP for one day. As controls, hMSCs were grown without any AgNP incubation. The growth medium was composed of MesenPro RS (Gibco) with 20% PANSera ES (Pan Biotech), 1% GlutaMAX (Gibco), and 0.2% Genta/Ampho (Life Technologies). The AgNPs were provided by ras materials GmbH (Regensburg, Germany) as a colloidal dispersion with a silver content of 10 w/w% in a stabilizing matrix containing 4% polyoxyethylene glycerol trioleate and 4% polyoxyethylene sorbitan monolaurate (Tween20). AgNPs have been characterized in earlier studies, using ultraviolet-visible spectroscopy, dynamic light scattering, and zeta-potential measurements.28,29 Depending on the cell medium and incubation time, a hydrodynamic diameter from 5 to >100 nm was measured.28 Cells were chemically fixed for 1 h at 4 °C with 2% paraformaldehyde and 1% glutaraldehyde in 0.1 M sodium phosphate buffer.36 Fixed cells were stored in Milli-Q water at 4 °C to enable a measurement period of at least four weeks.37 The cells were air dried prior to confocal and ToF-SIMS analyses.

The morphology and dimensions of the cells were determined using an S neox optical profiler confocal microscope (SENSOFAR, Spain). 3D measurements were carried out in 100 nm steps and with 50-times magnification. Data analysis was performed using the respective software “sensoscan 6.3,” where maximum heights of the cells were measured and 3D images were created.

For TEM examination, the hMSCs were also incubated with 12 μg of AgNP/g growth medium for 4 days. First, cells were fixed chemically for 30 min on ice with 2% paraformaldehyde in 0.1 M sodium phosphate buffer (pH 7.2–7.4) with 2% glutardialdehyde and 0.02% picric acid, followed by a 20 min fixation with 1% osmium tetroxide in 0.1 M sodium cacodylate buffer (pH 7.2–7.4). Afterward, the samples were dehydrated and embedded in Epon. For the examination, ultrathin sections (80–100 nm) were mounted on collodion-coated copper grids. Analysis was done using a Leo 912 transmission electron microscope (Carl Zeiss AG, Oberkochen, Germany) equipped with a TRS Sharpeye slow scan dual speed CCD camera (Albert Troendle Prototypentwicklung, Moorenweis, Germany).

The ToF-SIMS measurements were performed using a TOF.SIMS 5–100 instrument (ION-TOF GmbH, Muenster, Germany) equipped with a 25 kV Bi-cluster primary ion gun, with a 20 kV gas cluster ion beam (GCIB) and a dual source column for sputtering. All analyses were carried out with Bi3+ primary ions, in the positive ion mode and with a cycle time of 65 or 100 μs. Sputtering was done with 10 keV Ar-clusters of different sizes (Arn+) and 500 eV oxygen-ions (O2+). Measurements with Arn+ were performed without a flood gun, whereas for sputtering with O2+, the flood gun was used. The crater size was always 150 μm larger than the analysis field. Data analysis was performed with the “surfacelab 6.7” software (ION-TOF GmbH) using the signals CH3+ (15.02 u), Na+ (22.99 u), Si+ (27.97 u), K+ (38.96 u), C3H5+ (41.04 u), C3H7+ (43.05 u), and C5H12N+ (86.10 u) for internal mass calibration. As silver signals, the 107Ag+ (106.91 u) peak and the 109Ag+ (108.91 u) peak were examined.

1. Optimization and evaluation of the delayed extraction mode at the cellular level

For the 2D measurements of cells with a high mass and lateral resolution, the delayed extraction mode was obtained after starting with the existing setting for the fast imaging mode (burst alignment mode). The initial imaging mode works with a well-focused, unbunched primary ion beam and long pulses of 100 ns, which results in a lateral resolution of about 400 nm, but at the expense of less detectable ions and only the nominal mass resolution (mm of several hundreds). The parameters used for the optimization of the delayed extraction mode were the delay time, voltage of the analyzer lens, the X/Y analyzer deflection plates, as well as the surface and virtual drift potential (VDP) (cf. Fig. 1). The wellknown cell signal at m/z= 184.08, the phosphatidylcholine head group,38 was optimized to gain maximum counts and high mass resolution by aligning the above–mentioned parameters.

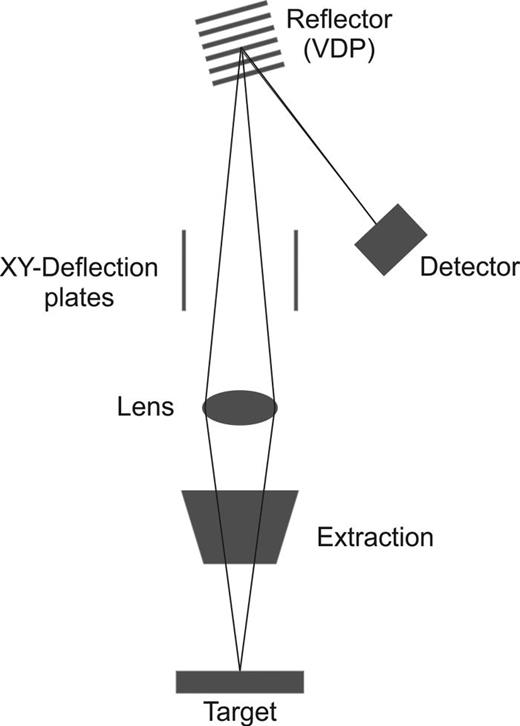

Fig. 1.

Scheme of the analyzer of a TOF.SIMS 5-100 instrument.

Fig. 1.

Scheme of the analyzer of a TOF.SIMS 5-100 instrument.

Close modal

For each measurement of a single cell, the parameters of delay time, lens voltage, and potentials had to be adjusted slightly. The delay time varied in a range of 40 ns. The lens voltage was set between 2790 and 3025 V and the VDP between 128.2 and 158.2 V. The settings for the X analyzer deflection plate varied in the range of 1.0%–3.0% and for the Y analyzer deflection plate between 16.8% and 19.4%.

To compare the resolution of the delayed extraction mode with common measurement modes, 2D images were taken in the spectrometry (low-current bunched) and fast imaging (burst-alignment) mode. All depicted images were recorded from the same cell with a field of view of 230 × 230 μm2 and in the random scanning mode. Before the first measurement, the cell was cleaned by sputtering with Ar1500+ (10 keV, GCIB dose of 5.76 × 1013 ions/cm2). For the delayed extraction mode, images with 1024 × 1024 pixel and a primary ion dose density of 1.01 × 1012 ions/cm2 were recorded. In the imaging mode, the same pixel and primary ion dose density of 1.02 × 1012 ions/cm2 were employed. In the spectrometry mode (width=1 ns), images with 256 × 256 pixel and a primary ion dose of 1.16 × 1012 ions/cm2 were acquired. The achieved lateral resolution was determined five times by a line scan on the total ion image for each measurement mode. Therefore, small features having interfaces with high intensity contrast were chosen and the average of the results was taken. Mass resolving power was defined by the full width at half maximum (FWHM) definition for the signals C4H8N+ (m/z 70.07), C5H12N+ (m/z 86.10), and C5H15NPO4+ (m/z 184.08). Besides, the counts of the same signals were evaluated for a defined cell region of 30 × 30 μm2.

2. Depth analysis for 3D reconstruction

For 3D reconstruction, cells were depth profiled with Ar1500+ (10 keV) in the interlaced mode. For the depicted control cell [cf. Figs. 3, 4(a), and 4(b)], cultivated without AgNP, a total GCIB dose of 6.27 × 1015 ions/cm2 (2.41 × 1014 ions/cm2 per cycle) was needed until the cell was fully ablated. For another cell, cultivated with AgNP [cf. Figs. 6, 7(a), and 7(b)], a total GCIB dose of 5.58 × 1015 ions/cm2 (2.53 × 1014 ions/cm2 per cycle) was applied. In this case, 23 sputter cycles were necessary to remove the cell. Analyses were performed in the delayed extraction mode with the following parameters: 1024 × 1024 pixel, 10 shots/pixel, and three frames (the region was scanned three times prior to the next sputter interval). The cells were reconstructed in 3D by unfolding the structure using the Si+-signal. Additionally, depth analysis and 3D reconstruction using O2+ (500 eV) as sputter species, with a total dose of 6.56 × 1017 ions/cm2 (3.30 × 1015 ions/cm2 per cycle), were carried out for another cell, cultivated with AgNP [cf. Figs. 4(c) and 4(d)]. Two hundred scans were performed in the spectrometry mode with the following parameters: 128 × 128 pixel, 1 shots/pixel, and 20 frames (the region was scanned 20 times prior to the next sputter interval). To evaluate the “healing effect” of Arn+-clusters for organic signal intensities, a cell, first ablated with O2+, was depth profiled with Ar1500+ (10 keV). The intensities of the signals C4H8N+ and C5H12N+ were evaluated for each scan in a defined cell region.

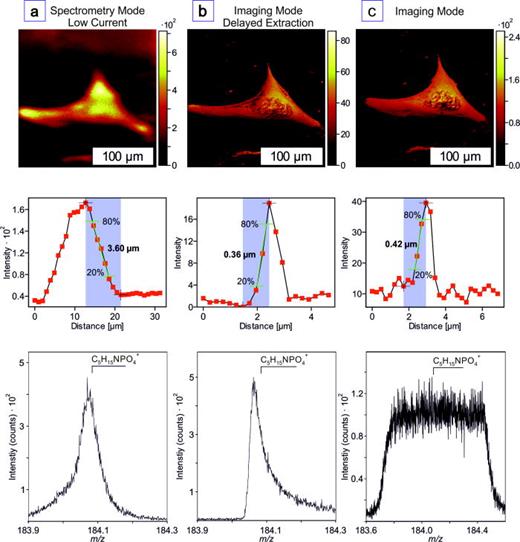

Fig. 2.

Comparison of (a) spectrometry low current, (b) imaging with delayed extraction, and (c) conventional imaging mode. The first row shows the recorded cell images, the second row gives an example for the determination of the lateral resolution via line scan (80%/20% method) on the total ion image, and the third row gives an impression of the mass resolving power in FWHM definition by depicting peak widths for m/z = 184.08.

Fig. 2.

Comparison of (a) spectrometry low current, (b) imaging with delayed extraction, and (c) conventional imaging mode. The first row shows the recorded cell images, the second row gives an example for the determination of the lateral resolution via line scan (80%/20% method) on the total ion image, and the third row gives an impression of the mass resolving power in FWHM definition by depicting peak widths for m/z = 184.08.

Close modal

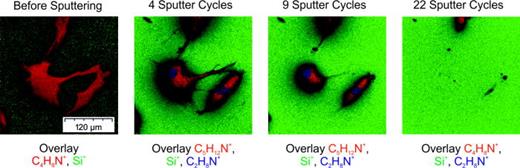

Fig. 3.

Overlay of C4H8N+ or C5H12N+ in red, C2H8N+ in blue, and Si+-signal in green after several sputter cycles (2.42 × 1014 ions/cm2 per sputter cycle) during the depth analysis of a control cell without AgNP using Ar1500+ (10 keV) as sputter species. C4H8N+ and C5H12N+ are cell signals representing the membrane layer and the inner part of the cell; the C2H8N+ signal visualizes the nucleus and Si+ the silicon substrate. The field of view is 300 × 300 μm2.

Fig. 3.

Overlay of C4H8N+ or C5H12N+ in red, C2H8N+ in blue, and Si+-signal in green after several sputter cycles (2.42 × 1014 ions/cm2 per sputter cycle) during the depth analysis of a control cell without AgNP using Ar1500+ (10 keV) as sputter species. C4H8N+ and C5H12N+ are cell signals representing the membrane layer and the inner part of the cell; the C2H8N+ signal visualizes the nucleus and Si+ the silicon substrate. The field of view is 300 × 300 μm2.

Close modal

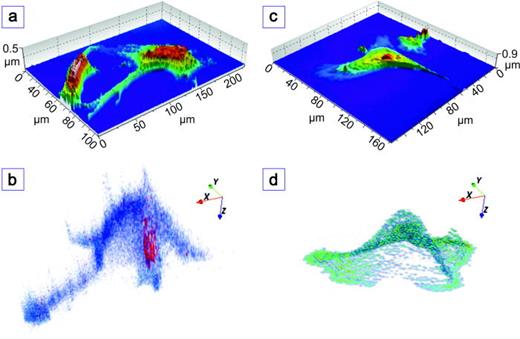

Fig. 4.

(a) 3D confocal microscopy image of a control cell without Ag-NP. (b) 3D reconstruction of the ToF-SIMS depth analysis of the same cell. Sputtering was performed with Ar1500+ (10 keV) and analysis with Bi3+ in the imaging mode with delayed extraction. The cell nucleus is reconstructed in red using the C2H8N+ (m/z = 46.06) signal. The signal C5H14N+ (m/z = 88.11), shown in blue, represents the outer parts of the cell. (c) 3D confocal microscopy image of the cell shown in (d) as ToF-SIMS 3D reconstruction. In this case, the cell was incubated with AgNP. O2+ (500 eV) was employed for sputtering (3.30 × 1015 ions/cm2 per cycle), and analysis was performed in spectrometry mode low current on a field of 250 × 250 μm2. For reconstruction, the cellular signal C5H12N+ (m/z = 86.10) was chosen.

Fig. 4.

(a) 3D confocal microscopy image of a control cell without Ag-NP. (b) 3D reconstruction of the ToF-SIMS depth analysis of the same cell. Sputtering was performed with Ar1500+ (10 keV) and analysis with Bi3+ in the imaging mode with delayed extraction. The cell nucleus is reconstructed in red using the C2H8N+ (m/z = 46.06) signal. The signal C5H14N+ (m/z = 88.11), shown in blue, represents the outer parts of the cell. (c) 3D confocal microscopy image of the cell shown in (d) as ToF-SIMS 3D reconstruction. In this case, the cell was incubated with AgNP. O2+ (500 eV) was employed for sputtering (3.30 × 1015 ions/cm2 per cycle), and analysis was performed in spectrometry mode low current on a field of 250 × 250 μm2. For reconstruction, the cellular signal C5H12N+ (m/z = 86.10) was chosen.

Close modal

3. Evaluation of silver abrasion

The sputter yields of silver with Arn+-clusters of different sizes were determined. For this, an approximately 150 nm thick silver layer was deposited on a silicon wafer using pulsed laser deposition. Ten thousand pulses of a KrF-Excimer laser (248 nm, 20 Hz, 8 J/cm2) were used at room temperature with a substrate-target distance of 5 cm. The silver layer was sputtered with Arn+ until an increasing Si+-signal was detected. Cluster sizes of n = 100, 500, 1000, 1250, 1500, 1750, and 2000 were tested. For each cluster size, at least four measurements were performed and the resulting crater depths were determined by confocal microscopy.

The best lateral resolution achieved was 360 nm with the imaging mode and delayed extraction as shown in Fig. 2. This value corresponds well to the reported 400 nm of Alain Brunelle's group on tissue sections of rat cerebellum.11

The spectrometry mode was applied to gain a high mass resolution. With low current, an improved lateral resolution of 3.6 μm compared to 10 μm in the high current (HC) mode was achieved. Therefore, the width of the primary ion pulse was reduced to 1 ns at the expense of significant current and thus intensity loss. The fast imaging mode (burst-alignment mode) was optimized for high lateral resolution.

As shown in Fig. 2, the delayed extraction mode combines the high lateral resolution of the imaging mode with the high mass resolution of the spectrometry mode. Unfortunately, the peak shape with delayed extraction is not as good as the peak obtained in the spectrometry mode. The observable peak tail is an effect of delay time as described by Vanbellingen et al.11 The delay time was optimized for maximum counts and mass resolution at the expense of peak shape. Therefore, the tail is a consequence of a too long delay after the primary ion pulse and reflects the energy dispersion by a longer flight time. However, all mass spectra recorded with delayed extraction showed no masses below m/z = 20, as light mass ions escape from the extraction region during the delay time. Therefore, only ions of m/z > 20 were used for mass calibration, and in doubtful cases, peak identification was done by the help of spectra recorded in the spectrometry mode. However, an internal calibration standard would be helpful, especially in the case of totally unknown sample systems.

Furthermore, it has to be noted that the optimization of the extraction delay is related to maximum counts, mass resolution, and improved peak shape but strongly depends on the mass of interest.11,17,18 Probably due to the choice of lower m/z-values for optimization and due to topographic effects, we only attained a mass resolving power of about mm ≅ 4700 at m/z= 184.08, as shown in Table I, significantly less than Vanbellingen et al., who reported a value of 10 000 at m/z= 385.4 for tissue sections.11

Table I.

Comparison of spectrometry mode low current (high current), imaging with delayed extraction and imaging mode in terms of mass and average lateral resolution, as well as intensity of selected fragments. The intensity was determined in a field of view of 30 × 30 μm2 (cellular region).

ModeSpectrometry mode low current (high current)Imaging mode delayed extractionImaging mode
FWHM (C4H8N+3977 (5009) 3142 154
FWHM (C5H12N+3712 (5477) 3119 173
FWHM (C5H15NPO4+3310 (3009) 4706 265
Lateral resolution 3.6 μm (10 μm) 360 nm 420 nm
Dose density/(ions/cm21.16 × 1012 (1.01 × 10121.01 × 1012 1.02 × 1012
Current/pA 0.14 (0.35) 0.16 0.16
Analysis time/s 819 (220) 629 629
Counts (C4H8N+1.42 × 104 (3.34 × 1047.30 × 103 7.04 × 103
Counts (C5H12N+8.24 × 103 (2.81 × 1049.66 × 103 6.16 × 103
Counts (C5H15NPO4+7.50 × 103 (2.92 × 1049.09 × 103 3.64 × 103
ModeSpectrometry mode low current (high current)Imaging mode delayed extractionImaging mode
FWHM (C4H8N+3977 (5009) 3142 154
FWHM (C5H12N+3712 (5477) 3119 173
FWHM (C5H15NPO4+3310 (3009) 4706 265
Lateral resolution 3.6 μm (10 μm) 360 nm 420 nm
Dose density/(ions/cm21.16 × 1012 (1.01 × 10121.01 × 1012 1.02 × 1012
Current/pA 0.14 (0.35) 0.16 0.16
Analysis time/s 819 (220) 629 629
Counts (C4H8N+1.42 × 104 (3.34 × 1047.30 × 103 7.04 × 103
Counts (C5H12N+8.24 × 103 (2.81 × 1049.66 × 103 6.16 × 103
Counts (C5H15NPO4+7.50 × 103 (2.92 × 1049.09 × 103 3.64 × 103

Nevertheless, the disadvantage of all imaging modes is the loss of intensity compared to the HC spectrometry mode working with several dozen picoamperes of primary ion current. Applying the delayed extraction, the yield of the detected secondary ions is further decreased. The extent of decrease strongly depends on the mass of interest and the corresponding applied extraction delay, which is, especially for samples with topography, always a compromise between the mass resolution, peak intensity, peak shape, and influence of topography.17,18 According to Lee et al., the use of delayed extraction can improve the analysis of samples with topography significantly.17 Also, secondary ions from the side are detectable, and less shadow effects appear. Consequently, Lee et al. stated a less reduction of the total ion yield for samples with topography compared to totally flat samples. It was further shown that also conductive or insulating properties of the samples have to be considered.18 The positive effect of less reduced total ions is not observable for insulating samples. This is in line with our measurements. We observed a reduction of the total ion yield from 1.69 × 106 to 5.83 × 105 that even exceeds the decrease of 50% reported by Vanbellingen et al. on flat tissue sections.11 In contrast, for typical cell signals, we attained improved signal intensities as shown in Table I. Specifically, the phosphatidyl head group at m/z = 184.08 showed a significant higher intensity than without delayed extraction, as this mass was used to find the optimum of delay time with respect to maximum counts. Obviously, higher primary ion dose and longer measurement time are needed to obtain images that achieve the same intensity scale with delayed extraction as images recorded in the HC spectrometry mode, as reported by Vanbellingen et al.11 However, the use of delayed extraction simplifies cellular analyses, providing high mass resolution and sharp images.

In order to take advantage of delayed extraction for 3D investigations of cells, we used Arn+-clusters (10 keV) to remove the cells in layers and analyzed with delayed extraction in-between.

To visualize the cellular structure, we chose several mass peaks like C4H8N+, C5H12N+, and C5H14N+, which are well known as amino acid and head-group related fragments38–41 and showed good quality images. The cell nucleus could be visualized nicely with C2H8N+ (m/z = 46.06), a possible amino acid fragment, but not assigned and mentioned in the literature so far. In contrast, the mass peak at m/z = 136.1, adenine, used by Fletcher et al. did not show any representative nucleus structure in our measurements.

As Arn+-clusters are reported to be suitable for sputtering organic materials and do not cause much fragmentation,27,42–45 the intensity of the cellular signals remained stable at a high level, until the cell was completely ablated as shown in Figs. 3 and 4(b).

The fast imaging mode with delayed extraction allowed the combination of nicely shaped reconstructions and clear identification of signals from different cell compartments as shown in Fig. 4(b). The associated confocal microscopy 3D image in Fig. 4(a) reveals the cellular dimensions. The cell nucleus could be visualized quite nicely by C2H8N+ (m/z = 46.06). Attributed to the different sputter rates of nucleus and other cell compartments, the cell could not be reconstructed realistically along the z-axis as shown in Fig. 4(b).

The intracellular nanoparticles could not be removed during Arn+-sputtering, which was expected and will be discussed later on. In contrast, O2+ is reported to be more suitable for the removal of inorganic compounds than Arn+-clusters. Figure 5(b) presents the depth profiles of cells incubated with AgNP and sputtered with Ar1500+ (10 keV) and O2+ (500 eV), respectively. Although the intensities are not comparable due to different measurement parameters, it is demonstrated that silver is not removed during sputtering with Arn+-clusters. Similar observations were made on nanoparticles in cells in other studies.24,27 The signal intensity of 107Ag+ increases with cell removal, which supports our assumption that the AgNP persists and accumulates on the substrate when the cell is removed.

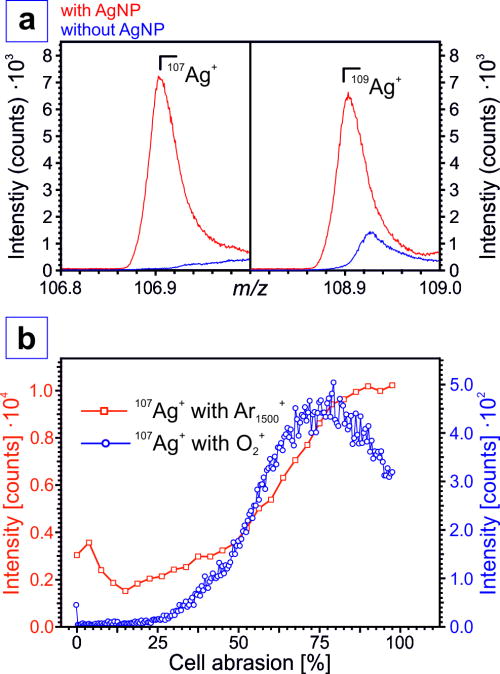

Fig. 5.

(a) shows exemplarily the 107Ag+ and 109Ag+ signals of spectra recorded from cells with (red) and without (Ref. 46) AgNP. (b) presents depth profiles of the 107Ag+ signal during cell sputtering with Ar1500+ and O2+, respectively. The different order of magnitude of the intensities is caused by the differences in analysis parameters.

Fig. 5.

(a) shows exemplarily the 107Ag+ and 109Ag+ signals of spectra recorded from cells with (red) and without (Ref. 46) AgNP. (b) presents depth profiles of the 107Ag+ signal during cell sputtering with Ar1500+ and O2+, respectively. The different order of magnitude of the intensities is caused by the differences in analysis parameters.

Close modal

With O2+ (500 eV) as sputter species, the intensity of the 107Ag+ signal decreases when the silicon substrate is reached, which accounts for a notable abrasion of the inorganic particles. However, O2+ (500 eV) sputtering of the cell leads to a dramatic drop of the organic signal intensities right after the first sputter cycle. Only the shape of the cell, but no inner compartments, could be visualized [cf. Fig. 4(d)].

Therefore, we considered a combination of both the sputter species, O2+ (500 eV) and Ar1500+(10 keV), in order to benefit from both: An improved ablation rate of AgNP and less cellular damage. Due to the healing effect of Arn+-clusters, we expected an enhancement of the signal intensities of the organic cell fragments after O2+ (500 eV) sputtering, according to Mihara et al., who used Ar-clusters to clean a cross-section of polymer multilayer films from the redeposited material.47 Besides, Miyayama et al. reported that Arn+-clusters are useful to remove the primary ion beam-induced damage of a polyimide film.45 We also observed an increase in the signal intensities during Arn+-cluster bombardment, but the recovery of the signals took a sputter dose of about 6.4 × 1014 ions/cm2 Ar1500+-clusters (10 keV), which is equivalent to a cell-abrasion of at least 40–50 nm. Taking into account that the mean height of the cells was about 500 nm, this approach is not suitable for the depth profiling and 3D reconstruction.

Furthermore, we observed no beneficial effect using O2+ (500 eV) as sputter species with regard to the ionization probability of silver as predicted by Kollmer et al.48 and Storm et al.49 The latter stated a rather low ionization probability for silver in a very early study49 under O bombardment. In contrast, in our experiment, O2+ was applied for sputtering and Bi3+ for analysis, and we hoped for a slight enhancement of the ionization probability of silver. Anyhow, the intensities of the silver signals inside the cells were equally low in all measurements. Consequently, the ionization efficiency of silver is not increased by one of the sputter species. However, silver could be clearly identified in the spectra of the cells incubated with AgNP [cf. Fig. 5(a)]. The isotopes 107Ag+ and 109Ag+ show the required isotopic pattern and could unambiguously be assigned.

In Fig. 6(a), a cell and the distribution of silver in- and outside the cell after several sputter cycles during depth analysis with Ar1500+ (10 keV) are shown [cf. Fig. 6(b)]. In the beginning, silver seems to be distributed homogeneously over the cell and the wafer with an increased signal intensity in the cellular edge region. This might be due to a real accumulation of AgNPs in the outer cell region or, as implied by the last image after complete removal of the cell, due to an enhanced ionization probability of silver at the silicon interface, which will be discussed in more detail later on. The images in-between reveal a slight enrichment of silver particles in the intracellular region although the intensities of the silver signals are quite low because of the poor ionization probability of silver within the cellular matrix.27

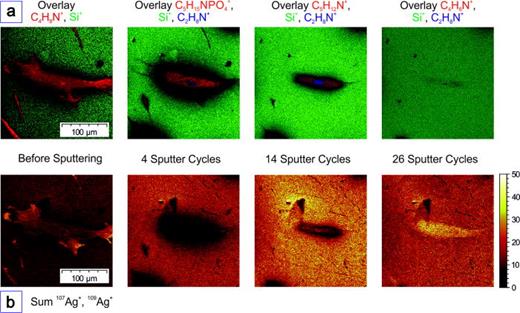

Fig. 6.

(a) Overlay of cell signals in red and Si+-signals in green after several sputter cycles (2.53 × 1014 ions/cm2 per sputter cycle) of the depth analysis of a cell cultivated with AgNP using Ar1500+ (10 keV) as sputter species. The C2H8N+-signal in blue represents the nucleus. (b) shows the silver distribution. The field of view is 250 × 250 μm2.

Fig. 6.

(a) Overlay of cell signals in red and Si+-signals in green after several sputter cycles (2.53 × 1014 ions/cm2 per sputter cycle) of the depth analysis of a cell cultivated with AgNP using Ar1500+ (10 keV) as sputter species. The C2H8N+-signal in blue represents the nucleus. (b) shows the silver distribution. The field of view is 250 × 250 μm2.

Close modal

The overlay of the cellular signal C4H8N+ and the silver signals in Fig. 7(a) suggests the presence of the AgNP in the cellular region. But obviously, we cannot provide a clear proof of the NP being intracellularly incorporated and not only deposited on the cells or just adhered to the silicon surface by ToF-SIMS measurements only. Anyhow, TEM images recorded from cellular sections demonstrate the intracellular uptake of the AgNP unambiguously, as already reported by Pauksch et al. [cf. Fig. 7(c)].28,29

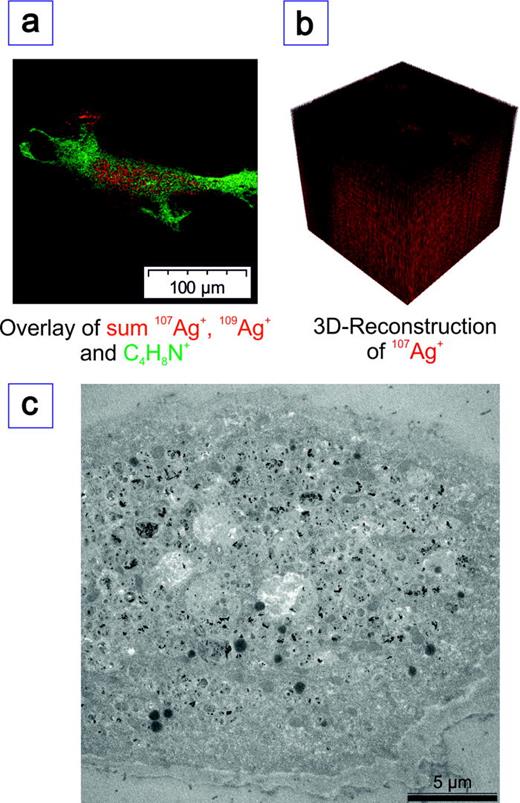

Fig. 7.

(a) Overlay of the initial cellular signal C4H8N+ in green (recorded before sputtering) and the silver signals in red [after complete removal of the cell with Ar1500+ (10 keV)]. Silver can be clearly localized inside the cell. (b) shows the 3D-reconstruction of the 107Ag+ signal. Silver is only slightly ablated by Ar1500+ 10 keV) and, therefore, present in each scan in the whole analysis volume. The field of view is 250 × 250 μm2. (c) TEM-image showing a quite homogeneous distribution of AgNP in a hMSC.

Fig. 7.

(a) Overlay of the initial cellular signal C4H8N+ in green (recorded before sputtering) and the silver signals in red [after complete removal of the cell with Ar1500+ (10 keV)]. Silver can be clearly localized inside the cell. (b) shows the 3D-reconstruction of the 107Ag+ signal. Silver is only slightly ablated by Ar1500+ 10 keV) and, therefore, present in each scan in the whole analysis volume. The field of view is 250 × 250 μm2. (c) TEM-image showing a quite homogeneous distribution of AgNP in a hMSC.

Close modal

In contrast to reports by Nees et al.,27 Haase et al.,50 and others,28,29 no agglomeration of intracellular silver is visible. As inorganic AgNPs remain unaffected by the Arn+-clusters,25 silver accumulates during depth profiling, which results in an interference of silver signals from different cellular levels. As a consequence, the localization of agglomerates and 3D reconstruction of AgNP are not possible, as demonstrated in Fig. 7(b).

Obviously, the combination of oxygen and Ar-clusters is not useful for 3D analysis of AgNP in cells. Therefore, the use of Ar-clusters, varying in size and energy, might be a more promising approach. The challenge is to find parameters that allow simultaneous sputtering of organics and inorganics, while maintaining the cellular information. Seki et al. reported about a cluster size dependency of the sputter yield.51 With constant acceleration energy and decreasing cluster size, an increased ion yield was observed. In an initial approach, we started to vary the cluster size of 10 keV Ar-clusters. To evaluate the sputter efficiency of silver with 10 keV Ar-clusters, a silver-layer of about 150 nm was deposited on a silicon wafer and removed with Arn+-clusters of different sizes. The sputter yields of silver for the different cluster sizes are shown in Fig. 8(a). As expected, the sputter yield increases with the decreasing cluster size, which makes small clusters more appropriate for silver abrasion. These results fit quite well with reports of Seki et al.51 Although this is quite promising, it must be kept in mind that the sputter yield of silver in organic matrices such as cells is different from that of a pure silver layer. To evaluate this in the future, the AgNP should be embedded in organic materials like gelatin. In addition, there is a stronger impact on the ion yield by varying the energy/atom rather than just the cluster size as reported by Seah et al.52 and others,51,53 as the sputter yield is proportional to the acceleration energy of the Arn+-clusters. Additionally, the impact of the smaller cluster size and higher energy/atom on cellular damage has to be evaluated. From the literature, it is well known that the energy per atom should be comparatively small to maintain the organic information with less damage.43,44,54 Nevertheless, going to smaller Arn+-cluster sizes might be a promising approach to converge the different sputter rates of organic cell materials and inorganic nanoparticles. It might be a strategy to keep the advantage of high organic signal intensity and combine it with the successful removal of inorganic particles, therefore allowing a realistic 3D reconstruction of both.

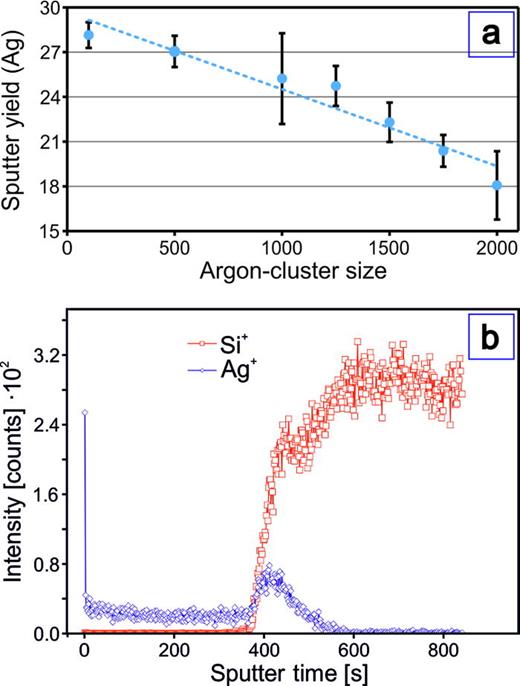

Fig. 8.

(a) Plot of the sputter yields of silver against the employed Ar-cluster size (10 keV) reveals that small clusters are more suitable to ablate silver. (b) Depth profile of a silver layer on a silicon wafer. Silicon increases the ionization efficiency of silver.

Fig. 8.

(a) Plot of the sputter yields of silver against the employed Ar-cluster size (10 keV) reveals that small clusters are more suitable to ablate silver. (b) Depth profile of a silver layer on a silicon wafer. Silicon increases the ionization efficiency of silver.

Close modal

Furthermore, the depth profile of the silver layer on a silicon wafer, shown in Fig. 8(b), demonstrates that the ionization efficiency of silver is increased by the presence of silicon or silicon oxide as reported for gold by Yang et al.53 The intensity of the silver signals clearly increases when the silicon substrate is reached. This effect is also observed, when cells, cultivated on silicon wafers and incorporated with AgNP, are completely removed [Fig. 6(b)]. Reaching the silicon substrate, the ionization efficiency of the remaining silver increases and the silver becomes more visible in the image.

We employed the delayed extraction mode for 2D and 3D analyses of hMSCs incubated with silver nanoparticles. In comparison to the spectrometry and imaging mode, a combination of high lateral and high mass resolution was achieved by delayed extraction of the secondary ions. For 3D analysis, Ar-clusters (10 keV) of different cluster sizes and O2+ (500 eV) were applied. The signal intensity of the intracellular silver was low and could not be increased by O2+. Besides, Ar1500+ (10 keV) as sputter species in combination with delayed extraction enabled a detailed 3D visualization of the cell shape as well as of cell compartments such as the nucleus. We observed that Ar1500+ (10 keV) was not able to significantly sputter the AgNP inside the cells, but a model experiment with a defined silver layer revealed an increasing silver sputter yield of silver for smaller Ar-clusters. The use of smaller cluster sizes might be a promising compromise for depth profiling of cells with inorganic nanoparticles. A systematic study to identify the optimal Arn+-cluster size and acceleration energy for a compromise of reasonable ablation rate and less cellular damage is needed. An approximation of the sputter yields of organic and inorganic components might finally allow for a 3D reconstruction of cells with intracellular AgNP. To visualize the NP in the cells, a future approach could also be a FIB cut of the cells under gazing angle to stretch the crater wall virtually. Due to this, NP of 100 nm should be detectable by ToF-SIMS.55
