Deep sediment heterogeneity inferred using very low-frequency features from merchant ships^a) Free

Sediment characterization studies often focus on the upper portions of seabed.^1–8 However, sub-bottom profiling usually indicates the presence of deep layers.^9,10 While large seismic studies with, for example, air gun sources and long arrays can infer information about the deep layering of the seabed, the inference of the deep layer structure from ambient noise can play a complementary role.

Results from the Seabed Characterization Experiment (SBCEX) 2017, which took place in the New England Mud Patch (NEMP), indicated heterogeneity in the thickness of the top layers of the seabed. However, less work has been done to study the sediment structure deeper than 18 m. An overview paper by Wilson et al.¹¹ provides a synthesis of some of the results obtained from SBCEX 2017 measurements, including seabed coring, direct measurements, and short- and long-range remote sensing. The general consensus is that the top layer of the NEMP seabed consists of a fine-grained sediment with variable thickness between about 5 and 12 m. The location of SBCEX 2017 is close to the area of a large seismic study that took place in 2009 by Siegel et al.,¹² which provided a measure of ground truth for deeper sediment layers in the seafloor between the mud base and the basement.

The goal of this paper is to take advantage of the broadband noise sources provided by passing merchant ships to infer characteristics of the deeper layers of the NEMP. This study uses similar methods to those reported by Knobles et al.^13,14 We expand the previous SBCEX 2017 study by using a larger sample of merchant ship noise recorded on three acoustic arrays during SBCEX 2022. The results from this analysis indicate heterogeneity of the seabed in the deep layers of the NEMP.

The rest of this paper is organized as follows. Section II provides a description of merchant ship tracks in the NEMP, acoustic arrays, and methods used to infer knowledge from the ship spectrograms. Section III provides the results of a statistical inference technique to estimate the deep layer sound speeds in the NEMP. Section IV draws conclusions from the sound speed results regarding deep layer heterogeneity.

The SBCEX was a multiyear multi-institutional project to characterize the seabed of the NEMP, which is south of Martha's Vineyard, MA. As discussed in Wilson et al.,¹¹ the main goal of the project was to understand the physical mechanisms that control acoustic propagation in fine-grained sediments. Their paper also provided an overview of additional goals and motivation of analyses as well as a summary of the acoustic sources and arrays used during the experiments conducted in March of 2017. The goals, acoustic sources, and acoustic arrays used in the SBCEX 2022 were similar to those of SBCEX 2017, with one major change being the month, which led to greater variation in the water column. This change was a result of SBCEX 2022 being two months later in the year than the 2017 experiment. In March 2017, the seasonal storms caused the waters to be well-mixed; in May 2022, a depth-dependent temperature profile was established. In particular, the increase in the sound speed in the lower portion of the water column was caused by the intrusion of warmer, saltier waters from the southern hemisphere carried by the Gulf Stream.^15,16 A comparison of the sound speed profiles from SBCEX 2017 and 2022 is shown in Fig. 1. The focus of the analyses in this work is merchant ship noise recorded during SBCEX 2022.

During SBCEX 2022, three vertical line arrays (VLAs) were deployed strategically between two shipping lanes. The average water depth in the geographical area is 75 m. Two of the arrays from Marine Physical Laboratory, Scripps Institution of Oceanography (MPL), referred to as VLA1 and -2, were placed approximately 6.7 km apart (with about 1 m bathymetry difference between them) and were deployed at this location for three days. The third array, from Applied Research Laboratories, The University of Texas at Austin (ARL), referred to as PROTEUS, was deployed for 28 days located between VLA1 and -2. All three arrays were deployed at the same locations as in SBCEX 2017. The coordinates and deployment dates are shown in Table I.

The waveguide invariant $β$ is a scalar quantity used to describe dispersive propagation characteristics in an ocean environment and is related to the slope of a striation in range-frequency space.¹⁷ First proposed by Chuprov,^18, $β$ was developed as an alternative to range localization via matched-field processing.¹⁹ It has also been used for waveguide parameter estimation.^20,21 Other studies, such as the one done by Verlinden et al.,²² have used ship spectrograms to estimate the waveguide invariant throughout a geographical area.

As seen in Eq. (2), the value for $β m , n ( ω )$ goes to infinity at frequencies where the group velocities of modes m and n are equal. This $β → ∞$ condition results in a particular feature in ship spectrograms: an “X” pattern where the nested striations switch directions and the acoustic intensity of striations of time-frequency spectrograms possess discontinuities.

Knobles et al.^13,14 first observed these acoustic features, referred to as singular points, in the very low-frequency (VLF) bands of merchant ships in the NEMP during SBCEX 2017. The discrete spectrum of the $β = ∞$ frequencies for low mode numbers allows for the inference of seabed parameters of deep layers in the seafloor. Because $β m , n$ is a modal parameter, it depends only on the environment. The singular frequencies (⁠ $f m , n$⁠) at which $β m , n → ∞$ are independent of source-receiver range and source-receiver depth, as well as the ship speed and size. Using singular points from five ships traveling through the southern shipping lane recorded on a single array, the previous SBCEX 2017 waveguide invariant study was able estimate the deep layer sound speeds and a lower limit of the sediment thicknesses in the NEMP.

A few other recent studies have investigated deep layer properties. Piao et al.²⁴ analyzed data taken in the Yellow Sea, where a 4.1 km 336-channel horizontal array was towed behind a ship with an air gun acoustic source. In addition to the standard array processing for seabed layering information, they took advantage of the observed singularities where $β m , n → ∞$ frequencies to estimate deep layer sound speeds, layer thickness, and a basement sound speed. Another study by Koch and Knobles²⁵ took advantage of the low-frequency features of broadband noise that merchant ships provide when passing close to acoustic receivers to ascertain deep layer structures.

Time-frequency spectrograms of the received acoustic intensity of ships are characterized by a nested hyperbola pattern, often referred to as striations. For the present study, the spectrogram time interval is selected to be centered at the closest point of approach (CPA) to the VLA. The location where $β = ∞$ occurs at the CPA. The curvature of the striation pattern in the time-frequency plane is dependent on both the ship speed and CPA distance. A 20-min time interval was used to best visualize the hyperbola pattern for ships with ship speed and CPA distances seen in this study. The ship noise spectrograms are useful due to the tendency of merchant ships to travel in straight paths at constant speed (i.e., uniform motion) and the availability of information regarding the geographical coordinates of ships, which are publicly available via the MarineTraffic Automatic Identification System (AIS) database.²⁶

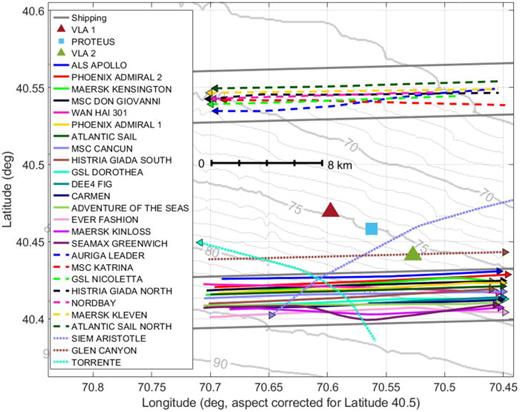

During its deployment, 184 ships passed within 15 km of PROTEUS. However, not all ships are clearly visible on the spectrograms of the processed data. Some ships were too far away or too quiet to produce an adequate signal-to-noise ratio (SNR) to determine the frequencies at which $β = ∞$⁠. For this analysis, 24 ships of interest were chosen with ship tracks that fall into three categories: northern lane, southern lane, and “other.” The average distances from ships in the southern lane to the three arrays VLA1, PROTEUS, and VLA2 are 5.9, 4.9, and 2.6 km, respectively. The average distances from the northern lane ships are 8.3, 9.6, and 11.4 km, listed in the same order. A map of the geographical area, shipping lanes, locations of the line arrays, and plots of the ship tracks is shown in Fig. 2. Of the 24 ships, only 3 ships deviated from the northern and southern shipping lanes and fell into the “other” track category. Some ships traveled through the area repeatedly during the deployment of the arrays. For the ships with multiple travel paths through the area, only those having an adequate SNR were included in this analysis.

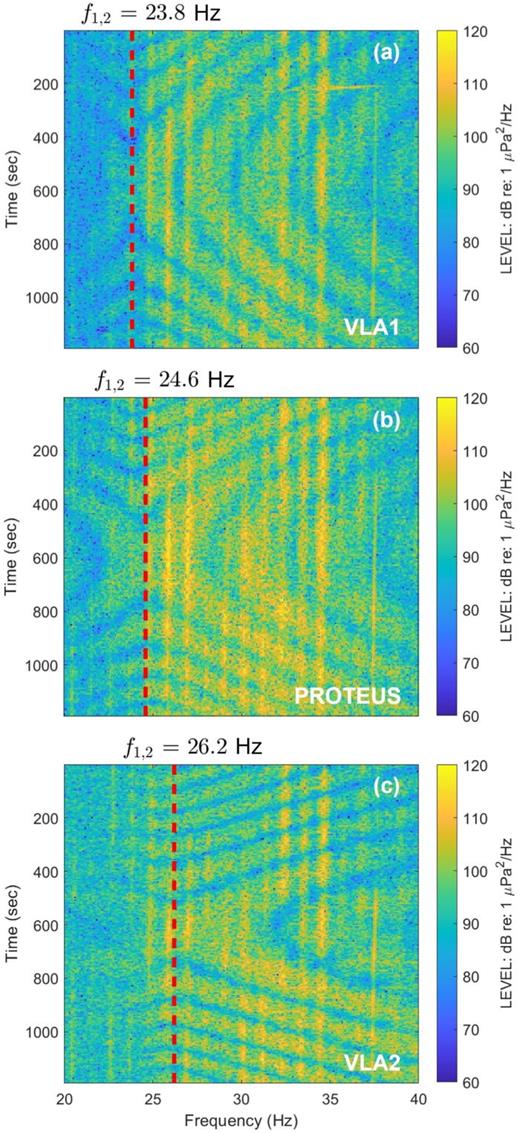

The 24 ship spectrograms from SBCEX 2022 were analyzed to find the frequencies at which $β = ∞$⁠. In the NEMP, these singular points occur in the 20–80 Hz band. A careful analysis of the singular points for each of the 24 ships of interest showed as many as three points for some ships. These singular points were associated with $β 1 , 2$⁠, $β 1 , 3$⁠, and $β 1 , 4$⁠, and the corresponding frequencies were defined as $f 1 , 2$⁠, $f 1 , 3$⁠, and $f 1 , 4$⁠. Though $β$ is independent of receiver depth, an examination of the spectrograms from every channel of the VLAs was necessary to observe all singular points. This level of analysis was required because at certain depths, some modes have nulls in the depth-dependent mode function and the singular point related to that mode was not evident.

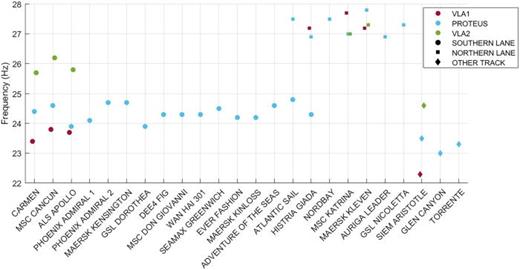

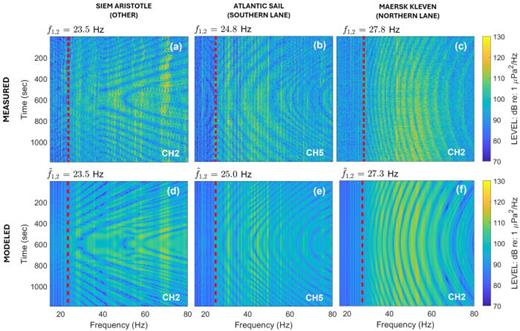

The $f 1 , 2$ values for each ship are shown in Fig. 3. The ships are ordered by their track category, sequentially with the southern track first, then the northern track, and finally the “other” track. Clear clusters separating the $f 1 , 2$ values of ships appear in Fig. 3, differentiating the southern tracks from the northern tracks. Additionally, in the southern shipping lane, three groupings of $f 1 , 2$ values exist corresponding to the three arrays. MSC Cancun, a container ship with a southern lane track, was detected by all three arrays; the $f 1 , 2$ values shift gradually between arrays, as shown in Fig. 4. The ships with “other” tracks also have their own cluster in Fig. 3, even though their tracks were all unique from each other.

The singular frequencies are sensitive to everything in the environment. However, the 2017 waveguide invariant study used pre-modeling to show that the singular frequencies are more sensitive to the characteristics of the deeper layers of the seabed.¹³ Additionally, a comparison of the $f 1 , 2$ values for ships on the southern track between 2017 and 2022 shows that the shift between years is minimal, despite the variation in the water column sound speeds as shown in Fig. 1.

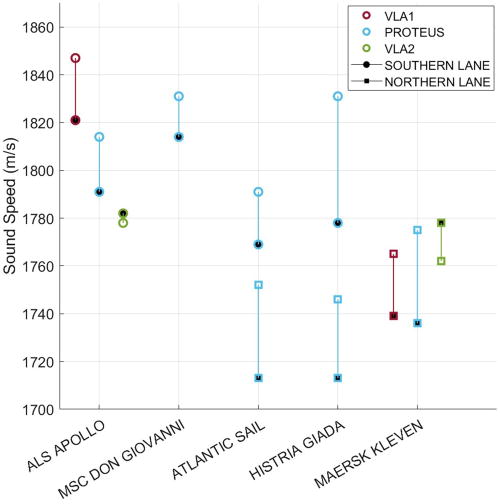

To quantify the closeness of the average $f 1 , 2$ values detected by VLA1 and VLA2 from 2017 to the different array groupings found in 2022, we calculated the centroids of the three array groupings for the three southern lane ships (Carmen, MSC Cancun, and ALS Apollo), as shown in Fig. 3. The centroids were then compared to the average $f 1 , 2$ values for southern ships from 2017 as detected by VLA1 and VLA2 from Ref. 13. For ships detected by VLA1 in 2017, the distances between the average $f 1 , 2$ value and the centroid of the 2022 groupings were $+ 0.9$ Hz for VLA1, $− 0.7$ Hz for PROTEUS, and $− 1.4$ Hz for VLA2. For VLA2, the distances between the average value for 2017 and the centroid for the three arrays from 2022 were $+ 2.1$ Hz for VLA1, $+ 0.5$ Hz for PROTEUS, and $− 0.2$ Hz for VLA2.

These differences reveal consistency between the 2017 and 2022 singular frequencies. For VLA2, the average of $f 1 , 2$ from 2017 is most closely clustered with the values from the same array location in 2022. For VLA1, the average of $f 1 , 2$ falls between the clusters found for data recorded from PROTEUS and VLA1. Due to lack of significant differences in the $f 1 , 2$ values between 2017 and 2022 for a single VLA, differences in the singular frequencies for ships with different tracks, as seen in this study, point towards heterogeneity in the deep sediment layers, rather than differences in the water column. Furthermore, these differences may reveal heterogeneity from north to south in the NEMP as well as east to west in the southern shipping lane.

The ocean environment is specified by the seabed and water column. For the inversion, most of the seabed parameters are held constant, as shown in Table II. Estimates for the properties of the top three sediment layers come from Belcourt et al.,²⁸ where a viscous grain shearing (VGS) model was used to infer the depth dependence of the geoacoustic properties with a transdimensional Bayesian approach. The thickness of the mud throughout the NEMP is variable; however, the values utilized for the top three layers match the sediment properties in the thickest part of the NEMP, where all three VLAs were located. Their findings of a transition layer between the mud and sand are consistent with both core samples from Twichell et al.⁴ and results from the sub-bottom layering measurements.⁵ The properties of these first three layers (mud, transition, and sand) were held fixed, as well as the properties of a final deep layer, deep layer 3 (DL3), and the basement. As the water column varied throughout the experiment and geographical area, as shown in Fig. 1, the sound speed profile that was closest in time and location to each ship was used in the inversion.

The thickness and sound speeds of deep layers 1 and 2 (DL1 and DL2, respectively) were sampled for 4000 Monte Carlo iterations. The numbers in brackets from Table II for these parameters indicate the upper and lower bounds. For each ship, the set of DL1 and DL2 sound speeds and thicknesses that returned the lowest cost function between the frequencies of the modeled and measured singular points are identified as the best-fit parameters.

The maximum entropy inversion of the 24 ships of interest resulted in estimates of the DL1 and DL2 sound speeds. Examples of the inference process are provided along with the estimates obtained using all 24 ships. Similar to the clusters observed in the $β 1 , 2$ frequencies of the 24 ships in Fig. 3, the sound speeds of DL1 in the NEMP also showed clusters based on location. These estimates are effective properties over the propagation path and, in this work, are associated with the coordinates of ships at their CPA to the VLAs. Plots of the estimated sound speeds versus geographical coordinate of each ship at CPA show heterogeneity of the deep layer.

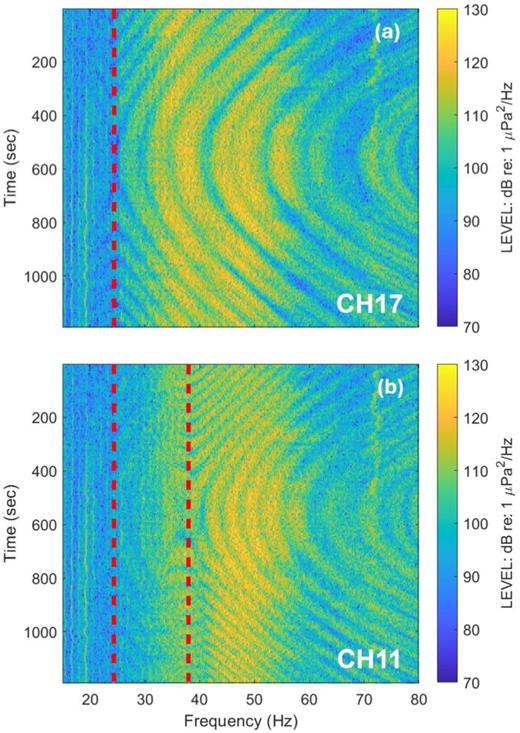

Container ship MSC Don Giovanni traveled through the southern shipping lane, with a CPA range of 4.12 km from the PROTEUS array. The measured spectrograms for MSC Don Giovanni are shown in Fig. 5. Two different channels were used to extract the $f 1 , 2$ and $f 1 , 3$ values from the measured data. In Fig. 5(a), the spectrogram from channel 17 (depth = 8.5 m) shows a clear “x” at the $β 1 , 2 = ∞$ point at 24.3 Hz. In contrast, as shown in Fig. 5(b), the spectrogram from channel 11 (depth = 26.5 m) exhibits the same pattern for both $β 1 , 2$ and also $β 1 , 3$ at 38.0 Hz.

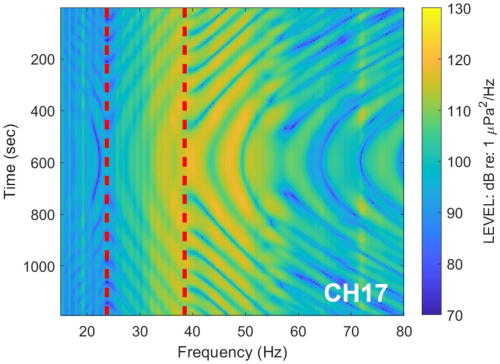

Using the singular frequencies, a feature-based inversion was performed. The resulting modeled spectrogram with the optimal seabed parameters from the statistical inference are shown in Fig. 6. Though the $f ̂ 1 , 2$ and $f ̂ 1 , 3$ values of 23.8 and 38.5 Hz, respectively, from the modeled spectrogram do not exactly match the $f 1 , 2$ and $f 1 , 3$ values (Fig. 5), they are similar, with a mean squared error of 0.284  $Hz 2$⁠.

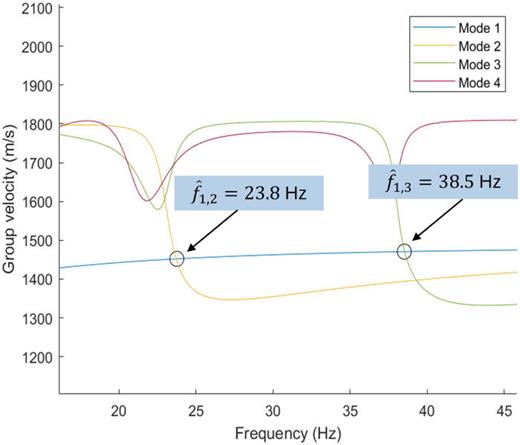

The modeled modal group velocities can be examined to determine the m and n values associated with the singular frequencies. A plot of the group velocities of the first four modes using the optimal seabed parameters with orca is shown in Fig. 7 and confirm that the frequencies where modes 1 and 2 and modes 1 and 3 cross approximately match the singular frequencies in the modeled spectrogram (Fig. 7).

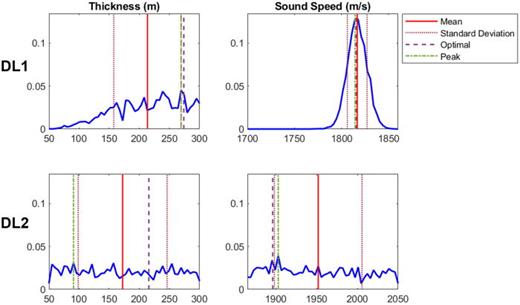

The maximum entropy inversion yields posterior probability distributions for the four inferred parameters. The marginal probability distributions for the four parameter values are shown in Fig. 8. The only parameter with an informative distribution is the sound speed of DL1. In this case, the optimal sound speed of 1815 m/s (which yields the lowest cost) and the sound speed from the peak of the marginal probability distribution of 1814 m/s are in good agreement. An informative distribution for DL1 sound speed was obtained for all ships, with only a few ships having informative distributions for other parameters. The probability distributions using data from the noise generated by MSC Don Giovanni, specifically, also suggest a limiting value of the thickness of DL1. Though the distribution does not have a peaked value, one can infer that the thickness is greater than 175 m based on the asymmetrical shape of the distribution.

The maximum entropy inference analysis, as described for the ship MSC Don Giovanni, was done for all 24 ships of interest. For each ship, the maximum entropy inversion yielded values for deep layer properties that minimized the cost between the $f m , n$ and $f ̂ m , n$⁠. A comparison of the measured and modeled spectrograms for three ships from the three different track categories is shown in Fig. 9. The dashed line indicates the singular points with the labeled $f 1 , 2$ or $f ̂ 1 , 2$ values. The deep layer properties were grouped into their track category and compared to the seabed parameter estimates from other travel categories. This was done to determine the extent of the spatial variability of DL1 and DL2.

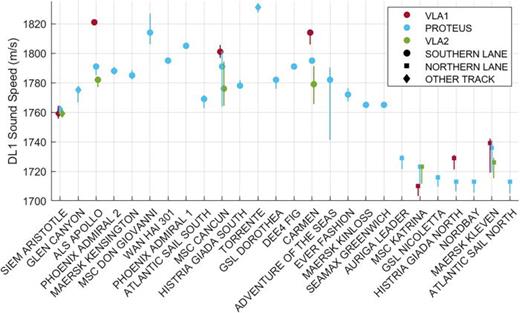

An analysis of DL1 sound speeds corroborates the initial hypothesis of heterogeneity in the seabed. The sound speed values associated with the peak in the marginal probability distributions for all ships are shown in Fig. 10, with error bars that indicate the standard deviation of the marginal probability distributions. The ships are ordered from the closest CPA to PROTEUS to farthest. Once again, a statistically distinguishable separation is apparent between the sound speeds inferred from ships with southern lane tracks and those with northern lane tracks. The range of estimated sound speeds for DL1 is 1710–1820 m/s.

As mentioned previously, the seabed parameters for the top three layers of the ocean environment were held fixed, at values associated with the location of the VLAs in the thickest part of the mud, for the maximum entropy process. Specifically, the mud thickness was fixed at 9.2 m and the water depth held at a fixed depth of 75 m. This approach is an approximation because the water depth varied from 65 to 70 m in the northern shipping lane and 77 to 84 m in the southern shipping lane. Additionally, the mud thickness varied across the sound propagation path from thicknesses of about 3 m in the northern shipping lane and to thicknesses of 4.5–7 m in the southern shipping lane. (These mud thicknesses were estimated from Fig. 2 in Wilson et al.¹¹)

Due to the heterogeneity of the top layers of the ocean sediment, a more complete study of the deep layers would require a range-dependent propagation model. As an approximation to bound the DL1 sound speed estimates, the maximum entropy analysis was applied twice on several select ships. First, estimates were made for the DL1 sound speed by using a water depth and mud thickness matching the receiver (VLA) environment, and then a second set of estimates was obtained using the water depth and mud thickness at the average acoustical source locations (i.e., ship CPA locations). A plot of the inferred DL1 sounds speeds associated with fixed seabeds from both the source and receiver locations of the five ships selected is shown in Fig. 11. A definitive shift in the sound speeds between the receiver environment and source environment is evident for all five cases. The direction of the shift is the same for all but one case. By bounding the problem in this way, one still observes that the DL1 sound speeds from southern lane ships are grouped at higher sound speeds than the northern lane ships. This supports the claim of deep layer heterogeneity in the NEMP.

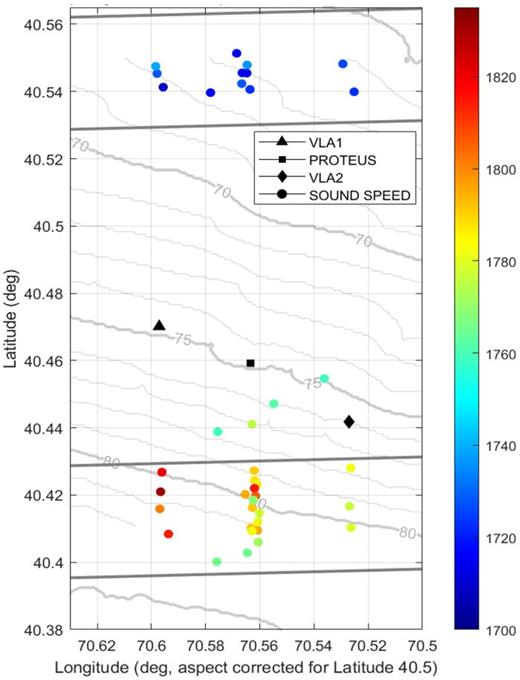

A plot of the sound speed on a map of the NEMP, as shown in Fig. 12, provides further insight into the nature of the heterogeneity of the deep layers. The DL1 sound speeds are the values obtained with the original maximum entropy inversion where a mud thickness of 9.2 m was assumed (Fig. 10). For a homogeneous horizontally stratified environment, one would expect the sound speed of the deep layer to be the same throughout the geographical area; however, this is not the case. Not only are the sediment sound speeds between the northern and southern areas of the NEMP distinguishable, but a gradual change is also observed in the sound speeds going from east to west in the southern shipping lane. Furthermore, the points above the southern shipping lane closest to the arrays show sounds speeds in between those found in the northern and southern parts, suggesting a gradual spatial shift in the sound speeds of DL1.

Singular points where the waveguide invariant goes to infinity (⁠ $β m , n → ∞$⁠) were observed in VLF spectrograms of merchant ships in the NEMP for data collected during SBCEX 2022. The singular points are associated with frequencies where pairs of modes have equal group velocities. These singular frequencies associated with 24 ships traveling in either the northern or southern shipping lanes or deviating from the lanes (“other” tracks) showed clusters that were statistically distinct. The signals were captured on three line arrays placed between shipping lanes, which also showed gradual shifts in the singular points along the southern shipping lane. The singular frequencies were used as features in a statistical inference methodology to estimate deep layer parameters of the seabed. A prior model was used where the top three layers of mud, the transition, and the sand were assumed fixed, as in the 2017 waveguide invariant study.¹⁴

Results from the maximum entropy inversion indicated that the only informative marginal probability distribution obtained from the singular points was for the sound speed of the first deep layer. The sound speeds of the deep layer ranged between 1710 m/s and 1820 m/s. Sound speeds from the northern shipping lane were lower than those in the southern shipping lane, and there was a gradual shift in the sound speeds from east to west in the southern shipping lane. Because the estimates obtained using sound propagation from the southern and northern tracks are statistically distinguishable, there is enough resolution to infer heterogeneity in the seabed. These results have possible implications for future work using merchant ship noise as a tool to estimate spatial variability of deep sediment layers that would traditionally require extensive geological surveys and/or large-scale seismic studies.
