Since the Morfey-Howell Q/S was introduced as a single-point frequency-domain nonlinearity indicator for propagation of intense broadband noise [AIAA J. 19, 986–992 (1981)], there has been debate about its validity, utility, and interpretation. In this Letter, the generalized Burgers equation is recast in terms of specific acoustic impedance along with linear absorption and dispersion coefficients, normalized quadspectral density (Q/S), and newly proposed normalized cospectral density (C/S). The formulation leads to a rather straightforward interpretation in which Q/S and C/S, respectively, represent the additional absorption and dispersion at a locale, produced by the passage of a finite-amplitude wave.

A nonlinearity indicator is a measure by which the strength of nonlinearity in a wave process is quantified. Examples of nonlinearity indicators include the Gol'dberg number,1–4 the average steepening factor,5,6 the derivative skewness,7 the bispectrum,8 and the Morfey-Howell Q/S.9 Nonlinearity indicators have been widely used to identify cumulative finite-amplitude propagation effects in jet10–13 and rocket14–16 noise analysis. However, the use of these indicators has often been qualitative, which has sometimes resulted in debate regarding their validity, utility, and interpretation.11,17

To improve physical understanding and interpretation, Reichman et al.18 reformulated the Q/S spectrum by expressing the frequency-domain Burgers equation in terms of the change in sound level with respect to range. In this context, the Q/S spectrum at a given location in the sound field is interpreted as the local spatial rate of change in level of a spectral component due to nonlinearity. In addition to absorptive and geometric spreading losses, a spectral component can experience extra loss (or gain) in level through the nonlinear energy exchange with other spectral components, the extent of which is quantified by Q/S.

In this Letter, we provide an alternative, but equally intuitive interpretation of Q/S based on the familiar concept of specific acoustic impedance. Both the prior level and the current impedance-based formulations of this indicator demonstrate that its interpretation is rather straightforward, and thus they would serve to promote the wider use of Q/S in nonlinear acoustics pedagogy and systems analysis.

The formulation here follows from recognizing that (a) for a progressive sound wave, impedance encapsulates how the waveform is modified locally via changes in amplitude (absorption) and phase (dispersion) of its Fourier components, and hence (b) nonlinearity, being one of waveform distortion mechanisms, could be cast within the framework of impedance, specifically in the form of effective absorption and dispersion.

We start with the generalized Burgers equation for plane progressive waves,19

px+Lτ(p)=β2ρ0c03p2τ,
(1)

where p is the acoustic pressure, x is the propagation distance, τ is the retarded time, ρ0 is the density, c0 is the small-signal sound speed, β is the coefficient of nonlinearity, and Lτ(p) is a linear, retarded time operator that describes the absorption and dispersion properties of the medium. The corresponding spectral version of Eq. (1) is

p̃x+Lω(p̃)=jkβ2ρ0c02q̃,
(2)

where p̃ and q̃ are the Fourier transforms of the acoustic pressure and the squared acoustic pressure, respectively, ω is the angular frequency, and k=ω/c0 is the wave number. Here, the Fourier equivalent of the absorption/dispersion operator can be written as

Lω(p̃)=(α+jδ)p̃,
(3)

where α and δ are frequency-dependent absorption and dispersion coefficients, respectively. The generalized spectral Burgers equation then becomes

p̃x=(α+jδ)p̃+jkβ2ρ0c02q̃.
(4)

Within the second-order approximation theory,20,21 absorption and dispersion are assumed weak on the scale of wavelength such that α/kO(ε̃) and δ/kO(ε̃), where ε̃ is a small, generic ordering parameter. Given p̃O(ε̃), the absorption/dispersion term (α+jδ)p̃ is O(ε̃2). Equation (4) is thus a consistent O(ε̃2) wave equation, in which all the terms, including p̃/x, are O(ε̃2) small. This O(ε̃2) consistency ought to be maintained while manipulating Eq. (4).

Recasting the generalized spectral Burgers equation [Eq. (4)] in terms of specific acoustic impedance

Z=p̃ũ
(5)

requires the spectral version of the momentum equation that connects the pressure gradient p̃/x and the particle velocity ũ. We begin with the following one-dimensional momentum equation for Newtonian fluids in nonretarded time t, which is exact up to O(ε̃2),20

ρ0ut+px=(μB+43μ)2ux2Lx,
(6)

where u is the particle velocity, μB is the bulk viscosity, μ is the shear viscosity, and L=12ρ0u2p2/2ρ0c02 is the Lagrangian density. To rewrite Eq. (6) in retarded time τ for plane progressive waves [for which L=0 at O(ε̃2) upon substitution of the O(ε̃) relation p=ρ0c0u+O(ε̃2)], consider the coordinate transformation22

x1=ε̃x,τ=tx/c0,
(7)

where x1 is the slow scale corresponding to the retarded time frame τ. Partial derivatives in the transformed coordinates (x1,τ) are then

t=τ,x=ε̃x11c0τ,2x2=ε̃22x12ε̃2c02x1τ+1c022τ2.
(8)

Substituting Eq. (8) into Eq. (6) and retaining terms up to O(ε̃2) yields

ε̃px1=1c0pτρ0uτ+(μB+43μ)1c022uτ2.
(9)

By replacing ε̃(p/x1) in Eq. (9) with p/x,22 the momentum equation in retarded time τ is obtained,

px=1c0pτρ0uτ+(μB+43μ)1c022uτ2.
(10)

Equation (10) is a consistent O(ε̃2) momentum equation for plane progressive waves, in which p/xO(ε̃2), (c0−1(p/τ)ρ0(u/τ))O(ε̃2), and (μB+43μ)c0−2(2u/τ2)O(ε̃2), respectively. [To see this, consider that p=ρ0c0u+O(ε̃2) for plane progressive waves, and coefficients μB and μ are assumed O(ε̃).] The Fourier transform of Eq. (10) gives the spectral version of the momentum equation

p̃x=jkp̃jωρ0ũ(μB+43μ)k2ũ.
(11)

Manipulation of Eq. (11) leads to an expression containing the dimensionless impedance Z¯=Z/ρ0c0:

p̃x=jkp̃{1jωρ0ũjkp̃(μB+43μ)k2ũjkp̃}=jkp̃{1ρ0c0p̃/ũ+j(μB+43μ)kρ0c0ρ0c0p̃/ũ}=jkp̃{1(1j2αvk)1Z¯},
(12)

where αv=(μB+43μ)k2/2ρ0c0 is the absorption coefficient due to viscosity.23 Furthermore, the term within the braces in Eq. (12) can be expressed as, via binomial expansion in ΔZ¯=Z¯1,

1(1j2αvk)1Z¯=1(1j2αvk)(1+ΔZ¯)1=1(1j2αvk){1ΔZ¯+O(ε̃2)}=ΔZ¯+j2αvk+O(ε̃2).
(13)

Here, expansion to leading order would suffice, because terms of O(ε̃2) in Eq. (13) produce O(ε̃3) terms upon substitution to Eq. (12). Therefore, the final form of the spectral momentum equation at O(ε̃2) is given by

p̃x=jkp̃(Z¯1+j2αvk).
(14)

Now substitute Eq. (14) into the generalized spectral Burgers equation [Eq. (4)] to obtain

jkp̃(Z¯1+j2αvk)=(α+jδ)p̃+jkβ2ρ0c02q̃.
(15)

Multiplying Eq. (15) by p̃* (the complex conjugate of p̃) gives

|p̃|2(Z¯1+j2αvk)=jαk|p̃|2δk|p̃|2+β2ρ0c02p̃*q̃.
(16)

Ensemble-averaging Eq. (16) leads to

Spp(Z¯1+j2αvk)=jαkSppδkSpp+β2ρ0c02(jQpp2+Cpp2),
(17)

where Spp=E[|p̃|2], Qpp2=Im(E[p̃*q̃]), and Cpp2=Re(E[p̃*q̃]) are referred to as the autospectral density (or power spectral density), quadspectral density, and cospectral density, respectively,24 and the symbol E[] denotes ensemble averaging. Finally, dividing Eq. (17) by Spp and rearranging terms yield the desired impedance form of the generalized Burgers equation

(Z¯1)=j(α2αv)kδk+β2ρ0c02(jQpp2Spp+Cpp2Spp).
(18)

A few observations about Eq. (18) are noteworthy at this juncture. First, Eq. (18) is a consistent O(ε̃) equivalent to the O(ε̃)2, generalized Burgers equation [Eq. (4)]. The reduction in order [O(ε̃)2O(ε̃)] is simply brought by the successive multiplication and division by p̃* and Spp, respectively. Second, for a typical medium in which more than one loss mechanism is present, viscous absorption αv is much smaller than absorption due to other accompanying loss mechanisms such as molecular relaxation, at relatively low frequencies.23,25 Because αv makes up only a small fraction of the total absorption α, it can be ignored (i.e., α2αvα) in Eq. (18) for a wide frequency range of practical interest. Splitting Eq. (18) into the imaginary and real parts (with αv ignored) gives

Im(Z¯)=αk+12βεQS
(19)

and

Re(Z¯)1=δk+12βεCS,
(20)

where ε=pc/ρ0c02O(ε̃) is the acoustic Mach number based on the characteristic amplitude pc of the pressure-time waveform. The two dimensionless O(1) quantities Q/S and C/S are defined by

QS=Qpp2Spppc,CS=Cpp2Spppc.
(21)

The choice of pc depends on the type of waveform. For a transient pulse, the peak pressure amplitude is a convenient choice, whereas the root-mean-square pressure prms may be more appropriate for continuous random noise. With pc=prms, the Q/S in Eq. (21) reduces to the Morfey-Howell Q/S.9

For plane progressive waves in linear acoustics, the specific acoustic impedance [Eq. (5)] can be construed as a medium property that a wave sees at any given point. For instance, a wave propagating in an ideal, lossless medium would see the specific acoustic impedance given by the characteristic impedance ρ0c0 (or unity in dimensionless impedance),

Im(Z¯)=0,Re(Z¯)1=0.
(22)

Any deviation of the dimensionless impedance from unity then signifies the presence of loss mechanisms such as absorption and dispersion. If the medium is lossy, a progressive wave sees the dimensionless impedance different from unity by the amount commensurate with the strength of linear absorption and dispersion. This is immediately apparent from Eqs. (19) and (20) without the Q/S and C/S terms,

Im(Z¯)=αk,Re(Z¯)1=δk.
(23)

Note that absorption (α/k) is associated with the imaginary part of impedance [Im(Z¯)], which represents the overall spatial rate of change in power spectral density, or

Im(Z¯)=12SppdSppd(kx).
(24)

[Equation (24) is obtained by combining p̃*dp̃/d(kx)+c.c.=d(p̃p̃*)/d(kx)=dSpp/d(kx) and Eq. (14) with the αv term ignored, where the symbol c.c. stands for complex conjugate.] Dispersion (δ/k) is then related to the real part of impedance [Re(Z¯)1], which denotes the overall spatial rate of change in phase, or

Re(Z¯)1=dϕd(kx),
(25)

where ϕ is defined by p̃=|p̃|ejϕ with respect to dimensionless retarded time ωτ. [To arrive at Eq. (25) combine p̃*dp̃/d(kx)c.c.=2j|p̃|d2ϕ/d(kx) with Eq. (14).]

Now what if the finite-amplitude effects are taken into account? The significance of Eqs. (19) and (20) is that they provide a framework within which the quantities Q/S and C/S can be interpreted as the additional change in impedance due to nonlinearity. It follows from Eqs. (19) and (20) that Q/S and C/S represent the parametrically induced change in impedance in the form of additional absorption and dispersion. Here, the passage of a finite-amplitude wave alters the apparent medium property (i.e., absorption and dispersion), the extent of which can be used to quantify the strength of nonlinearity.

A caveat: in light of Eqs. (19)–(21), one must exercise caution when using Q/S and C/S to judge “nonlinearity” of a wave. The way in which Q/S and C/S are defined [i.e., they are nondimensionalized by the characteristic amplitude pc in Eq. (21)] renders these nonlinearity indicators dependent on the “shape” of the wave only. For example, two waves with the same waveform but at different levels, say 40 dB and 120 dB, would be equally nonlinear under Q/S and C/S. Nonlinearity due to the “size” of the wave is instead reflected by the acoustic Mach number ε as shown in Eqs. (19) and (20), the values of which for the two waves are many orders of magnitude different from each other, and so are their contributions to the parametrically induced change in impedance. Ultimately, Q/S and C/S are statements about the temporal shape of the wave, in which some waveforms, regardless of the amplitude, are more nonlinear than others.

Finally, a companion nonlinearity indicator C/S is introduced for the first time. Examination of Eqs. (19) and (20) indicates that Q/S and C/S are complementary (i.e., C/S is to dispersion as Q/S is to absorption), and together, they constitute a complete set of nonlinearity indicators for finite-amplitude waves in fluids with general absorption and dispersion laws. Note that only absorption is considered in the original derivation of the Morfey-Howell Q/S.9

For dispersion-dominant systems, it is recommended that C/S be used in place of Q/S as a nonlinearity indicator. For example, consider a wave system governed by the Korteweg-de Vries (KdV) equation26

px=d3pτ3+β2ρ0c03p2τ,
(26)

where d is the dispersion parameter. In Eq. (26) absorption is assumed to be zero (α=0), and dispersion exhibits a cubic dependence on frequency (δω3). Wave systems with KdV-type dispersion include incompressible waves on the liquid surface26 and sounds in bubbly liquids.27,28 To demonstrate a potential problem with Q/S and the utility of C/S in a dispersion-dominant system, we consider the bubbly liquid of Kuznetsov et al.28 with parameters ρ0=1167kg/m3, c0=107m/s, d=2.5×1011s3/m, and β=111. When applied to a soliton solution [Fig. 1(a)] for which there is no change in power spectrum [Im(Z¯)=0; recall Eq. (24)], Q/S ought to be identically zero [dashed line in Fig. 1(b)] in the absence of linear absorption (α/k=0), according to Eq. (19). It would nonetheless be wrong to suggest from Q/S=0 that there is no nonlinearity. The corresponding C/S, which is a quadratic function of frequency [solid line in Fig. 1(b)], can indeed capture the interplay between nonlinearity and dispersion through Eq. (20), where nonlinearity (C/Sω2) offsets the innate dispersion of the medium (δ/kω2) to result in a wave of permanent form traveling at a constant speed [Re(Z¯)1=constant; see Eq. (25)].

Fig. 1.

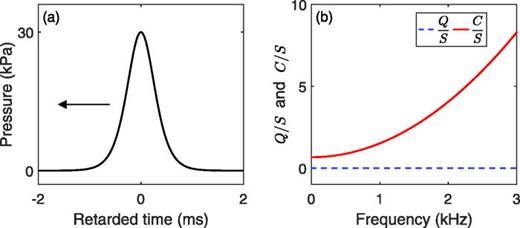

(Color online) Utility of nonlinearity indicator C/S: (a) the waveform of a soliton solution to the KdV system of Ref. 28, plotted in retarded time, and (b) the corresponding Q/S and C/S computed using Eq. (21) without ensemble averaging. Note that the soliton in (a) translates to the left in retarded time with slowness dτ/dx=7.77×104s/m (equivalent to propagation speed of 116 m/s).

Fig. 1.

(Color online) Utility of nonlinearity indicator C/S: (a) the waveform of a soliton solution to the KdV system of Ref. 28, plotted in retarded time, and (b) the corresponding Q/S and C/S computed using Eq. (21) without ensemble averaging. Note that the soliton in (a) translates to the left in retarded time with slowness dτ/dx=7.77×104s/m (equivalent to propagation speed of 116 m/s).

Close modal

In an attempt to further demystify the Morfey-Howell nonlinearity indicator Q/S, the generalized spectral Burgers equation is recast in terms of specific acoustic impedance, which is comprised of the normalized quadspectral and cospectral densities Q/S and C/S in addition to linear absorption and dispersion coefficients. This allows an impedance-based interpretation in which Q/S and C/S signify nonlinearity-induced absorption and dispersion, respectively.

“Blessed be Fourier,”29 for an arbitrary wave can be represented as a sum of sinusoidal waves. Then there are in effect only two ways to modify a wave at any given location: via changes in amplitude (absorption) and phase (dispersion) of each sinusoidal component. Therefore, any complex wave process, be it finite-amplitude wave motion, refraction, or diffraction, could simply be couched in extra absorption and/or dispersion, adding to the inherent medium property.

W.-S.O. gratefully acknowledges the generous support from the Department of Physics and Astronomy, Brigham Young University. The authors thank Brent O. Reichman for helpful discussions.
