Bayesian coherent and incoherent matched-field localization and detection in the ocean Free

Matched-field processing (MFP)^1–13 has been used extensively for source localization in the ocean. It is based on full-field calculations on a set of spatially separated receivers (replicas) for multiple candidate values of the unknown source location parameters and their comparison through a measure of correlation to real pressure fields received at the same phones. The simplest MFP scheme is the Bartlett or linear processor that evaluates squared moduli of inner products between normalized replica fields and acoustic data. The processor computes an ambiguity surface with the obtained values vs range and depth. The Bartlett MFP estimates are equivalent to Maximum Likelihood (ML) estimates in a Gaussian noise environment.¹⁴

In source localization and detection problems, sound is typically measured at a number of frequencies. One of the important aspects is how to combine this broadband information for optimum extraction of information. In realistic cases the source spectrum is unknown. Using the approach of Ref. 14, a broadband (multi-tonal in our case) Bartlett MFP approach multiplies narrowband ambiguity surfaces. This process is termed incoherent MFP. Coherent processing has been proposed,^6,7,15–21 taking into account coherence among the acoustic fields at different frequencies. Coherent MFP often provides better estimates than incoherent processing; however, this largely depends on whether source information (amplitude and phase) is available. In our work, we treat the source spectrum as an unknown; we estimate it in addition to the source range and depth and noise variance and we compare broadband coherent and incoherent processors using this approach [in Ref. 22 it was shown that narrowband processing with the source spectrum probability density function (PDF) estimation is superior to an estimation where an ML estimate for the source spectrum is used¹⁴]. The relative performance of the two processors is a focal point of this work. Estimating PDFs of the field spectrum (that includes phase) at particular frequencies, a task we undertake here, is a novel element that can facilitate deconvolution for source identification with uncertainty quantification.

In essence the two processors are Bayesian estimators that provide estimates of source location, source spectrum, and noise variance by maximizing posterior PDFs (the first implementation of Bayesian MFP was presented in Ref. 4 with a broadband extension derived in Ref. 23; more Bayesian localization work was shown in Refs. 24 and 25). The implementation in our work is done using Gibbs Sampling. Sequences of samples drawn from conditional PDFs provide the joint PDF of all unknowns and marginal PDFs for all parameters separately.^22,26

Although MFP has been widely applied to the problem of source localization, it has hardly been employed in the problem of signal detection, with some results presented in Ref. 27; coherent MFP has not been evaluated in detection at all. It is an important task, however, to establish whether a sound source is present while also localizing it, and matched-field methods can prove useful in this. In addition to source localization, an additional contribution of this work is detection with the two new processors and then joint detection and localization. We compare the two processors using Receiver Operating Characteristic (ROC) and Localization Receiver Operating Characteristic (LROC) curves and we show that the new coherent processor performs better than the incoherent processor by a substantial amount for the case of four frequencies (the improvement in performance is present but not so pronounced for the case of two frequencies).

The paper is organized as follows: Section II presents a brief summary of narrowband matched field processing and how it is implemented in Ref. 22. Section III develops Bayesian broadband incoherent and coherent processors using Gibbs Sampling, extending the method of Sec. II. Section IV presents localization results with synthetic data and Sec. V presents results from real data. Section VI discusses coherent and incoherent detection and Sec. VII presents joint detection and localization results for the coherent and incoherent processors. Conclusions are presented in Sec. VIII.

Let a sound source transmit a signal at frequency f that is received at L vertically separated hydrophones. The L-dimensional complex received signal $X$ can be written as

where $G=[G1 G2…GL]T$ is the solution of the Helmholtz equation, called the replica vector, μ is the source spectrum, and $W=[W1 W2…WL]T$ is zero-mean spatially complex white Gaussian noise with covariance matrix Σ for both real and imaginary parts, where $Σ=σ2IL×L$⁠. The remaining parameters are source range r, source depth z_s, and the vector of hydrophone depths $zr=[zr1 zr2…zrL]T$⁠. We assume here that the propagation medium and the phone depths are known exactly. We consider a single vector observation $X$⁠.

The assumption is that we have spatially independent white Gaussian noise; this is because we are considering only sensor noise. This is an approximation as there are other noise sources such as the sea surface, shipping, and biological sounds. A combination of noise factors and the spacing between sensors could cause a colored noise environment. In such a case, the data could be pre-whitened through multiplication by a matrix containing noise covariance structure if some prior information is available²⁷ or a non-diagonal matrix Σ could be employed in the modeling of the additive noise.

For source localization, the linear-Bartlett MFP approach³ relies on the calculation of ambiguity surface $P(r,zs)$ for range r and source depth z_s values on a grid, where

“*” stands for conjugate transpose. For simplicity, we omit the arguments r and z_s of $G$⁠. Maximizing P provides the estimates for range and depth. This is also derived in Ref. 14. Spectrum μ and variance $σ2$ do not appear in Eq. (2). The equation is obtained by using Maximum Likelihood estimates (MLEs) computed through the following Gaussian density:

where $p(X|r,zs,μ,σ2)$ is the likelihood of the unknown parameters.

It was shown in Ref. 22 that better localization results are obtained from the posterior PDF calculated using a Bayesian process,

where $p(X)$ is a constant with respect to the unknown parameters. We integrate over μ and $σ2$⁠, rather than using MLEs, before estimating r and z_s; p(r), p(z), $p(μ)$⁠, and $p(σ2)$ are prior distributions on range, source depth, source spectrum, and variance, respectively. Range is sought in interval $[r1, r2]$ and source depth is sought in interval $[zs1, zs2]$⁠. Here

That is, priors for r, z_s, μ, and $log σ$ (⁠$σ>0$⁠) are considered uniform.

Combining the likelihood and priors using Bayes' theorem we get,

where K is a constant. To obtain the posterior PDF for r and z_s, we integrate $p(r,zs,μ,σ2|X)$ over μ and $σ2$⁠,

Maximizing the density of Eq. (10) provides the Maximum a Posteriori (MAP) estimates for range and depth.

To compute $p(r,zs,μ,σ2|X)$ in Ref. 22 we used a Gibbs Sampler.

To implement the sampler, we identified the conditional densities of each parameter on all others. For the source spectrum μ we fix parameters r, z_s, and $σ2$ in Eq. (9) and we obtain

where $Cμ$ is a constant. This is recognized as a Gaussian distribution with a mean equal to $G*X/‖G‖2$ and variance $2σ2/‖G‖2$⁠.

Fixing r, z_s, and μ we get an inverse $χ2$ distribution for $σ2$⁠:

If the noise is colored, covariance matrix Σ is not diagonal as previously mentioned and off-diagonal elements will be estimated as well with the sampler.

We cannot obtain analytically the density $p(r,zs|μ,σ2,X)$⁠, thus we calculate it on a grid. The density that is evaluated on the grid is

where K is a constant.

The process is iterative. We start with initial values for μ and $σ2$ and then sample from $p(r,zs)$ to obtain values for r and z_s. We continue by using these new values of r and z_s and the initial value for $σ2$ and drawing a sample for μ from the density of Eq. (11). Using this value of μ we then draw a sample for $σ2$ from the density of Eq. (12). After repeating the process for many iterations and omitting results from the initial “burn-in” iterations, the obtained sample of values converges to the joint density of Eq. (9). Samples for individual parameters provide estimates for the marginal densities. Modes of those provide the MAP estimates of the unknown parameters, including source range and depth.

Sound data are typically available at a number of frequencies and there has been much discussion as to how MFP should be implemented for broadband (multi-tonal) data, when the source spectrum is unknown. Assume that we have transmission in two frequencies,

where i = 1, 2. Noise W_i is distributed similarly to $W$⁠. The noise variance is assumed to be the same for both frequencies.

In Ref. 14 the ambiguity surface for broadband sound is derived as

P_B stands for broadband ambiguity surface. Derivation of this P_B is based on using ML estimates for source spectra and variance as before.

We can extend the method described in Sec. II to the two-frequency case. Then

In our work we implement MFP using the density of Eq. (16) and estimating μ₁, μ₂, and $σ2$ along with r and z_s. This estimation process is done using the Gibbs Sampler described above after the derivation of the conditional densities. The conditional densities are the same as before with the conditionals for μ_i being Gaussian with mean equal to $Gi*Xi/‖Gi‖2$ and variance $2σ2/‖Gi‖2$⁠.

The conditional density for $σ2$ is

The process is straightforwardly extended to N frequencies where the exponent of variance changes appropriately and we have N terms in the summation within the exponential.

We term this approach incoherent MFP, because it does not take into account coherence among frequencies.

In Ref. 16 coherent MFP was implemented. In addition to spatial coherence across phones, it considered field coherence across frequencies. Toward that goal supervectors were generated for both data and replicas.

We consider source localization for N frequencies with received data $X1,…,XN$⁠. Then the data supervector $Y$ is the vertically stacked collection

The replica super vector is

Conventional MFP using these vectors relies on calculating the following ambiguity surface:

When the source spectrum is known, the processor is superior to the one of Eq. (15).⁷

In a realistic case and passive sonar processing, the spectrum is typically unknown and the lack of knowledge of relative phases of the frequency domain data X_i presents a difficulty. Namely, if the data vectors (and corresponding replica vectors) are not adjusted for phase, data and replicas will not match. To circumvent this problem, in Ref. 16 all data and replica vectors within the supervectors are modified so that the phase at the first phone for each frequency is zero and the norm of each subvector is one. The subtraction of the phase at the first phones removes the unknown phase of the source and the normalization removes the impact of the unknown amplitudes. We call the new scaled supervectors $Z′$ and $Y′$ and the new ambiguity surface becomes

This processor was shown in Ref. 17 to be superior to the incoherent processor of Eq. (15). However, it is susceptible to a poor Signal-to-Noise Ratio (SNR) at the first phone, which is used for the phase removal. To bypass this problem, it was proposed in Ref. 19 to estimate the source spectrum phases instead of subtracting the phase at the first phone from receptions at all other phones with good results.

In a similar way we implement here a coherent processor using full PDFs as in Secs. II and III. We again assume for simplicity just two frequencies, N = 2, and we form supervectors $Y$ and $U$⁠, where

The dimension of $Y$ and $U$ is 2L. Then

where $V$ is distributed as $W$ but the covariance matrix now has a dimension of $2L×2L$⁠. The joint density of all unknowns is

The conditional density for μ_i, i = 1, 2, is

where G_i and X_i are the original replica and data vectors for the ith frequency.

The conditional density for $σ2$ is

The joint density that we estimate with the Gibbs Sampler is

where K_C is a constant.

The method can be extended to N frequencies in a straightforward manner.

As stated previously, the issue of source phase is of great importance in the coherent processor implementation. Phases are considered as unknowns in the Gibbs Sampling process through the consideration of the complex spectra as unknown parameters. At the end of the sampling process, we obtain a joint PDF of all unknowns including range, depth, spectra, and variance [Eq. (28)]. Samples for just the spectra provide marginal PDFs for those, and, as a consequence, marginal PDFs of the phases. Samples for just range and depth form a two-dimensional PDF after integrating over the spectra and variance. Thus, estimated PDFs for range and depth (the new “ambiguity” surfaces) are the results of integration over all possible phase values.

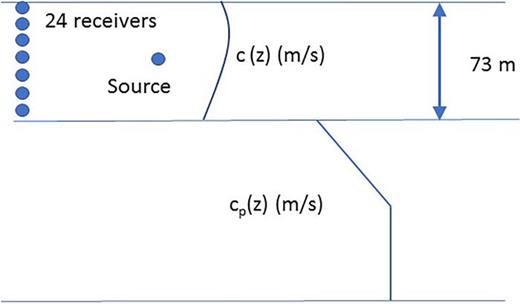

We consider the shallow water environment of Refs. 16 and 28 shown in Fig. 1. This is the environment of the Hudson Canyon Experiment, which was conducted off the coast of New Jersey in an area with relatively flat bathymetry. For the simulations, the true source location was at 2 km in range and 36 m in depth. There were 24 receiving phones with 2.5 m spacing. We generated 2000 realizations of signal plus noise for two frequencies: 175 and 375 Hz. We ran the Gibbs Sampler for 2000 iterations for all realizations; to confirm convergence we monitored the modes of the posterior PDFs. We removed the results of the first 500 iterations, considering them burn-in samples. We then estimated source location coordinates for each realization by maximizing the marginal PDFs for range and depth. The probability of correct localization (PCL) was computed by counting how many times the processors estimated the correct location within 200 m in range and 4 m in source depth, that is, within 10% of the true location. The results for eight SNRs are shown in Table I and Fig. 2. As a benchmark we also compute results for conventional MFPs, where ambiguity surfaces are computed for each frequency and are multiplied to provide a broadband surface [Eq. (15)]. The superiority of the coherent processor is evident. The new incoherent processor and the conventional processor have very similar performances. The developed incoherent processor offers a small advantage for SNRs up to 14 dB. Interestingly the conventional processor outperforms the new incoherent processor for 15 dB. Beyond that SNR, all probabilities are very close to 1.

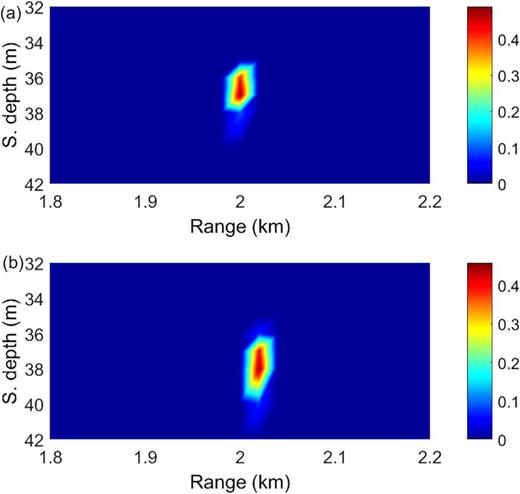

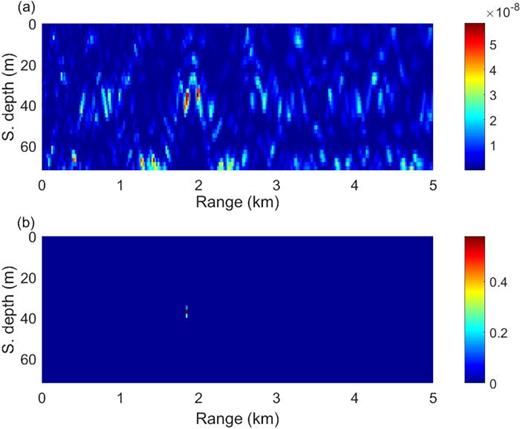

In Fig. 3 we show PDFs of source range and depth for a SNR of 14 dB for one realization. Both approaches estimate the source location correctly. However, the spread of the PDF for the coherent processor is smaller than the one for the incoherent processor. That shows that there is a reduced variance in the coherent estimation.

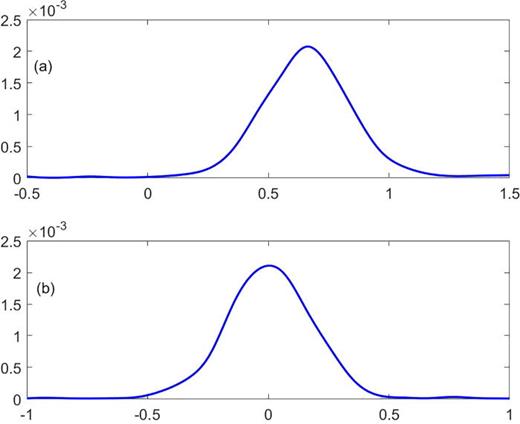

Figure 4 illustrates the phase PDFs for a frequency of 175 Hz for two cases with a difference phase in the source spectrum. The correct phase for the first case is 0.75 radians; for the second one it is 0. The PDF shown in Fig. 4(a) has significant probability density around 0.75 and is peaked at 0.7 (a small bias exists between the MAP estimate and the true value). For the second case [Fig. 4(b)], the PDF mode is at 0, the true value.

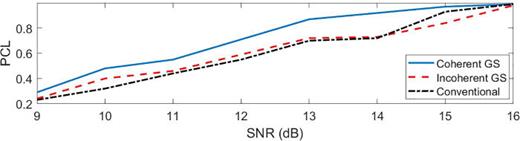

Source localization was also performed with conventional incoherent MFPs as mentioned above. The PCL for 10 dB was 0.32 in contrast to the 0.40 rate for the new incoherent processor and 0.48 for the new coherent processor. Figure 5(a) shows an ambiguity surface for the conventional processor, where the location estimate is highly ambiguous with the surface exhibiting multiple sidelobes. Figure 5(b) illustrates the PDF for range and depth for the same realization obtained via the Gibbs Sampler for incoherent estimation. There is a unique mode at the correct location.

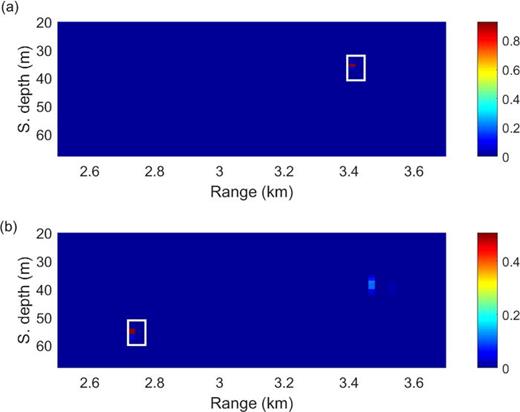

Source localization was also performed with real data collected during the Hudson Canyon Experiment. Data were collected at two sets of frequencies, 50, 175, 375, and 425 Hz and 75, 275, 525, and 600 Hz. Ten snapshots per source location were recorded at 20 locations. Because of a high SNR and accurate knowledge of the propagation medium, all processors [with the exception of the incoherent Minimum Variance Distortionless Response (MVDR)]¹⁶ successfully estimated the source 18 times out of 20. However, it is interesting to observe the difference between the new coherent processor and the incoherent processor when using a single data snapshot, in which case the SNR is significantly lower. For the data that we consider here, the correct source range was 3.48 km and the depth was 36 m and the data were collected at 50, 175, 375, and 425 Hz. Figure 6 shows the surfaces for the coherent and incoherent processors. The coherent processor calculates a PDF with a mode and 3.42 km in range and 36 m in depth, very close to the true values. The incoherent mode is at a source range and depth of 2.75 km and 55 m, respectively. The incoherent PDF has a secondary mode at the correct location but the density there is smaller than the one around the main mode. The results indicate the superiority of the coherent processor.

In Sec. III, we discussed how we can localize a broadband source including source spectrum and noise variance in the estimation process. In addition to localization, we are also interested in detecting the sound-emitting source. We consider two hypotheses: H₁ when a signal is present and H₀ when there is no signal. We will evaluate the above processors by calculating probabilities of detection and probabilities of false alarm and plotting ROC curves. Combining detection and localization, we will continue our comparison using Localization-ROC (LROC) curves.

When a signal is present, we have

When there is no signal,

The most commonly used detector is the likelihood ratio detector. For narrowband data, we formulate the likelihood ratio using the likelihood function of Eq. (3),

where $μ̂$ and $σ̂2$ are ML estimates of source spectrum and variance, respectively. For multiple frequencies, in the presence of signals we have

and for noise only

here i = 1, 2.

For the incoherent processor

Equivalently we can select sufficient statistic $λI′$ where

We compare $λI′$ to a threshold β: when $λI′$ is larger than β we conclude that hypothesis H₁ is true: a signal is present. Otherwise it is concluded that H₀ is true, that is, we receive only noise.

For the coherent processor for hypothesis H₁ we have

and for H₀

For coherent likelihood-ratio detection, the statistic becomes

We consider again the shallow water environment of Fig. 1. We generated 2000 realizations of signal plus noise and 2000 realizations of just noise for different SNRs. As in the localization task, we ran the Gibbs Sampler for 2000 iterations for all realizations. With a Monte Carlo process we calculated probabilities of detection and false alarm for detection and probabilities of correct localization and false alarm for localization.

We performed detection using the statistics of Eqs. (35) and (38) and formed ROC curves. For a SNR of 17 dB the ROC curves for both processors coincided with the upper left corner, showing perfect detection. We then decreased the SNR and computed the ROC curves of Fig. 7(a) for a SNR of 14 dB. Coherent results are shown with a solid line; the dashed line illustrates incoherent detection. Curves for both processors show a high probability of detection for a small probability of false alarm. Figure 7(b) zooms on the upper left corner of the ROC curve showing that the coherent processor attains a higher probability of detection for the same false alarm albeit not by a large amount. For a probability of false alarm of 0.003 the probability of detection for the incoherent processor is 0.93; for the coherent processor for the same probability of false alarm the probability of detection is 0.96.

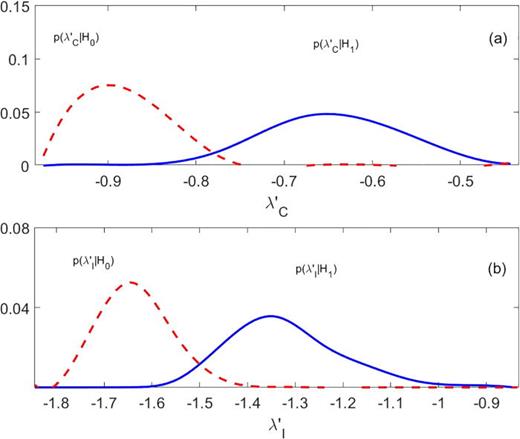

Figure 8 illustrates the PDFs of the statistics $λC′$ and $λI′$ for the two processors. The overlap for the two PDFs for hypothesis H₀ is slightly larger for the incoherent method than for the coherent approach, showing the advantage of coherent processing.

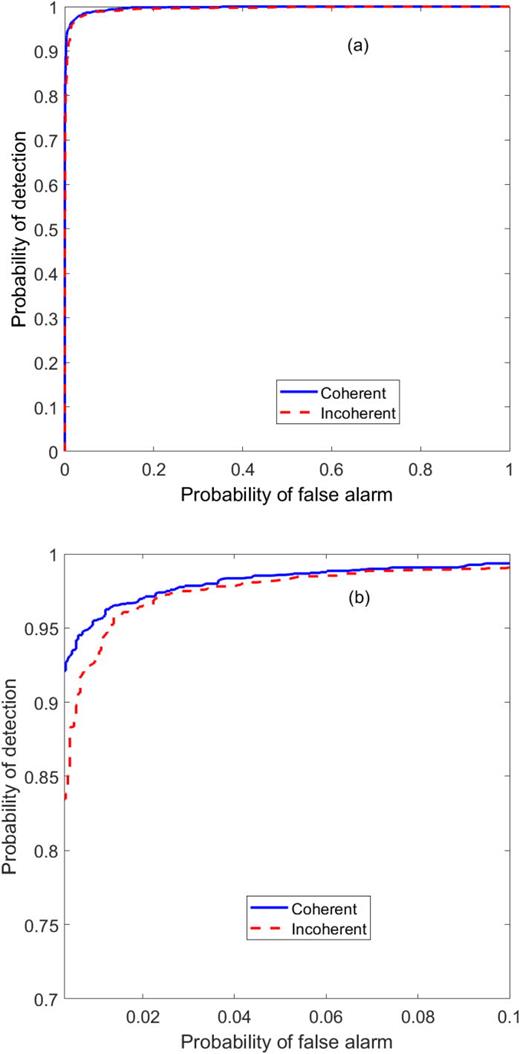

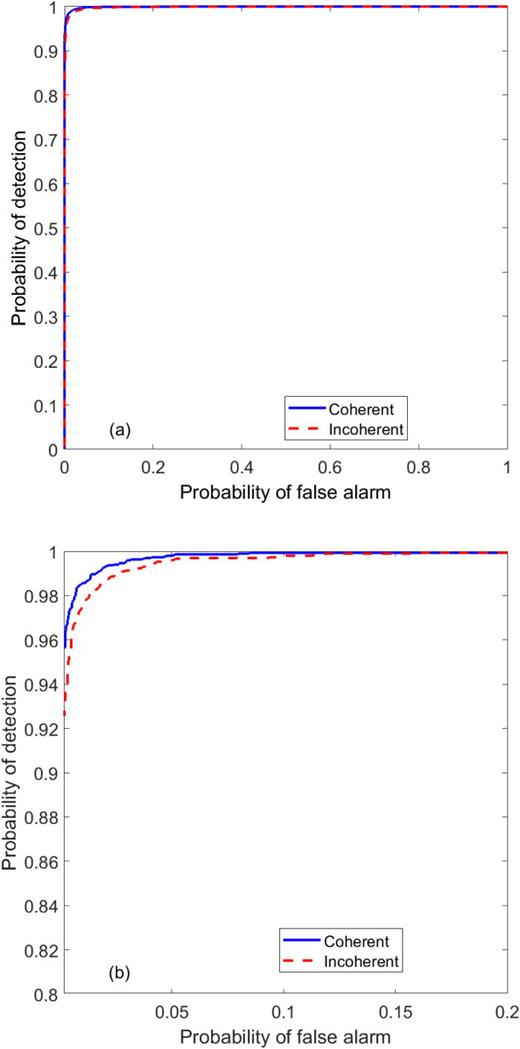

Figure 9 shows the ROC curves for 13 dB [(a) actual ROC curve and (b) zoom]. Looking at the curve of Fig. 9(b), we observe that for a probability of false alarm of 0.003 (the probability of false alarm at the bottom left corner), the coherent probability of detection is 0.93, while the corresponding incoherent probability is lower at 0.84.

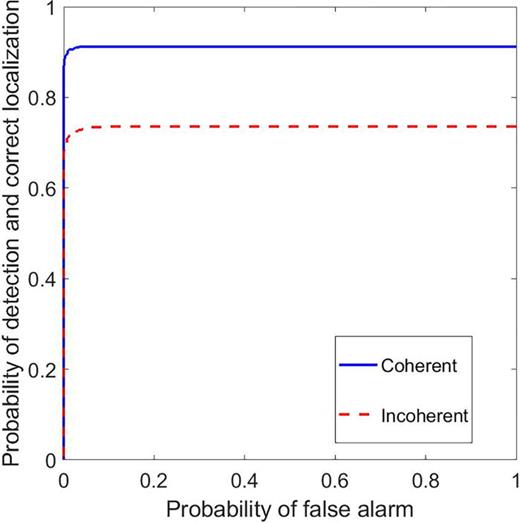

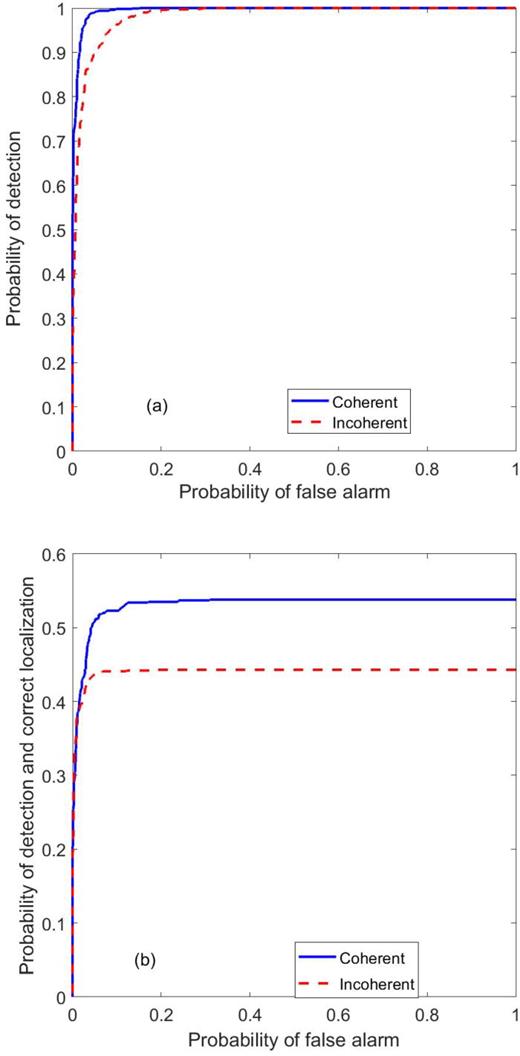

Figure 10 shows LROC curves for a SNR of 14 dB. The coherent PCL reached 92% while the incoherent probability of localization reached only 73%. Of particular interest are the results for detection and localization for four frequencies. We carried out simulations for frequencies of 75, 275, 525, and 600 Hz, one of the sets in which sound was transmitted in the Hudson Canyon experiment. Figure 11 shows (a) the ROC curves and (b) the LROC curves for the two processors for a SNR of 9 dB. Now the superiority of the coherent detector over the incoherent detector is much more pronounced. For a probability of false alarm of 0.02 the probability of detection reaches 0.98. For the same probability of false alarm, the probability of detection of the incoherent processor is only 0.81. The superiority is also evident in the LROC curves. The PCL reaches 0.54 for the coherent processor and 0.43 for the incoherent processor.

In this work, we develop Bayesian coherent and incoherent matched-field processors for broadband localization and detection that incorporate source spectrum estimation in the process. The estimation is performed using a Gibbs Sampler that computes PDFs of the unknown parameters that we then maximize. Bayesian coherent localization is clearly superior to the corresponding incoherent estimation, which is superior to conventional Bartlett processing for most SNRs. We then perform detection with the two proposed processors. With ROC curves and PDF calculation for the detection statistics we show that coherent processing is superior to incoherent processing in detection; the advantage of using the coherent processor in detection is limited for two frequencies but it is significant for four frequencies. Performing joint detection and localization demonstrates a significant advantage of the coherent processor. Results are also presented with real data showing a coherent PDF with a mode at the correct location. Incoherent processing provided erroneous estimates.

The coherent processor is superior to conventional processing by a considerable amount. It is, however, more computationally demanding although not prohibitively so. The 2000 Gibbs sampling iterations performed here were computed very efficiently because of the simple form of the conditional densities. The incoherent processor also required 2000 iterations and offered little improvement over conventional processing (it offered an advantage for several SNRs that we considered but was inferior at 15 dB). Thus, the additional computational load it requires is not justified.

Summarizing, the new coherent method outperforms other processors in terms of localization accuracy and decreased uncertainty as illustrated via a comparison of PDFs, ambiguity surfaces, and their modes. The approach is also superior to the incoherent processor in terms of detection (investigated to date only in a limited fashion in terms of MFP), especially in the four-frequency case. Additionally, both coherent and incoherent methods proposed here provide estimates of the source spectra and their uncertainty as shown in Fig. 4, which means that they also provide deconvolution results and corresponding uncertainty that can be used in source identification.

Being Bayesian in nature, the new work provides complete densities in addition to point estimates, enabling the understanding of uncertainty in the estimation process. In the future the proposed Gibbs sampling coherent approach can be considered for geoacoustic inversion.²⁶

This work was supported by the Office of Naval Research through Grant Nos. N000141612485 and N000141812125.
