Hard X-ray photoelectron spectroscopy (HAXPES) has seen continuous development since the first experiments in the 1970s. HAXPES systems are predominantly located at synchrotron sources due to low photoionization cross sections necessitating high X-ray intensities, which limits the technique’s availability to a wide range of users and potential applications. Here, a new laboratory-based instrument capable of delivering monochromated X-rays with an energy of 9.25 keV and a microfocused 30 × 45 μm2 X-ray spot is introduced. The system gives an excellent energy resolution of below 500 meV coupled with good X-ray intensity. It allows stable measurements under grazing incidence conditions to maximise signal intensities. This article outlines the instrument behavior, showcases applications including bulk and multilayer measurements, and describes the overall performance of the spectrometer. This system presents an alternative to synchrotron-based experimental end stations and will help expand the number and range of HAXPES experiments performed in the future.

Hard X-ray photoelectron spectroscopy uses X-rays with energies above 2 keV to excite electrons which can be used to study the chemical environment and electronic structure of materials. It is known by several different abbreviations, including HAXPES, which will be used throughout this manuscript; others include HXPS, HE-PES, and HX-PES. HAXPES developed from the work of the 1981 Nobel Prize winner Kai Siegbahn, who introduced photoelectron spectroscopy to the scientific community in the 1950s. Although the first HAXPES measurements were performed in the 1970s, for example, the pioneering efforts at the Stanford Synchrotron Radiation Laboratory,1 rapid development of the method has only really taken place over the past 15-20 years. The majority of experiments so far have been conducted on the approximately 20 existing beamlines situated at synchrotrons worldwide. The small number of available instrumentation and the associated access limitations have restricted the amount of output and development efforts of the technique. The main reason for HAXPES being confined to synchrotrons is the dramatic decrease in photoionisation cross sections with an increase in X-ray energy. Figure 1 shows the one-electron cross sections for selected orbitals of Ti and O over a photon energy range of 1-10 keV, based on the theoretical work by Scofield,2 illustrating the loss of photoelectrons when moving into the hard X-ray range. In order to counteract these losses, highest possible X-ray intensities combined with highly efficient photoelectron analysers with very large acceptance angles are necessary.

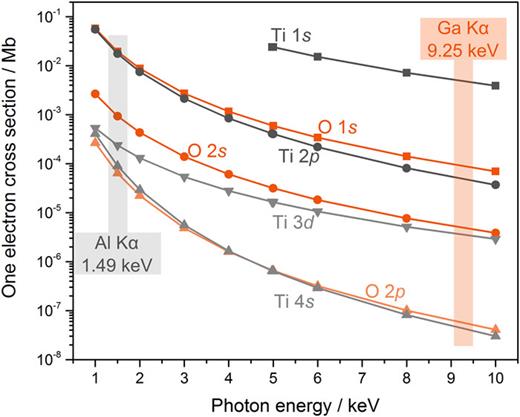

FIG. 1.

Theoretical one-electron corrected cross sections for the selected Ti and O orbitals from the work of Scofield2 across a photon energy range from 1 to 10 keV.

FIG. 1.

Theoretical one-electron corrected cross sections for the selected Ti and O orbitals from the work of Scofield2 across a photon energy range from 1 to 10 keV.

Close modal

Even though HAXPES does not come without its limitations, there is a strong motivation to pursue this technique, including the ability to study bulk materials, buried layers and interfaces, and samples without any need of surface preparation. These measurements are enabled by the increase in information depth with increasing photon energy. Figure 2 illustrates this for a range of available laboratory X-ray sources using the example of the Si 2p line in silicon, showing the dramatic increase in inelastic mean free path (IMFP), and therefore information depths, when going from soft to hard X-ray energies. In addition, higher photon energies make deeper core levels accessible to measurements, which can add valuable information, particularly considering core line shapes, including satellite features.

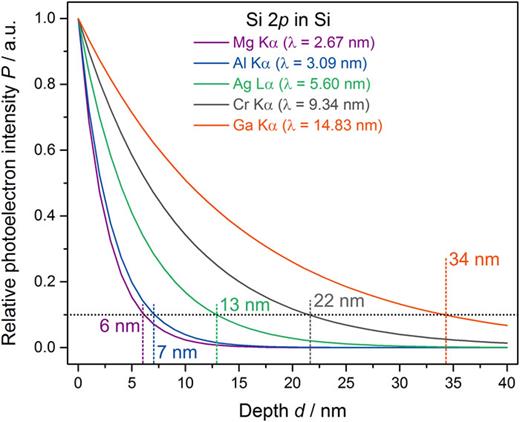

FIG. 2.

Relative photoelectron intensity P as a function of depth d for the Si 2p core level in Si using available laboratory X-ray sources. The legend gives the inelastic mean free paths λ (IMFPs) for Si 2p at different excitation energies calculated using the Tanuma, Powell, and Penn (TPP-2M) method as implemented in the QUASES software package.10

FIG. 2.

Relative photoelectron intensity P as a function of depth d for the Si 2p core level in Si using available laboratory X-ray sources. The legend gives the inelastic mean free paths λ (IMFPs) for Si 2p at different excitation energies calculated using the Tanuma, Powell, and Penn (TPP-2M) method as implemented in the QUASES software package.10

Close modal

The current lack of wide ranging access to HAXPES facilities combined with a large number of potential applications was the motivation to develop the laboratory-based HAXPES system described in this article. Up to now, the development of laboratory systems has been hindered particularly by the limited availability of high intensity, monochromated X-ray sources and large angle, high energy analysers. Therefore, only a very small number of systems have been reported so far with a maximum photon energy of 5.4 keV (Cr Kα).3

This article presents a novel laboratory-based HAXPES prototype system with a monochromated, microfocused Ga Kα X-ray source giving a photon energy of 9.25 keV. Sections II–IV give an overview of the system and its constituent components, outline the system performance, and present a number of applications to scientifically interesting samples.

Figure 3 shows a photograph of the HAXPES prototype. It consists of three separate vacuum chambers: a fast-entry load lock (1), a monochromator chamber (2), and an analysis chamber (3). The analyser (4) is attached to the analysis chamber in horizontal geometry. The X-ray tube (5) is connected to the monochromator chamber, which in turn connects to the analysis chamber. Essential system parameters are controlled through a programmable logic controller (PLC) user interface allowing regulation of the vacuum system, safety interlocks, bake-out settings, and monochromator crystal temperature. The system components will be described in more detail in Secs. II A–II D.

FIG. 3.

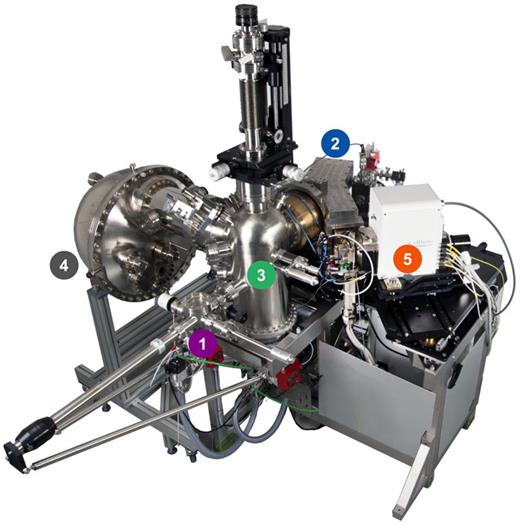

Annotated photograph of the HAXPES prototype, including the fast-entry load lock (1), monochromator chamber (2), analysis chamber (3), analyser (4), and X-ray tube (5).

FIG. 3.

Annotated photograph of the HAXPES prototype, including the fast-entry load lock (1), monochromator chamber (2), analysis chamber (3), analyser (4), and X-ray tube (5).

Close modal

The vacuum system consists of three separate turbo pumps situated on the load lock, analysis chamber, and monochromator chamber. The load lock and monochromator chamber have 80 L s−1 turbo pumps (Pfeiffer HiPace 80), and the analyser chamber has a 300 L s−1 turbo pump (Pfeiffer HiPace 300). The turbo pumps all share one 6.2 m3 h−1 oil-free backing pump (Edwards nXDS6i) and are separated by automatic valves. A schematic overview of the vacuum system is shown in Fig. SI1 of the supplementary material. This efficient configuration is made possible through the PLC control of the entire vacuum system, including pumps, valves, and gauges. In addition, the analysis chamber houses a titanium sublimation pump (VACGEN ST22).

The load lock has a standard transfer pressure of <1 × 10−7 mbar, which is routinely reached within 30 min. The load lock is fitted with a linear, magnetic coupled transfer arm used to transfer samples from the load lock into the analysis chamber. It also has a multi-sample storage holder that can carry up to five samples mounted on Omicron flag-style sample plates.

The analysis chamber is made from mu metal and has a base pressure of <5 × 10−10 mbar. Samples are transferred from the load lock onto the 4-axis manipulator (VACGEN Omniax 200) of the analysis chamber, which has the option to be motorised. The rotational movement of the manipulator allows measurements at different sample angles, including grazing incidence geometry. The hemispherical analyser (Scienta Omicron EW4000) is mounted horizontally onto the analysis chamber, with the entrance slit being horizontally aligned. The monochromator chamber of the X-ray tube is connected to the analysis chamber via a flexible bellow, allowing precise alignment of the monochromated X-rays. A capton window separates the monochromator from the analysis chamber. In addition, a photodiode (Opto Diode AXUV100G, active area 10 × 10 mm2) is mounted to allow setup and characterisation of the X-ray source. The analysis chamber is fitted with extra ports for further equipment, including but not limited to charge neutralisers, sputter guns (e.g., gas cluster ion beam sources), and additional X-ray tubes (e.g., monochromated Al Kα).

The X-ray tube is an Excillum MetalJet-D2+ 70 kV, which is based on a Ga metal-jet anode.4–6 Ga is recirculated in a closed metal-jet loop and hit by an electron beam with an 80 × 20 μm2 spot size and an intensity of 250 W, which is generated by an electron gun (70 kV). X-rays are then monochromatized and focused onto the sample by a bent Si crystal with a 550 mm Rowland circle. The crystal is kept at a constant, elevated temperature to give optimum performance, including high spectral resolution and intensity, as well as long-term stability. The entire X-ray setup is mounted and pre-aligned on an optical table, which is fully adjustable in x, y, and z. This freedom of movement is necessary to precisely align the X-ray spot with respect to the field of view of the analyser. In order to benchmark the photon flux of the X-ray source to that currently available for HAXPES beamlines at synchrotrons, a diode setup was used. The monochromated X-ray beam gives a flux of 6.8 ± 0.2 × 108 photons/s at the sample position, compared with fluxes in the order of 1 × 1011 photons/s at synchrotrons.

The Scienta Omicron EW4000 hemispherical electron energy analyser used in this setup has a maximum acceptable kinetic energy of 12 keV. It has a large acceptance angle of 60°, giving high measurement intensities. The hemisphere has a radius of 200 mm and a working distance of 40 mm. Pass energies are available across a wide range from 2 to 1000 eV, with energies of 10–500 eV used routinely. The entrance slit of the hemisphere is horizontal with respect to the X-ray footprint on the sample, giving maximum intensity. The analyser is equipped with nine straight entrance slits varying in dimensions from 0.1 to 4 mm. The 2D-detector setup consists of a multi-channel plate (MCP), phosphor screen, and CCD camera. The detector simultaneously covers 9.1% of the pass energy.

A gold foil was used to determine the energy resolution of the spectrometer (see Fig. SI2 of the supplementary material for the survey spectrum). Figure 4(a) shows the Au valence band, which exhibits all expected features.7–9 The measurements were collected using a pass energy of 100 eV, a step size of 50 meV, and a slit dimension of 0.5 mm. The sample was positioned at a grazing angle of 2.4°. Figure 4(b) shows an expanded view around the Fermi energy EF of the Au foil, measured under the same conditions as the VB shown in Fig. 4(a). With these settings, the highest energy resolution of 485 meV (16/84% width of EF) is achieved. In comparison, Fig. 4(c) shows the Fermi edge collected at higher pass energy (200 eV) and a larger step size of 100 meV. These settings enable much faster measurements while still giving good energy resolution (16/84% width of EF of 560 meV). While synchrotron-based systems routinely achieve higher resolutions at comparable X-ray energies of ∼300 meV, the resolution obtained in this system is sufficient to address a wide range of experiments, as demonstrated in Sec. IV.

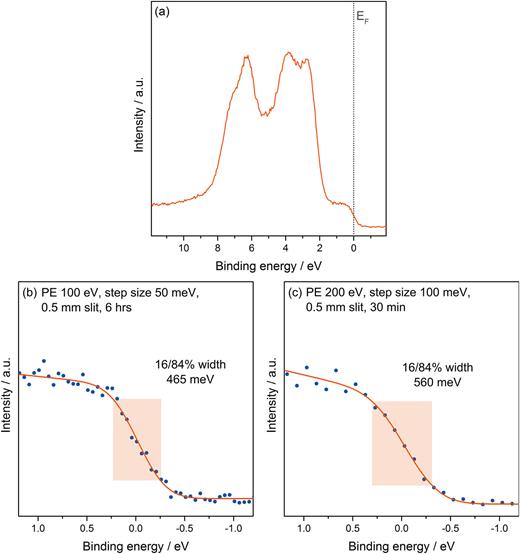

FIG. 4.

Spectra of a gold reference including (a) valence band and [(b) and (c)] Fermi edge EF measured with varying measurement settings.

FIG. 4.

Spectra of a gold reference including (a) valence band and [(b) and (c)] Fermi edge EF measured with varying measurement settings.

Close modal

Upon entry into the analysis chamber, the X-ray beam has a spot size of 30 × 45 μm2 (16/84% width). The exact size of the X-ray beam, within an accuracy of ±1 μm, was determined using a knife edge measurement (see Fig. 5). The 4-axis manipulator of the system allows the variation of the photoemission geometry by rotating the sample with respect to the X-ray source and analyser. Figure 6(a) shows a top view schematic of the geometry, including the X-ray beam, sample, and analyser. The angles stated in this paper are given relative to the zero angle, which is defined as the point when the centre of the incoming X-ray beam is aligned with the sample surface as in the schematic. When the angle is changed, the width of the X-ray beam increases with a decrease in the angle, as can be seen in Fig. 6(b). This change in X-ray footprint is directly correlated to a change in the total detector intensity, and for a particular experiment, the ideal combination of X-ray spot size and intensity can be selected. However, independent of the experimental geometry, the spectral characteristics do not vary. This is shown by comparing the Au 3d5/2 spectra of a reference Au foil collected at two extreme sample angles of 61.1° and 2.4° [see Figs. 6(c) and 6(d), respectively]. The measurement conditions for both spectra are a pass energy of 100 eV, a step size of 100 meV, and a slit dimension of 0.5 mm. The peak position remains constant at 2206.7 eV, and the FWHM is 2.2 ± 0.1 eV in both geometries.

FIG. 5.

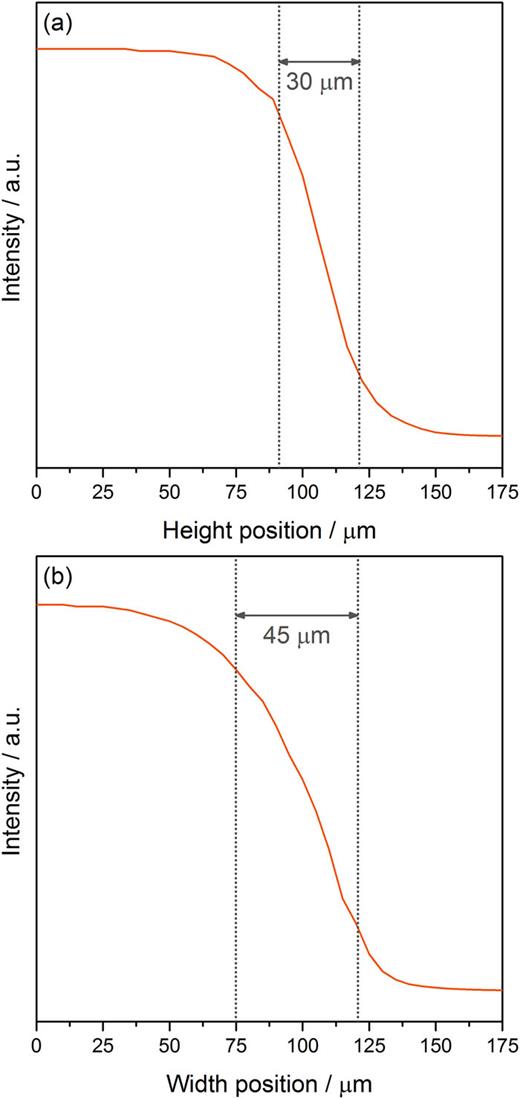

Results of knife edge measurements to determine the X-ray spot size upon entry into the analysis chamber, including (a) height and (b) width. The error of the measurements is ±1 μm.

FIG. 5.

Results of knife edge measurements to determine the X-ray spot size upon entry into the analysis chamber, including (a) height and (b) width. The error of the measurements is ±1 μm.

Close modal
FIG. 6.

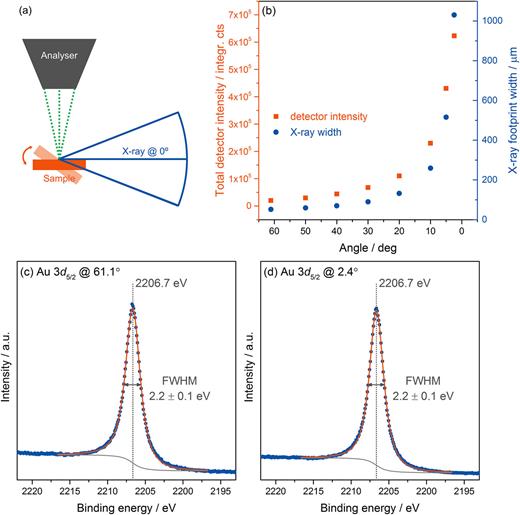

Spectrometer behavior with varying photoemission geometry. (a) Schematic of the geometry at 0°. (b) Total integrated detector intensity at varying angles. [(c) and (d)] Au 3d5/2 core level spectra at 61.1° and 2.4°, respectively.

FIG. 6.

Spectrometer behavior with varying photoemission geometry. (a) Schematic of the geometry at 0°. (b) Total integrated detector intensity at varying angles. [(c) and (d)] Au 3d5/2 core level spectra at 61.1° and 2.4°, respectively.

Close modal

The Excillum MetalJet-D2+ 70 kV X-ray tube can be operated across a range of power settings. The change in intensity with X-ray power was followed both by using a photodiode positioned at the sample position and through measurements of the total detector intensity from the Au 3d5/2 core level of a gold reference foil. Figure 7(a) summarises the results of both measurements over X-ray powers ranging from 50 to 250 W. Good linear behavior is found for both the measurements at the chosen settings. Figures 7(b)–7(d) show Au 3d5/2 spectra at the minimum, maximum, and one intermediate X-ray power, which all show an energy position of 2206.7 eV and a FWHM of 2.2 ± 0.1 eV. The measurement conditions for all spectra are a pass energy of 100 eV, a step size of 100 meV, and a slit dimension of 0.5 mm.

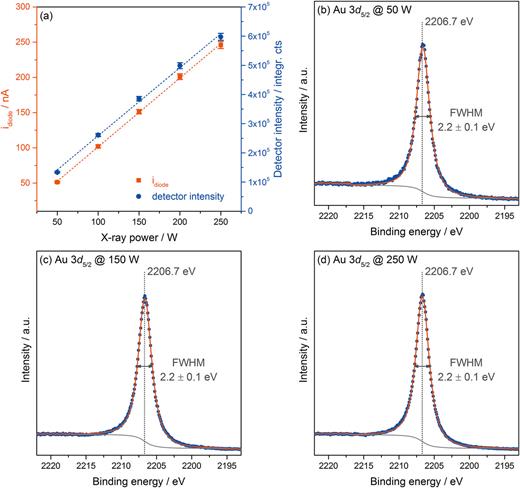

FIG. 7.

Spectrometer behavior with varying X-ray power. (a) Measurements of the X-ray intensity using a photodiode idiode and the total integrated detector intensity. [(b)–(d)] Au 3d5/2 core level spectra at 50, 150, and 250 W X-ray power, respectively.

FIG. 7.

Spectrometer behavior with varying X-ray power. (a) Measurements of the X-ray intensity using a photodiode idiode and the total integrated detector intensity. [(b)–(d)] Au 3d5/2 core level spectra at 50, 150, and 250 W X-ray power, respectively.

Close modal

In order to evaluate the behavior of the system over an extended time period, the Fermi edge EF of an Au foil was collected continuously over several days. The total length of the measurement (68 h) was chosen to be representative of a continuous, unsupervised experiment over a weekend. During this time, over 200 spectra, with a time per spectrum of 20 min, were collected using a pass energy of 100 eV, a step size of 50 meV, and a slit dimension of 1.0 mm. Figure 8(a) shows the selected spectra taken during the long-term measurement. For further analysis, the spectra were binned in groups of four and the 16/84% width and energy position of the Fermi edge were determined. Figure 8(b) shows the EF position over time, giving excellent stability with a standard deviation of 37 meV. The EF width across all the measurements is on average 493 meV, with a standard deviation of 41 meV over time [see Fig. 8(c)]. These results showcase the excellent measurement stability over realistic measurement periods.

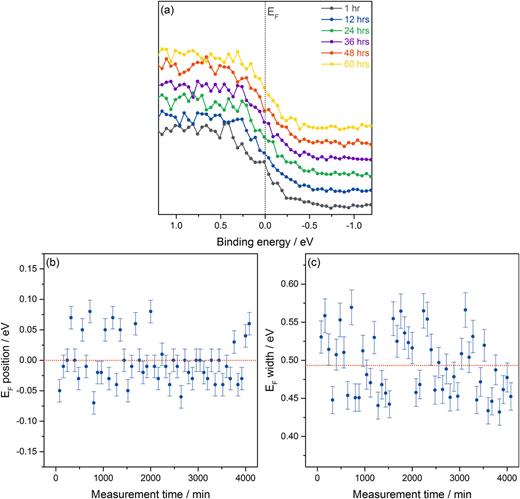

FIG. 8.

Long-term measurement of the Au Fermi edge EF. (a) Selected spectra. [(b) and (c)] EF position and width from fits to EF across the measurement time.

FIG. 8.

Long-term measurement of the Au Fermi edge EF. (a) Selected spectra. [(b) and (c)] EF position and width from fits to EF across the measurement time.

Close modal

Due to the high photon energy of the X-ray source of 9.25 keV, the bulk properties of materials can be investigated. In this work, a rutile TiO2 (110) single crystal has been chosen to probe the capability of this system. Rutile TiO2 exhibits core levels across a wide energy range, including the deep Ti 1s core level not accessible at lower excitation energies, as well as KLL Auger lines at high kinetic energies (see the survey spectrum in Fig. SI3 of the supplementary material). The simultaneous accessibility of both deep core levels and Auger lines provided by this HAXPES system is very valuable to study the chemical states and local environments of elements within the samples. The IMFP was calculated for TiO2 using the Tanuma, Powell, and Penn (TPP-2M) method as implemented in the QUASES software package.10 The IMFP is in the order of 65 Å for the Ti 1s and Ti KL2,3L2,3 lines and 125 Å for the Ti 2p core level, O 1s core level, and valence band. Assuming a probing length of three times IMFP, all mentioned spectra represent the bulk of the sample across depths of 20–40 nm.

All spectra in Fig. 9 were collected at a grazing angle of 2°, a pass energy of 200 eV, and a step size of 100 meV. Figure 9(a) shows the Ti 1s core level, with its principal peak at a binding energy (BE) of 4964.3 eV and having a FWHM of 1.5 ± 0.05 eV. For higher BE of the main core level, the typical satellite structures of Ti 1s are observed, which have been previously reported in synchrotron results of SrTiO3.11 The Ti 2p core level in Fig. 9(b) shows positions of 458.7 eV and 464.4 eV for the 2p3/2 and 2p1/2 peaks, respectively, giving a spin-orbit-split (SOS) of 5.7 eV, all typical for TiO2. The FWHM of the main 2p3/2 line is 1.1 ± 0.05 eV. As in the Ti 1s core level, the Ti 2p core level also shows the typical satellite structures for rutile.12,13 The O 1s core level exhibits a single peak at 530.0 eV typical for TiO2 with a FWHM of 1.25 ± 0.05 eV. In addition to the core level spectra, the Ti KL2,3L2,3 lines could be collected. The two main peaks at 4005.8 eV (1D2) and 3992.6 eV (1S0) are shown in Fig. 9(d), and their positions and line shapes are in good agreement with the previous results.11,14 Overall, the HAXPES system is able to deliver high-quality bulk measurements enabling the study of the bonding nature within a large range of samples. Furthermore, it is possible to measure comparatively weak spectral features, e.g., satellites, which can be used to understand changes in local structure and chemistry in great detail.

FIG. 9.

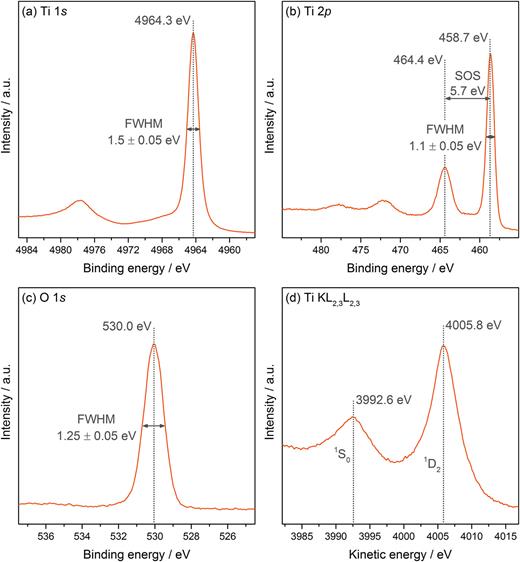

Bulk spectra of a rutile TiO2 (110) single crystal, including (a) Ti 1s, (b) Ti 2p, (c) O 1s, and (d) Ti KL2,3L2,3 Auger.

FIG. 9.

Bulk spectra of a rutile TiO2 (110) single crystal, including (a) Ti 1s, (b) Ti 2p, (c) O 1s, and (d) Ti KL2,3L2,3 Auger.

Close modal

The high excitation energy of 9.25 keV enables the study of the truly bulk electronic structure of materials, independent of surface effects and contamination problems often faced by soft X-ray measurements. The valence band (VB) of a rutile TiO2 (110) single crystal is shown in Fig. 10(a). The VB of TiO2 is particularly challenging to measure as its total density of states is rather low, for example, compared with Au shown previously in this paper. It exhibits two major features at 7.9 eV (I) and 5.9 eV (II), with an additional shoulder at the top of the VB (marked with an asterisk in the figure). From a linear fit to the VB, a VBmax to EF separation of 3.16 eV was found. The quality of the experimental results achieved with the HAXPES system is comparable with the measurements previously performed on TiO2 at synchrotron end stations.15

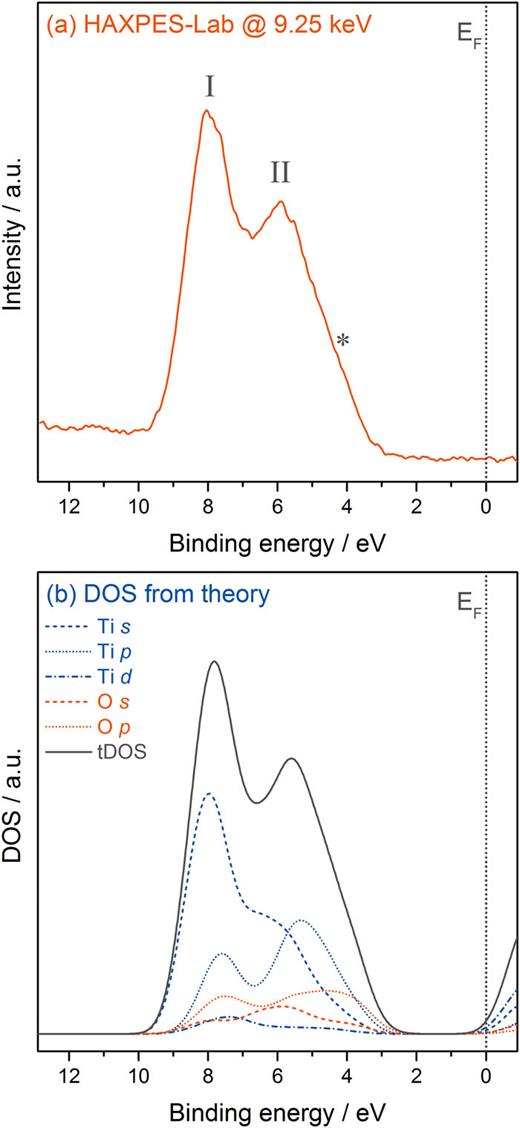

FIG. 10.

Valence band of rutile TiO2. (a) Spectrum of a (110) single crystal and (b) partial densities of states (pDOS) and total density of states (tDOS) from DFT calculations. In (a), I and II mark the two main features of the spectrum, while the asterisk marks a shoulder feature at the very top of the valence band.

FIG. 10.

Valence band of rutile TiO2. (a) Spectrum of a (110) single crystal and (b) partial densities of states (pDOS) and total density of states (tDOS) from DFT calculations. In (a), I and II mark the two main features of the spectrum, while the asterisk marks a shoulder feature at the very top of the valence band.

Close modal

The high energy resolution of the HAXPES system enables the identification of different contributions to the VB through comparison with theoretically derived densities of state from density functional theory (DFT) calculations within the Vienna Ab initio Simulation Package (VASP) code. Details of the computational methodology can be found in the supplementary material. The theoretically derived partial densities of states were corrected using one-electron ionisation cross sections based on values tabulated by Scofield2 and a Gaussian broadening of 460 meV, comparable with the experimental resolution. The experimental and theoretical results show excellent agreement in both relative energy positions and overall structure of the valence band. The features can be assigned to specific states as follows. The most intense feature (I) at 7.9 eV is dominated by Ti states, particularly Ti s with some Ti p contribution. The second feature (II) at 5.9 eV in turn has more equal contributions from Ti s and p states, with some contribution from O p states. The shoulder feature (*) at VBmax originates from Ti and O p states. HAXPES is generally used for analyses such as this one, as the influence of the sample surface can practically be excluded, and consequently, the resulting spectra represent the electronic structure of the bulk material. To date, such detailed analysis of valence states was only possible using data collected at synchrotrons due to the necessity of both intensity and resolution to identify specific features. The results presented here show that due to the combination of good energy resolution and measurement intensity delivered by the HAXPES system, such experiments are now feasible in home laboratory environments.

Beyond the study of bulk chemistry and electronic structure of materials, HAXPES can be used to investigate buried layers in heterostructure systems. To showcase the performance of this HAXPES system, two different multilayers are presented here. Both structures are based on the post-transition metal oxide semiconductors typically used for electronic devices such as transistors or diodes, which have been described in detail in previous publications.16,17 The first multilayer consists of an active In2O3 layer between an Au top electrode and an Al bottom electrode [see Fig. 11(a) for a schematic overview of the device structure]. The films are deposited on top of an oxidised silicon wafer. Although this sample presents a comparatively simple device structure, the Au top electrode used presents a problem for classic XPS and even for some lower energy HAXPES. Compared with many other materials, gold has a comparatively low IMFP, meaning that even the nanometer thin electrodes used in modern devices make it often impossible to measure layers underneath the metal film. Particularly in oxide-based devices, the chemical nature of the active oxide layer is of great importance. As the chemistry of the thin film can change after deposition of the top metal electrode, it is necessary to use hard X-rays in order to be able to detect a signal from the now buried oxide. The HAXPES system enables the measurement of core levels from all layers of the heterostructure, which are shown in Fig. 11. From the core level positions, the oxidation states and chemical environments can be determined; e.g., the Au 4d lines show typical characteristics of metallic Au, while the Al 1s core level from the bottom electrode shows signals from both metallic Al and Al2O3. Due to the high X-ray energy, multiple core lines of the active In2O3 layer are accessible, including In 3d and 2s. The accessibility of multiple lines is particularly useful when investigating relative changes in binding energy positions. Furthermore, the high X-ray energy enables the measurement of deeply buried layers, including the substrate for which the two typical peaks of Si and SiO2 can still be detected, although it is buried under a combined thickness from the top layers of 60 nm.

FIG. 11.

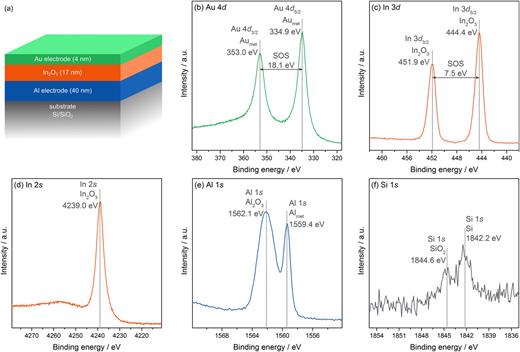

Single-oxide structure used for transistor and diode fabrication. (a) Schematic of the layout of the device including film thicknesses. [(b)–(f)] Core level measurements of the different layers including Au 4d, In 3d and 2s, Al 1s, and Si 1s.

FIG. 11.

Single-oxide structure used for transistor and diode fabrication. (a) Schematic of the layout of the device including film thicknesses. [(b)–(f)] Core level measurements of the different layers including Au 4d, In 3d and 2s, Al 1s, and Si 1s.

Close modal

The second multilayer is more complex, representing devices in which a combination of several oxide layers is used to achieve better transistor performance. Such multilayer systems can be particularly challenging due to the multitude of different elements and variations in IMFPs. Figure SI4 of the supplementary material shows Al Kα measurements from the same sample to illustrate the problem with multilayer samples in standard XPS. While a clear spectrum can be achieved for the top ZnO layer, only a very small signal can be detected from the In2O3 layer. Already the overlap with the background from the Zn LMM Auger lines in close proximity to the In 3d line and the low signal-to-noise ratio due to the low overall line intensity can complicate detailed analysis. No signal at all can be detected from the ZrO2 layer. Again, due to the high X-ray energy of 9.25 keV of the HAXPES system, it is possible to provide information on all films incorporated in the active device structure (see Fig. 12). From a range of core levels, the chemical state of all three oxide layers and the Al electrode can be determined. The achievable signal-to-noise ratio, even for deeply buried layers, enables high level analysis of peak positions, peak widths, and line shapes, important for the identification of the local chemical environment within the different device layers.

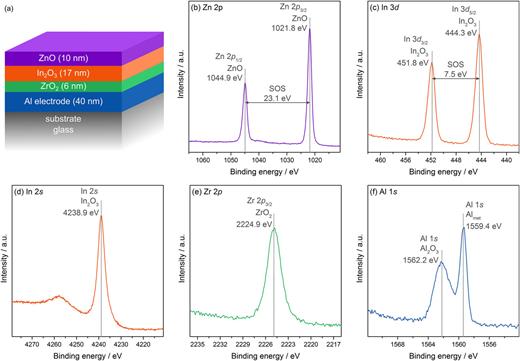

FIG. 12.

Multi-oxide heterostructure used for transistor and diode fabrication. (a) Schematic of the different layers of the device including film thicknesses. [(b)–(f)] Core level measurements of the different layers including Al 1s, Zr 2p, In 2s and 3d, and Zn 2p.

FIG. 12.

Multi-oxide heterostructure used for transistor and diode fabrication. (a) Schematic of the different layers of the device including film thicknesses. [(b)–(f)] Core level measurements of the different layers including Al 1s, Zr 2p, In 2s and 3d, and Zn 2p.

Close modal

The present paper describes the design and performance of a new laboratory HAXPES system that uses a high energy, monochromated Ga X-ray source with an excitation energy of 9.25 keV. The combination of a powerful X-ray tube with an efficient and stable monochromator and a wide acceptance angle analyser leads to the resulting excellent performance of the spectrometer. Using a gold reference, the basic characteristics of the spectrometer were determined, including a minimum energy resolution of 465 meV. The system’s performance is showcased by the data obtained from technologically relevant samples, including measurement of bulk and heterostructure samples. For the samples presented in this work, high-quality data could be collected, both in terms of energy resolution and intensity. This HAXPES system delivers data collected with a hard X-ray energy previously only accessible at synchrotrons. Results from this system can produce independent, complete datasets as well as support, e.g., energy-dependent synchrotron work through preliminary experiments in the laboratory.

See supplementary material for details on the theoretical method used to calculate the density of states of TiO2, a schematic of the vacuum system, additional survey spectra of the samples used, and a set of Al Kα XPS spectra for one of the multi-oxide structures.

The authors thank Andreas Frank for his help in preparing the system photograph. A.R. acknowledges the support from Imperial College London for her Imperial College Research Fellowship. This work was supported by the Engineering and Physical Sciences Research Council (EPSRC) (Grant Nos. EP/M028291/1 and EP/N01572X/1). This work made use of the ARCHER UK National Supercomputing Service (http://www.archer.ac.uk) via our membership of the UK’s HEC Materials Chemistry Consortium, which is funded by EPSRC (EP/L000202). K.T. acknowledges the financial support from the People Programme (Marie Curie Actions) of the European Union’s Framework Programme Horizon 2020: “Flexible Complementary Hybrid Integrated Circuits” (FlexCHIC), Grant Agreement No. 658563.
