Diocotron instability has been observed in the pure electron plasma formed in a split cathode coaxial diode. This plasma consists of electrons, trapped in the longitudinal potential well between the two parts of the cathode. The mathematical model of the electron squeezed state, which allows the calculation of the equilibrium plasma density, is presented. The model is applied in a comprehensive analysis of experimental data, and the presence of the diocotron instability is unambiguously confirmed.

Single-charged non-neutral, pure electron plasmas1,2 are of interest both for basic fundamental3 plasma physics,4 including astrophysics5 and atomic physics,6 and for various practical applications.7 Examples of such plasmas are present in the electron cloud in the Malmberg–Penning trap,8,9 the squeezed state of electrons,10,11 and electron beams. However, the properties of each of these plasmas are very different. Electrons in the Malmberg–Penning trap are isolated from the environment, their density is quite low, 108 cm−3, and their energy is very low as well (several eV).4 The electron squeezed state is in permanent contact with the electron source and is characterized by high density (1012 cm−3) and high energy electrons (tens keV).12 The density and the energy of electron beams can vary over a very broad range.

In the majority of cases, the geometry of a single-charged plasma is a solid cylinder or an annular column. The diocotron instability1,13 development results in the radial expansion of the electrons and azimuthal modulation of the electron density. Sometimes, this instability is undesirable, but sometimes it is useful. There is some evidence14 that the diocotron instability can enhance the formation of spokes in magnetrons.

In this article, the development of the diocotron instability in a pure electron plasma trapped in the potential well existing between the two parts of a split cathode geometry (see Fig. 1) is studied experimentally and analytically. Dynamical equilibrium of this plasma is known as the squeezed electron state. Recently, the split cathode was successfully used as a source of electrons in a relativistic magnetron,15 which explains our interest in this configuration. Diocotron instability in a squeezed state was observed, but only in numerical simulations.16

FIG. 1.

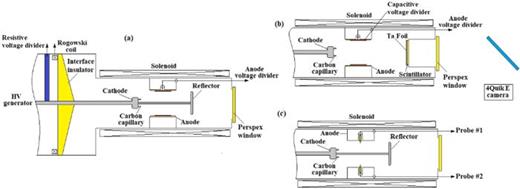

The experimental setup for (a) a wire grid reflector, (b) to record the beam in the absence of the reflector and the rod, and (c) with the probes #1 and #2.

FIG. 1.

The experimental setup for (a) a wire grid reflector, (b) to record the beam in the absence of the reflector and the rod, and (c) with the probes #1 and #2.

Close modal

Experiments were carried out using the same experimental setup as that described in detail in Ref. 17 and sketched in Fig. 1. The experiment was performed in a 124 mm diameter, 600 mm long stainless-steel tube at the center in which a 40 mm diameter, 62 mm long stainless-steel anode insert was placed. An axial magnetic field, H0, of up to 1.2 T and half-period of 15 ms are produced by a solenoid. The high voltage pulse, formed by a Marx generator (200 kV, 150 ns with a resistive load of 84Ω), is applied to 20 carbon-epoxy capillary tubes (each has a 5 mm long and 1.5 mm/0.75 mm outer/inner diameter) placed along a 16 mm-diameter circle on a 25 mm diameter aluminum cathode. The axial distance between the edge of the capillaries and the anode was 20 mm. The reflector consists of a 2 mm-thick, 40 mm-diameter aluminum disk, and a 6 mm diameter ring at its periphery. The reflector is connected to the cathode by a 6 mm diameter aluminum axial rod. The cathode, reflector, and the rod were hard coated with an 80 μm-thick Al2O3 ceramic layer to avoid explosive emission plasma formation. The distance between the reflector and the anode downstream edge was 40 mm.

The diode voltage and current waveforms were measured using a resistive voltage divider and a self-integrating Rogowski coil, respectively. These probes were placed inside the transformer oil tank at the output of the Marx generator. The beam potential was measured using an anode capacitive voltage divider calibrated in shots with a 16 mm diameter rod traversing the anode axis. This probe was placed at the inner surface of the anode insert. The diocotron instability appears as rotating azimuthal modulations of the electron density. These modulations were measured by two probes inserted through holes drilled at the longitudinal center of the anode and separated 180° from each other. These probes consist of 80 μm-diameter copper wires, placed inside ceramic capillaries leaving 4 mm bare intended to contact with the electron plasma. The voltage, current, and probe waveforms were acquired by a DSO80604B digitizing oscilloscope.

The temporally and spatially resolved transverse distribution of the electron-beam current density was obtained by fast x-ray imaging of the beam. These experiments were carried out either with a split cathode, with the plate of the reflector replaced by a 40 mm 90% transparent tungsten wire grid, or without the reflector and the rod. The images were obtained at a distance of 100 mm from the anode, where a 2 mm thick fast EJ-200 plastic polyvinyl toluene (PVT) thick-scintillator was placed, attached to the back of a grounded 80 μm-thick Ta foil. The mean free path of the electrons (electron energy <250 keV) in the Ta foil is less than the foil thickness. However, the mean free path of the x-rays produced by the electrons inside the foil is larger than the foil thickness. The interaction of these x-rays with the scintillator produces a temporally and spatially resolved image, which was recorded using a 4QuikE camera (of 1.2 ns frame duration) synchronized with the high voltage generator.

Time-integrated patterns of the electron beam on the 0.4 mm-thick Mylar or 1 mm-thick aluminum targets placed at the distance of 10 cm from the anode insert were obtained in experiments without the reflector and rod. In these experiments, at a magnetic field of 6.4 kG, the electron beam leaves on the target at a 2.5 mm thick circular pattern with an average diameter of 18 mm and without signs of discrete structures. In Fig. 2(a), waveforms of the voltage, electron beam current, and the potential of the electron beam are shown for the setup shown in Fig. 1(a) (no reflector and rod). One can see that the potential of the electron beam is 25 kV when the beam current is 1 kA. The 200 ns long plateau of the current, despite the significant decrease in the amplitude of the applied voltage, is probably the result of the decrease in the effective gap between the boundary of the cathode plasma expanding along the magnetic field upstream from the anode toward it at a velocity of 107 cm/s.18 In Fig. 2(b), waveforms of the voltage, electron beam current, and potential when the reflector is absent and only the 6 mm central rod is attached to the cathode are shown. One can see that the beam potential increases to 75 kV due to the presence of the rod.

FIG. 2.

Waveforms of the voltage, beam current, and beam potential (a) without rod and reflector and (b) with the rod but no reflector. The magnetic field here was 6.4 kG.

FIG. 2.

Waveforms of the voltage, beam current, and beam potential (a) without rod and reflector and (b) with the rod but no reflector. The magnetic field here was 6.4 kG.

Close modal

In Fig. 3, the voltage, total current, and beam potential in a split cathode configuration for two values of the magnetic field are presented. The first oscillations seen on the current waveform are the result of the displacement current. Next, during 75 ns, the amplitude of the total current is 150 A, which is 6.5 times smaller than when the reflector is absent. However, from t80 ns and on, the total current increases up to 1 kA at t380 ns. Inspection of the reflector and central rod alumina coating after hundreds of shots showed only a few damage points, indicating that explosive electron emission from these parts is not responsible for the current increase. Thus, the gradual increase in the total current at t >80 ns while the voltage decreases can be related to the accumulation of the electrons in the split cathode potential well and the electron space charge radial expansion above the cathode radius of 12.5 mm to become an upstream electron flow increasing the total current. For the larger value of the magnetic field in Fig. 3(b), the current reaches lower values.

FIG. 3.

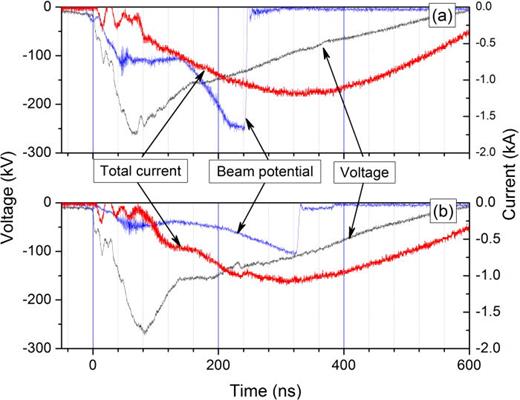

Waveforms of the voltage, total current, and electron beam potential relative to the anode with a split cathode for an applied axial magnetic field of (a) 6.4 kG and (b) 10 kG.

FIG. 3.

Waveforms of the voltage, total current, and electron beam potential relative to the anode with a split cathode for an applied axial magnetic field of (a) 6.4 kG and (b) 10 kG.

Close modal

The smaller value of the potential for H0=10 kG than that obtained for H0=6.4 kG (see Fig. 3) indicates that the space charge accumulated in the potential well between the cathode and reflector increases with increasing magnetic fields. However, one can reasonably consider that this space charge is expanding radially faster for smaller magnetic fields accompanied by a change in the anode voltage divider's coefficient. Since all the quantities, that is, the electron density, its spatial distribution, and the high voltage change together, the signal from the voltage divider presented in Figs. 3(a) and 3(b) cannot be used to determine the value of the electron cloud potential. Nevertheless, a fast increase in the probe signal followed by an abrupt decrease to zero allows one to extract useful information. This happens when the electron cloud's expansion leads to electron losses to the high voltage electrode of the divider followed by breakdown along the insulator surface. Thus, the breakdown time is the characteristic time of the electron cloud's radial expansion. The results obtained showed that this time grows with increasing magnetic field.

No x-ray electron beam images were obtained in experiments with a split cathode when the aluminum reflector was replaced with a tungsten wire grid. This is because the energy of the electrons near the reflector is strongly reduced, and too little of the beam is transmitted. Images were obtained only in the absence of the reflector and registered at different times relative to the onset of the voltage as seen in Fig. 4 for a magnetic field of H0=8 kG. Similar images were obtained for other magnetic fields values as well, independent of whether the rod was present or absent. One can see that the electron beam pattern is not azimuthally uniform, and bunching is discernible, typical for a diocotron instability.1

FIG. 4.

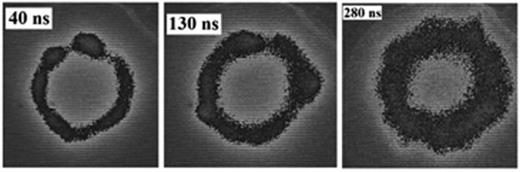

Framing images of the luminescence pattern appearing on the plastic scintillator due to the interaction of the electron beam with a 127-μm-thick Ta foil placed in front of the scintillator. Frame duration is 1.2 ns, and the magnetic field is 8 kG.

FIG. 4.

Framing images of the luminescence pattern appearing on the plastic scintillator due to the interaction of the electron beam with a 127-μm-thick Ta foil placed in front of the scintillator. Frame duration is 1.2 ns, and the magnetic field is 8 kG.

Close modal

The existence of the diocotron instability in a split cathode geometry is confirmed by high frequency oscillations observed on the probe signals shown, for example, in Fig. 5 together with the voltage and current waveforms. Experiments with probes #1 and #2 were carried out in three configurations: (a) the split cathode; (b) no reflector and rod; and (c) no reflector but rod present. In all these cases, high frequency oscillations were observed in the probe signals. Analysis of the waveforms of these probes is in Sec. IV.

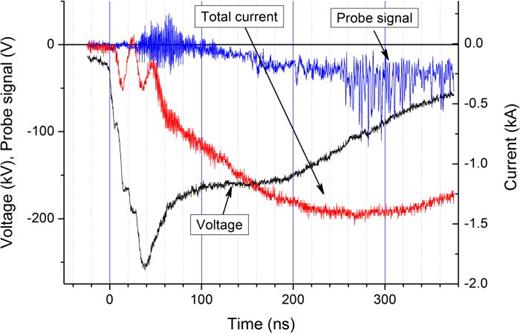

FIG. 5.

The probe signal, voltage, and current waveforms. Split cathode configuration, and the magnetic field is 8 kG.

FIG. 5.

The probe signal, voltage, and current waveforms. Split cathode configuration, and the magnetic field is 8 kG.

Close modal

Let us consider an electron cloud placed in the space between an anode tube of radius Rext and a coaxial central rod of radius Rin (Fig. 6). It is assumed that this cloud is bounded between cylindrical surfaces of the radii ra and rb and has radially uniform density. In the longitudinal direction, the electron motion is restricted by the cathode and the reflector (see Fig. 1). There is a potential difference, φ0, between the tube and the rod, and an axial magnetic field H0, which keeps the cloud from expanding radially.

FIG. 6.

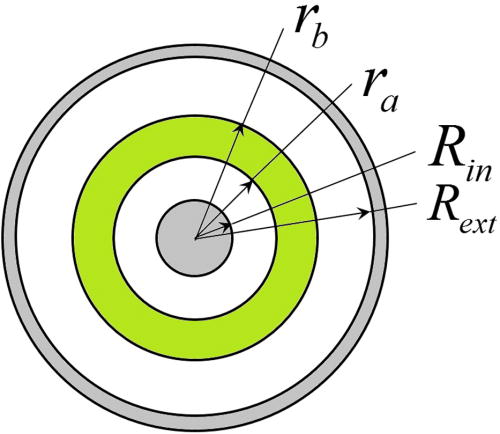

The electron cloud bounded in the space between cylindrical surfaces of the radii ra and rb between the radius Rin of central rod and the radius Rext of the anode tube.

FIG. 6.

The electron cloud bounded in the space between cylindrical surfaces of the radii ra and rb between the radius Rin of central rod and the radius Rext of the anode tube.

Close modal

The nonrelativistic electron equations of motion are

dvrdt=emEr+ωHvθ+1rvθ2,dvθdt=emEθωHvr1rvθvr.
(1)

Here, ωH=eH0/mc is the electron gyrofrequency, and vr and vθ are electron radial and azimuthal velocities, respectively.

The steady-state is characterized by zero radial velocity, vr = 0, and zero azimuthal electric field, Eθ=0. Then, it follows from Eq. (1) that at steady-state

vθ(r)2+rωHvθ+emrEr(r)=0.
(2)

Introducing the angular frequency ωd(r)=vθ/r of the rotating electrons, the solution of Eq. (2) can be written as

ωd(r)=12ωH±14ωH2eErmr.
(3)

The lower frequency corresponds to the rotation with azimuthal velocity vθ close to the drift velocity vd=cEr/H0,vθvd.

The solution of the Poisson equation in the region ra<r<rb, the continuity of the potential φ(r) and the radial electric field Er=φ/r at the interfaces r = ra and r = rb. The boundary conditions φ(Rin)=0 and φ(Rext)=φ0 allow one to determine the potential and electric field distributions in the entire space RinrRext, as, for example, in Ref. 13. Finally, the radial electric field allows one to calculate the electrons rotation frequency, ωd(r), using Eq. (3). Note that the rotating electrons produce additional axial magnetic field, so that the gyrofrequency, ωH, in Eq. (3) depends, strictly speaking, on the radius and should be calculated simultaneously with ωd(r). However, for the experimental conditions considered here, this additional magnetic field is small and can be neglected.

The diocotron instability, which can develop under certain conditions, breaks the azimuthal uniformity of the aforementioned equilibrium configuration of the electron cloud. The stability analysis, developed in Refs. 1, 13, and 25, is applicable to the system being studied. Note that a system with a central electrode was considered in Ref. 13, but the normalized variables used in this paper are inconvenient when the electron rotation frequency ωd(r) is defined by the external electric field rather than the space-charge field.

The stability analysis is reduced to the eigenvalue problem for Poisson equation:

1rddr(rdϕdr)2r2ϕ=dωp2(r)/drωHr[ωωd(r)]ϕ,
(4)

with boundary conditions ϕ(Rin)=ϕ(Rext)=0 for the potential perturbation of the form δφ(r,θ,t)=ϕ(r)exp(iωt+iθ),=0,±1,±2,.

The electron Langmuir frequency ωp(r) is defined by the equilibrium distribution of the electron density ne(r). For the model with a step-function density profile, used in Sec. IV A, the eigenfrequencies ω are roots of a quadratic equation (dispersion equation), whose derivation and particular form are presented in  Appendix A. The general expression for the eigenfrequencies is rather cumbersome. Here, we present the solution for a thin electron cloud, the thickness of which h=rbra is small compared to its mean radius re=(rb+ra)/2,hre.

Instead of frequencies ωd(ra,b), it is convenient to introduce ω¯d=[ωd(ra)+ωd(rb)]/2 and δωd=[ωd(ra)ωd(rb)]/2. The quantity ω¯d is the mean electron rotation frequency, and the quantity δωd characterizes the difference between the electron rotation frequencies at the inner and outer surfaces of the annular cloud.

Assuming that the rather weak conditions (re/Rext)21 and (Rin/re)21 with =2,3, are satisfied, the solution of the dispersion equation takes the following form (see details in  Appendix A):

ωω¯d±δωd(δωd+ωp2ωH)ωp4h2ωH2re.
(5)

The electron cloud becomes unstable when the radical expression is negative. It follows from Eq. (5) that in the instability region ωωd(re), i.e., the azimuthal velocity ωre/ of the electron density modulation (electron bunches) is close to the electron rotation velocity vθcEr(re)/H0ω¯dre. The numerical solution of the dispersion equation (A7), presented in Fig. 7, confirms this analysis. Note that the dependence of the mean electron rotation frequency ω¯d(ne) on the density is weak, ω¯d(ne)ω¯d|ne=0.

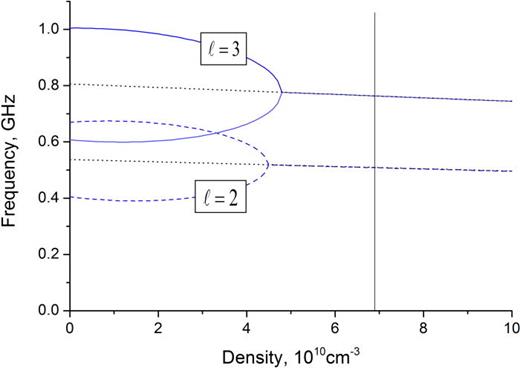

FIG. 7.

Solution of the dispersion equation (A7) for the diocotron modes =2 (dashed lines) and =3 (solid lines). The frequencies ω¯d(ne) are shown by dotted lines. Geometrical parameters, magnetic field value, and the voltage between internal and external electrodes correspond to the experimental conditions. The vertical line marks the electron density, calculated within the framework of the squeezed state model.

FIG. 7.

Solution of the dispersion equation (A7) for the diocotron modes =2 (dashed lines) and =3 (solid lines). The frequencies ω¯d(ne) are shown by dotted lines. Geometrical parameters, magnetic field value, and the voltage between internal and external electrodes correspond to the experimental conditions. The vertical line marks the electron density, calculated within the framework of the squeezed state model.

Close modal

The cathode and the reflector in a split cathode form a potential well, which traps the emitted electrons while their number increases gradually. To increase this charge, the trapped electrons react by relaxing to a force-free state (the so-called squeezed state)11 characterized by reduced energy and high density defined by the depth of the potential well restricted radially for a very strong magnetic field. For strong but finite magnitude magnetic fields, the external radial electric field can extract electrons from the squeezed state in the radial direction. This is the case when the squeezed state can be employed as an electron source with radial emission.15

The steady-state electron density is defined by the balance between the external force that keeps electrons in the potential well and the Coulomb force of the space charge of accumulated electrons in the well. The Coulomb electric field can be calculated using the Green function method in the same manner as shown in Refs. 19–21 (for details, see the  Appendix B).

We now present the annular electron cloud as a set of charged rigid annular rings rarrb of infinitesimal thickness dz. The expression for the axial component of the electric field E¯z(z,z) produced in the cross section z=z by the charged ring located at z=z can be written as

E¯z(z,z)=2πσsign(zz)G(|zz|),
(6)

where σ=enedz is the surface charge density, sign(zz)=1or1 for z>z and z<z.

It was shown in Refs. 20–22 that the function G(|zz|) for a solid cylindrical electron cloud can be approximated by the exponential

G(|zz|)exp(|zz|/C),
(7)

where the characteristic scale of the Coulomb field Crb/2. An annular cloud is characterized by an addition of geometrical parameters. Nevertheless, the exponential approximation Eq. (7) is still applicable (see Fig. 14). The dimensions of the conductors and the electron cloud in the experiment described in Sec. III are ra=0.7 cm, rb=0.9 cm, Rin = 0.3 cm, and Rext = 2.0 cm. The characteristic scale of the Coulomb field for these parameters is C0.56 cm.

The equation of motion of the charged rings, comprising the electron cloud in the external and the self-consistent space charge electric fields, can be written as11

d2zdt2=emφz+2πe2m0Ldzne(z)sign(zz)G(|zz|).
(8)

Here, φ is the external potential and L is the system length. Assuming that the characteristic spatial scale of the variation of the external potential φ and the electron density ne are large compared to C, one can evaluate the integral in Eq. (8) as

0Ldzne(z)sign(zz)G(|zz|)0Ldzne(z)sign(zz)e(|zz|)/C2dne(z)dzC2.
(9)

It follows from Eq. (9) that the steady-state solution exists for

ne(z)=φ(z)4πeC25.7×108φ(z)(kV)C2(cm)(cm3).
(10)

Note that φ(z) is the potential profile along the electron propagation path, i.e., φ(z)=φ(z,r)r=const.

The depth of the potential well, φ0, where the squeezed electron state (cloud) forms, is defined by the potential profile along the line r=re(rb+ra)/2 of the electron trajectory. In the configuration with a central rod, φ0=U0(|lnρe/lnρin|1)0.5U0, where ρe=re/Rext,ρin=Rin/Rext, and U0 is the potential difference between the central electrode and the external tube (anode). In the experiments (see Sec. V for details), U0=75 kV, so that φ037.5 kV. Using C0.56 cm and φ037.5 kV, in Eq. (B20), the electron density can be estimated as ne6.9×1010 cm−3.

As mentioned in Sec. II, two probes were placed at two diametrically opposite locations along the anode circumference. Typical waveforms of the probe signals and the potential difference between the anode and central rod are presented in Fig. 8.

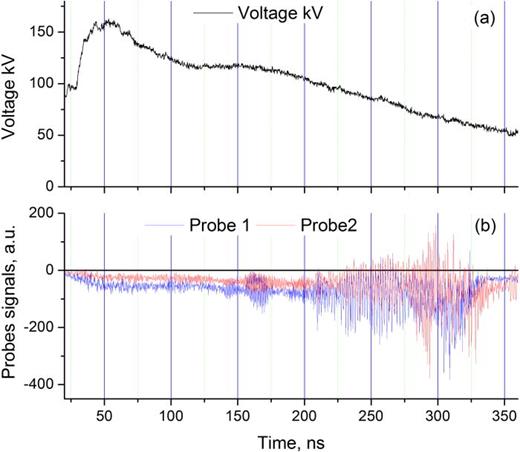

FIG. 8.

(a) Potential difference between the anode and the rod electrode and (b) two probe signals.

FIG. 8.

(a) Potential difference between the anode and the rod electrode and (b) two probe signals.

Close modal

First, the fast oscillating component of the probe signals was separated from the slowly varying basis, as illustrated in Fig. 9.

FIG. 9.

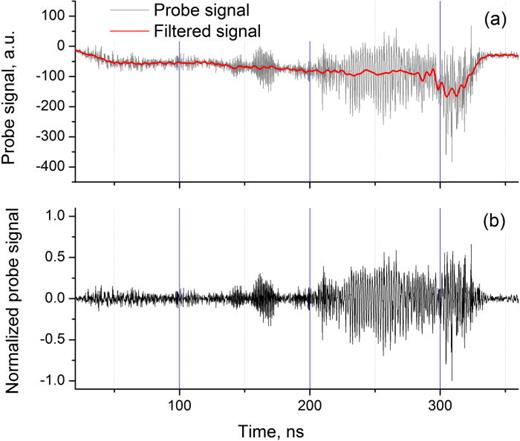

(a) Raw probe signal (gray) and filtered baseline (red). (b) Normalized fast oscillating component.

FIG. 9.

(a) Raw probe signal (gray) and filtered baseline (red). (b) Normalized fast oscillating component.

Close modal

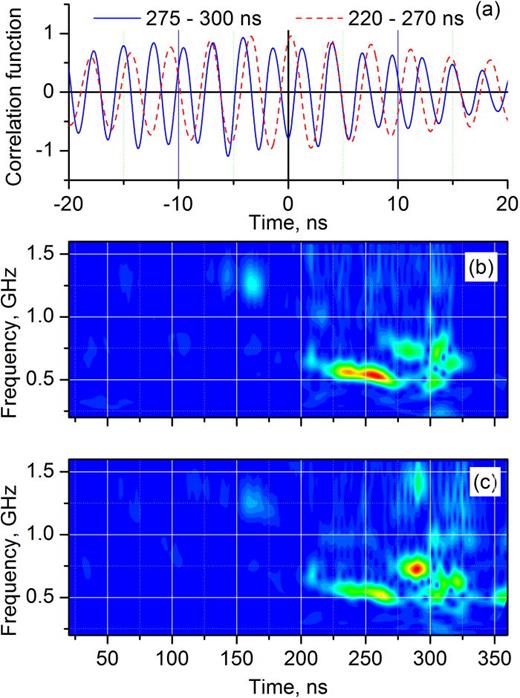

Next, a wavelet analysis of the normalized filtered signals is performed. The resulting spectrograms of two probe signals are seen in Fig. 10. One can see a sharp change in the spectra in the time interval 275–300 ns. It seems reasonable to analyze the correlation between the signals from two probes in these two time domains, 220–270 ns and 275–300 ns, separately. The resulting correlation functions are shown in Fig. 10(a). These will be discussed in Sec. V B.

FIG. 10.

(a) Correlation functions of the signals within the time intervals 275–300 ns and 220–270 ns; (b) and (c) spectrograms of the signals registered by the two probes.

FIG. 10.

(a) Correlation functions of the signals within the time intervals 275–300 ns and 220–270 ns; (b) and (c) spectrograms of the signals registered by the two probes.

Close modal

Periodic probe signals appear as the result of rotating electron density modulation produced by the diocotron instability. The rotation frequency of the density modulation, as shown in Eq. (5), is close to the electron rotation frequency, defined by the drift velocity vd=cE/H in the crossed radial electric, E, and axial magnetic, H, fields. In order to support this statement, we check that the temporal variations of the voltage and the spectrum correlate. To do this, let us superimpose a spectrogram and an appropriately scaled voltage waveform, as shown in Fig. 11. It can be clearly seen that the time dependence of the voltage waveform coincidences with the variation in the spectrum over a long period of time. This indicates that the diocotron instability can, indeed, be responsible for the observed oscillating signal behavior. Note that similar methods to detect the diocotron instability using azimuthally separated probes or a segmented anode cylinder were described in Refs. 23 and 24.

FIG. 11.

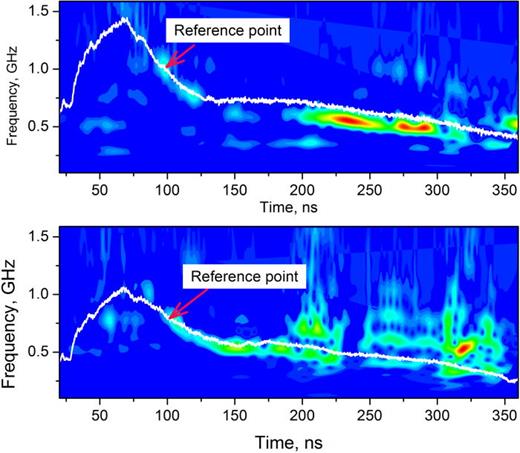

Two different spectrograms and the corresponding scales voltages. The voltage waveforms U(t) are scaled, so that they coincide with the dominant frequency at some point marked as the reference point.

FIG. 11.

Two different spectrograms and the corresponding scales voltages. The voltage waveforms U(t) are scaled, so that they coincide with the dominant frequency at some point marked as the reference point.

Close modal

The raw data used in Fig. 10 demonstrate an additional property, which can also be considered as manifestation of the diocotron instability. The correlation functions, presented in Fig. 10(a), show that the oscillating signals are in-phase in the time domain 220<t<270 ns and out of phase in the time domain 275<t<300 ns. This can be explained by the fast transformation of the azimuthally rotating electron column from even to odd number of the azimuthal high-density bunches of electrons. If this assumption is correct, then the difference between the frequencies in the time domains is the experimental determination of the rotation frequencies of the bunches, as shown in Fig. 12.

FIG. 12.

Experimental determination of the rotation frequency of the bunches. (a) Spectrogram. Vertical red line marks the point in time when the frequency jump occurs. The horizontal white lines mark the values of the frequencies. (b) The voltage waveform. Vertical red line marks the voltage value at the time the frequency jump occurs. (c) The rotation frequency, calculated using the theoretical model, described in Sec. IV.

FIG. 12.

Experimental determination of the rotation frequency of the bunches. (a) Spectrogram. Vertical red line marks the point in time when the frequency jump occurs. The horizontal white lines mark the values of the frequencies. (b) The voltage waveform. Vertical red line marks the voltage value at the time the frequency jump occurs. (c) The rotation frequency, calculated using the theoretical model, described in Sec. IV.

Close modal

Calculation of the rotation frequency, f(r)=ω(r)/2π, was performed using the model described in Sec. IV. The frequency jump occurs when the voltage is 75 kV. Following Sec. IV, the corresponding electron density of the squeezed state at this moment is 6.9×1010 cm−3. The calculated dependence f(r) for these values of the voltage and the electron density for the experimental system dimensions are shown in Fig. 12(c). The calculated frequency value agrees well with the defined experimentally difference Δf0.25 GHz between frequencies, as shown in Fig. 12(a). The minor frequency from the considered is nearly twice as large as the rotation frequency, while the higher frequency is approximately three times larger. It means that the lower frequency corresponds to the electron cloud configuration with two (even!) azimuthal bunches, and the higher frequency corresponds to configuration with three (odd!) bunches. The latter agrees with the result of correlation analysis, as presented in Fig. 10(a).

These results—number of azimuthal bunches and modulation frequencies—agree perfectly with the numerical solution of the dispersion equation, as presented in Fig. 7 in Sec. IV B.

The split cathode is a promising source of electrons for high power microwave devices. Electrons, emitted by an annular cathode, are trapped in the longitudinal potential well forming electron cloud, and the radial expansion of which is limited by a strong axial magnetic field. First experimental studies of a relativistic magnetron with a split cathode confirmed that the absence of the cathode explosive emission plasma inside the anode interaction space prevents microwave pulse shortening.15

The azimuthal symmetry of an electron cloud in a magnetron can be violated by two processes: first, the interaction of the electrons with electromagnetic fields of the magnetron cavity eigenmodes; second, by the diocotron instability, which, for the split cathode geometry, has not been studied so far. In the present article, for the split cathode fed smooth bore anode, it has been shown, by a comprehensive theoretical analysis of the experimental data, that the diocotron instability, indeed, develops. Thus, we expect that for a corresponding magnetron, the diocotron instability and the magnetron eigenmodes could act simultaneously and influence each other. Matching between the diocotron and magnetron eigenmodes can improve the magnetron characteristics.

The authors are grateful to referees for valuable comments that have led to a substantial improvement in the manuscript. At the Technion, this work was supported by Technion (Grant No. 2029541) and ONRG (Grant No. N62909-21-1-2006). We are thankful for the assistance in experiments: Y. Cao, S. Gleizer, and E. Flyat. At the University of New Mexico, this work was supported by ONR (Grant No. N00014-19-1-2155).

The authors have no conflicts to disclose.

Yury P. Bliokh: Conceptualization (equal); Formal analysis (lead); Investigation (equal); Methodology (lead); Writing – review & editing (equal). Yakov E. Krasik: Conceptualization (equal); Investigation (lead); Methodology (equal); Writing – review & editing (equal). John Leopold: Conceptualization (equal); Investigation (supporting); Methodology (supporting); Writing – review & editing (equal). Edl Schamiloglu: Conceptualization (equal); Investigation (supporting); Writing – review & editing (equal).

The data that support the findings of this study are available from the corresponding author upon reasonable request.

In this section, we apply the stability analysis, developed in Refs. 13 and 25 to the system with step-like profile of the electron cloud, considered in Sec. IV A.

Normalizing all frequencies to c/Rext (Ω=ωRext/c,Ωp=ωpRext/c, etc.) and radii to Rext (ρ=r/Rext,ρa=ra/Rext, etc.), let us write Eq. (4) in the dimensionless form

ddρ(ρdϕdρ)2ρϕ=dΩp2(ρ)/dρΩH[ΩΩd(ρ)]ϕ.
(A1)

For the step-like profile of the electron density, ne(ρ)=n0 when ρ(ρa,ρb) and ne = 0 elsewhere,

dΩp/dρ=Ωp0[δ(ρρa)δ(ρρb)],
(A2)

where δ(x) is the Dirac δ-function.

General solution of Eq. (A1) is

ϕ=αρ+βρ,
(A3)

where α and β are arbitrary constants. Using the boundary conditions ϕ(ρin)=ϕ(1)=0 and taking into account Eq. (A2), the solution of Eq. (A1) can be written as

ϕϕI=A(ρρρin2),ρ(ρin,ρa),ϕϕII=Cρ+Dρ,ρ(ρa,ρb),ϕϕIII=B(ρρ),ρ(ρb,1).
(A4)

Function ϕ is continuous everywhere over the interval (ρin,1),

ϕI(ρa)=ϕII(ρa),ϕIII(ρb)=ϕIII(ρb),
(A5)

and its derivative ϕ=dϕ/dρ experiences stepwise variations at the interfaces between the regions,

ϕII(ρa)ϕI(ρa)=Ωp2ϕ(ρa)ρaΩh[ΩΩd(ρa)],ϕIII(ρb)ϕII(ρb)=Ωp2ϕ(ρb)ρbΩh[ΩΩd(ρb)].
(A6)

The dispersion equation appears as a compatibility condition for the system (A5)–(A6). Introducing Ω¯d=[Ωd(ρa)+Ωd(ρb)]/2,δΩ=[Ωd(ρa)Ωd(ρb)]/2 and w=ΩΩ¯d, one can write the dispersion equation in the following form:

αw2+βw+γ=0.
(A7)

Here

α=Δ(1gagb)Δ+(gagb),β=μΔ(ga+gb),γ=Δμ2+ℓμδΩ[2Δ+Δ(gagb)]α2δΩ2,μ=Ωp2/ΩH,Δ=ρaρbρaρb,Δ+=ρaρb+ρaρb,ga=[1+(ρin/ρa)2]/[1(ρin/ρa)2],gb=(1+ρb2)/(1ρb2).

For the qualitative analysis of the dispersion equation, it is convenient to consider a thin annular cloud, assuming that ρbρa=dρa+ρb=2ρe, where d is the cloud thickness and ρe is the cloud mean radius. Assuming also that (ρin/ρe)21 and ρe21, where =2,3,, the dispersion equation (A7) can be simplified to

w2=δΩ(δΩ+μ)μ2δ/2ρe.
(A8)

The diocotron instability develops when the right-hand side of Eq. (A8) is negative. For this case

ReΩ=Ω¯d.
(A9)

This result is confirmed by the solution of Eq. (A7), presented in Fig. 13. One can see that the dependence of the mean electron rotating frequency Ω¯d on the electron density is weak, so that its value can be calculated for a “cold” system, when the space charge field of the electron cloud is small compared to the external electric field. Equation (A9) means that the azimuthal modulation of the electron density rotates practically with the same velocity as the electrons themselves.

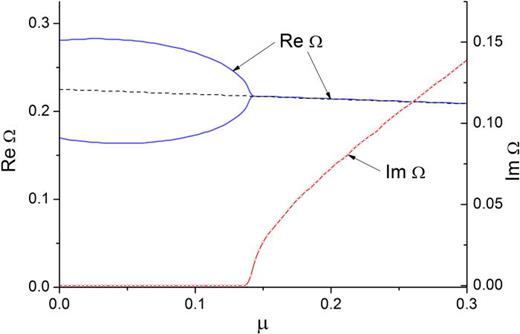

FIG. 13.

The solution Ω of the dispersion equation (A7) as a function of the parameter μ. The dashed line is the value of Ω¯d vs μ. The geometrical parameters are the same as in the experiment. In the instability region, ReΩ=Ω¯d.

FIG. 13.

The solution Ω of the dispersion equation (A7) as a function of the parameter μ. The dashed line is the value of Ω¯d vs μ. The geometrical parameters are the same as in the experiment. In the instability region, ReΩ=Ω¯d.

Close modal
1. The space charge electric field

Consider the electron cloud occupying the annular region rarrb arranged coaxially in a conducting tube of radius Rext, as shown in Fig. 6. In general, the conducting tube can also contain a central rod. Let us find the potential φ(r) induced by an annular disk rarrb of infinitesimal thickness dz in the z direction.

The electrostatic potential, produced by an axially symmetrical charged layer, placed at z =0, in the half-space z0, can be written as

φ(r)=nAneμnzFn(r),
(B1)

where Fn(r) is the eigenfunctions of the Laplace equation

1rddr(rdFndr)+μnFn=0

with zero boundary conditions either in the ring area RinrRext or in the circular area 0rRext in the absence of the central conducting rod. Here, μn is the eigenvalues. Because of symmetry, on the entire z =0 plane, Ez|z=0=(φ/z)z=0=0, except on the charged layer itself at r(ra,rb). Differentiating Eq. (B1) and setting z =0 give

(φ/z)z=0=nAnμnFn(r).
(B2)

The coefficients An of the expansion Eq. (B1) can be calculated as

An=1μnFn2rarb(φz)z=0rFn(r)dr,
(B3)

where Fn=RinRextFn2(r)rdr is the norm of the eigenfunction.

The electric field E at the surface of charged layer is directed along the z-axis and is equal to 2πσ, where σ is the layer surface charge density. Thus,

Ez|z=0=(φ/z)z=0=2πσ.

Assuming that the layer is charged homogeneously, one can rewrite Eq. (B3) as

An=2πσμnFn2rarbrFn(r)dr.

Expression (B1) acquires the form

φ(r,z)=2πσnμn1Fn2eμnzFn(r)rarbrFn(r)dr.
(B4)

Accordingly, the axial electric field reads

Ez(r,z)=sign(z)2πσnFn2eμn|z|Fn(r)rarbrFn(r)dr,
(B5)

where sign(z)=1or1 for z >0 and z <0.

Let the radial thickness d of the electron cloud be small compared to the external cylinder radius Rext. For ra = 0 and no central rod, the cloud cross section is a solid disk. Consider the disk radius rb be small, rbRext. Then, assuming that the electron density ne is homogeneous in the transverse plane, the radial dependence of the electric field, Ez, which governs the axial motion of the electrons comprising the layer dz, can be neglected, and the problem reduces to the one-dimensional.

Following Tien et al.,20 let us replace dz-thick slices of the electron cloud by charged rings (or disks) with the same total charge, so that σ=enedz. In the model of rigid slices, the acting electric field Ez(r,z) should be replaced by its average over the slice surface area

E¯z(z)=2rb2ra2rarbEz(r,z)rdr.

Thus,

E¯z(r,z)=sign(z)2πσ{2rb2ra2neμn|z|[rarbFn(r)rdr]2/RinRextFn2(r)rdr}.
(B6)

Equation (B6) is valid for all three configurations of the cloud: (i) annular cloud between the tube and the central electrode, (ii) annular cloud in the tube and no central rod, and (iii) solid cloud of radius rb in the cylindrical tube. The only difference between these configurations is the explicit form of the eigenfunctions and corresponding eigenvalues.

a. Annular electron cloud in the presence of a central rod

As a set of the eigenfunction, one can choose

Fn(r)=N0(νnρin)J0(νnρ)J0(νnρin)N0(νnρ),
(B7)

where νnμnRext are the roots of the equation

N0(νnρin)J0(νn)J0(νnρin)N0(νn)=0.
(B8)

Here, J0(x) and N0(x) are zeroth order Bessel and Neumann functions, ρ=r/Rext and ρin=Rin/Rext, respectively. The integrals in the numerator and denominator of the expression in Eq. (B6) can be evaluated as

rarbFn(r)rdr={N0(νnρin)[ρbJ1(νnρb)ρaJ1(νnρa)]J0(νnρin)[ρbN1(νnρb)ρaN1(νnρa)]}Rext2/νngnRext2/νn,
(B9)
RinRextFn2(r)rdr=2Rext2π2νn2[J02(νnρin)J02(νn)1]2Rext2π2νn2fn.
(B10)

Here, ρa,b=ra,b/Rext. Finally, the expression for the axial component of the electric field E¯z(z,z) produced in the cross section z=z by the charged ring located at z=z can be written as

E¯z(z,z)=2πσsign(zz)G(|zz|),
(B11)

where

G(z)=π2ρb2ρa2neνn|z|/Rextgn2/fn.
(B12)
b. Annular electron cloud—No central rod

For this configuration, the eigenfunctions are Fn(r)=J0(νnr/Rext), where νn is the zeros of the Bessel function J0(x). The electric field E¯z(z,z) can be written in the same form as in Eq. (B11) but with different functions G, g, and f, given by

G(z)=4ρb2ρa2neνn|z|/Rextgn2νn2fn,
(B13)

where

gn=ρbJ1(νnρb)ρaJ1(νnρa)andfn=J12(νn).
(B14)
c. Solid cylindrical electron cloud

The expression for the electric field of a solid electron cloud of radius rb (ra = 0) follows from Eq. (B14),

G(z)=4neνn|z|/Rextgn2νn2fn,
(B15)

where

gn=J1(νnρb)andfn=J12(νn).
(B16)
d. Approximation by exponent

It was shown in Refs. 20–22 that the function G(z) for a solid cylindrical electron cloud can be approximated by the exponential

G(z)exp(|z|/C),
(B17)

where the characteristic scale of the Coulomb field Crb/2 and its value is practically independent of the ratio rb/Rext=ρb for ρb0.3. Annular clouds, either in the presence of a central rod or not, are characterized by addition geometrical parameters. Nevertheless, the exponential approximation Eq. (B17) is still applicable. Note that this is valid far from the potential well's edges. The Coulomb field of the charged plane slice is not symmetrical with respect to the slice position when the distance between the boundary electrodes and the slice is compared with C. This asymmetry can be properly considered, but its role is small when the distance between these electrodes is large as compared with C.

2. Equation of motion and the steady-state electron density

As mentioned above, the electron cloud can be represented as a set of charged rigid rings/disks with surface charge density σ=enedz. The equation of motion of the rings/disks in the external electric field and the self-consistent Coulomb field of the electron space charge can be written as11

d2zdt2=emφz+2πe2m0Ldzne(z)sign(zz)G(|zz|).
(B18)

Here, φ is the external potential and L is the system length. Assuming that the characteristic spatial scale of the variation of the external potential φ and the electron density ne is large compared to C, one can evaluate the integral in Eq. (B18) as

0Ldzne(z)sign(zz)G(|zz|)0Ldzne(z)sign(zz)e(|zz|)/C2dne(z)dzC2.
(B19)

It follows from Eq. (B19) that the steady-state solution exists for

ne(z)=φ(z)4πeC25.7×108φ(z)(kV)C2(cm)(cm3).
(B20)

Note that φ(z) is the potential profile along the electron propagation path, i.e., φ(z)=φ(z,r)r=const.

The steady-state density of a solid circular electron cloud of radius rd is

ne(z)2.3×109φ(z)(kV)rd2(cm)(cm3).
(B21)

The dimensions of the conductors and the electron cloud in the experiment described in Sec. III are ra=0.7 cm, rb=0.9 cm, Rin = 0.3 cm, and Rext = 2.0 cm. The function G, defined by Eq. (B12), and its exponential fit are shown in Fig. 14 as functions of the dimensionless distance ξ=z/rb2ra2. The characteristic scale of the Coulomb field for these parameters is C0.56 cm. Note that C remains the same when no central electrode is present.

FIG. 14.

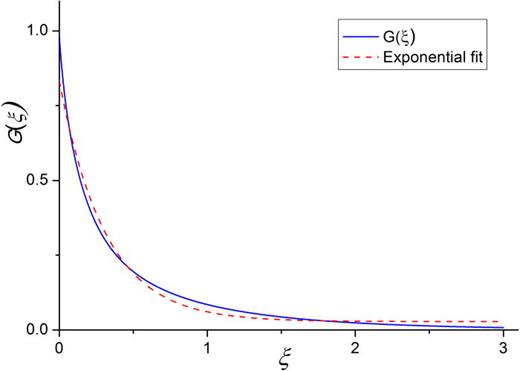

Annular electron cloud including the central electrode. Exponential fit of function G(ξ),ξ=z/rb2ra2.

FIG. 14.

Annular electron cloud including the central electrode. Exponential fit of function G(ξ),ξ=z/rb2ra2.

Close modal
1.
R. C.
Davidson
,
Physics of Nonneutral Plasmas
, 2nd ed. (
World Scientific Publishing
,
Singapore
,
2001
).
2.
T. M.
O'Neil
,
Phys. Today
52
(
2
),
24
(
1999
).
3.
K.
Blaum
,
Y.
Novikovb
, and
G.
Werth
,
Contemp. Phys.
51
,
149
(
2010
).
4.
D. H. E.
Dubin
and
T. M.
O'Neil
,
Rev. Mod. Phys.
71
,
87
(
1999
).
5.
J.
Pétri
,
Astron. Astrophys.
478
,
31
(
2008
).
6.
S.
Sturm
,
G.
Werth
, and
K.
Blaum
,
Ann. Phys.
525
,
620
(
2013
).
7.
K.
Katagiri
,
K.
Kawamura
,
T.
Wakui
,
M.
Muramatsu
, and
N.
Hayashizaki
,
Nucl. Instrum. Methods Phys. Res., Sect. A
987
,
164837
(
2021
).
8.
F. M.
Penning
,
Physica
3
,
873
(
1936
).
9.
J. S.
deGrassie
and
J. H.
Malmberg
,
Phys. Rev. Lett.
39
,
1077
(
1977
).
10.
A. M.
Ignatov
and
V. P.
Tarakanov
,
Phys. Plasmas
1
,
741
(
1994
).
11.
Y.
Bliokh
,
J. G.
Leopold
, and
Y.
Krasik
,
Phys. Plasmas
28
,
072106
(
2021
).
12.
A. E.
Dubinov
and
V. P.
Tarakanov
,
Tech. Phys.
65
,
1002
(
2020
).
13.
R. H.
Levi
,
Phys. Fluids
8
,
1288
(
1965
).
14.
S.
Riyopoulos
,
Phys. Plasmas
6
,
323
(
1999
).
15.
Y.
Krasik
,
J. G.
Leopold
,
Y.
Hadas
,
Y.
Cao
,
S.
Gleizer
,
E.
Flyat
,
Y. P.
Bliokh
,
D.
Andreev
,
A.
Kuskov
, and
E.
Schamiloglu
,
J. Appl. Phys.
131
,
023301
(
2022
).
16.
N. S.
Frolov
,
A. A.
Koronovskii
, and
A. E.
Hramov
,
Bull. Russ. Acad. Sci.: Phys.
81
,
27
(
2017
).
17.
J. G.
Leopold
,
Y.
Krasik
,
Y. P.
Bliokh
, and
E.
Schamiloglu
,
Phys. Plasmas
27
,
103102
(
2020
).
18.
S. P.
Bugaev
,
A. A.
Kim
,
A. I.
Klimov
, and
V. I.
Koshelev
,
Zh. Tech. Fiz.
50
,
2463
(
1980
) (in Russian).
19.
W. R.
Smythe
,
Static and Dynamic Electricity
(
Taylor & Francis
,
Boca Raton, FL
,
1989
).
20.
P. K.
Tien
,
L. R.
Walker
, and
V. M.
Wolontist
,
Proc. IRE
43
,
260
(
1955
).
21.
J. E.
Rowe
,
Nonlinear Electron Wave Interaction Phenomena
(
Academic Press
,
New York
,
1965
).
22.
I. J.
Morey
and
C. K.
Birdsall
,
IEEE Trans. Plasma Sci.
18
,
482
(
1990
).
23.
G.
Rosental
,
G.
Dimonte
, and
A. Y.
Wong
,
Phys. Fluids
30
,
3257
(
1987
).
24.
G.
Bettega
,
F.
Cavaliere
,
B.
Paroli
,
R.
Pozzoli
,
M.
Romé
, and
M.
Cavenago
,
Phys. Plasmas
15
,
032102
(
2008
).
25.
R. C.
Davidson
and
G. M.
Felice
,
Phys. Plasmas
5
,
3497
(
1998
).
