A short atmospheric pressure argon arc is studied numerically and analytically. In a short arc with an inter-electrode gap of several millimeters, non-equilibrium effects in plasma play an important role in operation of the arc. High anode temperature leads to electron emission and intensive radiation from its surface. A complete, self-consistent analytical model of the whole arc comprising of models for near-electrode regions, arc column, and a model of heat transfer in cylindrical electrodes was developed. The model predicts the width of non-equilibrium layers and arc column, voltages and plasma profiles in these regions, and heat and ion fluxes to the electrodes. Parametric studies of the arc have been performed for a range of the arc current densities, inter-electrode gap widths, and gas pressures. The model was validated against experimental data and verified by comparison with numerical solution. Good agreement between the analytical model and simulations and reasonable agreement with experimental data were obtained.

Atmospheric pressure arcs recently found application in production of nanoparticles, such as carbon nanotubes1–5 and boron-nitride nanotubes.6 Distinguishing features of such arcs are typically short length of about several millimeters between electrodes and hot ablating anode characterized by intensive electron emission and radiation from its surface. Electrode ablation significantly increases the complexity of the arc physics and chemistry. As a first step, a short argon arc with cylindrical tungsten electrodes is studied in this series of papers. No ablation takes place from tungsten electrodes, but effects of emission, radiation, and non-equilibrium layers are still pronounced. Results of a carbon arc with graphite electrodes in helium atmosphere will be presented in subsequent publications.

The first paper of the series7 was dedicated to the numerical simulation of an argon arc with cylindrical tungsten electrodes with emphasis on non-equilibrium effects in the near-electrode regions. It was shown that the non-equilibrium effects play an important role in the operation of the arc and should be taken into account in modeling. It was also shown that the electron emission from the anode surface can significantly affect the potential drop in the plasma region near the anode.

Though the numerical simulations can yield all arc plasma profiles, theoretical analysis can unravel complicated physical processes underpinning the arc self-organization. Scaling laws of crucial arc characteristics such as potential drops in different arc regions and heat fluxes to electrodes with arc current, pressure, and inter-electrode width obtained theoretically are used for planning experimental campaigns and choosing right arc parameters for arc applications. A self-consistent analytical model of the whole arc is helpful for fast assessments of the arc experimental setup design. These predictions are also important for the verification of numerical codes, for instance, for verifying whether results of the numerical simulations exhibit correct asymptotical behavior. The developed analytical model provides understanding of which terms in the governing equations are of major importance and which can be neglected. This knowledge can be used for simplification of numerical codes.

Argon arc was extensively studied previously. However, among modeling papers, mostly numerical studies rather than analytical studies are present in the literature. Significant part of the studies is focusing on one or another part of the arc, not considering arc as a whole. For example, numerous numerical studies of the anodic region can be found in the literature.8–12 Thorough reviews on numerical and experimental studies of the near-anode region of arc discharges can be found in Refs. 13 and 14. Approximate relation for heat flux to the anode and heuristic assessment for the width of the near-anode region can be found in Ref. 14, for instance. However, we could not find a self-consistent analytical model of the region, providing accurate relations for its width and voltage. We also could not find papers considering a hot electron emitting anode. Analytical models of the arc column are limited to the case of long arcs where no variation of plasma parameters along the axis takes place in the arc column.15,16 Analytical studies of the cathodic region either focus on energy balance17–19 or on the ion transport.20,21 We could not a find self-consistent model of the cathodic region coupling all the effects of heat conduction in the electrode, ion generation and transport, and the sheath voltage drop.

The 1D model of argon arc presented in the first paper of the series7 features non-equilibrium plasma transport equations with the transport coefficients derived from kinetic theory.22 The results of numerical solution of the non-equilibrium plasma transport equations were compared with simulations of Ref. 22 and validated against experimental data.23,24 The transport equations were thoroughly described in Ref. 7 and will be used in the current paper.

Parametric studies of the atmospheric pressure argon arc for various current densities and inter-electrode gap sizes were performed in Ref. 7. It was shown, in particular, that the different arc regions are rather autonomic even in the case of short arcs (weakly depend on the arc length) and can be considered separately. Based on the results of the simulations performed and presented in the first paper,7 the current study reports the self-consistent analytical models of the near-electrode regions and the arc column combined into a unified self-consistent analytical model of the whole arc. Non-equilibrium processes in plasma and effects of near-electrode space-charge sheaths are taken into account. The analytical model is capable of predicting the arc structure, plasma parameters, and voltages in different arc regions, their sizes, and heat fluxes to the electrodes. The analytical arc model was benchmarked against the simulations and validated against experimental data of Ref. 23. Results for background argon pressures of 1 atm. and 3 atm. will be presented.

The organization of the paper is as follows. In Sec. II, the system of equations describing non-equilibrium transport processes in the arc is given. The model of the cathodic region is presented in Sec. III, providing relations for the region width, voltage, heat flux, and ion current to the cathode and electron temperature. Section IV is devoted to the arc column, where it is shown that a single differential equation for the gas temperature profile can describe the arc column; asymptotic solutions for the temperature profile and relation for the arc column voltage are derived. In Sec. V, the analytical model of the anodic region is given, providing relations for the anodic region width, voltage, and heat flux to the electrode. In Sec. VI, developed asymptotic solutions for the all arc regions are used to calculate the Volt-Ampere characteristic (VAC) of the entire arc. Theoretical results for VAC are also validated against the available experimental data. Conclusions of this work are summarized in Sec. VII.

In this section, the system of transport equations describing species transport and heat transfer in the arc is presented. The full set of governing transport equations for the arc was already given in the first paper of this series7 and in Ref. 22 with proper description and derivation. Equations are formulated for quasi-neutral plasma outside space-charge sheaths. Here, we repeat these equations briefly.

Electric field can be expressed using generalized Ohm's law that takes into account electron diffusion, thermal diffusion, and electron-ion friction

E=ke(1+Ce(e))TekeTennΓeneme(νe,a+νe,i)+mee(νe,aΓana+νe,iΓin),
(1)

where e is the elementary charge, k is the Boltzmann constant, nne=ni is the density of electrons and ions (quasi-neutrality approximation is used in this paper), na is the density of neutral atoms, and other variables are defined below.

For the ion transport, we use the ion continuity equation, where the electric field is excluded using electron flux, Γe, and assuming that gas velocity is negligible in 1D approximation. This gives for the ion flux, Γi, the ambipolar diffusion, and thermal diffusion [(see Ref. 7, Eq. (39)]

Γi=Dnn(DTlnT+DTelnTe)AeΓe,
(2)

where D=k(T+Te)/(0.5(νi,a+νa,i)mAr+νa,eme) is the ambipolar diffusion coefficient, DT=DT/(T+Te), DTe=DTe/(T+Te) is the thermal diffusion coefficient, Ae=(νe,ame)/(0.5(νi,a+νa,i)mAr+νa,eme) is a kinetic coefficient, νk,j is the effective collision frequency of species k with species j

νk,j=438kTkjπmkjCkjσkjnj,

where subscripts k, j denote different species: argon atoms a, argon ions i, and electrons e, nk—number density of species k,

mkj=mkmjmk+mj,Tkj=mkTj+mjTkmk+mj.

Here, mk is the mass of particles of a sort k, Tk is their temperature, Γk is the flux of species k, and σkj is the collision cross section. Temperatures and masses of heavy particles are very close and are not distinguished in the model: Ti=Ta=T, mi=ma=mAr.

For electron-ion collisions, cross-section is

σei=e4lnΛ32πε02(kTe)2,
(3)

where ε0 is the vacuum permittivity, lnΛ=ln(8πε0kTeε0kTe/n/e3) is the Coulomb logarithm, and Ckj, Ck(e) are the numerical coefficients of order of unity that are given in Refs. 7 and 22. For strongly ionized plasma, Ce(e)=0.7.

In quasineutral approximation, electron and ion density is determined by continuity equation [see Ref. 7, Eq. (40)]

(nVTDn)=si+ΓeAe,
(4)

where VTDTlnT+DTelnTe accounts for thermal diffusion effects, si=kinnakrn3 is the volumetric plasma source (ionization) and sink (three body recombination), and ki, kr are the temperature-dependent reaction rate coefficients. Arrhenius-like approximations for ki and kr were used in the analytical model

ki(T)=Aiexp(Ti/T),kr(T)=Arexp(Tr/T),Ai=1.5×1014m3/s,Ti=140000K,Ar=1043m6/s,Tr=51000K.
(5)

These simple relations are rather good approximations of more accurate formulae, in which ki is calculated as described in Ref. 25, and kr is calculated to satisfy the ionization-recombination balance (deviation between accurate and approximate values does not exceed 20% in a temperature range 5000 K–16 000 K)

kina=krnSaha2,
(6)

where ne,Saha is the equilibrium number density defined by the Saha equation

nSaha2na=2gi/ga(2πmekTeh2)3/2exp(eEionkTe).
(7)

Here, gi/ga=6 is the ratio of statistical weights of ground state and ionized state, see Ref. 26, h is the Planck's constant, and Eion is the ionization energy of argon atoms.

Note that similar approximations of coefficients (5) can be found in other papers.27,28

Transport of energy of electrons and heavy particles are described by the following equations:

(3.2keTeΓe)=(λeTe)eΓeEQehQionQrad,
(8)
0=(λhT)+Qeh+ΓiE,
(9)

where coefficient 3.2 in the left-hand side of Eq. (8) is derived from kinetic theory in the limit of strongly ionized plasma (νe,aνe,i), and the electron-ion collision frequency is large compared to electron-atom collision frequency (3.2=2.5+Ai(e)+Aa(e), see Refs. 7 and 22] for details). As was shown in Ref. 7, this condition is valid for most of the arc including a major part of the near-electrode non-equilibrium regions. λe is the thermal conductivity of electron gas22

λe=kn3π108kTeπme1σei.

λh is the thermal conductivity of and heavy particles, and Qeh=AeH(TeT) is the volumetric heat exchange between electrons and heavy particles

AeH=8ne2σei2kmeTeπkm.

Qrad represents the volumetric radiation losses22

Qrad=2.6×1025W/m3p1atm(1KTe)2.52exp(1.69×105KTe).
(10)

Equation (8) is a simplified version of Eq. (12) of Ref. 7, where it was taken into account that the ion current is small compared to the arc current everywhere except for the near-cathode region where ionization degree is small.

In 1D approximation, there is no gas flow, and the total plasma and gas pressure is constant

nkTe+(na+n)kT=p.
(11)

Electrode temperatures are important parameters that affect current propagation due to electron emission. To determine electrode temperatures, the heat transfer equations have to be solved in electrodes. Heat transfer equations along the axis of cylindrical electrodes can be reduced to 1D approximation by neglecting temperature variation in radial direction, and temperature profile is governed by the following equation:

πrel2ddx(λeldTdx)=2π[(TTamb)λgasNu+εσ(T4Tamb4)]+πrel2j2ρel.
(12)

Here, λel is thermal conductivity of the electrode material (assumed to be constant, 170 W/m/K for tungsten), rel is the electrode radius, Tamb=300K is the ambient temperature, λgas0.1W/m/K is the thermal conductivity of gas surrounding the electrode, Nu is the Nusselt number taken equal to 1.1, see Ref. 29, σ is the Stefan-Boltzmann constant, ε is the emissivity taken equal to 1, ρel is the electrical resistivity of the electrode material (assumed to be constant, small for metallic electrodes), and j is the current density, assumed constant along the arc.

At the plasma facing surface of the electrode, the heat flux from plasma can be used as a boundary condition

qel,tip=λel(dTdx)front=qtoelectrodeqrad,front.
(13)

Here, qtoelectrode denotes the heat flux from plasma to the electrode, and qrad,front denotes the radiation heat flux from the front surfaces of the electrodes including mutual radiation.29 However, according to results of the 1D simulations performed in Ref. 7, the net radiation from the front surfaces of thin electrodes appeared to be of minor importance (due to a significant portion of incident radiation from the opposite electrode) and is not taken into account in the analytical model. At the opposite surface of the electrode (away from plasma), one can use the ambient gas temperature condition. If the electrode is sufficiently long, then all the heat from plasma and Joule heat generated inside the electrode are lost at side walls due to radiation and thermal conduction into the ambient gas. A condition of vanishing heat flux at the opposite surface of the electrode (away from plasma) can be used in this case. With this boundary condition and for constant transport coefficients, Eq. (12) can be also solved analytically to yield

qh.cond.(T)=T2λelrel(Nuλgasrel(12TambT)+25σε(T3Tamb4T))2j2ρelλelT,
(14)

where qh.cond. is the heat flux through a cross section with temperature T and Tamb is the temperature of the ambient gas. Solution (14) is used in the analytical model described further.

Substitution of temperature at the front surface of an electrode Tel in relation (14) yields heat flux into the electrode from the plasma because the electrode temperature is much higher than ambient temperature and electrical resistivity of metallic electrodes is negligible; relation (14) can be significantly simplified, and the heat flux into the electrode can be expressed by

qh.cond.Tel2.545λelrelσε.
(15)

In (15), it was assumed that the electrode radius is not less than 1 mm in order to neglect the term accounting for thermal conduction of the ambient gas. Solution (15) is used in the analytical model described further.

Simulation results for the near-cathode region of atmospheric pressure arc in 1D approximation are shown in Fig. 1 for various current densities. In the simulations, electrode temperature was determined from the self-consistent heat transfer equations between plasma and the cathode; the electrode diameter is 6 mm.

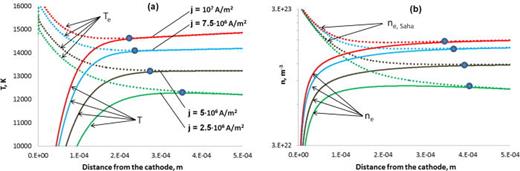

FIG. 1.

Results of the 1D simulations for the near-cathode region of atmospheric pressure arc: (a) electron (dashed) and gas temperatures; (b) equilibrium and actual electron density.

FIG. 1.

Results of the 1D simulations for the near-cathode region of atmospheric pressure arc: (a) electron (dashed) and gas temperatures; (b) equilibrium and actual electron density.

Close modal

Deviation from the ionization and thermal equilibrium is clearly evident in Figs. 1(a) and 1(b). In the plasma bulk, temperatures of electrons and heavy particles are equal due to high collisional heat exchange, and plasma density can be described by the equilibrium relation (Saha equation) (7). The electron temperature at the cathode is high due to high energy of the emitted electrons after they have been accelerated inside the cathode sheath. While moving inside the plasma, these electrons lose their energy due to exchange with colder bulk plasma electrons and due to inelastic processes (ionization and excitation). Accordingly, the electron temperature decreases towards the plasma, whereas the temperature of heavy particles decreases towards the cathode and becomes equal to the electrode temperature at the cathode front surface. Elevated electron temperature implies the increase of the equilibrium electron number density according to the Saha equation [shown by dotted lines in the Fig. 1(b) for ionization equilibrium, ne,Saha], whereas the actual plasma density decreases due to ion acceleration towards the cathode surface. Difference between equilibrium and actual plasma densities results in high net production of ions that move towards the cathode due to the drift in the electric field and diffusion driven by the plasma density gradient.

In order to determine voltage drop in the near-cathode region of plasma, it is convenient to consider energy balance in this region (see Fig. 2) as it was done, for example, in Refs. 17, 18, and 19. Consider integral energy balance in the region. Energy released in the near-cathode region is a product of the current density and voltage drop. This energy is transferred to bulk plasma and to the cathode. As shown in Ref. 7, the heat flux in plasma outside the near-cathode region is mostly transferred by convection of electrons, i.e., contribution of the thermal conductivity can be neglected. The electron current constitutes most of the total current density (the ion current is small compared to the total current). Accordingly, the heat flux from the near-cathode region to the plasma can be written as 3.2(k/e)jTe,plasma. The simulations have shown that this simplification is valid for rather short arcs until near-electrode regions start to overlap. Note that in Refs. 17 and 18 the heat flux to plasma was neglected for simplicity, and in Ref. 19, similar simplifications to those described above were used.

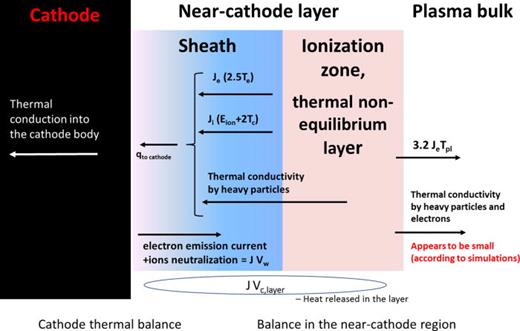

FIG. 2.

Schematic energy balance in the cathodic region of the arc.

FIG. 2.

Schematic energy balance in the cathodic region of the arc.

Close modal

Composition of energy flux from plasma to the cathode is not important for this derivation. It will be considered further in this section. Resultant energy balance relation for the near-cathode region reads

jVclayer=qtocathode+3.2kejTe,plasma.
(16)

Consider the heat balance at the cathode surface: the heat flux to the cathode from plasma (see Fig. 2) is partially spent on electrode cooling by electron emission because emitted electrons overcome the surface potential barrier, i.e., work function when exiting the electrode. This heat flux is equal to jVw. Both thermionically emitted electrons and electrons neutralizing the ion flux are included giving the total current as a sum. The rest of the heat is transferred into the cathode body by heat conduction; heat radiation from the cathode front surface is small compared to jVw and is neglected

qtocathode=jVw+qc.h.cond.
(17)

Substitution of Eq. (16) into Eq. (17) gives cathode layer voltage drop

Vclayer=Vw+3.2keTe,plasma+qc.h.cond.j.
(18)

Unknowns here are Te,plasma and qc.h.cond.. A term with Te,plasma in (18) representing convection appears to be of order of work function and cannot be omitted. The value of Te,plasma can be determined from ion balance in the near-cathode plasma region, as described in Sec. III C, Eq. (29). Note that, 1D simulations show that Te,plasma does not change significantly with the arc current or pressure. It varies in a range from about 12 000 K to 16 000 K with current density variation from 2 × 106 A/m2 to 2 × 107 A/m2. For the sake of simplicity, an approximate constant value of 14 000 K can be used for current densities in the range considered, and variation of Te,plasma around 14 000 K gives an error not exceeding 0.5 V (which is less than 5% for the conditions considered). For better accuracy, or for different arc operating conditions, one can obtain Te,plasma from Eq. (29). The results presented below were obtained with the constant value of Te,plasma equal to 14 000 K.

Conductive heat flux into the cathode qc.h.cond. used in Eqs. (18) and (29) can be determined by the substitution of the electrode front surface temperature Tc into Eq. (15) yielding the following relation for the cathode voltage:

Vclayer=Vw+3.2keTe,plasma+Tc2.51j45λcrcσε.
(19)

Here, λc is thermal conductivity of the cathode material and rc is the cathode radius. Note that in the papers17–19 wide and long cathodes were considered, and radiation from the cathode surface was neglected resulting in a simpler relation for the heat flux into the cathode compared to Eq. (15) for the thin cylindrical cathode with radiation.

Temperature of the cathode front surface Tc can be determined from current conservation at the cathode surface

j=jR+ji,cjeplasma.
(20)

Here, ji,c is the ion current at the cathode surface, jeplasma is the current of plasma electrons to the cathode, which is typically negligible due to its suppression by the cathode sheath voltage drop, and jR is the emission current described by the Richardson formula

jR(Tel)=ARTel2exp(e(Vw+ESchott)kTel).
(21)

Here, AR is the Richardson's constant, Vw is the work function of the electrode material (4.5 V for tungsten), and ESchott is the Schottky correction voltage (about 0.1 V, see Ref. 20, for instance).

Substitution of (21) into (20) and neglecting the Schottky voltage yields a relation for the cathode surface temperature Tc

Tc=eVwkln(ARTc2/(jji,c)).
(22)

Ion current density at the cathode can be obtained from energy balance in the near-cathode region, as described in Sec. III B, Eq. (24). However, for the sake of simplicity, ion current can be neglected, as it was done in Refs. 18 and 19, and constant value of Tc can be used in the right-hand side of (22). Due to logarithmic dependence of the cathode temperature on the emission current density in (22), neglecting ion current in (22) should result in a very small error. For a typical ion current fraction of about 20%, error in the cathode temperature is about αi(eVw)/(kTc)2% resulting in 5% error of the heat flux to the cathode. For the same reason, a constant value can be used for the cathode temperature Tc at the right-hand side of Eq. (22). According to simulations,7 see Fig. 10 therein, the typical value of the cathode temperature is about 3500 K, and its variation with current density is about 15%. Note, however, that these simplifications can result in significant errors in the case of extensively cooled cathode when emission current is low. Such an arc is not considered in this paper; nevertheless, formula (22) without the simplifications is applicable in this case as well. Also note that the ion current cannot be neglected when considering energy transfer in the near-cathode plasma (further in this chapter) because ions transfer a significant fraction of energy.

Analytical results for the voltage drop in the near-cathode layer obtained with this approach are plotted in Fig. 3 in comparison with results of numerical simulations for two different pressures. Note that the analytical relation for cathode voltage (18) does not include the gas pressure, ion current, and effects of other parts of the arc. The results of full simulations for the cathode voltage Vclayer and the analytical solution at two different pressures are very close to each other, therefore proving validity of the assumptions used in the analytical model. At lower current densities, voltage in the near-cathode layer is high because a major portion of the heat released in the layer is spent for heating the cathode to the temperature sufficient for maintaining electron emission. At higher current densities, a portion of the heat required to heat up the cathode reduces, and the cathodic voltage drop decreases asymptotically to the value Vw+3.2(k/e)Te,plasma.

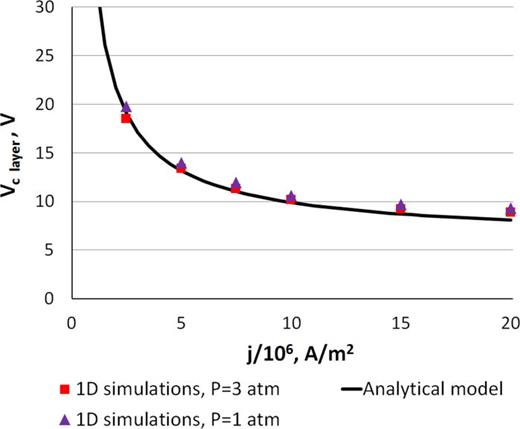

FIG. 3.

Voltage in the near-cathode layer as a function of total current density. Analytical solution (18) is in a good agreement with results of the simulations.7 With decrease of the current, voltage in the layer becomes higher because a larger portion of the heat released in the layer is spent for cathode heating.

FIG. 3.

Voltage in the near-cathode layer as a function of total current density. Analytical solution (18) is in a good agreement with results of the simulations.7 With decrease of the current, voltage in the layer becomes higher because a larger portion of the heat released in the layer is spent for cathode heating.

Close modal

The results presented above were obtained only using energy balance in the cathodic region and did not require knowledge of plasma parameters (except for electron temperature), composition of heat flux to the cathode surface, and ion current. For completeness, we provide the description of the near-cathode plasma and determine the electron temperature and thickness of the cathode layer, which are required for coupling with the arc column model.

It is convenient to start consideration with ion current. Ion current is important a mechanism of the cathode heating. As mentioned earlier, emitted electrons are accelerated in the sheath and bring their energy to plasma. Hot plasma electrons in the near-cathode layer lose their energy in inelastic collisions (excitation and ionization). The ions that impinge onto the cathode surface recombine with electrons from the cathode and therefore release ionization potential for each recombination and bring significant heat flux to the cathode. In previous analytical theoretical papers,17,19 it was assumed that the ion current is the only source of energy flux to the cathode. However, it is reasonable to assume that plasma electrons lose some portion of their energy in elastic collisions with heavy particles, and this energy is transferred to the cathode by thermal conduction (due to temperature decrease towards the cathode surface). In other words, there is some cost of ionization εion (cost of creation of a single electron-ion pair) which is higher than ionization potential

qtocathode=εionji,c/e.
(23)

If ionization cost is known, then ion current density can be obtained from Eq. (23) using known cathode temperature

ji,c=jeεion(Vw+Tc2.51j45λcrcσε).
(24)

Note that lengths of ionization and thermal non-equilibrium regions are close [see Figs. 1(a) and 1(b)], in other words, processes of ionization and elastic energy transfer from electrons to heavy particles take place in more or less the same region. Hence, conventional meaning of ionization cost should be applicable here. Ionization cost is weakly dependent on energy of electrons and pressure, and is typically about twice ionization energy for rare gases (see Ref. 30, for instance).

Comparison with results of the simulations (see Fig. 4) has shown that good assessment for εion is 40 eV for pressure 1 atm and 50 eV for 3 atm confirming that the value is rather conservative. For the sake of simplicity, a constant value of 40 eV can be utilized in the model of cathodic region. Assumption that all of the heat is brought to the cathode by ions corresponding to ionization cost equal to ionization energy leads to significant errors in values of ion current (significant disagreement with results of the simulations). As seen from Fig. 4, the ion current fraction is typically about 15%–20% and slightly decreases with total current density.

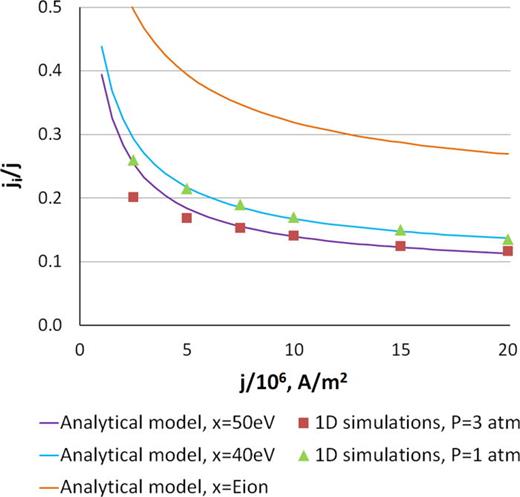

FIG. 4.

Ion current fraction at the cathode as a function of the total current density. With ionization cost εion in a range of 40 eV to 50 eV, agreement between analytical solution (24) and results of the simulations7 is obtained.

FIG. 4.

Ion current fraction at the cathode as a function of the total current density. With ionization cost εion in a range of 40 eV to 50 eV, agreement between analytical solution (24) and results of the simulations7 is obtained.

Close modal

Electron temperature at the plasma edge of the cathode region, Te,plasma, is used in relation (18) for the cathodic voltage and is needed to describe interaction of the cathodic region with the arc column. Ability to determine this parameter from the analytical arc model will make the model more self-consistent, free of heuristic approximations.

Electron temperature in the cathode region can be obtained using known ion current density to the cathode. According to the simulations, major terms in the ion transport equation (4) are diffusion (Dn) and source si. Hence, simplified (approximate) equation of ion transport can be written as

ddx(Ddndx)=krn3kinan.
(25)

A simplified relation for the ambipolar diffusion coefficient D can be used

D2k(T+Te)νi,amAr38πmArk1.5T0.5(T+Te)σiap.
(26)

In expression (26), the collision frequency of a single atom with ions νa,i is neglected as compared to collisions of an ion with atoms νi,a due to rather low ionization degree in the cathode region.

The diffusion coefficient D, neutrals number density na, and reaction rate coefficients ki, kr are temperature-dependent. For the sake of simplicity, temperature variation across the near-cathode layer is out of the scope of the paper, only level of temperature; some average value across the region is of interest. It allows us to treat coefficients D, ki, kr, and na in (25) as constants and obtain analytical solution for ion flux

1DΓi2=n2(kr2n2kina)+const.,
(27)

where ion flux is Γi=Ddn/dx.

The constant in (27) can be determined from boundary conditions at the arc column side where ionization equilibrium takes place (krn2=kina) and ion flux is small (Γi0). In the vicinity of the cathode surface (at the sheath edge), plasma density is small and can be set to zero. It gives a relation for ion current density at the cathode

ji,c=ekinaD2kr.
(28)

Ion current in the left-hand side of the equation is known from Sec. III B, Eq. (24); coefficients in the right-hand side are dependent on temperatures of the electrons and heavy particles. Note that dependence on the electron temperature is much stronger due to the presence of reaction rate coefficients, especially ki(5). Hence, approximate values for the temperature of heavy particles can be utilized. In (26) it was put equal to electron temperature making the right-hand side of (28) dependent on electron temperature only and allowing us to express the electron temperature. Due to low ionization degree in the near-cathode region, a simplified relation for number density of atoms can be used: na=p/(kT). Substitution of relations (5) into (28) and the ion current from Eqs. (17) and (23) gives the following relation for the electron temperature in the near-cathode region:

Te=Ti+0.5Trln(jVw+qc.h.cond.εionArAi83mArkπσiapTe4).
(29)

Dependence of the right-hand side of Eq. (29) on electron temperature is very weak. For the sake of simplicity, Te in the right-hand side of Eq. (29) can be estimated by its average value of 14 000 K giving a straightforward relation for Te. Results of application of relation (29) are plotted in Fig. 5 in comparison with temperature at the plasma edge of the cathode region obtained in the simulations. Because relation (29) does not take into account temperature non-uniformity in the cathode layer and gives somehow averaged temperature along the region, complete agreement between the analytical results and the simulations was not expected. However, the results appeared to be in rather good qualitative and quantitative agreement. Therefore, one can use the electron temperature obtained from (28) as an input parameter for (16) if one wants to make more accurate assessments.

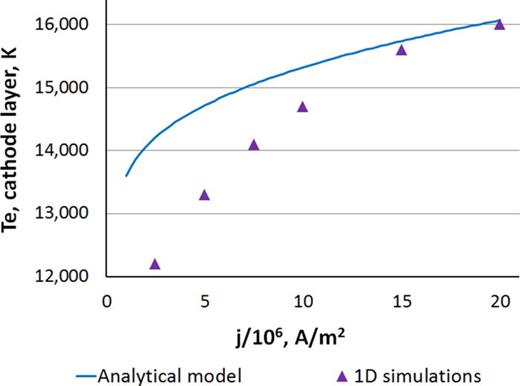

FIG. 5.

Electron temperature in the near-cathode region for atmospheric pressure arc: analytical solution (29) VS simulations.7

FIG. 5.

Electron temperature in the near-cathode region for atmospheric pressure arc: analytical solution (29) VS simulations.7

Close modal

Because temperature and coefficients in Eq. (25) are known, it can be used for the determination of the ionization non-equilibrium region width. The analytic solution of this equation can be found in Ref. 21, and zero number density at the cathode surface (x = 0) is assumed

ne(x)=ne,tanh(xnaki2D),ne,=nakikr.
(30)

The solution predicts asymptotic approaching equilibrium conditions. From (30), the width of ionization region Li can be determined as

Li=D2nakiatanh(1ε),
(31)

where ε is tolerance (relative discrepancy from equilibrium conditions). Note that due to hyperbolic arctangents Li is weakly dependent on the tolerance value: for ε of 0.5%–2% corresponding to large blue dots in Fig. 1(a), the length is

Li=5Dnaki5p34πmArk2.5Te2.5σiaki(Te).
(32)

The ratio of the length of thermal non-equilibrium region LT (see plot 1a) to the ionization non-equilibrium length Li can be assessed by the ratio of relaxation lengths

LTLiLT,relaxLi,relax.
(33)

Relaxation length for concentration of ions Li,relax is defined by a radical in relation (31). Relaxation length for the electron temperature LT,relax should be defined from electron heat transfer Eq. (8). Taking into account that at high electron temperatures near the cathode, thermal conductivity is very high and elastic/inelastic heat exchange terms are of the same order, relaxation length can be defined as

LT,relax=λeAeH.
(34)

From (33) and (34), thermal non-equilibrium width LT can be expressed

LTLi32πε02e4lnΛk2.5σiamAr1.55mepkr(Te)Te2.5.
(35)

The Coulomb logarithm was assumed to be 5. Results obtained with (32) and (35) are given in Fig. 6 in comparison with the results of simulations for two pressures. Rather good agreement for both pressures is observed.

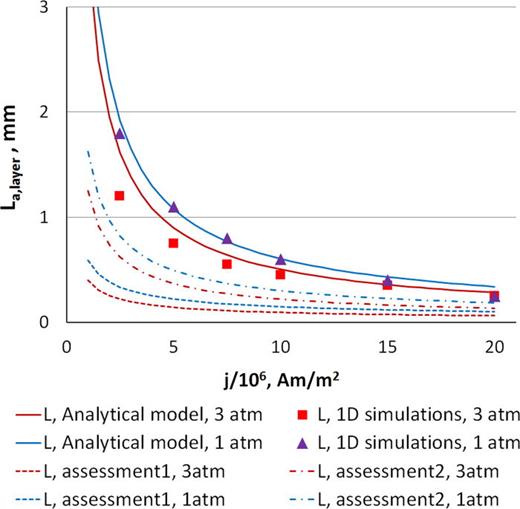

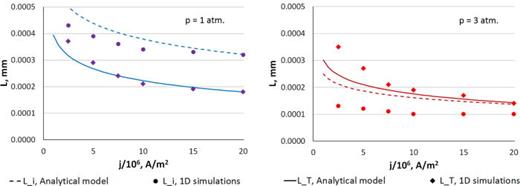

FIG. 6.

Width of the near-cathode ionization (35) and thermal (32) non-equilibrium layers in comparison with results of the simulations.7

FIG. 6.

Width of the near-cathode ionization (35) and thermal (32) non-equilibrium layers in comparison with results of the simulations.7

Close modal

As previously mentioned, the arc plasma can be described with non-linear differential equations for the transport of ions (4), the heat transfer of electrons (8) and heavy particles (9), and the electric field (11). The arc column is defined as a region where the thermal and ionization equilibriums are maintained: ne=nSaha and T=Te, whereas plasma parameters may be non-uniform. These algebraic relations can be used to reduce the number of differential equations to a single equation for one of the independent variables. It is convenient to formulate this equation for the temperature as an independent variable.

Equality of temperatures of electrons and heavy particles (T=Te) allows us to write a simple relation of energy balance. Summation of equations for electron (8) and heavy particle temperatures (9) results in canceling of the heat exchange term between these species and yields relation for energy balance of all plasma species as a whole

3.2kejT=((λe+λh)T)+jEQrad(T).
(36)

Rather similar relation for energy balance in the arc column was written in Refs. 15 and 16; however, long arcs were considered in these books and convective heat transfer and radiation in the arc column were not taken into account.

Electric field in Eq. (36) can be expressed via gradient of electron density using Eq. (11)

1.5kejT+((λe+λh)T)=keTjlnnj2nee2meνe,iQrad.
(37)

Note that in derivation of Eq. (37), it was taken into account that electron-ion collisions are dominant and ion flux is negligible outside the near-cathode region [last term in relation (1) was omitted]. Equation (37) has only two independent variables: n and T; transport coefficients can be expressed as their functions. In the case of equilibrium, dependence between these variables is determined by algebraic relations: Saha equation (7) and equation of state (11). It allows excluding electron density from the equation (and obtaining an equation with a single independent variable—temperature).

Relation between n and T

lnn=lnT(a+beEionkT),a=15α42α,b=1α2α.
(38)

α=nna+n is the ionization degree.

According to results of the simulations, the ionization degree in the arc core does not exceed 50% for current densities up to 7.5×106A/m2 (see Fig. 8 in the first paper7). Note that eEionkT in the arc; if α<0.5, then the coefficient b varies in the range 0.35–0.5 and |a|<1.5b. Therefore, the first term in the brackets in the right-hand side of (38) can be omitted and (38) can be rewritten in an approximate simplified form

lnnlnTeEion2kT.
(39)

Saha equation (7) can also be used to express the transport coefficients in (37) as functions of temperature

λe=λ̃T3.5,ρ=ρ̃/T2.5,
(40)

where ρ is the electrical resistivity and constants λ̃ and ρ̃ are

λ̃=2πme96πε02k3.55e4Λ2,ρ̃=2meπe3CeiEion48πε02k2.5.
(41)

Similar relations were obtained in Ref. 31.

Substitution of relation (39) into Eq. (37) and usage of the transport coefficients (40) yields the final equation for the temperature

λ̃(T3.5T)(Eion2T1.5ke)jT+j2ρ̃T2.5=Qrad(T).
(42)

In relation (42), it is taken into account that λeλh and λeλe,i due to rather high ionization degree (according to the simulations,7 α>0.1 in the arc column for all current densities considered).

In expressions (40), the following simplified relation for the Coulomb logarithm was used. Making use of the Saha equation (7), the Coulomb logarithm can be expressed as

lnΛ=Λ0+eEion4kT,Λ0=ln(8πε01.5(kT)9/8h3/4(2nagi/ga)1/4(2πme)3/8e3).
(43)

Note that Λ0 is small: for temperature in the range 12 000 K–18 000 K corresponding to the arc column (see Fig. 7), Λ0 varies from –0.25 to 0.2 [for na=p/(kT) and atmospheric pressure], whereas the second term in the right-hand side of Eq. (43) varies from 2.5 to 3.8 for this temperature range. Accordingly, a simplified relation for the Coulomb logarithm in the arc core was used

lnΛeEion4kT.
(44)

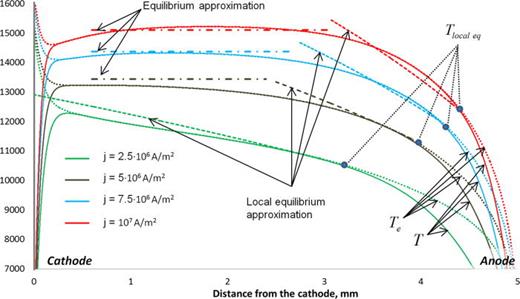

FIG. 7.

Profiles of gas temperature (solid lines) and electron temperature (dotted lines) of atmospheric pressure arc at various current densities; result of simulations7 and approximate solutions: (46)—dashed-dotted lines and (51)—dashed lines.

FIG. 7.

Profiles of gas temperature (solid lines) and electron temperature (dotted lines) of atmospheric pressure arc at various current densities; result of simulations7 and approximate solutions: (46)—dashed-dotted lines and (51)—dashed lines.

Close modal

An exact solution of the temperature equation (42) in the arc core can be obtained numerically (in 1D or 2D) using the temperature near the cathode and temperature near the anode as boundary conditions (with known widths of the near-cathode and near-anode non-equilibrium regions); values for the near-anode region can be taken from the analytical model of this region described below. However, in 1D case it is possible to obtain asymptotic analytical solutions for different areas of the arc column and, therefore, describe the column with several simple relations convenient for making estimates.

In Fig. 7, the temperature profiles for 5 mm atmospheric pressure arc are displayed for various current densities. At high current density (starting from 5×106A/m2), the local equilibrium between the Joule heating and radiation cooling is established. It gives a nearly constant temperature in a significant part of the gap. Exclusion of the temperature gradients from Eq. (42) gives relation for equilibrium temperature

j2ρ̃Teq2.5=Qrad(Teq).
(45)

Substitution of (10) and (41) into (45) yields

Teq=1.69×105K2ln(j8.5×106A/m2)ln(p1Pa).
(46)

The right-hand side of this relation is weakly dependent on temperature; therefore, one can simply use an approximate value of 15 000 K. The equilibrium temperature obtained from (46) is plotted in Fig. 7 with dashed-dotted lines and is in good agreement with the corresponding parts of temperature profiles.

Figure 7 shows that the transition region from the near cathode region to the equilibrium region of the arc column (where T=const) is very short. This is due to close values of temperature in the near-cathode and equilibrium regions. At the anode side, the situation is reversed: there is a rather long local-equilibrium part of the arc column where the thermal and ionization equilibriums persist, whereas space variations of plasma parameters are present. In this region, temperature decreases when approaching the anode where the gas temperature should be equal to temperature of the electrode.

Because temperature decreases towards the anode and radiation is a strong function of temperature, radiation becomes less important and the corresponding term can be omitted from Eq. (42). Also one can simplify the equation by taking into account that eEion/(2kT)1.5 and that convective heat transfer is dominating over conductive one in most part of the arc. With these simplifications, the approximate relation for temperature variation in the local-equilibrium region is given by

EionT1.5jT=2j2ρ̃.
(47)

Equation (47) has the following physical meaning. As mentioned earlier, in the local equilibrium region temperature decreases towards the anode and radiation becomes small as compared to the equilibrium region, resulting in low energy losses from the plasma. Conductive heat transfer in the arc column plasma is small as compared to one attributed to the convection of electrons. These simplifications allow rewriting equations for the electric field (1) and the energy balance (36) in shorter forms

E=1.7keTkeTnn+jnemeνe,i,
(48)
E=3.2keT.
(49)

Taking into account that in the plasma column, where the Saha equation (7) is satisfied, gradients of the temperature are much smaller than gradients of the plasma density [see Eq. (39)], from Eqs. (48) and (49), it is clear that the electric field is small as compared to its two last components in the right hand side of (48). In other words, the electric field component representing electrical resistivity of plasma is almost completely compensated by the oppositely directed field component representing electron diffusion caused by the electron density gradient. It means that electric field can be neglected and electron flux is driven only by diffusion

j=knTmeνe,i(nn1.5TT).
(50)

Note that such description of plasma behavior is not common for analytical models of near-electrode regions. Typically in such models electric field is high and is defined by plasma density gradient [second term in the right hand side of Eq. (48), i.e., satisfies the Boltzmann distribution]. The present study reveals that such models can be applicable only to non-equilibrium regions significantly closer to the electrodes than non-uniform parts of the arc column, i.e., to the regions where the thermal conductivity plays an important role and net ionization or recombination takes place.

First order differential equation (47) in 1D case requires only one boundary condition. The solution of this equation is given by

T=(5jρ̃Eion(xlocaleqx)+Tlocaleq2.5)2/5.
(51)

Here, xlocaleq corresponds to an edge of the arc column at the anode side, i.e., a location where the thermal equilibrium breaks, and Tlocaleq is the temperature value at this location. Methods of these parameters' evaluation are described in Subsections IV C and V D.

The solution (51) is displayed in Fig. 7 with colored dashed lines. Rather good agreement with the results of 1D simulations is observed at lower current densities. For higher current densities, the thermal conductivity starts playing a noticeable role. However the agreement is still reasonable and 2-region approximation [uniform region described by (46) and non-uniform local-equilibrium region described by (51)] can be used for description of the arc column, in particular, to obtain voltage.

Voltage in the arc column according to the 2-region approximation is given by

Vcol=Qrad(T)jLeq+3.2ke(TeqTlocaleq),
(52)

where the first term in the right-hand side part of the equation represents voltage in the equilibrium (uniform) region, and the second term stands for voltage in the local equilibrium region which was derived from relation (36), where radiation and thermal conductivities were neglected.

Using relation (51), one can determine the length of the equilibrium and local-equilibrium regions

Llocaleq=min(EionTeq2.5Tlocaleq2.55jρ̃,Lcolumn),Leq=LcolumnLlocaleq,
(53)

where Lcolumn=LarcLclayerLalayer, Lclayer is defined in (32), and Lalayer is defined in (85).

When approaching the anode, the temperature of heavy particles decreases (see Fig. 7) and becomes equal to the anode temperature at its surface. Electron temperature decreases as well due to energy exchange with the heavy particles via elastic collisions [see term Qeh in Eqs. (8) and (9)]. With the decrease of the electron temperature, plasma density also becomes lower. As the result, the electron-heavy particle heat exchange becomes low, and eventually deviation between temperatures of the electrons and heavy particles takes place; notations xlocaleq and Tlocaleq are used in this paper to determine this location and corresponding temperature. Frequency of inelastic collisions also significantly decreases towards the anode manifesting in the rate reduction of ionization and recombination and resulting in eventual deviation from the ionization equilibrium [plasma density is no longer determined by Saha equation (7)].

In a general case, thermal and ionization equilibriums can take place at different locations. However, as the results of 1D simulations of argon arc have shown, these locations are actually very close to each other (see Figs. 7 and 8). For the sake of clarity, we will define the near-anode non-equilibrium region as an area where the ionization equilibrium breaks because it is convenient for further considerations of the near-anode region.

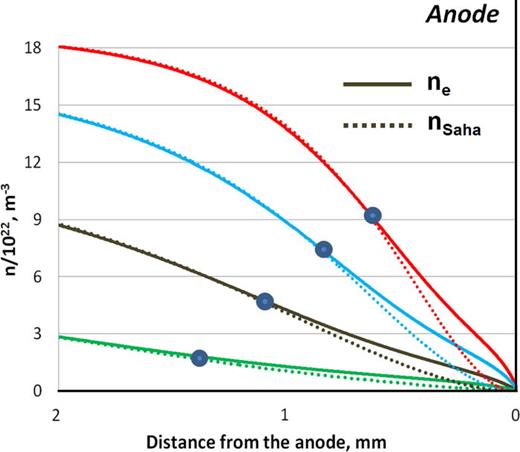

FIG. 8.

Electron number density profiles near the anode. Boundaries of the near-anode ionization non-equilibrium region are marked with circles. Color notations are the same as in Fig.7.

FIG. 8.

Electron number density profiles near the anode. Boundaries of the near-anode ionization non-equilibrium region are marked with circles. Color notations are the same as in Fig.7.

Close modal

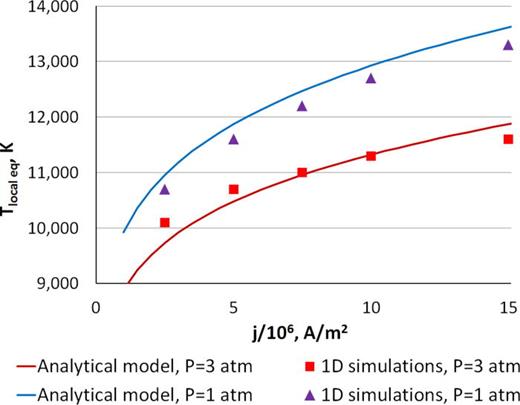

Plasma temperature Tlocaleq at the location where the local equilibrium breaks (transition point between the arc column and the near-anode non-equilibrium layer) can be determined making use the knowledge of variations of temperature and plasma density in the arc column; location xlocaleq is determined in Subsection V D.

In the arc column, equilibrium ion number density satisfies the Saha equation and can be obtained from Eq. (6) which implies zero net volumetric production of ions. In fact, there is no absolute (pure) ionization equilibrium in any part of the arc: ionization and recombination reactions take place throughout the arc with more or less different rates. The difference between the ion production and their recombination is balanced by ambipolar diffusion. One can define ionization equilibrium as a state at which relative difference between ionization and recombination rates is smaller than some tolerance ε

|kinankrn3|kinanε.
(54)

As temperature decreases when approaching the anode, the ionization/recombination reaction rates become smaller, diffusion plays a more significant role, and the equilibrium eventually breaks. The difference between the ionization and recombination rates is equal to divergence of the ion flux, so inequality (54) can be reformulated as

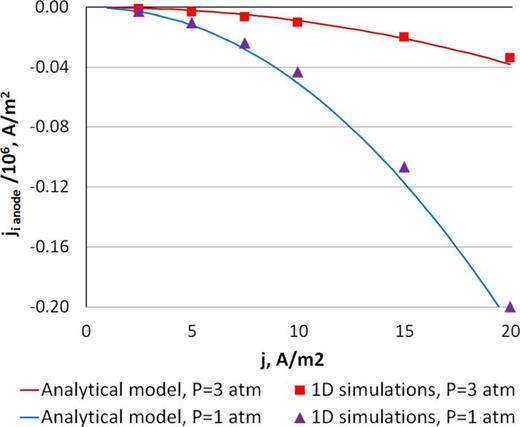

|Γi|kinanε.
(55)

The ion flux can be determined using Eq. (2), which can be simplified. First of all, note that the coefficient Ae is really small

Ae<νe,ameνi,amamemArσeiσia104,

(σea is about 3×1020m2 and σia is about 1018m2).

The ion current is typically about several percent of total current or less, so the last term in Eq. (2) can be omitted. Then taking into account that νe,aνi,a, T=Te and rather low ionization degree near the anode, one can write the approximate relation for ion current as

Γi2kTn+2knT0.5νi,amAr.
(56)

Saha relation (7), (39) and temperature variation equation (47) can be used when approaching the location of the equilibrium breakdown from the arc column side. The ion flux can be expressed as a function of temperature

Γi2kndTdxeEion2kT+10.5mArνi,a4jρ̃emArνi,anT2.5.
(57)

In formulation (57), x-axis and positive ion flux are directed from the cathode to the anode. Substitution of (57) into (55) and taking into account that nap/(kT) in νi,a allows us to rewrite the left-hand side of local-equilibrium criterion as a function of temperature

πkmAr3(jρ̃e)24σiap21ki(T)T4.5εorπkmAr3(jρ̃e)24σiap21ki(Tlocaleq)Tlocaleq4.5=ε.
(58)

For some fixed tolerance (it is convenient to take ε=0.1 which corresponds to distinguishable difference between ne and nSaha on the plot in Fig. 8), from (58) one can determine the temperature at which ionization equilibrium breaks, Tlocaleq. In Fig. 9, this temperature is given in comparison with results of simulations. The temperature is plotted against current density for two different pressures. Good qualitative and quantitative agreement between the analytical model and the simulations is observed.

FIG. 9.

Temperature at the edge of the anode non-equilibrium layer (58) in comparison with results of the simulations.7

FIG. 9.

Temperature at the edge of the anode non-equilibrium layer (58) in comparison with results of the simulations.7

Close modal

In the near-anode region, the electron temperature deviates from the temperature of heavy particles [see Fig. 10(b)] and plasma density deviates from equilibrium values predicted by the Saha equation (7) [see Fig. 10(a)] resulting in net recombination of ions. The ion recombination leads to significant reduction in the ion current towards the anode [see Fig. 10(c)]. Similar description of the near-anode region can be found in Ref. 14, for instance.

FIG. 10.

Structure of the near-anode non-equilibrium layer. Plasma density (a), temperature (b) and ion current (c) profiles obtained in the simulations7 for current density 5 × 106 A/m2 and pressure 1 atm are plotted.

FIG. 10.

Structure of the near-anode non-equilibrium layer. Plasma density (a), temperature (b) and ion current (c) profiles obtained in the simulations7 for current density 5 × 106 A/m2 and pressure 1 atm are plotted.

Close modal

The differential equation for conservation of ions Γi=si or (4) should be used instead of the Saha equation (7) when describing the non-equilibrium region, making it hard to obtain the analytical solution for non-equilibrium plasma in a general case. However, as can be seen from Fig. 10, deviation from equilibrium grows gradually towards the anode allowing us to derive an analytical solution for a significant part of the near-anode region using approximation of low deviation from the ionization equilibrium. Near the anode surface, the temperature of heavy particles becomes equal to the anode temperature. Despite the deviation, the electron temperature also reduces to significantly low values: simulations predict the electron temperature of about 5500 K at the anode boundary [see Fig. 10(b)], with a weak dependence on the current density. At such low temperatures, assumption of low deviation from the ionization equilibrium is apparently no longer valid. However, the ionization and recombination rates are negligible at these conditions allowing us to use the constant ion current relation and to obtain the analytical solution.

According to the picture described above, the whole near-anode region can be analytically described using separate models for the following sub-regions: (i) recombination region where deviation from Saha equilibrium is relatively low, (ii) constant ion current region, and (iii) the space-charge sheath. Corresponding models for these regions are given in the Subsections V BV D below.

Some of the simplifications used for the local-equilibrium region of the arc column can also be applied to the recombination region of the near-anode layer: thermal conductivity and deviation between temperatures of electrons and heavy particles can be neglected. The radiation is assumed negligible, and electron-ion collisions dominate over electron-atom collisions. However, because the ionization equilibrium is not maintained, approximation (44) for the Coulomb logarithm is no longer valid; 1D calculations show that constant value lnΛ=4 is a better approximation in this case. With these simplifications, Eq. (37) transforms to a simple relation between temperature and plasma density

dnndx=1.5dTTdx+AT2.5,
(59)

where A=me8πjCeie3lnΛ3πε02k2.5 is constant (at given current density), and Cei=0.506. Because deviation between electron and gas temperatures in the near-anode region is rather small (see Fig. 10), single temperature approximation is used in Eq. (59) and further in this section.

Equation (59) describes diffusion of electrons in the media featuring electrical resistivity.

The relation for the ion flux (56) can be reformulated as

ΓiBT1.5dndx(1+dlnT/dxdlnn/dx),
(60)

where B=πmAr3k1.54σiap is constant (at given pressure).

Extracting plasma density derivative from (59) and substituting it into (60) yields a relation for the ion flux

ΓiABnT1+b11.5b,
(61)

where b=dlnT/dxdlnn/dx represents the ratio of the thermal diffusion and conventional diffusion of electrons.

Substitution of the ion flux (61) into the continuity equation Γi=si gives

A2BneT3.5f=krn3kinan,
(62)
wheref=(11.5b)2(1b2+2.511.5bdb/dxdlnn/dx).
(63)

Equations (59) and (62) form a system of two differential equations with two independent variables ne and T. The analytical solution of these equations can be obtained making use of an approximation of slow deviation from the ionization equilibrium. At the ionization equilibrium, according to (39), parameter b defined in (61) is about eEion/(2kT), i.e., is small (about 0.15); therefore, function f defined in (63) can be approximated by unity. When gradually departing from the ionization equilibrium, parameter b is expected to gradually increase, nevertheless, for some part of the non-equilibrium layer, approximation of small b and of function f equal to unity should be sufficiently accurate.

A relation for the degree of deviation from ionization equilibrium can be obtained from Eq. (61), making use of the relation (6) for the equilibrium density

(nnSaha)2=1+γ,
(64)

where γ=A2Bkfki(T)pT2.5.

Substitution of a relation (64) for the plasma density into the definition of b yields a relation for the parameter b as a function of temperature

b=2(12+eEionkT+11+1/γ(dlnf/dxdlnT/dx2.5dlnki(T)dlnT))1.
(65)

When close to the ionization equilibrium, ionization coefficient ki is high and, according to (58), γ1. With decrease of the temperature, the ionization coefficient becomes exponentially low and eventually the parameter γ increases to unity and more. Define this temperature as reference temperature Tref

A2Bkfki(Tref)pTref2.5=1.
(66)

At this temperature, ionization and recombination rates are already very low and ion current does not change; therefore, reference temperature Tref can be used to determine a boundary between the recombination region and the region of constant ion current. Making use of the Arrhenius expression for ionization coefficient (5), reference temperature can be approximated as

Tref=Tiln(AipTref2.5A2Bk),
(67)

where Ti and Ai are the Arrhenius coefficients (5). Values of the reference temperature change in a range of about 9000 K–10 000 K for various current densities. For the sake of simplicity, temperature in the right-hand side of relation (67) can be put equal to 10 000 K with no significant effect on the accuracy.

The approximate relation for the parameter b obtained using the Arrhenius expression for the ionization coefficient reads

b2kTeEionkTi/(1+1/γ).
(68)

The value of the parameter b corresponding to the reference temperature is given by

bref=4kTref2eEionkTi.
(69)

As can be seen from relation (69), parameter b is still rather low at the edge of the recombination region (it is about 0.25). It justifies the accuracy of the formula obtained taking function f defined in (63) equal to unity for the whole recombination region. To illustrate this statement, in Figs. 11(a) and 11(b), the degree of deviation from the ionization equilibrium and parameter b are plotted as functions of temperature. Analytical formulae [Eqs. (64) and (68) with f1] are compared to the results of simulations; when plotting the results of simulations, electron temperature was used for x-axis. As can be seen from Fig. 11(b), parameter b is below 0.25 in a temperature range between Tref and Tlocaleq. corresponding to the recombination region. Plasma density predicted by formula (64) [Fig. 11(a)] is in a very good agreement with the results of simulations in the recombination region. Interestingly, even at lower temperatures down to 8000 K, the agreement is still rather good. Actual plasma density is higher than equilibrium one (meaning that net recombination takes place). Note that the results potted in Fig. 11 were obtained for some arbitrary chosen current density (5 × 106 A/m2); nevertheless, for other current densities the plots are qualitatively the same.

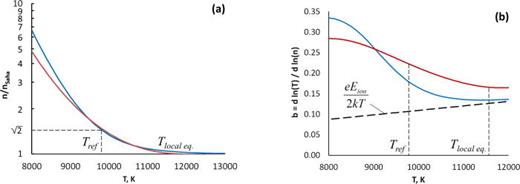

FIG. 11.

Deviation from ionization equilibrium as a function of temperature for current density 5 × 106 A/m2 and pressure 1 atm: (a) degree of deviation; (b) ratio of logarithms. Results of the simulations7—blue lines and analytical solution—red line.

FIG. 11.

Deviation from ionization equilibrium as a function of temperature for current density 5 × 106 A/m2 and pressure 1 atm: (a) degree of deviation; (b) ratio of logarithms. Results of the simulations7—blue lines and analytical solution—red line.

Close modal

In Fig. 12, the ion current density given by the analytical solution [Equation (61) with plasma density and parameter b defined by (64) and (68) respectively] is plotted as a function of temperature and compared to the results of simulations. Good agreement is observed in the temperature range of interest corresponding to the whole recombination region, up to the boundary with the constant ion current region. As one of conclusions, relation (61) can also be used to predict the ion current at the constant current region and the ion current to at the anode surface if plasma parameters at the edge of the recombination region (where T=Tref) are taken

Γi,aABnrefTref2eEionkTi+4kTref2eEionkTi6kTref,
(70)

where nref=2nSaha(Tref) is the plasma density at the edge of the recombination region.

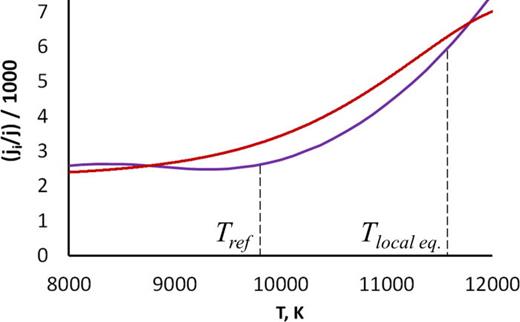

FIG. 12.

Fraction of the ion current density as a function of temperature for atmospheric pressure arc; the total current density is 5 × 106 A/m2. The results of simulations7—red line, analytical solution (61)—blue line.

FIG. 12.

Fraction of the ion current density as a function of temperature for atmospheric pressure arc; the total current density is 5 × 106 A/m2. The results of simulations7—red line, analytical solution (61)—blue line.

Close modal

Ion current density at the anode predicted by the analytical model (70) is plotted in Fig. 13 as a function of arc current density for two different pressures and compared to the results of the 1D simulations. The ion current to the anode significantly decreases with the increase of pressure. For both pressures considered, the analytical and numerical results are in quite good agreement.

FIG. 13.

Ion current density (70) at the anode as a function of the total current density.

FIG. 13.

Ion current density (70) at the anode as a function of the total current density.

Close modal

Knowledge of the plasma parameters at both sides of the recombination region allows us to approximate its thickness and voltage. Thickness of the recombination region can be estimated from integration of Eq. (59) over the region

Lrecomb=1ATrefTlocaleq(1b1.5)T1.5dT.
(71)

Making use of relation (68) for parameter b with a definition of the reference temperature (66), the integral in (71) can be approximated

Lrecomb12A[(eEionTav0.5k3Tav1.5)ΔT+Tref2.52].
(72)

Here, Tav=(Tlocaleq+Tref)/2 and ΔT=TlocaleqTref.

Voltage drop in the recombination region can be determined using a similar relation as for the local equilibrium region of the arc column (52) because similar assumptions were employed for these regions

Vrecomb=3.2ke(TlocaleqTref).
(73)

It is convenient to describe the anode space charge sheath before describing the constant ion current region because the near-anode plasma density determined in this section will be used in the model of constant ion current region described in Subsection V D.

Temperature of the anode surface can be evaluated using Eq. (15) at known heat flux to the anode. The latest can be determined from Eq. (31) of Ref. 7. Because ion current to the anode is a very small fraction of total current, this equation can be simplified

qtoanode=j(Vw+max(Vsh,a,0))+2.5ke(jTe,anode+jeemiss(TanodeTe,anode)).
(74)

In this equation, major contributions are jVw (work function is 4.5 V) and 2.5jTe,anode (Te,anode is about 0.5 eV). Sheath voltage is typically of order of 0.5 V. The last term in the second brackets is usually small and can be omitted because either emission current is small or the electron temperature becomes close to the anode temperature. The sheath voltage is typically small as compared to work function. Making use of these simplifications, substitution of (74) into (15) yields a relation for the anode surface temperature

Tanode=(j(Vw+1.25V)54raλaσε)0.4,
(75)

where λa is thermal conductivity of the anode material and ra is the anode radius. Dependence of the anode temperature on the current density was plotted in Fig. 10 of Ref. 7.

With known anode temperature, the ion current to the anode ji,a determined in Subsection V B, and the total current density (input parameter of the problem), anode sheath voltage drop can be determined from the balance of charged species fluxes at the anode surface and collisionless sheath boundary conditions given by Eqs. (22)(27) of Ref. 7.

In the hot anode case, the sheath voltage drop is assumed positive: it suppresses the excess of electrons emitted from the anode surface and gives positive contribution to the total arc voltage (see Fig. 13 in Ref. 7). Note that, in the case of strong electron emission, electric potential profile in a near-electrode sheath can become a non-monotonic featuring potential well, resulting in suppression of both electron fluxes passing through the sheath: emitted electrons and plasma electrons (see Refs. 32 and 33, for instance). Such sheath is often referred to as a “double” sheath. However, such a potential profile was shown33 to be unstable as the potential well tends to be filled by ions and disappear even in the case of even very rare collisions in the sheath. These complex unsteady phenomena are not considered here; for simplicity, the electric potential in the sheath is assumed monotonic allowing expressing the total current density at the surface of the hot anode as

j=14enanode8kTe,anodeπmejRexp(eVsh,akTanode)ji,a.
(76)

Here, the first term in the right-hand side corresponds to the flux of plasma electrons towards the anode, nanode is the plasma density at the anode sheath edge, and the second term corresponds to the flux of emitted electrons jR(Tanode) defined by (21) partially reflexed by the electric field in the sheath. Note that the Schottky correction voltage should be set to zero when calculating emission current jR because of the electric field direction corresponding to suppression effect on the emitted electrons.

The ion flux from plasma to the anode surface is also suppressed by the sheath voltage in this case and can be expressed as

ji,a=14enanode8kTanodeπmArexp(eVsh,akTanode),
(77)

where nanode is plasma density at the anode sheath edge. Expressing the Boltzmann exponent from Eq. (77) and substituting it into Eq. (76) yields the quadratic equation for nanode with a solution given by

nanode=1e(j+j2+4jRji,aTe,anodemArTanodeme)πme2kTe,anode.
(78)

In (78), it was taken into account that the ion current density at the anode is a small fraction of the total current density. Substitution of (78) into (77) yields a resulting expression for the anode sheath voltage drop in the case of a hot anode

Vsh,a=kTanodee[12ln(TanodemeTe,anodemAr)+ln(jji,a+(jji,a)2+4jRji,aTe,anodemArTanodeme)ln2].
(79)

In the case of a cold anode when no electron emission takes place, the sheath voltage drop is negative to suppress the electron flux from the plasma (see Fig. 13 in Ref. 7), and balance of the charged species fluxes at the anode surface can be written as

j=14nanode8kTe,anodeπmeexp(eVsh,akTe,anode)ji,a.
(80)

Plasma density at the anode sheath edge nanode can be determined from Bohm's criterion for the ion current

ji,a=14nanodeek(Tanode+Te,anode)mAr.
(81)

Substitution of the nanode into Eq. (80) yields an expression for the anode sheath voltage drop in the case of cold anode

Vsh,a=kTe,anodee[12ln((Tanode+Te,anode)meTe,anodemAr)+ln(jji,a)].
(82)

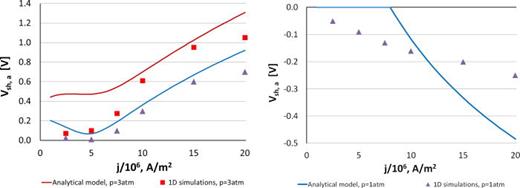

The anode sheath voltage is plotted in Fig. 14 against current density. In the case of hot anode, the sheath voltage drop is positive to suppress high electron emission from the anode surface. The voltage drop increases with current density reaching about 1 V at a current density of 2 × 107 A/m2. This behavior is in qualitative agreement with anode voltage measurements34 in a carbon arc with a hot anode. The analytical solution is in a good agreement with the result of simulations. In the case of cold anode, the sheath voltage is decreasing with current density. At higher pressure of 3 atm, the sheath voltage is slightly higher than at 1 atm in both cases of cold and hot anode. At atmospheric pressure, the sheath voltage is negative. Good qualitative agreement is obtained between the analytical model and simulations. At pressure of 3 atm, the sheath voltage is about zero (with very small absolute value) and is not plotted in Fig. 14. In this case, it was taken equal to zero in the analytical model.

FIG. 14.

Voltage drop in the anode sheath as a function of current density. Left—hot (self-cooled) anode; anal. solution is given by Eq. (79); the voltage drop is positive and increases with current density. Right—cold (1000 K) anode; anal. solution is given by Eq. (82); the voltage drop is negative and decreases with current density.

FIG. 14.

Voltage drop in the anode sheath as a function of current density. Left—hot (self-cooled) anode; anal. solution is given by Eq. (79); the voltage drop is positive and increases with current density. Right—cold (1000 K) anode; anal. solution is given by Eq. (82); the voltage drop is negative and decreases with current density.

Close modal

In the vicinity of the anode, plasma density decreases several orders of magnitude, i.e., relative variation of the density is much higher than one of temperature and, therefore, Eqs. (56) and (60) can be reformulated

Γi,a34πmAr(kT)1.5σiapdndx.
(83)

Here, Γi,a is the constant ion current in the vicinity of the anode know from (70). Approximate integration of this relation gives the thickness of the constant ion current region. Neglecting the ion number density at the anode sheath edge and taking into account that plasma density at the boundary with recombination region is 2nSaha(Tref) yields

Lconsticπ2mAr3k1.5(Tref1.5+Te,anode1.5)4σiapnSaha(Tref)Γi,a,
(84)

where Te,anode is electron temperature at the anode sheath edge, which is about 5500 K according to the results of simulations, independently on arc current density.

Note that because Te,ref is typically about 9000–10 000 K, i.e., about 1.5 times larger than Te,anode, error in Te,anode should not significantly affect the accuracy of Lconstic. Moreover, it should not influence the accuracy of length estimation of the whole near-anode layer because the region of constant ion current is its minor part. Width of the near-anode non-equilibrium layer given by

La,layer=Lrecomb+Lconstic,
(85)

is plotted in Fig. 15 as a function of current density for two pressure values. As one can see, the layer width significantly decreases with the increase of current density and slightly decreases with the increase of pressure. The analytical solution (solid lines) and results of simulations (markers) are in good agreement. According to the analytical model and simulations, the length does not depend on temperature of the anode, so results for the cold anode are not plotted.

FIG. 15.

Thickness of the near-anode non-equilibrium layer.

FIG. 15.

Thickness of the near-anode non-equilibrium layer.

Close modal

In Fig. 15, the results of heuristic approximation non-equilibrium layer length are also plotted for comparison. As in Refs. 8 and 14, the non-equilibrium layer length is estimated by the relaxation length of recombination processes

Li,aassess=Dtr=Dk̃rñ2,
(86)

where D is the ambipolar diffusion coefficient, tr is characteristic time of recombination, and k̃r and ñ are the characteristic values of the recombination coefficient and plasma density in the near-anode region. There is some freedom in determining parameters k̃r and ñi. In Fig. 15, results obtained with two different methods for evaluation of these parameters are plotted: (i) the parameters are evaluated at the edge of the non-equilibrium region ñ=nSaha(Tlocaleq.), k̃r=kr(Tlocaleq.) (dashed line); (ii) the parameters are evaluated at the edge on recombination region ñ=nref, k̃r=kr(Te,ref) (dashed-dotted line). As can be seen from the figure, using parameters at the edge of the non-equilibrium region yields much lower values of the layer thickness than both the simulations and the analytical model (85). With parameters at the edge of the recombination region, estimation (86) gives closer values but still the analytical model is in much better agreement with the results of the simulations. However, with both definitions of k̃r and ñi, formula (86) gives correct trend and can be used for rough estimates of the near-anode region length.

Because the constant ion current region is significantly thinner than both the recombination region and the local-equilibrium region of the arc column, effects of thermal conductivity cannot be omitted in Eq. (36), and a similar approach [relation (52)] for determination of voltage drop in the region would result in a significant error. A more accurate approach is to use the generalized Ohm's law (1). According to the simulations, friction terms are of minor effect; therefore, they were omitted for the sake of simplicity. With this simplification, approximate integration of Eq. (1) over the region gives

VconstickeTref+Te,anode2lnnrefnanode1.6ke(TrefTe,anode).
(87)

The voltage drop in the near-anode layer defined as

Va,layer=Vrecomb+Vconstic+Vsh,a
(88)

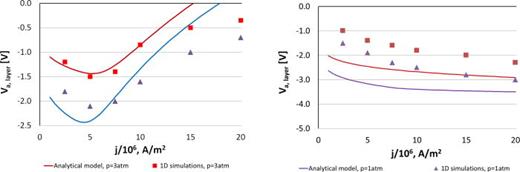

is plotted in Fig. 16. Two different cases were considered: a cooled anode having a fixed temperature of 1000 K and a hot thermal conductive anode (of cylindrical shape). As one can see, in the case of cold anode, voltage drop in the layer decreases (absolute value increases) with the increase of current density. Whereas in the case of hot anode, voltage drop increases only at low current densities but a generally positive trend is observed. Therefore, in the case of cold anode, arc constriction in the near-anode layer is energetically advantageous contrary to the case of hot anode. The trends are pressure-independent: for higher pressure, voltage in the near-anode layer is about 1 V higher at different anode cooling mechanisms and all current densities. Rather good agreement between analytical model and simulations is observed in the case of a hot anode and reasonable agreement in the case of a cold anode.

FIG. 16.

Voltage drop in the near-anode non-equilibrium layer. Left—hot (self-cooled) anode. Right—cold anode (1000 K).

FIG. 16.

Voltage drop in the near-anode non-equilibrium layer. Left—hot (self-cooled) anode. Right—cold anode (1000 K).

Close modal

Arc voltage can be determined as a sum of voltages in its constituting regions

Varc=Va,layer+Vcolumn+Vc,layer.
(89)

In Fig. 17, voltages in the whole arc (89), in the arc column (52), and in the near-cathode region (18) are plotted as a function of current density, for 2 different pressures. The hot anode arc is considered with 5 mm gap between the electrodes of 6 mm diameter. The electrodes were 10 cm long in the simulations; in the analytical model, infinitely long electrodes are assumed. As can be seen from the figure, at lower current densities, arc voltage is primarily contributed by the cathodic region: voltage in the near-cathode region Vc,layer and arc voltage Varc are close and show a similar decreasing trend. The near-cathode voltage is even higher than the total voltage at current densities below 5 × 106 A/m2, meaning that contribution of negative voltage in the near-anode region is larger than the contribution of arc column voltage which is short or even absent at small current densities. At higher current densities, cathodic voltage continues to decrease but total voltage deviates from it and starts to increase. At current density of 2 × 107 A/m2, the difference between the total voltage and the cathodic one reaches 6–9 V depending on pressure. This additional voltage is mostly gained in the arc column. With the increase of current density, the arc column becomes longer as near-electrode layers become shorter; the equilibrium region of the column heats up to have better electrical conductivity, and it leads to higher energy losses by radiation included in the model and, as a result, higher electric field.

FIG. 17.

Arc voltage as a function of current density for 5 mm arc.

FIG. 17.

Arc voltage as a function of current density for 5 mm arc.

Close modal

The analytical model of the arc was validated against experimental data.23,24 Atmospheric pressure argon arc with cylindrical tungsten electrodes 3 mm in diameter was run at arc currents of 30 A, 50 A, and 100 A. Inter-electrode gap size was varied from 0.3 mm to 3.5 mm.

In Fig. 18, arc voltage is plotted against current density. Reasonable qualitative and quantitative agreement between both models and experimental data is observed. At larger inter-electrode gaps, arc voltage linearly increases with gap size. This behavior can be explained by the elongation of equilibrium region of the arc column. At smaller gaps (below 0.5–2 mm, depending on arc current), near-anode and near-cathode non-equilibrium regions overlap and the trend is different. The analytical model cannot accurately describe such a configuration; it just gives constant voltage corresponding to the arc length at which the near-electrode regions adjoin. However these constant values are still rather close to the experimental profiles.

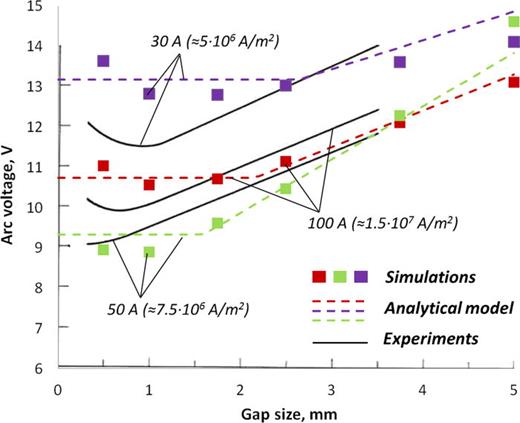

FIG. 18.

Arc voltage as a function of the inter-electrode gap size for three different currents. Experiment23—solid lines, analytical solution (89)—dashed lines, 1D simulations7—squares.

FIG. 18.

Arc voltage as a function of the inter-electrode gap size for three different currents. Experiment23—solid lines, analytical solution (89)—dashed lines, 1D simulations7—squares.

Close modal

A self-consistent analytical model of a short atmospheric pressure argon arc comprising of models of near-electrode regions, arc column, and a model of heat transfer in cylindrical electrodes was developed. The full equilibrium region and local-equilibrium region are distinguished in the arc column: in the full equilibrium region, plasma parameters are uniform; in the local-equilibrium region, plasma is non-uniform but the thermal and ionization equilibriums are still maintained. The near-anode region is split into a recombination region and a constant ion current region. The analytical model developed provides relations for following characteristics of the arc and its sub-regions.

  1. Voltage drop in the near-cathode layer is given by relation (19) derived from energy balance in the cathode region. Electron temperature in Eq. (19) can be obtained from Eq. (29), or, for the sake of simplicity, a constant value of 14 000 K can be utilized resulting in a fairly small error for a rather wide range of current densities (2 × 106 A/m2 to 2 × 107 A/m2) and background pressures (1 atm. to 3 atm). The cathode temperature in Eq. (19) can be obtained from Eq. (22), derived from energy balance at the cathode surface. If the cathode is not extensively cooled, ion current to the cathode can be neglected in Eq. (22) for the sake of simplicity. Otherwise, it can be obtained from Eq. (24).Width of the near-cathode region can be obtained from Eq. (32) derived from transport of ions in the region.

  2. Temperature profile in the arc column can be described by the differential equation (42). The temperature profile can be constructed from two asymptotical solutions: (i) uniform profile in the equilibrium region, Eq. (46), where the Joule heating is balanced by radiation loss from the plasma, and (ii) descending profile close to the electrodes, Eq. (51), where the thermal and ionization (Saha) equilibriums are locally valid but plasma parameters vary. The temperature value at the location where thermal equilibrium breaks, Eq. (58), is used as a boundary condition.

    In the non-uniform equilibrium region of the arc column, radiative energy losses from the plasma are small due to temperature decrease towards an electrode. Thermal conductivity does not play an important role, and, in accordance with the plasma energy balance, Joule heating is low. In other words, electric field can be neglected and electron flux is driven only by diffusion, see Eq. (50).

    Note that typically a non-uniform equilibrium region is significant only near the anode, where the electron temperature substantially decreases; near the cathode, local equilibrium region is thin because temperature values are rather close in the near-cathode region and uniform part of the arc column.

  3. Knowledge of the temperature profile allows obtaining the arc column voltage, see Eq. (52).

  4. Voltage drop in the near-anode region and its length are obtained considering the anode region as a composition of a recombination region, constant ion current region, and a space-charge sheath. An asymptotic solution for plasma density deviation from its equilibrium (Saha) value is obtained for the recombination region, Eq. (64). Temperature corresponding to the boundary of this region is determined from Eq. (67); for the region closer to the anode where the temperature is lower, recombination is negligible and approximation of a constant ion current is valid. This solution yields relations for the voltage drop in the recombination region (73), its length (72), and the ion current density to the anode (70). The latest in turn yields voltage of the constant ion current region and its length, relations (87) and (84), and sheath voltage drop, relations (79) and (82), in the cases of cold and hot anode, respectively. Plasma density at the anode sheath edge in relation (87) is given by formula (78).

The analytical model was benchmarked against 1D simulations and validated against experimental data.23 Good quantitative agreement with the results of simulations and qualitative agreement with the experimental data were obtained.

It was shown that non-equilibrium effects in the near-electrode plasma play an important role in operation of the arc. When the anode is not cooled, it operates at high temperatures leading to intensive electron emission and resulting in positive sheath voltage drop.

Effect of pressure variation on the lengths and voltages of the near-electrode layers and arc as a whole was investigated. It was shown that pressure variation does not affect cathodic voltage but affects the anodic one: at a pressure of 3 atm, the voltage is about 1 V higher than in the case of atmospheric pressure; this difference is independent of anode cooling mechanisms and current density. Arc voltage is about 1 V–2 V higher in the case of higher pressure; the effect is stronger at higher current densities when the arc column starts to play an important role. The near-electrode layers become thinner with increase of pressure, especially ionization layer near the cathode, the length of which is inversely proportional to pressure, according to (32). The near-cathode thermal non-equilibrium layer and near-anode non-equilibrium layers are less sensitive to pressure variation.

The authors are grateful to Vlad Vekselman (PPPL, NJ), Yevgeny Raitses (PPPL, NJ), Mikhail Shneider (Princeton University, NJ), Nelson Almeida (Universidade da Madeira, Portugal), Mikhail Benilov (Universidade da Madeira), Ken Hara (Texas A&M University, TX), and Marina Lisnyak (Université d'Orléans, France) for fruitful discussions and valuable input.

The research is funded by the U.S. Department of Energy (DOE), Office of Science, Fusion Energy Sciences.

1.
C.
Journet
,
W. K.
Maser
,
P.
Bernier
,
A.
Loiseau
,
M. L.
delaChapelle
,
S.
Lefrant
,
P.
Deniard
,
R.
Lee
, and
J. E.
Fischer
,
Nature
388
,
756
(
1997
).
2.
K.
Ostrikov
and
A. B.
Murphy
,
J. Phys. D: Appl. Phys.
40
,
2223
(
2007
).
3.
X. Q.
Fang
,
A.
Shashurin
,
G.
Teel
, and
M.
Keidar
,
Carbon
107
,
273
(
2016
).
4.
S.
Yatom
,
J.
Bak
,
A.
Khrabryi
, and
Y.
Raitses
,
Carbon
117
,
154
(
2017
).
5.
S.
Yatom
,
R. S.
Selinsky
,
B. E.
Koel
, and
Y.
Raitses
,
Carbon
125
,
336
(
2017
).
6.
Y. W.
Yeh
,
Y.
Raitses
,
B. E.
Koel
, and
N.
Yao
,
Sci. Rep.
7
,
3075
(
2017
).
7.
A.
Khrabry
,
I.
Kaganovich
,
V.
Nemchinsky
, and
A.
Khodak
,
Phys. Plasmas
25
,
013521
(
2018
).
8.
V. A.
Nemchinskii
and
L. N.
Peretts
,
Sov. Phys. Tech. Phys.
22
,
1083
(
1977
).
9.
J.
Jenista
,
J. V.
Heberlein
, and
E.
Pfender
,
IEEE Trans. Plasma Sci.
25
,
883
(
1997
).
10.
M.
Tanaka
,
M.
Ushio
, and
C. S.
Wu
,
J. Phys. D: Appl. Phys.
32
,
605
(
1999
).
11.
N. A.
Almeida
,
M. S.
Benilov
,
U.
Hechtfischer
, and
G. V.
Naidis
,
J. Phys. D: Appl. Phys.
42
,
045210
(
2009
).
12.
I. L.
Semenov
,
I. V.
Krivtsun
, and
U.
Reisgen
,
J. Phys. D: Appl. Phys.
49
,
105204
(
2016
).
13.
J.
Heberlein
,
J.
Mentel
, and
E.
Pfender
,
J. Phys. D: Appl. Phys.
43
,
023001
(
2010
).
14.
S. M.
Shkol'nik
,
Plasma Sources Sci. Technol.
20
,
013001
(
2011
).
15.
Gas Discharge Physics
, edited by
Y. P.
Raizer
and
J. E.
Allen
(
Springer
,
Berlin
,
1991
).
16.
V. S.
Engel'sht
, “
Thermal plasma and new materials technology
,” in
Investigation and Design of Thermal Plasma Generators
, edited by
O. P.
Solonenko
and
M. F.
Zhukov
(
Cambridge Interscience Publishing
,
1994
), Vol.
1
, p.
44
.
17.
W. L.
Bade
and
J. M.
Yos
,
AVCO Report RAD-TR-62-23
,
1962
.
18.
B. Y.
Moizhes
and
V. A.
Nemchinskii
,
Sov. Phys. Tech. Phys.
17
(
5
),
793
(
1972
).
19.
V.
Nemchinsky
,
J. Phys. D: Appl. Phys.
36
,
3007
(
2003
).
20.
M. S.
Benilov
and
A.
Marotta
,
J. Phys. D: Appl. Phys.
28
,
1869
(
1995
).
21.
R. M. S.
Almeida
,
M. S.
Benilov
, and
G. V.
Naidis
,
J. Phys. D: Appl. Phys.
33
,
960
(
2000
).
22.
N. A.
Almeida
,
M. S.
Benilov
, and
G. V.
Naidis
,
J. Phys. D: Appl. Phys.
41
,
245201
(
2008
).
23.
J. F.
Lancaster
,
Br. Weld. J.
1
,
412
(
1954
).
24.
J. F.
Lancaster
,
The Physics of Welding
, 2nd ed. (
Pergamon Press
,
1984
).
25.
M. S.
Benilov
and
G. V.
Naidis
,
Phys. Rev. E
57
,
2230
(
1998
).
26.
A. A.
Radzig
and
B. M.
Smirnov
,
Reference Data of Atoms, Molecules and Ions
(
Springer-Verlag
,
Berlin
,
1985
).
27.
M. I.
Hoffert
and
H.
Lien
,
Phys. Fluids
10
,
1769
(
1967
).
28.
J.
Annaloro
,
V.
Morel
,
A.
Bultel
, and
P.
Omaly
,
Phys. Plasmas
19
,
073515
(
2012
).
29.
J.
Ng
and
Y.
Raitses
,
J. Appl. Phys.
117
,
063303
(
2015
).
30.
V. I.
Kolobov
and
A. S.
Metel
,
J. Phys. D: Appl. Phys.
48
,
233001
(
2015
).
31.
L.
Spitzer
,
Physics of Fully Ionized Gases
(
Wiley
,
New York
,
1962
).
32.
33.
M. D.
Campanell
,
A. V.
Khrabrov
, and
I. D.
Kaganovich
,
Phys. Plasmas
19
,
123513
(
2012
).
34.
V.
Vekselman
,
M.
Feurer
,
T.
Huang
,
B.
Stratton
, and
Y.
Raitses
,
Plasma Sources Sci. Technol.
26
,
065019
(
2017
).
