Weierstrass traveling wave solutions for dissipative Benjamin, Bona, and Mahony (BBM) equation

Mancas, Stefan C.; Spradlin, Greg; Khanal, Harihar

doi:10.1063/1.4817342

In this paper the effect of a small dissipation on waves is included to find exact solutions to the modified Benjamin, Bona, and Mahony (BBM) equation by viscosity. Using Lyapunov functions and dynamical systems theory, we prove that when viscosity is added to the BBM equation, in certain regions there still exist bounded traveling wave solutions in the form of solitary waves, periodic, and elliptic functions. By using the canonical form of Abel equation, the polynomial Appell invariant makes the equation integrable in terms of Weierstrass ℘ functions. We will use a general formalism based on Ince's transformation to write the general solution of dissipative BBM in terms of ℘ functions, from which all the other known solutions can be obtained via simplifying assumptions. Using ODE (ordinary differential equations) analysis we show that the traveling wave speed is a bifurcation parameter that makes transition between different classes of waves.

I. INTRODUCTION

In 1895, Korteweg and de Vries, under the assumption of small wave amplitude and large wavelength of inviscid and incompressible fluids, derived an equation for the water waves, now known as the KdV equation,¹⁴ which also serves as a justifiable model for long waves in a wide class of nonlinear dispersive systems. KdV equation has been also used to account adequately for observable phenomena such as the interaction of solitary waves and dissipationless undular shocks. For the water wave problem Eq. (1.1) is nondimensionalized since the physical parameters

$u=\frac{3 \eta }{2H}$

u = \frac{3 η}{2 H}

⁠,

$x=\frac{\sqrt{6} x^*}{H}$

x = \frac{\sqrt{6} x^{*}}{H}

⁠, and

$t=\sqrt{\frac{6g}{H}}t^*$

t = \sqrt{\frac{6 g}{H}} t^{*}

⁠, where η is the vertical displacement of the free surface, H is the depth of the undisturbed water, x* is dimensional distance, and t* is the dimensional time are all scaled into the definition of nondimensional space x, time t, and water velocity u(x, t). When the physical parameters and scaling factors are appropriately absorbed into the definitions of u, x, and t, the KdV equation is obtained in the tidy form

\begin{equation}u_t+u_x+uu_x+u_{xxx}=0.\end{equation}

u_{t} + u_{x} + u u_{x} + u_{x x x} = 0 .

(1.1)

Although (1.1) shows remarkable properties it manifests non-physical properties; the most noticeable being unbounded dispersion relation. It is helpful to recognize that the main difficulties presented by (1.1) arise from the dispersion term u_xxx. The linearized version of (1.1), which does not include the nonlinear term, is

\begin{equation}u_t+u_x+u_{xxx}=0.\end{equation}

u_{t} + u_{x} + u_{x x x} = 0 .

(1.2)

First, as noted in Ref. 5, when the solution of (1.2) is expressible as a summation of Fourier components in the form F(k)e^{i(kx − ωt)}, the dispersion relation is ω(k) = k − k³, where ω(k) is the frequency, and k is the wave number. The phase velocity

$C_p=\frac{\omega (k)}{k}=1-k^2$

C_{p} = \frac{ω (k)}{k} = 1 - k^{2}

becomes negative for k² > 1, contrary to the original assumption of the forward traveling waves. More significantly, the group velocity

$C_g=\frac{d\omega }{d k}=1-3k^2$

C_{g} = \frac{d ω}{d k} = 1 - 3 k^{2}

has no lower bound.

To circumvent this feature, it has been shown by Peregrine,²¹ and later by Benjamin et al.⁵ that (1.1) has an alternative format, which is called the regularized long-wave or Benjamin, Bona, and Mahony (BBM) equation

\begin{equation}u_t+u_x+uu_x-u_{xxt}=0,\end{equation}

u_{t} + u_{x} + u u_{x} - u_{x x t} = 0,

(1.3)

where the dispersion term u_xxx is replaced by −u_xxt to reflect a bounded dispersion relation. It is contended that (1.3) is in important respects the preferable model over (1.1) which is not a suitable model for long waves.

The initial value problem for this equation has been investigated previously by Refs. 21–23, while the existence and stability of solitary waves have been investigated by Refs. 2, 5, 6, 8, and 9. In Ref. 5, Eq. (1.3) is recast as an integral equation, and its solutions global in time are found for initial data in

$W^{1,2}({\mathbb {R}})$

W^{1, 2} (R)

⁠. Also, the authors showed that its solutions have better smoothness properties than those of . In Ref. 8, global solutions are found for initial data in

$H^s({\mathbb {R}})$

H^{s} (R)

⁠, s ⩾ 0.

The linearized version of (1.3) has the dispersion relation

$\omega (k)=\frac{k}{1+k^2}$

ω (k) = \frac{k}{1 + k^{2}}

⁠, according to which both phase and group velocities

$C_p=\frac{1}{1+k^2}$

C_{p} = \frac{1}{1 + k^{2}}

and

$C_g=\frac{1-k^2}{(1+k^2)^2}$

C_{g} = \frac{1 - k^{2}}{{(1 + k^{2})}^{2}}

are bounded for all k. Moreover, both velocities tend to zero for large k, which implies that fine scale features of the solution tend not to propagate. The preference of over became clear in Ref. 5, when the authors attempted to formulate an existence theory for , respective to nonperiodic initial condition u(x, 0) defined on (−∞, ∞).

A generalization to (1.3) to include a viscous term is provided by the equation

\begin{equation}u_t+u_x+uu_x-u_{xxt}=\nu u_{xx},\end{equation}

u_{t} + u_{x} + u u_{x} - u_{x x t} = ν u_{x x},

(1.4)

where ν > 0 is transformed kinematic viscosity coefficient. The linearized version of (1.4) has a complex dispersion relation

$w(k)=\frac{k-i \nu k^2}{1+k^2}$

w (k) = \frac{k - i ν k^{2}}{1 + k^{2}}

⁠, so

$u(x,t)=e^{ik(x-\frac{t}{1+k^2})}e^{-\frac{\nu k^2}{1+k^2}t}$

u (x, t) = e^{i k (x - \frac{t}{1 + k^{2}})} e^{- \frac{ν k^{2}}{1 + k^{2}} t}

⁠. The real part of the frequency coincides with the bounded dispersion relation of the nondissipative case, while the imaginary part contains the viscosity coefficient ν which must be positive to have decaying waves. In this case the harmonic solutions exhibit both dispersive and dissipative effects.

II. EXISTENCE OF DISSIPATIVE SOLUTIONS

In this section we propose an easy theorem based on dynamical system theory,^4,12 in which we prove the existence of solutions to (1.4) for both negative and positive traveling wave velocities (c < 0, c > 0). Also, we will show that the solution tends to the fixed points of the dynamical system c − 1 ± k, for any k and large traveling wave variable ζ. We show that on boundaries the solution does not necessarily decay to zero, but there is flow of energy through the boundaries to the solution and back to the boundaries.

Theorem 1 below is proven by showing that a certain dynamical system in the plane has a heteroclinic orbit connecting two critical points. The Lyapunov function

$\mathcal {L}$

L

is used to show that a certain trajectory of the dynamical system is bounded. The Poincare-Bendixson Theorem¹⁶ can be inferred to show that the trajectory approaches either a closed loop or a fixed point. The arguments in the proof of Theorem 1 show that in the case of a closed loop,

$\mathcal {L}$

L

would have to be constant along the loop, which is impossible by . Therefore, the trajectory must approach a fixed point instead, which we show is a function of the viscosity ν and velocity c.

An alternative to the dynamical systems approach to finding heteroclinic solutions to ODEs similar to (2.3), perhaps with more complicated nonlinearities, are variational methods and critical point theory. There is an extensive literature on applying variational methods to these types of equation without the dissipative term. See, for example, Ref. 7 and the references therein. The inclusion of the dissipative term makes this approach more difficult. It is necessary to use more complicated function spaces and more complicated arguments, although this approach was used successfully in Ref. 3.

Theorem 1: Let c ≠ 0 and k > 0. (1.4) has a traveling wave solution of the form u(x, t) = u(x − ct) = u(ζ) with u(ζ) → (c − 1) + k as ζ → −∞ and u(ζ) → (c − 1) − k as ζ → ∞. If c < 0, then u(ζ) < (c − 1) + k for all real ζ. If c > 0, then u(ζ) > (c − 1) − k for all real ζ.

Proof: The class of soliton solutions is found by employing the form of the traveling wave solutions of (1.4) which takes the form of the ansatz

\begin{equation}u(x,t)=u (\zeta ),\end{equation}

u (x, t) = u (ζ),

(2.1)

where ζ ≡ x − ct is the traveling wave variable, and c is a nonzero translational wave velocity. The substitution of (2.1) in (1.4) leads to

\begin{equation}(1-c)u^{\prime } + uu^{\prime } +cu^{\prime \prime \prime }=\nu u^{\prime \prime },\end{equation}

(1 - c) u^{'} + u u^{'} + c u^{'''} = ν u^{''},

(2.2)

where

$^{\prime }=\frac{d}{d\zeta }$

' = \frac{d}{d ζ}

⁠. Integrating,

\begin{equation}(1-c)u + \frac{1}{2}u^2 +cu^{\prime \prime } = \nu u^{\prime } + A,\end{equation}

(1 - c) u + \frac{1}{2} u^{2} + c u^{''} = ν u^{'} + A,

(2.3)

for some constant A. With ϕ = u and ψ = u^′, (2.3) is equivalent to the dynamical system

\begin{equation}\begin{aligned} \phi ^{\prime } &= \psi , \\\psi ^{\prime } &= \frac{\nu }{c}\psi +\frac{c-1}{c}\phi -\frac{1}{2c}\phi ^2 + \frac{A}{c},\\\end{aligned}\end{equation}

\begin{matrix} ϕ^{'} & = ψ, \\ ψ^{'} & = \frac{ν}{c} ψ + \frac{c - 1}{c} ϕ - \frac{1}{2 c} ϕ^{2} + \frac{A}{c}, \end{matrix}

(2.4)

or

\begin{equation}\mathbf {u}^{\prime } = \mathbf {F}(\mathbf {u})\end{equation}

u^{'} = F (u)

(2.5)

in vector notation. The fixed points of (2.4) are

\begin{equation}\mathbf {z}^\pm = \left[\begin{array}{c}\phi ^\pm \\ 0 \end{array}\right] = \left[\begin{array}{cc}c-1 \pm \sqrt{(c-1)^2+2A}\\ 0 \end{array}\right]= \left[\begin{array}{cc}c-1 \pm k\\ 0\end{array}\right],\end{equation}

z^{\pm} = [\begin{matrix} ϕ^{\pm} \\ 0 \end{matrix}] = [\begin{matrix} c - 1 \pm \sqrt{{(c - 1)}^{2} + 2 A} \\ 0 \end{matrix}] = [\begin{matrix} c - 1 \pm k \\ 0 \end{matrix}],

(2.6)

for

$A=\frac{k^2-(c-1)^2}{2}$

A = \frac{k^{2} - {(c - 1)}^{2}}{2}

⁠. We will show that has a trajectory from z⁺ to z⁻.

First, we will consider the c < 0 case. The linearization of (2.4) at z⁺ is

\begin{equation}\mathbf {u}^{\prime } = \left[\begin{array}{c}\phi ^{\prime }\\[3pt] \psi ^{\prime } \end{array}\right] = \left[\begin{array}{ccc}0 & 1\\[6pt] -\frac{\sqrt{(c-1)^2+2A}}{c} & \frac{\nu }{c} \end{array}\right] \left[\begin{array}{c} \phi - \phi ^+ \\[3pt]\psi \end{array}\right] \equiv M\left[\begin{array}{c}\phi - \phi ^+ \\[3pt]\psi \end{array}\right].\end{equation}

u^{'} = [\begin{matrix} ϕ^{'} \\ ψ^{'} \end{matrix}] = [\begin{matrix} 0 & 1 \\ - \frac{\sqrt{{(c - 1)}^{2} + 2 A}}{c} & \frac{ν}{c} \end{matrix}] [\begin{matrix} ϕ - ϕ^{+} \\ ψ \end{matrix}] \equiv M [\begin{matrix} ϕ - ϕ^{+} \\ ψ \end{matrix}] .

(2.7)

The determinant of M is negative, so z⁺ is a saddle point, and M has eigenvalues λ^± with λ⁻ < 0 < λ⁺.

The unit eigenvector corresponding to λ⁺ and pointing to the left is

\begin{equation}\mathbf {v} = \frac{\left[\begin{array}{c}-1 \\[3pt]-\lambda ^+ \end{array}\right]}{\sqrt{1+(\lambda ^+)^2}}.\end{equation}

v = \frac{[\begin{matrix} - 1 \\ - λ^{+} \end{matrix}]}{\sqrt{1 + {(λ^{+})}^{2}}} .

(2.8)

Let

$\mathbf {g(\zeta )}=\left[\begin{array}{c}g_1(\zeta ) \\g_2(\zeta ) \end{array}\right]$

g (ζ) = [\begin{matrix} g_{1} (ζ) \\ g_{2} (ζ) \end{matrix}]

be a solution of with g(ζ) → z⁺ and

\begin{equation}\Big | \frac{\mathbf {g}(\zeta ) -\mathbf {z}^+}{|\mathbf {g}(\zeta ) -\mathbf {z}^+ |} - \mathbf {v} \Big | \rightarrow 0\end{equation}

| \frac{g (ζ) - z^{+}}{| g (ζ) - z^{+} |} - v | \to 0

(2.9)

as ζ → −∞. We will show that g(ζ) → z⁻ as ζ → ∞ and g₁(ζ) < ϕ⁺ for all real ζ.

Define

\begin{equation}P_3(\phi )= \frac{1}{6}\phi ^3 + \frac{1}{2}(1-c)\phi ^2-A\phi .\end{equation}

P_{3} (ϕ) = \frac{1}{6} ϕ^{3} + \frac{1}{2} (1 - c) ϕ^{2} - A ϕ .

(2.10)

P₃ is increasing on (− ∞, ϕ⁻], decreasing on [ϕ⁻, ϕ⁺], and increasing on [ϕ⁺, ∞). Define

\begin{equation}\begin{aligned} {\mathcal {L}}(\mathbf {u}) = & P_3(\phi )-P_3(\phi ^+) + \frac{1}{2}c \psi ^2 \\= &\frac{1}{6}\phi ^3+\frac{1}{2}(1-c)\phi ^2-A\phi -P_3(\phi ^+) + \frac{1}{2}c \psi ^2. \end{aligned}\end{equation}

\begin{matrix} L (u) = & P_{3} (ϕ) - P_{3} (ϕ^{+}) + \frac{1}{2} c ψ^{2} \\ = & \frac{1}{6} ϕ^{3} + \frac{1}{2} (1 - c) ϕ^{2} - A ϕ - P_{3} (ϕ^{+}) + \frac{1}{2} c ψ^{2} . \end{matrix}

(2.11)

Then for all ζ,

\begin{equation}\begin{aligned} \frac{d}{d\zeta }\mathcal {L}(\mathbf {g}(\zeta )) &= \Big (\frac{1}{2}g_1^2 + (1-c)g_1 - A\Big )g^{\prime }_1 +cg_2 g^{\prime }_2 =\\&= \Big (\frac{1}{2}g_1^2 + (1-c)g_1-A\Big )g_2 + \\&\qquad cg_2\Big (\frac{c-1}{c}g_1 -\frac{1}{2c}g_1^2 + \frac{\nu }{c}g_2 + \frac{A}{c}\Big ) = \nu g_2^2 \ge 0.\\\end{aligned}\end{equation}

\begin{matrix} \frac{d}{d ζ} L (g (ζ)) & = (\frac{1}{2} g_{1}^{2} + (1 - c) g_{1} - A) g_{1}^{'} + c g_{2} g_{2}^{'} = \\ = (\frac{1}{2} g_{1}^{2} + (1 - c) g_{1} - A) g_{2} + \\ c g_{2} (\frac{c - 1}{c} g_{1} - \frac{1}{2 c} g_{1}^{2} + \frac{ν}{c} g_{2} + \frac{A}{c}) = ν g_{2}^{2} \geq 0 . \end{matrix}

(2.12)

Since

$\mathcal {L}(\mathbf {z}^+) = 0$

L (z^{+}) = 0

then

$\mathcal {L}(\mathbf {g}(\zeta )) > 0$

L (g (ζ)) > 0

for all real ζ.

Let ϕ⁻⁻ < ϕ⁻ with

\begin{equation}P_3(\phi ^{–}) < P_3(\phi ^+),\end{equation}

P_{3} (ϕ^{- -}) < P_{3} (ϕ^{+}),

(2.13)

and let

\begin{equation}B = P_3(\phi ^-) - P_3(\phi ^+) = \max \lbrace P_3(\phi ) \mid \phi ^{–} \le \phi \le \phi ^+ \rbrace - P_3(\phi ^+).\end{equation}

B = P_{3} (ϕ^{-}) - P_{3} (ϕ^{+}) = \max {P_{3} (ϕ) ∣ ϕ^{- -} \leq ϕ \leq ϕ^{+}} - P_{3} (ϕ^{+}) .

(2.14)

Let L > 0 be large enough so that

\begin{equation}\frac{1}{2}c L^2 + B < 0,\end{equation}

\frac{1}{2} c L^{2} + B < 0,

(2.15)

and define

\begin{equation}R = (\phi ^{–} , \phi ^+) \times (-L,L).\end{equation}

R = (ϕ^{- -}, ϕ^{+}) \times (- L, L) .

(2.16)

We claim that g(ζ) ∈ R for all real ζ. As ζ → −∞, g(ζ) → z⁺ along the direction [1, λ⁺]^T. Therefore,

$\mathcal {L}(\mathbf {g}(\zeta )) > \mathcal {L}(\mathbf {z}^+) = 0$

L (g (ζ)) > L (z^{+}) = 0

for all real ζ, and there exists

$\zeta ` \in \mathbb {R}$

ζ ‘ \in R

such that g(ζ) ∈ R for all ζ < ζ‘.

So, it suffices to show that

$\mathcal {L} \le 0$

L \leq 0

on ∂R. Let u ∈ ∂R. If ϕ = ϕ⁺, then

$\mathcal {L}(\mathbf {u}) = \frac{1}{2}c \psi ^2 \le 0$

L (u) = \frac{1}{2} c ψ^{2} \leq 0

⁠. Similarly, if ϕ = ϕ⁻⁻, then

$\mathcal {L}(\mathbf {u}) = P_3(\phi ^{–}) - P_3(\phi ^+) +\frac{1}{2}c \psi ^2 < 0$

L (u) = P_{3} (ϕ^{- -}) - P_{3} (ϕ^{+}) + \frac{1}{2} c ψ^{2} < 0

⁠. If ϕ⁻⁻ ⩽ ϕ ⩽ ϕ⁺ and ψ = L, then

$\mathcal {L}(\mathbf {u}) = P_3(\phi )-P_3(\phi ^+) + \frac{1}{2}c L^2 \le B + \frac{1}{2}c L^2 < 0$

L (u) = P_{3} (ϕ) - P_{3} (ϕ^{+}) + \frac{1}{2} c L^{2} \leq B + \frac{1}{2} c L^{2} < 0

⁠. Similarly, if ϕ⁻⁻ ⩽ ϕ ⩽ ϕ⁺ and ψ = −L,

$\mathcal {L}(\mathbf {u}) < 0$

L (u) < 0

⁠.

Define

\begin{equation}L_\infty = \lim _{\zeta \rightarrow \infty } \mathcal {L}(\mathbf {g}(\zeta )).\end{equation}

L_{\infty} = \lim_{ζ \to \infty} L (g (ζ)) .

(2.17)

L_∞ exists and is finite because

$\mathcal {L}(\mathbf {g}(\zeta ))$

L (g (ζ))

is a non-decreasing function of ζ,

$\mathcal {L}$

L

is bounded on R, and g(ζ) ∈ R for all real ζ. Let C be the ω-limit set of g, i.e.,

\begin{equation}C = \lbrace \mathbf {u} \mid \exists (\zeta _m) \subset \mathbb {R}\, \mbox{with } \lim _{m \rightarrow \infty } \zeta _m = \infty , \ \mathbf {g}(\zeta _m) \rightarrow \mathbf {u}\rbrace ,\end{equation}

C = {u ∣ \exists (ζ_{m}) \subset R with \lim_{m \to \infty} ζ_{m} = \infty, g (ζ_{m}) \to u},

(2.18)

where C is nonempty because g(ζ) ∈ R for all real ζ and R is bounded. C is compact and connected, and

$\mathcal {L} = L_\infty$

L = L_{\infty}

on C. We must prove C = {z⁻}.

Suppose C contains a point w that is not on the ϕ-axis. Then w is not a stationary point of (2.4), and C contains another point y. Let δ > 0 with δ < min (|w − y|, |w₂|)/2. Then g crosses the annulus B_δ(w)∖B_δ/2(w) infinitely many times, and there exist sequences (ζ_m), (ζ‘_m) with ζ_m → ∞ as m → ∞, ζ_m < ζ‘_m < ζ_{m + 1} for all m, |g(ζ_m) − w| = δ/2, |g(ζ‘_m) − w| = δ, and δ/2 < |g(ζ) − w| < δ, for all m and all ζ ∈ (ζ_m, ζ‘_m).

Let

$K = \sup (|\mathbf {F}(\mathbf {u})| \mid \mathbf {u} \in B_\delta (\mathbf {w})) < \infty$

K = \sup (| F (u) | ∣ u \in B_{δ} (w)) < \infty

⁠, where F is from . Then ζ‘_m − ζ_m ⩾ δ/(2K) for all m. For ζ ∈ (ζ_m, ζ‘_m),

\begin{equation}\frac{d}{d\zeta } \mathcal {L}(\mathbf {g}(\zeta )) \ge \nu g_2^2(\zeta ) \ge \frac{\nu w_2^2}{4}> 0,\end{equation}

\frac{d}{d ζ} L (g (ζ)) \geq ν g_{2}^{2} (ζ) \geq \frac{ν w_{2}^{2}}{4} > 0,

(2.19)

so

\begin{equation}\begin{aligned} \mathcal {L}(\mathbf {g}(\zeta `_m))&- \mathcal {L}(\mathbf {g}(\zeta _m)) = \int _{\zeta _m}^{\zeta `_m}\frac{d}{d\zeta } \mathcal {L}(\mathbf {g}(\zeta ))\, d\zeta \ge \\&\int _{\zeta _m}^{\zeta `_m} \frac{\nu w_2^2}{4}\, d\zeta = \frac{\nu (\zeta `_m - \zeta _m)w_2^2}{4} \ge \frac{\delta \nu w_2^2}{8K}, \end{aligned}\end{equation}

\begin{matrix} L (g (ζ ‘_{m})) & - L (g (ζ_{m})) = \int_{ζ_{m}}^{ζ ‘_{m}} \frac{d}{d ζ} L (g (ζ)) d ζ \geq \\ \int_{ζ_{m}}^{ζ ‘_{m}} \frac{ν w_{2}^{2}}{4} d ζ = \frac{ν (ζ ‘_{m} - ζ_{m}) w_{2}^{2}}{4} \geq \frac{δ ν w_{2}^{2}}{8 K}, \end{matrix}

(2.20)

for all m. Therefore,

\begin{equation}\begin{aligned} L_\infty &= \mathcal {L}(\mathbf {g}(\zeta _1)) + (L_\infty - \mathcal {L}(\mathbf {g}(\zeta _1)) \ge \\&\ge \mathcal {L}(\mathbf {g}(\zeta _1))+ \sum _{m=1}^\infty \mathcal {L}(\mathbf {g}(\zeta `_m))- \mathcal {L}(\mathbf {g}(\zeta _m)) \ge \\&\ge \mathcal {L}(\mathbf {g}(\zeta _1)) + \sum _{m=1}^\infty \frac{\delta \nu w_2^2}{8K} = \infty . \end{aligned}\end{equation}

\begin{matrix} L_{\infty} & = L (g (ζ_{1})) + (L_{\infty} - L (g (ζ_{1})) \geq \\ \geq L (g (ζ_{1})) + \sum_{m = 1}^{\infty} L (g (ζ ‘_{m})) - L (g (ζ_{m})) \geq \\ \geq L (g (ζ_{1})) + \sum_{m = 1}^{\infty} \frac{δ ν w_{2}^{2}}{8 K} = \infty . \end{matrix}

(2.21)

But L_∞ is finite. This is a contradiction.

Therefore, C is a subset of the ϕ-axis. Since C is connected and compact, C = [ϕ₁, ϕ₂] × {0} for some ϕ⁻⁻ < ϕ₁ ⩽ ϕ₂ < ϕ⁺. Recall that

$\mathcal {L} = L_\infty$

L = L_{\infty}

on C.

$\mathcal {L}$

L

is not constant on any segment of the ϕ-axis of positive length. So C is a single point, which is a stationary point of in R. There is only one such point, z⁻.

Now consider the case c > 0. Let k > 0. Since −c < 0, we have seen that there exists g solving (2.2) with c replaced by −c, that is,

\begin{equation}(1+c)g^{\prime } + gg^{\prime } -cg^{\prime \prime \prime } - \nu g^{\prime \prime } = 0,\end{equation}

(1 + c) g^{'} + g g^{'} - c g^{'''} - ν g^{''} = 0,

(2.22)

with g(ζ) → (− c − 1) + k as ζ → −∞, g(ζ) → (− c − 1) − k as ζ → ∞, and g(ζ) < (− c − 1) + k for all real ζ.

Define

$u: \mathbb {R} \rightarrow \mathbb {R}$

u : R \to R

by u(ζ) = −g(− ζ) − 2. Then g(ζ) = −u(− ζ) − 2, g^′(ζ) = u^′(− ζ), g^″(ζ) = −u^″(− ζ), and g^″′(ζ) = u^″′(− ζ). Substituting into yields

\begin{equation}\begin{aligned} 0 &= (1+c)u^{\prime }(-\zeta ) + (-u(-\zeta )-2)u^{\prime }(-\zeta ) -cu^{\prime \prime \prime }(-\zeta ) + \nu u^{\prime \prime }(-\zeta ) \\&= (c-1)u^{\prime }(-\zeta ) - u(-\zeta )u^{\prime }(-\zeta ) - cu^{\prime \prime \prime }(-\zeta ) + \nu u^{\prime \prime }(-\zeta ) \\&= -[(1-c)u^{\prime }(-\zeta ) + u(-\zeta )u^{\prime }(-\zeta ) + cu^{\prime \prime \prime }(-\zeta ) -\nu u^{\prime \prime }(-\zeta )]. \end{aligned}\end{equation}

\begin{matrix} 0 & = (1 + c) u^{'} (- ζ) + (- u (- ζ) - 2) u^{'} (- ζ) - c u^{'''} (- ζ) + ν u^{''} (- ζ) \\ = (c - 1) u^{'} (- ζ) - u (- ζ) u^{'} (- ζ) - c u^{'''} (- ζ) + ν u^{''} (- ζ) \\ = - [(1 - c) u^{'} (- ζ) + u (- ζ) u^{'} (- ζ) + c u^{'''} (- ζ) - ν u^{''} (- ζ)] . \end{matrix}

(2.23)

Therefore, u satisfies (2.2). By definition of u,

\begin{equation}\begin{aligned} \lim _{\zeta \rightarrow -\infty } u(\zeta ) &= \lim _{\zeta \rightarrow -\infty } ( -g(-\zeta )-2) = \lim _{\zeta \rightarrow \infty } (-g(\zeta )-2) \\&= -2 -\lim _{\zeta \rightarrow \infty } g(\zeta ) = -2 - ((-c -1) -k)\\& = (c-1)+k \end{aligned}\end{equation}

\begin{matrix} \lim_{ζ \to - \infty} u (ζ) & = \lim_{ζ \to - \infty} (- g (- ζ) - 2) = \lim_{ζ \to \infty} (- g (ζ) - 2) \\ = - 2 - \lim_{ζ \to \infty} g (ζ) = - 2 - ((- c - 1) - k) \\ = (c - 1) + k \end{matrix}

(2.24)

and

\begin{equation}\begin{aligned} \lim _{\zeta \rightarrow \infty } u(\zeta ) &= \lim _{\zeta \rightarrow \infty } ( -g(-\zeta )-2) = \lim _{\zeta \rightarrow -\infty } (-g(\zeta )-2) \\&= -2 -\lim _{\zeta \rightarrow -\infty } g(\zeta ) = -2 - ((-c -1) + k) \\&= (c-1)-k. \end{aligned}\end{equation}

\begin{matrix} \lim_{ζ \to \infty} u (ζ) & = \lim_{ζ \to \infty} (- g (- ζ) - 2) = \lim_{ζ \to - \infty} (- g (ζ) - 2) \\ = - 2 - \lim_{ζ \to - \infty} g (ζ) = - 2 - ((- c - 1) + k) \\ = (c - 1) - k . \end{matrix}

(2.25)

For all real ζ, g(ζ) < (− c − 1) + k, so for all real ζ,

\begin{equation}u(\zeta ) = -g(-\zeta ) - 2 > -[(-c-1)+k] - 2 = (c-1) - k.\end{equation}

u (ζ) = - g (- ζ) - 2 > - [(- c - 1) + k] - 2 = (c - 1) - k .

(2.26)

Theorem 1 is proved.

III. EXACT SOLUTIONS VIA ℘ FUNCTIONS

A. Abel's equation

The importance of Abel's equation in its canonical forms stems from the fact that its integrability leads to closed form solutions to a general nonlinear ODE of the form

\begin{equation}u_{\zeta \zeta }+q_0(u) u_{\zeta } +q_2(u)=0.\end{equation}

u_{ζ ζ} + q_{0} (u) u_{ζ} + q_{2} (u) = 0 .

(3.1)

This can be expressed by the following lemma.¹⁸

Lemma 1: Solutions to a general second order ODE of type (3.1) may be obtained via the solutions to Abel's equation (3.6), and vice versa using the following relationship

\begin{equation}u_{\zeta }=\eta (u(\zeta )).\end{equation}

u_{ζ} = η (u (ζ)) .

(3.2)

Proof: To show the equivalence, one just needs the simple chain rule

\begin{equation}u_{\zeta \zeta }=\frac{d \eta }{d u}u_{\zeta }=\eta \frac{d \eta }{d u},\end{equation}

u_{ζ ζ} = \frac{d η}{d u} u_{ζ} = η \frac{d η}{d u},

(3.3)

which turns (3.1) into the second kind of Abel equation

\begin{equation}\frac{d \eta }{du}\eta +q_0(u)\eta +q_2(u)=0.\end{equation}

\frac{d η}{d u} η + q_{0} (u) η + q_{2} (u) = 0 .

(3.4)

Moreover, via transformation of the dependent variable

\begin{equation}\eta (u)=\frac{1}{y(u)},\end{equation}

η (u) = \frac{1}{y (u)},

(3.5)

(3.4) becomes the Abel first kind without free or linear terms

\begin{equation}\frac{dy}{du}=q_0(u)y^2+q_2(u)y^3.\end{equation}

\frac{d y}{d u} = q_{0} (u) y^{2} + q_{2} (u) y^{3} .

(3.6)

Comparing (3.1) with (2.3) we identify the constant, and quadratic polynomial coefficients

\begin{equation}\begin{aligned} q_0(u)& =-\frac{\nu }{c},\\q_2(u)&=\frac{u^2}{2c}+\frac{1-c}{c}u-\frac{A}{c}. \end{aligned}\end{equation}

\begin{matrix} q_{0} (u) & = - \frac{ν}{c}, \\ q_{2} (u) & = \frac{u^{2}}{2 c} + \frac{1 - c}{c} u - \frac{A}{c} . \end{matrix}

(3.7)

The need of dissipation is imperative since without the dissipation term q₀ = 0, the Abel's equation (3.6) becomes separable, as we will see next.

Progress of integration of (3.6) is based on the linear transformation

$v=\int {q_0(u) du}=-\frac{\nu }{c} u$

v = \int q_{0} (u) d u = - \frac{ν}{c} u

⁠, which allows us to write Abel's equation in canonical form

\begin{equation}\frac{dy}{d v }=y^2+g(v)y^3,\end{equation}

\frac{d y}{d v} = y^{2} + g (v) y^{3},

(3.8)

where g(v) is the Appell's invariant and is the quadratic polynomial

\begin{equation}g(v)=-\frac{c^2}{2 \nu ^3}v^2+\frac{c(1-c)}{\nu ^2}v+\frac{A}{\nu } = a_2v^2+a_1v+a_0.\end{equation}

g (v) = - \frac{c^{2}}{2 ν^{3}} v^{2} + \frac{c (1 - c)}{ν^{2}} v + \frac{A}{ν} = a_{2} v^{2} + a_{1} v + a_{0} .

(3.9)

By Lemke's transformation¹⁷

\begin{equation}y=-\frac{1}{z}\frac{d z}{d v},\end{equation}

y = - \frac{1}{z} \frac{d z}{d v},

(3.10)

(3.8) can be written as a second-order differential equation with the preserved Appel's invariantg(v),

\begin{equation}z^2\frac{d^2 v}{d z^2}+g(v)=0.\end{equation}

z^{2} \frac{d^{2} v}{d z^{2}} + g (v) = 0 .

(3.11)

B. No viscosity

If ν = 0 (2.3) becomes

\begin{equation}u_{\zeta \zeta }=-\frac{u^2}{2c}-\frac{1-c}{c}u+\frac{A}{c}.\end{equation}

u_{ζ ζ} = - \frac{u^{2}}{2 c} - \frac{1 - c}{c} u + \frac{A}{c} .

(3.12)

The classical solutions obtained before by Ref. 6 with the assumption that A = 0 are

\begin{align}u(x,t)&=3(c-1) \mathrm{Sech}^2\Big [{\frac{\sqrt{\frac{c-1}{c}}}{2}(x-c t)}\Big ] \,\, \mathrm{if} \,\, c>1, \\u(x,t)&=-\frac{3c}{1+c} \mathrm{Sec}^2\Big [{\frac{\sqrt{c}}{2}\Big (x-\frac{t}{1+c}\Big )}\Big ] \,\, \mathrm{if} \,\, 0<c<1, \nonumber\end{align}

\begin{matrix} u (x, t) & = 3 (c - 1) {Sech}^{2} [\frac{\sqrt{\frac{c - 1}{c}}}{2} (x - c t)] if c > 1, \\ u (x, t) & = - \frac{3 c}{1 + c} {Sec}^{2} [\frac{\sqrt{c}}{2} (x - \frac{t}{1 + c})] if 0 < c < 1, \end{matrix}

(3.13)

see left and middle panels of Fig. 1. Solitary waves that translate with velocity c > 1 are called fast waves, while the periodic solutions that travel with velocity 0 < c < 1 slow waves.

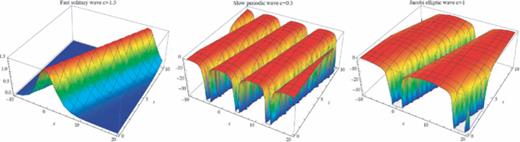

FIG. 1.

View large Download slide

Traveling waves ν = 0, left c = 1.5 and middle c = 0.5, Eq. (3.13); right c = 1, Eq. (3.28).

In (3.6) if let ν = 0, then the Abel's equation

\begin{equation}\frac{dy}{du}=q_2(u)y^3\end{equation}

\frac{d y}{d u} = q_{2} (u) y^{3}

(3.14)

is separable and leads to the elliptic algebraic equation

\begin{equation}\eta ^2=-\frac{u^3}{3c}-\frac{1-c}{c}u^2+\frac{2A}{c}-2D.\end{equation}

η^{2} = - \frac{u^{3}}{3 c} - \frac{1 - c}{c} u^{2} + \frac{2 A}{c} - 2 D .

(3.15)

Using again the substitution u_ζ = η (3.15) becomes the elliptic differential equation

\begin{equation}u_{\zeta } ^2=-\frac{u^3}{3c}-\frac{1-c}{c}u^2+\frac{2A}{c}u-2D.\end{equation}

u_{ζ}^{2} = - \frac{u^{3}}{3 c} - \frac{1 - c}{c} u^{2} + \frac{2 A}{c} u - 2 D .

(3.16)

For verification, if one takes

$\frac{d}{d\zeta }$

\frac{d}{d ζ}

of the above, we recover .

Using a linear transformation, p. 311 of Ref. 11 of the dependent variable

$u=-\root 3 \of {12c}\hat{u}-(1-c)$

u = - \sqrt[3]{12 c} \hat{u} - (1 - c)

⁠, can be written in standard form

\begin{equation}\hat{u}_{\zeta }^2=4 \hat{u}^3-g_2 \hat{u}-g_3,\end{equation}

{\hat{u}}_{ζ}^{2} = 4 {\hat{u}}^{3} - g_{2} \hat{u} - g_{3},

(3.17)

with solution

\begin{equation}\hat{u}(\zeta )=\wp (\zeta , g_2,g_3)\end{equation}

\hat{u} (ζ) = ℘ (ζ, g_{2}, g_{3})

(3.18)

and invariants

\begin{align}g_2=&\root 3 \of {\frac{12}{c^2}}(c-1)^2>0,\end{align}

\begin{matrix} g_{2} = & \sqrt[3]{\frac{12}{c^{2}}} {(c - 1)}^{2} > 0, \end{matrix}

(3.19)

\begin{align}g_3=&\frac{2(1-c)^3}{3c}.\end{align}

\begin{matrix} g_{3} = & \frac{2 {(1 - c)}^{3}}{3 c} . \end{matrix}

(3.20)

The limiting cases are obtained when A = 0, D = 0 to yield back to (3.13). We will not discuss here this reduction to hyperbolic or trigonometric functions, since this was done extensible before by many authors, but instead we refer the reader to Refs. 1 and 19 for the reduction and classification that depends on the sign of the invariants.

Instead, we will obtain a novel class of solutions that travel with a critical velocity c = 1. At the boundary between the fast and slow waves we will encounter periodic solutions in terms of rational combination of Jacobian elliptic functions.

If c = 1 and A = 0, Eq. (3.12) becomes

\begin{equation}\frac{u^2}{2}+u^{\prime \prime }=0.\end{equation}

\frac{u^{2}}{2} + u^{''} = 0 .

(3.21)

By multiplying by u_ζ and integrating once we obtain

\begin{equation}u_{\zeta }^2+\frac{u^3}{3}=\frac{B^3}{3},\end{equation}

u_{ζ}^{2} + \frac{u^{3}}{3} = \frac{B^{3}}{3},

(3.22)

where B is some nonzero constant of integration. In (3.15) if we let

$D=-\frac{B^3}{6}$

D = - \frac{B^{3}}{6}

⁠, we will also arrive to . Now let us use the substitution μ² = B − u, where μ = μ(ζ). Hence is

\begin{equation}\mu _{\zeta }= \pm \frac{\sqrt{3}}{6} \sqrt{\mu ^4-3B\mu ^2+3B^2}.\end{equation}

μ_{ζ} = \pm \frac{\sqrt{3}}{6} \sqrt{μ^{4} - 3 B μ^{2} + 3 B^{2}} .

(3.23)

Moreover, let us assume

$\mu (\zeta )=\root 4 \of {3} \sqrt{B}z(\zeta )$

μ (ζ) = \sqrt[4]{3} \sqrt{B} z (ζ)

⁠. Then becomes

\begin{equation}z_{\zeta }= \pm \frac{\sqrt{B}}{2 \root 4 \of {3}} \sqrt{z^4-\sqrt{3}z^2+1}.\end{equation}

z_{ζ} = \pm \frac{\sqrt{B}}{2 \sqrt[4]{3}} \sqrt{z^{4} - \sqrt{3} z^{2} + 1} .

(3.24)

This ODE is solved using Jacobian elliptic functions.

Claim 1: If Z = 1 + 2z²cos 2α + z⁴, then

$$u(x,k)=\int ^{x}_{0}\frac{dz}{\sqrt{Z}}=\frac{1}{2} {\rm sn}^{-1}\frac{2x}{1+x^2},$$

u (x, k) = \int_{0}^{x} \frac{d z}{\sqrt{Z}} = \frac{1}{2} {sn}^{- 1} \frac{2 x}{1 + x^{2}},

with k = sin α, see p. 91 of Ref. 10.

Proof: Putting z = tan θ, we find

$$u(x,k)=\int ^{\tan ^{-1}x}_{0}\frac{d \theta }{\sqrt{1-\sin ^{2}\alpha \sin ^{2}{2 \theta }}},$$

u (x, k) = \int_{0}^{\tan^{- 1} x} \frac{d θ}{\sqrt{1 - \sin^{2} α \sin^{2} 2 θ}},

followed by y = sin 2θ, which will give us

$$u(x,k)=\frac{1}{2}\int ^{\frac{2x}{1+x^2}}_{0}\frac{d y}{\sqrt{(1-y^2)(1-k^2 y^2)}},$$

u (x, k) = \frac{1}{2} \int_{0}^{\frac{2 x}{1 + x^{2}}} \frac{d y}{\sqrt{(1 - y^{2}) (1 - k^{2} y^{2})}},

which is an elliptic integral of the first kind. Therefore, solving (3.24), we obtain the solution in z

\begin{equation}\frac{2 z}{1+z^2}=\pm {\rm sn}\big (\frac{\sqrt{B}}{\root 4 \of {3}}\zeta ,k\big ),\end{equation}

\frac{2 z}{1 + z^{2}} = \pm sn (\frac{\sqrt{B}}{\sqrt[4]{3}} ζ, k),

(3.25)

where

$k=\sin {\frac{5 \pi }{12}}=\frac{\sqrt{3}+1}{2 \sqrt{2}}$

k = \sin \frac{5 π}{12} = \frac{\sqrt{3} + 1}{2 \sqrt{2}}

is the modulus of the Jacobian elliptic function. It follows that for μ we will have

\begin{equation}\frac{2 a \mu }{a^2+\mu ^2}=\pm {\rm sn}\big (\frac{\sqrt{3}}{3} a\zeta ,k\big ),\end{equation}

\frac{2 a μ}{a^{2} + μ^{2}} = \pm sn (\frac{\sqrt{3}}{3} a ζ, k),

(3.26)

where

$a=\sqrt{B}\root 4 \of {3}$

a = \sqrt{B} \sqrt[4]{3}

⁠. By solving the quadratic yields

\begin{equation}\mu =\pm a\frac{1\pm {\rm cn}\big (\frac{\sqrt{3}}{3}a\zeta ,k\big )}{{\rm sn}\big (\frac{\sqrt{3}}{3}a\zeta ,k\big )}.\end{equation}

μ = \pm a \frac{1 \pm cn (\frac{\sqrt{3}}{3} a ζ, k)}{sn (\frac{\sqrt{3}}{3} a ζ, k)} .

(3.27)

Therefore, the solution to the BBM equation without viscosity and velocity c = 1 is

\begin{equation}\begin{aligned} u(x,t)=& B\Big [1-\sqrt{3}\Big (\frac{1\pm {\rm cn}\big (\frac{\sqrt{B}}{\root 4 \of {3}}(x-t),k\big )}{{\rm sn}\big (\frac{\sqrt{B}}{\root 4 \of {3}}(x-t),k\big )}\Big )^2\Big ]\\=& B\Big [1-\sqrt{3 }\frac{1\mp {\rm cn}\big (\frac{\sqrt{B}}{\root 4 \of {3}}(x-t),k\big )}{1 \pm {\rm cn}\big (\frac{\sqrt{B}}{\root 4 \of {3}}(x-t),k\big )}\Big ]. \end{aligned}\end{equation}

\begin{matrix} u (x, t) = & B [1 - \sqrt{3} {(\frac{1 \pm cn (\frac{\sqrt{B}}{\sqrt[4]{3}} (x - t), k)}{sn (\frac{\sqrt{B}}{\sqrt[4]{3}} (x - t), k)})}^{2}] \\ = & B [1 - \sqrt{3} \frac{1 \mp cn (\frac{\sqrt{B}}{\sqrt[4]{3}} (x - t), k)}{1 \pm cn (\frac{\sqrt{B}}{\sqrt[4]{3}} (x - t), k)}] . \end{matrix}

(3.28)

These critical solutions are 2K periodic with K obtained from the complete elliptic integral

\begin{equation}\frac{K}{2}=\int _0^{1}\frac{dz}{\sqrt{z^4-\sqrt{3}z^2+1}}=2.76806,\end{equation}

\frac{K}{2} = \int_{0}^{1} \frac{d z}{\sqrt{z^{4} - \sqrt{3} z^{2} + 1}} = 2.76806,

(3.29)

see right panel of Fig. 1. The same solution was previously obtained by Cornejo-Pérez and Rosu, using a factorization technique.²⁴

The expressions (3.13) and (3.28) describe the whole class of solitary wave solutions with spectrum c ∈ (0, ∞) which is in concordance with Ref. 6. They present periodic and solitary wave solutions to (1.3), with no restrictions on the constant A, which may be advantageous when adapting results to physical problems.

Remark 1: All the solutions obtained using simplifying assumptions ν = 0, A = 0 are particular cases of general solutions of (2.3) in terms of Weierstrass elliptic functions ℘, as we will see next.

C. Viscosity present, ν > 0

Consider (3.8) in the form of non-autonomous equation F(y, y_v, v) = 0. Painlevé proved in his doctoral thesis in 1887²⁰ that all integrals of non-autonomous equations do not have movable singular points, but only poles and fixed algebraic singularities. Poincare²⁵ proved in 1885 that any non-autonomous equation of genus p = 0 is reducible to Riccati equation, while if p = 1 is integrable via Weierstrass ℘ functions, after a linear fractional transformation. Since Riccati equation can be easily obtained from a linear ODE and the Appel invariant g(v) has no singularities, one can conclude that the closed form solutions of (3.11) will not have movable singular points, but poles. Since v(z) has only poles of order two, then the solution to (3.11), must be written in terms of Weierstrass ℘ functions via the transformation

\begin{equation}v=E z^{p}\omega (z) +F,\end{equation}

v = E z^{p} ω (z) + F,

(3.30)

see Ince, p. 431 of Ref. 13. By substituting this ansatz in (3.11) with E, F constants, then for

$p=\frac{2}{5}$

p = \frac{2}{5}

⁠, ω(z) will satisfy the elliptic equation

\begin{equation}\omega ^{\prime 2}=4 \omega ^3-g_2\omega -g_3\end{equation}

ω^{' 2} = 4 ω^{3} - g_{2} ω - g_{3}

(3.31)

with invariants g₂, g₃.

Moreover, z is an exponential function, because it satisfies

\begin{equation}\frac{dv}{dz}=-\frac{1}{yz},\end{equation}

\frac{d v}{d z} = - \frac{1}{y z},

(3.32)

which leads to

\begin{equation}\frac{\nu }{c}d \zeta =\frac{dz}{z}.\end{equation}

\frac{ν}{c} d ζ = \frac{d z}{z} .

(3.33)

The ℘ solutions can be combined into the general substitution

\begin{equation}u(\zeta )=\sigma -g(\zeta ),\end{equation}

u (ζ) = σ - g (ζ),

(3.34)

where g(ζ) = e^−nζΩ(ζ). σ and n are constants which are related to A and p.

By substituting (3.34) into (2.3) we obtain the ODE

\begin{equation}g^{\prime \prime }-\frac{\nu }{c}g^{\prime }-\frac{1}{2c}g^2+\frac{1-c+\sigma }{c} g=0.\end{equation}

g^{''} - \frac{ν}{c} g^{'} - \frac{1}{2 c} g^{2} + \frac{1 - c + σ}{c} g = 0 .

(3.35)

The free term was eliminated by setting

$A=\frac{\sigma ^2}{2}+\sigma (1-c)$

A = \frac{σ^{2}}{2} + σ (1 - c)

⁠. Since g(ζ) = e^−nζΩ(ζ), becomes

\begin{equation}\Omega ^{\prime \prime }-\big (2n+\frac{\nu }{c}\big )\Omega ^{\prime }+\big (n^2+\frac{n \nu }{c}+\frac{1-c+\sigma }{c}\big )\Omega =\frac{1}{2c}e^{-n\zeta }\Omega ^2.\end{equation}

Ω^{''} - (2 n + \frac{ν}{c}) Ω^{'} + (n^{2} + \frac{n ν}{c} + \frac{1 - c + σ}{c}) Ω = \frac{1}{2 c} e^{- n ζ} Ω^{2} .

(3.36)

Finally, let Ω(ζ) = ω(z(ζ)), and by chain rule with

$^{\prime }=\frac{d}{d \zeta }$

' = \frac{d}{d ζ}

and

$\dot{}=\frac{d}{dz}$

{}^{.}= \frac{d}{d z}

⁠, is

\begin{equation}(z^{\prime })^2 \ddot{\omega }+\Big (z^{\prime \prime }-\big (2n+\frac{\nu }{c}\big )z^{\prime }\Big )\dot{\omega }+\Big (n^2+\frac{1-c+\sigma +n \nu }{c}\Big )\omega =\frac{1}{2c}e^{-n \zeta }\omega ^2.\end{equation}

{(z^{'})}^{2} \ddot{ω} + (z^{''} - (2 n + \frac{ν}{c}) z^{'}) \dot{ω} + (n^{2} + \frac{1 - c + σ + n ν}{c}) ω = \frac{1}{2 c} e^{- n ζ} ω^{2} .

(3.37)

By letting

\begin{equation}z^{\prime \prime }-\big (2n+\frac{\nu }{c}\big )z^{\prime }=0,\end{equation}

z^{''} - (2 n + \frac{ν}{c}) z^{'} = 0,

(3.38)

we obtain

\begin{equation}z^{\prime }(\zeta )=c_1e^{(2n+\frac{\nu }{c})\zeta }.\end{equation}

z^{'} (ζ) = c_{1} e^{(2 n + \frac{ν}{c}) ζ} .

(3.39)

We also choose σ = −(n²c + nν + 1 − c) which cancels the linear term in (3.37).

We are left to solve

\begin{equation}z^{\prime 2} \ddot{\omega }-\frac{1}{2c}e^{-n \zeta }\omega ^2=0\end{equation}

z^{' 2} \ddot{ω} - \frac{1}{2 c} e^{- n ζ} ω^{2} = 0

(3.40)

subject to (3.39). Set

$n=-p \frac{\nu }{c}=-\frac{2 \nu }{5c}$

n = - p \frac{ν}{c} = - \frac{2 ν}{5 c}

⁠, then

\begin{equation}\begin{aligned} \sigma &=\frac{14 \nu ^2}{25 c}+c-1,\\A &= -\frac{\sigma ^2}{2}+\frac{14 \nu ^2 \sigma }{25c}.\\\end{aligned}\end{equation}

\begin{matrix} σ & = \frac{14 ν^{2}}{25 c} + c - 1, \\ A & = - \frac{σ^{2}}{2} + \frac{14 ν^{2} σ}{25 c} . \end{matrix}

(3.41)

By substituting (3.39) into (3.40), we obtain

\begin{equation}\ddot{\omega }=\frac{1}{2cc_1^2}\omega ^2.\end{equation}

\ddot{ω} = \frac{1}{2 c c_{1}^{2}} ω^{2} .

(3.42)

Letting

$c_1=\frac{1}{2 \sqrt{ 3c}}$

c_{1} = \frac{1}{2 \sqrt{3 c}}

⁠, we arrive at the elliptic equation

\begin{equation}\ddot{\omega }=6\omega ^2,\end{equation}

\ddot{ω} = 6 ω^{2},

(3.43)

which by multiplication by

$\dot{\omega }$

\dot{ω}

and one quadrature becomes

\begin{equation}\dot{\omega }^2=4\omega ^3-g_3.\end{equation}

{\dot{ω}}^{2} = 4 ω^{3} - g_{3} .

(3.44)

Its solution is

\begin{equation}\omega (z)=\wp (z+c_3,0,g_3)\end{equation}

ω (z) = ℘ (z + c_{3}, 0, g_{3})

(3.45)

with invariants g₂ = 0, and g₃. If g₃ = 1, this is the equianharmonic case, see p. 652 of Ref. 1.

Moreover, z(ζ) is found by integrating (3.39) to get

\begin{equation}z(\zeta )=c_2+\frac{5 \sqrt{3c}}{6\nu }e^{\frac{\nu \zeta }{5c}},\end{equation}

z (ζ) = c_{2} + \frac{5 \sqrt{3 c}}{6 ν} e^{\frac{ν ζ}{5 c}},

(3.46)

which leads to

\begin{equation}\Omega (\zeta )=\omega (z)=\wp (c_4+ \frac{5 \sqrt{3c}}{6\nu }e^{\frac{\nu \zeta }{5c}},0,g_3),\end{equation}

Ω (ζ) = ω (z) = ℘ (c_{4} + \frac{5 \sqrt{3 c}}{6 ν} e^{\frac{ν ζ}{5 c}}, 0, g_{3}),

(3.47)

where c₄ = c₂ + c₃, and g₃ are two integration constants that depend on the boundary conditions. Using all of the above, together with (3.41) we obtain

\begin{equation}\sigma =\frac{14 \nu ^2}{25 c}\pm \sqrt{\Big (\frac{14 \nu ^2}{25 c}\Big )^2-2A}.\end{equation}

σ = \frac{14 ν^{2}}{25 c} \pm \sqrt{{(\frac{14 ν^{2}}{25 c})}^{2} - 2 A} .

(3.48)

Then, the general solution to (3.31) is

\begin{equation}u(\zeta )=\frac{14 \nu ^2}{25 c}\pm \sqrt{\Big (\frac{14 \nu ^2}{25 c}\Big )^2-2A(\nu ,c)} -e^{\frac{2 \nu \zeta }{5c}}\wp (c_4+\frac{5 \sqrt{3c}}{6\nu }e^{\frac{\nu \zeta }{5c}},0,g_3),\end{equation}

u (ζ) = \frac{14 ν^{2}}{25 c} \pm \sqrt{{(\frac{14 ν^{2}}{25 c})}^{2} - 2 A (ν, c)} - e^{\frac{2 ν ζ}{5 c}} ℘ (c_{4} + \frac{5 \sqrt{3 c}}{6 ν} e^{\frac{ν ζ}{5 c}}, 0, g_{3}),

(3.49)

see Figs. 2 and 3. Once we fix the velocity c, and dissipation ν, then the constants σ and A(ν, c) are obtained using (3.41), which substituted back into (3.49), will give us the solution to (1.4). The two integration constants that depend on the boundary conditions are c₄ and g₃. It is crucial to notice that the fixed points of (2.4) depend on the velocity c and dissipation ν via the constant A, see (2.6).

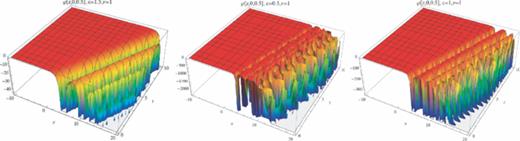

FIG. 2.

View large Download slide

Weierstrass solutions ν = 1, Eq. (3.49), left c = 1.5; middle c = 0.5; right c = 1.

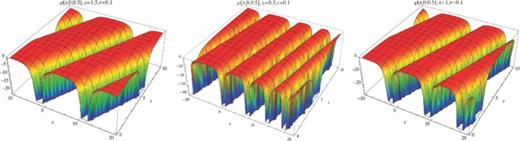

FIG. 3.

View large Download slide

Weierstrass solutions ν = 0.1, Eq. (3.49), left c = 1.5; middle c = 0.5; right c = 1.

Finally, it is worth mentioning that the solution in terms of ℘ functions is not unique. One can see that there is at least one other similar form previously obtained by Porubov, via the Carnevalle method and B

$\ddot{a}$

\ddot{a}

cklund transformation.^15,26

Remark 2: Letting ν = 0 → n = 0, c₁ = 1, and c = 1 → σ = 0 in (3.42), and since ω = g, but f = −g, then ω = −f so (3.44) becomes (3.21), with solution given by (3.28), see right panel of Fig. 1.

Remark 3: Letting ν = 0 → n = 0 and σ = c − 1 ≠ 0, then according to (3.39), z^′ = c₁. Since ω = g, then (3.37) is actually (3.12), and hence we recover the slow and fast waves solutions (3.13), see left and middle panels of Fig. 1.

Remark 4: If the second invariant g₃ = 0 in (3.44), then by integrating (3.44)

\begin{equation}\omega (z)=\frac{1}{(c_5\pm z)^2}.\end{equation}

ω (z) = \frac{1}{{(c_{5} \pm z)}^{2}} .

(3.50)

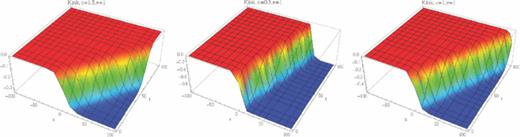

Using (3.46) in (3.50) we obtain the kink solution

\begin{equation}u(\zeta )=\frac{14 \nu ^2}{25 c}\pm \sqrt{\Big (\frac{14 \nu ^2}{25 c}\Big )^2-2A}-\frac{e^{\frac{2 \nu \zeta }{5 c}}}{\Big (c_6\pm \frac{5 \sqrt{3c}}{6\nu }e^{\frac{\nu \zeta }{5c}} \Big )^2},\end{equation}

u (ζ) = \frac{14 ν^{2}}{25 c} \pm \sqrt{{(\frac{14 ν^{2}}{25 c})}^{2} - 2 A} - \frac{e^{\frac{2 ν ζ}{5 c}}}{{(c_{6} \pm \frac{5 \sqrt{3 c}}{6 ν} e^{\frac{ν ζ}{5 c}})}^{2}},

(3.51)

see Fig. 4.

FIG. 4.

View large Download slide

Kink solutions ν = 1, Eq. (3.51), left c = 1.5; middle c = 0.5; right c = 1.

An analysis when a ℘ function tends to a smooth kink can be found in Ref. 27.

Remark 5: If

$A=0 \rightarrow c-1=\pm k=\pm \frac{14 \nu ^2}{25c}$

A = 0 \to c - 1 = \pm k = \pm \frac{14 ν^{2}}{25 c}

⁠, and one selects the lower branch of the radical, we obtain

\begin{equation}\begin{aligned} u(\zeta )= & -e^{\frac{2 \nu \zeta }{5c}}\wp (c_4+\frac{5}{\nu }\sqrt{\frac{c}{3a}}e^{\frac{\nu \zeta }{5c}},0,g_3), \,\, \mathrm{if} \,\,g_3 \ne 0,\\u(\zeta )= & -\frac{e^{\frac{2 \nu \zeta }{5 c}}}{\Big (c_6\pm \frac{5 \sqrt{3c}}{6\nu }e^{\frac{\nu \zeta }{5c}} \Big )^2}, \,\, \mathrm{if} \,\,g_3 =0.\\\end{aligned}\end{equation}

\begin{matrix} u (ζ) = & - e^{\frac{2 ν ζ}{5 c}} ℘ (c_{4} + \frac{5}{ν} \sqrt{\frac{c}{3 a}} e^{\frac{ν ζ}{5 c}}, 0, g_{3}), if g_{3} \neq 0, \\ u (ζ) = & - \frac{e^{\frac{2 ν ζ}{5 c}}}{{(c_{6} \pm \frac{5 \sqrt{3 c}}{6 ν} e^{\frac{ν ζ}{5 c}})}^{2}}, if g_{3} = 0 . \end{matrix}

(3.52)

IV. STABILITY OF THE VISCOUS WAVES

In this section we consider the two-mode dynamical system of (2.4) with equilibrium points in the phase plane (ϕ, ψ) at (0, 0) and

$(c-1\pm \sqrt{(c-1)^2+2A},0)$

(c - 1 \pm \sqrt{{(c - 1)}^{2} + 2 A}, 0)

⁠, where A = A(ν, c) is obtained from . All the equilibrium points lie only in the plane ψ = 0, in the (ϕ, ψ, c) space. The bifurcation curves are given by

$\phi \big (\phi -(c-1)\mp \sqrt{(c-1)^2+2A}\big )=0$

ϕ (ϕ - (c - 1) \mp \sqrt{{(c - 1)}^{2} + 2 A}) = 0

⁠, which are two constant lines. Near the origin (ϕ⁻, 0) = (0, 0)

\begin{eqnarray}\left[\begin{array}{cc}\phi ^{\prime }\\[4pt]\psi ^{\prime }\\\end{array}\right]=\left[\begin{array}{cc}0& 1\\[4pt]-\frac{1-c}{c} & \frac{\nu }{c}\\\end{array}\right]\left[\begin{array}{cc}\phi \\[4pt]\psi \\\end{array}\right].\end{eqnarray}

\begin{matrix} [\begin{matrix} ϕ^{'} \\ ψ^{'} \end{matrix}] = [\begin{matrix} 0 & 1 \\ - \frac{1 - c}{c} & \frac{ν}{c} \end{matrix}] [\begin{matrix} ϕ \\ ψ \end{matrix}] . \end{matrix}

(4.1)

Following standard methods of phase-plane analysis the characteristic polynomial of the Jacobian matrix of (4.1) evaluated at the fixed point (ϕ⁻, 0) is

\begin{equation}g_0(\lambda )=\lambda ^2-p_0\lambda +q_0=0,\end{equation}

g_{0} (λ) = λ^{2} - p_{0} λ + q_{0} = 0,

(4.2)

where

$p_0=\frac{\nu }{c}$

p_{0} = \frac{ν}{c}

and

$q_0=\frac{1-c}{c}$

q_{0} = \frac{1 - c}{c}

⁠.

Since ν > 0, c > 0, then p₀ > 0, hence the origin is unstable. Also, putting

$\Delta =p_0^2-4q_0=\frac{\nu ^2-4c(1-c)}{c^2}$

Δ = p_{0}^{2} - 4 q_{0} = \frac{ν^{2} - 4 c (1 - c)}{c^{2}}

⁠, we have the following cases:

0 < c < 1, gives q₀ > 0. If
$\nu >2\sqrt{c(1-c)}>0$
$ν > 2 \sqrt{c (1 - c)} > 0$ ⁠, the origin is unstable node; if
$0<\nu <2\sqrt{c(1-c)}$
$0 < ν < 2 \sqrt{c (1 - c)}$ ⁠, the origin is unstable spiral, see Fig. 5 and
c > 1, gives q₀ < 0 ⇒ Δ > 0, hence the origin is a saddle point, see Fig. 6.

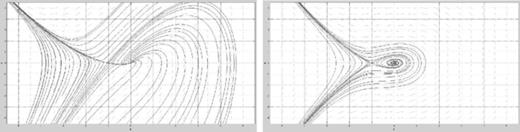

FIG. 5.

View large Download slide

Phase-plane for c = 0.5, left ν = 1, (0.0) node, (−1, 0) saddle; right ν = 0.1, (0.0) spiral, (−1, 0) saddle.

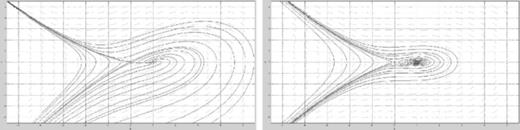

FIG. 6.

View large Download slide

Phase-plane for c = 1.5, left ν = 1, (0.0) saddle, (1, 0) node; right ν = 0.1, (0.0) saddle, (1, 0) spiral.

Near the secondary fixed point

$(\phi ^+,0)=(c-1\pm \sqrt{(c-1)^2+2A} ,0)$

(ϕ^{+}, 0) = (c - 1 \pm \sqrt{{(c - 1)}^{2} + 2 A}, 0)

\begin{eqnarray}\left[\begin{array}{cc}\phi ^{\prime }\\[4pt]\psi ^{\prime }\\\end{array}\right]=\left[\begin{array}{c@{\quad}c}0& 1\\[4pt]\frac{1-c}{c} & \frac{\nu }{c}\\[4pt]\end{array}\right]\left[\begin{array}{cc}\phi \\[4pt]\psi \\\end{array}\right].\end{eqnarray}

\begin{matrix} [\begin{matrix} ϕ^{'} \\ ψ^{'} \end{matrix}] = [\begin{matrix} 0 & 1 \\ \frac{1 - c}{c} & \frac{ν}{c} \end{matrix}] [\begin{matrix} ϕ \\ ψ \end{matrix}] . \end{matrix}

(4.3)

The characteristic polynomial of the Jacobian matrix of (4.3) evaluated at the fixed point (ϕ⁺, 0) is

\begin{equation}g_1(\lambda )=\lambda ^2-p_1\lambda +q_1=0,\end{equation}

g_{1} (λ) = λ^{2} - p_{1} λ + q_{1} = 0,

(4.4)

where

$p_1=p_0=\frac{\nu }{c}$

p_{1} = p_{0} = \frac{ν}{c}

and

$q_1=-q_0=-\frac{1-c}{c}$

q_{1} = - q_{0} = - \frac{1 - c}{c}

⁠.

Since p₁ = p₀, the second fixed point is also unstable, and moreover we have the following cases:

0 < c < 1, gives q₁ < 0 ⇒ Δ > 0, hence the fixed point is a saddle point, see Fig. 5 and
c > 1, gives q₁ > 0. if
$\nu >2\sqrt{c(c-1)}$
$ν > 2 \sqrt{c (c - 1)}$ ⁠, we have an unstable node; if
$0<\nu <2\sqrt{c(c-1)}$
$0 < ν < 2 \sqrt{c (c - 1)}$ ⁠, the fixed point is unstable spiral, see Fig. 6.

All the other remaining cases, i.e., both fixed points collide, are degenerate, since if c = 1, g(λ) = λ² − νλ.

Note that when there is no viscosity, the system has Hamiltonian, which is directly proportional with the Lyapunov function via

\begin{equation}{\mathcal {H}}(\mathbf {u}) =\frac{1}{2}\psi ^2+\frac{1-c}{2c}\phi ^2+\frac{1}{6c}\phi ^3=\frac{1}{c}{\mathcal {L}}(\mathbf {u}),\end{equation}

H (u) = \frac{1}{2} ψ^{2} + \frac{1 - c}{2 c} ϕ^{2} + \frac{1}{6 c} ϕ^{3} = \frac{1}{c} L (u),

(4.5)

see (2.11). Therefore, along any phase path

${\mathcal {H}}(\mathbf {u}) =constant$

H (u) = c o n s t a n t

is a conserved quantity, see Fig. 7. In this case, p₀ = p₁ = 0, and hence

(ϕ⁻, 0) is a saddle and (ϕ⁺, 0) is a center when q₁ > 0, see left panel of Fig. 8,
(ϕ⁻, 0) is a center and (ϕ⁺, 0) is a saddle when q₁ < 0, see middle panel of Fig. 8, and
c = 1 is degenerate since both critical points collide at origin ϕ⁻ = ϕ⁺, see right panel of Fig. 8.

FIG. 8.

View large Download slide

Phase-plane for ν = 0, left c = 1.5, (0.0) saddle, (1, 0) center; middle c = 0.5, (0.0) center, (−1, 0) saddle; right c = 1 (0.0) degenerate.

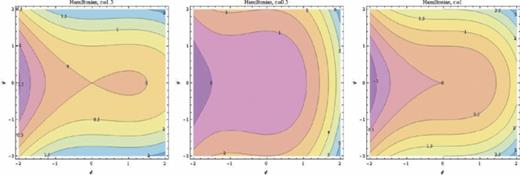

FIG. 7.

$FIG. 7. Contour plot of Hamiltonian \documentclass[12pt]{minimal}\begin{document}$\mathcal {H}=const$\end{document}H=const, see (4.5), left c = 1.5; middle c = 0.5; right c = 1.$

View large Download slide

Contour plot of Hamiltonian

$\mathcal {H}=const$

H = c o n s t

⁠, see , left c = 1.5; middle c = 0.5; right c = 1.

Therefore, in this case the unstable spirals (which correspond to the case with small viscosity ν = 0.1) become centers when there is no viscosity ν = 0.

This is an example of a transcritical bifurcation where, at the intersection of the two bifurcation curves ϕ = 0 and ϕ = 2(c − 1), the equilibrium changes from one curve to the other at the bifurcation point. As c increases through one, the saddle point collides with the unstable node, and then remains there while the unstable node or spiral moves away from (ϕ⁻, 0).

V. SUMMARY

In this paper a basic theory for the BBM equation (1.3), and its extension (1.4) to include the dissipation term was shown. When the viscous term is not present, (1.3) has traveling wave solutions that depend critically on the traveling wave velocity. When the velocity c > 1 (1.4) has solitary waves solutions, while if c < 1, the solutions become periodic. At the interface between the two cases, when c = 1, the solutions are rational functions of cnoidal waves. Based on Ince's transformation, a theory including the dissipative term was presented, in which we have found more general solutions in terms of Weierstrass elliptic ℘ functions. Using dynamical systems theory we have shown that the solutions of (1.4) experience a transcritical bifurcation when c = 1, where at the intersection of the two bifurcation curves, stable equilibrium changes from one curve to the other at the bifurcation point. As the velocity changes, the saddle point collides with the node at the origin, and then remains there, while the stable node moves away from the origin. Also, the bifurcation curves and the fixed points of the dynamical system are functions of the traveling wave velocity c and dissipation constant ν.

REFERENCES

1.

M.

Abramowitz

and

I.

Stegun

,

Handbook of Mathematical Functions: With Formulas, Graphs, and Mathematical Tables

(

Dover

,

NY

,

1972

).

Google Scholar

2.

C. J.

Amick

,

J. L.

Bona

, and

M.

Schonbek

, “

Decay of solutions of some nonlinear wave equations

,”

J. Differ. Equations

81

,

1

–

49

(

1989

).

https://doi.org/10.1016/0022-0396(89)90176-9

Google Scholar

Crossref

3.

M.

Arias

,

J.

Campos

,

A. M.

Robles-Pérez

, and

L.

Sanchez

, “

Fast and heteroclinic solutions for a second order ODE related to Fisher-Kolmogorov's equation

,”

Calculus Var. Partial Differ. Equ.

21

(

3

),

319

–

334

(

2004

).

https://doi.org/10.1007/s00526-004-0264-y

Google Scholar

Crossref

4.

C.

Baesens

and

R. S.

MacKay

, “

Uniformly travelling water waves from a dynamical systems viewpoint: some insights into bifurcations from Stokes' family

,”

J. Fluid Mech.

241

,

333

–

347

(

1992

).

https://doi.org/10.1017/S0022112092002064

Google Scholar

Crossref

5.

T. B.

Benjamin

,

J. L.

Bona

, and

J. J.

Mahony

, “

Model equations for long waves in nonlinear dispersive systems

,”

Philos. Trans. R. Soc. London, Ser. A

272

(

1220

),

47

–

78

(

1972

).

https://doi.org/10.1098/rsta.1972.0032

Google Scholar

Crossref

6.

T. B.

Benjamin

, “

The stability of solitary waves

,”

Proc. R. Soc. London, Ser. A

328

,

153

–

183

(

1972

).

https://doi.org/10.1098/rspa.1972.0074

Google Scholar

Crossref

7.

M. L.

Bertotti

and

P.

Montecchiari

, “

Connecting orbits for some classes of almost periodic Lagrangian systems

,”

J. Differ. Equations

145

(

2

),

453

–

468

(

1998

).

https://doi.org/10.1006/jdeq.1998.3415

Google Scholar

Crossref

8.

J. L.

Bona

and

T.

Nikolay

, “

Sharp well-posedness results for the BBM equation

,”

Discrete Contin. Dyn. Syst

23

,

1241

–

1252

(

2009

).

Google Scholar

Crossref

9.

J. L.

Bona

,

W. G.

Pritchard

, and

L. R.

Scott

, “

An evaluation of a model equation for water waves

,”

Philos. Trans. R. Soc. London, Series A, Math. Phys. Sci.

302

(

1471

),

457

–

510

(

1981

).

https://doi.org/10.1098/rsta.1981.0178

Google Scholar

Crossref

10.

F.

Bowman

,

Introduction of Elliptic Functions with Applications

(

Dover

,

NY

,

1961

).

Google Scholar

11.

P. F.

Byrd

and

M. D.

Friedmann

,

Hanbook of Elliptic Integrals for Engineers and Scientists

(

Springer-Verlag

,

NY

,

1971

).

Google Scholar

Crossref

12.

A.

Choudhuri

,

B.

Talukdar

, and

U.

Das

, “

Dynamical systems theory for nonlinear evolution equations

,”

Phys. Rev. E

82

(

3

),

036609

(

2010

).

https://doi.org/10.1103/PhysRevE.82.036609

Google Scholar

Crossref

13.

E. L.

Ince

,

Ordinary Differential Equations

(

Dover

,

NY

,

1926

).

Google Scholar

14.

D. J.

Korteweg

and

G.

de Vries

, “

On the change of form of long waves advancing in a rectangular canal, and on a new type of long stationary waves

,”

Phil. Mag.

39

(

5

),

422

–

443

(

1895

), courtesy of Bijzondere Collecties, Universiteit van Amsterdam, plaatsnummer UBM: DT 9721.

Google Scholar

15.

N. A.

Kudryashov

, “

On “new travelling wave solutions” of the KdV and the KdV-Burgers equations

,”

Commun. Nonlinear Sci. Numer. Simul.

14

(

5

),

1891

–

1900

(

2009

).

https://doi.org/10.1016/j.cnsns.2008.09.020

Google Scholar

Crossref

16.

D. W.

Jordan

and

P.

Smith

,

Nonlinear Ordinary Differential Equations (An Introduction to Dynamical Systems)

(

Oxford University Press

,

1999

).

Google Scholar

17.

H.

Lemke

,

Sitzungsberichte der Berliner Math. Ges.

18

,

26

–

31

(

1920

), ordered via library loan from Indiana University ILL:98768894.

18.

S. C.

Mancas

and

H. C.

Rosu

, “

Integrable dissipative nonlinear second order differential equations via factorizations and Abel equations

,”

Phys. Lett. A

377

(

21–22

),

1434

–

1438

(

2013

).

https://doi.org/10.1016/j.physleta.2013.04.024

Google Scholar

Crossref

19.

J.

Nickel

, “

Elliptic solutions to a generalized BBM equation

,”

Phys. Lett. A

364

,

221

–

226

(

2007

).

https://doi.org/10.1016/j.physleta.2006.11.088

Google Scholar

Crossref

20.

P.

Painlevé

, “

Sur les lignes singulières des fonctions analitiques

,” Première thèses (

Académie de Paris

,

1887

).

Google Scholar

21.

D. H.

Peregrine

, “

Calculations of the development of an undular bore

,”

J. Fluid Mech.

25

,

321

(

1966

).

https://doi.org/10.1017/S0022112066001678

Google Scholar

Crossref

22.

D. H.

Peregrine

, “

Long waves on a beach

,”

J. Fluid Mech.

27

,

815

–

827

(

1967

).

https://doi.org/10.1017/S0022112067002605

Google Scholar

Crossref

23.

D. H.

Peregrine

, “

Water waves and their development in space and time

,”

Proc. R. Soc. London, Ser. A

400

,

1

–

18

(

1985

).

https://doi.org/10.1098/rspa.1985.0064

Google Scholar

Crossref

24.

O.

Cornejo-Pérez

and

H. C.

Rosu

, “

Solutions of the perturbed KdV equation for convecting fluids by factorizations

,”

Cent. Eur. J. Phys.

8

(

4

),

523

–

526

(

2010

).

https://doi.org/10.2478/s11534-009-0116-7

Google Scholar

Crossref

25.

H.

Poincare

, “

Sur une theorem de M. Fuchs

,”

Acta Math.

7

,

1

–

32

(

1885

).

https://doi.org/10.1007/BF02402192

Google Scholar

Crossref

26.

A. V.

Porubov

, “

Exact travelling wave solutions of nonlinear evolution equation of surface waves in a convective fluid

,”

J. Phys. A

26

,

L797

–

L800

(

1993

).

https://doi.org/10.1088/0305-4470/26/17/008

Google Scholar

Crossref

27.

A.

Samsonov

, “

Travelling wave solutions for nonlinear dispersive equations with dissipation

,”

Appl. Anal.

57

,

85

–

100

(

1995

).

https://doi.org/10.1080/00036819508840341

Google Scholar

Crossref

2013

AIP Publishing LLC

Weierstrass traveling wave solutions for dissipative Benjamin, Bona, and Mahony (BBM) equation

I. INTRODUCTION

II. EXISTENCE OF DISSIPATIVE SOLUTIONS

III. EXACT SOLUTIONS VIA ℘ FUNCTIONS

A. Abel's equation

B. No viscosity

C. Viscosity present, ν > 0

IV. STABILITY OF THE VISCOUS WAVES

V. SUMMARY

REFERENCES

Citing articles via

Resources

Explore

pubs.aip.org

Connect with AIP Publishing

Weierstrass traveling wave solutions for dissipative Benjamin, Bona, and Mahony (BBM) equation

I. INTRODUCTION

II. EXISTENCE OF DISSIPATIVE SOLUTIONS

III. EXACT SOLUTIONS VIA ℘ FUNCTIONS

A. Abel's equation

B. No viscosity

C. Viscosity present, ν > 0

IV. STABILITY OF THE VISCOUS WAVES

V. SUMMARY

REFERENCES

Citing articles via

Related Content

Resources

Explore

pubs.aip.org

Connect with AIP Publishing

This Feature Is Available To Subscribers Only
