Are nonequilibrium effects relevant for chiral molecule discrimination? Open Access

Chirality is a fundamental characteristic of life and a very common phenomenon in nature. A chiral object is one that cannot be superimposed on its mirror image, with the two mirror images being referred to as enantiomers.¹ Chiral molecules are ubiquitous in pharmaceutical applications,² food additives,³ and in biological systems,^4,5 among others. Interestingly, the enantiomers of a molecular compound can exhibit distinct behaviors, such as differences in transport mechanisms, metabolic pathways, and biochemical activities.^6,7 For example, one enantiomer in a racemic drug mixture may be toxic, potentially causing undesired side effects or even death at high doses.⁸ This is the case, e.g., of the enantiomers of chiral thalidomide, which have dramatically different impacts on human beings: while R-thalidomide helps alleviate morning sickness in pregnant women, S-thalidomide may induce severe birth defects. Accordingly, it is critical to develop effective analytical tools for enantioselective discrimination.

Over the years, a variety of experimental techniques have been developed for this purpose, including circular dichroism, electrochemical impedance spectroscopy, fluorescence spectroscopy, surface-enhanced Raman scattering, gas chromatography-mass spectrometry, and nuclear magnetic resonance (NMR).^9,10 However, many of these methods involve the use of specialized equipment, such as circularly polarized light, or require the preparation of chiral selectors. Of particular interest for the purpose of the current investigation are chemoresistive gas sensors for chiral recognition^11–19 that operate on the basis of changes in the electrical resistance when exposed to a target gas. For providing an efficient chiral discrimination, these sensing devices usually require the design of specifically tailored chiral receptors, which provide a chiral interface capable of non-covalently binding the (chiral) analytes and distinguishing between enantiomeric conformations. The microscopic picture underlying this approach involves a complex interplay of inter-related effects. Chiral molecules interact with chirality-sensitive receptors functionalizing the sensor substrate—primarily through van der Waals interactions, hydrogen bonding, and electrostatic forces—leading to charge redistribution that alters the electronic structure of both the receptor and the substrate. These modifications, in turn, can influence the electrical response of the substrate, enabling chiral discrimination.

From a computational modeling perspective, studying gas sensing—especially chiral discrimination—in chemoresistive sensor setups is highly challenging. It demands an accurate treatment of noncovalent interactions, charge transfer effects, a reliable configurational sampling, and charge transport. Unlike well-established computational electron transfer and transport approaches in molecular junctions,^20–27 where the molecular system of interest is directly involved in electrical conduction, in chemoresistive sensing devices (chiral), gas molecules influence the electronic transport on the substrate only indirectly through the previously mentioned charge density reorganization. Their effect can thus be viewed as that of quasi-localized nanoscale electrostatic gates, making their impact on the electrical response more subtle. We also remark that there are computational studies probing quantum transport in molecular systems with structural chirality;^28–31 however, the employed transport two-terminal setups are conceptually different from the problem of chemoresistive chiral sensing, probing charge transport through the molecular systems themselves. In addition to these studies, we are not aware of any computational studies of chiral discrimination in chemoresistive sensing.

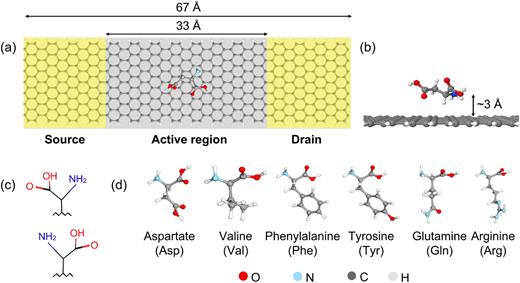

In the present work, we investigate the following question: can enantiomers be identified without the need for tailored molecular receptors, simply by allowing chiral molecules to interact directly with a chirality-“blind” substrate? To explore this, we select a free-standing graphene nanoribbon as the sensing material³² and expose it to a set of chiral amino acids recently used in a theoretical study on enantiospecificity in NMR experiments;³³ see the scheme in Fig. 1. Computationally, we combine a density-functional tight-binding³⁴-based electronic structure and quantum molecular dynamics with nonequilibrium Green functions.³⁵ The main observable of interest is the electrical current flowing through the nanoribbon and its variations when L- and D-enantiomers interact with the substrate. Our results emphasize two key findings: (i) the linear (equilibrium) conductance exhibits no enantioselective features; however, a non-equilibrium transport calculation at finite voltages reveals significant differences in electrical current between enantiomers for a given spatial orientation relative to the graphene substrate; (ii) these current differences become even more pronounced when the conformational dynamics of the chiral molecules is incorporated into the transport calculations within an adiabatic approximation. Our results suggest that non-equilibrium transport effects and the need for a meaningful sampling of the conformational space are crucial factors for understanding chiral sensing in chemoresistive devices.

Our work examines the capabilities of a graphene nanoribbon as a chiral molecular sensor in equilibrium and nonequilibrium thermodynamic states, as shown in Fig. 1. To this end, we used a NEGF + DFTB approach, combining nonequilibrium Green functions (NEGF)³⁵ with the third-order semi-empirical density functional tight-binding (DFTB3) approach.³⁴ This methodology has been successfully used to investigate electron transport properties of a wide variety of low-dimensional systems such as molecular junctions,^36,37 two-dimensional materials,^38,39 and nanotubes.⁴⁰ Here, we consider an infinite armchair graphene nanoribbon with 15 armchair chains running along its length (AGNR15), partitioned into three regions, corresponding to source (S), drain (D), and a central region; to the latter, the chiral molecules were allowed to interact with, thus defining the active region of the sensing device; see Fig. 1 for reference. To elucidate the potential of this setup for chiral discrimination, we studied the L- and D-enantiomers of six chiral amino acids with increasing size and complexity: aspartate, valine, phenylalanine, tyrosine, glutamine, and arginine. The initial conformations of these molecules were extracted from Ref. 33.

To analyze the potential influence of structural fluctuations on the electron transport properties, molecular dynamics (MD) simulations at constant temperature were performed for each AGNR–molecule system (and for both L- and D-enantiomers) using the semi-empirical DFTB3 method with MBD corrections. Only the active device region was allowed to evolve in time, while the contacts were kept fixed. The MD simulations were run for 10 ps using a Nose–Hoover thermostat to maintain the temperature at 300 K within the NVT ensemble, with a time step of 0.5 fs. From each MD trajectory, we extracted 160 nonequilibrium conformations from the last 8 ps in steps of 50 fs. Then, the electrical currents for this set of nonequilibrium conformations were calculated using the NEGF + DFTB approach and from them the corresponding ensemble averages were obtained. We remark that this approach can be seen as an adiabatic approximation, meaning that the time variable is a parameter labeling different configurations, and thus, the conformational dynamics is not directly coupled to the charge transport process in a self-consistent way.

In this section, we will address the question formulated in Sec. I, namely, under which conditions a chirality-“blind” substrate may be able to discriminate enantiomers on the basis of its electrical response. For this, we first analyze differences in the electrical response between enantiomer pairs for static geometries. Then, in the second step, quantum MD simulations are performed to account for the influence of structural fluctuations on the electrical response. Finally, potential applications of quantum mechanical-based features for chiral discrimination are discussed.

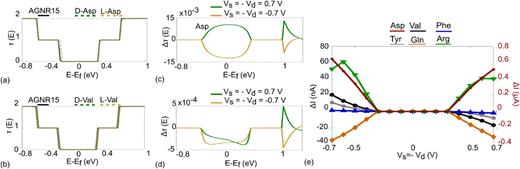

We first analyze the results of the electronic transport properties for optimized AGNR–molecule systems. To illustrate the effect of chirality (L- and D-enantiomers) on the transport properties, we consider the cases of aspartate (Asp) and valine (Val), as shown in Figs. 2(a) and 2(b). The results for other chiral molecules can be found in Fig. S1 of the supplementary material. The comparison of the zero-bias transmission functions, τ(E, V_DS = 0), for the L- and D-enantiomers of both molecules indicates almost negligible deviations from the transmission function of the pristine graphene nanoribbon. Consequently, no significant chiral sensitivity is observed in the linear conductance of the system, suggesting the necessity of nonequilibrium transport conditions to assess chiral effects in this device.

To demonstrate this, Figs. 2(c) and 2(d) display the difference in τ(E, V_DS) of the corresponding enantiomers, Δτ = τ_L − τ_D, for Asp and Val under nonequilibrium transport conditions (i.e., V_DS ≠ 0). We only present the results for the largest applied voltages V_S = −V_D = 0.7 V (green solid line) and V_S = −V_D = −0.7 V (yellow solid line), where differences are most prominent. We remark that at low voltages, i.e., smaller than the size of the nanoribbon’s bandgap, the current will be negligible and so will be any differences between L- and D-enantiomers. This nonequilibrium transport calculation reveals relatively small, but already distinguishable differences between τ(E) of the L- and D-enantiomers. For Asp, the transmission at positive applied voltages is systematically larger for L-Asp compared to D-Asp (Δτ > 0), while the behavior becomes the opposite for a negative applied bias. In contrast, the situation is more involved for Val, which displays, at a given voltage, different trends in the sign of Δτ as a function of energy. As a result, the difference in currents, ΔI(V) = I_L(V) − I_D(V), will display different symmetries upon inversion of the voltage sign, shown in Fig. 2(e), where this quantity is shown for all amino acids as a function of the applied voltage V_S = −V_D ∈ [−0.7, 0.7] V: ΔI(V) ≈ −ΔI(−V) for Val and Tyr, but ΔI(V) ≈ ΔI(−V) for the remaining amino acids. Notice that ΔI(V) becoming zero around zero voltage is a consequence of the negligible transmission within the semiconducting gap of the graphene nanoribbon, as visible in Figs. 2(a) and 2(b). The current differences remain below 80 nA for the molecules, except for Asp, where it reaches a few hundred nA at maximum bias (right scale). Phe exhibits the lowest values, while Tyr, with its hydroxyl termination, shows slightly higher values, suggesting a possible influence of the OH group on chiral sensitivity. The distinct ΔI(V) responses indicate that molecular chemistry plays a key role in the sensing mechanism. In general terms, current differences in this order of magnitude are measurable, thus highlighting the importance of addressing a nonequilibrium transport regime. However, we remark that because of the small size of the chiral molecules, a single molecular configuration, as discussed in this section, may not be fully representative of the molecular conformational space and, thus, the obtained current–voltage characteristics may also not be representative either. Moreover, would the chiral discrimination power of the proposed setup be robust against the inclusion of structural fluctuations? To further explore these issues, we address in Sec. III B the influence of the conformational dynamics at room temperature on the electrical response.

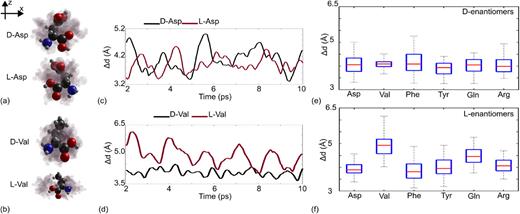

To allow the AGNR–molecule system to explore a larger conformational space and examine the possible implications for chiral discrimination, quantum molecular dynamics simulations at 300 K were performed using the DFTB3 method supplemented with an MBD treatment for modeling vdW interactions (see Sec. II B for more details). The analysis of the structural and transport properties was conducted using 160 conformations from the last 8 ps of each MD simulation (out of a 10 ps long trajectory), during which we did not observe significant fluctuations in total energy or temperature (see Figs. S4 and S5 of the supplementary material). Figures 3(a) and 3(b) highlight the structural fluctuations (shadowed background) of both enantiomers of Asp and Val along the MD trajectory, revealing significant conformational deviations from the optimized structure of the amino acids. To quantify these structural changes, we have calculated the time evolution of the center-of-mass distance, Δd, between the amino acids and the graphene nanoribbon [see Eq. (5)]. Typical time series are shown in panels (c) and (d) of Fig. 3 for Asp and Val, respectively. In the former case, the fluctuations of Δd are larger for D-Asp compared to L-Asp; however, the average distances are circa 4.0 Å for both enantiomers. In contrast, there is a clear difference in the fluctuations and average distances of L–Val and D–Val, which can be attributed to different electrostatic and dispersion interactions governing the molecular dynamics. A summary of the time series statistics for all amino acids is presented in Figs. 3(e) and 3(f) in the form of boxplots for D- and L-enantiomers, respectively. The average distance of the D-enantiomer of all chiral molecules (red lines) from the nanoribbon remains nearly the same (≈4.0 Å), while for the L-enantiomer, Val and Gln exhibit average distances of 4.9 and 4.5 Å, respectively, which are larger than those of the L-enantiomers of the other amino acids. Notice that the main difference in Δd for some amino acids (e.g., Asp, Tyr) and their respective enantiomers lies in the spread of the distance values (see the gray bars), which may have implications for the transport properties. It is important to note that including the MBD treatment of van der Waals interactions is crucial, as neglecting these interactions leads to considerably larger distances between the amino acid and the graphene nanoribbon, thereby largely weakening the molecule–substrate interaction (see Fig. S10 of the supplementary material).

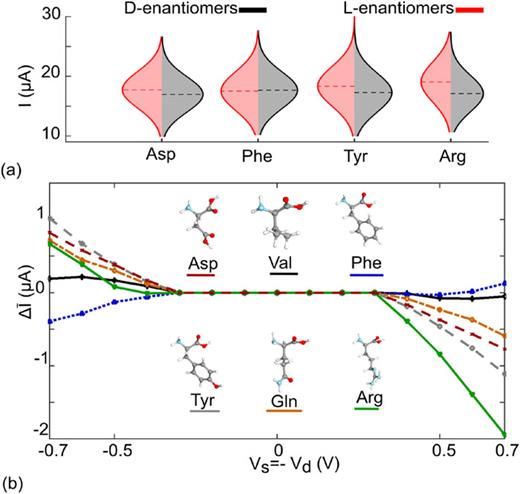

We then computed the charge current for the 160 conformations of D- and L-enantiomers of a given chiral molecule. Figure 4(a) presents the distribution of current values, I, of Asp, Phe, Tyr, and Arg at an applied voltage V_S = −V_D = 0.7 V, with values for D-enantiomers in black and for L-enantiomers in red. Overall, the amino acids display a large variation of I ranging from 10 to 30 μA, which is on the same order of magnitude as the values obtained for transport calculations on static structures (see Fig. S2 of the supplementary material). Moreover, we observe that L-enantiomers exhibit higher time average current $Ī$ than their D counterparts, except for Phe, where both values are close to each other. The corresponding time dependence of I for all molecules can be found in Fig. S6 of the supplementary material. The effect of structural fluctuations on the chiral discrimination was also investigated for other applied voltages, and the results for $ΔĪ=ĪL−ĪD$ are shown in Fig. 4(b). All curves exhibit opposite $ΔĪ$ signs at the extreme bias values V_S = ±0.7 V. However, in the case of Phe, the sign is reversed, and $ĪL$ is smaller than $ĪD$ for V_S = −0.7 V. Concerning the $ΔĪ$ values, the chiral discrimination effect is largely enhanced by structural fluctuations, increasing from tens of nA obtained for the equilibrium conformations [see Fig. 1(e)] to up to 1–2 μA when considering non-equilibrium conformations. This finding is a clear demonstration that dynamical effects are crucial for investigating chiral discrimination features of potential molecular chiral sensors. We have also found that Val and Phe show the smallest differences in averaged current between D- and L-enantiomers, which can be attributed to the lower chemical diversity in the achiral part of the molecules (consisting only of C-based chemical groups). Although the $ΔĪ−V$ curves tend to display mirror symmetry with respect to the zero-bias point, Arg is the only amino acid that presents a considerable asymmetry between $ΔĪ$ values for positive and negative bias. This effect is related to the complex electrostatic interactions between the N atoms in the guanidino group and the nanoribbon.

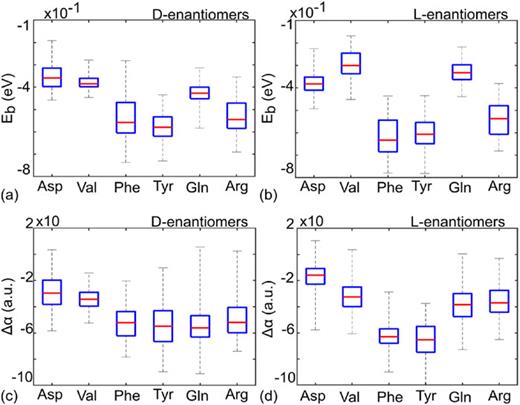

To further investigate the dynamics, we analyzed the parameters characterizing the interaction between the chiral molecules and the AGNR, starting with the binding energy, E_b [see Figs. 5(a) and 5(b)]. The results show that amino acids containing a phenyl ring in their structures (i.e., Phe and Tyr) exhibit the largest E_b values for both enantiomers due to the presence of π–π interactions, followed by Arg, which contains a guanidino group. Phe also presents the largest deviations from the average E_b (red lines). However, the binding energies of the two enantiomers remain similar, suggesting comparable interactions with the nanoribbon. As expected, Asp and Val present the weakest binding to the nanoribbon since they are the smallest and least complex chiral molecules considered in this study. The differences in Δd values observed for D–Val and L–Val [see Figs. 3(e) and 3(f)] are also reflected in the behavior of E_b, where D–Val has a larger average E_b than L–Val.

In addition, to gain insights into the electrostatic interactions in GNR–molecule systems, we examined polarizability variations of the D- and L-enantiomers by computing Δα, as defined in Eq. (4). In Figs. 5(c) and 5(d), one can see that Δα is sensitive to molecular composition and chirality. For instance, L–Phe and L–Tyr exhibit the largest variations in molecular polarizability (⁠$Δᾱ=$ −65 a.u.), while L–Asp and L–Val present small $Δᾱ$ values such as −16 and −32 a.u., respectively. On the contrary, the Δα values for D-enantiomers are closer, with average values ranging from −30 to −54 a.u., highlighting the potential of the parameter Δα to quantify chiral discrimination. In this context, there is an additional chirality-sensitive quantum mechanical quantity, the Rosenfeld tensor,⁴⁹ which can be incorporated into the characterization of the chiral molecule–substrate interaction. These findings are in agreement with and complement the effects found in the analysis of E_b.

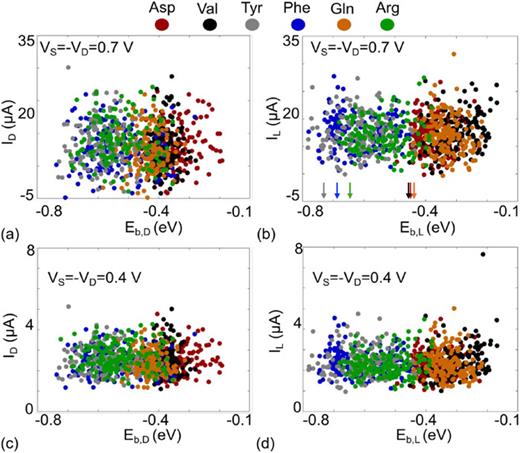

We now examine the pairwise correlations between transport properties and binding features in the non-equilibrium conformations of both enantiomers of chiral molecules. Figure 6 shows the two-dimensional property spaces defined by the electrical current and the binding energy $I,Eb$ for the six amino acids at two different applied voltages: V_S = −V_D = 0.4 and 0.7 V. Overall, there is a lack of correlation between these properties for the whole set of conformations, with Pearson correlation factors ρ < 0.05. By analyzing the $I,Eb$-space per chiral molecule, ρ tends to increase for certain molecules and becomes dependent on the molecular composition and chirality (see Table S2 of the supplementary material). Indeed, at V_S = 0.7, the enantiomers of Val—a molecule with small $δĪ$ values—present a large difference in ρ, i.e., ρ = 0.03 for D–Val and ρ = 0.32 for L–Val. A similar effect was observed for Asp and Gln enantiomers at both applied biases. Instead, the difference in ρ values for the enantiomers of the other amino acids is small and less than 0.1. It is worth noting that this lack of correlation is also evident when comparing electronic current values with polarizability variations, Δα. However, by analyzing the $Eb,Δα$-space, we can identify a certain degree of correlation between these properties, supporting our discussion above (see Fig. S9 and Tables S3 and S4 of the supplementary material). A larger degree of correlation is obtained when analyzing $Eb,Δd$-space, with ρ values ranging from 0.36 to 0.90 (see Fig. S9 and Tables S4–S6 of the supplementary material). These property–property relationships provide a new mechanism for quantifying chiral discrimination effects in molecular sensors. The understanding of correlations in the property space spanned by chiral molecules can also aid in determining Pareto fronts for the multi-property optimization process of chiral sensors, as has been discussed for drug-like molecules.^50,51

We have studied the conditions under which a chirality-“blind” sensing substrate can display enantioselectivity, using a small set of chiral amino acids interacting with a graphene nanoribbon as an illustrative example. To tackle the problem, we applied the Landauer formalism, as implemented within the NEGF technique, in combination with the DFTB electronic structure method, including many-body dispersion corrections for van der Waals interactions. The first major result found from our simulations is that signatures of chiral discrimination appear only within a nonequilibrium transport regime; the linear response conductance (or transmission) of the system does not display any differences when exposing the nanoribbon to L- or D-enantiomers. The second major result is that the enantioselectivity of the investigated systems is enhanced when the structural dynamics of the active device region is included, leading to differences in currents for enantiomer pairs of up to ≈1–2 μA. Furthermore, we have proposed a new rationale for the dynamic effects in chiral discrimination through analysis of binding features and property–property relationships. Before concluding, two issues are worth mentioning, which may open additional inquiries into the problem of chiral discrimination: (i) an additional “descriptor” for chiral discrimination can be formulated in terms of the product of the matrix elements of electric and magnetic transition dipole moments, which vanishes identically if the system is achiral. Such contributions have not been considered in this study, which is based on the “structural” aspect of L–D discrimination; (ii) no spin–orbit interaction has been considered here. This is justified since we are not addressing any issues related to the CISS effect. However, theoretical⁵² and experimental⁵³ studies have recently suggested that spin–orbit interaction may introduce corrections to dispersion interactions. These contributions could play a role in our system, where discrimination effects are intimately related to the accurate description of dispersion forces. As a further investigation, a much larger pool of chiral molecules should be considered to explore not only the universality of the observed effects but also to better identify unknown correlations between enantioselectivity and molecular properties. Addressing this issue would demonstrate the “freedom of design”^50,54 that exists in the property space of chiral molecules, enabling the discovery of potential molecular sensors for chiral discrimination—similar to the advancements made in olfactory molecular sensors.⁵⁵ Hence, we expect our work to pave the way for advancing the development of machine learning-based computational frameworks aimed at understanding and designing efficient chiral sensors.

The supplementary material contains additional details on the transmission functions and currents in the static case, time series of binding energies, polarizabilities and electrical currents from the molecular dynamics simulations, and additional results for property–property correlations.

We acknowledge funding from the German Research Foundation (DFG) project “Data-Driven Characterization of (A)Chiral 2D Polymers” (CRC1415-C04). G.C. acknowledges funding from the ERA NET project “p-n Heterojunctions of emergent wide bandgap oxides for self-powered UVC sensing” (HEWOX, Grant Agreement ID. 01XX21006).

The authors have no conflicts to disclose.

Federico Ravera: Conceptualization (equal); Data curation (equal); Formal analysis (equal); Funding acquisition (equal); Investigation (equal); Methodology (equal); Supervision (equal); Validation (equal); Writing – original draft (equal); Writing – review & editing (equal). Leonardo Medrano Sandonas: Conceptualization (equal); Formal analysis (equal); Investigation (equal); Supervision (equal); Writing – original draft (equal); Writing – review & editing (equal). Rafael Gutierrez: Conceptualization (equal); Formal analysis (equal); Investigation (equal); Supervision (equal); Writing – original draft (equal); Writing – review & editing (equal). Mariagrazia Graziano: Formal analysis (equal); Supervision (equal). Gianaurelio Cuniberti: Conceptualization (equal); Data curation (equal); Formal analysis (equal); Funding acquisition (equal); Investigation (equal); Methodology (equal); Supervision (equal); Validation (equal); Writing – original draft (equal); Writing – review & editing (equal).

The data that support the findings of this study are available within the article and its supplementary material.
