Gaussian approximation potentials: Theory, software implementation and application examples Open Access

Machine Learned Interatomic Potentials (MLIPs) have revolutionised atomic simulations by offering predictive and computationally inexpensive force fields.^1–4 While their implementations differ, these models approximate the Potential Energy Surface (PES) of atomic systems based on a database of atomic configurations with corresponding high-accuracy properties calculated with ab initio quantum mechanical methods.

Among the numerous related methods and their software implementations,^1,2,5–9 the Gaussian Approximation Potential (GAP) approach follows a Bayesian approach, which allows the formulation of prior knowledge about the atomic system and interactions as hyperparameters, as well as uncertainty estimation. A further advantage of using Gaussian Process Regression (GPR) is that fitting the model is a convex optimisation problem¹⁰ equivalent to the solution of a linear system, therefore many problems associated with minimising the loss function of neural networks¹¹ do not occur.

The GAP framework, originally proposed by Bartók et al.,³ uses GPR to infer local atomic properties via a set of descriptors that map Cartesian atomic coordinates to invariant representations. GAP models have been used successfully to model silicon,^3,12 carbon,¹³ tungsten,¹⁴ phosphorus,¹⁵ water,¹⁶ iron,¹⁷ gold and platinum,^18,19 hafnia²⁰ and gallia,²¹ among others.

Similarly to other MLIP frameworks, the GAP package can utilise reference atomic databases produced with arbitrary ab initio methods and software packages. Total energies and derivative quantities (forces and stresses) are used to fit the PES, although models for local atomic properties, such as nuclear magnetic resonance (NMR) shieldings or Hirshfeld volumes may also be generated using our software. Recently, GAP was used to accelerate ab initio molecular dynamics simulations within the CASTEP²² package, utilising an adaptive scheme that produces an evolving and improving GAP model during the dynamics.²³

In this paper, we present the current status of the GAP framework, discussing the particular adaptation of the sparse GPR that enables a performant implementation suitable to fit energetic properties of atomic systems. GAP, as implemented within the Quantum and Interatomic Potentials (QUIP)²⁴ software package, is introduced, emphasising the flexibility and extensibility of the code. We also discuss recent developments, such as parallelisation and compression of descriptors, making connections between the theory and practical usage. Finally, we present some examples, which are intended to illustrate a selection of features enabled by the GAP package.

By documenting implementation details for the available options, this paper is not only intended for practitioners fitting GAP models, but also for those developing other MLIP frameworks.

The GAP framework utilises sparse GPR which is customised to fit PESs as well as local properties of atomic systems. A detailed introduction to GPR can be found elsewhere^10,25 and background on the GAP framework is presented in the review article by Deringer et al.²⁶ Here we revise only the formulae necessary for discussing the software implementation.

We develop and maintain a collection of software tools called QUIP³⁰ to carry out molecular dynamics simulations. Part of this suite is an implementation of GAP, including the gap_fit program, implementing the sparse GPR. The majority of QUIP is written in modern Fortran, utilising many object-oriented features, although not fully exploiting the most recent Fortran standards due to lack of compiler support at the time of the original development of the code, which started in 2005. QUIP features a Python interface, quippy,³¹ allowing access to various functionalities and casting all atomic potentials as Atomic Simulation Environment (ASE) calculators.³² There also exist generic C and LAMMPS-specific C++ interfaces, that allow GAP models to be used in external simulation packages. The source code can be found on GitHub.²⁴

Similarly to other MLIPs, the main components of GAP are the calculation of descriptors, mapping Cartesian coordinates into invariant representations, and a regression method, in this case GPR.

The descriptors.f95 file implements the mapping from the Cartesian coordinates of the atoms to invariant representations. In the package we provide a number of descriptors, but it is straightforward to implement new ones. While the user fitting GAP models does not have to interact with the source code, in the following we give an overview of what is necessary to implement or adapt a descriptor.

A set of standardised interfaces are used for each descriptor, which are overloaded, therefore adding new descriptors is straightforward and does not require any further modifications elsewhere. The initialise interface interprets the parameters of the descriptor, which are provided by the user as key-value pairs, and stores these in a descriptor object. The query function cutoff returns the spatial cutoff of a descriptor, whereas finalise resets the descriptor object and deallocates all storage. The descriptor_sizes function takes an Atoms object and determines how many descriptors and partial derivatives will be calculated based on the cutoff and the connectivity of the particles. Finally, the calc function returns descriptors calculated based on an Atoms and a descriptor object, and optionally, their partial derivatives with respect to atomic coordinates in a generic container object. All of this functionality is exposed in quippy, ensuring interoperability with ASE.

The hyperparameters, such as θ or ζ, and the coefficients c are stored in a Fortran object which is used by the function gp_predict to evaluate (2) as well as the partial derivatives with respect to descriptor components and variances predicted from GPR.

During the training procedure, all descriptors x and their partial derivatives are calculated and stored. Pointers are used to denote which descriptors and derivatives contribute to target properties, thereby avoiding the need to store repetitive information. The kernel matrices K_NM used in the fitting procedure in (4) are not calculated explicitly, only the accumulated terms in $L̂KNM$ corresponding to quantum mechanical observable quantities.

Finding the coefficients used in GAP models can be accomplished using the gap_fit command line program, where parameters are set as arguments or a configuration file. The input to the fitting procedure consists of the fitting data, model definitions, and additional options. The database of atomic configurations, together with the quantum mechanical properties are read in from an extended XYZ³³ file. The extended XYZ contains information of the lattice, atomic numbers and Cartesian coordinates, and may provide the total energy, forces and virial stress, or any combination of these for each individual configuration.

Each individual atomic configuration may optionally have a type specification, given within the extended XYZ file using the config_type keyword. The configuration type may be used for fine-grain control, such as selecting a specific number of sparse points from those configurations.

The particulars of the model are provided using the gap argument as a form of colon-separated list of descriptor definitions. These include hyperparameters, such as the spatial cutoff or the desired number of sparse points per descriptor. Other hyperparameters, such as the regularisation, can be provided either in the command line, or specifically for each individual frame within the extended XYZ file, allowing fine-grained control and the use of inhomogeneous accuracy of target quantities. Additional options can be used to adjust the processing, tune technical parameters, or enable additional features like more verbose output. Details about the currently available arguments can be found later in Sec. V, or running gap_fit–help for up-to-date information.

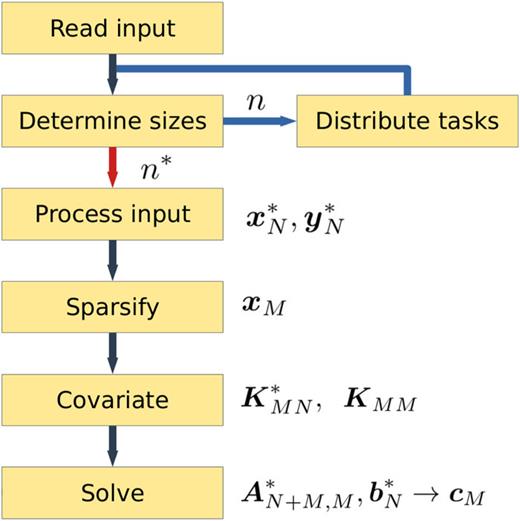

After initialisation and reading of the input, the extended XYZ frames, where each frame consists of an atomic structure, are parsed for the number of target properties and descriptors. Storage for the descriptor arrays are allocated accordingly, and descriptors are calculated during a second pass over the atomic configurations.

For each set of N descriptors, M ≪ N points are chosen as a representative, or sparse, set. Options include random selection, k-means clustering, a uniform grid spanning the range of descriptors and CUR decomposition.³⁴ It is also possible to provide the sparse points via text files. As the sparse points need to form a linearly independent covariance matrix, duplicates within a given tolerance are removed and only considered once. This may result in fewer sparse points used than specified by the user, particularly if the atomic environments in the database are highly correlated.

With the specified sparse points, the covariance matrices K_MN and K_MM are calculated, and matrix A constructed. The coefficients are determined via QR decomposition using (Sca)LAPACK^35,36 routines.

The memory requirement for the gap_fit program depends on the atomic structures, the number of target properties and sparse points, and descriptor definitions. In particular, the two main data components with significant memory requirements are the descriptors and their partial derivatives and the kernel matrix $L̂KNM$⁠. The memory associated with storing descriptor derivatives scales linearly with the number of atomic environments and the dimensionality of the descriptor, as well as the number of neighbours within the spatial cutoff. Efforts directed at developing compact descriptors, using compression techniques, therefore significantly reduce the memory requirements of the fitting procedure, as well as the computational complexity of evaluating the descriptors. The size of the kernel matrix scales linearly with the number of target values and the total number of sparse points.

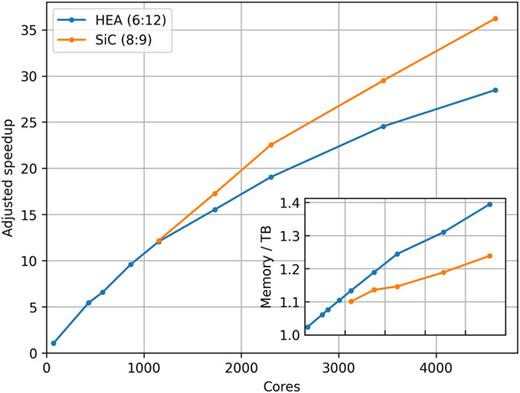

Recently, we have implemented domain decomposition in gap_fit that aims to utilise massively parallel computer architectures.³⁷ The implementation relies on Message Passing Interface (MPI) and is illustrated on Fig. 1.

After determining the number of atoms and, consequently, the number of target data values in each configuration of the database, configurations are assigned to individual MPI tasks. Descriptors are computed locally, and the covariance matrix K_MN is constructed in a distributed fashion. This approach allows the memory requirements of the program to be distributed over many computational nodes, therefore larger databases can be easily fitted without the need of specialised, high-memory servers. The linear algebra step makes use of the ScaLAPACK library, carrying out the QR decomposition and subsequent back-substitution steps in parallel, thereby reducing the computational time. We demonstrate the benefits of the parallel fitting approach by studying two fitting problems that would require significant amounts of wall-time and memory using a single node. One of the training databases consists of the high-entropy alloy configurations by Byggmästar et al.,³⁸ and the other is a data set of silicon carbide configurations from Ref. 37. The dependence of computational speedup and total memory use is presented on Fig. 2, showing that we have achieved excellent parallel performance, and we can utilise the aggregate memory of multiple computational nodes, thereby largely eliminating any limitations. We note that the dependence of the memory usage on the number of cores is due to overheads associated with repeated data allocations that are private to a process. Given the typical amount of memory, on the order of hundred GBs, available on commodity computing nodes, this is not likely to be a significant barrier to large-scale parallel fitting calculations. For more information, we refer the user to our prior work,³⁷ where we explored hybrid OpenMP-MPI parallel strategies that optimise overall memory use and runtime.

The program gap_fit implements several methods for the sparse point selection, controlled by the sparse_method command line argument. Within the definition of each descriptor, the n_sparse argument controls the number of sparse points. Alternatively, config_type_n_sparse allows the user to specify a given number of sparse points from labelled configurations, to ensure adequate representation. Given none, no sparsification is applied, apart from the removal of duplicate descriptors, and all points are selected. The points may be chosen directly with either the file or index_file option, in conjunction with the sparse_file argument to specify the filename containing the descriptors or the indices of descriptors. The indices are 1-based and refer to descriptors as calculated in the database file.

Recommended choices are uniform for a distance_2b descriptor and cur_points for a soap descriptor. For completeness, we list all currently implemented options in the  Appendix.

The choice of invariant representation of atomic environments has a profound effect on the quality of the resulting interatomic potential. QUIP, being a test bed for methodological developments of MLIPs, implements numerous descriptors, of which some frequently used ones are presented in this section.

In the gap_fit program, descriptors are specified in the gap command line argument, using the syntax gap={descriptor1 key=value …: descriptor2 key=value …}. The descriptor definitions are, by default, treated as templates by gap_fit, and after parsing the database configurations, each descriptor is expanded with element (chemical species) information. If add_species=F is added to the descriptor definition, the descriptor is not modified in this step.

Most descriptors implement the cutoff keyword, specifying the spatial cutoff within atomic connectivities are considered. The cutoff_transition_width keyword provides a smooth transition ensuring a numerically well behaved characteristic when the descriptor is used to build an interatomic potential.

In GAP, we implemented the distance_nb descriptor, where the body order is defined using the order keyword. The compact_cluster keyword specifies the topology of the cluster. If compact_cluster=T, each atom in an atomic configuration is considered as a central atom, and clusters are formed with its n − 1 neighbours that are within the spatial cutoff. With the compact_cluster=F, all possible graphs where the graph edge has a distance less than the cutoff are formed, allowing, for example, linear chains.

The special cases corresponding to two- and three-body terms are implemented as distance_2b and angle_3b, respectively. In case of angle_3b, the trimer of atoms formed by the central atom i and its two neighbours j, k is represented by the invariant descriptors $[rij+rik,(rij−rik)2,rjk]$⁠.

GAP also allows further adjustment of the tail behaviour of the two-body descriptor, in order to approximate the polynomial decay of some interaction types. This is achieved by further multiplying the cutoff function by $erf(αr)rq$⁠, where α is a range parameter and q is an exponent.

The SOAP descriptors were proposed a decade ago²⁸ as invariant descriptors of atomic environments, and have been used successfully to develop interatomic potentials,^12,13,38,39 clustering⁴⁰ as well as other machine learning tasks, such as the ShiftML model used to predict Nuclear Magnetic Resonance chemical shifts.⁴¹ For details on the theory, the review by Musil et al.²⁷ may be consulted. Here we only repeat what is necessary to explain the implementation options.

The dimension of p scales as $O(nmax2lmaxS2)$ where n_max, l_max and S are the number of radial basis functions, spherical harmonics and elements, respectively. Apart from the original implementation of SOAP, a more efficient variant introduced by Caro⁴² is available as soap_turbo. This descriptor is further described in Sec. III C 4. and a comparison with regular SOAP is provided in Sec. IV B.

Increasing n_max and l_max improves the resolution of the basis set expansion, and are therefore convergence parameters of the SOAP kernel. Optimal values are strongly dependent of the typical number of neighbours and the Gaussian broadening parameter σ. In many applications, the user has the choice to adjust n_max and l_max to achieve the desired balance of accuracy and computational speed. However, the length of p has a quadratic dependence on the number of elements, thereby the computational cost of both the components of p and the k(ρ, ρ′) as a dot product are impacted. Various strategies to reduce this scaling have been proposed, which are discussed below.

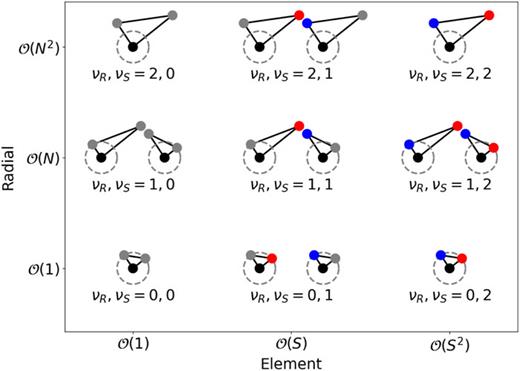

The different flavours of element-embedding and tensor-reduction listed above are all accessible via specifying various combinations of R_mix, Z_mix, sym_mix and K, which specify how the initial channels should be mixed, and the coupling keyword which specifies how the resulting channels should be coupled together. Note that optimisation of the embedding weights w is not available in gap_fit with normallly distributed random weights used instead. Please see the keyword glossary for more details.

Finally, it is also possible to achieve compression through the experimental Z_map keyword, which allows the user to group different elements together; equivalent to element embedding with $wαk=1$ if element α is in group k or 0 if it is not. As two densities are coupled, two distinct sets of groups may be specified if desired. Please see the keyword glossary for more details.

The soap_turbo descriptor is a variant of SOAP optimised for computational efficiency. A detailed account of this descriptor has been given in Ref. 42. Here, we briefly describe its main features while giving a more in-depth description of the features that have been introduced since the publication of the original paper, namely multispecies support and compression. A comparison between the soap and soap_turbo implementations of SOAP is given in Sec. IV B.

The second compression scheme in soap_turbo provides a quasiequivalence with the radial- and element-sensitive correlation orders offered in regular SOAP compression introduced in Sec. III C 3. Numerical comparisons of these compression recipes are given in the local property example in Sec. IV.

Finally, we remark that due to the overlap properties of the polynomial radial basis sets and related instabilities in the numerical approach employed to construct the orthonormal radial basis used to construct soap_turbo descriptors, there is a practical limitation of n_max ≈ 10. For most practical purposes (e.g., in constructing accurate GAP force fields), there is no need to increase the size of the radial basis set beyond $≈8$ basis functions.

Among the first successful applications of GAP was a general-purpose interatomic potential for silicon.³⁹ We have used the database of atomic configurations to train a series of GAP models to demonstrate the effect of the most crucial descriptor and kernel hyperparameter choices on the performance and computational cost of the resulting potential. The extended XYZ file, containing the database and shared in the supplementary material of Ref. 39, was randomly split into a training and a test set, containing 80% and 20% of the original configurations, respectively. We list the parameters used in the gap_fit command line in Table I with a detailed explanation for each.

While keeping all other parameters constant, we individually varied the SOAP parameters n_max, l_max, r_cutoff and σ, as well as the polynomial kernel exponent ζ and the number of sparse points M. Based on the original Si GAP model, the parameters, n_max = 6, l_max = 6, $rcutoff=5Å$⁠, $σ=0.5Å$⁠, ζ = 4 and M = 8000 were used.

We have evaluated the interaction energies, forces and virial stresses of all atomic configurations in the test set with the resulting models, and calculated the RMSE with respect to the ab initio energies.

To illustrate how the choice of the parameters affects the computational cost of each model, we have also determined the average calculation time per atom, using a desktop computer utilising a single core of an Intel^® Core™ i5-9600K central processing unit (CPU) at 3.70 GHz.

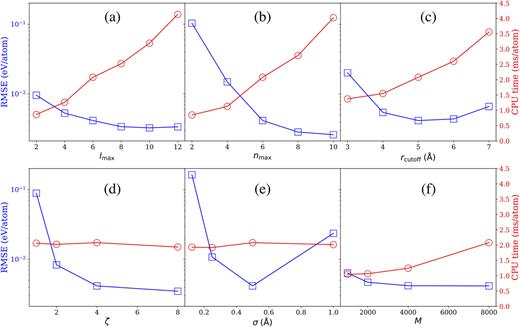

Trends are presented in Fig. 4, generally showing that more complex models, i.e., those with higher l_max, n_max, ζ and M values, are more accurate. Thanks to the regularisation term in the GPR, higher complexity does not result in overfitting. However, the computational cost of models with higher l_max, n_max and sparse points is increased due to the larger number of terms. Even though the polynomial kernel at higher orders results in more terms, these are not calculated explicitly, therefore the computational cost remains approximately constant at different ζ values.

Increasing the spatial cutoff of the atomic neighbourhood environment results in more accurate models up to $5Å$⁠, as further neighbours may influence the local energy function. However, at higher cutoff values the quality of the model deteriorates, which may be regarded as a sign of underfitting, when the available data is not sufficient to determine the dependence of the local energy terms on further neighbours.

The cutoff radius of SOAP or other descriptors may also be chosen by considering the force constant matrix of the atomic system, using a criterion on the spatial decay of the elements.¹²

The smoothness parameter σ has a strong influence on the accuracy of the model, which is related to how the neighbouring atoms are represented. Narrow Gaussians lead to fewer similar kernel values between two atomic environments, resulting in overfitting, whereas with wide Gaussians the resolution of the representation is lower.

The kernel regularisation hyperparameters provide control on the accuracy and smoothness of the resulting model. Lower values bias the potential to fit the training data more accurately, but may result in overfitting. For a given spatial cutoff in the descriptors, the kernel regularisation on the forces may be derived from the decay of the force constant matrix or by quantifying the force uncertainty from ab initio calculations.¹² Finding appropriate figures for the kernel regularisation of energy and virial stress values may require cross-validation, but a typical target energy error in condensed systems is 1 meV/atom, therefore this is often a suitable starting figure. The choices of kernel regularisation hyperparameters is discussed extensively in Ref. 12.

To illustrate the effect of varying the kernel regularisation hyperparameters, we fitted a series of silicon GAP models using the same parameters, listed in Table I, and same training database as previously, but varied the hyperparameters corresponding to energy (σ_energy), force (σ_force) and virial stress (σ_virial) independently. We have utilised the test set to predict energy, force and virial stress values using the resulting models, and evaluated RMSE figures for each model and quantity.

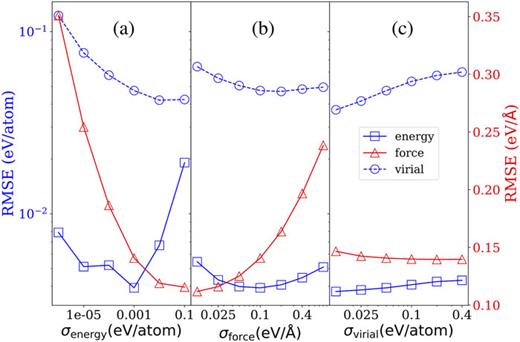

These results are shown in Fig. 5, highlighting how different choices of regularisation hyperparameters affect the quality of the fit. For the RMSE of the predicted energies, there is an optimal value of σ_energy, while the RMSE of the predicted forces and virial stresses decrease monotonically when increasing σ_energy. Similar opposing changes in the errors of predicted quantities may be observed when σ_force and σ_virial are varied. We attribute these trends to the epistemic uncertainty of our models which is due to our assumptions, such as the locality of the descriptor or the body-order representation. These assumptions limit the simultaneous accuracy the model may achieve in energies, forces and virial stresses, and biasing the fit towards reproducing a particular quantity causes a deterioration in others.

These results are intended to provide a guide to fitting GAP models and their adaptation is almost certainly necessary when fitting potentials representing different atomic systems. While an exhaustive hyperparameter search is not always feasible, the recently parallelised gap_fit allows rapid creation and subsequent evaluation of models.

While the local energies predicted by GAPs in cohesive energy models are not physical observables, there are different local atomic properties with physical significance amenable to direct learning within the GAP framework. SOAP descriptors are particularly suited for this task. Examples of such models that we have trained in the past include adsorption energies,⁵¹ effective Hirshfeld volumes⁵² and core-electron binding energies (CEBEs).⁵³ Here, we revisit the CEBE database of Ref. 53 and use it as a test bed for the performance of SOAP-based local property models as a function of different convergence parameters.

First, let us briefly provide the context for the usefulness of CEBEs in materials science. X-ray photoelectron spectroscopy (XPS) uses monochromatic (fixed energy) X-ray light to excite the deep-lying core electrons in materials and molecules. In oxygen- and carbon-containing compounds these are the 1s states. When an X-ray photon with sufficient energy is absorbed by one such core electron the latter becomes photoejected, in such a way that its kinetic energy can be measured by a detector. Since the energy of the incident photons is fixed, the difference between the measured kinetic energy and the incident energy equals the CEBE. This CEBE is characteristic of the chemical environment around the atom whose core electron was excited, and so an XPS experiment provides a spectrum whose characteristic peaks give insight into the atomic structure of the material or molecule being probed. Because the core electron is strongly localized around the nucleus and only feels the influence of the immediate surrounding medium, XPS is particularly well suited to learning with local atomic descriptors such as SOAP, as we showed in Ref. 53. One of the results presented in that paper is a database of GW-level CEBEs for a subset of the CHO-containing molecules in the QM9 dataset,⁵⁴ a large dataset of small stable organic molecules, containing up to nine non-hydrogen atoms.

Reference 53 presented learning curves for C1s and O1s CEBE models trained from the QM9-GW data using soap_turbo descriptors without sparsification. Here we take a more detailed look at the effect of different technical parameters on the quality of the fit: cutoff radius for SOAP neighbours, sparsification scheme, soap vs soap_turbo and the effect of different compression recipes on the results. We start out by splitting the QM9-GW CEBE database of Ref. 53 into a training set (80% of the structures) and a test set (20% of the structures).

The gap_fit local property feature relies on the user providing a per-atom local property array. In this case, an ASE-format XYZ file is provided with a list of per-atom CEBEs. The following is an example for a formaldehyde molecule:

The fifth column contains the 1s CEBE for the C and O atoms, given in eV in this example. Since H atoms do not have a core, CEBEs for these atoms are not available, and we pad the array with zeros. A mask is provided to let gap_fit know these are to be ignored during the fit.

In addition to the database of atomic structures and observables (CEBEs here), one needs to provide the name of the local property as specified in the database (local_property_parameter_name=“GW_CEBE” here), the default regularization parameter (default_local_property_sigma = 0.01 here, in the same units as the local property), and possibly offsets for the properties to be learned (local_property0={C:290.816456:O:537.946208:H:0} here). In our case, the 0 offset is computed as the average CEBE of C1s and O1s core electrons separately. It is important to provide these offsets so that the ML model only needs to fit the (smooth) differences in the local property values, and not the absolute numbers, which are significantly harder to learn. Otherwise, the specification of the atomic descriptors is done in the same way as for a regular GAP model.

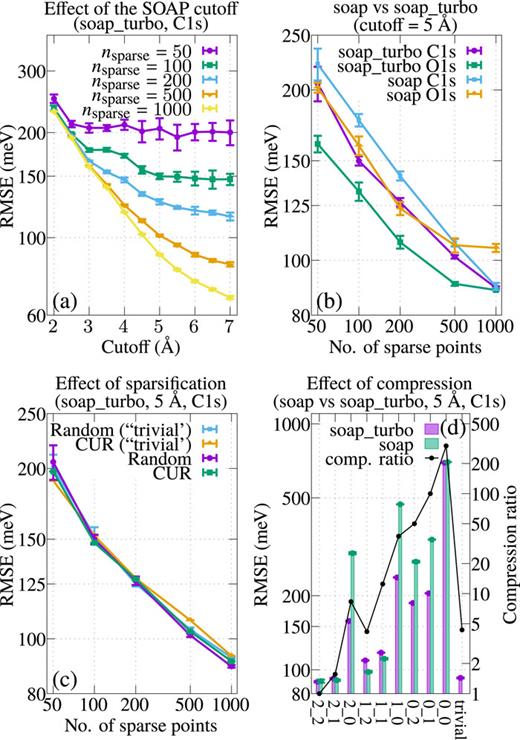

All the results for this example are summarized in Fig. 6. In panel (a) we show a comparison of models for C1s CEBEs fitted using a soap_turbo descriptor with varying cutoff radii and varying number of sparse points; the cutoff radius is the single most important hyperparameter in SOAP-based models. Clearly, the accuracy of the models can be systematically increased by increasing the cutoff. However, the number of sparse points limits the expressivity of the model, and models with less sparse points will not benefit from further increasing the cutoff beyond a certain point. E.g., with 50 sparse points a 3 Å model performs equal to a 7 Å model. We observe that the statistical variation in the model performance increases with the cutoff, due to the corresponding increase in the size of configuration space covered by the descriptor (the error bars are given as the standard deviation computed over ten different models obtained from ten different randomly chosen sparse sets).

In Fig. 6(b) we show a comparison of C1s and O1s models fitted using soap and soap_turbo descriptors of the same dimensionality (CHO-sensitive descriptors with 8 radial basis functions per element and up to 8th degree spherical harmonics, the same basis set as used for all the calculations in Fig. 6). soap_turbo models perform slightly better than soap models, except for the C1s models with maximum number (1000) of sparse points, where they perform equally.

If Fig. 6(c) we assess the effect of using random sparse point selection vs using CUR decomposition to select the sparse set descriptors, as well as the possible effect of using descriptor compression (soap_turbo’s “trivial” compression recipe) on the results. For this numerical test, the performance of all models is essentially the same for most practical purposes.

Finally, in Fig. 6(d) we perform a thorough numerical test of different compression recipes on the accuracy of the QM9-GW models. The i_j labeling convention refers to the ν_R ≡ i and ν_S ≡ j soap sensitivity parameters discussed above, and their quasiequivalent recipes for soap_turbo. Additionally, soap_turbo can use the “trivial” compression scheme as detailed above. In addition to the root-mean-squared error (RMSE), the graph shows the compression ratio computed as the number of dimensions of the compressed descriptor divided by those of the full descriptor. Unsurprisingly, the errors increase with the compression ratio, with most compression recipes providing better performance for soap_turbo, except for 2_1, 1_2 and 1_1, where soap performs slightly better. That is, the advantage of using soap_turbo increases with the degree of compression, whereas soap performs equally or slightly better than soap_turbo at low compression ratios. The “trivial” compression recipe is only available for soap_turbo and provides arguably the best compromise between accuracy and compression ratio (a factor of 4.3 vs uncompressed SOAP) among the tested schemes, at least for this particular test with the QM9-GW database.

Although not shown here, the relative advantage of soap_turbo vs soap increases when looking at the O1s models, likely because the QM9-GW training database we used contains significantly more C1s data (11.5k entries) than O1s data (1.5k entries). This indicates better generalization and data efficiency for soap_turbo, although it is important to note that the performance of each descriptor is dataset specific.

The Mo–Nb–Ta–V–W quinary high-entropy alloy studied by Byggmästar et al.³⁸ is a complex, multicomponent system. To illustrate the generation of a GAP model, we provide the parameters, complete with explanations and comments, that were used to test and benchmark the MPI-ScaLAPACK implementation of the gap_fit program.³⁷ Here we highlight a recent feature which conveniently allows the fitting parameters to be stored in a file, rather than provided as command line arguments. The fitting parameters are entered in the file supplementary material in a key=value format, with commentary on each provided in Table II.

The fitting database is openly available as the supplementary material of the article by Byggmästar et al.,³⁸ which may be downloaded from the Fairdata repository.⁵⁵ The fitting procedure can then be carried out by running the command gap_fit config_file=config with the database file db_HEA_reduced.xyz and the configuration file config in the same directory. For the parallel implementation, the command line mpirun -np 2 gap_fit config_file=config executes the process on two computational cores. Hybrid OpenMP-MPI execution is possible, for which the number of threads may be adjusted by setting the environment variable as export OMP_NUM_THREADS=4. For the specific queuing system available to the user, the documentation should be consulted.

The resulting GAP model is stored in the gp_HEA.xml file and a set of text files according to the naming pattern gp_HEA.xml.sparseX.GAP_$*$⁠. The interatomic potential may be accessed as a Calculator in ASE as

Where the Python variable a indicates an ASE Atoms object.

Massively parallel simulations with GAP models are possible with LAMMPS. To use the high-entropy alloy potential, the following lines should be added to the LAMMPS input file:

Where the LAMMPS atom types 1, 2, 3, 4, and 5 are mapped to Mo, Nb, Ta, V and W, respectively.

We have reviewed the GAP framework from an implementation point of view, highlighting how a generic sparse GPR formalism is adapted for the prediction of interatomic potentials and related quantities. An overview of the software package, coding practices and recent developments was provided, together with usage examples and detailed explanations of adjustable parameters, with references to the theory. The QUIP and GAP suite remains under maintenance and in active development by the authors, and will serve as a test bed for exploring ideas in the field of MLIPs. With interfaces to Python and major simulation packages, GAP serves as a useful tool for computational modelling.

Future developments will include the inclusion of more descriptors, such as Atomic Cluster Expansion (ACE),² rigorous means for uncertainty quantification, utilising modern computing architectures such as GPUs, and the implementation of more robust and efficient solvers for the fitting procedure. With the availability and popularity of more modern programming languages such as Python or Julia, Fortran may appear as an outdated choice. However, its interoperability with MPI and related libraries such as ScaLAPACK has proved to be an advantage in utilising the more traditional, but still highly prevalent, high performance computing facilities consisting of networked servers. As supercomputers and programming skills change, the current framework might prove to be too restrictive, but the practical insight documented here and the software will remain valuable for future endeavours.

Please see the supplementary material for the fitting parameters in a key=value format.

This work was financially supported by the NOMAD Centre of Excellence (European Commission Grant Agreement No. 951786) and the Leverhulme Trust Research Project (Grant No. RPG-2017-191). A.P.B. acknowledges support from the CASTEP-USER project, funded by the Engineering and Physical Sciences Research Council under the Grant Agreement No. EP/W030438/1. M.A.C. acknowledges personal funding from the Academy of Finland under Grant No. 330488. We acknowledge computational resources provided by the Max Planck Computing and Data Facility provided through the NOMAD CoE, the Scientific Computing Research Technology Platform of the University of Warwick, the EPSRC-funded HPC Midlands + consortium (Grant No. EP/T022108/1), ARCHER2 (https://www.archer2.ac.uk/) via the UK Car-Parinello consortium (Grant No. EP/P022065/1), CSC-IT Center for Science, and the Aalto University Science-IT project. We thank the technical staff at each of these HPC centres for their support.

A.P.B. and G.C. are listed as inventors on a patent filed by Cambridge Enterprise, Ltd. related to SOAP and GAP (US patent 8843509, filed on 5 June 2009 and published on 23 September 2014). A.P.B., M.A.C., and G.C. benefit from licensing the GAP software to industrial users. Not-for-profit use for academic and educational purposes is granted under the Academic Software License for no cost. The other authors have no conflicts to disclose.

Sascha Klawohn: Data curation (lead); Formal analysis (equal); Methodology (supporting); Validation (supporting); Visualization (equal); Writing – original draft (supporting). James P. Darby: Data curation (lead); Formal analysis (supporting); Methodology (supporting); Validation (supporting); Writing – original draft (supporting). James R. Kermode: Funding acquisition (equal); Methodology (supporting); Supervision (equal); Writing – original draft (supporting). Gábor Csányi: Conceptualization (equal); Funding acquisition (equal); Methodology (equal); Supervision (equal); Writing – original draft (supporting); Writing – review & editing (supporting). Miguel A. Caro: Conceptualization (supporting); Formal analysis (supporting); Methodology (equal); Visualization (equal); Writing – original draft (equal); Writing – review & editing (supporting). Albert P. Bartók: Conceptualization (equal); Formal analysis (equal); Funding acquisition (equal); Methodology (equal); Supervision (equal); Validation (equal); Writing – original draft (equal); Writing – review & editing (equal).

All databases referred to this work are available in public data repositories.

We provide a snapshot of the currently available command line arguments of the GAP_FIT program for completeness. As the QUIP and GAP packages are under constant development, this list may change. It should also be noted that most of the parameters need little adjustment, whereas those that pertain to the particular fitting problem are mandatory, requiring the user to specify a value. Some keywords have aliases, often less descriptive, but both of which are acceptable. These are indicated as option (alias).

• config_file File as alternative input to command line arguments. Newlines are converted to spaces.

• atoms_filename (at_file) extended XYZ file containing database configurations in a concatenated form

• gap Initialisation string for GAPs

• e0 Atomic energy value to be subtracted from energies before fitting, and added back on after prediction. Possible options are: a single number, used for all species; or by species, e.g.: {Ti:-150.0:O:-320.1}.

• local_property0 Local property value to be subtracted from the local property before fitting, and added back on after prediction. Possible options are: a single number, used for all species; or by species: e.g. {H:20.0:Cl:35.0}.

• e0_offset Offset of baseline. If zero, the offset is the average atomic energy of the input data or the e0 specified manually.

• e0_method Method to determine the constant energy baseline e0, if not explicitly specified. Possible options: isolated (default, each atom present in the XYZ needs to have an isolated representative, with a valid energy); average (e0 is the average of all total energies across the XYZ).

• default_kernel_regularisation (default_sigma) Prior assumption of error in (energies forces virials hessians)

• default_kernel_regularisation_local_property (default_local_property_sigma) Prior assumption of error in local_property.

• sparse_jitter Extra regulariser used to regularise the sparse covariance matrix before it is passed to the linear solver. Use something small, it really shouldn’t affect your results, if it does, your sparse basis is still very ill-conditioned.

• hessian_displacement (hessian_delta) Finite displacement to use in numerical differentiation when obtaining second derivative for the Hessian covariance.

• baseline_param_filename (core_param_file) QUIP XML file which contains a potential to subtract from data, and added back after prediction.

• baseline_ip_args (core_ip_args) QUIP initialisation string for a potential to subtract from data, and added back after prediction.

• energy_parameter_name Name of energy property in the input extended XYZ file that describes the data

• local_property_parameter_name Name of local_property as a column in the input XYZ file that describes the data.

• local_property_mask_parameter_name Used to exclude local properties on specific atoms from the fit. In the XYZ, it must be a logical column.

• force_parameter_name Name of force property, as three columns, in the input XYZ file that describes the data.

• virial_parameter_name Name of virial property in the input XYZ file that describes the data.

• stress_parameter_name Name of stress property (6-vector or 9-vector) in the input XYZ file that describes the data - stress values only used if virials are not available. Note the opposite sign and standard Voigt order.

• hessian_parameter_name Name of hessian property (column) in the input XYZ file that describes the data

• config_type_parameter_name Allows grouping on configurations into. This option is the name of the key that indicates the configuration type in the input XYZ file. With the default, the key-value pair config_type=bcc would place that configuration into the group bcc.

• kernel_regularisation_parameter_name (sigma_parameter_name) Kernel regularisation parameters for a given configuration in the database. Overrides the command line values for both defaults and config-type-specific values. In the input XYZ file, it must be prepended by energy_, force_, virial_ or hessian_ keywords.

• force_mask_parameter_name To exclude forces on specific atoms from the fit. In the XYZ, it must be a logical column.

• parameter_name_prefix Prefix that gets uniformly appended in front of {energy,local_property,force,virial,…}

•      _parameter_name

• config_type_kernel_regularisation (config_type_sigma) The kernel regularisation values to choose for each type of data, when the configurations are grouped into config_types. Format: {configtype1:energy:force:virial:hessian:

•      config_type2:energy:force:virial:hessian}

• kernel_regularisation_is_per_atom (sigma_per_atom) Interpretation of the energy and virial regularisation parameters specified in default_kernel_regularisation and config_type_kernel_regularisation. If T, these are interpreted as per-atom errors, and the variance will be scaled according to the number of atoms in the configuration. If F, they are treated as absolute errors and no scaling is performed. NOTE: values specified on a per-configuration basis (see kernel_regularisation_parameter_name) are always absolute, not per-atom.

• do_copy_atoms_file (do_copy_at_file) Copy the input XYZ file into the GAP XML file (should be set to False for NetCDF input).

• sparse_separate_file Save sparse point data in separate file, recommended for large number of sparse points.

• sparse_use_actual_gpcov Use actual GP covariance for sparsification methods.

• gap_file (gp_file) Name of output XML file that will contain the fitted potential

• verbosity Verbosity control. Options: NORMAL, VERBOSE, NERD, ANALYSIS.

• rnd_seed Random seed.

• openmp_chunk_size Chunk size in OpenMP scheduling.

• do_ip_timing To enable or not the timing of the interatomic potential.

• template_file Template XYZ file for initialising object.

• sparsify_only_no_fit If true, sparsification is done, but no fitting is performed. The sparse index is printed by adding print_sparse_index=file.dat to the descriptor specification string under the gap option.

• dryrun If true, exits after memory estimate, before major allocations.

• condition_number_norm Norm for condition number of matrix A of the linear system; O: 1-norm, I: inf-norm, <empty>: skip calculation (default)

• linear_system_dump_file Basename prefix of linear system dump files. Skipped if <empty> (default).

• mpi_blocksize_rows Blocksize of MPI distributed matrix rows. Affects efficiency and memory usage slightly. Maximum if specified as 0 (default).

• mpi_blocksize_cols Blocksize of MPI distributed matrix columns. Affects efficiency and memory usage considerably. Maximum if 0. Default: 100.

• mpi_print_all If true, each MPI processes will print its output. Otherwise, only the first process does (default).

The following keywords are to be specified for each descriptor within the gap command line argument.

• energy_scale (delta) Set the typical scale of the function being fitted, or the specific energy term if using multiple descriptors. It is equivalent to the standard deviation of the Gaussian Process in the probabilistic view, and typically this would be set to the standard deviation (i.e. root mean square) of the function that is approximated with the Gaussian Process.

• f0 Set the mean of the Gaussian Process. Defaults to 0.

• n_sparse Number of sparse points to use in the sparsification of the Gaussian Process

• config_type_n_sparse Number of sparse points in each configuration type. Format: type1:50:type2:100

• sparse_method Sparsification method. Possible options: RANDOM(default), PIVOT, CLUSTER, UNIFORM, KMEANS, COVARIANCE, NONE, FUZZY, FILE, INDEX_FILE, CUR_COVARIANCE, CUR_POINTS. For explanations, see below.

• lengthscale_factor (theta_fac) Set the width of Gaussians for the Gaussian and piecewise polynomial kernel by multiplying the range of each descriptor by lengthscale_factor. Can be a single number or different for each dimension. For multiple numbers in lengthscale_factor, separate each value by whitespaces.

• lengthscale_uniform (theta_uniform) Set the width of Gaussians for the Gaussian and piecewise polynomial kernel, same in each dimension.

• lengthscale_file (theta_file) Set the width of Gaussians for the Gaussian kernel from a file. There should be as many real numbers as the number of dimensions, in a single line.

• sparse_file Sparse points from a file. If sparse_method=FILE, descriptor values as real numbers listed in a text file, one element per line. If sparse_method=INDEX_FILE, 1-based index of sparse points, one per line.

• mark_sparse_atoms If true, reprints the original extended XYZ file after sparsification process, with a sparse_property column added, which is true for atoms associated with a sparse point.

• add_species If true (default), create species-specific descriptors, using the descriptor string as a template.

• covariance_type Type of covariance function to use. Available: GAUSSIAN, DOT_PRODUCT, BOND_REAL_SPACE, PP (piecewise polynomial).

• soap_exponent (zeta) Exponent of soap type dot product covariance kernel

• print_sparse_index If given, after determining the sparse points, their 1-based indices are appended to this file.

• unique_hash_tolerance Hash tolerance when filtering out duplicate data points.

• unique_descriptor_tolerance Descriptor tolerance when filtering out duplicate data points.

• none No sparsification, selects all datapoints.

• index_file Reads indices of sparse points from the file given by sparse_file and selects those from the de-duplicated data.

• file Reads sparse points from the file given by sparse_file.

• random Selects n_sparse random descriptors with the same probability.

• uniform Computes a histogram of the data with n_sparse bins and returns a data point from each bin. This option is only suitable for low-dimensional descriptors.

• kmeans The k-means clustering algorithm is performed on all descriptors to generate n_sparse clusters, of which the descriptors closest to the cluster means are selected as sparse points.

• fuzzy A fuzzy version of k-means clustering⁵⁶ is used to generate n_sparse clusters.

• cluster A k-medoid clustering based on the full covariance matrix of descriptors is performed, resulting in n_sparse clusters. The medoid points are selected as sparse points.

• pivot The n_sparse “pivot” indices of the full covariance matrix are found, and used as the sparse points.

• covariance Greedy data point selection based on the sparse covariance matrix, to minimise the GPR variance of all datapoints.

• cur_points A CUR decomposition, based on the datapoints, is carried out to find the most representative n_sparse points.

• cur_covariance A CUR decomposition, based on the full covariance matrix, is carried out to find the most representative n_sparse points.

• cutoff Cutoff for distance_2b-type descriptors.

• cutoff_transition_width Transition width of cutoff for distance_2b-type descriptors.

• Z1 Atom type #1 in bond. Any atom type if missing.

• Z2 Atom type #2 in bond. Any atom type if missing.

• resid_name Name of an integer property in the atoms object giving the residue identifier of the molecule to which the atom belongs.

• only_intra Only calculate bonds, i.e. intramolecular pairs with equal residue identifiers

• only_inter Only apply to non-bonded atom pairs, i.e. intermolecular pairs with different residue identifiers.

• n_exponents Number of exponents.

• exponents Exponents in a list format, for example: {-12 -6}

• tail_range Tail range.

• tail_exponent Tail exponent.

• cutoff Cutoff distance.

• cutoff_transition_width Transition width of cutoff function.

• cutoff_dexp Cutoff decay exponent.

• cutoff_scale Cutoff decay scale.

• cutoff_rate Inverse cutoff decay rate.

• l_max l_max (spherical harmonics basis band limit) for soap-type descriptors.

• n_max n_max (number of radial basis functions) for soap-type descriptors.

• atom_gaussian_width (atom_sigma) Width of atomic Gaussian functions for soap-type descriptors.

• central_weight Weight of central atom in environment.

• central_reference_all_species Place a Gaussian reference for all atom species densities. By default (F) only consider when neighbour is the same species as centre.

• average Whether to calculate averaged SOAP - one descriptor per atoms object. If false (default), atomic SOAP is returned.

• diagonal_radial Only return the n₁ = n₂ elements of the power spectrum.

• covariance_sigma0 σ₀ parameter in polynomial covariance function.

• normalise (normalize) Normalise descriptor, so magnitude is 1. In this case the kernel of two equivalent environments is 1.

• basis_error_exponent $10−basis_error_exponent$ is the max difference between the target and the expanded function.

• n_Z How many different types of central atoms to consider.

• n_species Number of species for the descriptor.

• species_Z Atomic number of species.

• xml_version Version of GAP the XML potential file was created.

• Z Atomic number of central atom, 0 is the wild-card or Atomic numbers to be considered for central atom, must be a list.

• Z_mix Mix the element channels together if present.

• R_mix Mix the radial channels together if present.

• sym_mix Specifies whether a single set of mixing weights is used or whether two sets are used. If sym_mix=T, tensor-decomposition is enabled. If sym_mix=F tensor-sketching is used.

• K Integer specifying how many mixed channels to create. For example, R_mix=T Z_mix=T K=5 will create 5 mixed channels whereas R_mix=F n_max=6 Z_mix=T K=5 will result in K$*$n_max = 30 channels.

• coupling If coupling=T full tensor-product coupling is applied across the resulting channels after mixing, whereas if coupling=F element-wise coupling is applied instead. The only exception to this rule occurs for Z_mix=T R_mix=F (or similarly for Z_mix=F R_mix=T) with coupling=F. Here, element-wise coupling is applied across the mixed-element channels but tensor-product coupling is applied across the unmixed radial channels, resulting in $pnn′lk$ (or similarly $pklαβ$⁠).

• mix_shift Integer specifying the shift to the default seed that is used for the random number generator used to generate the mixing weights.

• nu_R radially sensitive correlation order. Allowed values are 0, 1 and 2 (default).

• nu_S species sensitive correlation order. Allowed values are 0, 1 and 2 (default).

• Z_map Commas separate groups within a density. A colon separates the two densities if present. Otherwise the groups are taken to be equal. Z_map = {1, 3, 22 23 24 } has a separate channel for H and Li but treats Ti, V and Cr as identical Z_map = {1, 3, 22, 23, 24 : 1, 3, 22 23 24} has a separate channel for each element in the first density. In the second density there is a separate channel for H and Li but Ti, V and Cr are identical

• rcut_hard Hard cutoff distance.

• rcut_soft Soft cutoff distance.

• n_species Number of species for the descriptor.

• l_max l_max (spherical harmonics basis band limit) for soap-type descriptors.

• nf Sets the rate of decay of the atomic density in the region between soft and hard cutoffs.

• radial_enhancement Integer index (0, 1 or 2) that simulates the effect of modulating the radial overlap integral with the radial distance raised to this number.

• basis Options: poly3 or poly3gauss chooses a 3rd and higher degree polynomial radial basis set and augments it with a Gaussian at the origin, respectively.

• compress_file Optional user-provided file specifying the compression recipe.

• compress_mode Optionally provides a predefined compression recipe.

• central_index 1-based index of central atom species_Z in the species array.

• alpha_max Radial basis resolution for each species.

• atom_sigma_r Width of atomic Gaussian functions for soap-type descriptors in the radial direction.

• atom_sigma_r_scaling Scaling rate of radial sigma: scaled as a function of neighbour distance.

• atom_sigma_t Width of atomic Gaussian functions for soap-type descriptors in the angular direction.

• atom_sigma_t_scaling Scaling rate of angular sigma: scaled as a function of neighbour distance.

• amplitude_scaling Scaling rate of amplitude: scaled as an inverse function of neighbour distance.

• central_weight Weight of central atom in environment.

• species_Z Atomic number of species, including the central atom.
