Ne, Ar, and Kr oscillators in the molecular cavity of fullerene C₆₀ Open Access

Endofullerenes are a class of supramolecular complexes where atoms or molecules, A, are confined inside the C₆₀ molecular cage, represented as A@C₆₀. An effective method to synthesize endofullerenes in milligram quantities was introduced by Komatsu and co-workers in 2005.¹ They successfully enclosed single H₂ molecules in C₆₀ cages after a series of organic synthesis steps known as “molecular surgery.” Over the years, the list of endofullerenes produced by molecular surgery² has been supplemented by H₂O@C₆₀,³ HF@C₆₀,⁴ CH₄@C₆₀,⁵ and noble gas endofullerenes.^6–8

Endofullerenes give an opportunity to study non-covalent interactions between the guest and the molecular cage of C₆₀. The confining potential quantizes the translational motion of the guest. In the case of confined molecules, there are additional degrees of rotational and vibrational freedom, which complicate the energy spectrum of A@C₆₀. The monatomic noble gas endofullerenes, on the other hand, are relatively simple systems with only translational degrees of freedom.

Since the discovery of noble gas endofullerenes in the early 1990s by mass spectroscopy,⁹ they have been studied using a variety of techniques, such as infrared or THz (terahertz) absorption spectroscopy,^10,11 INS (inelastic neutron scattering),¹¹ NMR (nuclear magnetic resonance),^6,8,12,13 and others.^14,15 In the work of Takeda et al.,¹² the influence of the inserted atom on the lattice parameters was revealed for Ar@C₆₀. The ¹³C chemical shift of the C₆₀ cage carbon atoms shows downfield shifts of 0.027, 0.17, 0.39, and 0.95 ppm in He@C₆₀,¹³ Ar@C₆₀,¹² Kr@C₆₀,^8,16 and Xe@C₆₀,¹⁷ respectively. This trend consisted in the greater interaction of the endohedral atom with fullerene electrons as the size of the guest atom increases. Frunzi et al.¹⁸ even concluded that the xenon atom pushes the fullerene electrons outward. The first experimental evidence of confinement-induced internuclear J-coupling was reported by Bacanu et al.¹³ in ³He@C₆₀.

Several theoretical approximations have been made to calculate the potential energy function of a noble gas atom in the fullerene cage.^11,19–24 One approach to model dispersive interactions between atoms is to use a superposition of Lennard-Jones (LJ) 6-12 potentials. The molecular dynamics of Ne inside C₆₀ was reported by Bug et al.²⁵ where the LJ potential was employed to describe the C–Ne interaction within the flexible cage of C₆₀. The translational frequency of Ne@C₆₀ was predicted at 90 cm⁻¹. Pang and Brisse¹⁹ calculated endohedral energies of He, Ne, Kr, Ar, and Xe inside C₆₀ and C₇₀ using LJ functions. They concluded that He and Ne form more stable complexes with C₆₀ due to their smaller van der Waals radii as compared to larger Ar, Kr, and Xe. The potential function of He in C₆₀ calculated by Pang and Brisse reproduces the recently spectroscopically determined potential function remarkably well.¹¹ However, there have been no experimental data for the potential functions of other noble gas atoms in C₆₀.

This paper is a continuation of our previous work on He@C₆₀.^11,24 Here, we report a study of Ne, Ar, and Kr endofullerenes by THz spectroscopy and INS. Although the center-of-mass motion of a neutral atom in free space does not interact with electromagnetic radiation, atoms acquire an induced electric dipole moment upon their interaction with C₆₀, allowing for the oscillatory center-of-mass motion of an endohedral atom to absorb THz radiation. We report both THz and INS data for Ne@C₆₀. However, in the case of Ar@C₆₀ and Kr@C₆₀, only the THz data are presented since the difficulties in the synthesis precluded the production of sufficient samples for INS, in these cases.

In the case of an anharmonic potential, the distance between consecutive energy levels changes as the energy increases. This leads to a “comb” of well-resolved THz absorption peaks at temperatures high enough to populate excited transitional states. Such THz “combs” were prominent in the case of He endofullerenes, where the confining potential is highly anharmonic.¹⁰ In contrast, “combs” of THz peaks were not observed for Ar, Ne, and Kr endofullerenes. As discussed below, this is because the confining potential is much more harmonic than for He.

To study the anharmonicity of the interaction potential, THz absorption spectra were measured over a wide temperature range from 5 to 300 K. The INS spectra were acquired for Ne@C₆₀ at low temperature. The interaction potential parameters were determined by fitting the experimental spectra to a spherical anharmonic oscillator model. Finally, the experimentally derived potential functions were compared with predictions using the LJ two-body potential parameters of Pang and Brisse.¹⁹

Endofullerenes containing Ne, Ar, and Kr atoms were synthesized by multi-step “molecular surgery.” The shell of C₆₀ is chemically opened to create a orifice. The orifice should be of proper size to allow for the entering of a guest atom and at the same time to prevent its quick loss. An open-cage intermediate fullerene incorporating atom is closed with a sequence of chemical reactions. Ar@C₆₀ and Kr@C₆₀^6,8 were made using a similar sequence of chemical reactions for the contraction and the closure of the open-cage endofullerene orifice. For Ne@C₆₀, the open-cage fullerene was filled by Ne gas in the solid state and the Ne atom was trapped through the solid-state Wittig reaction induced by raising the temperature.⁷ It was found that traces of a H₂O@C₆₀ impurity interfered with INS measurements due to the strong incoherent scattering of water protons. This impurity was removed from the Ne@C₆₀ sample by extensive HPLC (high-performance liquid chromatography). To improve the signal-to-noise ratio of THz spectroscopy, the filling factor of the samples was further increased by extensive recirculating HPLC. The achieved filling factors f (defined as the fraction of C₆₀ cages containing an endohedral guest) are given below. All samples were sublimed under vacuum before spectroscopic measurements.

The powdered samples of A@C₆₀ were pressed under vacuum into 3 mm diameter pellets to perform THz measurements. The pellet thicknesses of Ne@C₆₀, Ar@C₆₀, and Kr@C₆₀ were 1.61, 1.06, and 0.95 mm, and the filling factors were 0.99, 1.0, and 1.0. The sample masses were estimated to be 21.5, 13.2, and 12.3 mg for Ne@C₆₀, Ar@C₆₀, and Kr@C₆₀, respectively.

The transmission spectra of Ar@C₆₀ and Kr@C₆₀ were recorded using a vacuum FTIR Bruker spectrometer (Vertex 80v). A standard far-infrared setup covering the range from 10 to 600 cm⁻¹ was used for the measurements: an electrically heated SiC (Globar) radiation source, a 6 μm thick Mylar beam splitter, and a 4 K bolometer for detection. In order to reach low temperatures, a compact cold-finger continuous flow cryostat was used. The required temperature within the cryostat was maintained by controlling the flow of helium and by using the heater. To register the transmission spectra, the cryostat insert with the cold finger moves up and down, allowing the signal to pass through the sample or through a 3 mm diameter hole as a reference channel. The sample channel was equipped with a sample cell with two polypropylene windows that kept the sample in an atmosphere of helium exchange gas. This technique allowed for good thermal contact between the cold-finger and the pellet.

The Ne@C₆₀ spectra were measured from 5 up to 100 cm⁻¹ using a Martin–Puplett interferometer equipped with a high-pressure Hg lamp as a radiation source. The chamber of the ³He cooled bolometer (working temperature T = 0.3 K) and the sample chamber were immersed in a liquid helium bath. The sample and reference hole shared the same He heat exchange gas environment. The sample temperature T was controlled by the heater and the exchange gas pressure. The resolution used on both instruments was 0.3 cm⁻¹, which is less than the linewidth of the measured absorption lines for the studied samples. The calculations of the THz absorption spectra of A@C₆₀ and the baseline corrections are described in the supplementary material.

INS experiments were conducted using the IN1-Lagrange spectrometer at the Institut Laue–Langevin (ILL) in Grenoble. Incident neutrons are provided by the “hot source” moderator of the reactor, resulting in a high flux neutron beam. Selection of three different single crystal monochromators, namely, Si(111), Si(311), and Cu(220), enables selection of the incident energy of the monochromatic neutron beam arriving at the sample by using Bragg reflection. The neutrons scattered by the sample enter a secondary spectrometer comprising a large area array of pyrolytic graphite analyzer crystals. The focusing geometry of the secondary spectrometer ensures that only neutrons with a fixed kinetic energy of 4.5 meV are detected by using the ³He detector. INS spectra were recorded in the energy transfer range from 0.78 to 54.6 meV. The 170 mg Ne@C₆₀ powder, f = 0.7, was wrapped in a thin aluminum pocket and attached to the tip of the cryostat. The Ne@C₆₀ spectra were corrected for the scattering from the aluminum foil and from C₆₀ (supplementary material).

The fitted parameters, {V₂, V₄, A₁}, are found by minimizing the difference-squared of the calculated spectrum and the baseline-corrected experimental spectrum. In the cases where there is more than one isotope, the diagonalization and the dipole matrix calculation are carried out separately for each mass. The spectra of isotopes are added using the natural abundances as weighting factors. The minimization is done simultaneously over several temperatures assuming temperature-independent linewidths of the calculated peaks. Parameter confidence limits are calculated using the method described in Ref. 27.

The Lennard-Jones (LJ) 6-12 potential describes the interaction energy between two atoms as a function of their distance of separation with two empirical parameters; see, e.g., Ref. 21. In the case of A@C₆₀, the potential energy function for the A atom is calculated by displacing atom A from the center of the fullerene cage by r and summing over sixty A–C two-body interactions for each position r. LJ confining potentials given in this article are obtained by moving the noble gas atom toward the center of a HH bond (the bond in between two hexagons). As shown in the supplementary material, the direction of the displacement of the atom from the center of the cage has very little effect on the potential. As reported in Ref. 11, the positions of the C₆₀ atoms were fixed to the best known values as calculated from the neutron scattering data.²⁸ The given structural parameters are r₀ = 354.7 ± 0.5 pm, the distance of all carbon nuclei from the center of the cage; h = 138 ± 0.27 pm, the bond length that joins hexagonal C₆ rings; and p = 145.97 ± 0.18 pm, the bond length that joins C₆ and pentagonal C₅ rings. The parameters of Pang and Brisse,¹⁹ corrected by Jimeńez-Vaźquez and Cross,²¹ were used for all LJ potentials.

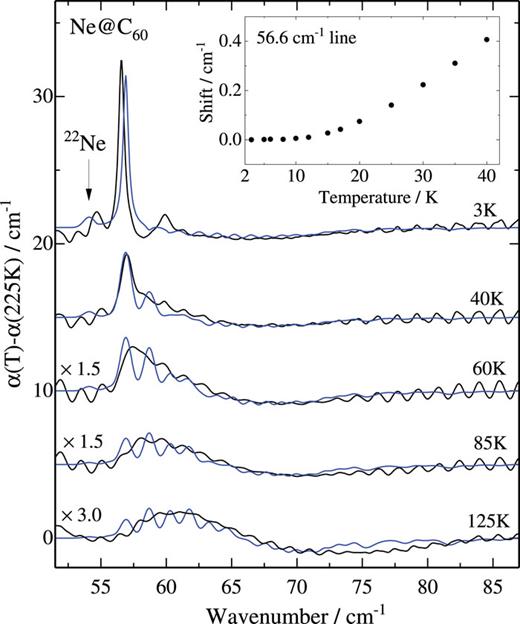

Ne@C₆₀ absorption spectra are shown as a function of temperature in Fig. 1. At 3 K, we see a strong peak at 56.6 cm⁻¹, which according to our model calculation is the transition from the ground state n = 0 to the first excited translational state n = 1; see Table II. The shape of this main line at 3 K is described by a Lorentzian function, with 0.5 cm⁻¹ full width at half maximum (FWHM).

The position of the main peak changes when T increases from 3 to 40 K (see the inset of Fig. 1) and also the line broadens. The absorption spectrum continues to shift and broaden at higher temperatures, as shown in Fig. 1. This effect is attributed to the increasing population of higher translational states at higher temperatures, combined with the significant anharmonicity of the potential. Because our model does not explain the temperature dependence observed below 30 K, the spectra measured at following T were used to fit the potential and dipole moment parameters: 30, 40, 50, 60, 70, 85, 100, 125, 150, and 175 K. For the model fitting, these spectra were referenced to the 225 K spectrum. Similarly, the spectra calculated with the model parameters were referenced to the model spectrum at 225 K. The difference spectra, α(T) − α(225 K), calculated with the best fit model parameters, given in Table I, are plotted in Fig. 1. The oscillations seen in the calculated spectra are individual lines resolved by FWHM = 1.0 cm⁻¹ used for plotting. The ²²Ne peak, natural abundance 9.3%,²⁹ is clearly seen on the lower frequency side of the main ²⁰Ne peak in the calculated spectra. The ²²Ne peak is obscured in the experimental spectra by baseline artifacts associated with the subtraction of spectra taken at widely different temperatures, Fig. 1. This peak is more visible in the α(T) − α(100 K) difference spectra; see Fig. S5 of the supplementary material. However, its frequency differs slightly from the anticipated isotope shift; see Sec. IV.

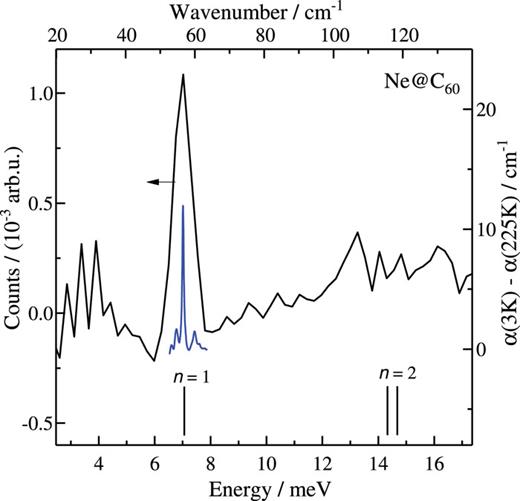

The low T INS spectrum of Ne@C₆₀ is plotted in Fig. 2. The peak at 7 meV and the THz peak at 56.6 cm⁻¹ coincide well within the width of the INS peak. Although there is a peak in the INS spectrum at 13 meV, its energy is too low to be assigned to the n = 0 → n = 2 transition. Other two peaks above 13 meV, coinciding with n = 0 → n = 2 transitions, are too weak compared to the noise to be assigned to Ne@C₆₀ transitions (supplementary material).

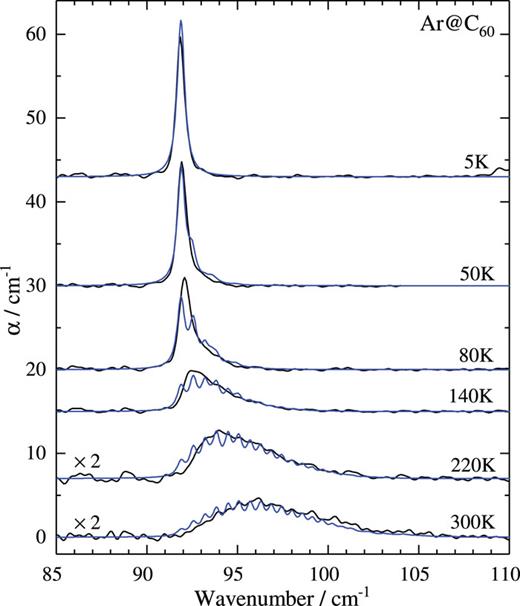

The temperature-dependence of the THz absorption spectra of Ar@C₆₀ is shown in Fig. 3. The 5 K spectrum displays one sharp peak at 91.9 cm⁻¹. The shape of the peak up to 50 K is best described by a Lorentzian line shape with FWHM = 0.5 cm⁻¹. As the temperature increases, the absorption peak broadens and its maximum shifts to higher frequency. This is due to the increasing population of higher translational states at higher temperatures, combined with the significant anharmonicity of the potential. The experimental spectra were fitted at 5, 10, 20, 30, 40, 50, 60, 80, 100, 140, 180, 220, 250, 270, and 300 K using the Lorentzian shape with FWHM = 0.5 cm⁻¹. The spectra calculated with the best fit parameters from Table I and plotted in Fig. 3 show that the experimentally observed T dependence of the spectrum is well described by an anharmonic potential.

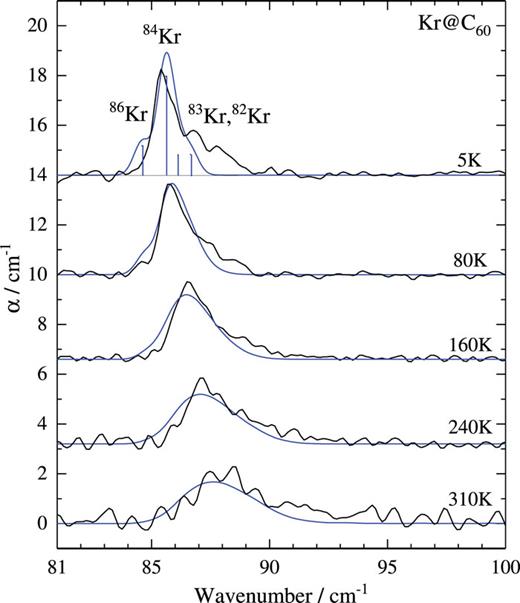

Unlike Ne@C₆₀ and Ar@C₆₀, the Kr@C₆₀ spectrum shows a broad asymmetrical absorption line even at 5 K, Fig. 4. At higher temperatures, the Kr@C₆₀ spectrum broadens further and its maximum shifts to higher frequency, similar to the behavior of Ne and Ar. The fit of the experimental absorption spectra of Kr@C₆₀ was done at temperatures of 5, 40, 80, 120, 160, 200, 240, 280, and 310 K with FWHM = 0.8 cm⁻¹ for all isotopes. The spectra calculated with the best fit parameters from Table I are plotted in Fig. 4. Compared to Ne and Ar, the calculated spectra of Kr do not show oscillations because first the spread of line frequencies in the high temperature spectra is less for Kr@C₆₀ due to a smaller anharmonicity and second the FWHM of individual lines is larger in the calculated spectra of Kr@C₆₀. The asymmetric line shape at 5 K is partially caused by the isotope distribution of Kr: ⁸²Kr – 11.6%, ⁸³Kr – 11.5%, ⁸⁴Kr – 57%, and ⁸⁶Kr – 17.3%, counting the four most abundant isotopes.²⁹ The model predicts extra absorption on both sides of the most abundant isotope peak at 5 K but does not account for all absorption on the higher frequency side of that peak, as discussed in Sec. IV.

The spherical oscillator parameters that provide the best match to the experimental THz spectra, and their confidence limits, are summarized in Table I. In all cases, the anharmonic terms V₄ are positive, which means that the separation between the energy levels increases with the increasing energy. Unlike the highly anharmonic case of He@C₆₀ (see the fractional anharmonicity v_anh in Table I), for which the transitions from different starting levels are resolved in the THz spectrum at high temperature, the transitions for Ne, Ar, and Kr merge into one broad line. Since the separation between the energy levels increases with the increasing energy, this broad spectral line shifts to higher energy with the increasing temperature as observed for Ne, Ar, and Kr. The anharmonic term of the potential, V₄, mixes states with different n but the same ℓ in the approximation of spherical symmetry. The amplitude squared, |ξ_n|², of the dominant harmonic oscillator state with the principal quantum number n is given in Table II. In the case of Ne, the |ξ_n|² factor decreases as n increases, reflecting the significant anharmonicity of the potential, which mixes states with different n quantum numbers. For Kr, on the other hand, there is little mixing, which corresponds to a low level of anharmonicity. The behavior of Ar is intermediate.

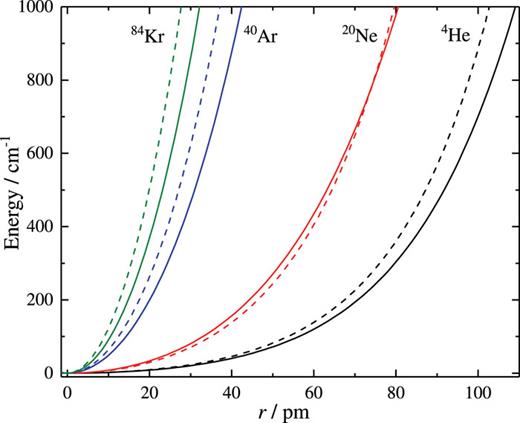

In Fig. 5, we compare the best-fit anharmonic interaction potentials V(r) with the potentials derived by a summation of LJ two-body terms using the parameters of Pang and Brisse.¹⁹ The best-fit anharmonic oscillator potential and the LJ potential agree best for the case of Ne@C₆₀. Other atoms show minor discrepancies between the best-fit anharmonic oscillator potential and the LJ potential curves. In general, the LJ potentials with parameters from Pang and Brisse¹⁹ agree surprisingly well with the experimental data, especially considering the delocalized electronic structure of C₆₀. As can be seen in Fig. 5, the potential curves become increasingly steep when going from He to Kr, which is consistent with the larger size of the atoms.

Despite the overall good agreement between the theoretical model and the experimental data, some discrepancies remain. These include the following: (1) An anomalous temperature-dependent shift of the main THz absorption peak of Ne@C₆₀ at temperatures below 30 K is seen, Fig. 1 (inset). This low-temperature frequency shift is not predicted by the theoretical model, in contrast to the behavior at higher temperatures, which does appear to be well-predicted. (2) In some cases, the difference in translational frequency for isotopes of different masses is not in full agreement with theoretical expectations. This is the case for the ²²Ne and ²⁰Ne peaks, Fig. 1. (3) In some cases, an additional structure is observed above the main THz absorption peak frequency, e.g., a peak at 60 cm⁻¹ in the Ne@C₆₀ spectrum, Fig. 1. Although we do not have a full explanation of all of these features, the following factors may be considered: (1) Temperature-dependent phase transitions and lattice parameters for crystalline C₆₀. (2) Merohedral disorder. (3) Interference between the translational modes of the endohedral atom and inter-molecular lattice modes.

Crystalline C₆₀ has a first-order phase transition from the face-centered cubic phase above 260 K to a simple cubic structure below 260 K.³⁰ The lattice constant decreases gradually with temperature with a jump at 260 K and a small kink at about 90 K. Below 90 K, there is a frozen-in merohedral disorder. The two orientations, named hexagonal and pentagonal, are distinguished by the relative orientation of the central cage and its 12 nearest-neighbor C₆₀ molecules. About 85% of C₆₀ molecules have their electron-rich double bond facing the pentagonal face and 15% have the same bond facing the hexagonal face of a neighboring molecule.^30,31

The phonon density of states has a gap between ∼70 and 240 cm⁻¹.³² The phonons below 70 cm⁻¹ have mainly inter-molecular character, and those above 240 cm⁻¹ have mainly intra-molecular character.

The anomalous temperature-dependent shift of the main THz absorption peak of Ne@C₆₀ at temperatures below 30 K might be associated with the interference between the translational modes of the endohedral atom and inter-molecular lattice modes. The low-temperature shift is not observed for helium²⁴ nor for argon, Fig. 3, which is consistent with the observation that the translational frequencies of these two atoms are above the density of states of inter-molecular phonons of crystalline C₆₀. For Ne, on the other hand, there is a clear overlap of the translational peak with the region of high phonon density, as can be seen in the INS spectrum (supplementary material). The interaction with inter-molecular lattice modes may also explain why the frequencies of the ²⁰Ne and ²²Ne translational peaks do not agree with the theoretical prediction.

The additional structure above the main absorption peak at low temperature could be explained by merohedral disorder. It was shown theoretically that the two lattice orientations of C₆₀ molecules produce different electric field gradients at the C₆₀ cage centers. The interaction of these electric field gradients with the molecular quadrupole moments splits the rotational levels of endohedral molecules.³³ Although the noble gas atoms lack a quadrupole moment, it is possible that the atom has a different potential function, Eq. (1) in the hexagonal and pentagonal sites. There are two experimental observations that support this idea in the case of Ne@C₆₀. First, the behavior of the Ne@C₆₀ 60 cm⁻¹ line is consistent with transitions starting from the ground state (supplementary material). Second, the ratio of the areas of 56.6 and 60 cm⁻¹ peaks for Ne@C₆₀ is 8:2 (supplementary material), which is consistent with the relative population of pentagonal and hexagonal sites in C₆₀ at low temperature.³⁰ The temperature dependence and the spectral weight of the 87 cm⁻¹ line of Kr@C₆₀ are not possible to evaluate reliably because it overlaps with the spectral lines of the main site. We have no experimental evidence that Ar@C₆₀ has any side peaks that can be related to the minority site, Fig. 3. However, a clear minority side-peak was observed for He@C₆₀.²⁴

To summarize, we have observed THz peaks from the translation of Ne, Ar, and Kr atoms inside fullerene cages. The THz spectra, and their temperature-dependence, are mainly consistent with confinement of the atoms by an anharmonic spherical potential. The translational frequency of He, Ar, and Kr is close to 90 cm⁻¹ (2.7 THz) although the mass changes by a factor of 20 from He to Kr. This is because the increase in mass of the endohedral atom and its accompanying increase in size lead to opposite influences on the translational frequency. The increase in mass decreases the translational frequency, while the increases in size leads to a steeper confining potential, which increases the translational frequency. The combination of mass and atom size sets Ne@C₆₀ to the lower frequency side from other atoms to 57 cm⁻¹. The anharmonic part of the potential is positive, V₄ > 0, and the anharmonicity weakens with the increase of the atom size. Since the anharmonicity of the heavier atoms is not as large as for the lighter helium, the peaks are not resolved in the spectrum, and instead, the anharmonicity leads to a broadening and shift of the peak to higher frequency with an increase in temperature.

The supplementary material includes technical details of the inelastic neutron scattering measurements and the subtraction of the empty C60 spectrum from the Ne@C60 spectrum; the details of how the THz absorption spectra were calculated and the baseline subtracted and additional data about Ne@C60 spectra are included; and the induced dipole moments of atoms that are compared and the dependence of LJ potential curves on the direction of atom displacement that is plotted.
