Dissociative electron attachment to the gas-phase nucleobase hypoxanthine

The fields of radiation chemistry and biophysics are generally interested in low-energy electron interactions with biological molecules because such electrons are the most abundant secondary particles arising from ionizing radiation. Secondary particles, and specifically low-energy electrons, from ionizing radiation are responsible for many of the lethal or mutagenic effects on genetic information in living cells.¹ Dissociative electron attachment (DEA) is the only resonant process that can result in selective bond cleavage of biomolecules^2–5 at low electron energies (<10 eV) and is thought to be the dominant process responsible for the mutagenic effects in cells.⁶ The DEA mechanism has been extensively discussed previously regarding gas-phase studies of biomolecules.^4,7–9 Briefly, DEA involves the low-energy electron capture by a molecule (AB) to produce a transient negative ion (TNI) state that can then dissociate into an anion (A⁻) and a neutral radical (B^•), according to the following general scheme:

Sanche et al. demonstrated that low-energy electrons (3-20 eV), via the DEA process, can effectively induce single- and double-strand breaks in DNA, which is composed of nitrogenous bases, deoxyribose sugar moieties, and phosphate groups surrounded by water.¹⁰ It has been suggested that DNA damage can be due to the decay of TNIs of the sugar-phosphate backbone or of the nucleobases into more basic molecular components.^1,10,11 Furthermore, low-energy electrons have been shown to specifically damage nucleic acids and nucleobases.^2,12 Several gas-phase studies over the last decade have reported that electrons with energies well below the ionization energies of the nucleobases can induce DEA. The DEA processes of adenine (Ade),^2,5,12–15 guanine (Gua),^2,15,16 cytosine (Cyt),^15,17 thymine (Thy),^{3,13,15,17,18} and uracil (Ura)^18,19 have all been investigated extensively, and they have demonstrated that these molecules are quite fragile and susceptible to fragmentation even at electron energies of ∼1 eV.¹¹ Many of these studies have shown that precise control of the electron energy can induce chemical reactions selectively. Interestingly, the DEA process of the purine derivative, hypoxanthine (Hyp), has been overlooked until now. The two dominant tautomeric structures of Hyp are shown in Fig. 1, along with the structure of the most stable tautomer of Ade in the gas phase for comparison. Hyp serves as the nucleobase that is attached to the ribose sugar in inosine (I), which is an important nucleoside involved in the genetic code translation in cells. Hyp is also a versatile component of the wobble base pairs in the RNA secondary structure because three of the four wobble base pairs that bond two nucleotides in RNA contain Hyp: Hyp-Ura, Hyp-Ade, and Hyp-Cyt.²⁰ Because Hyp has the ability to bind to several other nucleobases, it is considered to be a universal nucleobase.²¹ The resulting tRNA molecules that can contain Hyp link DNA and RNA sequences with amino acids of a growing peptide chain during protein synthesis. Thus, Hyp has an important role in protein synthesis and is likely damaged similarly to the DNA nucleobases upon ionizing radiation. Additionally, Hyp can also result from the deamination of Ade in DNA via mutagenic processes.

In this work, we investigate the DEA to Hyp for the first time using a high-resolution electron energy monochromator coupled to a quadrupole mass spectrometer (QMS). The prior DEA studies of Ade^2,5,16 and other nucleobases,^2,3,19,22,23 including Gua, which have similar chemical structures to Hyp, will be discussed and compared with the present results. The pyrimidine bases, Cyt and Thy, will also be discussed in relation to some fragments. Quantum chemical calculations of the various tautomers of Hyp were also performed to assist with the interpretation of the (Hyp − H)⁻ formation.

The DEA to Hyp was investigated in a high vacuum chamber (base pressure ∼8 × 10⁻⁸ mbar) at the Nano-Bio-Physics laboratory in Innsbruck. We have described this instrument in detail in several previous publications.^24–27 Hyp (C₅H₄N₄O, M = 136 g/mol), a white crystalline powder, was purchased from Sigma-Aldrich (Vienna, Austria) and had a stated purity of ≥99%. Briefly, inside the vacuum chamber, a molecular beam of Hyp was formed from a capillary that is attached to a copper oven. The molecular beam was crossed at a 90° angle in the collision region with an electron beam produced by a high-resolution hemispherical electron monochromator (HEM). During these experiments, the energy resolution of the electron beam was typically 100-140 meV (full width at half maximum (FWHM)), and the electron beam had an electron current of ∼10 nA. Within the vacuum chamber, the Hyp powder was heated to 453 ± 3 K inside the copper oven to sufficiently sublimate the sample to produce the neutral molecular beam at a working pressure of ∼2 × 10⁻⁷ mbar. The sample was heated with care to avoid its melting point (∼573 K) and also to prevent thermal decomposition (see our previous publication for details²⁶). During the measurements, the chamber was heated to approximately 350 K by using internal lamps to prevent molecular condensation on the lenses of the HEM. The QMS extracted and detected the anions that were formed upon the interaction of Hyp with the electrons in the collision region of the HEM.

The experiments were performed as follows. Cation mass spectra (70 eV) were obtained as a function of increasing temperature until the Hyp parent cation was observed with a relatively high signal. Then, the oven was kept constant at that temperature (∼453 K). Anion mass spectra were then obtained to determine the anions formed at each electron energy from 0 to 10 eV at 1 eV intervals. For each anion observed in the mass spectra, ion efficiency curves were recorded while scanning the electron energy from 0 to 9 eV. Typically, for each anion observed, ∼30 energy scans were obtained and averaged depending upon the ion yield. The electron-energy scale was calibrated by introducing CCl₄ to a pressure of ∼2 × 10⁻⁶ mbar into the chamber and measuring the ion efficiency curves of m/z 35 for Cl⁻ before and after each Hyp measurement. The anion, Cl⁻, is formed from CCl₄ according to the following well-known DEA reaction,

The Cl⁻ has a distinct resonant peak at 0 eV that was used to calibrate the energy scale.²⁸

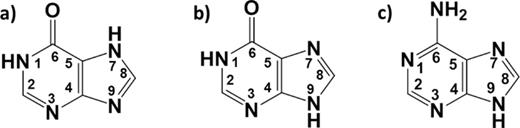

Quantum chemical calculations were performed to understand the formation of the (Hyp − H) anion in which hydrogen loss can occur from different positions of the molecule depending upon the tautomer. Hyp is known to exist as several distinct keto and enol tautomers in different states (gas phase vs. aqueous phase) in which the base structure is the same but a hydrogen can be in different locations, as shown by prior computations.^21,29,30 Although our gas-phase experiments could not differentiate between the tautomers, prior computations have shown that the keto-N1H,N7H tautomer of Hyp (in which the hydrogen is on N7 rather than N9 in the imidazole ring, see Fig. 1) has the lowest relative energy and represents 81% of the population in the gas phase at room temperature.^21,29,31 An experimental ultraviolet photoelectron spectroscopy (UPS) study reported results that also support those theoretical studies.³² It has been previously shown that the keto-N1H,N9H tautomer, also shown in Fig. 1, is only ∼0.92 kcal/mol (0.04 eV) higher in energy and represents 18% of the population in the gas phase at room temperature. However, all the enol tautomers were found to be less stable.²¹ Thus, the keto forms of Hyp have been found to be dominant in the gas phase. Our present calculations are in agreement with the previous results obtained regarding the relative stability of the neutral Hyp tautomers at room temperature.³³ We note that the Hyp sample in our experiment was at 453 K, and this higher temperature may result in an increase in the keto-N1H,N9H tautomer population. Prior calculations of the tautomeric equilibrium constants in the gas phase at 298 K vs. 480 K have suggested that the initially unfavorable population of the keto-N1H,N9H tautomer increased significantly in relative contribution when the temperature was increased to 480 K (from 0.285 to 0.464, respectively).³³ In our computations, we have also determined the dipole moments of the neutral tautomers of Hyp, searched for dipole-bound anions, computed bond dissociation energies, and determined the reaction enthalpies for the dissociation of hydrogen atoms from the neutral Hyp tautomers.

The computations were performed as follows. The tautomers were labeled through the location of the nitrogen and/or oxygen bound hydrogens. There are six keto-forms and eight enol-forms with the OH pointing either away from (enol-1) or towards (enol-2) the five-membered ring. All structures were optimized using Density Functional Theory (DFT), and the calculations were conducted within Gaussian09³⁴ using Becke’s standard three-parameter functional, denoted B3LYP,³⁵ together with analytic energy gradients. Calculations completed with previous versions of the Gaussian software were rerun to ensure consistency through the use of identical functional numerical integration grids. A Pople-style basis set of valence triple-zeta quality, denoted 6-311+G(d,p),³⁶ was used, which includes a set of diffuse s- and p-functions on each non-hydrogen atom and polarization d- and p-functions, the latter on each hydrogen atom. The nature of the stationary points obtained was checked by calculating the analytic Hessians to ensure the absence of imaginary frequencies, indicating that at least local minima had been reached. All of these local minima proved to be planar except for the enol-1, NH1 structure where steric repulsions induced non-planarity. Enthalpies for the dissociation of hydrogen atoms from the electron-attached Hyp were constructed by first calculating the appropriate bond dissociation energies in the neutral molecule, then subtracting the computed electron affinity of the resulting radical species, and finally making the relevant thermochemical corrections to account for both zero-point vibrational motions and state populations. Because the experimental conditions were at 453 K, we determined the temperature effects on the computed enthalpies. As an example, for the keto-N1H,N9H dissociation, we found a change in enthalpy of approximately 0.8 eV from 300 to 500 K for both reactants and products. Exploratory calculations to determine the propensity for formation of dipole-bound anion states in the various tautomers were conducted roughly following the protocol outlined by Desfrancois et al.³⁷ using second-order Møller-Plesset perturbation theory (U(MP2-aug-cc-pVDZ+)) but employing atom-centered basis functions from the augmented correlation consistent sets of Dunning and coworkers³⁸ and suitably located off-molecule diffuse s, p-sets.

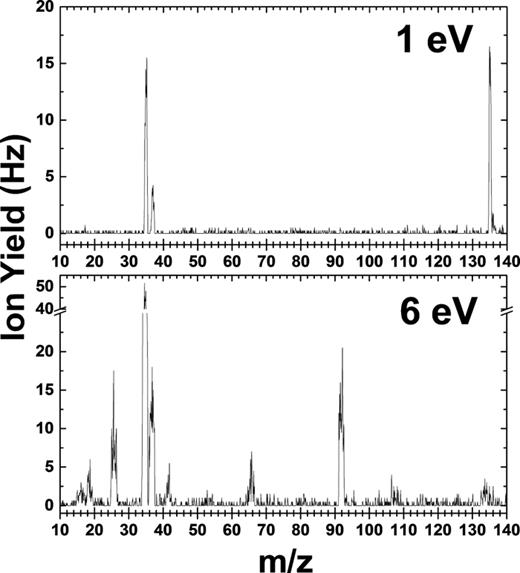

Figure 2 presents the anion mass spectra for Hyp at electron energies of 1 and 6 eV. At 1 eV, the only anion from the sample is m/z 135, which we assign to the principal anion C₅H₃N₄O⁻ or (Hyp − H)⁻. The two peaks at m/z 35 and m/z 37 are due to Cl⁻ from the residual CCl₄ calibration gas, which always remained in the chamber, and these peaks are present in all mass spectra. In contrast to the mass spectrum at 1 eV, the mass spectrum recorded at 6 eV shows the fragmentation of Hyp, comparable to that previously reported for Ade.⁵ Several of the most abundant fragment anions observed in this work have corresponding masses found in the Ade anion mass spectrum,⁵ which is not surprising, considering their similar purine structures. We have assigned some of the observed Hyp anions based upon analogous anions observed in the Ade DEA study.⁵ At 6 eV, the anions observed from Hyp include m/z 16 assigned to O⁻, m/z 26 assigned to CN⁻, m/z 42 assigned to OCN⁻, m/z 66 assigned to C₃NO⁻/HC(HCN)CN⁻, m/z 92 assigned to C₄H₂N₃⁻, and m/z 107 assigned to C₄H₃N₄⁻/C₄HN₃O⁻. The anions at m/z 92 and m/z 26 are the most intense above 5 eV. Additionally, at 6 eV, (Hyp − 2H)⁻ is observed, although in a very low abundance. Table I includes the peak positions of the resonances and most likely anion molecular formulas for all the anions observed from Hyp in this study compared to those from the Ade DEA study reported by Huber et al.⁵ The assignments proposed here could be clarified using future detailed quantum chemical calculations.

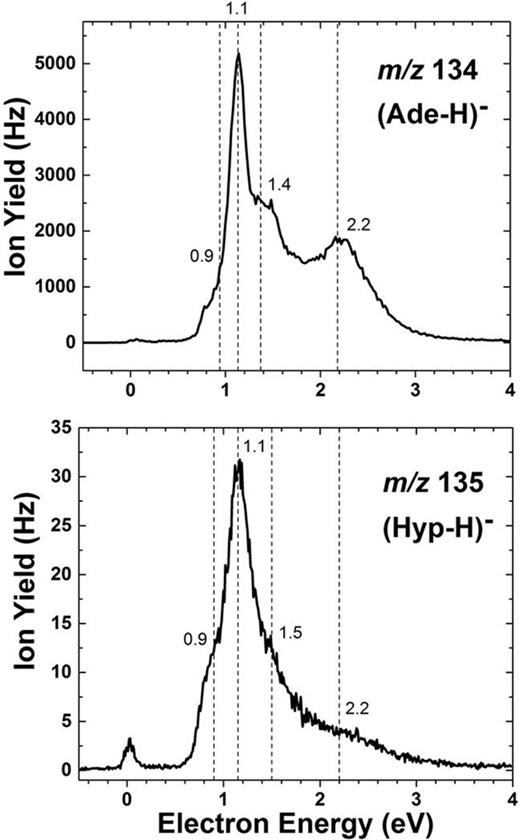

Figure 3 presents the ion efficiency curve of m/z 135 for (Hyp − H)⁻, which is formed according to the following reaction, in which a hydrogen radical is produced:

The ion efficiency curve for (Hyp − H)⁻ is compared in Fig. 3 to m/z 134 for (Ade − H)⁻ produced upon electron attachment to Ade at a similar 110 meV resolution (previously unpublished), with both exhibiting resonances from 0.7 to 3 eV. Dehydrogenation could occur from different locations on the parent Hyp molecule depending upon which tautomer is dominant under our experimental conditions. For the keto-N1H,N7H tautomer, hydrogen loss could occur from N1, C2, C8, or N7. For the keto-N1H,N9H tautomer, hydrogen loss could occur from N1, C2, C8, or N9. These two tautomers, as mentioned above, comprise the majority of the population in the gas phase. Experiments with other nucleobases have all shown a characteristic sharp resonance at ∼1 eV and broader structures at higher energies¹⁴ for the (Parent − H) anion, which have been attributed to the exclusive loss of hydrogen from nitrogen sites of the nucleobases.^3,15,23 Considering the structural similarities between nucleobases, dehydrogenation at a nitrogen site of Hyp to form the closed-shell anion, (C₅H₃N₄O)⁻, is also likely and may suggest site and bond selectivity for this reaction. Isotopic studies with Ade concluded that dehydrogenation at the C2 position did not occur¹⁴ and thus further supports loss from the nitrogen sites. For Thy, isotopic studies¹⁵ and methylated Thy studies²³ also confirmed that at low-electron energies, the N—H bonds selectively dissociate. Thus, we will primarily discuss hydrogen loss from the nitrogen sites of Hyp.

The ion efficiency curves for the principal (Parent − H)⁻ fragments from Ade and Hyp both exhibit sharp peaks at ∼1.1 eV and other weaker features below 3 eV; however, the relative abundances of these features differ between the two molecules. The molecular formulas of the (Parent − H) anions of Ade and Hyp are quite different (C₅H₄N₅⁻ vs. C₅H₃N₄O⁻, respectively), and the parent molecules have different dominant tautomers in the gas phase (the N1H,N9H tautomer for Ade vs. the keto-N1H,N7H for Hyp³⁹) at 298 K, as mentioned above, which may result in hydrogen loss from different positions on the parent molecule. The sharp ∼1 eV structure has been assigned as dipole-supported vibrational Feshbach resonances in the case of Thy and Ura.^14,40,41 However, recent time-resolved photoelectron imaging experiments of Ura have explored the electron attachment mechanism for the resonances observed near 1 eV and showed that the electron can attach directly to the valence bound state, rather than needing a doorway dipole-bound anion.⁴² Gohlke et al. attributed the resonance to formation of (Ade)^−# via electron capture on the lowest π^∗ antibonding orbital of the Ade neutral molecule before dissociation into (Ade − H)⁻.¹² However, Denifl et al. suggested that this sharp resonant peak in the case of Ade is due to crossing of the potential energy curves of the lowest σ excited state and the dipole-bound state¹⁴ and due to loss of H from the N9 position. Furthermore, when the N9 position was methylated in the Ade experiments, the large sharp resonance just above 1 eV disappeared, supporting the proposal that this peak is due to hydrogen loss from the N9 position.¹⁴ Hydrogen loss from the N9 position in Hyp may occur if our sample is a mixture of the two dominant tautomeric forms. To further determine which reaction is more favorable, we calculated the reaction enthalpies for hydrogen loss from the two different Hyp tautomers. For the keto-N1H,N7H tautomer, hydrogen loss from the N7 position results in an enthalpy of 0.80 eV. Whereas for the keto-N1H,N9H tautomer, hydrogen loss from the N9 position is only slightly lower with an enthalpy of 0.77 eV, indicating that the two tautomers are approximately isoenergetic. However, the bond dissociation energy (BDE) for N9-H cleavage in the keto-N1H,N9H tautomer was found to be 4.49 eV, while the BDE for N7-H cleavage in the keto-N1H,N7H tautomer was found to be slightly higher at 4.52 eV, indicating that the N9-H bond is weaker in the keto-N1H,N9H Hyp tautomer. Computations of the bond lengths, which could correlate with the bond strengths, showed that the N7-H and the N9-H bonds in the respective tautomers both had very similar lengths of 1.009 Å. Furthermore, we also calculated the dipole moments to be 1.6 D for the keto-N1H,N7H and 5.3 D for the keto-N1H,N9H tautomer. The very low dipole moment of the keto-N1H,N7H tautomer suggests that an electron would not easily become trapped in a diffuse bound state of this tautomer form, even if it is dominant in our gas-phase experiments. In prior works, the dipole moment of the keto-N1H,N7H Hyp tautomer has also been calculated to be lower (at 1.21-1.88 D)³¹ than that of the keto-N1H,N9H Ade tautomer (2.36-2.53 D^14,31), and the critical dipole moment is 2–2.5 D to form dipole-bound anion states that can then give rise to vibrational Feshbach resonances.⁴⁰ Our calculations resulted in a dipole moment of 2.45 D (B3LYP) or 2.51 D (MP2) for the keto-N1H,N9H Ade tautomer. Also, preliminary computational searches for dipole–bound anions revealed a weakly attached electron in the keto-N1H,N9H Hyp tautomer (see Fig. 4) and, as expected from the computed dipole moment of Hyp, we failed to locate such a state in the keto–N1H,N7H form of Hyp. The electron affinity for this dipole-bound anion (somo) was calculated to be 17 meV using the U(MP2-aug-cc-pVDZ+) method. Thus, we tentatively propose that the resonance at 1.1 eV for the (Hyp − H)⁻ arises from a dipole-bound state, as suggested previously for Ade by Denifl et al.,¹⁴ in which hydrogen loss occurs at either the N9 or N1 position of the keto-N1N, N9H tautomer population. Of note, the reaction enthalpies for hydrogen loss from the N1 position were both higher at 0.95 eV and 1.05 eV for the keto-N1H,N7H and keto-N1H,N9H tautomers, respectively, suggesting that hydrogen loss from the N1 position in either tautomer is slightly less favored although still possible within this threshold. We also observed in our calculations that the lowest relative energy radical is the keto-N1H (hydrogen atom loss at the N1H) radical from Hyp, while the keto-N7H and the keto-N9H radicals were both slightly higher in energy at 13 kJ/mol (0.14 eV). The Hyp deprotonated anions also had energies of 15 and 27 kJ/mol (0.16 and 0.28 eV) for the keto-N7H and the keto-N9H tautomers, respectively, relative to the keto-N1H tautomer. Therefore, we cannot rule out cleavage at the N1 position with our present experiments and calculations.

The ion efficiency curve for (Ade − H)⁻ in Fig. 3 shows additional features at 0.9 eV and a shoulder at 1.4 eV; however, although present, these features are not clearly resolved for (Hyp − H)⁻ possibly due to a slightly lower electron energy resolution in our study. Denifl et al. demonstrated clearly using methylated Ade that the shoulder near 1.5 eV is due to H loss from the N9 position in Ade.¹⁴ Additionally, as shown in Fig. 3, the (Ade − H)⁻ has a much larger ion yield than the (Hyp − H)⁻, which could be partially due to the fact that the N9-H keto tautomer makes up 100% of the population of Ade in the gas phase at room temperature.⁴³ If the dominant Hyp tautomer in the gas phase is the keto-N1H,N7H tautomer but its low dipole moment precludes the formation of a dipole-bound state, then the features near 1 eV for the (Hyp − H) anion would be expected to have a much lower ion yield if they primarily arise from the minor keto-N1H,N9H tautomer. We do observe this, and it may support the argument that the anion results from hydrogen loss from the N9 position of the Hyp keto-N1H,N9H tautomer.

Minaev et al. suggested that the 2.2 eV peak for Ade is correlated to the N—H bond cleavage in the amino group.¹⁶ However, in the case of Hyp, we observe this broad peak in weak abundance, and in the case of Ade, prior experiments with 6-dimethyladenine, in which the N—Hs were replaced with N—CH₃ groups, also still showed this peak.¹⁴ This suggests that this resonance does not arise from N—H bond cleavage but instead due to dehydrogenation from a location on the ring structure itself.

Additionally, a low-intensity peak at 0.03 eV was observed for (Hyp − H)⁻, similar to the low-intensity 0.08 eV peak for (Ade − H)⁻. In the case of Ade, Huber et al. suggested this peak near 0 eV may arise from the endothermic DEA reaction to vibrationally excited Ade or a hot band transition.^5,12 They ruled out ion-molecule reactions with SF₆⁻,¹² as do we, because SF₆ was not used as the calibration gas. An alternative assignment was given for the DEA to Thy, where it was concluded that such a weak resonance near 0 eV was due to H₂ loss from Thy that contains ¹³C.^3,17

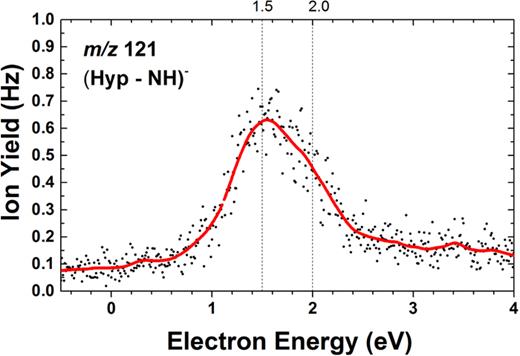

Figure 5 presents the ion efficiency curve for m/z 121, which is assigned to (Hyp − NH)⁻. This anion is the only other anion besides the (Hyp − H)⁻ that has resonant peaks below 3 eV, and it has a lower intensity than most of the other major anions. The ion efficiency curve of (Hyp − NH)⁻ has a broad structure with two overlapping resonant peaks with maxima at 1.5 and 2.0 eV. (Hyp − NH)⁻ is formed according to the following reaction:

However, unlike the DEA to Ade, we did not observe the loss of a NH₂ group or a NH₃ molecule from Hyp (m/z 119 or 118, respectively). This is expected because in Hyp the NH₂ group is replaced with oxygen (= O) bonded to C6.

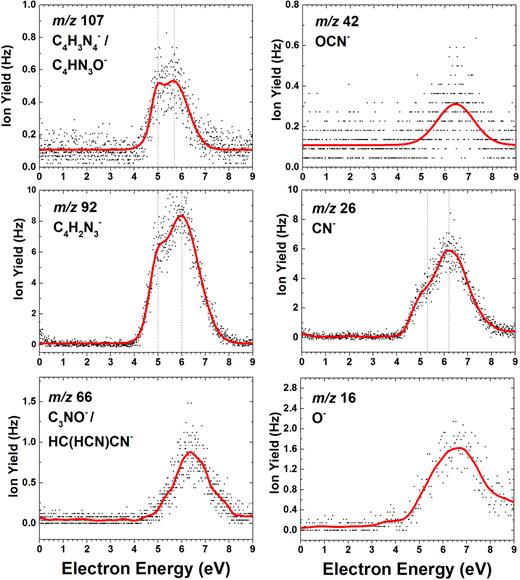

Figure 6 presents the ion efficiency curves for the anions produced upon electron attachment to Hyp with peak maxima between 5 and 7 eV that most likely arise from core-excited resonances. These fragment anions include m/z 107 (C₄H₃N₄⁻/C₄HN₃O⁻), m/z 92 (C₄H₂N₃⁻), m/z 66 (C₃NO⁻/HC(HCN)CN⁻), m/z 42 (OCN⁻), m/z 26 (CN⁻), and m/z 16 (O⁻). Several other nucleobases have also shown complex decomposition in the energy range from 4 to 9 eV.^5,19 The anion at m/z 107 exhibits two overlapping resonances at 5.0 and 5.7 eV. C₄H₃N₄⁻ from Ade at m/z 107 also exhibits at peak at 5.7 eV.⁵ In the case of Hyp, the following two reactions could form the anion at m/z 107:

The anion at m/z 107 that was observed in the DEA to Ade was suggested to form via HCN and H loss because it is the most energetically favorable pathway.⁵ In the case of Hyp, an additional H atom would be lost to exothermically form H₂, as in reaction (6). However, other neutral-loss possibilities include the ejection of a CN radical + 3H or HCN + 2H, but these reaction pathways are less favorable thermodynamically.

The anion at m/z 92 assigned to C₄H₂N₃⁻ also exhibits two overlapping broad resonances at 5.0 and 6.0 eV similar to those observed for the same anion at m/z 92 from Ade in which two resonances (at 5.6 eV and 6.7 eV) were identified. Likewise, the anion at m/z 66 from Hyp, which we assign to C₃NO⁻/HC(HCN)CN⁻, exhibits a broad resonance with a peak maximum at 6.3 eV. The HC(HCN)CN⁻ could arise from the cleavage of the intact imidazole ring of Hyp. The shape and position of its resonant peak are similar to those of Ade’s m/z 65, which was assigned to HCN(CN)₂⁻ by Huber et al.⁵

The anion at m/z 42 assigned to OCN⁻ has been extensively observed in several other nucleobase DEA studies.^2,5,18,19 The OCN⁻ is formed due to the high electron affinity of OCN (3.61 eV)^44,45 and can result from complex dissociation (multiple bond breakage) of the 6-membered ring of Hyp. Here, in contrast to many other studies, we observe a very weak, broad resonance (0.9 relative abundance to the (Hyp − H)⁻) at 6.4 eV, and we note that OCN⁻ was not observed in the DEA to Ade because it lacks oxygen.⁵ This anion was observed in the case of Gua, which has a similar purine structure as Hyp, but it exhibited several resonances below 5 eV.² Additionally, OCN⁻ was observed in the DEA to Thy with a resonance at 6.81 eV, and it was also observed in the DEA to Cyt with a resonance at 5.98 eV.¹⁷

CN⁻ from Hyp also has a broad resonant structure with two overlapping peaks at 5.3 and 6.2 eV, and this anion is also often observed in measurements of electron attachment to nucleobases² because of the high electron affinity of CN (3.86 eV).⁴⁶ The CN⁻ is formed due to complex excision via the breaking of multiple bonds in Hyp. The CN⁻ from Ade, which should be comparable, also exhibited two broad overlapping peaks at 5.8 and 6.7 eV in the study of Huber et al.⁵ The CN⁻ resonances from both Hyp and Ade near 6 eV are similar but have different shaped leading edges. The CN⁻ is the dominant peak above 5 eV in the DEA to Ade; however, m/z 92 is slightly more intense above 5 eV in the DEA to Hyp. In the cases of the pyrimidine bases, Thy and Cyt, resonances due to CN⁻ were observed at 6.94 and 6.77 eV, respectively, among several other peaks.¹⁷

Finally, as shown in Fig. 6, O⁻ is observed at m/z 16 with a broad resonance at 6.6 eV. To compare to other purines, for Gua, the O⁻/NH₂⁻ observed by Abdoul-Carime et al. showed a resonance at ∼6.2 eV, and a resonance at ∼2 eV was assigned to NH₂⁻. Taking now the direct comparison of the present O⁻ with the same m/z for Gua from Ref. 2, the ∼6.2 eV resonance in their ion yield was likely due to O⁻. Although Ade does not contain oxygen and thus O⁻ would not be expected, NH₂⁻ would be expected similar to Gua. However, the NH₂⁻ resonance was not reported in the studies of the DEA to Ade.^2,5 The O⁻ from the pyrimidine, Thy, which does not contain NH₂ functionalities, exhibited resonances at 9.8 and 12.36 eV.¹⁷ Also in the DEA to Cyt, a sharp resonance was observed at 5.74 eV for m/z 16, but because Cyt also contains the amino functional group, it could have resulted from either NH₂⁻ or O⁻.¹⁷

We have measured the anions resulting from the DEA to gas-phase Hyp as a function of electron energy below 9 eV. Hyp is sensitive to dissociation at sub-ionization electron energies, involving cleavage of simple bonds as well as complex cleavage of the parent ring structure. The Hyp parent anion is not formed in the present DEA experiments in any measurable quantity above the ¹³C contribution to (Hyp − H)⁻ at m/z 136. The dominant anion observed in this study is the closed-shell dehydrogenated anion, (Hyp − H)⁻, which exhibits a sharp resonance at 1.1 eV. For many nucleobases, including now Hyp, the dehydrogenated anions are the dominant fragments formed upon DEA, which has been suggested to be driven by the high electron affinities of their (Parent − H) radicals.^5,19 A relatively high electron affinity for the corresponding (Hyp − H) radicals was also obtained in our computations. Hydrogen loss from either the N1 or the N9 site of the keto-N1H,N9H Hyp tautomer is most probable based on DEA experiments of similarly structured nucleobases and our present calculations. The low dipole moment and lack of a dipole-bound anion for the dominant keto-N1H,N7H tautomer suggests that the keto-N1H,N9H tautomer is primarily responsible for the (Hyp − H) anion signal observed in our experiments at 453 K. The 1.1 eV resonance for (Hyp − H)⁻ is in a similar position to the (Parent − H) anion resonances observed for other nucleobases, including Ade⁵ and Thy,^3,17 and it may occur via a dipole-bound anion state of the keto-N1H,N9H Hyp that could be coupled to a vibrational Feshbach resonance. The (Parent − H)⁻ appears to be a fingerprint characteristic of most nucleobases. Future isotopically labeled or methylated-Hyp experiments may further clarify the positional origin of the (Hyp − H) anion. Also, unlike Ade, we do not observe the loss of NH₂ or NH₃. However, the abstraction of neutral NH to form m/z 121 is observed at low-electron energies, although in very small abundance. A variety of anions are observed from Hyp between 5 and 7 eV, including O⁻, CN⁻, OCN⁻, C₃NO⁻/HC(HCN)CN⁻, C₄H₂N₃⁻, and C₄H₃N₄⁻/C₄HN₃O⁻, with CN⁻ and C₄H₂N₃⁻ dominating at these energies. These anions form due to complex dissociation reactions or simple bond cleavage from the ring structures of Hyp. Interestingly, the intact imidazole ring (m/z 66) can fragment from the parent structure. The formation of anions from the DEA to Hyp is relevant to the radiation damage community because of the many possible pathways of decomposition of the Hyp ring structure, which could effectively prevent the participation of Hyp in wobble base pairing in tRNA.

M.M.D., I.C., and S.P. would like to thank the U.S. Department of Energy Office of Science, Office of Basic Energy Sciences under Award No. DE-FC02-04ER15533 for support and funds for M.M.D.’s travel to the Innsbruck lab to perform the experiments. This is Radiation Laboratory Document No. NDRL-5059. This work was also supported by the Fonds zur Förderung der wissenschaftlichen Forschung (Austrian Science Fund (FWF) No. P22665).
