Adsorption of hydrogen on neutral and charged fullerene: Experiment and theory

The adsorption of permanent gases on graphite, graphene, nanotubes, layers of fullerenes, and other graphitic materials has attracted considerable interest. One factor that drives research in this field is the need to develop the foundations for a hydrogen economy.¹ The use of hydrogen as an energy carrier requires the development of methods to store hydrogen in low-weight containers at high density and low cost, especially if hydrogen is to be used for transportation.² Storage of hydrogen gas in liquid form at high pressures and cryogenic temperatures is not likely to meet the performance targets of the US Department of Energy, and invokes safety hazards.³ Better alternatives may be offered by absorption of H₂ to form metal hydrides, by chemical reactions, or by adsorption in porous, light-weight materials with large specific surface areas.^3,4 Although the physisorption energy of H₂ in pristine carbon-based materials, such as graphene, nanotubes, or fullerenes is only around 50 meV, the introduction of defects, dopants, or charges may raise adsorption energies sufficiently to allow for efficient storage at moderate pressures near ambient temperatures.^5,6

Furthermore, hydrogen physisorbed on graphite or graphite-like materials exhibits strong corrugation effects, i.e., the interaction between the adsorbate and the substrate is much stronger than the interaction between adsorbate molecules.⁷ This favors the formation of ordered layers which are commensurate with the arrangement of the carbon atoms in the honeycomb lattice of graphite, within certain ranges of coverage and temperature. H₂ molecules on graphite form a relatively simple phase diagram (coverage plotted versus temperature), with the appearance of just one commensurate phase, namely, the √3×√3 phase in which 1/3 of all sites (all second-nearest neighbor sites) over the centers of the hexagonal carbon rings are occupied.⁸ The same phase occurs for D₂ on graphite, but the lower zero-point energy of D₂ results in a much richer phase diagram; several other phases can be distinguished with increasing coverage.⁹ The large isotope effect also results in a significantly higher density when the first monolayer is completed, namely, at 0.0987 D₂/Ų (or 1.55 times the coverage of the √3×√3 phase) versus 0.0927 H₂/Ų.

An intriguing question is the existence of related effects for H₂ and D₂ adsorbed on free fullerenes. Is the corrugation strong enough to favor an arrangement where each carbon ring is occupied by exactly one molecule? Are the molecules small enough to form a commensurate layer when each facet of the fullerene is occupied by one molecule, i.e., when 32 molecules are adsorbed on C₆₀? This phase would have a hydrogen-to-carbon ratio three times that of the √3×√3 phase on graphite; it may be viewed as the 1 × 1 phase which does not form on graphite because H₂, He, and other physisorbed atoms or molecules are too large. The first complete monolayer on C₆₀ may even accommodate additional molecules which would displace the other molecules from their registered sites.^10,11 The number of molecules in this incommensurate solvation layer could be subject to an isotope effect similar to the ≈6% isotope effect for the H₂/D₂ monolayer on graphite; the D₂ solvation shell could thus accommodate two or three molecules more than the H₂ solvation shell.

In a recent letter, we presented first evidence for the formation of positively charged H₂-fullerene physisorption complexes and discussed their possible presence in the interstellar medium.^12–15 Hydrogen is the most abundant element in the universe; 92% of all atoms in the universe are hydrogen.¹⁶ Kroto et al.¹⁷ had already conjectured that fullerenes or their derivatives may be major constituents of circumstellar shells with high carbon content or interstellar dust, catalyze reactions of new molecules in space, and be the carrier of the diffuse interstellar bands (DIBs), but early mass spectrometric evidence for extraterrestrial fullerenes in the carbonaceous impact residue in a crater on a spacecraft¹⁸ or spectroscopic identification of fullerene cations in interstellar absorption bands¹⁹ remained ambivalent.^20,21 Hydrogen inhibits the formation of fullerenes in an arc discharge²² but very high (≥3500 K) temperatures may lead to fullerenes even if hydrogen is present.²³ Interstellar fullerenes may also originate from the envelopes surrounding mass-losing, hydrogen-deficient carbon-rich stars such as R Coronae Borealis (RCB).²⁰

Recently, conclusive spectroscopic evidence for the existence of cold neutral fullerenes has been identified in IR spectra recorded by the Spitzer Space telescope in planetary nebulae.²⁴ Remarkably, they are estimated to represent a few percent of the total available cosmic carbon in those regions. Since then, neutral fullerenes have also been detected in a protoplanetary nebula,²⁵ the interstellar medium,²⁶ around RCB stars,²⁷ young stellar objects, and a pre-main-sequence star.²⁸ With an estimated energy of 50 meV for physisorption of H₂ on fullerenes, H₂ concentrations up to ≈10⁴ cm⁻³ and temperatures as low as 10 K in interstellar clouds,²⁹ we concluded that neutral or charged fullerene-hydrogen complexes are likely to occur in the interstellar medium, at least in the colder regions of dense molecular clouds.¹² The effect of one or more physisorbed H₂ molecules on the absorption spectra would have important ramifications for their possible contribution to the diffuse interstellar bands. The number of these bands, discovered 90 years ago by Heger as broad absorption features superimposed on the interstellar extinction curve³⁰ now exceeds 400³¹ but they have not yet found a satisfactory, coherent explanation.³²

In our recent letter,¹² we discussed the appearance of two ion series, namely, “even-numbered” (H₂)_nC_m⁺ and “odd-numbered” (H₂)_nHC_m⁺ where m = 60 or 70. Both ion series exhibit an abrupt drop in the abundance at n = 32 and 37 for C₆₀ and C₇₀, respectively, which we attributed to an enhanced stability of the commensurate phase of the adsorbate, when each carbon ring is occupied by one hydrogen molecule. In our current work, we present additional experimental findings, together with ab initio calculations. In particular, we offer evidence for completion of a first hydrogen monolayer well beyond the completion of the commensurate phase, with no detectable isotope effect. Moreover, we show that doubly charged ions (H₂)_nHC_m²⁺ also form a commensurate phase. Our ab initio calculations reveal the structure and energetics of small, neutral, and singly or doubly charged C₆₀-hydrogen complexes; they provide a rational for the relatively large abundance of even-numbered (H₂)_nC₆₀⁺.

Neutral helium nanodroplets are produced by expanding helium (purity 99.9999%) from a stagnation pressure of 2 MPa through a 5 μm nozzle, cooled to about 8 K by a closed-cycle refrigerator (Sumitomo Heavy Industries LTD, model RDK-415D), into vacuum. The estimated average number of helium atoms per droplet formed in the expansion is of the order of 5 × 10⁵; the droplets are superfluid with a temperature of ≈0.37 K.³³ The resulting supersonic beam is skimmed by a 0.8 mm conical skimmer, located 8 mm downstream from the nozzle. The skimmed beam traverses a 20-cm long differentially pumped pickup region into which hydrogen (Messer Austria GmbH, specified purity 99.999%) or deuterium (99.7% by weight) are introduced; the measured partial pressure is typically a few times 10⁻³ Pa (uncorrected gauge signal). A small amount of C₆₀ (MER Corp., 99.9%) or C₇₀ (SES Research, 99%) is vaporized into the pickup region from a crucible. The temperature of the fullerene source is adjusted to optimize the pickup of just one fullerene per helium droplet.

After the pickup region, the doped helium droplets pass a region in which they are ionized by electron impact at 70 eV. Cations are accelerated to 40 eV into the extraction region of a commercial time-of-flight mass spectrometer equipped with a reflectron (Tofwerk AG, model HTOF); its mass resolution is about Δm/m = 1/5000. The base pressure in the mass spectrometer is 10⁻⁵ Pa. The ions are extracted at 90° into the field-free region of the spectrometer by a pulsed extraction voltage. At the end of the field-free region, they enter a two-stage reflectron which reflects them towards a microchannel plate detector operated in single ion counting mode. Additional experimental details have been described in Refs. 12 and 34.

Mass spectra are analyzed by determining the ion yield, i.e., the amplitude of each mass peak, properly corrected for background. For strong mass peaks that are well separated from adjacent peaks we simply read the ion yield at its maximum, and in the valleys between adjacent peaks. For more problematic peaks that have either poor statistics or adjacent peaks that are not well resolved, we apply nonlinear curve fitting to determine the background-corrected peak amplitude.

In the present study, mass peaks usually contain significant contributions from two or more different ions because of the ¹³C isotope (mass 13.00335 u, natural abundance 1.07%). In order to extract the abundance of, say, H_xC₇₀⁺, one needs to correct the measured ion yield for contributions from ions with smaller x that contain one or more ¹³C (the presence of deuterium, natural abundance 0.0115%, may be neglected). The isotopically pure H_x¹²C₇₀⁺ will form a mass peak at 1.008725x + 70 × 12 u, while H_x-1¹³C¹²C₆₉⁺ (which for convenience we will write as H_x−1C₇₀⁺ (1−¹³C)) will appear at 1.008725(x−1) + 69 × 12 + 13.00335 u, just 0.0054 u lower. This mass difference is much smaller than the width of the mass peak which measures ≈0.2 u (full-width-at-half-maximum, FWHM) at a mass of 1000 u. The contributions from these two ions will simply add, together with contributions from H_x−2C₇₀⁺ (2−¹³C), etc.

If the abundance A_x of all ions H_xC₇₀⁺ (0−¹³C) were known, the ion yield Y_x at nominal mass x + 840 u would follow from the relation

where P_i is the known probability of the C₇₀ (i−¹³C) isotopologue. If carbon were monoisotopic one would simply have P₀ = 1, P₁ = P₂ = … = 0, and Y_x = A_x.

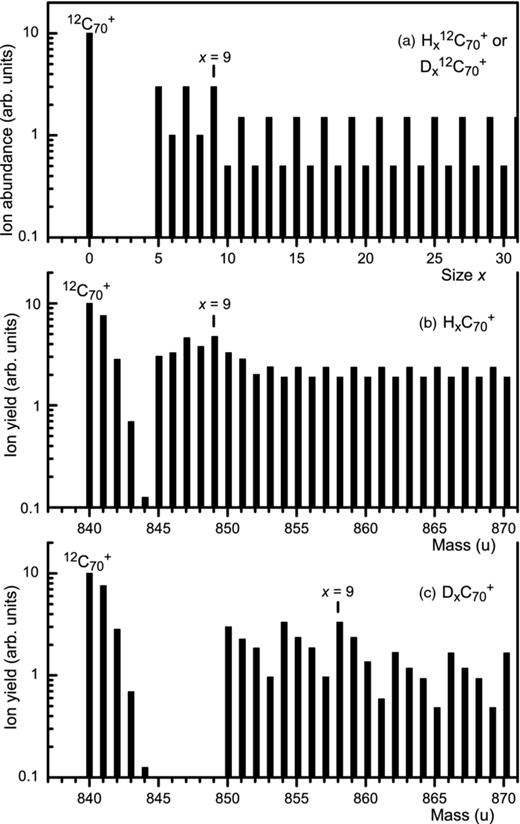

Figure 1 illustrates the relation between ion yield and ion abundance. Panel (a) displays the abundance of H_xC₇₀⁺ (0−¹³C), arbitrarily chosen with an odd-even alternation and an abrupt drop beyond x = 9. For x = 1, 2, 3, 4, the abundance was set to zero. Panel (b) displays the ion yield Y_x calculated from Eq. (1) and plotted versus mass, i.e., a histogram of the mass spectrum that one would observe. The distinct isotope pattern of C₇₀ appears below 845 u. H_xC₇₀⁺ ions appear at 845 u and above; the abundance anomalies (i.e., the odd-even effect and the abrupt drop at x = 9, mass 849 u) are washed out significantly in the mass spectrum.

If the ion abundance shown in Figure 1(a) would apply to deuterated cluster ions D_xC₇₀⁺ (0−¹³C), one would (with a straightforward modification of Eq. (1)) expect a mass spectrum as shown in Figure 1(c). The odd-even alternation and the abrupt drop beyond x = 9, mass 858 u, is much more recognizable in this spectrum. Experiments with deuterium are clearly preferable to experiments with hydrogen.

For the actual data analysis, one needs to invert the procedure, i.e., one determines the ion abundance from the measured ion yield. Equation (1) is a convolution of A(x) with the function P(x), thus one needs to deconvolute the measured ion yield. In the more general case, for example, in a measurement of (CH₄)_xC₇₀⁺, the probabilities P_i will also depend on x and Eq. (1) is replaced by

This is a matrix equation, Y = PA. One obtains the ion abundances from the inverse of the matrix, A = P⁻¹Y. This is the method that we chose for data analysis with P⁻¹ being replaced by the Moore-Penrose pseudoinverse.³⁵

Energetics and geometries of neutral, singly and doubly charged C₆₀H_x with x between 1 and 5 were calculated by means of density functional theory (DFT). Special attention was paid to the physisorption of one or two hydrogen molecules on C₆₀⁺ or C₆₀H⁺ ions. All structures were fully optimized in order to account for the deformation of the fullerene due to the presence of hydrogen. The calculations were performed with two different density functionals within the GAUSSIAN 09 program and a standard 6-31(d,p) basis set.³⁶ The PBE0 hybrid generalized gradient approximation functional from Adamo and Barone,³⁷ which is based on the pure functional of Perdew et al.³⁸ does not include long-range van der Waals interactions (dispersion).³⁹ It performs well, however, where static polarization⁴⁰ dominates and yielded good results for the singly charged systems. In order to include dispersion, the hybrid functional ωB97X-D⁴¹ was used. This functional accounts empirically for long-range effects and has proven its suitability to describe weak interactions such as hydrogen bonds and dipole induced non-covalent bonds with good accuracy in many molecular systems.⁴²

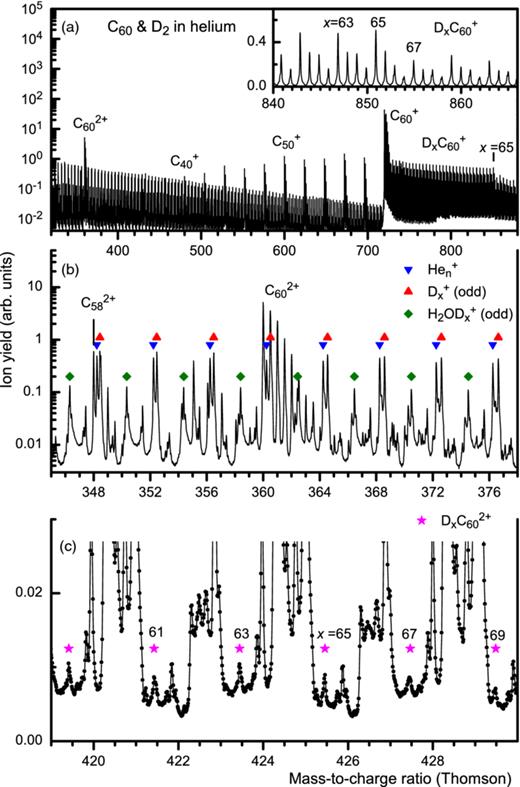

We have recorded several mass spectra of helium droplets doped with hydrogen or deuterium plus either C₆₀ or C₇₀. Figure 2 displays sections of a spectrum obtained by electron ionization of droplets doped with C₆₀ and D₂; Figure 3 displays sections of a spectrum of droplets doped with C₇₀ and D₂. Two prominent ion series appear in these spectra below the fullerene mass, namely, He_n⁺ and odd-numbered D_x⁺. Each helium cluster ion He_n⁺ gives rise to just one mass peak in the spectrum because helium is very nearly monoisotopic; the natural abundance of ⁴He (mass 4.002603 u) is 99.999866%.⁴³ Similarly, each D_x⁺ ion gives rise to one mass peak if one neglects the possible presence of H₂ impurities in the deuterium gas. In experiments carried out with H₂ instead of D₂, the presence of deuterium (natural abundance 0.0115%, mass 2.01410 u⁴³) may be safely neglected. In the mass range displayed in Figs. 2(b) and 3(b), the mass of He_n⁺ is about 0.3 u below that of D_2n−1⁺. Even-numbered D_x⁺ which have a yield of a few percent relative to adjacent odd-numbered D_x⁺⁴⁴ are overwhelmed in the current spectra by a series of impurity ions H₂OD_x⁺ (x odd) which occurs 0.112 u below the D_x⁺ (x even) series.

Other prominent ions in the low-mass section of the mass spectrum are singly charged fullerene fragments C_m⁺ (m even) as small as C₃₂⁺ in the C₆₀ spectrum, and C₃₆⁺ in the C₇₀ spectrum. Doubly charged fullerenes C₆₀²⁺ and C₇₀²⁺ appear prominently at mass-to-charge ratios 360 and 420 Thomson, respectively; their even-numbered fragments C_m²⁺ can be identified down to C₅₀²⁺. Each of these ions forms a characteristic pattern of peaks due to contributions from isotopologues that contain ¹³C (natural abundance 1.07%, mass 13.003355 u). Most of these bare, singly or doubly charged C_m^z+ ions (z = 1 or 2) probably result from direct ionization of bare C₆₀ or C₇₀ that leaks from the pickup cell into the ionizer. The intensity of these fragment ions relative to their doubly charged parent ions is greatly diminished in recent experiments with a modified setup that reduces the escape of fullerene vapor from the pickup cell.

The bottom panels in Figs. 2 and 3 reveal another, weak ion series which is assigned to odd-numbered doubly charged D_xC_m²⁺ (m = 60 or 70). Because of interference with other ions, these ions can be unambiguously identified for only one isotopologue, namely, D_xC₆₀²⁺ (0−¹³C) and H_x−1C₇₀²⁺ (1−¹³C) (i.e., D_x¹²C₆₀²⁺ and H_x−1¹³C¹²C₆₉²⁺, respectively).

The top panels in Figs. 2 and 3 reveal an intense ion series of the form D_xC_m⁺ (m = 60 or 70). The yield of these ion series drops abruptly beyond x = 65 and 75, respectively, as shown in more detail in the insets where mass peaks of odd-numbered, isotopically pure (0−¹³C) ions are labeled by the value of x. The yield of even-numbered D_xC_m⁺ (not labeled) is lower, but note that each mass peak contains contributions from several cluster ions. For example, the mass peak labeled x = 73 in Figure 3 contains contributions from D₇₃C₇₀⁺ (0−¹³C), some 30% from D₇₂C₇₀⁺ (2−¹³C), and a minor (≈1%) contribution from D₇₁C₇₀⁺ (4−¹³C). Similarly, the mass peak 1 u above the one labeled x = 73 is mostly due to D₇₃C₇₀⁺ (1−¹³C), but also contains contributions from D₇₂C₇₀⁺ (3−¹³C) and D₇₁C₇₀⁺ (5−¹³C). The analysis of the mass spectra, discussed in Sec. III, provides the ion abundance, which refers to specific, isotopically pure ions such as D_xC₇₀⁺ (0−¹³C).

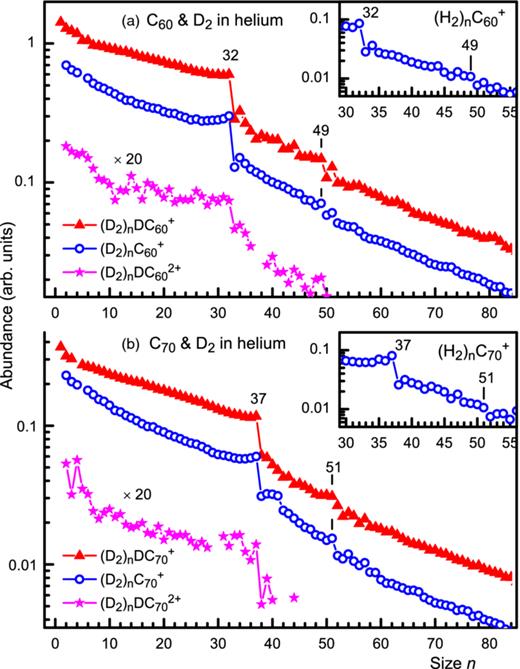

The ion abundance extracted from mass spectra recorded with D₂ is presented in Figure 4 for C₆₀ and C₇₀ (panels a and b, respectively), for singly charged odd-numbered, even-numbered, and doubly charged odd-numbered ions. Here, we have changed the notation for specifying the cluster size to (D₂)_nC_m⁺ and (D₂)_nDC_m⁺ for even- and odd numbered D_xC_m⁺, respectively.

The odd-numbered series is more abundant than the even-numbered series by about a factor two. For both ion series, the abundance varies very smoothly with size n until it drops abruptly by a factor two at (i.e., just beyond) n = 32 and 37 for C₆₀ and C₇₀, respectively. Another drop occurs at n = 49 for C₆₀ and 51 for C₇₀. These drops in abundance, by some 20%–30%, are significantly larger than the statistical uncertainty of the data points which is less than the size of the symbols. The same anomalies are observed in the ion abundance of (H₂)_nC₆₀⁺ and (H₂)_nC₇₀⁺ (see the insets in Figure 4) and (H₂)_nHC₆₀⁺ and (H₂)_nHC₇₀⁺ (not shown). In other words, there is no isotope effect in our data. The statistical significance of other, smaller anomalies seen in Figure 4 is questionable.

The abundance of doubly charged cluster ions in Figure 4 has been enhanced by a factor 20. Statistical scatter is large, but clear drops in the ion abundance occur at n = 32 and 37 for (D₂)_nDC₆₀²⁺ and (D₂)_nDC₇₀²⁺, respectively.

In our previous work, covalent bonding of H and H₂ with C₆₀⁺ was discussed.¹² Here, we consider the interaction of one to five hydrogen atoms with C₆₀ with an emphasis on physisorption. The focus is on singly charged complexes to which the bulk of experimental data pertains, but for completeness we investigate some doubly charged and neutral complexes as well. The reaction energies are given in Table I for the functionals ωB97X-D (third column) and PBE0 (fourth column). These energies are obtained without zero-point correction. In the following discussion, we will refer to the ωB97X-D results unless explicitly mentioned otherwise. Some of the values of Table I are redundant since they can be calculated from other values of this table using the rows indicated in the comment column. For example, reaction 6 (3.2906 eV) plus reaction 11 (0.0732 eV) yields the energy of reaction 12 (3.3638 eV).

Comparing our values with the literature (references are provided in Table I) we find that both functionals (ωB97X-D and PBE0) perform remarkably well for the small molecules, reactions 2–4, and also for the ionization energy of the fullerene. Taking zero-point correction into account the bond energy of H₂ is 4.4533 eV (with ωB97X-D), close to the experimentally observed 4.4784 eV. The binding energy of H to C₆₀⁺ (3.29 eV) obtained with ωB97X-D is 0.22 eV higher than the one obtained with PBE0. The H–C₆₀ binding energy (2.16 eV) is in good agreement with a value reported by Vehvilainen et al.⁴⁵ who obtained 2.01 eV in a DFT calculation using the PBE functional and a plane wave basis set.

An energy barrier of 1.69 eV prevents chemisorption of H₂ at C₆₀⁺ although the system with two covalent C–H bonds, H₂C₆₀⁺_, lies 1.50 eV below physisorbed (H₂)C₆₀⁺ (in the following, H₂C₆₀ will indicate two chemisorbed hydrogen atoms, while (H₂)C₆₀ indicates physisorbed dihydrogen). The energetically lowest isomer of H₂C₆₀⁺ is the one labeled “1a,1b” in the study of neutral H₂C₆₀ by Henderson et al.⁴⁶ Vehvilainen et al.⁴⁵ calculated a very large barrier of 3.7 eV between the physi- and chemisorbed states of the neutral system and an exothermicity of only 0.6 eV for chemisorption.

Next, the physisorbed systems (H₂)C₆₀ and (H₂)C₆₀⁺ will be discussed. The calculated adsorption energies are 49.5 and 57 meV, respectively. As expected, smaller energies result from the PBE0 functional, e.g., 38 meV instead of 57 meV for (H₂)C₆₀⁺. As already pointed out by Yoon et al.,⁶ charged fullerenes bind H₂ more strongly than neutral C₆₀. Physisorption of H₂ on neutral fullerenes has already been investigated by Korona et al.⁴⁷ using symmetry adapted perturbation theory, and by Denis⁴⁸ using local spin density approximation (LSDA) including the counterpoise correction (CP). Korona et al.⁴⁷ obtained 32 meV at a distance of 6.5 Å from the center of C₆₀, while Denis⁴⁸ reports an adsorption energy of 52 meV without mentioning details of the optimized geometry. The values are in very good agreement with our values of 49.5 meV (at 6.2 Å) without CP or 37.5 meV (at 6.2 Å) including CP; i.e., the CP correction amounts to 12 meV. Thus, we estimate that counterpoise corrected values for adsorption energies listed in Table I would be approximately 10 meV lower, but the trends are correct nevertheless and the CP correction often overshoots.

Also of interest is a comparison with data for physisorption of H₂ on nanotubes and graphene. From a Raman study of H₂ adsorbed on single-walled nanotubes, Williams et al.⁴⁹ estimate a well depth of 46.6 meV; the molecule is preferentially oriented flat against the surface. Brown et al.,⁵⁰ based on inelastic neutron scattering data, estimate a desorption energy of about 62 meV for single-walled nanotubes. Alonso and co-workers have calculated the interaction of H and H₂ with single-walled nanotubes.⁵¹ Their results depend on the type of tube ((5,5) and (6,6) tubes have been considered), and whether or not the carbon atoms are allowed to relax; H₂ is bound to the outside of the tubes by 40–70 meV. In later work they reported binding energies up to 100 meV for other types of nanotubes.⁵² For graphene, calculated binding energies range from about 56 to 86 meV.⁵³ It is reasonable that our result for C₆₀ is less than values for single-walled nanotubes and graphene because of the stronger curvature of the C₆₀.^45,54

In order to estimate the influence of zero-point vibrations on the physisorption energies the potential energy curve for (H₂)C₆₀⁺ was calculated; it is depicted in Figure 5 together with its five bound vibrational levels that are eigenstates to the radial Schrödinger equation with reduced mass 3664.5 a.u. With this approximation for the zero-point energy (which neglects all other possible vibrational degrees of freedom) the physisorption energy is reduced from 57 to 46 meV.

Under our experimental conditions, the probability for a hydrogen molecule to overcome the large barrier of 1.69 eV to covalently bind to C₆₀⁺ is exceedingly low. A reaction with H₃⁺, however, faces no barrier at all. The proton affinity of C₆₀ (9.27 eV) is large enough to cause an immediate reaction with H₃⁺ to an equilibrium geometry where one H binds covalently to C₆₀, now positively charged, and H₂ is physisorbed. The overall process does not differ much from a sequential reaction of H⁺ and H₂ with C₆₀. The physisorbed H₂ remains at 3.3–3.4 Å (PBE0) or 2.94–3.03 Å (ωB97X-D) away from a face of the fullerene. This distance varies slightly due to two effects. First, it depends on the position of the hydrogen molecule with respect to the position of the covalently bound H atom. Second, there are different local minima in the potential surface over hexagons or pentagons. The most stable structure obtained for (H₂)HC₆₀⁺ is shown in Figure 6(a). H₂ is positioned over the hexagon which is closest to the covalently bound hydrogen atom, parallel to the hexagonal face. The total energy of this configuration lies 4.77 eV below the energy of separated H₃⁺ and C₆₀. The physisorption energy of H₂ is 73 meV for this configuration; a smaller value of 66 meV is obtained for H₂ over the pentagon adjacent to the covalently bound H (see Table II). On the other hand, if H₂ attaches to C₆₀⁺ over a hexagonal face far away from C–H (Figure 6(b)), the binding energy decreases to 58 meV, nearly the same as the 57 meV of H₂ interacting with pristine C₆₀⁺. In other words, the bound H facilitates the physisorption of H₂ in its vicinity.

Analysis of the site dependence has been extended to systems with two H₂ molecules physisorbed at C₆₀⁺. Energies are listed in Table II; optimized structures are shown in Figs. 6(c)–6(e). In general, hexagonal faces are energetically preferred to pentagonal faces by about 10 meV. Second, clustering of the adsorbate increases the adsorption energy, as already observed for (H₂)HC₆₀⁺. For (H₂)₂C₆₀⁺, the energy to remove one H₂ is 57 meV, the same as for (H₂)C₆₀⁺ if the two H₂ are adsorbed over adjacent hexagons; the adsorption energy decreases to 48 meV if the two H₂ are adsorbed over opposite hexagons.

Results for doubly charged cations are compiled in Table I. The physisorption energy of H₂ on C₆₀²⁺ of 61.3 meV is, not surprisingly, slightly higher than the value for singly charged fullerenes (57 meV); Yoon et al. reported an even stronger increase by about 0.015 eV.⁶ The physisorption en-ergy of H₂ on HC₆₀²⁺ (91.7 meV) is, as expected, larger than for H₂ on pristine C₆₀²⁺ and also larger than on singly charged HC₆₀⁺ (73.2 meV). The physisorption energies on HC₆₀⁺ and HC₆₀²⁺ are higher than on C₆₀⁺ and C₆₀²⁺, respectively, but a second chemisorbed H does not increase the physisorption energy any further; see reactions 21 and 22.

Another interesting aspect is reaction 23 in which a free H₂ is converted to a chemisorbed H plus a free H. The reaction is endothermic by 1.30 eV if it involves C₆₀²⁺. The endothermicity of H production decreases by 0.09 eV if the reagent is replaced by (H₂)₂ (reaction 24). However, it is questionable if reaction of a large hydrogen cluster with C₆₀²⁺ could possibly produce atomic hydrogen. We also note that the energy difference between chemisorbed and physisorbed H₂ of the doubly charged complex is larger by 0.35 eV than for the singly charged complex (reactions 9 and 25).

Two singly charged ion series have been identified in mass spectra of helium nanodroplets doped with fullerene and hydrogen, namely, odd-numbered H_xC_m⁺ (x odd, also written (H₂)_nHC_m⁺), and even-numbered H_xC_m⁺ (written (H₂)_nC_m⁺), where m = 60 or 70. In experiments with D₂ the corresponding ion series have been identified, plus doubly charged odd-numbered (D₂)_nDC_m²⁺. We have not found any statistically significant differences in the ion abundance of fullerenes complexed with H₂ and D₂ but anomalies in the ion abundance are more reliably extracted from experiments with D₂ because the presence of isotopologues that contain one or more ¹³C tends to wash out anomalies in the mass spectra as illustrated in Figure 1. In the following discussion, which will focus mostly on singly charged species, the term “hydrogen” or H₂ will refer to the element; we will not distinguish between H₂ and D₂ except when specifically looking for a H–D isotope effect.

Ionization of pure hydrogen clusters by electron impact or UV photons primarily results in odd-numbered cluster ions [(H₂)_nH]⁺; the abundance of even-numbered (H₂)_n⁺ is lower by about two orders of magnitude.⁵⁵ The low intensity of (H₂)_n⁺ arises from the large exothermicity of the reaction

the exothermicity follows from the H₂⁺ bond strength of 2.650 eV⁵⁶ and the H₂ proton affinity of 4.377 eV (Table I). The hydrogen dimer (H₂)₂ is very weakly bound; therefore, a similarly large reaction energy is released after vertical ionization of (H₂)₂. According to an ab initio direct dynamics calculation, vertical ionization of the H₂ dimer, trimer, or hexamer leads to rapid formation of a vibrationally hot H₃⁺ and ejection of an energetic hydrogen atom even though H₃⁺H is intrinsically stable with respect to H loss.⁵⁷

Electron ionization of hydrogen clusters embedded in helium nanodroplets (in the absence of C₆₀) also results in predominantly odd-numbered hydrogen cluster ions^44,58 even though the ionization mechanism is very different, namely, charge transfer from helium cations^15,59,60 versus direct ionization (details of the ionization mechanism will be discussed in Sec. VII B). Thus, the strong suppression of the odd-even effect for H_xC_m⁺ cluster ions must be sought in the role of the fullerene.

Successive pickup of molecules by a helium nanodroplet will always lead to growth of a single cluster ((H₂)_nC₆₀ in the present study) in the center of the superfluid droplet³³ unless the pickup rate is extremely large.⁶² Thus, one has to consider reactions following charge transfer from He⁺ directly to C₆₀ (ionization energy 7.57 eV⁶³), or via the hydrogen layer to C₆₀. We first consider the energetics of (H₂)_nC₆₀. The data in Table I reveal that ejection of H from (H₂)₂C₆₀⁺ (with H₂ being physisorbed) is significantly endothermic,

Even more importantly, the reaction is impeded by a large energy barrier. For reaction (R2) to take place one of the physisorbed H₂ molecules has to overcome a barrier of 1.69 eV (computed for H₂C₆₀⁺) that separates the physisorbed from the chemisorbed species. Thus, if ionization of the hydrogen-fullerene complex occurs by direct charge transfer from He⁺ to C₆₀, ejection of H and the formation of odd-numbered (H₂)_nHC₆₀⁺ would be suppressed.

On the other hand, if the fullerene were initially fully coated by layers of H₂ one may expect charge transfer to the hydrogen layer and formation of H₃⁺ because of the large exothermicity of reaction (R1) which is barrierless;⁵⁷ H would be rapidly expelled before the net charge is eventually transferred to the fullerene.

The fact that we observe approximately equal (within a factor two) abundances for odd- and even-numbered H_xC_m⁺ suggests that both scenarios, direct or indirect charge transfer from He⁺ to C₆₀, apply. Testing this proposition would be difficult, though. The number of H₂ in the initial neutral complex will always feature a broad distribution, and charge transfer from He⁺ to the dopant will release a very large amount of energy (about 18 eV, the difference between the ionization energies of He and C₆₀). As a result, a large number of H₂ (in addition to He) will be ejected from the nascent ion, and the neutral precursors of the observed H_xC_m⁺ ions will be complexes containing a large, poorly defined number of H₂. It would, therefore, be difficult to observe a correlation between the average number of H₂ in the neutral complex (controlled by the H₂ pressure in the pickup cell), and the relative abundance of even-numbered (H₂)_nC_m⁺.

A weak series of doubly charged [(H₂)_nHC_m]²⁺ is observed in Figs. 2 and 3. The ions could be identified only when deuterium was used, and only for one particular isotopologue of the fullerene. The appearance of these ions is remarkable for two reasons:

1. The observed doubly charged complexes [(H₂)_nHC_m]²⁺ are surprisingly small, even [(H₂)HC_m]²⁺ is identified, and

2. The formation of doubly charged complexes upon electron ionization of doped helium clusters is rather uncommon.⁶⁴

First, homogeneous van der Waals bound clusters are not observable below a size limit, or “critical size” because of spontaneous charge separation (Coulomb explosion) into singly charged fragments. No doubly charged pure hydrogen cluster ions have yet been reported; a simple model that is based on a liquid-drop approximation predicts a critical size of n = 863 for (H₂)_n²⁺.⁶⁵ Second, when helium droplets doped with a complex X interact with energetic electrons, the probability of direct ionization of X is vanishingly small. Instead, either He⁺ or a metastable He^* (2 ³S₁) are formed, with energy thresholds of 24.59 and 19.8 eV, respectively. Rapid motion of He⁺ towards the dopant, followed by charge transfer,

proceeds by charge hopping aided by the attraction between the ion and the induced-dipole moment of the dopant.^15,59 If X is a molecule or cluster it may fragment further, X⁺ = (AB)⁺ → A⁺ + B.

Alternatively, ionization of the dopant may proceed by Penning ionization,

Penning ionization is particularly efficient when the dopant resides on the surface,⁶¹ but there is experimental evidence that it is also relevant for the formation of doubly charged dopant ions.⁶⁴

A doubly charged dopant can be formed only if its ionization energy is below the energy to form He^*(2 ³S₁) or He⁺. This condition is rarely met for chemically stable molecules. The energy required to form 2H⁺ from H₂, 31.7 eV, is readily computed from the data in Table I. However, the energies required to form C₆₀²⁺ or C₇₀²⁺ from the respective neutral precursors are only 19.00 and 18.84 eV, respectively.⁶⁶ Therefore, a doubly charged fullerene with one or more hydrogen attached could be formed by either Penning ionization or charge transfer from He⁺. For example, consider the energetics of [H₂C₆₀]²⁺:

where the reaction energies are computed from entries in Table I (using experimental values if available), and the energy required to form C₆₀²⁺ from C₆₀.⁶⁶ Reaction (R5c) is less endothermic than the charge separation reaction (R5b) by 4.0 eV. As a result one expects that the two positive holes in the complex [H₂C₆₀]²⁺ are localized on the fullerene, H₂ is physisorbed at C₆₀²⁺, and H₂C₆₀²⁺ is stable with respect to charge separation. A similar reasoning explains why small doubly charged cluster ions such as He_nPb²⁺, formed by ionization of lead-doped helium droplets with a femtosecond laser, or (CO₂)_nCu²⁺ formed by electron ionization of neutral clusters,⁶⁷ are stable with respect to charge separation for all values of n.

The energetics of odd-numbered [(H₂)_nHC_m]²⁺ will be different but here, too, the two holes are likely to be localized on the fullerene. The energetics also depend on the ligand. In our previous work on water-C₆₀ and ammonia-C₆₀ complexes, we had observed dehydrogenated ions, (H₂O)_nOHC₆₀⁺ and (NH₃)_nNH₂C₆₀⁺ which were particularly prominent for n = 0.⁶⁸ We hypothesized that they involve an intermediate C₆₀²⁺ followed by charge transfer to the ligands and charge separation into dehydrogenated plus protonated ions. For water, the first ionization energy (12.621 eV) is close to the second ionization energy of C₆₀ (11.4 eV) and for NH₃ the first ionization energy (10.070 eV) is even lower; this provides a rational for the absence of doubly charged ions in those studies.

The picture presented so far is incomplete. First, another mechanism that may occur at high electron energies (70 eV were used in the current study) is formation of two He^* within the same droplet by the incident electron; sequential Penning ionization will then provide a total energy of 2 × 19.8 eV. An energy threshold of 40 eV was, indeed, observed for the formation of doubly charged fragment ions of CH₃I.⁶⁴ In another recent study, methane clusters in helium were ionized by electron ionization; doubly charged (CH₄)_n²⁺ were observed above a critical size of 70 with an energy threshold of 44 eV.⁶⁹ The findings were attributed to formation of He^*(2 ³S₁) + He⁺. In this model, a singly charged dopant ion is formed by charge transfer from He⁺; Penning ionization of the ion in a collision with He^* is then facilitated by the large attraction between the dopant ion and the highly polarizable He^*.⁶⁹

The very weak signal of doubly charged ions in the present study precludes a measurement of their appearance energy; their formation may be due to any one of the four mechanisms mentioned above, or a combination of them: Penning ionization with He^*, charge transfer from He⁺, sequential Penning ionization, or charge transfer followed by Penning ionization. All these processes would be energetically feasible.

The ion abundance was extracted from the ion yield measured by mass spectrometry as described in Sec. III, in order to correct for contributions of isotopologues containing one or more ¹³C.

Anomalies in the abundance A_n of cluster ions may be caused by several factors including kinetics, size-selective ionization or detection, etc. For atomic clusters that are prone to fragmentation upon ionization, including van-der-Waals clusters embedded in helium,⁷⁰ the most likely cause are anomalies in the dissociation energies D_n (often called evaporation or separation energies), i.e., the difference between total energies E_n of cluster ions of adjacent size in their most stable configurations,

The relation between the size dependence of D_n and A_n has been explored by several authors,⁷¹ based on the model of the evaporative ensemble.⁷² Key ingredients of this model are that the initial cluster distribution is broad, dissociation is a statistical process, and each cluster ion that is observed has undergone at least one evaporation. The small heat capacity of clusters containing less than n ≈ 10² units ensures that each evaporation cools the cluster significantly, thus leading to a drastic (at least a factor 10) reduction of the rate coefficient k. As a result, an ion ensemble that is interrogated at some time t after ionization will be characterized by rather well defined upper and lower limits to its (vibrational) excitation energy E_n^*.⁷³ The energy limits are related to the dissociation energies D_n and D_n+1, respectively. An upper limit exists because very hot X_n⁺ would rapidly dissociate into X_n−1⁺; a lower limit exists because very cold precursor ions X_n+1⁺ will not dissociate into X_n⁺ on the experimental time scale. The energy limits depend only weakly on the time t through the Gspann factor, G = ln (tν),^72,74 where ν is the frequency factor in the Arrhenius relation,

Here, k_B is the Boltzmann factor, and T_e is the emission temperature.⁷⁵ If the microcanonical heat capacities C_n of the cluster ions are approximated by the equipartition theorem, C_n = (3n – 7)k_B, one can derive a quantitative relation between relative dissociation energies D_n/|$\widetilde{D_n }$|$Dñ$ and relative ion abundances A_n/|$\widetilde{A_n }$|$Añ$⁠, where the tilded quantities are functions that are obtained by fitting smooth functions to D_n and A_n, respectively.⁷⁶ Normalization to these smooth functions is needed because local anomalies in the ion abundance provide information about local variations in D_n, not about global trends.

A special situation arises if C_n is much less than the classical value, a situation probably encountered for alkali monomer and dimer ions solvated in helium,⁷⁷ and fullerene ions solvated in helium¹⁰ or hydrogen. The computed energies for desorption of H₂ from H_xC₆₀⁺ (x = 2, 3, 4, 5) amount to 50–70 meV (Table I); the corresponding vibrational temperature of the complexes may thus be estimated from the evaporative model to be 30–40 K.^78,79 At this temperature C₆₀⁺ will be in its vibrational ground state, and one obtains the simple relation

that is, local variations in the abundance are directly proportional to local variations in the dissociation energy. Additional details have been discussed in Ref. 77.

We have applied Eq. (5) to derive relative dissociation energies D_n/|$\widetilde{D_n }$|$Dñ$ of singly charged hydrogen-fullerene complexes; results are displayed in Figure 7. The smooth functions |$\widetilde{A_n }$|$Añ$ were obtained from the ion abundances (Figure 4) by weighted averaging over several adjacent sizes.⁷⁶ The weights were calculated from a Gaussian with a fixed width of Δn = 2 (standard deviation). The procedure reveals that the main anomalies translate to a local enhancement of the dissociation energy by 30%–50% for the most stable cluster (at n = 32 for C₆₀ and 37 for C₇₀), and a decrease by some 30% relative to the average energy for n = 33 and 38, respectively. These values do not change much if the smooth function |$\widetilde{A_n }$|$Añ$ is derived differently.

An appealing interpretation of the abundance anomalies of even-numbered hydrogen-fullerene complexes (H₂)_nC_m⁺ is an enhanced ion stability when one H₂ is bound to each of the carbon rings of the fullerene substrate. Fullerenes are characterized by 12 pentagons; the number of hexagonal faces is 20 for C₆₀ and 25 for C₇₀. The corresponding anomalies at 32 and 37 have also been observed for complexes of fullerenes with alkaline earth metals,⁸⁰ helium,¹⁰ and methane.⁸¹ This interpretation would also provide a rational for the abundance anomalies observed for the odd-numbered series (H₂)_nHC_m^z+ at 32 (m = 60) and 37 (m = 70), for z = 1 and 2, because our calculations indicate that the additional lone H atom would be covalently bound atop a carbon atom; it would not block any of the adsorption sites over the hexagons or pentagons that are preferred by the physisorbed H₂ molecules.

A fully decorated fullerene may be viewed as the analogue of a graphite surface, or graphene sheet, with the adsorbate forming the commensurate 1 × 1 phase on the honeycomb lattice. This phase does not actually form because it would imply a separation of only 2.46 Å between adjacent adsorbate molecules, significantly less than the size of H₂ or He. At lower coverage, however, a commensurate adsorbate layer forms in which all second-nearest hexagonal adsorption sites are occupied. The density of this so-called √3×√3 commensurate phase is 0.0637 Å⁻², one third of the 1 × 1 phase; the spacing between adsorbate molecules is 2.46√3 = 4.26 Å.

However, the nearest-neighbor distance in crystalline hydrogen is only 3.75 Å.⁸² Thus, the √3×√3 commensurate phase is underdense; the first monolayer of H₂ on graphite is not complete until the coverage reaches 0.0927 Å⁻².⁹ Might the commensurate 1 × 1 phase of H₂ on C₆₀⁺ formed at n = 32 be underdense as well? In recent theoretical studies of neutral or cationic He_nC₆₀, it was found^10,11,83 that the first solvation shell can accommodate many more atoms in addition to 32 that are in registered sites, in agreement with experiment.¹⁰ Similar theoretical studies are not available for the hydrogen-C₆₀⁺ system but if one multiplies the number (60) of atoms in the first solvation shell of helium-C₆₀⁺ with the ratio between the monolayer coverage of H₂ on graphite (0.0927 Å⁻²)⁹ and He on graphite (0.120 Å⁻²)⁸⁴ one expects that (H₂)_nC₆₀⁺ can accommodate ≈46 H₂ in its first solvation shell. Similarly, for He_nC₇₀⁺ we observed closure of the first solvation shell at 62;¹⁰ scaled as described above one predicts that (H₂)_nC₇₀⁺ completes the first solvation shell at ≈48. These values (46 and 48) agree quite well with the anomalies observed at n = 49 and 51, see Figure 7. Thus, these values signal the closure of the first H₂ solvation shells around C₆₀⁺ and C₇₀⁺.

The hydrogen -graphite system shows a pronounced isotope effect: The density of the first deuterium monolayer is 0.0987 Å⁻², 6.5% larger than for H₂.⁹ A similarly large isotope effect for the hydrogen-fullerene system would increase the number of molecules in the first solvation shell from 49 to 52 for C₆₀⁺, and 51 to 54 for C₇₀⁺. No such shift is seen in the experimental data. The isotope effect on graphene stems from the larger delocalization of the lighter H₂ molecules, leading to an increased repulsion at a given distance, compared to D₂. One may speculate that the increased binding between hydrogen or deuterium and charged fullerenes, as opposed to the weaker binding with planar graphite, mitigates the isotope effect. Another factor may be the corrugation which is stronger over the curved fullerene surface, thus hindering the addition of hydrogen molecules beyond the 1 × 1 phase. A third and more compelling reason for the lack of an isotope effect for fullerenes might be that, for a curved substrate, the H₂ molecules can reduce their mutual repulsion by filling the solvation shell at a slightly larger distance from the center of C₆₀⁺ if this is energetically more favorable than lowering the solvation number. We cannot compute the effect of zero point motion for a fully solvated C₆₀⁺, but for (H₂)C₆₀⁺ we find that the mean radial distance in the quantum mechanical ground state is, indeed, about 0.55% larger than for (D₂)C₆₀⁺. Obviously such an increase in distance would not mitigate the repulsion between neighbors over a planar substrate.

The corrugation of graphitic surfaces is known to affect the phase diagram of adsorbates. The strength of the corrugation may be increased, for example, by increasing the curvature of the surface. At the same time, curvature also increases the distance between molecules that reside in commensurate adsorption sites. The curvature of the C₆₀ surface is large enough to accommodate one hydrogen molecule per polygon in an energetically preferred phase that is equivalent to the 1 × 1 phase which is not accessible to H₂, He, or other gases over a planar graphitic surface. The commensurate 1 × 1 phase is also observed for C₇₀ cations, and doubly charged C₆₀ and C₇₀. Furthermore, our data suggest that the first adsorption layer is not complete until 17 additional H₂ molecules are adsorbed on C₆₀⁺, or 14 on C₇₀⁺. C₇₀⁺ shows a smaller increase because the average curvature and thus the average distance between H₂ adsorbed in the commensurate phase is smaller than for C₆₀. Although our experimental approach has its shortcomings, e.g., we cannot control the temperature, it does provide accurate values for the coverage and, hence, allows to accurately determine the effect of curvature on adsorption.
