Quantifying phonon and polariton heat conduction along polar dielectric nanofilms Open Access

With the miniaturization of micro- and nano-electronics, heat dissipation becomes a critical bottleneck due to the severely reduced phonon thermal conductivity of dielectrics and semiconductors.^1–3 The underlying mechanism is attributed to the increasing or even dominant boundary and interface scattering of phonons at micro- and nanoscale, which have been widely studied in the past decades.^4–9 As a potential avenue to alleviate this situation, phonon polaritons have been proposed to enhance the heat conduction along polar materials and nanostructures.^10,11 For instance, in recent experimental studies, the hyperbolic phonon polaritons were shown to contribute to ∼27% and ∼60% of the total out-of-plane thermal conductivity of, respectively, bulk h-BN¹² and α-MoO₃¹³ at ∼600 K.

Surface phonon polaritons (SPhPs) are surface electromagnetic waves coupled with optical lattice vibration (i.e., phonons) in polar materials.^14–16 The enhanced SPhP contribution to the in-plane heat conduction arises from the weaker energy absorption of surface waves propagating along thinner films that allow longer propagation lengths. The SPhP thermal conductivity is, thus, expected to increase as the film thickness decreases,¹⁰ which is opposite to the trend of the usual phonon counterpart. As a result, SPhPs become powerful heat carriers able to counteract the reduction of phonon heat conduction in semiconductor nanostructures and provide a promising avenue to alleviate the heat dissipation problem in nano-electronics. Since the pioneering work,¹⁰ there have been a lot of theoretical investigations of SPhP heat transport along polar nanostructures, including thin films,^17–24 nanowires,^25,26 and nanoparticle chains and crystals.^27–29

In contrast, the experimental observation of the in-plane SPhP heat transport has been achieved over the last few years only. The increasing thermal conductivity of silica nanofilms for decreasing thicknesses³⁰ was measured with relatively large experimental uncertainties. Some of the co-authors also showed a decisive experimental evidence of the SPhP heat conduction through increasing thermal conductivity with the temperature of sufficiently thin amorphous silicon nitride (SiN) films.³¹ More recently, some of us further reported the observation of the quasi-ballistic heat transport of SPhPs propagating over hundreds of micrometers.³² Similar SPhP-mediated enhancements for the in-plane thermal diffusivity of amorphous silicon carbon nanofilms supported on silicon were also observed,³³ along with the enhanced thermal conductivity of metallic nanofilms supporting the propagation of surface plasmon polaritons (SPPs).^34,35 It is noteworthy to mention that remarkable heat conduction via SPhPs was also observed very recently along 3C-SiC nanowires with a gold coating serving as an efficient SPhP launcher on their ends.³⁶ Similar strategies were adopted by designing efficient SPhP absorbers on the ends of SiO₂ nanoribbons, which support noticeable SPhP heat conduction.^37,38 These delicate experimental studies are outside the scope of the present work focused on nanofilms with length and width much larger than the thickness.

The theoretical interpretation of the observed in-plane SPhP heat transport remains, however, not fully established. The SPhP thermal conductivity has been usually computed with a diffusive model¹⁰ involving an effective propagation length limited by the boundary scattering and given by the empirical Matthiessen's law.^30–32 In addition, only the SPhP contribution was evaluated,^31,32 and a direct comparison to the measured overall thermal conductivity (including both SPhP and phonon contribution) is still missing.

The aim of this work is to provide a better theoretical explanation of the experimental data of thermal conductivity by using a transport model coupling the dynamics of SPhPs and phonons propagating along the polar thin films.²⁰ The transport model includes a direct numerical solution of the Boltzmann transport equation (BTE) for SPhPs and heat diffusion equation for phonons. Thus, we enable to separately quantify the contributions of multiple heat carriers (phonons and SPhPs) to the thermal conductivity of polar nanostructures. The remaining of the present work is organized as follows. The physical and mathematical models are introduced in Sec. II, whereas Sec. III contains the description and discussion of the theoretical results in comparison to experiments. The concluding remarks are finally made in Sec. IV.

In this section, we will introduce the physical model of heat transport along polar dielectric nanofilms, together with the model of coupled phonons and SPhPs in Sec. II A. The numerical scheme to solve the coupled transport model is then presented in Sec. II B.

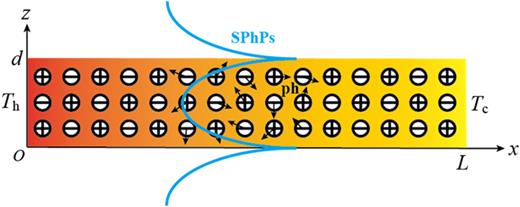

We consider the in-plane heat transport along a polar dielectric thin film with a length L and thickness d, as shown in Fig. 1. The heat conduction along this film is driven by two heat carriers: phonons due to lattice vibration and SPhPs thermally excited by the motion of dipoles inside the polar medium. The excitation of SPhPs depends on the local thermal environment (i.e., local temperature) determined by the lattice vibration, whereas the local temperature is conversely impacted by the absorption (into heat) of surface electromagnetic waves. In other words, the dynamics of SPhPs and phonons are coupled with each other.²⁰ This is a crucial original feature of the present model compared to previous ones,^{17,18,23,31,32} which consider only the SPhP contribution to heat transport. The in-plane SPhP heat conduction considered in the present study is essentially two-dimensional (2D)³⁰ due to the following reasons: (i) both the length and width of the thin film are much larger than its thickness and (ii) the wavelengths of SPhPs are generally much larger than the film thickness.

In Eq. (4), v_g and β_R denote the group velocity and the real part of in-plane wave vector of SPhPs, respectively.

The coupled heat transport via SPhPs and phonons along the polar nanofilm is resolved through a self-consistent numerical solution of Eqs. (7)–(9) with the boundary conditions in Eq. (10). The discrete-ordinate method (DOM)^44,45 is adopted to solve the SPhP BTE in Eq. (7). Note that the DOM scheme was initially developed by Chandrasekhar⁴⁶ to solve the radiative transfer equation based on the idea of Wick.⁴⁷ The finite difference method (FDM) is employed to solve the heat diffusion equation (9). In the following, we briefly introduce the idea and procedure of the numerical scheme.²⁰

The lattice temperature distribution along the polar thin film is resolved just by a matrix inversion: $[T]= A − 1[b]$⁠.

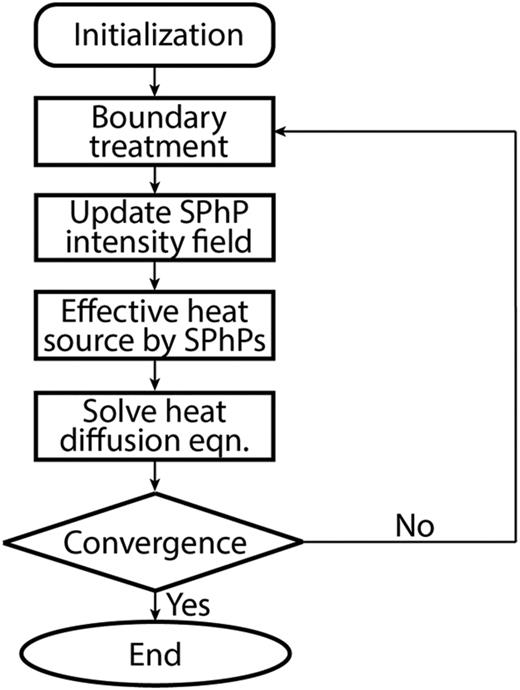

The numerical solution of SPhP BTE is done again with the equilibrium deviational intensity updated by the temperature distribution solution of the heat diffusion equation. This iterative procedure is repeated in a self-consistent way until the relative difference of the macroscopic variables (temperature and heat flux distributions) between two iteration steps is less than 10⁻⁸, as summarized in Fig. 2. Once the convergence is achieved, both the deviational intensity distribution function of SPhPs and the lattice temperature distribution are finally resolved. Therefore, the SPhP and phonon heat fluxes as well as the overall heat flux are obtained. The SPhP and phonon heat fluxes might vary with position along the thin film due to their mutual energy exchange, while the overall heat flux $q t=q+ q ph$ must be independent of position as required by Eq. (3). The overall thermal conductivity of the thin film is calculated based on $κ t= q t L / ( T h − T c )$⁠, and the SPhP contribution is then extracted by κ_SPhP = κ_t – κ_ph.

In this section, we will employ the theoretical model in Sec. II to interpret the experimental results of heat conduction in polar dielectric nanofilms. In Sec. III A, the SPhP properties and transport features relevant to experiments are introduced. The explanation of two sets of experimental results using different techniques will be presented in Secs. III B and III C, respectively. Finally, we provide discussions and perspectives about the coupled dynamics of SPhPs and phonons, as well as the validity of kinetic theory for SPhP heat transport.

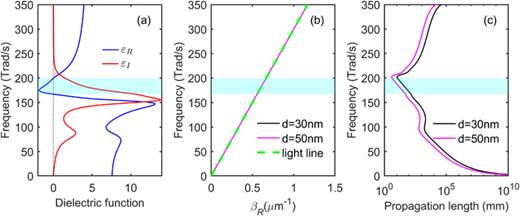

In this work, we will explain the experimental result of thermal conductivity of amorphous SiN nanofilms.^31,32 The measured dielectric function of SiN, which is practically independent of temperature from 300 to 800 K,³¹ is adopted for modeling, as given in Fig. 3(a). The dispersion relation and propagation length of SPhPs in SiN nanofilms with thicknesses of 30 and 50 nm are calculated based on Eqs. (11), (12), and (14), as shown in Figs. 3(b) and 3(c). Note that the dispersion relation of SPhPs in very thin polar film is quite close to that of the light line, which is consistent with previous predictions.^17,23,24 On the other hand, the SPhP propagation length is rather long and can even reach meter scale at low frequency due to low energy absorption.

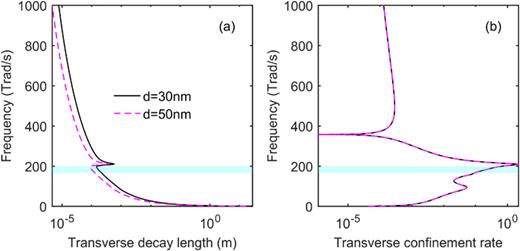

The SPhPs are usually thought to be supported within the Reststrahlen band where ɛ_R < 0.^15,16 For polar dielectric crystals, this band lies between the frequencies of transverse optical (TO) and longitudinal optical (LO) phonons. For the polar amorphous SiN considered in the present work, the Reststrahlen band just lies in the frequency range with negative ɛ_R, as illustrated by the shaded region in Fig. 3(a). This rigorous definition of SPhPs is based on the real dispersion relation of surface waves in lossless media (i.e., ɛ_I = 0).⁴¹ However, a much broader spectrum of surface waves or surface polaritons can be supported along lossy polar thin films with finite ɛ_I, as demonstrated in previous theoretical calculation⁴¹ and direct experimental detection.⁴⁸ The coupled surface waves along a polar thin film exist as long as the real part of the transverse wave vector is positive (i.e., $p 1 R>0$⁠).⁴¹ To provide an intuitive understanding, we show the transverse decay length (⁠ $L p= 1 / p 1 R$⁠) and transverse confinement rate (⁠ $δ= L p / λ p$⁠, with $λ p= 1 / p 1 I$³⁰) of surface waves along SiN nanofilms in Figs. 4(a) and 4(b), respectively. The expressions of $p 1 R$ and $p 1 I$ can be found in previous works.^31,41 One can see that well-bounded surface waves are supported in a very broad spectrum beyond the Reststrahlen band. The contribution of those thermally excited broadband SPhPs to in-plane heat transport will be quantified later in this work.

As SiN in its amorphous phase is considered here, the lattice periodicity breaks down and the concept of “phonons” remains debated. More relevant heat carriers have been proposed in amorphous systems, including propagons and diffusons.^49,50 However, for simplicity and generality, we keep using the term “phonons,” which is true in crystalline polar nanostructures³⁶ and refers to more precisely “lattice vibration” in amorphous materials. In the present modeling of heat transport in amorphous SiN nanofilms, we also assume a constant phonon thermal conductivity, i.e., independent of temperature. This assumption is justified by previous observations:^31,32 the thermal conductivity of the SiN film with a thickness of 200 nm decreases with increasing temperature due to intrinsic phonon scattering; it becomes almost temperature independent at a film thickness of 100 nm, where the SPhP contribution is still negligible. In a deeper view, the temperature dependence of diffuson contribution is negligible, whereas the propagon contribution is suppressed by the boundary scattering in such nanofilm (<100 nm) and is also temperature independent.³¹

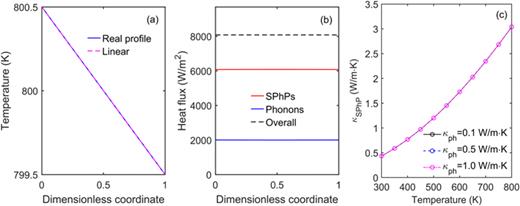

To illustrate the coupling physical features in heat transport along SiN thin films with relevant lengths less than 1 mm in experiments,^31,32 we present the modeling result in a 500-μm-long and 30-nm-thick thin film in Fig. 5. The average system temperature is set at 800 K, as the highest temperature in the recent experiment,³¹ where the contribution of SPhPs is most enhanced. A small temperature difference of 1 K is exerted on both ends of the thin film. As is shown in Fig. 5(a), the lattice temperature distribution profile is almost linear, inferring that the effective heat source term from SPhPs in the heat diffusion Eq. (9) is very small. This is indeed the case as seen in the flat profile of the SPhP heat flux distribution in Fig. 5(b), where the gradient $− ∂ q / ∂ x$ is close to zero. It infers only tiny mutual energy exchange between SPhPs and phonons, as the SPhP propagation length is much longer than the film length such that the SPhPs transport quasi-ballistically along the nanofilm with negligible absorption by the polar lattice. As a result, the SPhP thermal conductivity is pretty much independent of the phonon counterpart, as shown in Fig. 5(c). Essentially, the right-hand term in the SPhP BTE in Eq. (7) is vanishingly small in this situation. Therefore, the coupling between SPhPs and phonons in the experimental conditions^31,32 is generally weak. However, for thin films with a longer length comparable to the SPhP propagation length, the SPhPs will couple more strongly with phonons, as to be further discussed later.

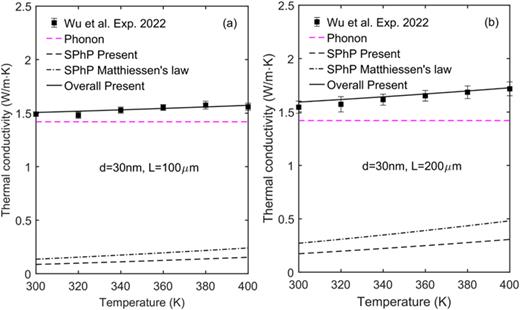

We now employ our theoretical model to explain the experimental data of thermal conductivity of SiN nanofilms in Ref. 32. First, we model the heat transport along SiN thin films with a thickness of 30 nm and two lengths of 100 and 200 μm. The SPhP thermal conductivity is independent of the assigned phonon counterpart, attributed to the quasi-ballistic transport behavior of SPhPs. Therefore, the phonon thermal conductivity could be extracted by fitting the calculated overall thermal conductivity to the measured one in Ref. 32. In this way, the theoretical model with κ_ph = 1.42 W/m K is able to explain appreciably well the measured temperature-dependent thermal conductivity of thin films with both lengths, as shown in Figs. 6(a) and 6(b). The enhancement of thermal conductivity from L = 100 μm to L = 200 μm fully comes from the contribution of SPhPs, as the phonon contribution is the same for the two cases.

Although Eq. (22) seems to capture the main trend of temperature-dependent SPhP thermal conductivity, it overestimates considerably its absolute value and, thus, will underestimate the phonon contribution. The present direct numerical solution of SPhP BTE provides a more accurate account of the boundary scattering of SPhPs compared to the empirical treatment in Eq. (23), as also emphasized in a recent numerical study in silica thin films.²³

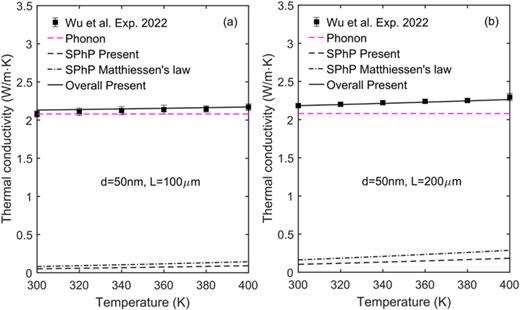

We also obtain a good fitting of the measured thermal conductivity of SiN thin films with a thickness of 50 nm and two lengths of 100 and 200 μm, as shown in Figs. 7(a) and 7(b). Again, the theoretical model with a single κ_ph = 2.08 W/m K is able to explain the enhancement of thermal conductivity from L = 100 μm to L = 200 μm fully attributed to SPhPs. Compared to the 30 nm thin film, the SPhP thermal conductivity of the 50 nm thin film is smaller due to shorter propagation length as given in Fig. 3(c). In contrast, the phonon thermal conductivity is higher in this thicker film due to less boundary scattering of phonons. This demonstrates the opposite trends of size effect in phonon and SPhP heat transport along the in-plane direction of thin films. In contrast to the previous study only calculating the enhanced contribution to heat conduction by SPhPs,³² the present work provides a consistent theoretical explanation of the experimental data of overall absolute thermal conductivity. Furthermore, the quantified phonon thermal conductivity will establish reference data for investigating the size effect in vibrational heat transport along amorphous nano-structures, which remains still an open question.^51,52

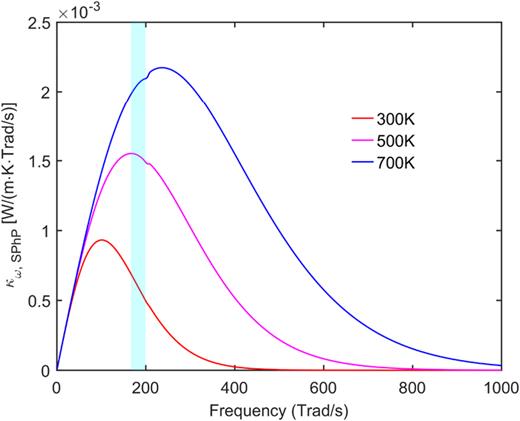

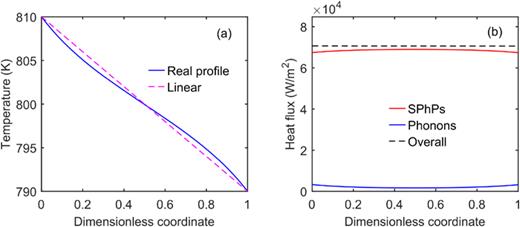

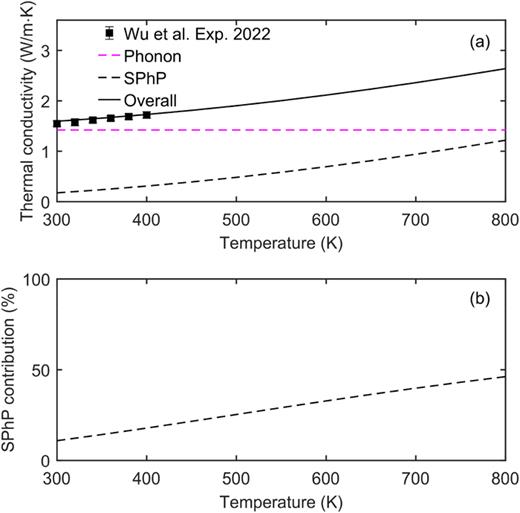

The contribution of SPhPs to heat transport along polar thin films is known to increase as the temperature increases. As the highest temperature in the experiment³² in only up to 400 K, the ratio of SPhP thermal conductivity over the overall one is less than 20% in Figs. 6 and 7. To demonstrate a more significant contribution of SPhPs, we also predict the thermal conductivity of the SiN thin film with a thickness of 30 nm and a length of 200 μm³² up to a much higher temperature of 800 K, as shown in Fig. 8. As seen in Fig. 8(a), the SPhP thermal conductivity increases a lot as the temperature is elevated from 300 to 800 K. This is mainly caused by the increasing population of SPhPs in higher-frequency range at higher temperatures. The spectral contribution of thermally excited SPhPs to the thermal conductivity will also be broadened to higher-frequency range, as clearly shown in Fig. 9. As a result, the SPhP thermal conductivity becomes comparable to the phonon counterpart, as is more explicitly illustrated in Fig. 8(b), where the SPhP contribution is close to half of the total thermal conductivity at 800 K. Such stronger evidence of in-plane SPhP heat transport is pending to be observed by the 3ω setup³² once the high-temperature measurement is feasible.

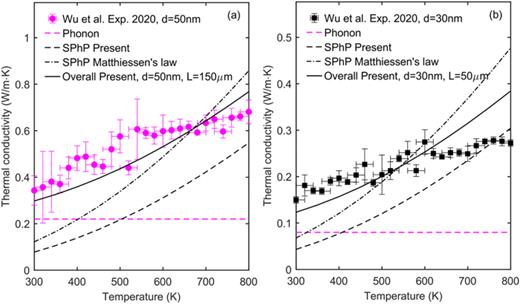

Then we would like to discuss the theoretical explanation of the experimental data of thermal conductivity of SiN thin films in Ref. 31. The thermal conductivity was measured by the TDTR setup, with nine aluminum (Al) pads deposited as transducers in a 3 × 3 array on the SiN thin films. The SiN thin films with a thickness of 50 and 30 nm are suspended on a 1 × 1 mm² and 0.5 × 0.5 mm² square windows of silicon substrate, respectively.³¹ The SPhP and phonon heat transport from the laser-heated transducers to the substrate is a complicated 2D process, such that our simplified 1D modeling might not work well. However, we could still provide a semi-quantitative understanding of the experimental result by using an “effective” 1D model with an effective thin film length. For the 50 nm thin film, the distances between the eight Al pads near the thin film edges and the substrate are scattered between ∼100 and ∼170 μm, whereas the single center Al pad is ∼500 μm away from the substrate. As the phonon thermal conductivity is unknown at this stage, we present a fitting of the enhanced thermal conductivity due to SPhPs in experiment Δκ_SPhP = κ(T) − κ(300 K) by our calculated Δκ_SPhP = κ_SPhP(T) − κ_SPhP(300 K) with effective film lengths from 100 to 200 μm, following the strategy in Ref. 32. With an effective length of 150 μm, our 1D theoretical model fits Δκ_SPhP reasonably well as shown in Fig. 10(a). In this way, the present theoretical model with κ_ph = 0.22 W/m K is able to fit the overall absolute thermal conductivity of the 50 nm SiN thin film within the experimental uncertainty, as shown in Fig. 11(a). As a comparison, the prediction based on the empirical Matthiessen's law [i.e., Eqs. (22) and (23)] overrates not only the absolute value but also the increasing slope of the temperature-dependent SPhP thermal conductivity. It is crucial to use the direct numerical solution of SPhP BTE to compute more accurately its contribution to heat transport.

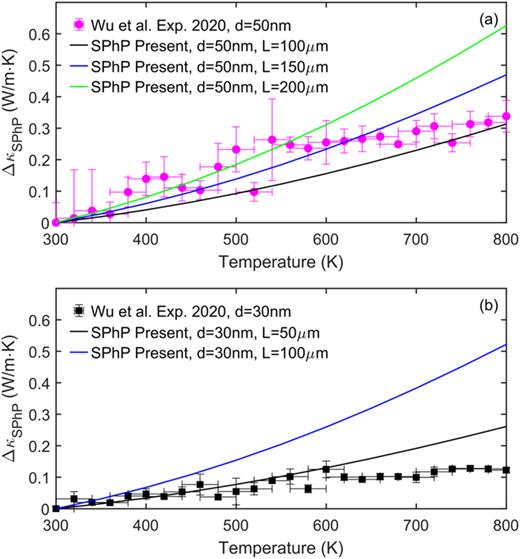

As for the 30 nm thin film, the distances between the eight Al pads near the thin film edges and the substrate are scattered between ∼50 and ∼80 μm. The 1D theoretical model even with a minimal effective length of 50 μm overestimates the enhanced thermal conductivity due to SPhPs, as seen in Fig. 10(b). The observed enhancement of heat conduction due to SPhPs at 30 nm is smaller than that at 50 nm, which is opposite to the theoretical expectation. As a result, the present theoretical model is only able to provide a semi-quantitative fitting of the overall absolute thermal conductivity of 30 nm SiN thin film with κ_ph = 0.08 W/m K, as seen in Fig. 11(b). Although with a rough 1D approximation, our theoretical model still explains reasonably well the measured heat transport along SiN thin films.³¹ The results also indicate the significance of boundary scattering in the suppression of SPhP heat transport. Indeed the efficient coupling between SPhPs and thermal reservoirs has been shown to boost the SPhP thermal conductivity of amorphous SiO₂ nanoribbons in recent experimental reports.^37,38 The community is still awaiting for more measurements of thermal conductivity of polar dielectric thin films with relatively simple configurations as in the 3ω setup,³² which would help a more clear understanding of the physics of coupled SPhP-phonon transport, as well as a further verification of the SPhP transport theory.

In our explanation of 3ω and TDTR experimental results^31,32 in Secs. III B and III C, the in-plane heat conduction via SPhPs and phonons lies in the weakly coupling regime. Under this quasi-ballistic condition, the SPhP heat transport is practically independent of the phonon counterpart and could be determined by a direct numerical solution of the SPhP BTE only. This description represents an improvement over previous works^30–32 based on empirical models for the boundary scattering. By contrast, as the film length increases and becomes comparable to the propagation length of SPhPs, the lattice thermal adsorption of SPhPs along their propagation becomes significant. In this ballistic-diffusive regime, we have to consider the SPhP-phonon coupling, which gives rise to a nonlinear temperature profile as shown in Fig. 12(a) for a SiN thin film with a thickness of 50 nm and a length of 20 mm. The dominant emission or absorption of SPhPs within the first (0 < x/L < 0.5) or second (0.5 < x/L < 1) half of the nanofilm turns out to be an effective heat sink or source for phonon heat conduction. As a result, both the SPhP and phonon heat fluxes are no longer independent of position along the nanofilm, as shown in Fig. 12(b). This fact indicates that the dynamics of both SPhPs and phonons have to be simultaneously taken into account when evaluating the thermal conductivity of the nanofilm. Our coupled model, thus, provides a crucial tool for analyzing heat conduction in polar nanostructures via multiple heat carriers.

Finally, we would like to comment on the validity of kinetic theory of SPhPs, as the basis of our theoretical model. The comparison of the BTE prediction with that of fluctuational electrodynamics (FE) for the SPhP heat transport along polar thin films showed a favorable agreement.¹¹ The same comparison and agreement have been also reported in a recent study for the SPP heat transport along metallic thin films.³⁴ However, those comparisons are not fully rigorous since the physical models in FE and BTE calculations are slightly different. While the BTE calculation considers the presence of a smooth temperature gradient along a thin film, the FE one has been done by setting half of the thin film at a specific temperature and the other half at 0 K.¹¹ A rigorous FE modeling of in-plane SPhP heat conduction inside a dissipative thin film media is a challenging task, as tackled by a recent pioneering work.⁵³ The spectral thermal conductivity predicted by BTE for an infinitely long SiO₂ sheet with spatial periodicity agreed well with that by FE at different wave vectors down to a certain frequency, below which they disagree.⁵³ As the low-frequency regime typically involves long propagation length of SPhPs, a more rigorous examination of the kinetic theory should account for the finite length of the thin films. The investigation of this size effect goes beyond the scope of this study and remains a formidable challenge. However, previous theoretical works^11,34,53 and the comparison of the present results with experimental data indicate that the kinetic theory captures the main trend and provides a quasi-quantitative description of heat conduction mediated by surface polaritons. Within the current state-of-art knowledge, the BTE formalism, thus, represents an indispensable theoretical tool for describing the not-so-well-explored heat conduction via SPhPs and SPPs, which are drawing more and more attention as novel channels for heat dissipation applications.^34,36–38

We have developed a theoretical model for explaining the recently measured thermal conductivities of polar nanofilms supporting the propagation of surface phonon polaritons. Based on a direct numerical solution of Boltzmann transport equation for polaritons and heat diffusion equation for phonons, we have shown that the simultaneous and coupled dynamics of polaritons and phonons makes it possible to quantify their separate contributions to the total thermal conductivity. The weak coupling between polaritons and phonons in the nanofilm indicates significant suppression of the polariton heat transport by boundary scattering. The present study, thus, paves a way for the theoretical explanation of the enhanced heat conduction driven by the propagation of polaritons along various polar and metallic nanostructures and also calls for more extensive experimental measurements of the polariton heat conduction in the future. Our work also promotes the understanding of the mesoscopic physics of thermal conductivity enhancement driven by SPhPs and its application in thermal management of micro- and nano-electronics.
