Atomistic-level analysis of nanoindentation-induced plasticity in arc-melted NiFeCrCo alloys: The role of stacking faults Open Access

High- and medium-entropy alloys (HEAs/MEAs) are a focal point of research due to the extensive variety of available elements, offering adaptable deformation behaviors.^1–6 While HEAs/MEAs have sparked substantial interest, systematic studies on their mechanical properties, particularly in well-controlled microstructures, have been nowadays an interesting topic for applications at extreme operating environments.^7–11 Despite challenging comparisons with conventional alloys, HEAs exhibit similar deformation mechanisms, offering a foundation to develop advanced alloys.^12–15 HEAs produced through arc melting technique after some plastic and heat treatments showcase highly promising characteristics across diverse applications, often exceeding initial expectations. The lattice distortion strengthening effect, typical for HEAs, further contributes to interstitial–vacancy recombination, reinforcing the alloy’s radiation resistance.¹⁴ By bridging knowledge gaps, the community can unlock the potential of HEAs, achieving a harmonious synergy of multiple mechanisms for improved mechanical properties essential for structural applications.^6,7,16–18

A category of materials referred to as single-phase concentrated solid–solution alloys (SP-CSAs), including high entropy alloys (HEAs),^16,19,20 has recently attracted considerable attention due to their distinctive structures and exceptional properties. Unlike traditional alloys, SP-CSAs are composed of two to five principal elements in nearly equal molar ratios, forming random solid solutions in either a simple face-centered cubic crystal lattice structure.²¹ The intricate random arrangement of alloying elements and the local chemical environment at the atomic level contribute to the extraordinary properties exhibited by SP-CSAs compared to conventional alloys.^19,20 An exemplary four-element FeCrCoNi alloy²² is recognized for its superior strength compared to FeNiCoMn. This alloy demonstrates impressive tensile strength and ductility achieved through sustained work hardening, and its fabrication holds significance for applications in extreme operating environments¹⁴ being the material of interest in our work. The exceptional characteristics of SP-CSAs, as exemplified by this specific alloy, underscore their potential significance in advancing materials science for a range of demanding applications.^14,22

Nanoindentation serves as a crucial technique for assessing the mechanical properties of potential candidate materials at the nanoscale, particularly for applications in extreme operating conditions.^16,23 This method involves inserting a small, sharp tip into the sample surface to measure the force required and the resulting displacement within the material.^17,24–28 The occurrence of a pop-in event, marking the transition from elastic to plastic deformation as the indenter tip penetrates the surface, is often used as a reference point for analyzing a material’s mechanical behavior.²⁶ This event provides insights into the internal structure of the sample, allowing for an exploration of the mechanisms responsible for plastic deformation initiation and subsequent modification of the material’s mechanical properties.^29,30 Furthermore, nanoindentation-induced plastic patterning is a process that creates patterns or structures at the nanoscale, with applications ranging from fabricating nanostructured surfaces with enhanced functionalities to developing new materials with tailored mechanical properties.³¹ The resulting plastic patterning is influenced by factors such as applied load, crystal orientation, temperature, and material properties, requiring a fundamental understanding of material deformation within the plastic zone beneath the indented surface region.^25,32 However, the mechanical response of materials is inherently tied to the extensive array of defects present within the material. Models can aid in decoupling the effects observed experimentally, although they present a challenge since modeling sufficiently large systems is complex to account for a diverse distribution of defects. Among these defects, stacking fault tetrahedra form more easily in high entropy alloys (HEAs) compared to conventional alloys due to the lower stacking fault energy in these alloys.^33–35 Hence, in this paper, we choose to focus on this peculiar defect. We investigate both scenarios, with and without stacking fault tetrahedra, to examine the impact of this defect on the mechanical response of HEA.

In our comprehensive study, we conducted both experimental and computational investigations on the plastic deformation mechanisms of NiFeCrCo CSA through nanoindentation tests. The experimental high-purity element sample was prepared using arc melting technique, followed by a high-temperature homogenization process, a common methodology for manufacturing high-entropy alloys.³⁶ The computational approach employed a standard method to create a random solid solution alloy, substituting Fe, Cr, and Mn atoms randomly into a pure Ni matrix to achieve the lowest energy system.^16,37,38 In the computational aspect of our study, we considered the sample’s composition derived from experimental data to model the pristine material. Additionally, preexisting stacking faults tetrahedra were introduced to further investigate their effect on the plastic deformation mechanisms during nanoindentation tests. Our computational analysis included reporting dislocation densities, stress–strain curves, and examining the surface morphology of indented samples.³² This integrated approach provides a comprehensive understanding of the material’s behavior under nanoindentation conditions.

In our experimental investigation, a composition of Co, Cr, Fe, and Ni pieces was mixed in a Ar glovebox, followed by melting using an Edmund Buehler AM200 arc melting device equipped with copper mould. The furnace was evacuated up to $5× 10 − 5$ mbar and backfilled with argon gas to a pressure of 600 mbar. To ensure the homogeneity, the sample was flipped and remelted at least six times. Sample was homogenized in the muffle furnace at 1200  $°$C for 4 h to remove the dendritic structure and to promote uniform distribution of all elements present. We characterize the obtained NiFeCrCo sample via XRF technique obtaining a chemical composition (in wt. %) of 26% Ni, 25% Fe, 26% Co, and 22% Cr. The amount of all impurities did not exceed 1%. To characterize mechanical properties, nanoindentation tests were performed using a NanoTest Vantage system by Micro Materials Ltd, featuring a force sensitivity of 3 nN and a depth sensitivity of 0.002 nm.¹⁶ A Synton-MDP diamond Berkovich-shaped indenter was employed for all measurements, with a typical tip radius ranging from 50 to 100 nm,³⁹ ideal for comparisons with large-scale atomistic simulations in this study.^16,25,37 The tests were conducted with a 150 mN load, involving 100 indentations on the sample spaced at 100  $μ$m intervals.

The microstructural evolution of the homogenized sample was investigated using the ThermoFisher Helios 5 UX scanning electron microscope. This advanced microscope is equipped with the EDAX Velocity Pro EBSD camera, enabling precise crystal orientation mapping. EBSD mapping was performed with a 0.25  $μ$m step size. The acquired data underwent thorough analysis using EDAX OIM Analysis 8 software, with points having a confidence index (CI) below 0.1 being excluded from calculations. Microstructural analysis was conducted using the JEOL JEM-F200 transmission electron microscope (TEM) operating at 200 kV. Thin foils for the TEM analysis were prepared using the focused ion beam (FIB) lift-out technique with the application of a ThermoFisher Helios 5 UX dual beam scanning electron microscope (SEM). The final thinning was performed with a 2 keV $Ga +$ beam to minimize the impact of Ga ions on the microstructure of the samples.⁴⁰

To perform our simulations, we use Large-scale Atomic/Molecular Massively Parallel Simulator (LAMMPS) software,⁴¹ which allows us to study the behavior of materials under a wide range of conditions. One of our goals is to accurately model plastic deformation, which is a crucial aspect of how materials respond to external loads. Thus, we utilize interatomic potentials reported by Choi et al.,⁴² which are based on the second nearest neighbor modified embedded atom method (2NN-MEAM) as reported in our previous work.^16,17,24

We initially defined the FCC Ni sample with crystal orientations along [001], [101], and [111] with dimension shown in Table I, followed by the optimization of the system’s energy using The FIRE (Fast Inertial Relaxation Engine) 2.0 protocol⁴³ to identify the lowest energy structure.^16,32,44,45 The equilibration continued until the system achieved homogeneous temperature and pressure profiles at a density of 8.23  $g/ cm 3$⁠, in good agreement with the experimental value.³⁰ A final step involved relaxing the prepared sample for 10 ps to dissipate any artificial heat. To create the FCC CSA, randomness was introduced by substituting 75% of Ni atoms from the original sample, oriented in different crystal directions, for 26% Ni, 25% Fe, 26% Co, and 22% Cr in wt, following the experimental results. The optimization process for the samples’ geometry is directed toward the nearest local minimum of the energy structure. The optimization criteria include ensuring that the change in energy between successive iterations and the most recent energy magnitude remains below $10 − 5$⁠. Additionally, the global force vector length of all atoms is maintained at less than or equal to $10 − 8$ eV/Å. The subsequent steps for preparing the sample mirrored those of the pristine case, resulting in an equiatomic NiFeCrCo, CSA.

In agreement with the Silcox and Hirsch mechanism, stacking fault tetrahedra (SFT) can be formed from an equilateral triangular vacancy plate situated on the (111) planes.⁴⁶ To construct HEA-CSA with pre-existing SFT, we initiate the process by introducing four vacancy plates within the (111) planes beneath the surface (see Fig. 1).⁴⁷ The subsequent energy minimization prompts the plates to undergo transformation into SFTs, characterized by stair-rod dislocations (depicted by the yellow line on the SFTs, Fig. 1) and a hexagonal close-packed (HCP) structure between these dislocations (atoms colored in blue, Fig. 1). Various scenarios were examined to investigate the impact of SFT size and distribution. The configurations considered include one without any SFT, followed by configurations with four SFTs of 1 nm size, four SFTs of 4 nm size, and, lastly, four SFTs with sizes of 1, 2, 3, and 4 nm, respectively.

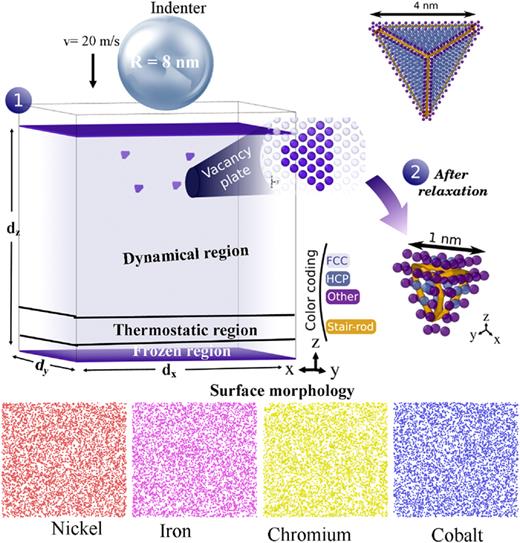

During the initial stage, the CSA samples underwent division into three distinct sections along the $z$ direction to establish boundary conditions along their depth, denoted as $d z$⁠: (1) Frozen section: A stabilizing frozen section, approximately $0.02× d z$ in width, was implemented to ensure the numerical cell’s stability. (2) Thermostatic section: Positioned roughly $0.08× d z$ above the frozen section, this thermostatic section was dedicated to dissipating heat generated during the nanoindentation process. (3) Dynamical atoms section: This section allowed for dynamic interaction with the indenter tip, resulting in modifications to the surface structure of the samples. Additionally, a 5 nm vacuum section was incorporated at the top of the sample, serving as an open boundary.^16,44,48

Within the spatial (few nanometers) and temporal (picoseconds) scales of the MD simulations, nanoindentation testing allows for the examination of the initial stages of plastic deformation and phase transformation at the atomic level. In the numerical modeling, the utilized Berkovich tip with a radius in the range of 50–100 nm can be effectively represented by a spherical indenter tip due to the minimal distinctions observed in the phase transformation regions of both tips during the early stages of the loading process.^16,25 The indenter tip is defined as a non-atomic repulsive imaginary (RI) rigid sphere, exerting a force of magnitude $F(t)=K ( r ( t ) − R i ) 2$ on each atom. In this equation, $K=200$ eV/Å $3$ denotes the specified force constant, ensuring high stiffness for our indenter tip.⁴⁴ The parameter $r(t)$ represents the distance from the atoms to the center of the indenter, and $R i=8$ nm is the radius of the indenter, chosen to be sufficiently large to accurately model the elastic-to-plastic deformation transition.⁴⁸ The initial location of the tip is set at a separation distance of 0.5 nm from the material’s surface, and its center is randomly shifted to ten different positions to account for statistical variation. We employ an NVE statistical thermodynamic ensemble with the velocity Verlet algorithm for an indenter speed of $v=20$ m/s for 125 ps, using a time step of $Δt=1$ fs. A maximum indentation depth of $h max=3.0$ nm is selected to minimize the boundary layer effects in the dynamic atoms region.¹⁶ The initial configuration of the nanoindentation simulation is illustrated in Fig. 1.

We conducted experimental nanoindentation tests on a polycrystalline NiFeCrCo alloy, with a detailed examination involving the mapping of 100 nanoindents. The investigation extends beyond the mechanical tests to explore crystallographic effects on the plastic deformation of the material. Utilizing EBSD imaging, we obtained insights into the propagation of pile-ups within various slip planes. The EBSD images of the [001] and [101] orientations are presented in Figs. 2(a) and 2(b). The emission of surface slip traces is a crucial manifestation of crystal plasticity, providing essential insights for a comprehensive understanding of the mechanical response of materials. EBSD analysis of the samples reveals slip traces for ${110}$ indenter planes in $⟨112⟩$ directions [Fig. 2(b)]. A close-up of the [101] orientation of the alloy provides additional detail, showcasing the propagation of slip traces on ${211}$ planes—features typically observed in face-centered cubic (FCC) materials and in a good agreement with our MD simulations. This arises from the interaction between dislocation gliding in the ${111}$ planes and the indenter surfaces in the ${110}$ plane.²⁵ Similarly, when considering ${100}$ indenter planes, only slip traces aligned in the $⟨110⟩$ directions can be produced through its interaction with dislocation gliding in ${111}$ planes [Fig. 2(a)]. The grain with [101] orientation presents a little higher hardness, the difference does not exceed 4% (1.69 vs 1.63 GPa). The crystallographic aspects of the deformation process provide a comprehensive understanding of the material’s response to nanoindentation. This combined approach of nanoindentation and EBSD imaging contributes valuable data to elucidate the intricate mechanics of plastic deformation in the NiFeCrCo alloy.

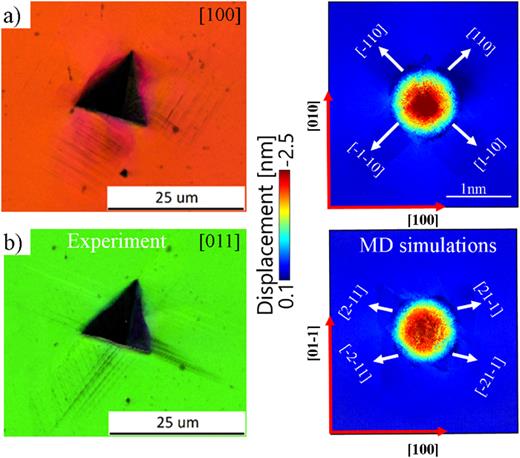

As discussed, the experimental nanoindentation test motivates the computational modeling to explore the plastic deformation mechanism in the NiFeCrCo CSA at different crystal orientations. The morphology of the indented samples is assessed by calculating atomic displacements concerning the initial frame in our MD simulations. In Figs. 2(a)–2(b), slip traces and pile-up formations for the NiFeCrCo CSA are depicted at [001] and [011] orientations, reaching a maximum indentation depth of 3 nm. The observed propagation of slip traces aligns with the slip planes of the face-centered cubic (FCC) sample at each crystal orientation. Notably, the fourfold shapes for [001] and [011] correspond to typical shapes exhibited by FCC metals.^16,25 Building on our prior research,¹⁷ we highlight the distinctive effect of the four elements in the CSA alloy, forming a halo around the indenter tip irrespective of crystal orientation. In contrast, single-element FCC metals typically result in step-shaped pile-ups. This behavior is attributed to the intricate chemistry of the CSA alloy.

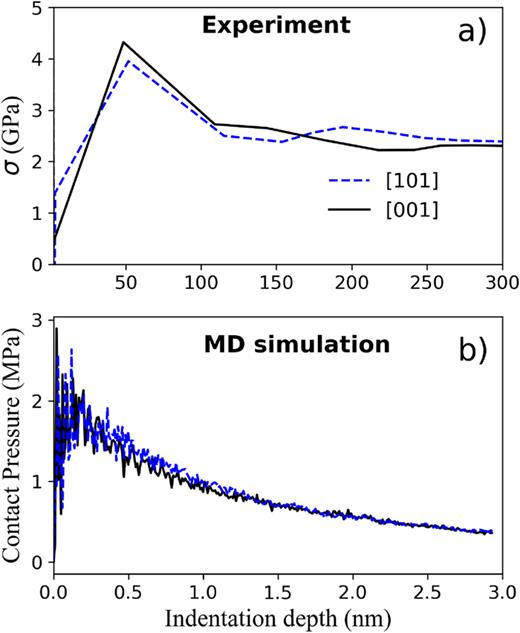

The implementation of the numerical modeling for nanoindentation tests is done in accordance to experimental conditions by tracking atomic strains and dislocation network dynamics. In Fig. 3(a), we depict the nanoindentation stress (⁠ $σ$⁠) vs depth curves for the experimental nanoindentation test. The stress is calculated using the protocols outlined by Pathak et al.,²⁶ where $σ= P exp/π a exp 2$⁠, with $P exp$ and $a exp$ representing the load and contact area, respectively. In Fig. 3(a), we present results from MD simulations where both experimental and computational modeling followed the calculation of the contact area as $a cont=Ah+B h 2$ with $h$ being the nanoindentation depth and $A$ and $B$ being constants to describe the the contact area of a Berkovich tip,⁴⁹ into the scale limitations of the MD approach. We noticed a qualitative agreement between the experimental data and MD simulations.

The crystallographic orientation significantly influences the arrangement of atoms and the bonding characteristics within the material, consequently leading to variations in its elastic properties. For instance, in [001] orientation, the primary slip planes ${111}$ intersect the indented plane along the [110] direction and symmetrical one, resulting in distinct elastic deformation patterns compared to [011] orientations where the indentation direction intersects the atomic planes differently. This is evident in the varying critical contact pressures observed during the pop-in event and the distinctive propagation of slip-traces on the material’s surface. Specifically, [100]-oriented CSAs can exhibit a crisscross pattern of twofold symmetry, while (110)-oriented ones show an edge formed by the meeting points of the twofold symmetry, as previously reported in Fig. 2. These results in varying levels of resistance to elastic deformation and, consequently, different reduced Young’s modulus values being calculated by Eq. (3) in MD simulations. The obtained value for $E Y [ 001 ]( MD)$ is $169±3$ GPa, aligning with the experimental value of $E Y [ 001 ]( Exp.)=163$ GPa. Similarly, for the [011] crystal orientation, the results are $157±3$ (MD) and 153 (Exp.) GPa, respectively. Our MD results are in agreement with averaged ab initio calculations for 172 GPa.⁵⁰ This corresponds with well-known plastic deformation mechanisms observed in FCC metals.¹⁷ In the [100] CSA, only one slip angle of the ${111}$ sliding plane is active during nanoindentation. As a result, the [100] CSA exhibits a comparatively lower ability for plastic deformation compared to the [110] CSA, which features two slip angles of the ${111}$ sliding planes. Another parameter that can be obtained from experimental nanoindentation is the stress exponent (⁠ $n$⁠), which is foreseen in a future work more focused material’s deformation mechanisms during the indentation process; the preliminary results are shown in  Appendix B.

At the maximum indentation depth, we observe parallels between the NiFeCrCo CSA and those exhibited by single-element face-centered cubic (FCC) metals, such as Ni,^16,25 as depicted in Fig. 5. Figure 5(a) illustrates the formation of a nano-twin beneath a [101] surface, with black lines denoting parent and twinned crystal orientations. This observation aligns well with the typical mechanisms observed in FCC metals. Importantly, our findings reveal that atomic ordering is not a prerequisite for this mechanism. Furthermore, twin nucleation in our sample is initiated under the strain gradients and stresses imposed by the nanoindenter tip. This involves the successive emission of leading partial dislocations in the vicinity of the indenter, resulting in the distinctive arrangement of parallel ${111}$ twinned planes.^53,54 Our simulations demonstrate that the twin boundaries are normal to the surface for (011) indentation and inclined at 135.25 $°$⁠. The twinning crystallography ensures that all $⟨011⟩$ and $⟨112⟩$ traces simultaneously lie at the indented plane and a specific {111} habit plane, conforming to expectations for FCC metals.

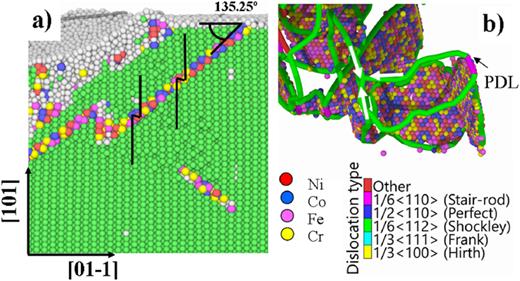

In Fig. 5(b), we illustrate the prismatic dislocation loop at the maximum indentation depth for the [101] crystal orientation. Notably, the observation reveals that the junction of Shockley partial dislocations leads to the final state of the formation of this loop, accompanied by stacking fault planes identified as hexagonal close-packed (HCP) atoms. This identification is made through polyhedral template analysis in Ovito. The atoms involved are color-coded based on their types, enabling an analysis of their random distribution maintained during the loading process. Importantly, no specific ordering of atoms was observed throughout this process.

Nevertheless, in comparison to pure Ni, all defects are confined to a narrow region beneath the surface, possibly attributed to the reduced dislocation velocity in HEA.⁵⁵ That can be correlated to the typical hallow observed around the indenter tip a contrario to the larger step-shaped pile-ups observed in pure Ni.^16,17,37,56 In these alloys, dislocations exhibit a wavy morphology and encounter natural pinning points stemming from the variable chemical and energetic landscape surrounding the dislocation core. For the same reason, twin boundary planes are expected to be more fragmented than in pure Ni.⁵⁶

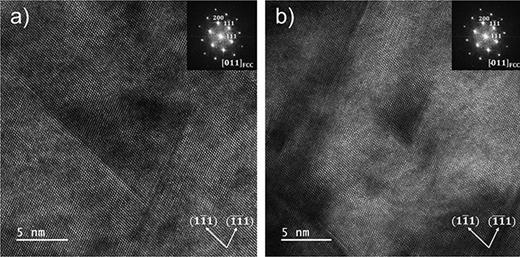

Through HR-TEM analysis conducted on the NiFeCrCo CSA sample before and after nanoindentation, we observed the presence of SFTs located on ${111}$ planes along the [011] crystal orientation, as illustrated in Fig. 6(a). This observation supports our atomistic modeling, where the SFTs exhibit a size of approximately 5–10 nm, prompting an exploration of defected NiFeCrCo samples with varied SFT sizes into MD scaling. Additionally, our investigation unveiled the existence of SFTs beneath the nanoindentation area, specifically on ${111}$ planes, as depicted in Fig. 6(b).

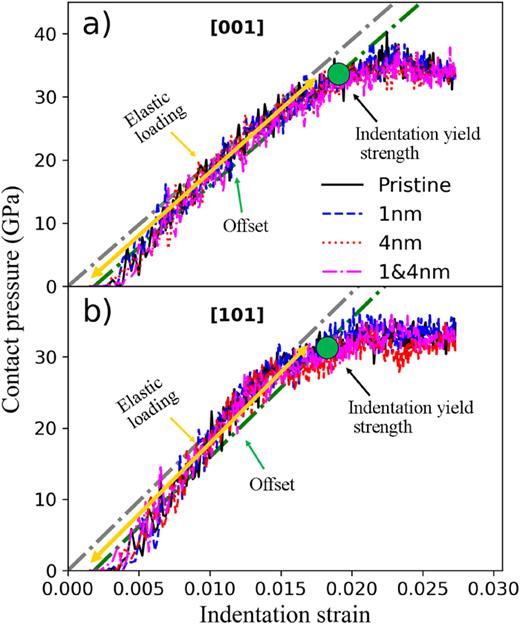

The pressure–strain curve is characterized by contrasting it with a linear scaling law to delineate the elastic loading phase. Due to the speed of the indenter tip, there is an offset in the nanoindentation strain, indicated by a green line. The occurrence of a pop-in event is identified as a deviation of the pressure curve from the scaling law, marked by a green spot, representing the indentation yield strength. Subsequently, the plastic region exhibits a stable pressure at higher nanoindentation strain values. Through the analysis of this material response during the loading process, it is observed that materials with preexisting stacking fault tetrahedra (SFTs) experience an increase in hardness values and their maximum shear stress.⁴⁸ SFTs impede the glide of dislocations, requiring them to find alternative paths to navigate around and pass through the SFT.

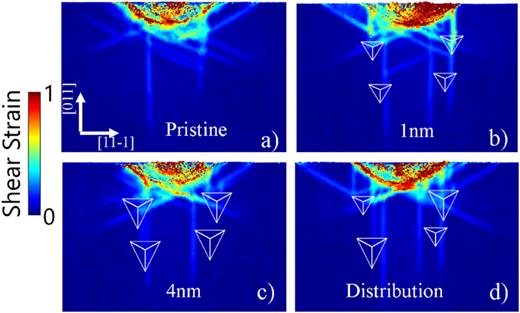

At the maximum indentation depth, the plastic deformation of the NiFeCrCo CSA sample induced by the indenter tip’s shear strain becomes evident. In Fig. 8, atomic shear strain mappings are presented for the [011] NiFeCrCo CSA sample under different conditions: pristine case in (a), 1 nm of SFTs in (b), 4 nm of SFT in (c), and a combination of SFTs in (d). The sample is visually enhanced by slicing it in half, and the width of the “lamella” is halved for better visualization. For the pristine case, maximum strain accumulates underneath the indenter tip, and slip planes are delineated by an increase in strain value relative to the FCC atoms (colored in blue). In contrast, when SFTs are present, strain accumulates on the surface for smaller SFTs, around the positions of 4 nm-sized SFTs, and beneath the indenter tip. This pattern persists for a mixed-size distribution of SFTs. Additionally, the triangular shape of the strained atoms varies with the size of the SFTs. While the pristine case exhibits a symmetric triangle, the presence of SFTs leads to asymmetric and sharper triangles due to the pre-existing strain fields around the defects. This effect, depending on the SFT size, is challenging to understand and may be link to the complex interactions between the SFT, composed of stair-rod dislocations.⁵⁸ This phenomenon influences the nucleation and evolution of dislocations, shear, and prismatic dislocation loops.

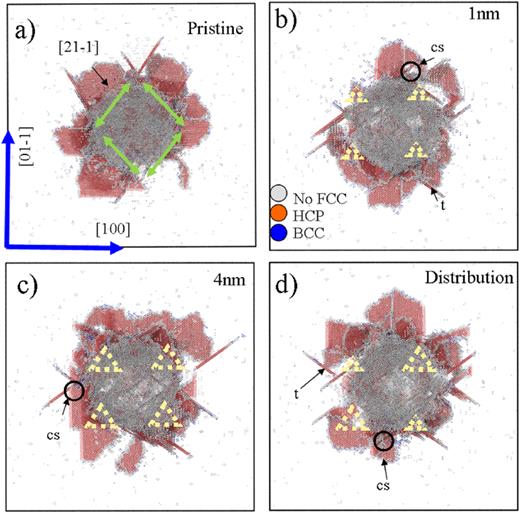

In Fig. 9, a top-view of the samples at the maximum indentation depth is presented, where the preexisting SFT vacancy defects are indicated by dashed yellow lines. It is observed that, for the pristine cases, the nanotwin and stacking fault planes propagate on the [011] slip planes and symmetric families. However, in the defected samples, these planes interact with the preexisting vacancy defects, forming a cross-slip in combination with a [001] plane, which is developed in the region between the vacancy defects. These cross-slip mechanisms may arise from the interaction between the SFT and the screw dislocation segments. Previous atomistic simulations show that the dislocation screw constricts when it reaches the SFT and then cross slipped.⁵⁸ The interaction with edge dislocation segments leads to the formation of super-jogs, unstable that can lead to small vacancy clusters.⁵⁸

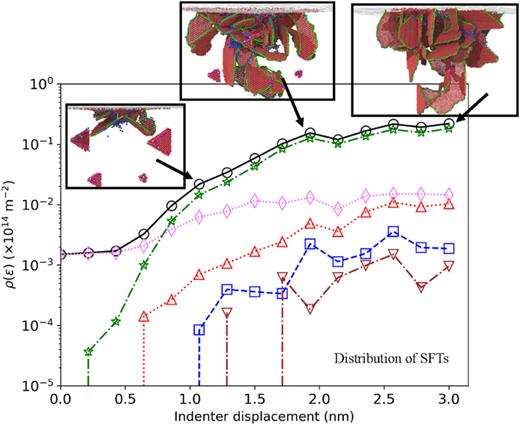

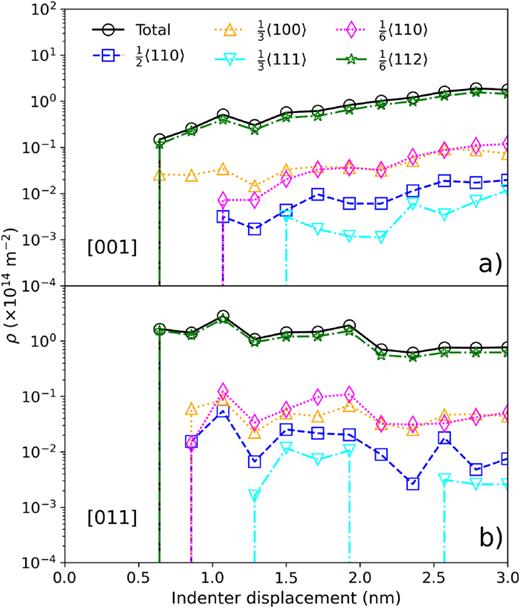

To monitor the plastic deformation of the NiFeCrCo CSA during the loading process, we examine the sample at the [011] orientation, considering a size distribution for preexisting SFTs and calculating the dislocation density as a function of indentation displacement, as illustrated in Fig. 10. Our observations reveal that SFTs are predominantly formed by stair-rod-type dislocations, and Shockley-like half-loops initiate nucleation during the early stages of nanoindentation loading, occurring within the 0–1.0 nm depth range, as depicted in the inset of the figure. As the indentation progresses to greater depths, from 1 to 2 nm, Shockley dislocations interact with the stair rods of the SFT, absorbing them, while the stacking plane propagates due to the stress applied by the indenter tip. Upon reaching the maximum indentation depth, the larger-sized SFTs are already absorbed by the stacking fault planes induced by nanoindentation. Only smaller-sized SFTs survive the entire process, either by being pushed downward or by not interacting with the stacking fault planes.

Although the experimental nanoindentation of the CSA on the [111] orientation is not often obtained, we analyze the mechanical response of the material on this specific orientation. The SFTs are generated on the habit ${111}$ plane, aligning with the crystal orientation [111] in the NiFeCrCo CSA. This creates an excess of pressure during the loading process, attributed to the insertion of SFT vacancy types highlighted by yellow lines. Consequently, we conduct an analysis of the atomic structure evolution and dislocation behavior in both pristine and defected samples at various indentation depths. In Fig. 11, we illustrate the evolution of stacking fault planes identified by hexagonal close-packed (HCP) atoms in orange as well as the propagation of dislocations for the pristine case in (a) and SFT vacancy types in (b)–(d). At 1 nm depth, the pristine case nucleates a small stacking fault (SF) plane parallel to the ${111}$ plane underneath the indenter tip, while the strain field induced by SFT vacancy types deforms this plane into a pair of half loops beneath the indenter tip. At 2 nm depth, the pristine case shows a nanotwin emerging from the side of the indenter tip, while a twin boundary (TB) forms in samples with SFT vacancy types. For smaller SFTs, the half loops do not yet interact with the defects, but for a distribution of SFT vacancy sizes, interactions with larger SFTs are observed.

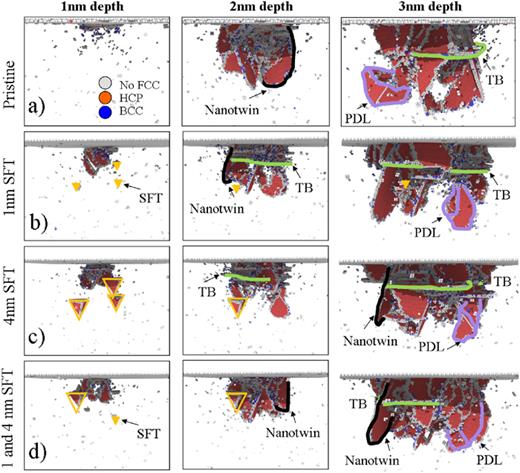

At the maximum indentation depth of 3 nm, the pristine case has already initiated the nucleation of a complete prismatic dislocation loop (PDL) and a small twin boundary (TB). In contrast, the 1 nm SFT case exhibits the formation of a larger TB above the location of the SFT vacancies, and a small PDL is also nucleated in the direction where the SFT vacancies are absent. For larger 4 nm SFTs and a combination of SFT vacancies, the TB plane becomes larger, and PDLs begin to form in the same direction where there are no preexisting defects. These mechanisms have a significant impact on the nanomechanical response of the material, resulting in a load–displacement curve that is noisy and challenging to analyze for the defected cases. The presence of SFTs at different depths induces interactions that influence dislocation nucleation and evolution. Consequently, the resulting load–displacement curve in defected cases presents a challenge for analysis due to its noisy response due to the excess of strain in the surface in close connection to SFTs preexisting in the sample.

Nanoindentation has emerged as a powerful tool for manufacturers, providing valuable insights into material properties at the micro- and nanoscale. This technique complements traditional mechanical testing by offering localized characterization, making it ideal for investigating thin films, coatings, and individual grains within a material.⁵⁹ Our work highlights the strong synergy between experimental characterization and MD simulations. Notably, the simulations successfully guided the identification of SFTs observed in TEM observations. Furthermore, the analysis of the [111] crystal orientation revealed inherent difficulties in obtaining grains with this specific orientation within the material. These findings demonstrate the broad applicability of physical-based multiscale modeling for understanding the mechanical response of complex materials. Potential applications include the following:

1. Optimizing wire production: Nanoindentation is employed to assess residual stresses in stainless steel wires.⁵⁹ This information proved crucial for developing new production methods for high-precision filtration screens requiring thin profile wires, which was aided by a multi-scale modeling technique involving digital material representation (DMR).

2. Material characterization with simulations: Nanoindentation data can be leveraged through simulations to extract local material properties. For instance, an inverse approach can be used to determine the elastic and plastic hardening behavior of a TiN thin film on a silicon substrate. Developing a numerical nanoindentation test to minimize the discrepancy between the simulated and experimental force–displacement curves. By optimizing the model, they identified the elastic modulus and parameters of the hardening law for the TiN film.⁶⁰ Furthermore, numerical modeling offers valuable insights into the dynamics of dislocations within irradiated materials and complex alloys. This includes simulating the interactions between newly formed dislocations caused by nanoindentation test and pre-existing dislocation loops due to the irradiation process. Such simulations can shed light on the hardening mechanisms that arise within the material due to irradiation exposure.^16,61

3. Composite material design: 3D simulations of nanoindentation can be performed to obtain load–displacement data for characterizing the hardening behavior of glass fillers within epoxy/glass composites.⁶² These data enabled the creation of a digital material representation model, allowing researchers to investigate the influence of microstructure morphology on the composite’s overall deformation behavior.

To summarize, nanoindentation, coupled with advanced simulations, offers a valuable toolkit for industrial researchers and engineers. It allows for the characterization of local material properties, leading to optimized material selection, process development, and, ultimately, the design of superior products with tailored mechanical performance. This study by the authors builds upon the established practice of using nanoindentation to measure material properties at the nanoscale. The next step is focused on the $( CoNiFeMn ) x Mo ( 1 − x )$ high entropy alloy with varying crystallographic orientations to determine their elastic moduli.⁶³ The encouraging agreement between the experimentally obtained data (via nanoindentation) and the simulated results (using MD calculations) so far opens exciting possibilities for this on-going and future research, paving the way for the development of physical-based multiscale models capable of predicting the mechanical response of complex structures like high entropy alloys.

This study delves into the nanomechanical response of the crystalline NiFeCrCo concentrated solid solution alloy (CSA) through a comprehensive exploration employing both experimental and computational approaches in nanoindentation tests. In the experimental realm, the production and characterization of CSA leverage an arc melting technique. Subsequently, nanoindentation tests are conducted at room temperature, allowing for the acquisition of surface morphology through electron microscopy images. In parallel, atomistic computational modeling captures the nanoindentation loading process, recording load–displacement curves, dislocation densities, and mapping atom displacements. Notably, dislocation nucleation mechanisms are present with the prismatic loop formation profoundly influenced by surface characteristics, stacking faults, and dislocation glide energies during the nanoindentation loading process. The experimental characterization of the NiFeCrCo CSA is in good agreement with MD simulations by showing similarities to the propagation of slip traces and consecutive nucleation of prismatic dislocation loops.

In addition, the introduction of SFT vacancy-type defects emerges as a transformative factor in shaping the nanomechanical behavior of the material, as guided by TEM observations of the alloy. Crystallographic orientations stand out as pivotal elements influencing the evolution of dislocations and stacking fault planes during the loading process. Distinct behaviors observed in defected samples, including altered dislocation propagation and stacking fault planes, underscore the profound impact of crystallographic factors on the material’s mechanical response.

Furthermore, the existence of preexisting SFT vacancy defects triggers interactions with dislocation planes, giving rise to phenomena such as cross-slip and the formation of additional slip planes, notably [101]. The emergence of twin boundaries, prismatic dislocation loops, and modifications to crystallographic families collectively illuminate the intricate interplay between crystallographic factors and defect structures. This interplay significantly influences the material’s mechanical response during nanoindentation.

Research was funded through the European Union Horizon 2020 research and innovation program under Grant Agreement No. 857470 and from the European Regional Development Fund under the program of the Foundation for Polish Science International Research Agenda PLUS, Grant No. MAB PLUS/2018/8, and the initiative of the Ministry of Science and Higher Education “Support for the activities of Centers of Excellence established in Poland under the Horizon 2020 program” under Agreement No. MEiN/2023/DIR/3795. We gratefully acknowledge Polish high-performance computing infrastructure PLGrid (HPC Center: ACK Cyfronet AGH) for providing computer facilities and support within computational Grant No. PLG/2024/017084. We would like to express our gratitude to NOETHER computing facilities at La Rochelle University and MCIA (Mésocentre de Calcul Intensif Atlantique). Additionally, we extend our gratitude to GENCI—(CINES/CCRT), under Grant No. A0110913037.

The authors have no conflicts to disclose.

F. J. Domínguez-Gutiérrez: Conceptualization (equal); Data curation (equal); Formal analysis (equal); Investigation (equal); Methodology (equal); Software (equal); Visualization (equal); Writing – original draft (equal); Writing – review & editing (equal). A. Olejarz: Formal analysis (equal); Investigation (equal); Resources (equal); Writing – review & editing (equal). M. Landeiro Dos Reis: Conceptualization (equal); Formal analysis (equal); Investigation (equal); Methodology (equal); Software (equal); Visualization (equal); Writing – original draft (equal); Writing – review & editing (equal). E. Wyszkowska: Investigation (equal); Methodology (equal); Visualization (equal); Writing – review & editing (equal). D. Kalita: Data curation (equal); Formal analysis (equal); Methodology (equal); Visualization (equal); Writing – review & editing (equal). W. Y. Huo: Methodology (equal); Writing – review & editing (equal). I. Jozwik: Formal analysis (equal); Methodology (equal); Visualization (equal); Writing – review & editing (equal). L. Kurpaska: Formal analysis (equal); Methodology (equal); Visualization (equal); Writing – review & editing (equal). S. Papanikolaou: Investigation (equal); Writing – review & editing (equal). M. J. Alava: Writing – review & editing (equal). K. Muszka: Investigation (equal); Writing – review & editing (equal).

The data that support the findings of this study are available from the corresponding author upon reasonable request.

To validate our nanoindentation modeling, we utilized an interatomic potential capable of satisfactory modeling of uniaxial compression. MD simulations were conducted for compression scenarios, employing a numerical cell containing 84 000 atoms with dimensions of $8.82×9.88×10.59 nm 3$ on the [001] orientation. The CSA sample preparation process is detailed in Sec. III. Subsequently, a thermalization run of approximately 50 ps was performed under the isothermal–isobaric canonical NPT ensemble, with the diagonal components of the stress tensor set to zero (i.e., vanishing pressure). MD simulations were conducted with a strain rate of $10 9 s − 1$⁠. The constituent particles in the atomistic ensemble were remapped to the instantaneous dimensions of the simulation cell in each computational step. This ensured strict displacement-controlled straining of the cuboidal cells along the stretching direction, while the barostat acted in the other two principal directions. The applied stress $σ$ was directly obtained from MD simulations by considering the number of atoms and their atomic volume. The imposed uniaxial strain was calculated as $ϵ=( l 0− l z)/ l 0$⁠, where $l z$ is the instantaneous cell length along the straining z-axis and $l 0$ is the initial cell length prior to the imposed compressive straining. The time step was set to 2 fs.

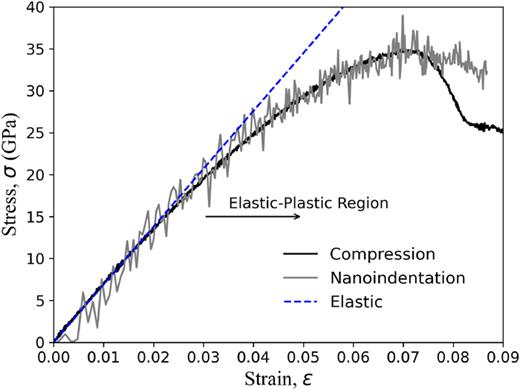

In Fig. 12, we present the stress–strain curves obtained from uniaxial compression and nanoindentation simulations, following the protocol reported in Ref. 64. Compression strain values were scaled to match the strain scale for nanoindentation simulations. We observed a reasonably good agreement between both mechanical tests, where the elastic-to-plastic deformation region is well described by the computational modeling and the utilized interatomic potentials. The yield point also shows good agreement. We include the elastic curve to identify the elastic and elastic–plastic regions during the mechanical load.

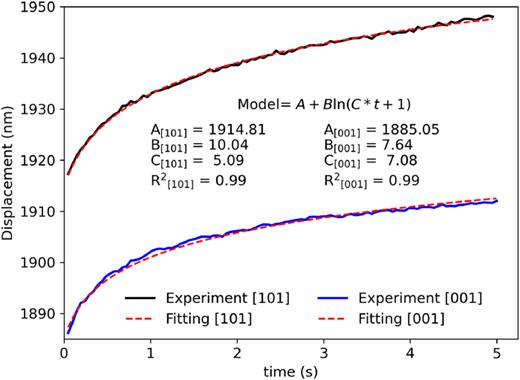

To further investigate the creep process with a better accuracy, it will be essential to substantially prolong the dwell period under specific loads and explore creep under various loads and dwell times. In our current investigation, our emphasis was on delineating other mechanical properties, hence the brief holding time at maximum load (5 s). Given this short dwell period, detecting even the initial stages of creep poses challenges. Nonetheless, we endeavored to conduct an analysis to demonstrate our capability to execute such experiments. In future studies, we intend to undertake more extensive creep tests across different grain orientations and endeavor to model their behavior.
