GaN is an enabling material for light emitting diodes, advanced radio frequency, and power semiconductor devices. However, fabrication of GaN devices often relies on harsh etch processes, which can leave an etch damage layer, limiting final device performance. In this work, an isotropic atomic layer etching (ALE) process involving SF6 plasma and trimethylaluminium [Al(CH3)3] is presented for the controlled etching of GaN, which reduces oxygen and carbon contamination while smoothing the surface. The ALE chemistry was first examined with density functional theory. A comparison between proposed thermal and plasma-driven reactions is made by implementing Natarajan–Elliott analysis, highlighting that the plasma process is a good candidate for GaN ALE. Saturation was experimentally confirmed for both ALE half-cycles at 150 and 300 °C, with etch rates of 0.31 ± 0.01 and 0.40 ± 0.02 nm/cycle, respectively. Analysis of the films post-ALE shows that the RMS roughness of the films decreases from 2.6 ± 0.1 to 1.9 ± 0.1 nm after 25 nm of etching at 300 °C, in agreement with a previously developed curvature-dependent smoothing model. Taken together, this ALE process enables accurate GaN thickness tuning, surface cleaning, and surface smoothing, allowing for further development of GaN devices.

For decades, Si has been the material-of-choice for allowing management and control of electrical power within many different devices. However, the transition toward higher voltages and switching frequencies in advanced power semiconductor devices requires a material with a different set of properties.1–4 Alternatives to Si are currently being explored: silicon carbide (SiC) is the preferred material for high voltage applications (>1 kV) due to its improved thermal properties, while gallium nitride (GaN) is widely being researched for sub-650 V applications, such as chargers for electric vehicles, onboard power convertors, and consumer electronics.2,5 GaN devices are particularly useful because of the formation of a 2D electron gas (2DEG) at the AlGaN/GaN interface, which enables the fabrication of high electron mobility transistors (HEMTs) with superior switching frequencies.2–4,6 GaN HEMTs already have commercial applications and are rapidly being deployed in power supplies, data centers, fast chargers, and LIDAR systems.3,6,7 There are, however, several challenges in producing GaN-based devices due to etch-induced damage.4,7–14 Beyond the RF and power semiconductor applications, GaN is also commonly used in light emitting diodes (LEDs). In the push toward fabricating microLEDs, damage from conventional etch techniques leads to carrier recombination at sidewalls, which limits device efficiency.13,15–17 For all these applications, it is, therefore, important that low damage etch and cleaning processes are developed such that device efficiency and yield can be increased.

A low-damage etch technique that is emerging for many applications is atomic layer etching (ALE). ALE involves sequential self-limiting half-cycles separated by purging steps. The first ALE half-cycle generates a modified surface layer, either through gas or plasma exposure, the thickness of which saturates during the half-cycle. Subsequently, this modified layer is removed in the second half-cycle, without etching into the underlying bulk material.18–22 Employing a cyclic process of self-limiting half-cycles enables more controlled removal of a material over conventional etch techniques, providing the benefit of low-damage etching.20–24 Currently, the focus for GaN ALE has been on anisotropic etching,23,25–28 which acts to remove material directionally. Development of isotropic GaN ALE is also required to clean/etch surfaces independent of orientation, such as on trench/mesa structures or around nanowires.1,15,16 Furthermore, following a similar development path as conventional IC fabrication, GaN devices are predicted to implement more complex 3D device structures in the future, requiring the use of both anisotropic and isotropic etching.1–3,21,29–31 A current limitation of ALE is that GaN device dimensions are relatively large (in the order of ∼μm), potentially making ALE unsuitable for the main etching step, considering the relatively slow etch rates (∼1 nm/cycle). However, the benefits of low damage and accurate thickness control can be leveraged when used as a “cleaning” step after the main etch.

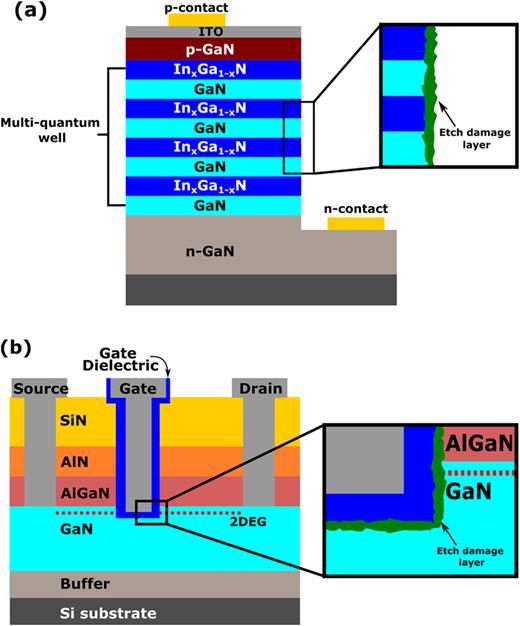

Etch damage for two different GaN-based devices is highlighted in Fig. 1, Fig. 1(a) shows a simplified structure of a GaN microLED, and Fig. 1(b) shows a recessed gate GaN metal–insulator–semiconductor HEMT (MISHEMT).2,5–8,11,32,33 Looking at the GaN MISHEMT device, the recess etching step, typically performed by reactive ion etching (RIE), can introduce damage on the etch front and sidewalls. This etch damage layer compromises the final device performance, necessitating cleaning steps post etch to remove damage isotropically from the whole recess.7,10 Wet etching is a typical isotropic etch technique used for surface cleaning, but GaN is resistant to many wet etchants and, typically, requires solvents to be heated to above 85 °C for etching to occur.9,34–36 Additionally, wet etching adds process complexity by necessitating the transfer between wet and dry equipment. Furthermore, as GaN applications with higher vertical and lateral aspect ratios become more prevalent, preventing stiction and pattern collapse during drying will become increasingly challenging. Dry etching would avoid some of these limitations. The literature already reports that etching of GaN is possible with H2 plasma. However, for this process, there is significant preferential etching along grain boundaries, which leads to rough films and undercutting.37,38 Continuous etching also requires accurate end point detection to prevent damage to functional layers, while the flux-dependent nature could also lead to uneven etch profiles in high aspect-ratio structures. Isotropic ALE would be a good candidate for a controlled GaN etching process, but there has only been limited research in this direction.39,40

FIG. 1.

(a) Simplified MicroLED structure where surface damage increasingly limits the external quantum efficiency as devices scale down. (b) The general structure of a GaN MISHEMT device showing the recess into the GaN layer. Etching of the recess using reactive ion etching can lead to a rough interface, degrading the device performance.

FIG. 1.

(a) Simplified MicroLED structure where surface damage increasingly limits the external quantum efficiency as devices scale down. (b) The general structure of a GaN MISHEMT device showing the recess into the GaN layer. Etching of the recess using reactive ion etching can lead to a rough interface, degrading the device performance.

Close modal

Previous isotropic thermal ALE literature has shown that GaN films are resistant to fluorination via hydrogen fluoride (HF) or sulfur tetrafluoride (SF4).39 Instead, the stronger fluorinating agent xenon difluoride (XeF2) was used. When alternating XeF2 with boron trichloride (BCl3) exposures, an etch per cycle (EPC) of 0.072 nm/cycle was observed at 300 °C.39 Another approach employed a three-step ALE cycle, which relied on first oxidizing the GaN using H2O vapor or O2 plasma.40 Removal of the oxide was then tested using HF and trimethylgallium [TMG, Ga(CH3)3] pulses; however, this ALE process was unable to significantly etch the film.40 The minimal etching seen for this process was attributed to the formation of a well ordered oxide during the oxidation step that is resistant to the etch chemistry.40 Fluorination-based ALE approaches are potentially ideal candidates for surface cleaning of GaN MISHEMTs, as fluorine doping of the channel region beneath the gate has been linked to improved device performance.6,7,10,32,33 A stronger fluorine source, NF3 plasma, was tested as an alternative to thermal fluorination and when cycled with BCl3 gave a higher EPC compared to XeF2, highlighting a potential benefit of utilizing plasmas.39 An alternative, sulfur hexafluoride (SF6) plasma is used here after which TMA [Al(CH3)3] is dosed to etch away the fluorinated layer. Similarly, it is expected that any fluorine-containing plasma, such as NF3 or CF4, can be employed to fluorinate the GaN, for which NF3 has the benefit that it would not lead to residues of either S or C on the etched surface.39,41,42

Simulations have been employed for comparison between the thermal and plasma isotropic GaN ALE reactions, which additionally helps us to guide and support our experimental studies. Simulations are increasingly being utilized in atomic-scale processing to expedite process development and to improve understanding of underlying mechanisms.43–51 Density functional theory (DFT) allows for the calculation of the Gibbs free energy changes as a function of temperature for the corresponding ALE half-reactions. Using the output from the DFT simulations, Natarajan–Elliott (N–E) analysis has been developed as a way to identify ALE process windows before performing extensive tests in the laboratory.43–45 N–E analysis is a relatively simple rapid screening technique for ALE chemistries; in the previous work, N–E analysis was used to identify an ALE process window for TiO2 ALE with HF.51 In that study, excellent agreement was found between the experimental and simulated onset temperature of continuous etching. By operating below this temperature, self-limiting modification of the TiO2 surface was achieved.51

In this work, the insights from DFT are discussed first to outline the anticipated reactions. Simulations were also performed with the thermal reactant HF, to enable a comparison between thermal and plasma ALE. Subsequently, the plasma ALE process was characterized by the measurement of saturation curves, reactant synergy, and the temperature dependence of the etch rate. To assess the films after ALE, atomic force microscopy (AFM) and x-ray photoelectron spectroscopy (XPS) were used, revealing a decrease in film roughness as well as the amount of oxygen and carbon contamination present in the GaN films.

DFT simulations were performed utilizing the Jaguar and Quantum Espresso packages accessed through the Schrödinger Materials Science Suite.52–54 The bulk calculations are performed in Quantum Espresso and are based on the generalized gradient approximation of DFT using the Perdew–Burke–Ernzerhof exchange correlation functional with DFT-D3 dispersion correction.55–57 The self-consistent energy convergence threshold was set to 1.4 × 10−5 eV, with the total energy threshold for geometry optimization set to 1.4 × 10−4 eV. The plane wave energy cutoff was 30 Ry for the wavefunctions and 200 Ry for the charge density. Reciprocal space was spanned by a (2 × 2 × 1) k-point set. Core electrons are described by ultra-soft pseudopotentials, and valence electrons (Ga: 4s2 4p1, Al: 3s2 3p1, N: 2s2 2p3, F: 2s2 2p5, C: 2s2 2p2, H: 1s1) are treated using plane wave basis sets.58 For calculations involving doublet F radicals spin polarized treatment was enabled. Entropy was calculated by vibrational analysis of gas-phase structures optimized using the B3LYP-D3 functional and 6-31g** basis set in Jaguar at a pressure of 50 mTorr, comparable to the pressure used during experiments.54

Similar to previous ALE simulations,43–45,48–51 the reactions for chemical vapor etching (CVE) and ALE conversion (AC) are studied using a modified N–E analysis. In this approach, bulk models instead of surface models are used to compute the Gibbs free energy change (ΔG) between the products and reactants. Consideration of bulk species means that the surface coverage of F cannot be obtained, however, this simplifies the simulations allowing for rapid screening of the thermodynamics over a wide temperature range. We do not consider the bulk entropy or an explicit reaction pathway between the reactants and products, and these omissions could lead to a discrepancy with the experiment.44 As the reactant and product partial pressure changes with temperature, the term RT ln(Q) is also included in the free energy calculation.

By comparing the ΔG for CVE and AC reactions, similar to N–E analysis, we can identify four different thermodynamic regimes for the modification step: purely etching, preferred etching, purely conversion, and preferred conversion.44 For ALE, ideally the modification step should be in the pure conversion regime, where the AC reaction is energetically favorable (ΔG < 0), and the CVE reaction is energetically unfavorable (ΔG > 0). Alternatively, ALE can be achieved in the preferred conversion regime where both AC and CVE reactions have ΔG < 0, but with the AC reaction being more energetically favorable. In this regime, there may be some competition between the two reactions. Reactions in the regimes of purely or preferred continuous etching are not expected to be suitable for ALE. The ΔG was computed in the temperature range −273–527 °C (0–800 K) for all reactions simulated in this work.

1. ALD and ALE processes

GaN films were grown via plasma ALD using triethylgallium and a H2/N2 plasma at 350 °C in an Oxford Instruments FlexAL employing an inductively coupled plasma (ICP) source.59 The film thickness was 43.5 nm with a non-uniformity of ±1.6% across a 6-in. wafer. Oxygen is observed throughout the GaN ALD film (3–7 at.%) due to oxygen containing impurities incorporated during ALD from background species and reactor surfaces, as discussed in Sec. III C 2.60 The film was stored in ambient, which led to the formation of a more heavily oxidized layer (>15 at.%) on the GaN surface.

The ALE process was performed in a different Oxford Instruments FlexAL reactor (chamber volume 13.8 ± 0.4 l61) at table temperatures between 100 and 300 °C, and the walls set to 150 °C. The reaction chamber was conditioned with hafnium dioxide (HfO2) for 200 ALD cycles at 300 °C before any ALE cycles were performed; details of this process have been previously reported in Ref. 62. HfO2 is chosen as the conditioning film as it is the most resistant film to this ALE chemistry available on the tool.63 The ALE process consists of an SF6 plasma step, followed by TMA dosing as shown in Fig. 2, where the chamber is continuously pumped and pressure controlled by an automated pressure controller (APC). The APC is a butterfly valve located before the turbo pump that throttles the pumping speed of the reactor, enabling a high chamber pressure with a low gas flow, thereby maximizing the residence time of reaction species.61 A pre-plasma step of 5 s is used to stabilize the gas flows through the ICP tube, which are 50 sccm SF6 and 150 sccm Ar, with the chamber pressure maintained at 100 mTorr by the APC. After this, the plasma is struck at 100 W, with the plasma on time varied from 0 to 30 s. The reactor is then purged with 300 sccm Ar for 10 s with the APC fully open. This is followed by TMA dose/hold pulses: TMA is dosed into the reactor for 0.1 s with the pressure kept at 150 mTorr by the APC; the TMA is subsequently held in the reactor for 2 s before TMA is again dosed into the chamber. This so-called “hold” step is designed to act as a soak step to increase the exposure of the precursor to the sample to facilitate the ligand-exchange reactions. During the TMA dose and hold, a constant 10 sccm Ar is flown through the ICP to limit upstream TMA diffusion. The number of TMA dose/hold pulses was varied from 0 to 10 to measure the saturation as a function of pulses. After the TMA dose and hold, the APC is fully opened and the reactor is purged for 25 s with a 300 sccm Ar flow.

FIG. 2.

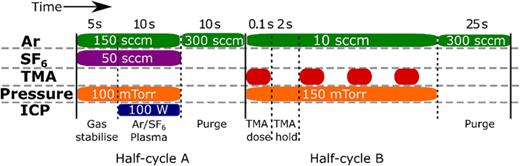

Schematic of the standard ALE process used in this work. Half-cycle A is a 10 s Ar/SF6 plasma. Half-cycle B is a TMA dose and hold, repeated four times per cycle. Each half-cycle ends with a purge before the next half-cycle. Pressure is maintained by an automated pressure controller and the inductively coupled plasma is operated at 100 W.

FIG. 2.

Schematic of the standard ALE process used in this work. Half-cycle A is a 10 s Ar/SF6 plasma. Half-cycle B is a TMA dose and hold, repeated four times per cycle. Each half-cycle ends with a purge before the next half-cycle. Pressure is maintained by an automated pressure controller and the inductively coupled plasma is operated at 100 W.

Close modal

2. Analysis techniques

Thickness changes during ALE were determined with a fixed angle in situ M-2000 J.A. Woollam spectroscopic ellipsometer (SE) in the photon energy range 1.2–4.9 eV. In addition, ex situ SE measurements were performed using a variable angle (vertical) M-2000 J.A. Woollam at 65°, 70°, and 75° in the photon energy range 1.2–6.5 eV. The GaN is modeled using a Tauc–Lorentz general oscillator, from which the bandgap of the GaN film was determined to be 3.5 eV, within the expected range from the literature.64,65 AFM measurements were performed on the Dimension Icon AFM manufactured by Bruker, operated in PeakForce with the ScanAsyst mode, using a PeakForce-Air tip. The scan frequency was set to 1 Hz and the scan area was 1 × 1 μm2. X-ray diffraction (XRD) scans were performed on a D8 Discover Bruker tool using a 2θ/ω scan and a Cu anode. XPS data were obtained using an Al K-alpha x-ray source on a photoelectron spectrometer system from ThermoFischer Scientific. XPS depth profiles were performed with 500 eV Ar ions for both pristine and etched samples. Relatively low ion energies were employed to minimize mixing during sputter depth profiling. For depth profiling, the samples were sputtered in the XPS chamber for a total of 350 s, with XPS measurements after every 5 s of sputtering.

3. Surface characterization pre-ALE

To provide a reference for the GaN post-ALE, it is important to characterize the film before ALE. To this end, XPS, AFM, SE, and XRD were performed on the as-prepared GaN films. Figure 3(a) shows the peak area for the Ga–O and Ga–N contribution to the Ga3d peak as a function of sputter depth. To accurately fit the Ga3d peak, both Ga–O and Ga–N peaks at 20.5 and 19.3 eV, respectively, are required as shown in Fig. 3(b).65–67 Using depth profiling, it was observed that this oxide layer extends into the bulk of the film. The thickness of this oxidized layer was estimated to be around 10 nm by correlating the thickness of the film from SE with the appearance of the Si2p peak in the XPS depth profile. There is still a detectable amount of oxygen in the film until around 25 nm sputter depth. A high O signal to this depth may be a symptom of mixing during the XPS sputtering, which forces O atoms deeper into the film as the depth profile proceeds. The presence of a surface oxide layer leads to a Ga-deficient surface layer, which transitions into a more stoichiometric GaN layer in the bulk, as can be seen in Fig. S.1. The bulk appears slightly nitrogen-deficient, likely caused by preferential sputtering of N during the XPS depth profile measurements. Additionally, ∼2 at.% F was detected throughout the entire GaN film, which is attributed to chamber cleaning performed on the ALD tool before deposition of the GaN sample. The crystalline nature of the films was confirmed by XRD analysis. A (002) GaN peak at 34.5° was observed indicative of hexagonal wurtzite GaN grown by ALD,65–67 as shown in Fig. S.2. The surface roughness was measured to be 2.6 ± 0.1 nm, with the different crystallites visible in the AFM map as will be discussed in Sec. III C 1.

FIG. 3.

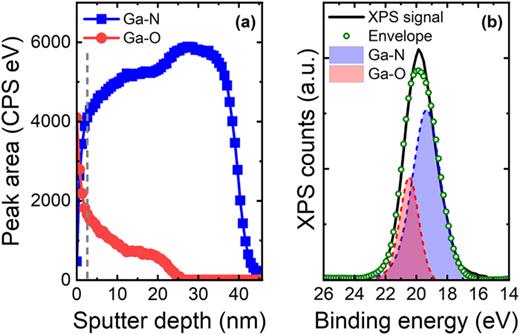

(a) Contributions of Ga–O and Ga–N to the Ga3d peak area plotted as a function of sputter depth. The vertical dashed line indicates the spectra shown in (b). (b) The Ga3d signal after 20 s of sputtering, highlighting the positions of the Ga–O and the Ga–N peaks at 20.5 and 19.3 eV, respectively.

FIG. 3.

(a) Contributions of Ga–O and Ga–N to the Ga3d peak area plotted as a function of sputter depth. The vertical dashed line indicates the spectra shown in (b). (b) The Ga3d signal after 20 s of sputtering, highlighting the positions of the Ga–O and the Ga–N peaks at 20.5 and 19.3 eV, respectively.

Close modal
GaN fluorination reactions are chosen for simulation to investigate the difference between the formation of a solid product GaF3(bulk) and a gaseous product GaF3(g), which correspond to AC and CVE behavior, respectively. As F radicals are one of the dominant neutral species in an SF6/Ar plasma and are expected to drive the fluorination reaction, the simulations were limited to considering only the F radicals as constituents of the plasma.68,69 The oxidized surface layer highlighted in Fig. 3 has not been included in the simulations, as the material of interest in this study is GaN. In any case it is expected the ALE chemistry studied here would etch the surface GaOx.70 Sputtering from ions was not considered since no substrate bias is applied, and a relatively high pressure is utilized such that only low energy ions are present.71 Experimentally no sputtering was observed during the SF6 plasma step as is discussed later in this work. Ultraviolet/vacuum ultraviolet (UV/VUV) photons are a product of the plasma, which could also play a role in the etching mechanism. However, previous isotropic plasma ALE studies found that the etch rate was the same at the sidewalls and horizontal surfaces of a trench structure indicating that UV/VUV photons are not driving the etch process.63 Thus, the effect of VUV photons was not taken into account in this work but could be explored more in future studies. The equations simulated for the plasma fluorination step are
ALE conversion : Ga N ( bulk ) + 6 F ( g ) Ga F 3 ( bulk ) + N F 3 ( g ) ,
(1)
Chemical vapor etching : Ga N ( bulk ) + 6 F ( g ) Ga F 3 ( g ) + N F 3 ( g ) ,
(2)
where F⋅ denotes the fluorine radical. ΔG as a function of temperature for Eqs. (1) and (2) for the plasma fluorination reactions are shown in Fig. 4. Both reactions have a large negative ΔG over the entire temperature range, indicating both are energetically favorable. Crucially, below 450 °C, the AC reaction is more energetically favorable than the CVE reaction. Therefore, the process is in the preferred conversion regime and will likely yield self-limiting behavior.43,44 Above 450 °C, the process transitions to the preferred etching regime, which is probably unsuitable for ALE.
FIG. 4.

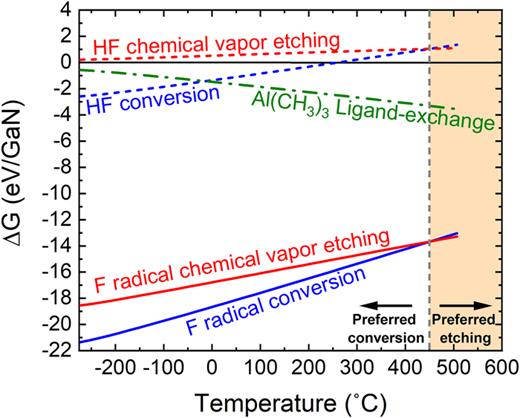

Gibbs free energy change (ΔG) as a function of temperature for the fluorination half-cycle considering both the conversion (blue) and chemical vapor etching (red) reactions. Solid lines indicate plasma fluorination reactions (F radicals), while the thermal fluorination reactions (HF) are indicated by dashed lines. A vertical dashed line at 450 °C highlights the change for the plasma fluorination reactions from the preferred conversion regime to the preferred etching regime. The ligand-exchange half-cycle is also included (dashed-dotted line, green) and shows a negative ΔG over the entire evaluated temperature range.

FIG. 4.

Gibbs free energy change (ΔG) as a function of temperature for the fluorination half-cycle considering both the conversion (blue) and chemical vapor etching (red) reactions. Solid lines indicate plasma fluorination reactions (F radicals), while the thermal fluorination reactions (HF) are indicated by dashed lines. A vertical dashed line at 450 °C highlights the change for the plasma fluorination reactions from the preferred conversion regime to the preferred etching regime. The ligand-exchange half-cycle is also included (dashed-dotted line, green) and shows a negative ΔG over the entire evaluated temperature range.

Close modal
For comparison, fluorination by HF was also simulated as it is a common fluorine source for thermal ALE.39,44 The reactions simulated were
ALE conversion : Ga N ( bulk ) + 3 H F ( g ) Ga F 3 ( bulk ) + N H 3 ( g ) ,
(3)
Chemical vapor etching : Ga N ( bulk ) + 3 H F ( g ) Ga F 3 ( g ) + N H 3 ( g ) .
(4)

The ΔG values for Eqs. (3) and (4) are also shown in Fig. 4 as a function of temperature. The conversion of the surface with HF, reaction (3), is thermodynamically favorable at low temperatures up to 250 °C. At higher temperatures, the entropy cost of passivating with fluorine overcomes the enthalpy gain. Chemical vapor etching to volatilize Ga with HF, reaction (4), is unfavorable at all the temperatures evaluated in this work. This analysis agrees with the experimental observations for HF/BCl3 thermal ALE where etching of GaN films was not observed at 250 °C. In that study, it was hypothesized that the HF was unable to fluorinate the GaN films.39

In this work, modified N–E analysis has also been employed to analyze the removal step, which is expected to be a ligand-exchange reaction between GaF3 and TMA. The following reaction was postulated:
Ga F 3 ( bulk ) + 2 Al ( C H 3 ) 3 ( g ) GaF ( C H 3 ) 2 ( g ) + 2 AlF ( C H 3 ) 2 ( g ) ,
(5)
where two TMA molecules each exchange a single methyl group with the GaF surface to generate volatile GaF(CH3)2(g). This reaction is based on the previous Ga2O3 thermal ALE literature, for which a ligand-exchange reaction between GaFx and trimethylgallium (TMG) precursor has been proposed, resulting in the production of GaF(CH3)2.70,72 For thermal ALE of Al2O3, a similar ligand-exchange reaction is the expected pathway for a fluorination/TMA ALE chemistry.73 The ΔG value for the ligand-exchange reaction is also shown in Fig. 4. The ΔG is negative at all temperatures and becomes increasingly negative as the temperature increases. This suggests that the thermodynamics of ligand exchange do not constrain the ALE process window, except perhaps at low temperatures where activation barriers may inhibit the ligand-exchange reaction. It may be best to perform the ligand-exchange reaction at high temperatures, to overcome any kinetic barriers, while staying always below 450 °C to avoid CVE during the fluorination step.

In summary, both half-cycles of the proposed plasma ALE process are thermodynamically favorable over a wide range of temperatures, suggesting that this process is viable down to low temperatures. DFT simulations thereby indicate that the SF6 plasma/TMA chemistry is a good candidate for GaN ALE.

1. Saturation curves

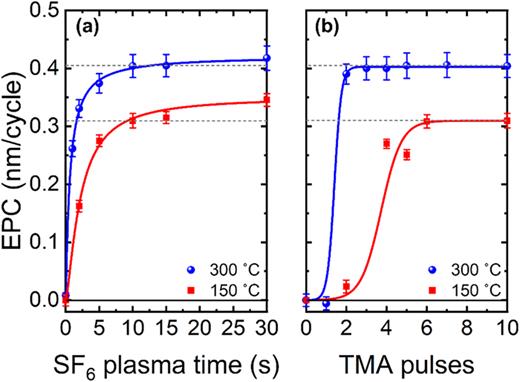

The saturation curve for SF6 plasma exposure (half-cycle A) is shown in Fig. 5(a), performed using 10 × 100 ms TMA pulses in half-cycle B. For both 150 and 300 °C, there is an initial steep rise in EPC, after which only a gradual increase is observed. The shape of the curve is consistent with other diffusion-driven surface modification ALE processes.63,74,75 Soft-saturation during the fluorination step is hypothesized to be caused by fluorine radicals rapidly fluorinating the surface, after which the fluorinated surface acts as a diffusion barrier impeding further fluorination of the bulk.72,74,76 Due to the similarity to the Deal–Grove model for oxidation of Si, fluorination in ALE with a fluorine-based plasma is assumed to follow the same mechanism.63,72,74,77 At 300 °C, the EPC saturates at 0.40 ± 0.02 nm/cycle for a 10 s SF6 plasma step. A SF6 plasma exposure time of 10 s was chosen as the standard condition because the EPC increases by only 0.02 nm/cycle when extending the plasma time to 30 s, which is within the error. The saturation curve at 150 °C shows comparable behavior to the one at 300 °C, however, the soft-saturation is more pronounced, and a lower EPC of 0.31 ± 0.01 nm/cycle is observed. The lower EPC may be due to the diffusion of fluorine being inhibited at lower temperatures, as is predicted by the Deal–Grove model.77 Alternatively, the ligand-exchange reaction becomes less energetically favorable at lower temperatures, as shown in Fig. 4.

FIG. 5.

Saturation curves at 150 and 300 °C for (a) SF6 plasma exposure using 10 × 100 ms TMA exposures and (b) varied number of 100 ms TMA pulses with a 10 s SF6 plasma step, determined over 30 ALE cycles. Lines are guides for the eye.

FIG. 5.

Saturation curves at 150 and 300 °C for (a) SF6 plasma exposure using 10 × 100 ms TMA exposures and (b) varied number of 100 ms TMA pulses with a 10 s SF6 plasma step, determined over 30 ALE cycles. Lines are guides for the eye.

Close modal

The saturation behavior for the TMA dose in half-cycle B using a 10 s SF6 plasma in half-cycle A, is shown in Fig. 5(b). The EPC saturates at 0.40 ± 0.02 nm/cycle when using 4 × 100 ms TMA doses at 300 °C. In contrast to the SF6 plasma half-cycle, there is clear saturation during the TMA step. For 1 × 100 ms dose times, a small increase in film thickness was observed (denoted by a negative EPC value). This is attributed to AlF3 growth as the same SF6 plasma/TMA process chemistry can be used for AlF3 ALD.78,79 A higher dose of TMA is necessary to reach saturation at 150 °C. This is possibly due to competition between AlF3 ALD and GaN ALE reactions. The AlF3 ALD reactions are enhanced at lower temperatures, leading to a higher consumption of TMA on the cooler reactor components.79,80 Evaluating the etched thickness as a function of ALE cycles using an SF6 plasma time of 10 s and a TMA dose of 4 × 100 ms gives an EPC of 0.39 ± 0.02 nm/cycle at 300 °C, as shown in Fig. S.3. The EPC obtained from the linear fit in Fig. S.3 is consistent with the value obtained from the saturation curves.

2. Synergy test

Reactant synergy is a concept in ALE that aims to measure the ideality of a process.20 In order to achieve precise film thickness control, etching should only occur when alternating the ALE half-cycles. To test the synergy, the sample is first exposed to 25 pulses of the SF6 plasma, followed by 25 pulses of TMA, and finally, 75 full ALE cycles. The film thickness is monitored using in situ SE after each pulse/cycle, as shown in Fig. 6.

FIG. 6.

Synergy plot for GaN using SF6 plasma and TMA at 300 °C. The first 25 pulses only involve dosing SF6 plasma, the next 25 pulses only TMA, and the last 75 cycles are full ALE cycles with both SF6 plasma and TMA dosed. The inset shows the transition between only SF6 pulses and only TMA pulses.

FIG. 6.

Synergy plot for GaN using SF6 plasma and TMA at 300 °C. The first 25 pulses only involve dosing SF6 plasma, the next 25 pulses only TMA, and the last 75 cycles are full ALE cycles with both SF6 plasma and TMA dosed. The inset shows the transition between only SF6 pulses and only TMA pulses.

Close modal

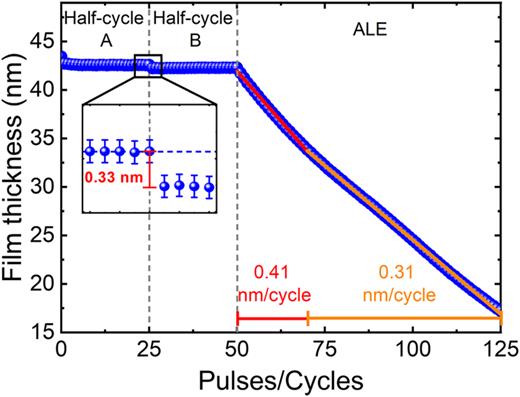

Only dosing SF6 plasma on the unetched GaN-coated sample leads to a small reduction (∼0.7 nm) in film thickness during the first pulse. This decrease could be due to either the removal of a carbon surface layer formed during storage in atmosphere (also known as adventitious carbon), removal of a heavily oxidized GaN surface layer, or changes in the optical properties of the film due to fluorination of the surface. The film thickness remains constant afterward, indicating saturation of the fluorination reaction, without continuous etching of GaN film at 300 °C. The inset of Fig. 6 shows that there is a thickness decrease of 0.33 nm when switching from SF6 plasma only pulses to the TMA only pulses, suggesting that etching occurs during the TMA step of the ALE cycle. Subsequent TMA doses do not cause any thickness change, which confirms the self-limiting nature of the TMA half-cycle.

When switching to full ALE cycles, the etching immediately starts without a delay. The etching observed over the 75 cycles can be split into two regimes, one with an EPC of 0.41 ± 0.01 nm/cycle for the first 20 cycles and a second with an EPC of 0.31 ± 0.01 nm/cycle. This change in EPC is hypothesized to be caused by the transition from the oxidized surface layer into the more stoichiometric GaN layer underneath, as the decrease in EPC coincides with the decrease in O content observed by XPS [Fig. 3(a)]. Despite the slight decrease, the EPC remains high, which shows that the ALE process can etch both the oxidized surface layer and the bulk GaN. The transition at 10 nm can be more clearly seen in Fig. S.4, where the EPC is plotted as a function of the etched thickness. As there is no continuous etching observed for either half-cycle individually, the synergy value for this process is 100%.

3. Temperature dependence

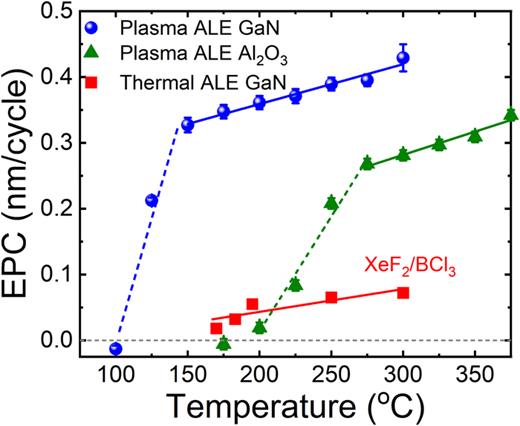

Analysis of the EPC as a function of temperature provides valuable information about the ALE processing window. Figure 7 plots the GaN EPC from this study as a function of the table temperature. Thermal ALE data taken from the literature is included for comparison,39 as well as data for Al2O3 ALE from our previous work with the same SF6 plasma/TMA chemistry.63

FIG. 7.

GaN EPC as a function of table temperature. Data for Al2O3 ALE using the same SF6 plasma/TMA chemistry are shown from our previous work.63 Thermal GaN ALE with XeF2/BCl3 is also included in the plot.39 Lines are guides to the eye.

FIG. 7.

GaN EPC as a function of table temperature. Data for Al2O3 ALE using the same SF6 plasma/TMA chemistry are shown from our previous work.63 Thermal GaN ALE with XeF2/BCl3 is also included in the plot.39 Lines are guides to the eye.

Close modal

For the GaN ALE process reported in this work, there is a linear increase in EPC with temperature from 0.31 ± 0.01 nm/cycle to 0.40 ± 0.02 nm/cycle between 150 and 300 °C. At higher temperatures, a higher EPC is observed, likely due to enhanced diffusion generating a thicker fluorinated layer, as is predicted by the Deal–Grove model.77 Below 150 °C, the GaN EPC decreases rapidly, with no etching measured when processing at 100 °C. Instead, at 100 °C, the thickness increases, indicating that growth of an AlF3 film may be occurring.78,79 As DFT predicts the ligand-exchange reaction between TMA and GaF3(s) to be thermodynamically favorable down to temperatures below 100 °C, this lower temperature limit is likely caused by a kinetic barrier in the TMA step. The product GaF(CH3)2 is either not formed or not sufficiently volatile for these process conditions and time scale. Similar behavior, but shifted to a higher temperature, has been observed for Al2O3 ALE using the same chemistry, as shown in Fig. 7.63 ALE of Al2O3 with SF6 plasma/TMA is not possible below 200 °C, the EPC then rapidly increases, before reaching a more steady increase at 275 °C. Since TMG [Ga(CH3)3] has a much higher vapor pressure than TMA [Al(CH3)3],80 it is hypothesized that the wider temperature window of GaN ALE is related to the potentially higher volatility of the proposed GaF(CH3)3 etch product compared to AlF(CH3)3.

From the temperature dependence in Fig. 7, a selectivity window for ALE of GaN over Al2O3 can be observed between 150 and 200 °C. Selectivity was confirmed by performing 30 ALE cycles at 150 °C with HfO2, Al2O3, and GaN samples in the reactor. Thickness measurements on all three samples before and after ALE revealed that neither Al2O3 nor HfO2 films were etched, while 9.5 nm of the material was etched from the GaN film, as shown in Table S1. This experiment demonstrates that selective processing can be achieved simply by operating at a low temperature. As Al2O3 can be utilized as a hard mask for the deep RIE,81,82 it is possible that this selectivity could be exploited to enable surface cleaning of GaN post RIE before removal of the hardmask.

Comparing the plasma and thermal ALE processes for GaN shows that the etch rate for the plasma process is higher, while etching is obtained for a wider temperature window. The higher etch rate is likely due to the increased reactivity of fluorine radicals compared to the thermal XeF2 counterpart, enabling a thicker modified layer to be formed. The use of plasmas for isotropic ALE of GaN, therefore, brings two main benefits: (i) higher etch rates and (ii) wider temperature window.

1. Roughness

Previously, ALE has been shown to be an effective way to reduce the roughness of films.83–85 AFM scans taken before and after GaN ALE are shown in Fig. 8. The initial GaN surface, Fig. 8(a), has sharp peaks and valleys, indicating the presence of crystalline grains on the GaN surface, as expected from the polycrystalline nature of ALD GaN films. Post 25 nm of ALE at 300 °C, Fig. 8(b), the surface is visually smoother, with the density and height of the crystallites reduced, yielding a reduction in RMS surface roughness from 2.6 ± 0.1 to 1.9 ± 0.1 nm.

FIG. 8.

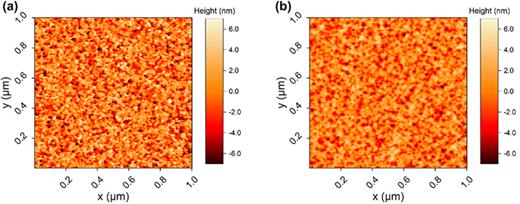

AFM height maps for (a) the as-deposited 43 nm thick GaN film and (b) after 25 nm ALE at 300 °C using the standard recipe shown in Fig. 2.

FIG. 8.

AFM height maps for (a) the as-deposited 43 nm thick GaN film and (b) after 25 nm ALE at 300 °C using the standard recipe shown in Fig. 2.

Close modal

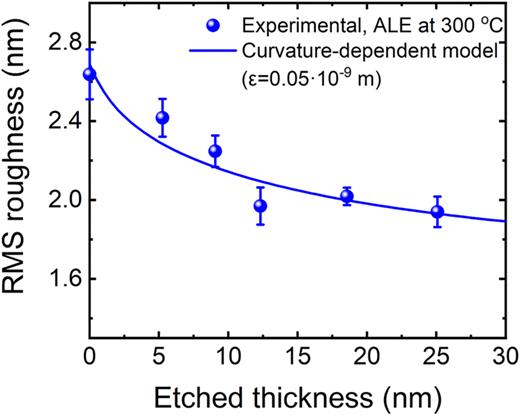

Figure 9 evaluates the surface roughness as a function of the etched thickness, where a decrease in roughness is observed for increasing etch depth. The rate of smoothing slows as the number of cycles increases, similar to ALD and ALE smoothing studies from the literature.84–87 Smoothing by ALE involving a fluorination step has been described in our previous work using a curvature-dependent smoothing model.85 The comparison between the model and experimental results is included in Fig. 9, with a good agreement between the two. The fitted term ɛ, representing a measure for the rate of F diffusion, is lower for GaN compared to amorphous Al2O3 (ɛ = 0.05 × 10−9 and ɛ = 1.50 × 10−9 m, respectively), which agrees with the previous literature suggesting that GaN is more resistant to fluorination than AlN or Al2O3.39,84,88 The rate of smoothing may also be affected by the crystalline nature of the GaN film.85 Power spectral density (PSD) analysis presented in Fig. S.5 also shows a reduction in surface roughness with increasing ALE cycles. The PSD plot shows that the majority of smoothing on the GaN film occurs at small length scales (<50 nm) that are comparable to the total etched thickness.

FIG. 9.

RMS roughness as a function of etched thickness, plotted alongside the fitted change in RMS roughness as obtained using the curvature-dependent model from Ref. 85.

FIG. 9.

RMS roughness as a function of etched thickness, plotted alongside the fitted change in RMS roughness as obtained using the curvature-dependent model from Ref. 85.

Close modal

2. Surface contamination

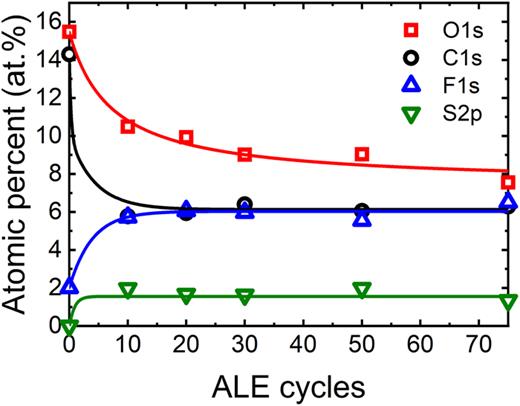

Figure 10 shows the F, S, O, and C atomic percentages at the GaN surface as a function of ALE cycles. As discussed in Sec. II B 3, the starting film has a large amount of O and C contamination, 16 and 14 at.%, respectively, as well as ∼2 at.% F. After ALE, the F and S content at the surface is largely independent of the number of ALE cycles, with 6 at.% F and <2 at.% S for all films. The F content decreases with increasing XPS sputter time for all samples, returning to the bulk value of 2 at.% after approximately 5 nm of sputtering in the XPS, as shown in Fig. S.6. Doping with F in the region beneath the gate has been shown to be beneficial for GaN MISHEMT applications, therefore, some F in the film may be acceptable in these applications.4,6,10,32,33A significant reduction in O and C content is seen after 10 ALE cycles. Removal of oxide layers and carbon is particularly important for improving device performance as they can act as trap states and reduce electron mobility.4,6,15,17,31,34,89 The C content remains constant with increasing ALE cycles, while the O content continues to decrease. The decrease in O content with increasing cycles can be explained by the presence of an initially oxidized layer seen in Fig. 3(a). Additionally, the samples are exposed to ambient when transferred between the ALE and XPS tools, which may limit the measured reduction in C and O contents.

FIG. 10.

Atomic percentages of F, O, S, and C at the etched surface from XPS as a function of ALE cycles at 300 °C. Lines are a guide to the eye.

FIG. 10.

Atomic percentages of F, O, S, and C at the etched surface from XPS as a function of ALE cycles at 300 °C. Lines are a guide to the eye.

Close modal

As TMA is a commonly used ALD precursor, it is possible that some deposition/residue of Al atoms could contaminate the surface during ALE. In certain applications, the GaN surface will be capped with a gate dielectric, such as Al2O3 or AlN, meaning that small amounts of Al atoms at the surface may not be detrimental.90–93 However, Al residues may be deleterious to device performance for applications outside MISHEMT devices.

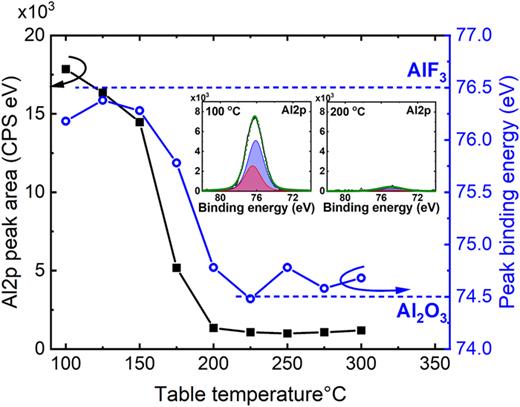

In Fig. 11, the Al2p peak area and binding energy are plotted as a function of the table temperature during the ALE process. The fitted Al2p spectra for 100 and 200 °C are shown as insets. The XPS spectra of samples etched between 100 and 300 °C are shown in Fig. S.7. At low temperatures, the Al2p peak area is large, with the binding environment close to that of Al–F bonds. As the process temperature is increased the Al2p peak area decreases and then remains constant at 200 °C and above. Concurrently, the binding environment shifts from 76.5 to 74.5 eV, indicating that the bonds are more Al–O in nature at higher process temperatures. The behavior seen in Fig. 11 can be explained by considering three competing reactions occurring within the reactor: (i) AlF3 ALD, (ii) ALE of Al containing films, and (iii) GaN ALE, as will be explained below.

FIG. 11.

Al2p XPS peak area and peak binding energy after 30 ALE cycles as a function of table temperature. The binding energies of AlF3 and Al2O3 have been included as dashed lines to show the transition between the two binding environments. The insets show the fitted Al2p XPS spectra for the films etched at 100 and 200 °C.

FIG. 11.

Al2p XPS peak area and peak binding energy after 30 ALE cycles as a function of table temperature. The binding energies of AlF3 and Al2O3 have been included as dashed lines to show the transition between the two binding environments. The insets show the fitted Al2p XPS spectra for the films etched at 100 and 200 °C.

Close modal

At 100 °C, the AlF3 ALD reaction is dominant, and growth occurs on the GaN sample. This is supported by the negative EPC in Fig. 7, the large Al2p peak at 76.5 eV in Fig. 11 and the enhanced growth of AlF3 at low temperatures seen in the literature.78,79 The dominance of the ALD reaction overshadows any ALE contributions.

Between 125 and 175 °C, there is competition between the three reactions. The AlF3 ALD reaction is suppressed by higher temperatures, meaning fewer Al atoms are deposited on the surface. However, the ligand-exchange reaction between AlF and TMA is limited below 200 °C, as can be seen in Fig. 7 and in the ALE literature.41,42,63,83,94 Therefore, any deposited Al atoms are only partially removed, allowing the Al content to build up over the ALE cycles. The Al2p content decreases with increasing temperature from 125 to 175 °C, as the deposition reaction is further suppressed, and the etching reaction enhanced. In the same temperature range, the binding environment shifts toward Al–O bonds, as opposed to Al–F bonds. It is hypothesized that the O here comes from exposure to atmosphere during sample transfer, as will be discussed in the next paragraph. The changes in Al binding environment indicate that the AlF3 ALD reaction is being suppressed and the Al ALE reactions enhanced. As the AlF3 ALD reaction is not dominant, there is exposed GaN at the surface, which enables the etching of the GaN film.

As temperature is increased to 200 °C and above, the AlF3 ALD reaction is further suppressed, and the ligand-exchange reaction between Al compounds and TMA is enhanced. This leads to minimal deposition of Al atoms on the surface, and any Al atoms that are deposited are readily etched at the high temperature. The GaN film can be freely etched as there is no buildup of an Al containing layer. However, a small Al2p signal (<1 at.%) is still present on the films processed above 200 °C. It is hypothesized that the Al2p signal is due to excess TMA from the final half-cycle. As there are no subsequent ALE cycles, the TMA remains on the surface and is oxidized during transfer in ambient to the XPS. This hypothesis is supported by the shift in Al2p binding environment at high temperatures to Al–O bonds, indicating that the Al atoms on the GaN surface have not been exposed to the SF6 plasma. Additionally, the Al2p peak area remains constant for all films processed above 200 °C, suggesting that the effect is constant across different temperatures.

In this study, an ALE process has been developed, which allows for the controlled removal of GaN at the sub-nm scale. Good agreement was observed between the predictions from DFT simulations and experimental results, demonstrating the utility of simulations to screen atomic-scale processing chemistries. Saturation behavior was experimentally measured at both 150 and 300 °C, with an etch rate of 0.31 ± 0.01 and 0.40 ± 0.02 nm/cycle, respectively. For applications where selectivity or low thermal budget are important, process temperatures down to 125 °C can be used. However, below 200 °C, there is an increase in Al and F contamination. Based on the saturation and synergy data, the ALE process is expected to follow a fluorination and ligand-exchange mechanism. The observed etch rate is higher than reported for thermal ALE of GaN, and significant etching was obtained over a wider temperature range. This highlights some of the benefits from a plasma-driven isotropic ALE process, such as the ability to etch materials that are resistant to thermal modification processes.

The ALE process was found to remove C and O contamination from the ALD prepared films, with only a small increase in the F, S, and Al content when processing above 200 °C. Such an increase may be tolerable depending on the final application of the GaN layer, especially if the ALE process can successfully remove the surface oxide. Smoothing of the polycrystalline GaN surface was also observed, following a curvature-dependent smoothing model.85 Reduction in both surface contamination and roughness indicates this process could be utilized as a “cleaning” step, which may lead to improved performance in a final GaN device. Such a cleaning step could be used post RIE to remove a damaged layer from the GaN surface before further processing. Future work could look to improve these qualities further. Surface contamination from ambient exposure could be avoided by in situ deposition of the next layer required for device fabrication, for example, the gate oxide in a MISHEMT device. An alternate etchant to TMA, such as TMG, could also be employed which may prevent Al contamination.70,72 Additionally, roughness and thickness can potentially be fine-tuned by implementing GaN ALE alongside GaN ALD in a supercycling technique.75,85

Accurately controlling GaN film thickness, while simultaneously smoothing and removing contaminants, makes isotropic plasma ALE a good candidate for surface cleaning. Improving the interface quality in GaN devices will further enhance performance and yield, while the ability to process 3D structures will enable advances in GaN-based LED, RF, and power semiconductor devices.

This section contains details on the stoichiometry and crystallinity of the ALD GaN films, GaN etched film thickness as a function of ALE cycles, change in EPC during synergy measurement, ALE selectivity at 150 °C, PSD plots, the XPS depth profiles for films post-ALE and CIF files used for DFT simulations.

This work is part of the research program HTSM with Project No. 17124, which is financed by the Netherlands Organization for Scientific Research NWO. The authors would like to thank J. J. A. Zeebregts, C. A. A. van Helvoirt, C. van Bommel, J. J. L. M. Meulendijks, and B. Krishnamoorthy for technical support, as well as Dr. A. O'Mahony and Dr. M. Loveday for fruitful discussions on this work. We would also like to thank Schrödinger for providing access to their software, which is utilized in this work.

The authors have no conflicts to disclose.

Nicholas J. Chittock: Conceptualization (equal); Data curation (equal); Formal analysis (equal); Investigation (equal); Methodology (equal); Software (equal); Visualization (equal); Writing – original draft (equal); Writing – review & editing (equal). Yi Shu: Resources (equal); Writing – review & editing (equal). Simon D. Elliott: Methodology (equal); Software (equal); Writing – review & editing (equal). Harm C. M. Knoops: Funding acquisition (equal); Project administration (equal); Writing – review & editing (equal). W. M. M. (Erwin). Kessels: Funding acquisition (equal); Project administration (equal); Supervision (equal); Writing – review & editing (equal). Adriaan J. M. Mackus: Conceptualization (equal); Formal analysis (equal); Funding acquisition (equal); Methodology (equal); Project administration (equal); Supervision (equal); Visualization (equal); Writing – original draft (equal); Writing – review & editing (equal).

The data that support the findings of this study are openly available in 4TU.ResearchData at http://doi.org/10.4121/b7383943-2ae0-4339-8cbf-657765023fd6, Ref. 95.
