Varactor diodes have been proposed as active tuning elements of reconfigurable metasurfaces in the Ka-band. However, their experimental realization in this frequency range has not been demonstrated yet. We report the implementation of such a reconfigurable intelligent surface (RIS) made of 20 × 20 unit cells. By active tuning of the bias voltage of the varactors, the phase of the backward diffracted wave can be continuously tuned between 0 ° and 180 °. Thus, the phase tuning can be independently controlled for each unit cell. The frequency working range of the RIS is 1.1 GHz (from 30.6 to 31.7 GHz). As an illustration of the practical use, we demonstrate continuous beam steering of microwave radiation at 31 GHz in a defined propagation plane.

A reconfigurable intelligent surface (RIS) is a dynamic metasurface consisting of unit cells that incorporate one or more active elements for the purpose of modifying their electromagnetic characteristics. By individual tuning on the unit cell level, a reconfigurable spatial pattern of complex surface impedances can be created that allows both, local and global control over the spatial phase of a diffracted wave from the RIS. As a result, diffraction from an RIS can be used to control the propagation of an electromagnetic wave at will, as, for example, in beam focusing or beam steering. For this reason, RISs have been proposed as beam forming components in 5G and 6G mobile communication1,2 and for radar cross-section (RCS) reduction.3

In this context, RISs in the literature differ fundamentally with respect to the specific tuning elements employed for reconfiguring their surface impedance. While CMOS components, graphene electronics, and micro-electro-mechanical systems (MEMS) have proven to serve as reliable tuning elements in RISs for working frequencies in the terahertz range,4–7 PIN diodes have been the preferred means of choice in RISs up to 60 GHz.8–10

However, there are two main drawbacks associated with the use of PIN diodes. First, the embedding of PIN diodes in a RIS only allows for discrete shifting in the phase of the diffracted wave at the unit cell level, specifically by either 0 ° or 180 °. In such a digital RIS coding scheme, the degrees of freedom for beam steering are inherently limited. Second, since the impedance of the PIN diodes is tuned by application of a forward bias voltage, the resulting currents and power consumption are significant, especially when more than one PIN diode is used per unit cell.3,11 In contrast to PIN diodes, varactor diodes are mostly operated at a reverse bias voltage, which keeps the currents and power consumption extremely low. In consequence, an increase in the amount of used varactor diodes per unit cell comes at a lower increase in the cost of operation. Furthermore, the capacitance, and, thus, the complex impedance of varactor diodes, can be continuously tuned and is not restricted to discrete values. Consequently, the use of varactor diodes as adjustable components substantially enhances the flexibility of the tuning process, thereby increasing the level of freedom in beamforming applications.

So far however, varactor diodes have only been demonstrated to be effective on RISs operating in the single-digit gigahertz frequency range.12–14 Apart from that, their usage as tuning elements in the K-band and above has been merely theoretically hypothesized,15,16 but not experimentally demonstrated. Here, we report and discuss the experimental implementation of a varactor-based RIS operating in the Ka-band at 31 GHz. Besides a profound theoretical and experimental analysis of the electromagnetic properties of the tunable RIS, we also apply capacitive tuning of the varactor diodes for continuous beam steering in a defined diffraction plane.

The designed RIS has been manufactured by standard printed circuit board (PCB) fabrication technology. The unit cell of the RIS and the associated geometrical dimensions are illustrated in Fig. 1. The three 35  μm thick copper layers are spaced by two Rogers RO4350B substrates with thicknesses of 760 and 270  μm, respectively. The top layer of the RIS carries patch antennas with varactor diodes for active capacitive tuning. The unit cell has a width and height of approximately λ / 2 with respect to the wavelength λ of the microwave radiation. The working frequency of the structure is 31 GHz. The second layer of the PCB is a ground plane that is connected to the center of the patch antenna through a via. It also serves as the ground potential for the bias voltage of the varactor diode. The varactor DC bias voltage is applied through a separate via that is not electrically connected to the ground plane. The bottom layer of the RIS hosts a radial stub for each unit cell to insulate the DC feed line from the microwave. The DC feed lines of all unit cells are vertically connected. As a result, all unit cells in one of the 20 columns of the RIS are switched with the same bias voltage from an operational amplifier, which implies the ability for beam steering in a specified plane. We refer to this plane as a horizontal plane in the remainder of the text. The cyan-colored box in Fig. 1 indicates the varactor diode (MACOM MAVR-011020-1411). The patch antenna of the unit cell has been analytically laid out as described in Ref. 17, and the unit cell structure has been numerically optimized in CST Studio Suite.

FIG. 1.

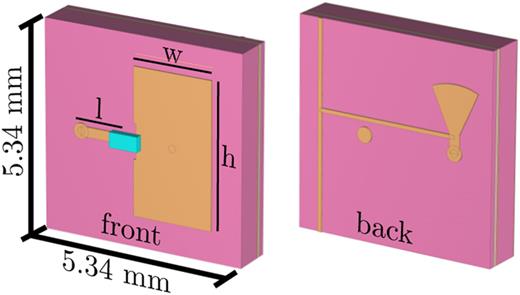

Front side (left) and back side (right) of the unit cell of the RIS. The orange structures are made of copper. The pink board represents the RO4350B substrate. The cyan-colored box indicates the varactor diode. The dimensions of the copper antenna are h = 3.77 mm, w = 2.1 mm, and l = 1.28 mm.

FIG. 1.

Front side (left) and back side (right) of the unit cell of the RIS. The orange structures are made of copper. The pink board represents the RO4350B substrate. The cyan-colored box indicates the varactor diode. The dimensions of the copper antenna are h = 3.77 mm, w = 2.1 mm, and l = 1.28 mm.

Close modal

The fabricated RIS is shown in Fig. 2(a). It consists of 20 × 20 unit cells and a blank, two unit cells wide border around the perimeter. The total aperture of the RIS is 128 × 128 mm 2.

FIG. 2.

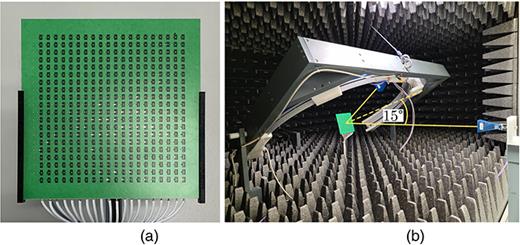

(a) Front side of the RIS. The aperture of the RIS is 128 × 128 mm 2. (b) Goniometer and RIS at a 15 ° inclination angle inside an anechoic chamber.

FIG. 2.

(a) Front side of the RIS. The aperture of the RIS is 128 × 128 mm 2. (b) Goniometer and RIS at a 15 ° inclination angle inside an anechoic chamber.

Close modal

We experimentally characterized the electromagnetic properties of the RIS by measuring the electric field distribution of the back-diffracted wave from the RIS in a microwave goniometer [see Fig. 2(b)]. The goniometer was located in an anechoic chamber to avoid parasitic scattering from the boundaries. In a first step, we evaluated the relationship between the phase shift in the back-diffracted wave and the applied reverse bias voltage to the varactor diodes in the RIS unit cells. In this initial measurement of the S 11 scattering parameter, we applied identical bias voltages to all columns and, thus, to all unit cells in the RIS during the tuning process. In order to avoid shadowing by the receiving antenna, we inclined the RIS by 15 ° (measured between the RIS normal and the horizontal plane) such that the backward diffraction occurred in a plane at an inclination angle of 30 °.

Figures 3(b) and 3(a) show the magnitude and the relative phase of the S 11 scattering parameter for a frequency range from 19 to 33 GHz when the bias voltage is tuned from 20 to +10 V uniformly for all unit cells. Please note that the linear magnitude of the S 11 scattering parameter has been normalized to the maximum value obtained in Fig. 3(b), while the phase in Fig. 3(a) has been plotted relative to the measured reference phase at a bias voltage of 20 V. The voltage drop was measured across a series circuit of the corresponding varactor diode and a resistor with a resistance of 910  Ω. The measurements show that, for a frequency range between 30.6 and 31.7 GHz, the phase of the S 11-parameter could be continuously tuned from 0 ° to 180 ° by changing the bias voltage from 20 to +10 V. This corresponds to a working frequency bandwidth of 1.1 GHz, which is indicated by the black dashed lines in Fig. 3. Within this tuning range, the magnitude of S 11 varied between 0.25 and 0.86 a.u. However, we also observed empirically that a phase difference of up to 160 ° between unit cells is sufficient for effective beam steering in a defined plane. In this case, the corresponding phase shift in the S 11 scattering parameter can be obtained in a frequency domain between 30.0 and 31.9 GHz, which implies an increased working frequency bandwidth of 1.9 GHz. In this tuning range, the S 11 scattering parameter changed from 0.15 to 0.87 a.u.

FIG. 3.

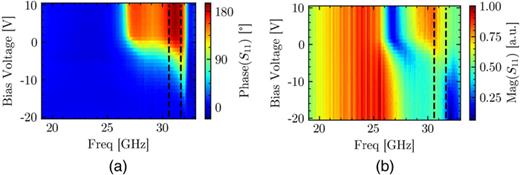

Phase (a) and magnitude (b) in the maximum of the mainlobe of the backward diffracted wave plotted vs frequency and bias voltage. The phase is measured relative to the reference phase at a bias voltage of 20 V. The linear magnitude is normalized to the maximum value in the plot. The dashed black lines illustrate the frequency range, in which the phase difference can be tuned at least between 0 ° and 180 °.

FIG. 3.

Phase (a) and magnitude (b) in the maximum of the mainlobe of the backward diffracted wave plotted vs frequency and bias voltage. The phase is measured relative to the reference phase at a bias voltage of 20 V. The linear magnitude is normalized to the maximum value in the plot. The dashed black lines illustrate the frequency range, in which the phase difference can be tuned at least between 0 ° and 180 °.

Close modal

As specific examples, Fig. 4 depicts the dependence of the phase and magnitude of S 11 on the applied bias voltage for working frequencies at 30.6, 31.0, and 31.6 GHz. These curves have been obtained by evaluating the S 11 phase and magnitude in Figs. 3(a) and 3(b) at the respective frequencies. As can be seen, the S 11 magnitude increases from 0.43 to 0.71 a.u. and the S 11 phase changes between 0 ° and 180 °, when the bias voltage is tuned from 20 to +10 V. By using the measured frequency dependence of the complex S 11 scattering parameter as a calibration curve, it was possible to assign phase values between 0 ° and 180 ° to each RIS column and, thus, to create arbitrary, column-wise organized, spatial phase patterns. As an illustrative application, we utilized column-wise phase tuning on the RIS to implement beam steering of microwaves at 31 GHz in a defined plane, as described in Sec. IV.

FIG. 4.

Phase (black) and magnitude (red) of the measured S 11 scattering parameter at different frequencies plotted vs the bias voltage.

FIG. 4.

Phase (black) and magnitude (red) of the measured S 11 scattering parameter at different frequencies plotted vs the bias voltage.

Close modal

In contrast to RISs with binary switching elements,8–10 varactor-equipped RISs can diffract incident waves to a continuous range of deflection angles. Since our RIS implementation was limited to a column-wise address of the embedded varactors that did not allow individual control over each unit cell, we could continuously steer a normally incident wave only in a defined plane. For continuous beam steering within the whole hemisphere, individual control over the bias voltage in each unit cell is mandatory, which sophisticates the routing and the RIS design considerably. For this reason, two-dimensional beam steering has not been considered in this publication.

For implementation of the RIS beam steerer, we first determined the required phase switching patterns to achieve continuous tuning of the deflection angle of the back-diffracted waves. We selected a frequency of 31 GHz as the operational frequency for the RIS. We assumed that the wave was normally incident before being deflected by the RIS. For optimization, we used particle swarm optimization to maximize the electric field of the deflected wave for any desired deflection angle. The method for calculating the electric field distribution was described in an earlier work.18 The column-wise phase switching patterns, which result from the optimization, are shown in Table I. We used the calibration curve depicted in Fig. 4 to determine the necessary bias voltage pattern for a given phase pattern at 31 GHz.

TABLE I.

Calculated phase patterns for the beam steering RIS. The left column displays the target deflection angle. The remaining 20 columns represent the columns of the RIS and list the phase in each column that was determined to achieve the desired deflection angle.

RIS column number
Deflection angle0102030405060708091011121314151617181920
0 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °
5 °  180 °  180 °  0 °  0 °  0 °  0 °  0 °  11 °  28 °  46 °  63 °  80 °  97 °  115 °  132 °  149 °  167 °  180 °  180 °  180 °
10 °  0 °  0 °  11 °  46 °  80 °  115 °  149 °  180 °  180 °  180 °  0 °  0 °  0 °  31 °  65 °  100 °  134 °  169 °  180 °  180 °
15 °  39 °  97 °  155 °  180 °  0 °  0 °  27 °  85 °  143 °  180 °  180 °  0 °  16 °  74 °  132 °  180 °  180 °  0 °  4 °  62 °
20 °  41 °  108 °  176 °  180 °  0 °  20 °  88 °  156 °  180 °  0 °  0 °  68 °  136 °  180 °  0 °  0 °  48 °  116 °  180 °  180 °
25 °  83 °  164 °  180 °  0 °  46 °  127 °  180 °  0 °  9 °  90 °  171 °  180 °  0 °  53 °  134 °  180 °  0 °  16 °  97 °  178 °
30 °  120 °  180 °  0 °  58 °  157 °  180 °  0 °  95 °  180 °  0 °  33 °  133 °  180 °  0 °  71 °  170 °  0 °  9 °  108 °  180 °
35 °  31 °  144 °  180 °  12 °  126 °  180 °  0 °  108 °  180 °  0 °  90 °  180 °  0 °  72 °  180 °  0 °  54 °  168 °  0 °  36 °
40 °  50 °  177 °  0 °  73 °  180 °  0 °  96 °  180 °  0 °  119 °  180 °  14 °  142 °  180 °  38 °  165 °  0 °  61 °  180 °  0 °
45 °  180 °  0 °  116 °  180 °  37 °  178 °  0 °  99 °  180 °  20 °  160 °  0 °  81 °  180 °  2 °  143 °  0 °  64 °  180 °  0 °
50 °  0 °  87 °  180 °  40 °  180 °  0 °  150 °  0 °  103 °  180 °  56 °  180 °  9 °  166 °  0 °  119 °  0 °  72 °  180 °  25 °
55 °  164 °  0 °  129 °  0 °  95 °  180 °  60 °  180 °  26 °  180 °  0 °  154 °  0 °  120 °  0 °  85 °  180 °  51 °  180 °  16 °
60 °  180 °  39 °  180 °  30 °  180 °  21 °  180 °  11 °  180 °  2 °  178 °  0 °  169 °  0 °  159 °  0 °  150 °  0 °  141 °  0 °
65 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °
RIS column number
Deflection angle0102030405060708091011121314151617181920
0 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °  180 °
5 °  180 °  180 °  0 °  0 °  0 °  0 °  0 °  11 °  28 °  46 °  63 °  80 °  97 °  115 °  132 °  149 °  167 °  180 °  180 °  180 °
10 °  0 °  0 °  11 °  46 °  80 °  115 °  149 °  180 °  180 °  180 °  0 °  0 °  0 °  31 °  65 °  100 °  134 °  169 °  180 °  180 °
15 °  39 °  97 °  155 °  180 °  0 °  0 °  27 °  85 °  143 °  180 °  180 °  0 °  16 °  74 °  132 °  180 °  180 °  0 °  4 °  62 °
20 °  41 °  108 °  176 °  180 °  0 °  20 °  88 °  156 °  180 °  0 °  0 °  68 °  136 °  180 °  0 °  0 °  48 °  116 °  180 °  180 °
25 °  83 °  164 °  180 °  0 °  46 °  127 °  180 °  0 °  9 °  90 °  171 °  180 °  0 °  53 °  134 °  180 °  0 °  16 °  97 °  178 °
30 °  120 °  180 °  0 °  58 °  157 °  180 °  0 °  95 °  180 °  0 °  33 °  133 °  180 °  0 °  71 °  170 °  0 °  9 °  108 °  180 °
35 °  31 °  144 °  180 °  12 °  126 °  180 °  0 °  108 °  180 °  0 °  90 °  180 °  0 °  72 °  180 °  0 °  54 °  168 °  0 °  36 °
40 °  50 °  177 °  0 °  73 °  180 °  0 °  96 °  180 °  0 °  119 °  180 °  14 °  142 °  180 °  38 °  165 °  0 °  61 °  180 °  0 °
45 °  180 °  0 °  116 °  180 °  37 °  178 °  0 °  99 °  180 °  20 °  160 °  0 °  81 °  180 °  2 °  143 °  0 °  64 °  180 °  0 °
50 °  0 °  87 °  180 °  40 °  180 °  0 °  150 °  0 °  103 °  180 °  56 °  180 °  9 °  166 °  0 °  119 °  0 °  72 °  180 °  25 °
55 °  164 °  0 °  129 °  0 °  95 °  180 °  60 °  180 °  26 °  180 °  0 °  154 °  0 °  120 °  0 °  85 °  180 °  51 °  180 °  16 °
60 °  180 °  39 °  180 °  30 °  180 °  21 °  180 °  11 °  180 °  2 °  178 °  0 °  169 °  0 °  159 °  0 °  150 °  0 °  141 °  0 °
65 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °  0 °  180 °

As in the previous experiment, the RIS was tilted by an angle of 15 °, measured between the RIS normal and the horizontal plane of the experimental setup to avoid masking of the receiving antenna. As a result, the backward diffraction and, thus, the beam steering occurred within a plane that was tilted by 30 ° with respect to the horizontal. Since the mainlobe of the back-diffracted wave had a FWHM of more than 7 ° within the deflection plane for all phase patterns, we measured the beam steering with an angle resolution of 5 °. The microwave frequency of the incident wave was 31 GHz.

Figures 5(a) and 5(b) show polar plots of the calculated (following the procedure in Ref. 18) and measured electric field distributions of the back-diffracted waves from the RIS for all deflection angles listed in Table I. The curves are appropriately labeled according to the desired deflection angle. The electric field distributions are normalized to the maximum peak value in the respective graph. The measured electric field amplitude was above 0.5 a.u. for all deflection angles between 0 ° and 65 °.

FIG. 5.

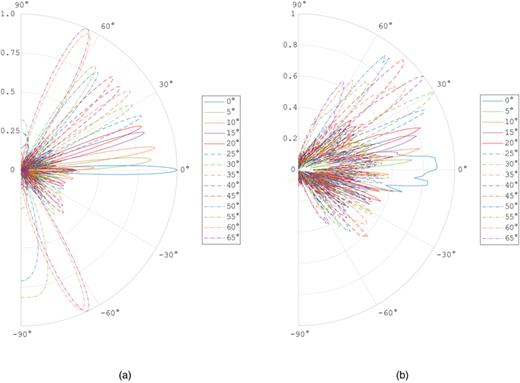

Polar plots of the (a) calculated electric far field and the (b) measured electric far field of the back-diffracted waves from the RIS. The curves are labeled according to their target deflection angles.

FIG. 5.

Polar plots of the (a) calculated electric far field and the (b) measured electric far field of the back-diffracted waves from the RIS. The curves are labeled according to their target deflection angles.

Close modal

A comparison between the calculated far field and the measured electric field of the back-diffracted wave evidences that the mainlobe of the steered beam occurred at the expected deflection angles, with a maximum deviation of 3 ° at deflection angles of 35 ° and 40 °. However, this offset can be partly attributed to the systematic errors in repeated measurements by the goniometer that restrict the angle resolution to ± 1 °. Furthermore, the aperture of the receiving horn antenna in the specified measurement plane is 32.8 mm wide, which results in integration of the electric field over an opening angle of 3.8 ° in this plane.

In addition to the electric field mainlobes, we also observed several sidelobes that were not expected in the calculated far fields. We attribute the occurrence of additional sidelobes to the fact that the distance between the receiving antenna and RIS was only 0.5 m, which implies that we measured the electric field of the back-diffracted wave in the near-field and not in the far field. To support this hypothesis, we calculated the electric near-field distribution of the diffracted wave with the Kirchhoff diffraction formula under consideration of the geometry in our goniometer.19 The resulting electric near-field distribution for a deflection angle of 25 ° is shown as an example in the polar plot of Fig. 6, alongside with the corresponding calculated far field and the measured electric field. Note that the measured electric field in Fig. 6 was normalized to its maximum value, in contrast to the electric far fields in Fig. 5(b) that were normalized to the global maximum of all displayed distributions. The arrows in Fig. 6 indicate areas, where the measured electric field pattern exhibits closer resemblance to the calculated near-field distribution than the far-field distribution.

FIG. 6.

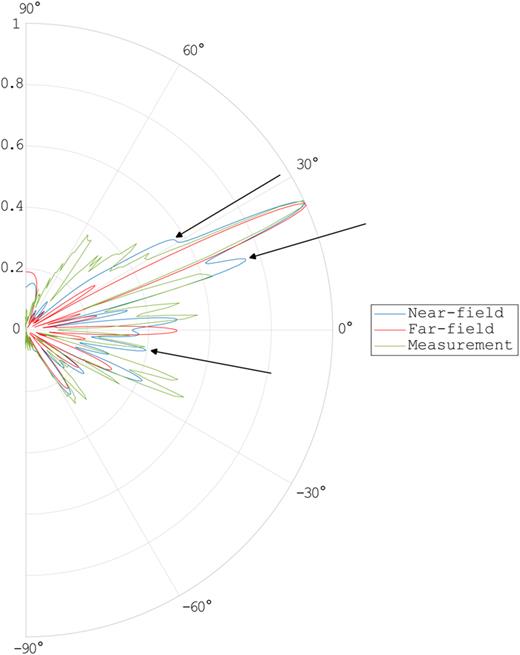

Calculated electric near-field (blue), calculated far field (red), and measured electric field (green) of the back-diffracted wave from the RIS for a target deflection angle of 25 °.

FIG. 6.

Calculated electric near-field (blue), calculated far field (red), and measured electric field (green) of the back-diffracted wave from the RIS for a target deflection angle of 25 °.

Close modal

We successfully designed and implemented a varactor-based RIS, capable of achieving continuous phase tuning ranging from 0 ° to 180 ° at the unit cell level. In order to achieve a relative phase shift of 180 ° in a unit cell, we changed the bias voltage from +10 to 20 V. The full phase shifting range could be established in a frequency working range from 30.6 to 31.7 GHz. In this publication, we applied the phase tuning column-wise, while, in principle, it can be applied individually and independently to each unit cell. As an exemplary application, we demonstrated beam steering of microwaves at 31 GHz with a continuously tunable deflection angle from 0 ° to 65 ° in a defined plane.

The authors acknowledge the financial support by the Federal Ministry of Education and Research of Germany in the project “Open6GHub” (Grant No. 16KISK004).

The authors have no conflicts to disclose.

Alexander Wolff: Investigation (equal); Writing – original draft (lead). Lars Franke: Conceptualization (equal); Formal analysis (equal). Steffen Klingel: Investigation (equal); Project administration (equal). Janis Krieger: Resources (equal). Lukas Mueller: Software (equal). Ralf Stemler: Resources (equal). Marco Rahm: Conceptualization (equal); Funding acquisition (equal); Supervision (equal).

The data that support the findings of this study are available from the corresponding author upon reasonable request.
