A dedicated simulator, Poisson_CCD, has been constructed which models astronomical CCDs by solving Poisson’s equation numerically and simulating charge transport within the CCD. The potentials and free carrier densities within the CCD are self-consistently solved for, giving realistic results for the charge distribution within the CCD storage wells. The simulator has been used to model the CCDs that are being used to construct the LSST digital camera. The simulator output has been validated by comparing its predictions with several different types of CCD measurements, including astrometric shifts, brighter-fatter induced pixel–pixel covariances, saturation effects, and diffusion spreading. The code is open source and freely available.

Charge Coupled Devices (CCDs) have been the workhorse devices for astronomical imaging for some time. George Smith’s Nobel lecture in Ref. 1 gives an excellent summary of the early history. While other detectors are making inroads, CCDs are still the dominant imaging device in astronomical applications. In recent years, thick, fully depleted CCDs with their wide spectral response have been applied to spectroscopic applications and imaging. Although these devices have high quantum efficiency, relatively good linearity, and acceptable dynamic range, they have a number of problematic effects that can impact the precision and accuracy of astronomical data. It is important that these effects are well understood so that they can be accounted for during image processing. To help understand these effects, we have built a dedicated simulator, Poisson_CCD, which solves the electrostatics in the bulk silicon of the CCD and propagates incoming charges down to the collecting wells where they are collected and stored. The simulator has proven very useful for understanding a number of CCD effects, which will be described in this article.

Of course, detailed semiconductor modeling codes already exist, are commercially available, and have been validated against silicon results. What is the purpose of developing yet another simulator? The answer is severalfold. First, commercial semiconductor codes typically use proprietary source codes and are quite expensive, while the code described here is open source and freely available.2 Second, using a commercial semiconductor device simulator requires spending quite a bit of time learning to use the code and set up the initial conditions. The code described here sets up the initial conditions for a typical CCD with a few simple configuration parameters. A third reason is that some of the commercial tools have trouble handling grids physically large enough to simulate a meaningful number of pixels. This code circumvents this by using a variable grid spacing, as described in Sec. II A. Also, it is hoped that this code is simple enough that it can be mastered by people who are not semiconductor experts. The target user group is people in the astronomy field who want to answer questions about CCDs without investing a great deal of time learning the details of semiconductor physics.

The code was developed as part of the development effort of the LSST. The LSST, originally known as the Large Synoptic Survey Telescope, is now known as the Simonyi Survey Telescope at the Vera Rubin Observatory and will be used to conduct a 10-year survey of the southern sky known as the Legacy Survey of Space and Time. This instrument is an innovative, large, fast survey facility currently under construction at Cerro Pachon in Chile.3 The digital camera, also currently under construction, consists of approximately 3.2 gigapixels and is the largest digital camera ever constructed. The camera uses fully depleted silicon CCDs that are back illuminated and 100 μm thick in order to optimize quantum efficiency in the near infrared. The imaging area consists of 189 CCDs, with each CCD containing 16 imaging regions laid out in an 8×2 array. Each imaging region has a pixel array with approximately 500×2000 10 μm square pixels, giving 16 megapixels total. Each imaging region also has its own independent amplifier.4,5 The focal plane contains CCDs from two different vendors, the ITL STA3800C from the University of Arizona Imaging Technology Laboratory6 and the E2V CCD250 from Teledyne E2V.7 However, although this code was developed and tested against these two CCDs from the LSST project, it has already found more general use on other CCDs,8 and the hope is that this will continue.

This article is divided into several sections. In Sec. II, we give an overview of the simulator, describing the basic structure of the simulation volume, how we solve the semiconductor equations and how we treat incoming photons. We also show a number of examples of the outputs available from the simulator. In Sec. III, we review a number of the validation tests that were performed to validate the simulation results against measured data of different kinds, and finally, we conclude.

The simulator performs two basic tasks, as shown in Fig. 1. First, given the charges in the silicon bulk and the boundary conditions determined by potentials applied to the silicon surface, the simulator solves Poisson’s equation numerically to determine the potentials and electric fields in the silicon bulk. The solution to Poisson’s equation is determined using the technique of successive over-relaxation (SOR—see, for example, Ref. 9) and using multi-grid methods (see Sec. II D) to speed convergence. In regions where there are mobile carriers (holes and electrons), quasi-Fermi level methods are used to simultaneously solve for the potentials and free carrier densities in the device. The electric fields are determined by numerically differentiating the electrostatic potential. In general, the simulator only solves for the potentials and free-carrier densities in equilibrium and is not intended to give transient solutions. However, it is possible to repeatedly solve the equations with slight changes in initial conditions in order to give transient results. This technique has been used to generate movies of the CCD charge transport, as discussed in Sec. III F.

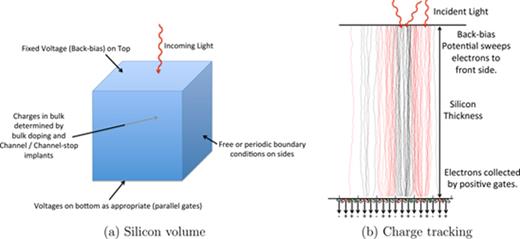

FIG. 1.

Major tasks of the Poisson_CCD simulator. Panel (a) shows the silicon volume. Given charges in the silicon bulk and voltages applied to the silicon boundaries, one solves for the electric fields and free carrier densities within the silicon. Panel (b) shows incoming charges, created by incident photons, which are propagated down through the silicon bulk to determine the number of charges in each pixel. The red and black colors are used to delineate the charges associated with individual pixels.

FIG. 1.

Major tasks of the Poisson_CCD simulator. Panel (a) shows the silicon volume. Given charges in the silicon bulk and voltages applied to the silicon boundaries, one solves for the electric fields and free carrier densities within the silicon. Panel (b) shows incoming charges, created by incident photons, which are propagated down through the silicon bulk to determine the number of charges in each pixel. The red and black colors are used to delineate the charges associated with individual pixels.

Close modal

After solving for the device potentials, the second major task of the simulator comes into play. As incoming photons enter the CCD, they generate hole–electron pairs. The electric field in the CCD separates these charges, and the electrons propagate down to the collecting wells where they are collected, stored, and later counted. The simulator models this carrier transport in a physically realistic way, in order to determine in which pixel a generated carrier ends up. This is very useful for modeling pixel distortions that result from electric fields in the device, either built-in electric fields, such as those due to “tree rings,”10 or electric fields due to collected charges, such as those that lead to the brighter-fatter (BF) effect.11–15 Note that in an astronomical CCD, the time between incoming charges (on the order of ms) is typically much longer than the time required for a charge to propagate down to the bottom (on the order of ns). Also, a single charge has little impact on the existing potentials and fields. So it is an excellent approximation to assume that a single charge propagates in a frozen electric field. The simulator is designed so that if multiple charges are being added, the user can choose how often to re-solve Poisson’s equation. A comment here about the nature of the charges is in order. The simulator is designed for N-channel CCDs (with P-type substrate), where the collected charges are electrons, and for the rest of the article, we will make that assumption. There is no physical reason why it will not work for P-channel CCDs (with N-type substrate), but it is not currently designed to support them. Most of the work in adapting it for P-channel CCDs would be nomenclature related, basically interchanging the names of holes and electrons, but adjustment of parameters like mobilities and effective masses would also be needed. This could be done if there is a demand for it.

The simulator is written in C++ and is controlled by a text-based configuration file, which contains all of the information about the silicon volume, pixel sizes, number of pixels, any non-pixel regions, etc. The configuration file also defines the problem being solved. By convention, the configuration file has a .cfg extension, but this is not necessary.  Appendix A lists the configuration parameters. As the simulation progresses, it writes out a number of files. Large files containing information like potentials, charge densities, and electric fields at each grid point are written as high-density HDF5 files, having file extension .hdf5. Several smaller text files, with .dat extension, are written, which contain information on the grids or the number of electrons in each pixel. After the simulation has completed, easily modifiable Python scripts are used to plot out results as desired.

The simulation volume is set up on a fixed three-dimensional rectangular grid, which does not change once the simulation has started. One begins by deciding the number of grid cells in each dimension. Because multi-grid methods are used (see Sec. II D), the number of grid cells in each dimension must be a multiple of 32. Note that as a convention, we refer to the side of the CCD where the circuitry is patterned as the bottom, and the side where the incident light comes in as the top. For the LSST CCDs, which are 100 μm thick and have pixels 10 μm square, a typical resolution is to have 32 simulation grid cells per pixel, so that each grid cell is 0.31 μm. Initially, the grid was defined to be completely uniform in all three dimensions. However, for thick CCDs like those used in the LSST, the potentials and fields change rapidly in the region near the bottom, and only very slowly near the top. When the simulation had enough resolution to be accurate in the rapidly changing region at the bottom, most grid cells were wasted near the top. Of course, adaptive grid methods solve this problem, but also make the code much more complex, which defeated the purpose of having a relatively simple simulator. The solution chosen in this work was to use a non-linear grid in the Z-dimension only. This has proven to give high resolution where needed, without adding significant complexity to the simulation code. Figure 2 shows the scheme. This introduces some additional partial derivatives, as discussed more in Sec. II C, but these values can be pre-calculated and this is much simpler than an adaptive grid scheme.

FIG. 2.

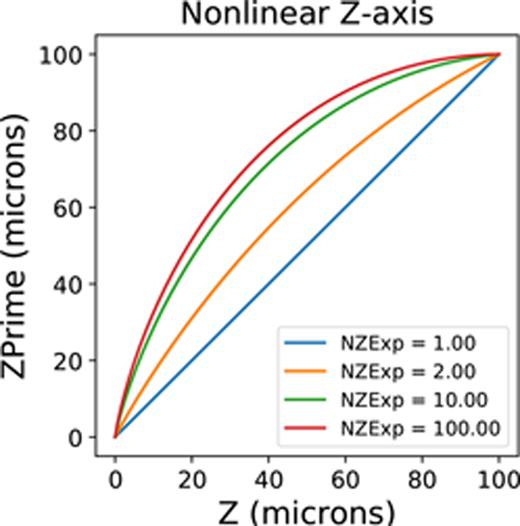

Non-linear Z-axis scheme. The parameter NZExp allows one to have smaller Z-axis grid cells near the bottom of the simulation volume, where the fields and charges are changing more rapidly. A value NZExp = 1 is a linear grid. The recommended value is to use NZExp = 10.0, which increases the resolution at z = 0 by a factor of 10 and decreases the resolution at the top of the CCD by a factor of 10.

FIG. 2.

Non-linear Z-axis scheme. The parameter NZExp allows one to have smaller Z-axis grid cells near the bottom of the simulation volume, where the fields and charges are changing more rapidly. A value NZExp = 1 is a linear grid. The recommended value is to use NZExp = 10.0, which increases the resolution at z = 0 by a factor of 10 and decreases the resolution at the top of the CCD by a factor of 10.

Close modal

Because the simulator is not a general purpose semiconductor solver and is intended to model devices with a given structure, certain assumptions are made about the structure of the CCD which simplifies building the device structure. This is one of the reasons why this code is so much simpler than a commercial device simulator. It is assumed that the CCD is a slab of silicon with a given thickness given by the parameter “SensorThickness.” It is assumed that the top surface of the CCD is at a fixed voltage given by the parameter “Vbb.” The bottom surface of the CCD has voltages specified by the various gate potentials. The doping deep in the silicon is assumed constant with a value given by “BackgroundDoping,” although a periodic variation in this doping can be introduced using the “TreeRing” parameters. The doping level is assumed to be modified by the introduction of implants from the bottom side. There are several options for these doping profiles, including a square profile of a given depth or a sum of N Gaussian profiles. The use of one or two Gaussian profiles has been found to accurately reproduce the measured doping profiles on commercial CCDs. For more details on this, see Ref. 16.

1. Pixel arrays

Setting up the initial conditions in the periodic pixel array is straightforward and is specified by a relatively small number of parameters that describe the gate voltages and doping levels. Rather than going through these in detail, the reader is referred to the  Appendix A or the “pixel-itl” and “pixel-e2v” examples at Ref. 2.

2. Fixed regions

Setting up the initial conditions in non-periodic regions outside the pixel array is straightforward but more laborious than setting up the pixel arrays. The extents, dopings, applied voltages, and quasi-Fermi levels need to be specified for each region. At present, only rectangular regions are supported. Also, it is assumed that the same doping profiles that are used in the pixel array are used in the surrounding circuitry, so the only options for doping profiles are the channel doping, the channel stop doping, and no doping. Examples of simulations setting up non-periodic regions are the “edge.cfg,” “trans.cfg,” and “io.cfg” files described in Ref. 2, and the results of these simulations are detailed in Sec. III.

In this section, we give a brief description of the methods that are used to solve Poisson’s equation on the grid. We are trying to solve the following equation, where φ is the potential, ρ is the charge density, and ϵSi is the dielectric constant of silicon:

2φ=ρϵSi.
(1)

Each of the partial derivatives can be discretized on a rectangular grid with grid spacing h as follows:

2φi,j,kx2=(φi+1,j,kφi,j,k)(φi,j,kφi1,j,k)h2.
(2)

Giving for the discretized Poisson’s equation,

φi+1,j,k+φi1,j,k+φi,j+1,k+φi,j1,k+φi,j,k+1+φi,j,k16φi,j,k=h2ϵSiρi,j,k.
(3)

This can be turned into an iterative equation, and basically one just iterates until convergence,

φi,j,k(n+1)=16(φi+1,j,k(n)+φi1,j,k(n)+φi,j+1,k(n)+φi,j1,k(n)+φi,j,k+1(n)+φi,j,k1(n)h2ϵSiρi,j,k),
(4)

which we write in shorthand as follows:

φ(n+1)=16(φpm(n)h2ϵSi(ρf+ρm)),
(5)

where we define

φpm(n)=φi+1,j,k(n)+φi1,j,k(n)+φi,j+1,k(n)+φi,j1,k(n)+φi,j,k+1(n)+φi,j,k1(n)
(6)

and we have split ρ into a fixed charge density ρf and a mobile charge density ρm. However, ρm is a highly nonlinear function of the potential φ, as described below. In quasi-equilibrium, the drift current JE and the diffusion current JD are equal, giving a net current of zero, so we can write (see Sze,17 for example),

JE=qeμnndφdx=JD=qeDndndx.
(7)

Here, qe is the electron charge, μn is the electron mobility, n is the electron density in electrons per unit volume, and Dn is the electron diffusion coefficient. This gives

μndφ=Dndnn.
(8)

We also know from the Einstein relations that the mobility and diffusion coefficient are related by the following equation, where k is Boltzmann’s constant and T is the absolute temperature:

μnDn=qekT,
(9)

so, integrating both sides,

qeφkT=log(n)+C.
(10)

We take the constant of integration into the exponential and define the quasi-Fermi level φF in terms of the intrinsic carrier density ni, giving

n=niexp(qe(φφF)kT).
(11)

So we need to solve the following equation for φ, where φF is a constant:

2φ=1ϵSi(ρf+qeniexp(qe(φφF)kT)),
(12)

which when discretized is

φ(n+1)=16(φpm(n)h2ϵSiρfh2qeniϵSiexp(qe(φ(n+1)φF)kT)).
(13)

Because of the strong non-linearity, simply iterating is numerically unstable. The method that works, described in detail by Rafferty et al.18 and building on the work of Gummel,19 is to take this last equation as a non-linear equation for φ(n+1) in terms of φn and run Newton’s method “inner loop” to find φ(n+1) at each grid point. Then we iterate to convergence as before. This allows us to simultaneously solve for the potential and the carrier density. Of course, we just described the electron density here, but there is a similar equation for holes, but with opposite signs. Figure 3 shows an example of varying φF on the solution. Note that the quasi-Fermi level is constant in each region containing mobile carriers. In the CCD, each collecting well contains a different number of mobile carriers, so φF is constant in each well but is different from well to well. However, when simulating the device, instead of knowing the value of φF, we typically know the number of electrons in each well. So how do we translate from the known number of electrons to the unknown value of φF? The code provides two methods, selected by the value of the parameter “ElectronMethod.” With this parameter set to 1, a test simulation is run where the parameter φF (called QFe in the code) is varied through a range. For each value of QFe, we integrate over a pre-determined region to count the number of electrons in the well, building a look-up table of the number of electrons vs QFe. The results for a few values of QFe are shown in Fig. 3. Then the code interpolates to determine the value of QFe that gives the appropriate number of electrons. In practice, one can get close to the desired number of electrons, but the non-linearity causes variations from the desired number, so a second method was developed. When “ElectronMethod” has a value of 2, what is done is to place the correct number of electrons in the well, uniformly distributed in the center of the well. The code then moves the electrons around until the value of QFe is constant in the well. This allows one to get the correct number of electrons in the well without needing to know the value of the quasi-Fermi level.

FIG. 3.

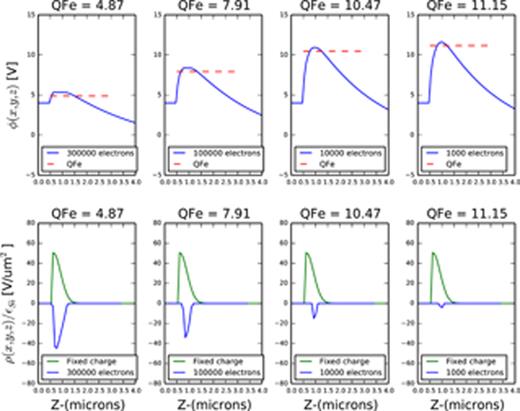

Impact of varying φF (called QFe in the code, with units of volts) on the potential and electron density.

FIG. 3.

Impact of varying φF (called QFe in the code, with units of volts) on the potential and electron density.

Close modal

There is one more complication. As discussed in Sec. II A, a non-linear Z-axis is used to concentrate grid cells in the bottom region where the potentials and charge densities are changing most strongly. In principle, any smooth function can be used for Z-axis mapping. Here we chose an easily differentiable polynomial function of the following form, where z is the linear z coordinate and zp is the non-linear coordinate, which is the actual value used in solving and plotting. Here, TSi is the silicon thickness, and NZExp is a user-defined constant that controls the non-linearity, as described in Fig. 2,

zp=TSi(NZExp1.0)(z/TSi)(NZExp+1.0)/NZExp+NZExpz.
(14)

The non-linear z-axis modifies Poisson’s equation from

2φ=2φx2+2φy2+2φz2
(15)

to

2φ=2φx2+2φy2+2φz2(zz)2+φz2zz2.
(16)

In practice, the additional partial derivatives can be pre-computed, so this is simply accounted for in the discretized equations and has only a minor impact on the speed of iteration.

It is well known that multi-grid methods’ speed convergence of solutions to Poisson’s equation by getting correct solutions to the long-wavelength modes at a coarser grid where convergence is much more rapid. There is a wealth of literature on the subject, and Briggs20 or Press21 give excellent summaries. The basic idea is shown in Fig. 4. In practice, in this code, we have adopted a simpler method. Rather than use “Restriction” to propagate the boundary conditions down to the coarser grid, we simply set up the boundary conditions on all of the sub-grids at the outset of the problem. In addition, we have found that there is little value in running coarser grids than 403 because at this resolution the problem converges very rapidly. So for a typical problem that has perhaps 3203 grid cells, we define the finest grid and three subgrids, with the coarsest grid having 403 grid cells. We then set up the boundary conditions on all of the subgrids, iterate the coarsest grid, “Prolongate” the solution up to the next grid, and continue until we have reached the finest grid.

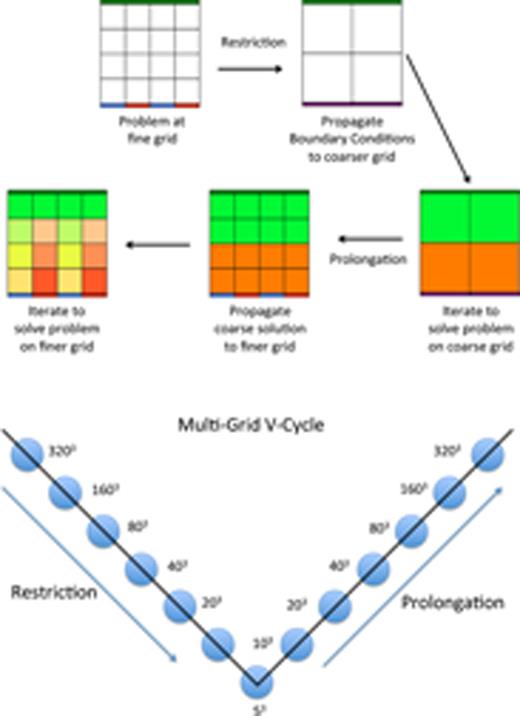

FIG. 4.

Basic idea of multi-grid methods. Long wavelength modes are solved on a coarser grid, which is then propagated to a finer grid (“Prolongation”), where more iterations are performed to find the fine details of the solution.

FIG. 4.

Basic idea of multi-grid methods. Long wavelength modes are solved on a coarser grid, which is then propagated to a finer grid (“Prolongation”), where more iterations are performed to find the fine details of the solution.

Close modal

At this point, it is appropriate to discuss the problem of convergence. Convergence of the SOR algorithm is notoriously slow. Multi-grid methods help a great deal; however, care must still be taken to ensure that the solution has converged adequately for your problem. The parameter “ncycle” controls the number of iterations taken at the finest grid. Each coarser grid increases the number of iterations by a factor of 4. So, for example, a typical problem like one of the “pixel” examples, which has ncycle = 128, the coarsest grid has 1/8 the resolution, and will run 128×43=8192 SOR cycles at the coarsest grid. Figures 5 and 6 show the convergence of a typical problem. For most problems, a value of ncycle = 64 is adequate. The problems most dependent on accurate convergence have proven to be the pixel distortion simulations like those in Sec. III A. Since we are dealing with very small deviations in the pixel shapes due to the BF effect, it is important to make sure the results have converged.

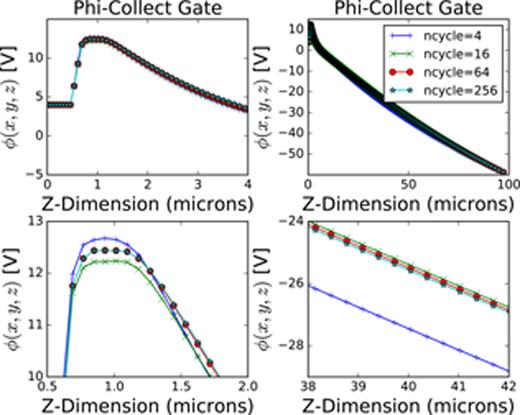

FIG. 5.

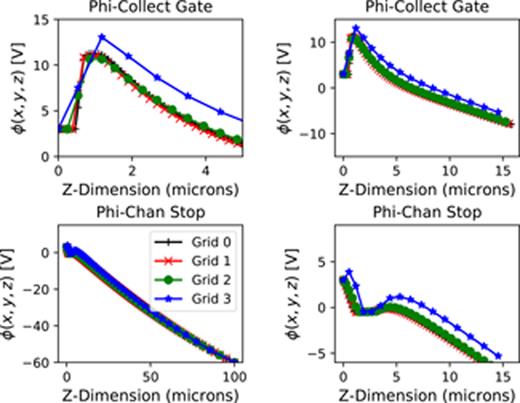

Convergence of the multi-grid subgrids. The parameter “ncycle” has a value of 64 in these plots. Each subgrid is a factor of two coarser than the preceding grid.

FIG. 5.

Convergence of the multi-grid subgrids. The parameter “ncycle” has a value of 64 in these plots. Each subgrid is a factor of two coarser than the preceding grid.

Close modal
FIG. 6.

Convergence of the highest resolution grid as a function of the parameter “ncycle.” For most uses, a value of 64 is adequate.

FIG. 6.

Convergence of the highest resolution grid as a function of the parameter “ncycle.” For most uses, a value of 64 is adequate.

Close modal

Compared to modern digital electronic devices, CCDs have relatively large geometries and relatively low electric fields. Because of this, a simple drift-diffusion model for carrier transport was deemed to be sufficient. The good agreement between the simulations and measured data shown in Sec. III A shows that this decison is justified. The basic scheme for modeling carrier transport is shown in Fig. 7. Electrons are assumed to have lattice collisions on a time scale τ, which is on the order of picoseconds. At each collision, the electron is assumed to pick up a thermal velocity Vth which is in a random direction. In addition to this thermal velocity, it also has a drift velocity given by Vdrift=μE, where the mobility μ(E,T) is calculated as a function of electric field and temperature using the mobility model of Jacobini22. These two velocities are added vectorially and it travels in this direction at this velocity for a time δt until the next collision, and this continues until the electron reaches the bottom. The electron path is logged in the *\_Pts.dat file. If the parameter “LogPixelPaths” is zero, only the initial and final positions are logged. If this parameter is one, the entire path is logged. The thermal velocity has a multiplier (“DiffMultiplier”) which can be used to tune the amount of diffusion. If this is set to zero, diffusion is turned off, with the impact as shown in Fig. 8. A value DiffMultiplier=2.30 has been found to accurately reproduce the amount of diffusion seen in Fe55 data (see Sec. III B). Since the value of me in the code is the bare electron mass, this value is equivalent to an electron effective mass of about 0.19. This is somewhat low, as Green23 finds a value of 0.27. This discrepancy may be due to the limitations of the simple drift-diffusion model of carrier transport. This value of DiffMultiplier is easily adjusted by the user, however.

FIG. 7.

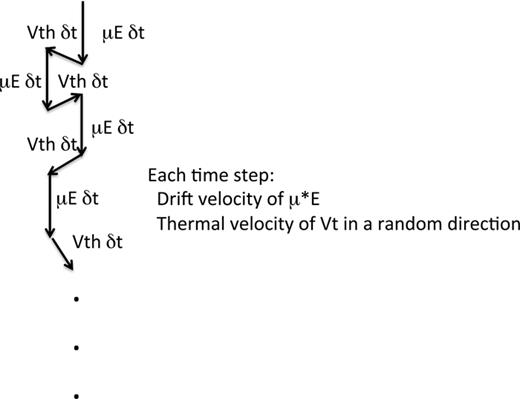

Diffusion model.

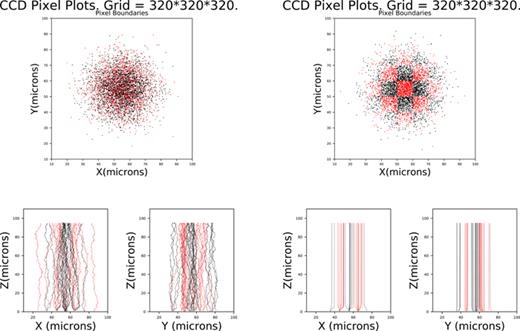

FIG. 8.

Impact of diffusion on electron paths of a Gaussian spot with a sigma of 1 pixel. With diffusion turned off, the electrons simply propagate down and end up in the same pixel they started. With realistic diffusion, the electrons can cross pixel boundaries.

FIG. 8.

Impact of diffusion on electron paths of a Gaussian spot with a sigma of 1 pixel. With diffusion turned off, the electrons simply propagate down and end up in the same pixel they started. With realistic diffusion, the electrons can cross pixel boundaries.

Close modal

The initial electron locations in X and Y can be determined in a number of ways, as determined by the “PixelBoundaryTestType” parameter. These include an equally spaced grid, a Gaussian spot, a random location within a boundary, an Fe55 event, or reading in a list of locations. The starting location in Z can be either specified or calculated given a filter band.

Once the simulation has run, the potential, electric fields, and charge carrier densities are available throughout the simulation volume. What one chooses to visualize depends on the problem being studied. Here we have chosen three examples (Figs. 9–11) of the type of data that are available.

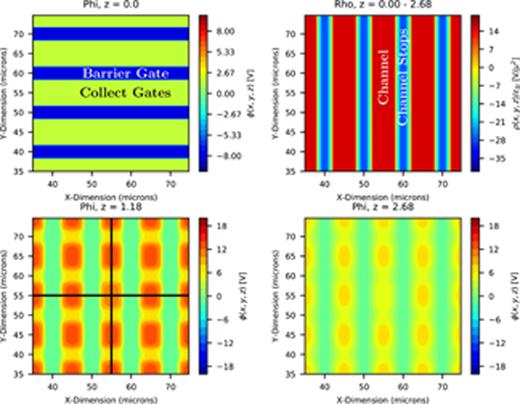

FIG. 9.

A summary of the region near the bottom of the ITL STA3800C CCD. The upper left shows the applied parallel gate voltages, and the upper right shows a 2D projection of the fixed charges. The lower two plots show the potential at two different z-values above the bottom of the CCD. Here the center pixel has 100 000 electrons, and the surrounding pixels are empty.

FIG. 9.

A summary of the region near the bottom of the ITL STA3800C CCD. The upper left shows the applied parallel gate voltages, and the upper right shows a 2D projection of the fixed charges. The lower two plots show the potential at two different z-values above the bottom of the CCD. Here the center pixel has 100 000 electrons, and the surrounding pixels are empty.

Close modal
FIG. 10.

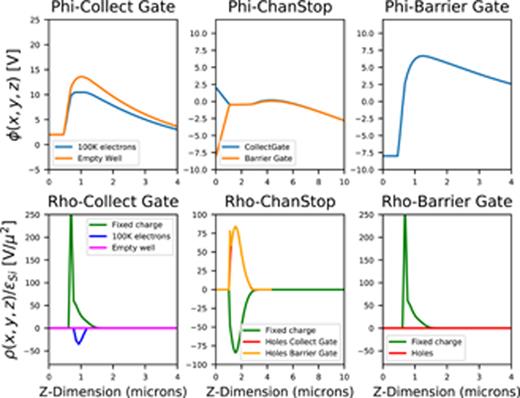

A set of vertical 1D profiles of potential and charge density at various locations of the ITL STA3800C CCD. Again, the center pixel has 100 000 electrons and the surrounding pixels are empty. The sharp discontinuities near the left edge of the plots are at the Si/SiO2 interface where the device silicon begins. This is at a z-coordinate of about 0.69 in the channel region and 1.09 in the channel stop region.

FIG. 10.

A set of vertical 1D profiles of potential and charge density at various locations of the ITL STA3800C CCD. Again, the center pixel has 100 000 electrons and the surrounding pixels are empty. The sharp discontinuities near the left edge of the plots are at the Si/SiO2 interface where the device silicon begins. This is at a z-coordinate of about 0.69 in the channel region and 1.09 in the channel stop region.

Close modal
FIG. 11.

A set of 2D projections of the distribution of fixed and mobile charges near the bottom of the ITL STA3800C CCD. Again, the center pixel has 100 000 electrons and the surrounding pixels are empty. The Si/SiO2 interface, where the device silicon begins, is at a z-coordinate of about 0.69 in the channel region and 1.09 in the channel stop region.

FIG. 11.

A set of 2D projections of the distribution of fixed and mobile charges near the bottom of the ITL STA3800C CCD. Again, the center pixel has 100 000 electrons and the surrounding pixels are empty. The Si/SiO2 interface, where the device silicon begins, is at a z-coordinate of about 0.69 in the channel region and 1.09 in the channel stop region.

Close modal

To successfully model a CCD, an accurate physical characterization of the CCD is needed. Details such as dopant densities, layer thicknesses, and physical dimensions need to be known, at least approximately. For modeling the CCDs from the two vendors that will be used in the LSST camera, we obtained detailed physical measurements, which have been described in Ref. 16. This has helped to make the simulations described in Secs. III AIII F as physically realistic as possible. Most of the plots in this section can be reproduced using the examples at the Poisson_CCD code site described in Ref. 2.

Regarding the parameters used in the simulations, there has been optimization of the numeric parameters, such as grid size, number of iterations, successive over-relation factor, etc., to ensure convergence and accuracy. However, the physical parameters, such as physical dimensions, voltages, doping levels, oxide thicknesses, etc., have all been directly measured. In particular, these parameters have not been tuned to improve the fit with measured data shown in the following examples.

As has been extensively discussed in the literature,11–14 as charge builds up in the central region of bright objects, the stored charge repels additional incoming charge and broadens the profile of these objects. The impact of the stored charge on the pixel shapes can be determined by measuring the pixel–pixel covariances on a large number of flat images.11,15 These covariances are calculated from a large number of flat pairs of varying intensity (see Ref. 15 for example) as

Ci,j=I,J(fI,Jf¯)(fI+i,J+jf¯)f¯2(Npix1),
(17)

where fi,j is the difference in flux between the two flats at pixel i,j and Npix is the number of pixels summed over.

We have generated these data on a large number of flat pairs on LSST CCDs, measured on the UC Davis LSST beam simulator,14,24 and would like to compare these results to simulations. For a dataset of 100 flat pairs, each with 16×106 pixels with an average signal level of 50 000 electrons, this is approximately 1014 electrons. Directly simulating these data is out of the question. However, we have found a simple way to run a single simulation that reproduces the measured pixel covariances. In order to do this, we first simulate a situation where one pixel has a fixed amount of charge (typically 100 000 electrons), and all surrounding pixels are empty. After solving for the potential and the resulting electric field, we can track electrons down through the silicon. As the electrons travel down through the silicon under the influence of the electric field, they eventually end up in one of the collecting wells. A binary search is used to find the bifurcation points, where electrons on one side of the bifurcation point end up in one pixel and electrons on the other side of the bifurcation point end up in an adjacent pixel. This binary search is performed with diffusion turned off in order not to introduce a stochastic element into the electron paths. These bifurcation points are identified as the pixel boundaries. This allows us to characterize the distortion in the pixel boundaries, which results from the central pixel charge. A typical result of this process is shown in Fig. 12. The number of vertices used to define the distorted pixel shapes is an adjustable parameter. A minimum of 12 vertices is needed to adequately define the distortion (4 corners plus 2 points per edge). The distorted pixels shown in Fig. 12 and used in Fig. 13 were simulated with a total of 132 vertices (4 corners plus 32 points per edge). The distorted pixel shapes that result are what gives rise to the BF effect, with the central pixel losing area, which is gained by the surrounding pixels.

FIG. 12.

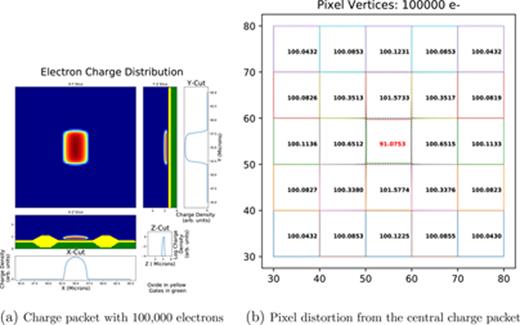

Simulation of pixel distortions in an ITL chip when the central pixel contains 100 000 electrons and the surrounding pixels are empty. X and Y are the lateral dimensions of the CCD, and Z is the thickness dimension. The CCDs are 100 μm thick. Panel (a) shows the charge distribution that results from solving Poisson’s equation. Panel (b) shows the distortion of the pixel boundaries due to the charge distribution shown in panel (a). These distortions are obtained by solving Poisson’s equation for the potentials in the CCD and then tracking electrons down and using a binary search to determine the pixel boundaries as described in the text. As expected, the central pixel loses area and the surrounding pixels all gain area. Note that the loss in area of the central pixel is greater than the sum of the area gains of the surrounding pixels because there are more distant pixels that are not plotted here and that also gain area.

FIG. 12.

Simulation of pixel distortions in an ITL chip when the central pixel contains 100 000 electrons and the surrounding pixels are empty. X and Y are the lateral dimensions of the CCD, and Z is the thickness dimension. The CCDs are 100 μm thick. Panel (a) shows the charge distribution that results from solving Poisson’s equation. Panel (b) shows the distortion of the pixel boundaries due to the charge distribution shown in panel (a). These distortions are obtained by solving Poisson’s equation for the potentials in the CCD and then tracking electrons down and using a binary search to determine the pixel boundaries as described in the text. As expected, the central pixel loses area and the surrounding pixels all gain area. Note that the loss in area of the central pixel is greater than the sum of the area gains of the surrounding pixels because there are more distant pixels that are not plotted here and that also gain area.

Close modal

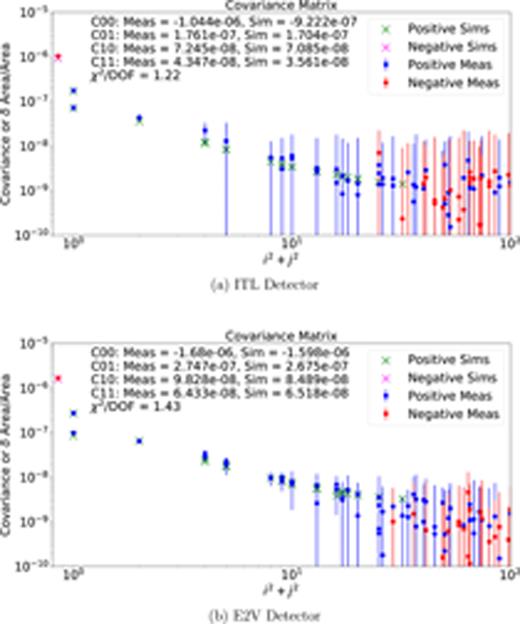

FIG. 13.

Covariance measurements and simulations. The simulated pixel area distortions (see Fig. 12) accurately determine the measured pixel–pixel covariances as measured on flat pairs. The circles are the measured covariances, as extracted by the code in the LSST image reduction pipeline as described in the text. The crosses are the fractional area distortions as simulated by the Poisson_CCD code and shown in Fig. 12. The leftmost point (the central pixel) has been shifted to an X axis value of 0.8 to allow plotting it on this log–log plot. Both the ITL [panel (a)] and E2V [panel (b)] simulations have been informed by the physical analysis of both chips, including SIMS dopant profiling and measurements of physical dimensions.16 Both the covariance measurements and the simulations have been normalized to the distortion caused by one electron. The asymmetry of the nearest neighbor pixels is correctly modeled, and the simulated values agree with the measurements within the statistical errors.

FIG. 13.

Covariance measurements and simulations. The simulated pixel area distortions (see Fig. 12) accurately determine the measured pixel–pixel covariances as measured on flat pairs. The circles are the measured covariances, as extracted by the code in the LSST image reduction pipeline as described in the text. The crosses are the fractional area distortions as simulated by the Poisson_CCD code and shown in Fig. 12. The leftmost point (the central pixel) has been shifted to an X axis value of 0.8 to allow plotting it on this log–log plot. Both the ITL [panel (a)] and E2V [panel (b)] simulations have been informed by the physical analysis of both chips, including SIMS dopant profiling and measurements of physical dimensions.16 Both the covariance measurements and the simulations have been normalized to the distortion caused by one electron. The asymmetry of the nearest neighbor pixels is correctly modeled, and the simulated values agree with the measurements within the statistical errors.

Close modal

We find that the area distortions accurately capture the measured pixel–pixel covariances. Figure 13 shows the agreement between the measured pixel–pixel covariances on flat field images and the simulated area distortions, as measured and as simulated on LSST CCDs from both CCD vendors. The agreement is quite good. The asymmetry of the nearest neighbor pixels is correctly modeled, and the simulated values agree with the measurements within the statistical errors. These simulations are run with the “pixel-itl.cfg” and “pixel-e2v.cfg” examples given in Ref. 2. More details on these measurements and simulations are given in Refs. 14 and 25.

CCDs are routinely characterized by exposing the CCD to an Fe55 source. (see Ref. 26, for example). The radioactive decay produces x rays with a known energy, with the Kα peak being the strongest peak, typically producing 1620 hole–electron pairs when photoelectrically absorbed in the silicon. These carriers then propagate down to the collecting wells, where they are collected and counted. Because of diffusion, the carriers, which are initially produced in a small volume, spread out and occupy several pixels. To simulate these events, a special module was written. Normally photoelectrons propagate one at a time, without influence from neighboring carriers. But the carriers produced in the Fe55 event are produced in a short time, so interactions between the carriers might be important. The code takes the like carrier repulsion and opposite carrier attraction into account, and the parameters “Fe55ElectronMult” and “Fe55HoleMult” can be used to turn off or modify this interaction if desired. Figure 14 shows a typical event, and Fig. 15 shows stacked pixel maps compared between measurements and simulations. The spread of the charge cloud due to diffusion is well modeled. This simulation is run with the “fe55.cfg” example described in Ref. 2.

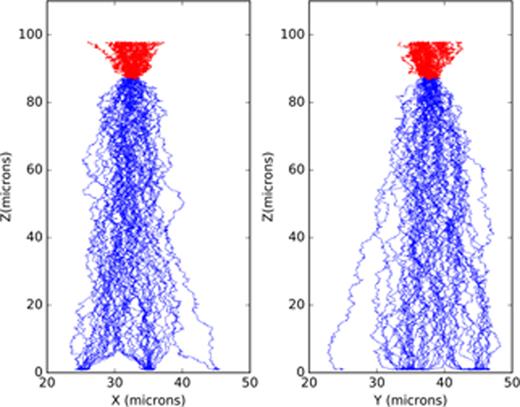

FIG. 14.

This shows a simulation of a typical Fe55 event in an ITL device. Electrons are shown in blue (moving downward) and holes in red (moving upward). The left panel is a slice in the serial direction, and the right panel is a slice in the parallel direction. Only a small fraction of the 1620 incident hole–electron pairs are plotted here.

FIG. 14.

This shows a simulation of a typical Fe55 event in an ITL device. Electrons are shown in blue (moving downward) and holes in red (moving upward). The left panel is a slice in the serial direction, and the right panel is a slice in the parallel direction. Only a small fraction of the 1620 incident hole–electron pairs are plotted here.

Close modal

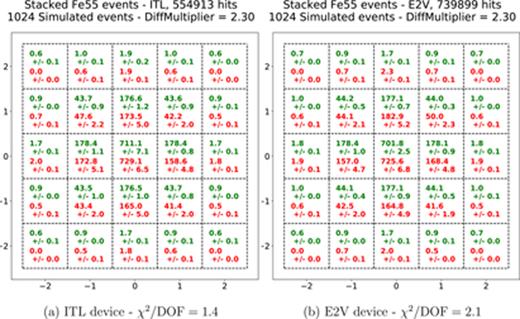

FIG. 15.

Comparison of Fe55 event stacked pixel maps between measurement and simulation for both ITL (panel (a)) and E2V [panel (b)] devices. The numbers in each pixel are the average number of electrons in each pixel, when the event is centered on the center pixel (2,2). The measurements (top, in green) are a stack of several hundred thousand events, and the errors of the measurements are one sigma values of the 16 amplifiers on one CCD. The simulations (bottom, in red) are a stack of 1024 simulated events, and the errors are statistical. The spread of the charge cloud due to diffusion is well modeled.

FIG. 15.

Comparison of Fe55 event stacked pixel maps between measurement and simulation for both ITL (panel (a)) and E2V [panel (b)] devices. The numbers in each pixel are the average number of electrons in each pixel, when the event is centered on the center pixel (2,2). The measurements (top, in green) are a stack of several hundred thousand events, and the errors of the measurements are one sigma values of the 16 amplifiers on one CCD. The simulations (bottom, in red) are a stack of 1024 simulated events, and the errors are statistical. The spread of the charge cloud due to diffusion is well modeled.

Close modal

A large number of simulations have been run to better understand saturation and blooming in the ITL STA3800C device. These simulations have been very helpful to understand the physics of the device because in the simulator one can get information that is simply not accessible to measurement. Figure 16 shows the distinction between the “bloomed full well” condition, where charge begins to bloom above the charge storage regions, and the “surface full well” condition, where the charge blooms along the silicon surface. This effect is discussed in detail in Janesick.26 The simulations in Figs. 17 and 18 reproduce these conditions, and these simulations illustrate the difference between these conditions. Measurements of saturated spots in the surface full well condition, shown in Fig. 19, also show that in the surface full well condition, the charge is lost to traps at the silicon–silicon dioxide interface. Thus, it is apparent that the surface full well condition is to be avoided.

FIG. 16.

As discussed in Janesick,26 depending on the parallel gate high voltage, saturation can occur either at the silicon surface or above the collecting wells. Panel (a) shows this effect as reproduced from Janesick, and panel (b) shows our results. The bloomed full well and surface full well conditions are illustrated in Figs. 17 and 18. The difference in shape in the surface full well condition between our results and Janesick’s depiction is not well understood at present.

FIG. 16.

As discussed in Janesick,26 depending on the parallel gate high voltage, saturation can occur either at the silicon surface or above the collecting wells. Panel (a) shows this effect as reproduced from Janesick, and panel (b) shows our results. The bloomed full well and surface full well conditions are illustrated in Figs. 17 and 18. The difference in shape in the surface full well condition between our results and Janesick’s depiction is not well understood at present.

Close modal

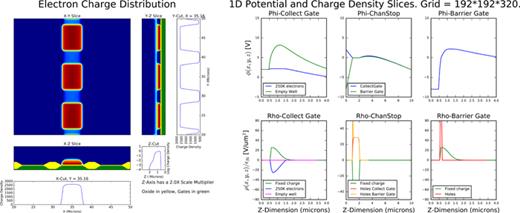

FIG. 17.

Simulation of the bloomed full well condition. Each of the three pixels contains 250 000 electrons, and the parallel high voltage is 2.0 V. The yellow circle shows where charge is blooming above storage wells. The red circle shows that the potential in the storage well is still above that at the gate interface, keeping the charge away from the surface.

FIG. 17.

Simulation of the bloomed full well condition. Each of the three pixels contains 250 000 electrons, and the parallel high voltage is 2.0 V. The yellow circle shows where charge is blooming above storage wells. The red circle shows that the potential in the storage well is still above that at the gate interface, keeping the charge away from the surface.

Close modal

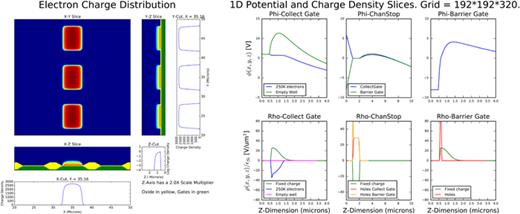

FIG. 18.

Simulation of the surface full well condition. Each of the three pixels contains 250 000 electrons, and the parallel high voltage is 6.0 V. The yellow circle shows where charge is blooming along the silicon surface. The red circle shows that the potential in the storage well is now below that at the gate interface, causing added charge to be added at the surface. The cyan circle shows the surface spike of added charge.

FIG. 18.

Simulation of the surface full well condition. Each of the three pixels contains 250 000 electrons, and the parallel high voltage is 6.0 V. The yellow circle shows where charge is blooming along the silicon surface. The red circle shows that the potential in the storage well is now below that at the gate interface, causing added charge to be added at the surface. The cyan circle shows the surface spike of added charge.

Close modal

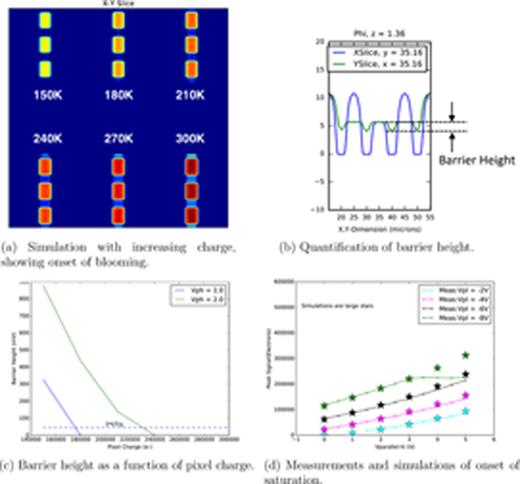

FIG. 19.

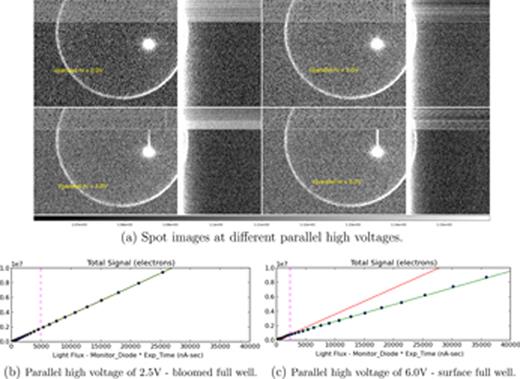

Spot images in the bloomed full well and surface well conditions. In panel (a), we see that we begin to see “trailing” when we enter the surface full well condition because charges are trapped at the silicon surface. In the bottom two panels, the vertical dotted line indicates the onset of saturation. In panel (b), we see that in the bloomed full well condition, the total charge in the saturated spot increases linearly with flux and no charge is lost. In panel (c), we see that in the surface full well condition, charge begins to be lost as we enter saturation. We believe this charge recombines at surface traps at the silicon–silicon dioxide interface.

FIG. 19.

Spot images in the bloomed full well and surface well conditions. In panel (a), we see that we begin to see “trailing” when we enter the surface full well condition because charges are trapped at the silicon surface. In the bottom two panels, the vertical dotted line indicates the onset of saturation. In panel (b), we see that in the bloomed full well condition, the total charge in the saturated spot increases linearly with flux and no charge is lost. In panel (c), we see that in the surface full well condition, charge begins to be lost as we enter saturation. We believe this charge recombines at surface traps at the silicon–silicon dioxide interface.

Close modal

We can go further and quantitatively reproduce measurements of the onset of saturation as a function of parallel low and high voltages, as shown in Fig. 20. By quantifying the barrier height between the storage wells, we show that saturation occurs when the barrier height drops below a certain value. The fit is good except in the strong surface full well condition because the charge loss that occurs is not included in the simulations. It would be possible to modify the simulations to include this effect, but since the surface full well condition is to be avoided, this was deemed to be not worth the effort.

FIG. 20.

Measurements and simulations of the onset of saturation as a function of parallel low and high voltages. Panel (a) shows the simulations that are run, where the pixel charges are increased until saturation is seen. From these simulations, the barrier height between pixels is quantified as a function of pixel charge, as shown in panels (b) and (c). Panel (d) shows that this methodology accurately reproduces measurements of the onset of saturation over most of the range. The simulation fails when we enter the strong surface full well condition, where there is significant charge loss.

FIG. 20.

Measurements and simulations of the onset of saturation as a function of parallel low and high voltages. Panel (a) shows the simulations that are run, where the pixel charges are increased until saturation is seen. From these simulations, the barrier height between pixels is quantified as a function of pixel charge, as shown in panels (b) and (c). Panel (d) shows that this methodology accurately reproduces measurements of the onset of saturation over most of the range. The simulation fails when we enter the strong surface full well condition, where there is significant charge loss.

Close modal

In addition to simulations of the pixel arrays, simulations can be done of the peripheral circuitry, as shown in Secs. III DIII F. At the edges of the pixel array, lateral electric fields from the surrounding circuitry can introduce pixel boundary shifts, which lead to measurable astrometric shifts. This effect has been characterized on the UC Davis LSST Optical Simulator.24,27 We have then built a simulation of a portion of the pixel array that extends to the chip edge to compare the measurements to the simulations. In addition to the pixel array, it is necessary to build into the simulation the appropriate “fixed voltage regions” at the edge of the chip. Figure 21 shows the setup of this simulation. The bending of the equipotential lines near the edge of the pixel array betrays the presence of a lateral electric field thats deflects incoming electrons. Figure 22 shows these simulated paths (with diffusion turned off), and the edge deflection is apparent. In addition to this deflection, there is a second effect that influences the astrometric shift, which is that as the measured spot begins to “fall off” the edge of the array, there is a resulting shift in the opposite direction. These two competing effects lead to the astrometric shifts as seen in Fig. 23. The shift has been characterized for a number of different measurement conditions. The simulation, while not perfect, captures all of the trends correctly. These simulations are run with the “edge.cfg” example in Ref. 2.

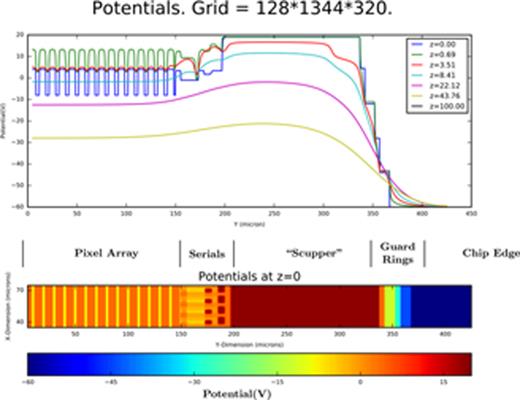

FIG. 21.

This shows the basic simulation that is run to determine the astrometric shifts at the array edge. The simulation includes a narrow strip of pixels and continues until the edge of the chip.

FIG. 21.

This shows the basic simulation that is run to determine the astrometric shifts at the array edge. The simulation includes a narrow strip of pixels and continues until the edge of the chip.

Close modal

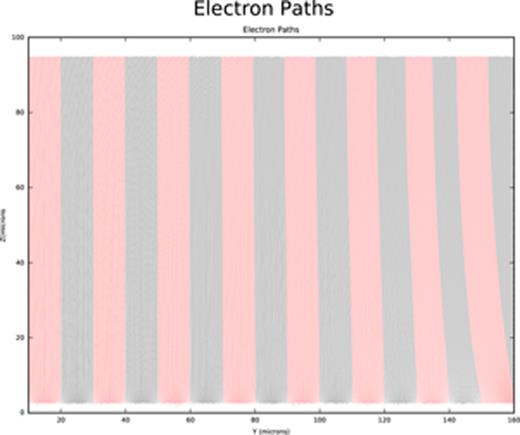

FIG. 22.

This shows the deviation of electron paths near the edge of the chip due to the lateral electric fields. Diffusion is off for this plot.

FIG. 22.

This shows the deviation of electron paths near the edge of the chip due to the lateral electric fields. Diffusion is off for this plot.

Close modal

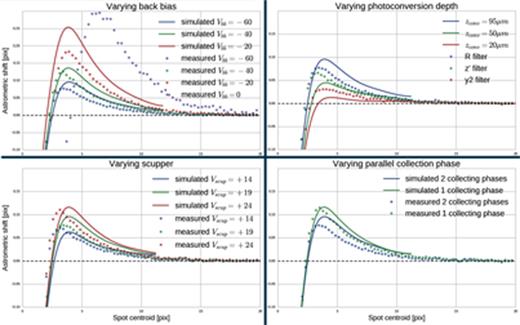

FIG. 23.

This shows the measured and simulated astrometric shifts at the array edge, with several parameters varied. The simulation captures the major trends of all of these variables. The simulation was not run for Vbb = 0, where the chip is not fully depleted.

FIG. 23.

This shows the measured and simulated astrometric shifts at the array edge, with several parameters varied. The simulation captures the major trends of all of these variables. The simulation was not run for Vbb = 0, where the chip is not fully depleted.

Close modal

This section shows simulations that were done to model the output transistor of the ITL STA3800C. Figure 24 shows the simulated and measured IdVg characteristics. We obtained a relatively good fit of the transistor turn-on. This simulation is run with the “trans.cfg” example in Ref. 2.

FIG. 24.

Simulation of the ITL STA3800C output transistor I–V characteristics compared to measurements. Panel (a) shows a photograph of the circuit, panel (b) shows a simulation of the applied potentials, and panel (c) shows the simulated current as a function of voltage.

FIG. 24.

Simulation of the ITL STA3800C output transistor I–V characteristics compared to measurements. Panel (a) shows a photograph of the circuit, panel (b) shows a simulation of the applied potentials, and panel (c) shows the simulated current as a function of voltage.

Close modal

Some other tests have been run which have given results that are qualitatively reasonable, but which have not been compared with quantitative measurements, and three of these are reviewed here. The first of these are known as “tree rings.” As is well known, periodic dopant variations introduced during the growth of the silicon boule can lead to measurable variations in flat fields and introducing astrometric pixel shifts (see, for example, Ref. 10). This effect has been successfully simulated, as shown in Fig. 25. This simulation is run with the “treering.cfg” example in Ref. 2.

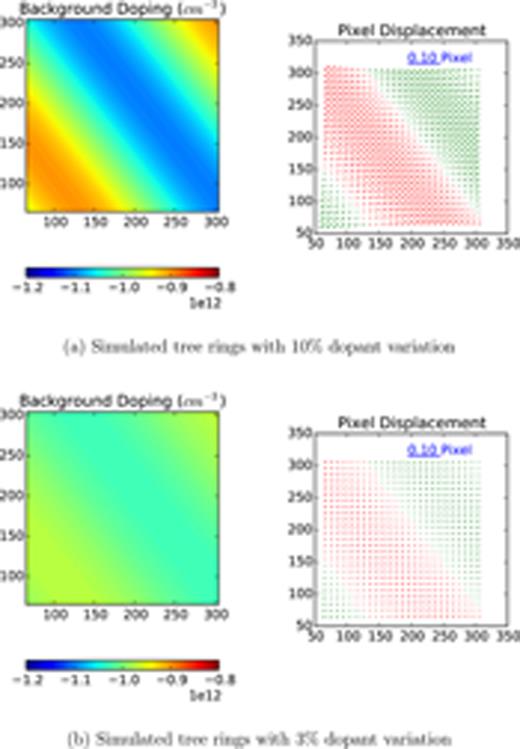

FIG. 25.

Simulations of “tree rings.” A sinusoidal dopant variation in the silicon bulk is introduced, varying in X and Y and constant in Z. The resulting astrometric pixel shifts are characterized. The X and Y axes are in pixels. Panel (a) shows the results with a 10% background dopant variation, and panel (b) shows the results with a 3% background dopant variation. Panel (b) is more consistent with actual observations.

FIG. 25.

Simulations of “tree rings.” A sinusoidal dopant variation in the silicon bulk is introduced, varying in X and Y and constant in Z. The resulting astrometric pixel shifts are characterized. The X and Y axes are in pixels. Panel (a) shows the results with a 10% background dopant variation, and panel (b) shows the results with a 3% background dopant variation. Panel (b) is more consistent with actual observations.

Close modal

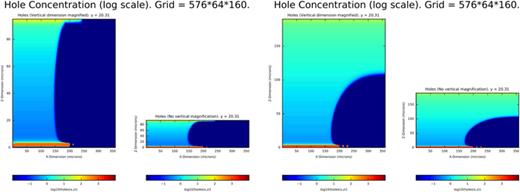

A second interesting simulation is of the backside substrate connection VBB. It is often questioned how this bias voltage, which is only connected to the CCD frontside, is conducted to the backside when the CCD is fully depleted. The answer is that there is an undepleted region near the chip edge that serves this purpose. It is interesting to simulate this connection, and the result is shown in Fig. 26.

FIG. 26.

Simulations of the VBB guard rings for two different conditions. In both cases, the top of the simulation region is where photons are incident, and the left-hand edge is the edge of the CCD. The imaging region begins at the right-hand edge of the simulation region and continues to the right. The colors are the log of the hole concentration (in code units), as shown in the colorbar. The imaging region in panel (a) is fully depleted, while in panel (b), which is thicker and has a lower back-bias voltage, it is not.

FIG. 26.

Simulations of the VBB guard rings for two different conditions. In both cases, the top of the simulation region is where photons are incident, and the left-hand edge is the edge of the CCD. The imaging region begins at the right-hand edge of the simulation region and continues to the right. The colors are the log of the hole concentration (in code units), as shown in the colorbar. The imaging region in panel (a) is fully depleted, while in panel (b), which is thicker and has a lower back-bias voltage, it is not.

Close modal

While the simulator solves for the condition of the CCD in equilibrium and does not do transient simulations, it is possible to simulate transient effects by repeatedly solving for the state of the CCD with small incremental changes to the boundary conditions. These can then be stitched together to form a movie of the results. An example of the parallel charge transport is shown in Fig. 27. Several movies constructed in this way are available in Ref. 2.

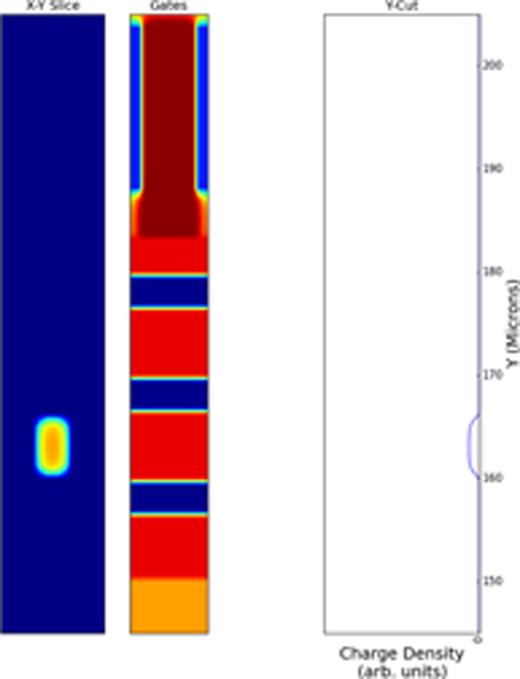

FIG. 27.

A single frame of a movie showing the transport of a charge packet. The left panel shows the charge distribution, the center panel shows the surface potential, and the right panel shows a 1D slice through the charge distribution. In the actual movie (available at Ref. 2), the charge packet can be seen propagating through the parallel chain and into the serial register.

FIG. 27.

A single frame of a movie showing the transport of a charge packet. The left panel shows the charge distribution, the center panel shows the surface potential, and the right panel shows a 1D slice through the charge distribution. In the actual movie (available at Ref. 2), the charge packet can be seen propagating through the parallel chain and into the serial register.

Close modal

We have presented a software package optimized for simulating astronomical CCDs. The code has been optimized to be as physically realistic as possible and accurately simulates many aspects of CCD behavior. The package is open source and freely available2 and has been validated against a number of different types of CCD measurements. It has proven useful for analyzing sensor effects in the CCDs being used to construct the LSST focal plane, and insights gained from running these simulations are being incorporated into the software stack to be used for instrument signature removal in the LSST images. It is hoped that it will find additional uses in the future.

Kirk Gilmore’s help in setting up the hardware and software for the CCDs from both vendors has also been invaluable. Perry Gee has provided key support in software and networking. Merlin Fisher-Levine has patiently helped with our understanding and implementation of the LSST data management software stack. David Kirkby contributed code for including different filters. Financial support from the Department of Energy (DOE) under Grant No. DE-SC0009999 and Heising-Simons Foundation under Grant No. 2015-106 are gratefully acknowledged. This paper has undergone internal review in the LSST Dark Energy Science Collaboration. The internal reviewers were Andrew Rasmussen, Douglas Tucker, and Dan Weatherill, and their inputs are much appreciated.

The data that support the findings of this study are either available within the article or in the “measurements” directory at the code repository, Ref. 2.

The authors have no conflicts of interest to disclose.

C.L. developed the Poisson_CCD code, ran most of the studies described here, and drafted the paper. A.B. carried out the study of astrometric shifts at array edges and provided test and debug support. J.A.T. supervised the project.

NameTypeDefaultDescription
AddTreeRings int 0 – No tree rings, 1 – Add tree rings
BackgroundDoping float −1 × 1012 Background doping in cm−3
BottomSteps int 1000 Number of diffusion steps each electron takes
   while logging final charge location
BuildQFeLookup int 0—do not build look-up table, 1—build look-up table
CCDTemperature float 173.00 Temperature in K
CalculateZ0 int 0—do not calculate—Use ElectronZ0,
   1—calculate from filter and SED.
ChannelDepth float 1.00 Square profile depth in micrometers
ChannelDoping float 5 × 1011 Square profile doping in cm−3
ChannelDose float 5 × 1011 Gaussian profile dose in cm−2
ChannelPeak float 0.00 Gaussian peak depth in micrometers
ChannelProfile int 0 = Square profile, N = N Gaussian profiles
ChannelSigma float 0.50 Gaussian sigma in micrometers
ChannelStopDepth float 1.00 Square profile depth in micrometers
ChannelStopDoping float 5 × 1011 Square profile doping in cm−3
ChannelStopDose float 5 × 1011 Gaussian profile dose in cm−2
ChannelStopDotCenter float 5.00 Center position in micrometers from pixel bottom
ChannelStopDotDepth float 1.00 Square profile depth in micrometers
ChannelStopDotDoping float 5 × 1011 Square profile doping in cm−3
ChannelStopDotDose float 5 × 1011 Gaussian profile dose in cm−2
ChannelStopDotHeight float 0.00 Height in micrometers
ChannelStopDotPeak float 0.00 Gaussian peak depth in micrometers
ChannelStopDotProfile int 0 = Square profile, N = N Gaussian profiles
ChannelStopDotSigma float 0.50 Gaussian sigma in micrometers
ChannelStopDotSurfaceCharge float 0.00 Surface charge in cm−2
ChannelStopPeak float 0.00 Gaussian peak depth in micrometers
ChannelStopProfile int 0 = Square profile, N = N Gaussian profiles
ChannelStopSideDiff float FieldOxideTaper Side diffusion in micrometers
ChannelStopSigma float 0.50 Gaussian sigma in micrometers
ChannelStopSurfaceCharge float 0.00 Surface charge in cm−2
ChannelStopWidth float 1.00 Width in micrometers
ChannelSurfaceCharge float 0.00 Surface charge in cm−2
CollectedCharge[i][j] int Number of electron in well i,j
CollectingPhases int Number of collecting phases
Continuation int 0—No continuation, 1—continue at LastCont..Step
DiffMultiplier float 2.30 Used to adjust amount of diffusion
ElectronMethod int Controls electron calculation
   0—Leave electrons where they land from tracking (old)
   1—Set QFe (QFe is always used in Fixed Regions)
   If 1 is specified, you must provide QFe lookup params
   2—Electron conservation and constant QFe (best)
ElectronZ0Area float 100.00 Initial Z value for electrons calculating pixel areas
ElectronZ0Fill float 100.00 Initial Z value for electrons filling pixel wells
EquilibrateSteps int 100 Number of diffusion steps each electron takes after
   reaching bottom and before beginning to log charge.
Fe55CloudRadius float 0.20 Cloud radius in micrometers
Fe55ElectronMult float 1.00 Used to adjust cloud electron attraction/repulsion
Fe55HoleMult float 1.00 Used to adjust cloud hole attraction/repulsion
FieldOxide float 0.40 Thickness in micrometers
FieldOxideTaper float 0.50 Taper width in micrometers
FilledPixelCoords[i][j] float 2.00 Center x,y (in micrometers) of well i,j
FilterBand str none One of u,g,r,i,z,y
FilterFile str notebooks/depth_pdf.dat SED file
FixedRegionBCType int Fixed region description
FixedRegionDoping int Fixed region description
FixedRegionOxide int Fixed region description
FixedRegionQFe float 100.00 Fixed region description
FixedRegionQFh float −100.00 Fixed region description
FixedRegionVoltage float 0.00 Fixed region description
FringeAngle float 0.00 Fringe parameter for PixelBoundaryTestType = 3
FringePeriod float 0.00 Fringe parameter for PixelBoundaryTestType = 3
GateGap float 0.00 Gap between parallel gates in micrometers (experimental)
GateOxide float 0.15 Thickness in micrometers
GridsPerPixelX int 16 Grids per pixel at ScaleFactor = 1
GridsPerPixelY int 16 Grids per pixel at ScaleFactor = 1
LastContinuationStep int Used when continuing a stopped simulation
LogEField int 0—do not calculate E-Field, 1—Calc. and store E-Field
LogPixelPaths int 0—only the final (z 0) point is logged,
   1—Entire path is logged
NQFe int 81 Number of steps in QFe look-up table
NZExp float 10.00 Non-linear z axis exponent
NumDiffSteps int A speed/accuracy trade-off. A value of 1 uses the
   theoretical diffusion step. A higher value takes
   larger steps. Experimental
NumElec int 1000 Number of electrons to be traced between field recalc.
NumPhases int Number of parallel phases
NumSteps int 100 Number of steps, each one adding NumElec electrons
NumVertices int Number of vertices per side for the pixel area calc.
   Since there are also 4 corners, there will be:
   (4 * NumVertices + 4) vertices in each pixel
NumberofFilledWells int Self-explanatory
NumberofFixedRegions int Self-explanatory
NumberofPixelRegions int Self-explanatory
Nx int 160 Number of grids in x at ScaleFactor = 1
Ny int 160 Number of grids in y at ScaleFactor = 1
Nz int 160 Number of grids in z at ScaleFactor = 1
Nzelec int 32 No. grids in z in elec & hole grids at ScaleFactor = 1
PhotonList str PhotonList Photon list filename
PixelAreas int −1—Do not calc areas, N—calc areas every Nth step
PixelBoundaryLowerLeft float 2.00 x,y coordinates of PixelBoundary lower left corner
PixelBoundaryNx int Number of pixels in PixelBoundary
PixelBoundaryNy int Number of pixels in PixelBoundary
PixelBoundaryStepSize float 2.00 Used with PixelBoundaryTestType = 0
PixelBoundaryTestType int 0—Trace uniform grid, 1—TraceGaussian spot,
   2,4—TraceRegion, 5—TraceList, 6—Fe55 cloud.
PixelBoundaryUpperRight float 2.00 x,y coordinates of PixelBoundary lower left corner
PixelRegionLowerLeft float 2.00 PixelRegion is used for PBTestType 0,2,4
PixelRegionUpperRight float 2.00 PixelRegion is used for PBTestType 0,2,4
PixelSizeX float −1.00 Pixel size in micrometers
PixelSizeY float −1.00 Pixel size in micrometers
QFemax float 10.00 Max QFe in look-up table
QFemin float 5.00 Min QFe in look-up table
SaturationModel int Experimental
SaveData int 0—Save only Pts, N save phi,rho,E every Nth step
SaveElec int 0—Save only Pts, N save Elec every Nth step
SaveMultiGrids int 0—Do not save subgrids, 1—Save all of the grids at all scales
ScaleFactor int Power of 2 that sets the grid size
Seed int 77 Pseudo random number seed
SensorThickness float 100.00 Sensor thickness in micrometers
Sigmax float 1.00 Gaussian spot sigma in micrometers
Sigmay float 1.00 Gaussian spot sigma in micrometers
SimulationRegionLowerLeft float 2.00 x,y coordinates of lower left corner of entire simulation
TopAbsorptionProb float 0.00 Probability an electron is absorbed if it reaches the top surface
TreeRingAmplitude float 0.00 Fractional amplitude (i.e., 0.10 is a 10% variation)
TreeRingAngle float 0.00 Direction of variation in degrees (0:constant in x)
TreeRingPeriod float 0.00 Period of sinusoidal variation in micrometers
Vbb float −50.00 Back bias voltage
VerboseLevel int 0—minimal output, 1—normal, 2—more verbose, 3—dump everything
Vparallel_lo float −8.00 Parallel low voltage
Vparallel_hi float 4.00 Parallel high voltage
XBCType int 0—Free BC, 1—Periodic BC
Xoffset float 0.00 Shift of Gaussian spot center
YBCType int 0—Free BC, 1—Periodic BC
Yoffset float 0.00 Shift of Gaussian spot center
iterations int Number of VCycles
ncycle int 100 Number of SOR cycles at each resolution
outputfilebase str Test Output filename base
outputfiledir str data Output filename directory
qfh float −100.00 Hole quasi-Fermi level—applies everywhere except Fixed regions
float 1.90 Successive over-relaxation factor
NameTypeDefaultDescription
AddTreeRings int 0 – No tree rings, 1 – Add tree rings
BackgroundDoping float −1 × 1012 Background doping in cm−3
BottomSteps int 1000 Number of diffusion steps each electron takes
   while logging final charge location
BuildQFeLookup int 0—do not build look-up table, 1—build look-up table
CCDTemperature float 173.00 Temperature in K
CalculateZ0 int 0—do not calculate—Use ElectronZ0,
   1—calculate from filter and SED.
ChannelDepth float 1.00 Square profile depth in micrometers
ChannelDoping float 5 × 1011 Square profile doping in cm−3
ChannelDose float 5 × 1011 Gaussian profile dose in cm−2
ChannelPeak float 0.00 Gaussian peak depth in micrometers
ChannelProfile int 0 = Square profile, N = N Gaussian profiles
ChannelSigma float 0.50 Gaussian sigma in micrometers
ChannelStopDepth float 1.00 Square profile depth in micrometers
ChannelStopDoping float 5 × 1011 Square profile doping in cm−3
ChannelStopDose float 5 × 1011 Gaussian profile dose in cm−2
ChannelStopDotCenter float 5.00 Center position in micrometers from pixel bottom
ChannelStopDotDepth float 1.00 Square profile depth in micrometers
ChannelStopDotDoping float 5 × 1011 Square profile doping in cm−3
ChannelStopDotDose float 5 × 1011 Gaussian profile dose in cm−2
ChannelStopDotHeight float 0.00 Height in micrometers
ChannelStopDotPeak float 0.00 Gaussian peak depth in micrometers
ChannelStopDotProfile int 0 = Square profile, N = N Gaussian profiles
ChannelStopDotSigma float 0.50 Gaussian sigma in micrometers
ChannelStopDotSurfaceCharge float 0.00 Surface charge in cm−2
ChannelStopPeak float 0.00 Gaussian peak depth in micrometers
ChannelStopProfile int 0 = Square profile, N = N Gaussian profiles
ChannelStopSideDiff float FieldOxideTaper Side diffusion in micrometers
ChannelStopSigma float 0.50 Gaussian sigma in micrometers
ChannelStopSurfaceCharge float 0.00 Surface charge in cm−2
ChannelStopWidth float 1.00 Width in micrometers
ChannelSurfaceCharge float 0.00 Surface charge in cm−2
CollectedCharge[i][j] int Number of electron in well i,j
CollectingPhases int Number of collecting phases
Continuation int 0—No continuation, 1—continue at LastCont..Step
DiffMultiplier float 2.30 Used to adjust amount of diffusion
ElectronMethod int Controls electron calculation
   0—Leave electrons where they land from tracking (old)
   1—Set QFe (QFe is always used in Fixed Regions)
   If 1 is specified, you must provide QFe lookup params
   2—Electron conservation and constant QFe (best)
ElectronZ0Area float 100.00 Initial Z value for electrons calculating pixel areas
ElectronZ0Fill float 100.00 Initial Z value for electrons filling pixel wells
EquilibrateSteps int 100 Number of diffusion steps each electron takes after
   reaching bottom and before beginning to log charge.
Fe55CloudRadius float 0.20 Cloud radius in micrometers
Fe55ElectronMult float 1.00 Used to adjust cloud electron attraction/repulsion
Fe55HoleMult float 1.00 Used to adjust cloud hole attraction/repulsion
FieldOxide float 0.40 Thickness in micrometers
FieldOxideTaper float 0.50 Taper width in micrometers
FilledPixelCoords[i][j] float 2.00 Center x,y (in micrometers) of well i,j
FilterBand str none One of u,g,r,i,z,y
FilterFile str notebooks/depth_pdf.dat SED file
FixedRegionBCType int Fixed region description
FixedRegionDoping int Fixed region description
FixedRegionOxide int Fixed region description
FixedRegionQFe float 100.00 Fixed region description
FixedRegionQFh float −100.00 Fixed region description
FixedRegionVoltage float 0.00 Fixed region description
FringeAngle float 0.00 Fringe parameter for PixelBoundaryTestType = 3
FringePeriod float 0.00 Fringe parameter for PixelBoundaryTestType = 3
GateGap float 0.00 Gap between parallel gates in micrometers (experimental)
GateOxide float 0.15 Thickness in micrometers
GridsPerPixelX int 16 Grids per pixel at ScaleFactor = 1
GridsPerPixelY int 16 Grids per pixel at ScaleFactor = 1
LastContinuationStep int Used when continuing a stopped simulation
LogEField int 0—do not calculate E-Field, 1—Calc. and store E-Field
LogPixelPaths int 0—only the final (z 0) point is logged,
   1—Entire path is logged
NQFe int 81 Number of steps in QFe look-up table
NZExp float 10.00 Non-linear z axis exponent
NumDiffSteps int A speed/accuracy trade-off. A value of 1 uses the
   theoretical diffusion step. A higher value takes
   larger steps. Experimental
NumElec int 1000 Number of electrons to be traced between field recalc.
NumPhases int Number of parallel phases
NumSteps int 100 Number of steps, each one adding NumElec electrons
NumVertices int Number of vertices per side for the pixel area calc.
   Since there are also 4 corners, there will be:
   (4 * NumVertices + 4) vertices in each pixel
NumberofFilledWells int Self-explanatory
NumberofFixedRegions int Self-explanatory
NumberofPixelRegions int Self-explanatory
Nx int 160 Number of grids in x at ScaleFactor = 1
Ny int 160 Number of grids in y at ScaleFactor = 1
Nz int 160 Number of grids in z at ScaleFactor = 1
Nzelec int 32 No. grids in z in elec & hole grids at ScaleFactor = 1
PhotonList str PhotonList Photon list filename
PixelAreas int −1—Do not calc areas, N—calc areas every Nth step
PixelBoundaryLowerLeft float 2.00 x,y coordinates of PixelBoundary lower left corner
PixelBoundaryNx int Number of pixels in PixelBoundary
PixelBoundaryNy int Number of pixels in PixelBoundary
PixelBoundaryStepSize float 2.00 Used with PixelBoundaryTestType = 0
PixelBoundaryTestType int 0—Trace uniform grid, 1—TraceGaussian spot,
   2,4—TraceRegion, 5—TraceList, 6—Fe55 cloud.
PixelBoundaryUpperRight float 2.00 x,y coordinates of PixelBoundary lower left corner
PixelRegionLowerLeft float 2.00 PixelRegion is used for PBTestType 0,2,4
PixelRegionUpperRight float 2.00 PixelRegion is used for PBTestType 0,2,4
PixelSizeX float −1.00 Pixel size in micrometers
PixelSizeY float −1.00 Pixel size in micrometers
QFemax float 10.00 Max QFe in look-up table
QFemin float 5.00 Min QFe in look-up table
SaturationModel int Experimental
SaveData int 0—Save only Pts, N save phi,rho,E every Nth step
SaveElec int 0—Save only Pts, N save Elec every Nth step
SaveMultiGrids int 0—Do not save subgrids, 1—Save all of the grids at all scales
ScaleFactor int Power of 2 that sets the grid size
Seed int 77 Pseudo random number seed
SensorThickness float 100.00 Sensor thickness in micrometers
Sigmax float 1.00 Gaussian spot sigma in micrometers
Sigmay float 1.00 Gaussian spot sigma in micrometers
SimulationRegionLowerLeft float 2.00 x,y coordinates of lower left corner of entire simulation
TopAbsorptionProb float 0.00 Probability an electron is absorbed if it reaches the top surface
TreeRingAmplitude float 0.00 Fractional amplitude (i.e., 0.10 is a 10% variation)
TreeRingAngle float 0.00 Direction of variation in degrees (0:constant in x)
TreeRingPeriod float 0.00 Period of sinusoidal variation in micrometers
Vbb float −50.00 Back bias voltage
VerboseLevel int 0—minimal output, 1—normal, 2—more verbose, 3—dump everything
Vparallel_lo float −8.00 Parallel low voltage
Vparallel_hi float 4.00 Parallel high voltage
XBCType int 0—Free BC, 1—Periodic BC
Xoffset float 0.00 Shift of Gaussian spot center
YBCType int 0—Free BC, 1—Periodic BC
Yoffset float 0.00 Shift of Gaussian spot center
iterations int Number of VCycles
ncycle int 100 Number of SOR cycles at each resolution
outputfilebase str Test Output filename base
outputfiledir str data Output filename directory
qfh float −100.00 Hole quasi-Fermi level—applies everywhere except Fixed regions
float 1.90 Successive over-relaxation factor

The figures in this articles were generated with v1.0 of the Poisson_CCD code provided in Ref. 2. There are a total of 14 examples included with the code. Each example is in a separate directory in the data directory and has a configuration file of the form *.cfg. The parameters in the *.cfg files are commented to explain (hopefully) the purpose of each parameter, and a detailed listing of all configuration parameters is in the  Appendix A. Python plotting routines are included with instructions below on how to run the plotting routines and the expected output. The plot outputs are placed in the data/*/plots files, so you can see the expected plots without having to run the code. If you edit the .cfg files, it is likely that you will need to customize the Python plotting routines as well. The estimated run times given here are what was seen on a dual-core 1.4 GHz Intel Core i5 laptop computer.

  • Example 1: data/smallpixel/smallpixel.cfg

    1. Purpose: A single pixel and surroundings. The central pixel contains 100 000 electrons. No electron tracking or pixel boundary plotting is done. The subgrids are saved so one can look at convergence. This is useful for getting things set up rapidly

    2. Syntax: src/Poisson data/smallpixel/smallpixel.cfg

    3. Expected run time: <1 min.

    4. Plot Syntax: python pysrc/Poisson_Small.py data/smallpixel/smallpixel.cfg 0

    5. Plot Syntax: python pysrc/Poisson_Convergence.py data/smallpixel/smallpixel.cfg 0

  • Example 2: data/pixel0/pixel.cfg

    1. Purpose: A 9×9 grid of pixels at low resolution (ScaleFactor = 1). The central pixel contains 100 000 electrons. No electron tracking or pixel boundary plotting is done.

    2. Syntax: src/Poisson data/pixel0/pixel.cfg

    3. Expected run time: 1 min.

    4. Plot Syntax: python pysrc/Poisson_Plots.py data/pixel0/pixel.cfg 0

    5. Plot Syntax: python pysrc/ChargePlots.py data/pixel0/pixel.cfg 0 2

  • Example 3: data/pixel-itl/pixel.cfg

    1. Purpose: A 9×9 grid of pixels at higher resolution (ScaleFactor = 2). The central pixel contains 100 000 electrons. The parameters are set up for the ITL STA3800C CCD. This should give physically meaningful results and is what was used in the published papers. After solving Poisson’s equation, electron tracking is done to determine the pixel distortions.

    2. Syntax: src/Poisson data/pixel-itl/pixel.cfg

    3. Expected run time: 30 min.

    4. Plot Syntax: python pysrc/Poisson_Plots.py data/pixel-itl/pixel.cfg 0

    5. Plot Syntax: python pysrc/ChargePlots.py data/pixel-itl/pixel.cfg 0 2

    6. Plot Syntax: python pysrc/VertexPlot.py data/pixel-itl/pixel.cfg 0 2

    7. Plot Syntax: python pysrc/Area_Covariance_Plot.py data/pixel-itl/pixel.cfg 0

  • Example 4: data/pixel-e2v/pixel.cfg

    1. Purpose: A 9×9 grid of pixels at higher resolution (ScaleFactor = 2). The central pixel contains 100 000 electrons. The parameters are set up for the E2V CCD250 CCD. This should give physically meaningful results and is what was used in the published papers. After solving Poisson’s equation, electron tracking is done to determine the pixel distortions.

    2. Syntax: src/Poisson data/pixel-e2v/pixel.cfg

    3. Expected run time: 30 min.

    4. Plot Syntax: python pysrc/Poisson_Plots.py data/pixel-e2v/pixel.cfg 0

    5. Plot Syntax: python pysrc/ChargePlots.py data/pixel-e2v/pixel.cfg 0 2

    6. Plot Syntax: python pysrc/VertexPlot.py data/pixel-e2v/pixel.cfg 0 2

    7. Plot Syntax: python pysrc/Area_Covariance_Plot.py data/pixel-e2v/pixel.cfg 0

  • Example 5: data/pixel1/pixel.cfg

    1. Purpose: A 9×9 grid of pixels at higher resolution (ScaleFactor = 2). The central pixel contains 100 000 electrons. The parameters are set up for the ITL STA3800C CCD. This is included as an example of ElectronMethod = 1, which iterates to find the value of the electron Quasi-Fermi level. After solving Poisson’s equation, electron tracking is done to determine the pixel distortions.

    2. Syntax: src/Poisson data/pixel1/pixel.cfg

    3. Expected run time: 45 min.

    4. Plot Syntax: python pysrc/Poisson_Plots.py data/pixel1/pixel.cfg 0

    5. Plot Syntax: python pysrc/ChargePlots.py data/pixel1/pixel.cfg 0 2

    6. Plot Syntax: python pysrc/VertexPlot.py data/pixel1/pixel.cfg 0 2

    7. Plot Syntax: python pysrc/Area_Covariance_Plot.py data/pixel1/pixel.cfg 0

  • Example 6: data/smallcapf/smallcap.cfg

    1. Purpose: A simple field oxide capacitor for testing convergence.

    2. Syntax: src/Poisson data/smallcapf/smallcap.cfg

    3. Expected run time: 1 min.

    4. Plot Syntax: python pysrc/Poisson_CapConvergence.py data/smallcapf/smallcap.cfg 0

  • Example 7: data/smallcapg/smallcap.cfg

    1. Purpose: A simple gate oxide capacitor for testing convergence.

    2. Syntax: src/Poisson data/smallcapg/smallcap.cfg

    3. Expected run time: 1 min.

    4. Plot Syntax: python pysrc/Poisson_CapConvergence.py data/smallcapg/smallcap.cfg 0

  • Example 8: data/edgerun/edge.cfg

    1. Purpose: A simulation of the pixel distortion at the top and bottom edges of the ITL STA3800C CCD.

    2. Syntax: src/Poisson data/edgerun/edge.cfg

    3. Expected run time: 15 min.

    4. Plot Syntax: python pysrc/Poisson_Edge.py data/edgerun/edge.cfg 0

    5. Plot Syntax: python pysrc/Pixel_Shift.py data/edgerun/edge.cfg 0

  • Example 9: data/iorun/io.cfg

    1. Purpose: A simulation of the output transistor region of the ITL STA3800C CCD, including the last few serial stages.

    2. Syntax: src/Poisson data/iorun/io.cfg

    3. Expected run time: 5 min.

    4. Plot Syntax: python pysrc/Poisson_IO.py data/iorun/io.cfg 0

    5. Plot Syntax: python pysrc/ChargePlots_IO.py data/iorun/io.cfg 0

  • Example 10: data/treering/treering.cfg

    1. Purpose: A simulation of a 9×9 pixel region with a sinusoidal treering dopant variation introduced, so one can see the resulting pixel distortions.

    2. Syntax: src/Poisson data/treering/treering.cfg

    3. Expected run time: 20 min.

    4. Plot Syntax: python pysrc/VertexPlot.py data/treering/treering.cfg 0 4

  • Example 11: data/fe55/pixel.cfg

    1. Purpose: A simulation of a 5×5 pixel region with a single Fe55 event above the center pixel. To determine the distribution of pixel counts, one needs to run many of these simulations with a random center point.

    2. Syntax: src/Poisson data/fe55/pixel.cfg

    3. Expected run time: 5 min.

    4. Plot Syntax: python pysrc/Poisson_Fe55.py data/fe55/pixel.cfg 0 40

  • Example 12: data/transrun/trans.cfg

    1. Purpose: A simulation of the output transistor of the ITL STA3800C CCD. In order to plot the I–V characteristic, this needs to be re-run with different gate voltage values.

    2. Syntax: src/Poisson data/transrun/trans.cfg

    3. Expected run time: 10 min.

    4. Plot Syntax: python pysrc/Poisson_Trans.py data/transrun/trans.cfg 0

    5. Plot Syntax: python pysrc/ChargePlots_Trans.py data/transrun/trans.cfg 0

    6. Plot Syntax: python pysrc/MOSFET_Calculated_IV.py data/transrun/trans.cfg 0

  • Example 13: data/satrun/sat.cfg

    1. Purpose: A simulation of the saturation level, as determined by the barrier lowering. Again, this needs to be run multiple times with varying parallel voltages.

    2. Syntax: src/Poisson data/satrun/sat.cfg

    3. Expected run time: 20 min.

    4. Plot Syntax: python pysrc/Poisson_Sat.py data/satrun/sat.cfg 0

    5. Plot Syntax: python pysrc/ChargePlots.py data/satrun/sat.cfg 0 9

    6. Plot Syntax: python pysrc/Barrier.py data/satrun/sat.cfg 0

    7. Plot Syntax: python pysrc/Plot_SatLevel.py data/satrun/sat.cfg 0

  • Example 14: data/bfrun/bf.cfg

    1. Purpose: This builds up a Gaussian spot in the center of a 9×9 pixel region by sequentially solving Poisson’s equation, adding electrons, and repeating. As written, this is done 80 times, building up the central pixel charge to about 80 000 electrons.

    2. Syntax: src/Poisson data/bfrun/bf.cfg

    3. Expected run time: 8 h.

    4. Plot Syntax: python Poisson_Plots.py data/bfrun/bf.cfg 80

    5. Plot Syntax: python ChargePlots.py data/bfrun/bf.cfg 80 9

    6. Plot Syntax: python Plot_BF_Spots.py data/bfrun/bf.cfg 0 NumSpots 80 (Assumes this was run NumSpots times with random center locations)

1.
G. E.
Smith
, “
Nobel lecture: The invention and early history of the CCD
,”
Rev. Mod. Phys.
82
,
2307
2312
(
2010
).
2.
C.
Lage
, see https://github.com/craiglagegit/Poisson_CCD for “Poisson solver for LSST CCDs” (2019).
3.
Ž.
Ivezić
,
S. M.
Kahn
,
J. A.
Tyson
,
B.
Abel
,
E.
Acosta
,
R.
Allsman
,
D.
Alonso
,
Y.
AlSayyad
,
S. F.
Anderson
,
J.
Andrew
et al., “
LSST: From science drivers to reference design and anticipated data products
,”
Astrophys. J.
873
,
111
(
2019
).
4.
P.
O’Connor
, “Uniformity and stability of the LSST focal plane,” arXiv:1907.00995 (2019).
5.
P.
O’Connor
,
P.
Antilogus
,
P.
Doherty
,
J.
Haupt
,
S.
Herrmann
,
M.
Huffer
,
C.
Juramy-Giles
,
J.
Kuczewski
,
S.
Russo
,
C.
Stubbs
, and
R.
Van Berg
, “Integrated system tests of the LSST raft tower modules,” in High Energy, Optical, and Infrared Detectors for Astronomy VII, International Society for Optics and Photonics, edited by A. D. Holland and J. Beletic (SPIE, 2016), Vol. 9915, pp. 327–338.
6.
University of Arizona, Imaging Technology Laboratory, see http://www.itl.arizona.edu for information on ITL CCDs (2016).
7.
Teledyne E2V, see https://www.teledyne-e2v.com/products/space/ for information on E2V CCDs (2019).
8.
J.
Villasenor
,
G.
Prigozhin
,
J. P.
Doty
,
C.
Lage
,
S.
Yazdi
,
G.
Ricker
, and
R.
Vanderspek
, “
Reach-through effect in deep depletion TESS CCDs
,”
J. Instrum.
12
(
04
),
C04025
(
2017
).
9.
A.
Hadjidimos
, “
Successive overrelaxation (SOR) and related methods
,”
J. Comput. Appl. Math.
123
(
1
),
177
199
(
2000
), Numerical Analysis 2000. Vol. III: Linear Algebra.
10.
A. A.
Plazas
,
G. M.
Bernstein
, and
E. S.
Sheldon
, “
On-sky measurements of the transverse electric fields’ effects in the dark energy camera CCDs
,”
Pub. Astron. Soc. Pac.
126
(
942
),
750
(
2014
).
11.
P.
Antilogus
,
P.
Astier
,
P.
Doherty
,
A.
Guyonnet
, and
N.
Regnault
, “
The brighter-fatter effect and pixel correlations in CCD sensors
,”
J. Instrum.
9
,
C03048
(
2014
).
12.
D.
Gruen
,
G. M.
Bernstein
,
M.
Jarvis
,
B.
Rowe
,
V.
Vikram
,
A. A.
Plazas
, and
S.
Seitz
, “
Characterization and correction of charge-induced pixel shifts in DECam
,”
J. Instrum.
10
,
C05032
(
2015
).
13.
A.
Guyonnet
,
P.
Astier
,
P.
Antilogus
,
N.
Regnault
, and
P.
Doherty
, “
Evidence for self-interaction of charge distribution in charge-coupled devices
,”
Astron. Astrophys.
575
,
A41
(
2015
).
14.
C.
Lage
,
A.
Bradshaw
, and
J. A.
Tyson
, “
Measurements and simulations of the brighter-fatter effect in CCD sensors
,”
J. Instrum.
12
,
C03091
(
2017
).
15.
W. R.
Coulton
,
R.
Armstrong
,
K. M.
Smith
,
R. H.
Lupton
, and
D. N.
Spergel
, “
Exploring the brighter-fatter effect with the hyper suprime-cam
,”
Astron. J.
155
(
6
),
258
(
2018
).
16.
C.
Lage
, “Physical and electrical analysis of LSST sensors,” https://arxiv.org/abs/1911.09577 (2019).
17.
S. M.
Sze
, Physics of Semiconductor Devices (John Wiley & Sons, 1981).
18.
C. S.
Rafferty
,
M. R.
Pinto
, and
R. W.
Dutton
, “
Iterative methods in semiconductor device simulation
,”
IEEE Trans. Electron Devices
32
(
10
),
2018
2027
(
1985
).
19.
H. K.
Gummel
, “
A self-consistent iterative scheme for one-dimensional steady state transistor calculations
,”
IEEE Trans. Electron Devices
11
(
10
),
455
465
(
1964
).
20.
W. L.
Briggs
,
S. F.
McCormick
et al.,
A Multigrid Tutorial
(
SIAM
,
2000
), Vol.
72
.
21.
W. H.
Press
,
S. A.
Teukolsky
,
W. T.
Vetterling
, and
B. P.
Flannery
,
Numerical Recipes
, 3rd ed. (
Cambridge University Press
,
2007
).
22.
C.
Jacobini
,
C.
Canali
,
G.
Ottaviani
, and
A.
Quaranta
, “
A review of some transport properties of silicon
,”
Solid State Electron.
20
,
77
89
(
1977
).
23.
M. A.
Green
, “
Intrinsic concentration, effective densities of states, and effective mass in silicon
,”
J. Appl. Phys.
67
(
6
),
2944
2954
(
1990
).
24.
J. A.
Tyson
,
J.
Sasian
,
K.
Gilmore
,
A.
Bradshaw
,
C.
Claver
,
M.
Klint
,
G.
Muller
,
G.
Poczulp
, and
E.
Resseguie
, “LSST optical beam simulator,” in
High Energy, Optical, and Infrared Detectors for Astronomy VI
, Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series Vol. 9154 (SPIE, 2014), p. 915415.
25.
C.
Lage
, “Linearity and correction of the BF effect in LSST sensors,” https://arxiv.org/abs/1911.09567 (2019).
26.
J. R.
Janesick
, Scientific Charge-coupled Devices, Press Monograph Series (SPIE Press, 2001).
27.
A.
Bradshaw
,
C.
Lage
,
E.
Resseguie
, and
J. A.
Tyson
, “
Mapping charge transport effects in thick CCDs with a dithered array of 40 000 stars
,”
J. Instrum.
10
,
C04034
(
2015
).
