The plasma over a magnetron’s erosion “racetrack” is not azimuthally uniform but concentrated in distinct dense ionization zones which move in the E×B direction with about 10% of the electron E×B/B2 drift velocity. The ionization zones are investigated with a gated camera working in concert with a streak camera for Al, Nb, Cu, and W targets in Ar or Kr background gas. It is found that each ionization zone has a high plasma density edge, which is the origin of a plasma-generating electron jet leaving the target zone. Each region of strong azimuthal plasma density gradient generates an azimuthal electric field, which promotes the escape of magnetized electrons and the formation of electron jets and plasma flares. The phenomena are proposed to be caused by an ionization instability where each dense plasma zone exhibits a high stopping power for drifting high energy electrons, thereby enhancing itself.

Magnetron sputtering is a widely used physical vapor deposition technology. Its physics is reasonably well understood. To improve film quality for numerous applications, attempts have been made to ionize sputtered atoms, e.g., by adding a radio-frequency discharge1 or by using very high magnetron power levels in a pulsed manner.2 This contribution deals with the latter approach, often labeled high power impulse magnetron sputtering (HiPIMS),3–10 among other names.

The magnetron discharge is a magnetically enhanced glow discharge that can operate at very low background gas pressure (of order 1 Pa) due to confinement of the plasma electrons, and especially confinement of the energetic secondary electrons emitted from the target. The specific magnetron geometry leads to a closed electron drift due to the E×B configuration and contributions from the B×B and curvature drifts.11–13 For the magnetized electrons, those drifts are additive, while ions are not subject to such drifts because they are not magnetized: Their gyration radius is larger than the characteristic size of the magnetron, e.g., the target radius. For simplicity we subsume the electron drifts as “E×B drift” or “closed drift” in the remainder of this work.

The actual path of electrons is rather complicated: Electrons gyrate around and move along the arched magnetic field lines and experience reflection from the sheath before reaching the target surface. The closed drift can be thought of a closed circular path over the racetrack when averaging over two sub-motions: (a) the electron gyration around magnetic field lines, giving the motion of the gyration center; and (b) the oscillation of the gyration center between reflection points at the sheath edge. The closed drift of electrons ensures that gas ionization can occur at low pressure because the complicated trajectory of electrons is constrained to the near-target region although the mean free path exceeds the characteristic size of the magnetron by a large factor.

For a magnetron discharge to work, a sufficient number of electrons needs to reach the anode, which is often a grounded shield placed outside the region of closed drift. It is well known that classical cross-field transport theory, where cross-field currents scale with B-2, cannot explain the observed high discharge currents. Bohm introduced a semiempirical cross-field diffusion coefficient, leading to a current that scales with B−1, Ref. 11. Currents equal to or greater than the Bohm current are usually called “anomalous.” Cross-field transport of the Bohm-type and greater are understood as being caused by collective phenomena such as plasma fluctuations and instabilities. The type of instability may depend on the specific geometry and collisional conditions. In this contribution we investigate plasma instabilities and put them in relation to the anomalous current found for magnetron discharges under HiPIMS conditions.8,14,15

HiPIMS discharges have previously been observed to show a range of waves and instabilities, which can be easily found, for example, in the traces of discharge current and voltage (for example, see Fig. 2 of Ref. 16 or Fig. 1 of Ref. 17, or Figs. 7–9 of Ref. 3). However, a most striking phenomenon of HiPIMS is the jump of the discharge current to a high level once a material and pressure dependent threshold voltage is reached or surpassed. This can be ascribed to a runaway of self-sputtering for high and medium sputter yield materials.18 For low-yield materials, the high currents are related to a “gas recycling” mechanism, which is analogous to the self-sputtering process.19 For both self-sputtering and gas-based sputtering, neutral atoms are released from the target surface, ionized in the near-target region, and then accelerated back to the target by the pre-sheath and sheath electric field. Once returned to the target, the now energetic ions cause sputtering of surface atoms and the emission of secondary electrons. Should the generation of neutrals and their ionization and return probabilities be high enough, the system can amplify (run away) until certain loss and dampening mechanisms terminate the runaway phase, leading to a sustained high current mode.3

The likelihood of a transition to an unwanted arcing mode is reduced by selecting relatively short (usually 100 μs or less) discharge pulses, where the pulse is terminated before the discharge current reaches its potential peak and/or goes into the above-mentioned high current phase. Short-pulse HiPIMS conditions are characterized, or can be defined by, a more-or-less triangular current I(t) pulse shape, and many of the later-reported results were obtained under these conditions.

Focusing on the issue of cross-field current transport, Brenning and coworkers14 reported on exceptionally high cross-field transport for E×B discharges when the power is abruptly enhanced: The cross diffusion coefficient was found to exceed the Bohm values by up to a factor 5. For the case of HiPIMS, the azimuthal electric current associated with the closed electron drift (Hall current) was experimentally found to be much smaller16 than one would expect from earlier measurements using relatively low power direct current (dc) magnetrons,20 or, in other words, the discharge current was unexpectedly larger than the Hall current. Lundin et al.15 used electric field probe arrays to detect oscillating electric fields in the megahertz range. They interpreted their data by modified two-stream instabilities (MTSIs), which are known to promote transport of electrons across magnetic field lines.21,22

HiPIMS and mid-frequency magnetron discharges have been investigated with optical techniques. For example, Lopez and coworkers23 used an intensified CCD camera to image the racetrack of a rectangular, mid-frequency pulsed magnetron (60 kHz, including a 3 μs reverse time) operating up to 1.5 kW. No information on time resolution and target size was provided, and there was no report on plasma instabilities; however, the plasma was found to be enhanced when the racetrack made sharp turns near the racetrack. Liebig and coworkers24 used 2D-imaging in combination with Abel inversion to study the spatial and temporal evolution of the plasma-induced emission of aluminum and titanium HiPIMS discharges in argon (resolution 0.4 mm and 1 μs). They observed a significant development of the emission during the pulse on-time showing a structure similar to an ion acoustic wave traveling away from the target. Two maxima of neutral line emission were found using spectral filters indicating increased ionization of the sputtered metal flux as the pulse evolves. Such wave features were also detected by probe measurements25–29). Hála and coworkers30,31 used optical emission spectroscopy and time resolved imaging (5 μs resolution with image averaging), also indicating the existing of a wave traveling away from the target. Recent imaging experiments at Bochum University showed that instabilities and periodic structures can be detected by a camera operated with a very short exposure time of 100 ns.32 Finally, as pointed out by a reviewer of this manuscript and unbeknownst to us at the time of this research, such structures have also been reported in a recent publication by Kozyrev and co-workers.33 We will later compare our results with those by Kozyrev and others.

The various pieces of information from probes, cameras, and spectrometers suggest that systematic optical measurements with high temporal and spatial resolution could provide much deeper insight into the type of instabilities causing anomalous current transport under HiPIMS conditions. Therefore, a combination of a gated camera and a streak camera is used in this contribution to obtain time-resolved images of HiPIMS discharges in end-on and side-on views. The report on optical data is complimented by some time-resolved emissive probe data giving information on the local plasma potential. We will show that azimuthally moving dense plasma structures exist that sometimes—but not always—appear in a regular, self-organized fashion. We will interpret the data as an azimuthal localization of the ionization runaway driven by energetic electrons, which are subject to closed drift, as mentioned before. We will further show that the formation of an azimuthal electric field component gives rise to an axial velocity component of magnetically confined electrons. Finally we will relate the observation to instabilities observed in other E×B devices.

The experiments were done in a cylindrical stainless steel chamber of 35 cm inner diameter and 25 cm inner height. It was evacuated with a 550 l/s turbomolecular pump (Pfeiffer) backed by a diaphragm pump to a base pressure in the low 10−5 Pa range. High purity argon or krypton was injected using a mass flow controller (MKS). The flow rate could be adjusted up to 100 sccm to obtain the desired operational pressure, which was typically 0.3 Pa.

The HiPIMS discharge was powered by a HiPIMS high current pulse generator model SPIK2000A (Melec GmbH) capable of delivering pulses up to 1 kV, up to 500 A. Typical pulse lengths were 20–200 μs with a repetition rate of 100 or 200 pulses per second. The target current depends on the target material, gas type, and gas pressure, and therefore actual pulse data are given below with each specific result. Additionally, the discharge is greatly affected by the magnetic field, and one can therefore observe shifts of current and other parameters as the target is gradually eroded—those changes, however, are not further investigated in this contribution.

The discharge current was recorded using a current transformer (Pearson model 101, sensitivity 0.01 V/A, bandwidth 0.25 Hz–4 MHz), and the discharge voltage was measured using a 100× voltage probe (Tektronix P5100). To impede fast high-amplitude oscillation that could damage the SPIK pulser, both output cables were wound three times through a ferrite ring before being connected to the target feedthrough (minus) and chamber ground (plus). All electrical signals were recorded with a National Instruments PXI-5105 high speed Digitizer/Oscilloscope with up to 60 MS/s real-time sampling rate per channel, operated under a LabView Signal Express program.

Figure 1 shows the experimental arrangement of the planar magnetron and two digital cameras for the end-on view experiment. For the side-on view, the camera setup was moved to the window located 90° from the one used in Fig. 1. Each window had a movable shutter that was opened only when taking images to minimize buildup of a coating on the window. The cameras were used simultaneously using a 50/50 optical beam splitter, a semi-transparently coated flat glass, as indicated in Fig. 1.

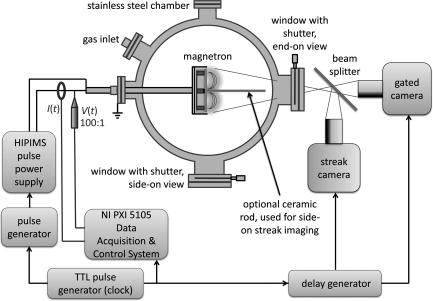

FIG. 1.

(Color online) Simplified schematic of the experimental setup for end-on observation by both the gated and streak camera; the cameras and the beam splitter were moved to the other window for side-on observations.

FIG. 1.

(Color online) Simplified schematic of the experimental setup for end-on observation by both the gated and streak camera; the cameras and the beam splitter were moved to the other window for side-on observations.

Close modal

The gated camera (Princeton Instruments PIMAX 1024) was equipped with a f = 80 mm Nikon lens and a micro-channel plate (MCP) amplifier delivering 512 pixels × 512 pixels images with 16 bit greyscale intensity resolution. The exposure time was varied down to 1 ns. The camera uses light emitted from the plasma in the visible part of the spectrum, with the greatest quantum efficiency in the blue part of the spectrum.

The streak camera was a Hamamatsu C7700 with a f = 35 mm Nikon lens and detector model C4742-98. It produces images where the horizontal direction is a spatial dimension (x for end-on view, and z for side-on view), and the vertical direction is time. The image dimensions were 1344 pixels in space and 1024 pixels for the time axis, with 14 bit intensity resolution. The slit width was no wider than 10 pixels. Electronic image amplification was kept low to always stay well below the saturation of the detectors. The amplification factor was not kept constant but adjusted to the specific conditions in order to obtain a reasonable dynamic range of the image; this needs to be taken into account when comparing images taken under different conditions. The images were loaded into a computer and digitally flipped and rotated as needed, to present the magnetron in such orientation as one would see it through the vacuum chamber window. The false color scale “royal” of the image processing software IMAGEJ34 was applied to enhance the visual presentation of the images.

The side-on view presents a slightly greater challenge than the end-on views since one essentially looks at two regions of plasma: one over the target erosion zone (“racetrack”) close to the camera, and the other over the racetrack zone behind it. Both cannot be imaged in focus due to the limited field-of-depth (a few millimeters). Even if the field-of-depth was not an issue, the presence of two plasma zones would make interpretation of images difficult. Therefore, to block the view to the more remote plasma region, a long, 1.5 mm diameter alumina ceramic rod was carefully positioned on axis. As a result, the streak camera in side-on view recorded only the plasma that is on the left as seen from the end-on window, i.e., position (x=22mm,y=0,zslit). We note that the ceramic rod on the center axis of the discharge system did not affect the electrical properties of the discharge when the ceramic was installed.

The planar magnetron was operated with a 6.25 mm (1/4 in.) thick, 76 mm (3 in.) diameter target of Al, Cu, Nb, or W. The selection of targets and gases was made to investigate whether or not the instabilities depend on target material and/or gas type. The magnetron was of the “keeper type” (US Inc., now Meivac Inc.): the target is kept in place with the help of the magnetic field that also provides the magnetron structure for the discharge. This works as follows: a 25 mm diameter, 1 mm thick steel disk is screwed in the center of the backside of the target; this steel disk, and with it the whole target, is magnetically clamped to the central magnet of the magnetron. No mechanical clamp ring is needed. The anode is a grounded annual metal ring whose one end is mounted flush with the target surface. The magnetic target mount and flush anode allowed us to have an unimpeded view at the target surface in both end-on and side-on views, which is not the case with the more common clamp-style magnetrons.

The magnetic field structure of this magnetron was mapped using a small Hall probe (F.W. Bell 5180 Gaussmeter) that was automatically moved to many positions using a stepper motor. Both axial and radial components were recorded, and a field map was constructed (Fig. 2) showing that this magnetron is unbalanced.

FIG. 2.

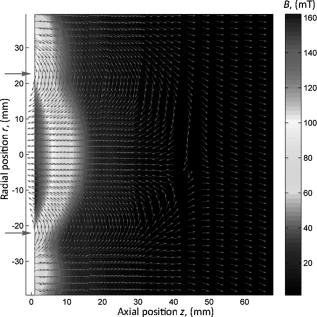

(Color online) Magnetic field of the magnetron as measured using Hall probes positioned by computer-controlled stepper motors. The arrows indicate the direction (not strength) of the B-vector at each of the actual measuring points; the magnetic induction B is color-coded as indicated and interpolated between measuring points. The magnetic null can be found at a distance z = 44 mm (slightly off-axis). The magnetic field arches over the target at a radius of ± 22 mm from the center; this is the location of the racetrack, indicated by the large arrows.

FIG. 2.

(Color online) Magnetic field of the magnetron as measured using Hall probes positioned by computer-controlled stepper motors. The arrows indicate the direction (not strength) of the B-vector at each of the actual measuring points; the magnetic induction B is color-coded as indicated and interpolated between measuring points. The magnetic null can be found at a distance z = 44 mm (slightly off-axis). The magnetic field arches over the target at a radius of ± 22 mm from the center; this is the location of the racetrack, indicated by the large arrows.

Close modal

In a separate experiment with pulsed emissive probes, which will be described in detail in a separate publication,29 the local plasma potential was recorded as a function of time. For various axial (z) positions, the probe was automatically moved in radial (r) direction and the probe signals were recorded with the National Instruments PXI-5105 data acquisition system. The pre-target region was mapped with the exception of the plasma region near the racetrack. This region had to be excluded because the disturbance of the discharge by the probe was severe. In extreme cases, the probe caused the magnetron discharge to cease.

All system components (discharge, gated and streak cameras, and probe data acquisition) were synchronized through a common pulse generator (the experiment’s “clock”) and delay/pulse generators, as indicated in Fig. 1.

A first experimental series, in which the gated camera was used with different exposure times, revealed the presence of significant azimuthal plasma non-uniformities. While relatively long gate times in the microsecond range showed the familiar plasma ring over the target erosion zone (the “racetrack”), very distinct features became visible when using a gate time of 1 μs or shorter, as demonstrated by the series of images shown in Fig. 3 (the “gate time” of a digital camera is fully equivalent to the “exposure time” known from conventional photography, and we use those terms synonymously). Our experiments included even longer (up to 50 μs) and shorter (down to 1 ns) gate times but they revealed no additional information. They are therefore not further shown or discussed. From the set of images of Fig. 3 one can draw first conclusions, namely (a) the visual appearance of a plasma ring is the result of azimuthal motion of dense plasma zones; (b) the time needed for one rotation is about 15 μs (the corresponding rotation frequency is ∼60–80 kHz); using the circumference of the racetrack of about 150 mm, the related velocity is about 104 m/s; (c) the structures appear clearly once the exposure time was reduced to about 100 ns. Further reduction did not reveal additional information but increased the noise in the images. We opted to use 10 ns gate time for the remainder of the work as a compromise between image noise and avoiding blurring by motion of plasma structures.

FIG. 3.

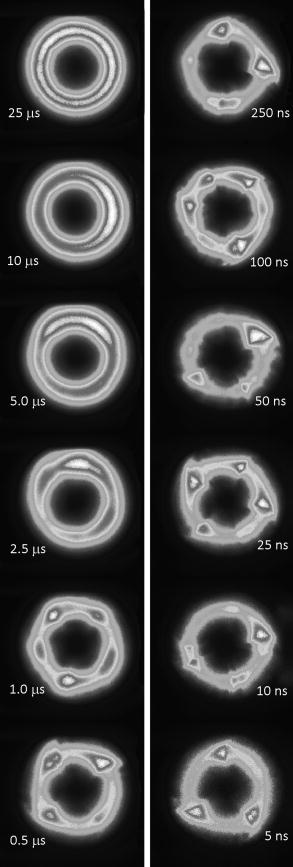

(Color online) End-on view on a niobium target operated in HiPIMS mode pulses in 0.27 Pa of argon (750 V applied, peak current 250 A, 200 pulses per second). Each individual image was taken from a different discharge pulse, under nominally the same conditions, with a different gate time as indicated next to the image. The gate time period was set that it always ended 5 μs before the current reached its peak. The contrast is visually enhanced by false color introduced by the IMAGEJ software.

FIG. 3.

(Color online) End-on view on a niobium target operated in HiPIMS mode pulses in 0.27 Pa of argon (750 V applied, peak current 250 A, 200 pulses per second). Each individual image was taken from a different discharge pulse, under nominally the same conditions, with a different gate time as indicated next to the image. The gate time period was set that it always ended 5 μs before the current reached its peak. The contrast is visually enhanced by false color introduced by the IMAGEJ software.

Close modal

Hundreds of 10 ns images were taken for different conditions. One of them is shown in Fig. 4 (top) combined with a streak image of the same pulse (bottom). One can clearly identify four distinct zones of high density, which were labeled A, B, C, and D. In this particular example, the spacing between the zones is about equal. Many, but not all, of the images show signs of equal spacing, pattering, or self-organization. The streak images unequivocally reveal that all of the dense zones move azimuthally with about the same speed in the counterclockwise direction, i.e., the same direction of the electrons’ E×B drift.

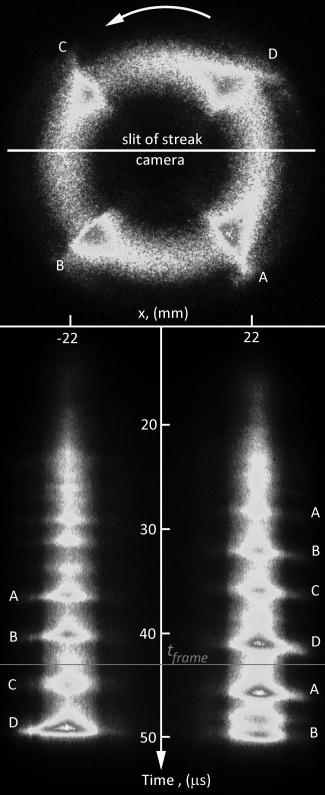

FIG. 4.

(Color online) End-on observation of a HiPIMS pulse simultaneously using the gated and streak camera, shown in the upper and lower part of the figure, respectively. The gated image identifies four dense plasma regions, labeled A, B, C, and D, and the streak image shows their evolution and rotation. The gated image indicates the location of the streak observation, and the streak image shows the moment of the gated image at 42.6 μs into the pulse.

FIG. 4.

(Color online) End-on observation of a HiPIMS pulse simultaneously using the gated and streak camera, shown in the upper and lower part of the figure, respectively. The gated image identifies four dense plasma regions, labeled A, B, C, and D, and the streak image shows their evolution and rotation. The gated image indicates the location of the streak observation, and the streak image shows the moment of the gated image at 42.6 μs into the pulse.

Close modal

The specific velocity depends on both the gas type and target material. We have tested Ar and Kr gas for Al, Cu, Nb, and W targets. The result is shown in Table I, where the plus-minus values are not measurement error bars but a range of velocities observed in several tens of measurements per material combination.

Table I.

Velocity of the counterclockwise, azimuthal motion of dense plasma zones observed for different gas and target material combinations. The measurement error is in the range ±50 m/s, and the given intervals refer to variations seen in the observation of several 10 measurements per gas-target combination. Atomic mass and the approximate target surface binding energies or sublimation energies (which affect the sputter yields) are also provided.35

TargetGasObserved
nameatomic mass (amu)surface binding energy (eV)nameatomic mass (amu)azimuthal velocities (m/s)
Al 30.0 3.19 Ar 39.9 8100 ± 300
Al 30.0 3.19 Kr 83.8 5400 ± 300
Cu 63.5 3.48 Ar 39.9 4200 ± 400
Cu 63.5 3.48 Kr 83.8 4200 ± 150
Nb 92.9 5.93 Ar 39.9 7000 ± 2000
Nb 92.9 5.93 Kr 83.8 5700 ± 700
183.4 8.7 Ar 39.9 6250 ± 300
183.4 8.7 Kr 83.8 4000 ± 300
TargetGasObserved
nameatomic mass (amu)surface binding energy (eV)nameatomic mass (amu)azimuthal velocities (m/s)
Al 30.0 3.19 Ar 39.9 8100 ± 300
Al 30.0 3.19 Kr 83.8 5400 ± 300
Cu 63.5 3.48 Ar 39.9 4200 ± 400
Cu 63.5 3.48 Kr 83.8 4200 ± 150
Nb 92.9 5.93 Ar 39.9 7000 ± 2000
Nb 92.9 5.93 Kr 83.8 5700 ± 700
183.4 8.7 Ar 39.9 6250 ± 300
183.4 8.7 Kr 83.8 4000 ± 300

The plasma pattern tends to evolve and change during a pulse. For example, one can see the appearance of an additional dense plasma zone in the right lower corner of the streak image (Fig. 4) just before the end of the discharge pulse.

Figure 5 shows an example of a plasma structure that is not very regular (as opposed to the regular pattern shown in Fig. 4). The top part of Fig. 5 shows the end-on gated image, while the bottom shows the corresponding side-on streak image with the discharge current pulse laid over it. The streak image shows distinct jets of electrons emitted from the dense plasma zone, as is evident by the propagating excitation and light emission from atoms and ions caused by collisions with electrons. The tilt of the jets (with one dimension in space, z, and the other in time, t) let us determine the velocity of propagation from the target, namely about 2×104m/s. The ejection of electrons from the dense plasma is perhaps the most striking evidence of the role of instabilities and self-organized patterns for the cross-field transport of electrons. The correlation of dense plasma structures and electron jets is also evident in the four other examples of side-on streak images shown in Fig. 6. The slope of the bright jets in the (z,t) plane indicates that all have approximately the same velocity, although there are variations. It is apparent that the velocity of the electron jets increases as the discharge pulse evolves and the current, power, and plasma density increase.

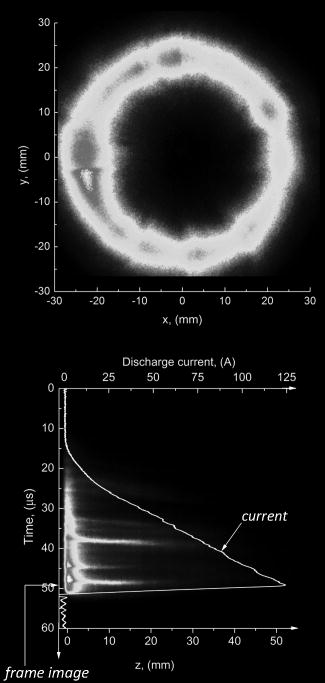

FIG. 5.

(Color online) Top: Gated camera image, end-on view, for Nb in Ar at 0.27 Pa, 50 μs HiPIMS pulse leading to a peak current of 125.0 A; the image was taken with 10 ns exposure, 41 μs after application of the voltage when the current reached 91 A (200 pulses per second, average power 100 W). Bottom: The same discharge pulse but recorded side-on using the streak camera; the discharge current as a function of time is laid over the streak image in a way that the time axis coincides with the time axis of the streak camera image. As a result of visual blocking, the streak camera recorded only the plasma corresponding to the left of the end-on gated image.

FIG. 5.

(Color online) Top: Gated camera image, end-on view, for Nb in Ar at 0.27 Pa, 50 μs HiPIMS pulse leading to a peak current of 125.0 A; the image was taken with 10 ns exposure, 41 μs after application of the voltage when the current reached 91 A (200 pulses per second, average power 100 W). Bottom: The same discharge pulse but recorded side-on using the streak camera; the discharge current as a function of time is laid over the streak image in a way that the time axis coincides with the time axis of the streak camera image. As a result of visual blocking, the streak camera recorded only the plasma corresponding to the left of the end-on gated image.

Close modal

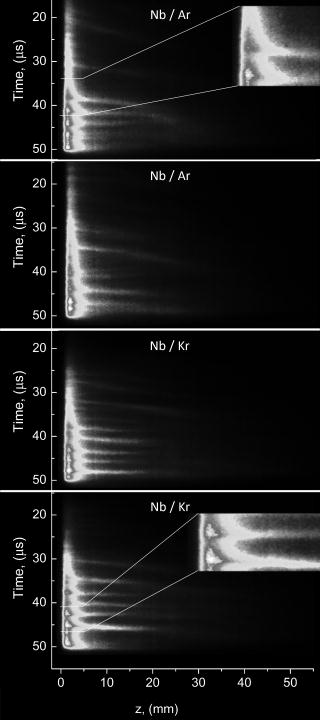

FIG. 6.

(Color online) Side-on streak camera images of plasma emission for 50 μs HiPIMS pulses using a niobium target in argon or krypton, as indicated in the labels. The peak current reached about 125 A. The plasma light is taken from the region around (x = 22 mm, y = 0) with the slit in the z direction; the plasma emission from the region (x = −22 mm, y = 0) is blocked from view through a ceramic rod placed on target center parallel to the slit. The insets show enlargements of interesting features: the jets emanating in z-direction start at the location of greatest plasma gradient.

FIG. 6.

(Color online) Side-on streak camera images of plasma emission for 50 μs HiPIMS pulses using a niobium target in argon or krypton, as indicated in the labels. The peak current reached about 125 A. The plasma light is taken from the region around (x = 22 mm, y = 0) with the slit in the z direction; the plasma emission from the region (x = −22 mm, y = 0) is blocked from view through a ceramic rod placed on target center parallel to the slit. The insets show enlargements of interesting features: the jets emanating in z-direction start at the location of greatest plasma gradient.

Close modal

In a next step, both gated and streak cameras observed the plasma in side-on view. Figure 7 shows an example, where the gated image (Fig. 7 top) was taken right at the peak of the discharge current. We see that the electron jet causes a plasma flare in the center of the upper image. The flare is tilted with respect to the z-axis; it trails the dense plasma zone which is moving down in this presentation.

FIG. 7.

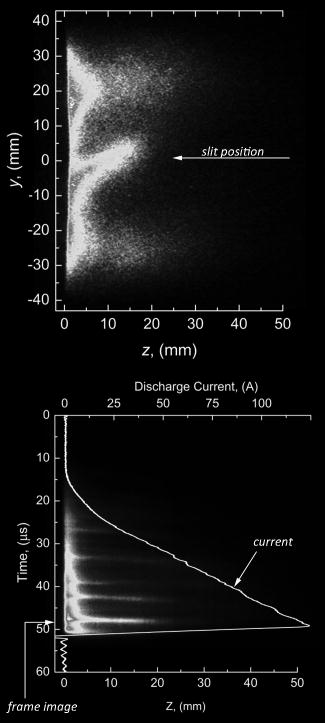

(Color online) Top: Same as in Figs. 5 and 6 but a different pulse with the gated camera image recording the discharge in side-on view. The gated image was taken with 10 ns exposure time at the time of the current peak; the flare in the center of the gated image corresponds to the last large jet seen in the streak image.

FIG. 7.

(Color online) Top: Same as in Figs. 5 and 6 but a different pulse with the gated camera image recording the discharge in side-on view. The gated image was taken with 10 ns exposure time at the time of the current peak; the flare in the center of the gated image corresponds to the last large jet seen in the streak image.

Close modal

The detailed optical investigations were supplemented with probe measurements, most of which are reported in a separate publication.29 Here we only include a couple of complementary measurements to show the direct relation between optical and probe data. The emissive probe measurements were designed to determine the local, time-dependent plasma potential. Figure 8 shows two examples of measurements, one almost over the racetrack at r = 28 mm but at a distance of z = 16 mm away from the target surface, and the other very close to the surface, at z = 1 mm, but outside at r = 36 mm, which is 14 mm from the racetrack center. As the plasma forms, the potential shifts to negative values with respect to ground, and exhibits more or less regular fluctuations which have about the same frequency as the appearance of dense plasma at a given location over the racetrack.

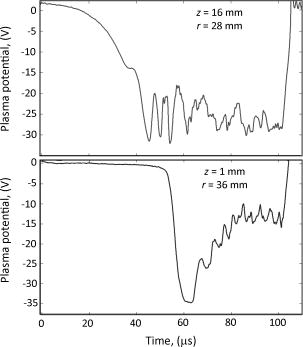

FIG. 8.

(Color online) Examples of time-resolved plasma potential measurements for niobium HiPIMS discharge in 0.26 Pa argon: measurements (a) at z = 16 mm and r = 28 mm, and (b) at z = 16 mm and r = 28 mm (applied voltage 488 V for 100 μs, peak discharge current 170 A, 100 pulses per second, average power 240 W).

FIG. 8.

(Color online) Examples of time-resolved plasma potential measurements for niobium HiPIMS discharge in 0.26 Pa argon: measurements (a) at z = 16 mm and r = 28 mm, and (b) at z = 16 mm and r = 28 mm (applied voltage 488 V for 100 μs, peak discharge current 170 A, 100 pulses per second, average power 240 W).

Close modal

It is well established that dense plasma forms in HiPIMS processes by ionization of the neutrals which are largely supplied from the target surface: either surface atoms that were sputtered or former gas ions that were neutralized at the target.19 With the exception of the recent paper by Kozyrev et al.,33 the literature on HiPIMS generally does not specify anything about the localization of ionization processes other than that ionization processes are concentrated in the near-target zone, i.e., the magnetic pre-sheath, which is determined by the arched magnetic field. Although Kozyrev et al.33 used quite different HiPIMS conditions in terms of current, voltage, target material, and so on, high speed photographs showed more-or-less periodic structures along the racetrack, which are similar to those shown here in Fig. 3. Clearly, the ionization processes and the plasma density are not azimuthally uniform but concentrated in dense plasma zones, which may be called ionization zones, or rotating spokes, in analogy to the rotating spoke instability known from Hall thrusters.36

Ionization by electron impact is known to be the main mechanisms for plasma production in low-pressure magnetron discharges. The energetic electrons needed for the process stem from secondary electrons emitted from the target by primary ion impact and photo emission processes. The emitted electrons become energetic electrons by acceleration when they cross the electric field of the sheath and pre-sheath. As mentioned in Sec. I, the actual trajectory of electrons is rather complicated due to the magnetization in the non-uniform magnetic field. “Magnetization” implies that the electron gyration radius,

rg,e=ueωe=meueeB,
(1)

is small compared to the thickness of the sheath-pre-sheath region, otherwise the electrons would not be well confined and one could not find structures related to the field lines. In Eq. (1), ue is the velocity component perpendicular to the magnetic inductance vector B, and ωe=eB/me is the electron cyclotron frequency. The gyration center of magnetized electrons follows magnetic field lines in the absence of an electric field, but a drift occurs when an additional force acts on the electrons, most importantly the force caused by the pre-sheath’s electric field. The E vector is pointing toward the target surface and B has a transverse (radial) direction to the center of the target when the magnetic field arches over the racetrack region. This results in an azimuthal electron drift velocity according to,11

vE×B=E×B/B2,
(2)

which is in the counterclockwise direction if the target is seen from the camera position. The approximate electron drift velocity over the racetrack can be readily estimated using the magnetic field B ∼ 100 mT (cf. Fig. 2) in conjunction with the electric field determined by an emissive probe (E ∼ 104 V/m, Ref. 29), leading to vE×B105m/s, in agreement with estimates and measurements by others.13,37

The same electric field that is used to determine the E×B drift of electrons accelerates practically all ions formed in the pre-sheath to the target, where they cause sputtering and emission of secondary electrons.

Depending on the emission conditions, and especially on the tilt of the local magnetic field relative to the target surface, secondary electrons are either immediately recaptured by the target38 or they can escape. Escaping electrons pickup substantial kinetic energy (corresponding to about 90% of the applied voltage) as they cross the sheath.

The key to understanding ionization processes is to follow the paths of energetic electrons as they gyrate around the arched magnetic field lines while moving back and forth between reflection points and, on average, drift perpendicularly to both E and B. The electron mean free path between collisions is determined by the densities of all kinds of particles the electron can interact with, np, and the velocity-dependent interaction cross sections, σep(v), where we have to sum over all types of particles p present in the plasma,

λe-1=pσepnp.
(3)

Both elastic and inelastic collisions contribute to transfer of energy from fast secondary electrons to other plasma particles. The cross sections vary greatly depending on the materials and relative velocity upon impact. They are very well investigated for the case of electrons interacting with argon atoms. In the interesting range of about 500 eV, the elastic collision cross section is greater than the cross sections for electron impact ionization and excitation39 (Fig. 9).

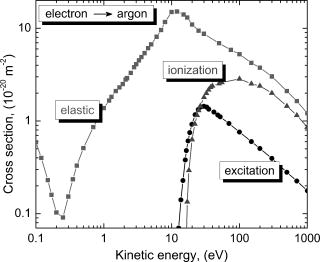

FIG. 9.

(Color online) Energy-dependent cross sections for electron-argon interactions. Data from the collection of A.V. Phelps.39

FIG. 9.

(Color online) Energy-dependent cross sections for electron-argon interactions. Data from the collection of A.V. Phelps.39

Close modal

Fast electrons not only interact with atoms but also experience Coulomb interactions with ions and electrons and transfer their energy to them. Spitzer40 derived a formula for the characteristic thermalization time for fast charged particles moving in a background of charged slow “field particles” (index f). In our case the fast particles are the energetic secondary electrons and the slow particles are singly charged ions (index i) and thermal (Maxwell-distributed) electrons (index e),

ttherm,(e-f)=4πɛ02me2νse3e4(1+me/mf)nflnΛ,
(4)

where ɛ0=8.854×10-12As/Vm is the permittivity of free space, vse is the velocity of fast electrons before slowing down, and lnΛ10 is the Coulomb logarithm. Because the interaction is with both ions and background electrons, and using the quasi-neutral condition of the magnetic pre-sheath neni, one can write,

ttherm-1=ttherm,(e-e)-1+ttherm,(e-i)-1=e4nelnΛ2πɛ02me2νse3+e4nilnΛ4πɛ02me2νse3=3e4lnΛ4πɛ02me2neνse3.
(5)

The resulting estimate for the thermalization time is shown in Fig. 10. We see that secondary electrons, after they have gained several hundred eV by acceleration in the sheath, do not slow down much as long as the plasma is of low density (e.g., 1016 m−3). In this region of the energy-density space, it is much more likely that inelastic collisions with neutrals lead to a slow down. The total cross section is about σe-Ar3×10-20m2 (see Fig. 9); the argon density at an argon partial pressure of pAr=0.5Pa is about nAr=pAr/kTAr7×1019m-3, resulting in λe-Ar0.5m. Fast electrons travel with vse107m/s, giving a characteristic time to a collision te-Ar=λe-Ar/vse50ns, which is much shorter than the thermalization time for energetic electrons (Fig. 10).

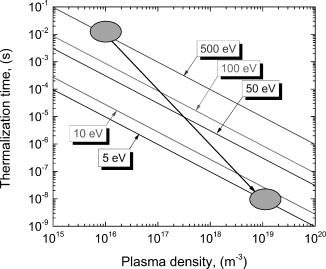

FIG. 10.

(Color online) Thermalization of fast electrons by Coulomb interaction with the background electrons and ions. The secondary electrons, after having picked up about 500 eV in the sheath, slow down significantly when encountering dense plasma, where they contribute to heating of the background. The path of electrons in the energy-density space is schematically shown by the arrow from the high energy to the low energy zone. Note the many orders of magnitude in thermalization time.

FIG. 10.

(Color online) Thermalization of fast electrons by Coulomb interaction with the background electrons and ions. The secondary electrons, after having picked up about 500 eV in the sheath, slow down significantly when encountering dense plasma, where they contribute to heating of the background. The path of electrons in the energy-density space is schematically shown by the arrow from the high energy to the low energy zone. Note the many orders of magnitude in thermalization time.

Close modal

This leads us to consider the following mechanism for the ionization instability and the formation of zones of dense plasma. Suppose there is a fluctuation δnAr of the neutral gas density around the average value nAr0, then the actual value of the neutral density can be written as,

nAr=nAr0+δnAr.
(6)

At the beginning of the process, secondary electrons drifting in the E×B field have a mean free path,

λe-1=pσepnpσe-ArnAr,
(7)

which becomes shorter by δλe-1=σe-ArδnAr due to the presence of the fluctuation, and hence the probability of an interaction is somewhat greater at the location of the fluctuation. Statistically, energetic electrons produce more ions at the location of the fluctuation. The balance equation reads,

nit=KαnArne-Kβne2ni-(nivi),
(8)

where Kα and Kβ are the ionization and recombination rate coefficients, and the last term describes the plasma flow due to diffusion and drift (the index i refers here to argon ions but later in the process, atoms and ions of the target material play a role too). The ionization and recombination coefficients are,41,42

Kα=fe(E)E1/2σe-Ar(E)dE,
(9)
Kβ49(2πme)1/2(e24πɛ0)5(kTe)-9/2,
(10)

where E is the electron energy, and fe(E) is the electron energy distribution function. A positive fluctuation of the gas density leads to more ionization, which can be expressed as,

(ni/t)ionization=Kα(nAr0+δnAr)(ne+δne).
(11)

A strong positive feedback between density and shortening of the mean free path can develop by the synergy of several factors. First, ionizing collisions create a higher plasma density, which increases the Coulomb interaction between fast electrons and background ions and electrons. The slowing of the fast electrons heats the background electrons, i.e., the energetic tail of the thermalized part of the electron energy distribution function energy is enhanced. This in turn promotes more ionization. The slowed-down fast electrons, still more energetic than the thermalized population, experience even greater slowing in the denser plasma region, as shown in Fig. 10. Second, when an energetic electron of some 100 eV loses energy in a collision, it is more likely to cause more excitation, ionization, and elastic collisions due to the energy-dependence of the cross sections in Fig. 9. In other words, the ionization rate (Eq. (11)) is enhanced due to an increase in the free electron density as well as due to a change of the electron distribution function affecting the coefficient Kα. Third, electrons produced in ionizing collisions have much less energy than the energetic electron causing the ionization (for example half or less than half of the energy of the impacting electron, see, e.g., Refs. 43 and 44). Considering the energy dependence of the ionization cross section, lower energy electrons have a much shorter mean free path and greater probability of causing ionization until they are on the low-energy side of the maximum of the ionization cross section. While detailed simulation is needed to capture all those interdependencies, it is safe to say that there is a highly non-linear feedback and a reduction of the mean free path when energetic electrons encounter a region of initially higher neutral density. The non-linear feedback will turn the fluctuation of neutral density into a region of higher plasma density.

In a next step we consider what happens to the newly produced ions and electrons. The electric field present in the magnetic pre-sheath causes electrons to drift and ions to move toward the target, where they reach the sheath edge. Ions enter the sheath and are accelerated, causing sputtering and the emission of secondary electrons upon impact on the target surface. That means that the local enhancement of plasma density is followed by an increased generation of neutrals, namely the sputtered atoms and neutralized gas (the former gas ions). The enhanced supply of neutrals brings the opportunity to even further enhance the plasma density: This was previously discussed as runaway of self-sputtering and near-target gas trapping.19

The location of highest ionization probability depends on both the density of energetic electrons and density of neutral atoms to be ionized, as expressed in the ionization term of Eq. (8). The position of highest plasma density is not fixed because all electrons are subject to closed drift, which shifts the location of greatest stopping power (a term liberally borrowed from the field of particle-solid interactions). If this were the only factor one would expect that the azimuthal motion of a dense plasma zone is in the E×B direction with the drift speed according to Eq. (2). We do observe the plasma moving in the E×B direction but only with about 10% of the electron drift speed. It is conceivable that the formation of dense plasma locally changes the E and B fields. For example, probe measurements29 indicate a redistribution of the plasma potential, pushing more of the voltage drop closer to the target. This could result in a slow-down of the azimuthal drift in the pre-sheath. Additionally, and perhaps more importantly, the availability of neutrals affects the plasma production and resulting azimuthal speed. Neutrals are provided by the background gas and the target, however only the flux from the surface can explain the magnitude of discharge currents observed in HiPIMS discharges.19 The speed of the azimuthal motion of a dense plasma zone is affected by the inertia of ions accelerated to the target,

ti2dEmie,
(12)

where d is a characteristic distance between ionization location and the target surface. This expression is only approximate because the electric field is not constant. For the purpose of an order-of-magnitude estimate we take niobium (mass 93), d10-3m, E104V/m, and obtain ti0.4μs. The ions of the dense plasma zone are thus evacuated and thereby expose not-yet-ionized atoms to the drifting electrons. The speed of the dense ionization zone is limited by ion inertia, and one should understand that not the plasma but the zone of ionization travels in the azimuthal direction.

The effect of ion inertia can be seen in the data of Table I. With the exception of copper, the azimuthal motion of dense plasma with krypton (mass 84) is slower than the motion when using argon (mass 40). Comparing different target materials one sees the same trend: Heavier target materials exhibit a slower azimuthal motion. The insensitivity of copper to the type of gas can readily be explained by the large self-sputter yield of copper: it is well known that high yield materials such as copper displace the process gas and essentially operate in a “gas” of the target material.45–47 Aluminum has a surface binding energy comparable to copper but the displacement of gas is much weaker due to the light mass of aluminum compared with argon or krypton.

The proposed ionization amplification associated with the stopping of energetic electrons is consistent with the peculiar triangular shape of the dense zone, keeping in mind that the actual trajectory of magnetized electrons is essentially along the magnetic field lines. As mentioned previously, electrons gyrate around the arched magnetic field lines and the gyration center of an electron oscillates between points on both sides of the racetrack; the azimuthal drift is just a net motion of the gyration center. The oscillating part of the motion is approximately perpendicular to the drift. The ionization instability evolves within a mean free path according to Eq. (3), which must be compared to the azimuthal drift length between ionizing collisions. If the azimuthal length is short, we can expect to observe a sharply defined plasma density evolving along the arched field lines, e.g., perpendicular to the azimuthal drift (Fig. 11). The bright plasma zone tapers off in the direction of the drift as the energy of energetic electrons is exhausted after many collisions. Interestingly, a very similar triangular-like zone of tapering-off excitation and dense plasma has been observed when an arc spot supplies copious amounts of electrons to the magnetron configuration (cf. Figure 3 of Ref. 48).

FIG. 11.

(Color online) Enlarged detail of the 5 ns image from Fig. 3. One of the magnetic field lines is indicated, arching over the racetrack and defining the onset of a dense plasma zone that provides enhanced “stopping power” to drifting energetic electrons. The triangular shape of the zone in the counterclockwise direction may be associated with the loss of energy of electrons. The plasma formed in axial direction, originating from the strongest plasma gradient in azimuthal direction, is indicated as “trailing plasma flare.” The asymmetric shape of the dense plasma zone, here in end-on view, is also seen in the side-on images of Figs. 6 and 7.

FIG. 11.

(Color online) Enlarged detail of the 5 ns image from Fig. 3. One of the magnetic field lines is indicated, arching over the racetrack and defining the onset of a dense plasma zone that provides enhanced “stopping power” to drifting energetic electrons. The triangular shape of the zone in the counterclockwise direction may be associated with the loss of energy of electrons. The plasma formed in axial direction, originating from the strongest plasma gradient in azimuthal direction, is indicated as “trailing plasma flare.” The asymmetric shape of the dense plasma zone, here in end-on view, is also seen in the side-on images of Figs. 6 and 7.

Close modal

The essentially triangular shape of the ionization zone seems to be particularly pronounced at high power. We observed an intensification of the plasma zones in terms of brightness and related density as the discharge current increases. We do not find that the number of structures is proportional to the current, as stated by Kozyrev et al.33 Future research will need to address this issue. We note that the ad-hoc assumption of a sin-modulated density profile, assumed by Kozyrev et al.,33 is not consistent with the shape of the ionization zone observed.

We can identify the plasma plume behind the sharp plasma boundary in Fig. 11 as a trailing plasma flare, consistent with the observations of electron jets originating from the dense plasma zone shown in Figs. 6 and 7. Another example of such trailing plasma can be seen in Fig. 5, top, at about (x = 22 mm, y = 0). The formation of one or more dense plasma zones has thus interesting implications for the current transport. The closed electron drift gives rise to the Hall current jHall=-enevHall where the minus sign is due to the negative charge of electrons and vHall was introduced by Eq. (2). In a first approximation we assume that the electron drift leading to a Hall current is purely azimuthal, |jHall|=|jθ|=enveθ, where θ is the azimuthal angle and veθ is the azimuthal drift velocity of electrons. Then the associated continuity and momentum equations are,

θ(neveθ)=0,
(13)
meveθveθθ=-eEθ,
(14)

where Eθ is an azimuthal electric field. From Eq. (13) we can see that when the Hall current encounters a higher density zone, the azimuthal electron velocity cannot be constant, rather, it needs to be reduced. Equation (14) tells us that an azimuthal electric field must exist when the azimuthal electron velocity is reduced. Such an azimuthal electric field would generate a new electron drift according to,

vz=Eθ×B/B2,
(15)

which points away from the target because B is a radial field over the racetrack pointing to the center of the target. In case of a reversed magnetic field, with the B vector pointing away from the target center, the azimuthal drift motion of electrons and ionization zones is clockwise. The azimuthal field vector Eθ would be reversed, and thus the resulting electron jets point away from the target in that case, too. Hence, the polarity of the magnetic field does not matter for the direction of the electron jets.

These arguments suggest that the formation of a dense plasma zone is necessarily related to the generation of a plasma flare caused by the energetic electrons leaving the confinement region. The greatest axial electron flow should be expected where ne/θ is greatest, i.e., where we see the sharpest azimuthal gradient in the plasma. The plasma is much wider there (in the radial direction, see Fig. 11), leading to a broadening of the erosion track and the often-mentioned better target utilization when using HiPIMS,2,10 compared to target utilization by direct current (dc) and radio-frequency (rf) sputtering.

Potential measurements by the emissive probe allow us to estimate the azimuthal electric field. From Fig. 8 we see that the plasma potential varies by about 5 V as the dense plasma zone passes the stationary emissive probe. Because the probe was kept away from the dense plasma in order to minimize disturbing it, it seems safe to assume that the potential variations closer to the target are of the order 10 V or greater. The length scale of such change is 10−2 m or less, resulting in Eθ>103V/m. Inserting this in Eq. (15) and using Br=0.1T, gives vz>104m/s. This velocity is somewhat faster than the observed azimuthal speed of the dense plasma zones, and therefore an electron jet or plasma flare emitted from the edge of a dense plasma zone is likely to be visible from the side as being tilted in about the range 10°–45° with respect to the z-axis. The flare shown in Fig. 7 (top) appears to be emitted from the dense plasma at y-6mm, trailing the dense plasma which moves down in the direction of negative y, which is consistent with a counterclockwise azimuthal motion. The flare’s apparent angle is about 30° with respect to the z-axis.

The absolute speed of the electron jets (generating the plasma flares) was determined using side-on streak images such as those in Fig. 6 and Fig. 7 (bottom). For example, the central bright flare in Fig. 7 (bottom) indicates vz2cm/1μs=2×104m/s, well within the previous estimate from the gated camera. However, the jet emitted from the dense plasma zone at 39 μs is about two times faster than the others.

The streak images in Fig. 6 further indicate that the velocity of electron jets is smaller at the beginning of the pulse when the current and plasma density are still low. One can also see that some jets seem to slow down as the distance to the target increases. The concept of the jets being driven by Eθ×B/B2 is subject to further investigation: the velocity scales with |E/B| where both the electric field and the magnetic field decrease with increasing distance from the target surface. While the correlation of azimuthal plasma density gradients and jet generation is firmly established by images such as those in Figs. 6 and 7, the electron propagation and plasma generation need to be modeled taking azimuthal and axial drifts and instabilities into account.

At the end of this discussion we step back and compare the results with plasma behavior in other E×B configurations. The perhaps most studied are Hall thrusters, which were introduced decades ago and recently gained renewed and increased interest.36,49–55 At least seven different modes and types of instabilities have been identified, all operating in different, sometimes overlapping ranges of frequency. Some are in the 10–100 kHz range and have other similarities; among them are the breathing mode, rotating spoke mode, and azimuthal drift magnetosonic waves.36,56–59 Slow instabilities have also been found in the output current of plasma guides (macroparticle filters) for vacuum arc plasmas (cf. Figure 13 of Ref. 60) and in hollow cathode discharges with axial magnetic field.61,62 The point of this long list of references is that plasma instabilities under E×B conditions are the rule, not the exception, and one should not be surprised that HiPIMS discharges contribute to this rich field.

High power impulse magnetron sputtering (HiPIMS) is one form of an E×B discharge with the specific feature that a large fraction of the to-be-ionized neutrals are supplied by the target. As with most other E×B discharges, HiPIMS exhibits instabilities that are essential in providing the physical, non-classical mechanism for electron transport across magnetic field lines. By simultaneously using gated and streak cameras it was firmly established that the plasma is concentrated in ionization zones that travel azimuthally in the same direction as the electrons’ E×B drift, although much slower than the E×B/B2 velocity. It is argued that each of the ionization zones is associated with an azimuthal electric field, which breaks the magnetic confinement of electrons via a Eθ×B/B2 drift component, which is in the axial direction, i.e., away from the target. The formation of electron jets and plasma flares is clearly visible in side-on gated and streak images, with the root or origin clearly related to the location of greatest azimuthal gradient of the dense plasma zones. Because the azimuthal velocity of the ionization zone is less than the electrons’ E×B/B2 drift, it has been proposed that the dense plasma has a high stopping power (i.e., greatly reduced mean path) for the drifting energetic electrons, which in turn leads to an enhancement of the dense plasma itself. Therefore, plasma fluctuations tend to grow at the expense of less ionization events downstream. As a result, an ionization zone assumes a triangular shape, with the densest plasma part along a magnetic field line, which is perpendicular to the azimuthal drift. The often observed widening of the erosion track of a target under HiPIMS conditions, leading to better target utilization, is clearly associated with the width of the dense plasma forming and amplifying around this magnetic field line.

While the relation of azimuthally non-uniform ionization zones and the formation of electron jets and plasma flares is clearly established, the need for detailed modeling is greater than ever. It is assumed that the measurements and the interpretation presented here can guide future modeling.

We gratefully acknowledge the use of the gate and streak cameras offered by the Fusion Science and Ion Beam Technology Program. Technical support was provided by J. Wallig. A.R. thanks the Austrian Marshall Plan Foundation (www.marshallplan.at) for funding a scholarship. A.A. acknowledges support by the Assistant Secretary for Energy Efficiency and Renewable Energy, Office of Building Technology of the U.S. Department of Energy (DOE). This work was done at Lawrence Berkeley National Laboratory with support by the U.S. Department of Energy (DOE) under Contract No. DE-AC02-05CH11231.
