Quantum walks are processes that model dynamics in coherent systems. Their experimental implementations proved to be key to unveiling novel phenomena in Floquet topological insulators. Here, we realize a photonic quantum walk in the presence of a synthetic gauge field, which mimics the action of an electric field on a charged particle. By tuning the energy gaps between the two quasi-energy bands, we investigate intriguing system dynamics characterized by the interplay between Bloch oscillations and Landau–Zener transitions. When both gaps at quasi-energy values of 0 and *π* are vanishingly small, the Floquet dynamics follows a ballistic spreading.

## I. INTRODUCTION

Quantum walks (QWs) are periodically driven processes describing the evolution of quantum particles (walkers) on a lattice or a graph.^{1,2} The walker evolution is determined by the unitary translation operators that, at each time step, couple the particle to its neighboring sites in a way that is conditioned by the state of an internal degree of freedom, referred to as “the coin.” An additional unitary operator acts on the internal degrees of freedom, therefore mimics the “coin tossing” of the classical random walk, and is usually referred to as *coin rotation*.^{1} Besides the original interest in QWs for quantum computation,^{3–7} these processes have proved to be powerful tools to investigate topological systems,^{8–22} disordered systems and Anderson localization,^{23–26} and multiparticle interactions and correlations.^{27–29} QWs have been implemented in many different physical platforms: atoms in optical lattices, ^{30,31} trapped ions,^{32} Bose–Einstein condensates,^{33} superconducting qubits in microwave cavities,^{14} and photonic setups.^{10,19,27,29,34–36} They exhibit peculiar properties when an external force acts on the walker, mimicking the effect of an electric field on a charged particle. These processes, baptized as “Electric Quantum Walks” in Ref. 31, have been studied theoretically in previous works^{37,38} and implemented using neutral atoms in optical lattices,^{31} photons,^{39} and transmon qubits in optical cavities.^{14} Recently, these concepts have been generalized to 2D QWs.^{19,40} In this scenario, the walker dynamics can be remarkably different with respect to a standard QW evolution. While in the absence of a force the walker wavefunction spreads ballistically, by applying a constant force it is possible to observe revivals of the initial distribution at specific time steps.^{31} Electric QWs are thus an ideal platform to investigate spatial localization induced by “irrational forces,”^{31,38,41} revivals of probability distributions^{41–45} and can be used to detect topological invariants.^{14,19,46–49}

Similar to a quantum particle in a periodic potential, in the presence of a constant force, the walker trajectory performs Bloch oscillations (BO) as a consequence of the particle momentum being a periodic quantity.^{50–52} In quantum walks, BOs manifest directly when the input wavepacket approximates one of the system eigenstates, as first observed in Ref. 53. However, for generic initial conditions, collective BOs of the excited eigenstates may lead to a revival of the whole probability distribution at periodic intervals of time.^{39,40,48} Revivals can be observed only in the case of forces that are much smaller than the relevant energy gap. These effects can be indeed destroyed by Landau–Zener transitions, occurring when a fraction of the wavepacket is transferred to a band different from the initial one.^{48,54}

In the continuous time regime, it is well known that the interplay between Landau–Zener transitions and Bloch oscillations manifests itself in processes with two characteristic periods^{52} that, under specific circumstances, may lead to breathing phenomena even when interband transitions are not negligible. In our work, we make use of a novel platform, which exploits the space of transverse momentum of a paraxial light beam,^{19} to generate electric QWs, with the possibility of tuning both the force strength and the energy gap size. With this setup, we observe revivals due to either Bloch oscillations or multiple Landau–Zener transitions. Finally, we discuss how the Floquet nature of these systems affects the walker dynamics. In particular, when the two energy gaps in the spectrum are sufficiently small, the number of LZ transitions is doubled within a single period. This, in turn, causes the appearance of multiple trajectories, arranged in peculiar regular patterns.

This paper is structured as follows: In Sec. II, we describe our photonic quantum walk, defining the quantum evolutions that we investigated both numerically and experimentally. In Sec. III, we discuss the implementation of a synthetic electric field. In Sec. IV, we illustrate theoretical aspects of BOs, revivals, and LZ transitions in our quantum walk, accompanied by numerical simulations. In Sec. V, we show that this QW can be engineered so as to feature two LZ transitions within a single period, exploiting the spectrum periodicity that is unique to Floquet systems. In Sec. VI, we report the experimental observation of refocusing effects and their interplay with LZ transitions. In Sec. VII, we draw our conclusions.

## II. QUANTUM WALK IN THE MOMENTUM SPACE OF LIGHT

*m*, is associated with the photonic spatial mode $m$ given by

*k*

_{z}is the wavevector component along the

*z*direction, Δ

*k*is a constant such that Δ

*k*≪

*k*

_{z}, and

*A*is a Gaussian spatial envelope with a beam waist

*w*

_{0}. Modes described in Eq. (1) are standard Gaussian beams, propagating along a direction that is slightly tilted with respect to the

*z*-axis.

*W*of the coin degree of freedom and a translation

*T*that shifts the walker to the left or to the right depending on the coin state being $L$ or $R$. In our setup, both operators are implemented by liquid-crystal (LC) birefringent waveplates. Along these plates, the LC molecular orientation angle

*α*is suitably patterned,

^{55}as shown in Fig. 1(a). Here, the operator

*T*is obtained when the local orientation

*α*of the optic axis increases linearly along

*x*,

*α*

_{0}is a constant, thereby forming a regular pattern reminiscent of a diffraction grating. This device has been originally named

*g*-plate.

^{19}In the basis of circular polarizations $L=(1,0)T$ and $R=(0,1)T$, the associated operator can be written as

*x*, acting as $t^m,\varphi =m\u22121,\varphi $ and $t^\u2020m,\varphi =m+1,\varphi $, respectively, on the spatial modes in Eq. (1). Here, $\varphi $ is a generic polarization state and

*δ*is the LC optical retardation, which can be tuned by adjusting the amplitude of an alternating voltage applied to the cell.

^{56}The coin rotation is realized by uniform LC plates (

*α*= 0), represented by the operator

*δ*=

*π*/2 so as to obtain a standard quarter-waveplate,

*W*=

*L*(

*π*/2). The quantum walk is realized by applying repeatedly the single step unitary process

*t*steps is given by $\psi (t)=U0t\psi (0)$.

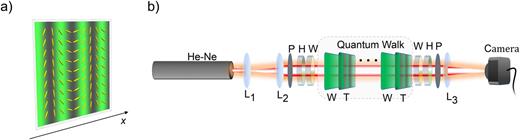

Relying on this approach, we realize our QW in the setup sketched in Fig. 1(b). A coherent light beam (produced by a He:Ne laser source, with wavelength *λ* = 633 nm), whose spatial envelope is that of a Gaussian mode, is initially expanded to reach a waist $w$_{0} ≃ 5 mm. After preparing the desired beam polarization with a polarizer (*P*), a half-waveplate (*H*), and a quarter-waveplate (*W*), we perform the quantum walk by letting the beam pass through a sequence of *g*-plates (*T*) and quarter-waveplates. In the present experiment, we realized walks containing 14 unit steps. The optical retardation of the *g*-plates is controlled by tuning an alternating voltage, and their spatial period is Λ = $w$_{0} = 5 mm. As explained in detail in Ref. 19, with this choice of parameters, we simulate the evolution of an initial state that is localized in the transverse wavevector space, corresponding to the spatial mode $m=0$. All the devices that implement the QW are liquid crystal plates, fabricated in our laboratories and mounted in a compact setup. The final probability distribution is extracted from the intensity distribution in the focal plane of a converging lens located at the end of the QW.^{19} This distribution consists of an array of Gaussian spots, centered on the lattice sites, whose relative power (normalized with respect to the total power) gives the corresponding walker probabilities. An additional set of waveplates and a polarizer can be placed before the lens to analyze specific polarization components. We use these projections to prove that, when a substantial revival of the probability distribution is observed, the coin part of the final state corresponds to the initial one.

## III. REALIZING AN ELECTRIC QW

*U*

_{0}can be block-diagonalized in the quasi-momentum basis,

^{8}

^{,}

*q*varying in the first Brillouin zone

*BZ*= [−

*π*,

*π*). In the case of a 2D coin space, the operator $U0(q)$ is a 2 × 2 unitary matrix, which may be written as

**n**(

*q*) is a unit vector,

**= (**

*σ**σ*

_{1},

*σ*

_{2},

*σ*

_{3}) is the vector composed of the three Pauli matrices, and ±

*E*(

*q*) are the quasienergies of the two bands of the system

^{8}[see Fig. 2(a)]. With the QW being a Floquet evolution, this spectrum exhibits two gaps at quasi-energies values of 0 and

*π*. For practical reasons, we define the quantity

*E*

_{g}as the minimum value between the two gap sizes (when varying the quasi-momentum in the BZ). In the following, we will denote the eigenstates of the quantum walk evolution in the absence of an external force as $u\xb1(q)\u2297q$, where $u\xb1(q)$ is the coin part. In this work, we implement QWs corresponding to two different regimes:

*δ*=

*π*and

*δ*=

*π*/2. In the first case,

*E*

_{g}is at its maximum value, providing the optimal configuration for the observation of clean Bloch oscillations. In the second case, the gap at

*E*= 0 vanishes [see Fig. 2(a)]. In this case, a LZ transition occurs with unit probability.

^{19,31}applying an external constant force

*F*is equivalent to shifting linearly in time the quasi-momentum:

*q*(

*t*) =

*q*(0) +

*Ft*. Hence, the single step operator at the time step

*t*, labeled $U(q,t)$, satisfies the following equation:

*x*in our laboratory reference frame, introduced to define spatial modes in Eq. (1). In particular,

*x*and

*q*are related by the following expression:

^{19}

*g*-plates corresponding to the time step

*t*are shifted along

*x*by the amount Δ

*x*

_{t}=

*t*Λ

*F*/(2

*π*).

## IV. REFOCUSING EFFECTS IN ELECTRIC QUANTUM WALKS

Bloch oscillations have been extensively studied in the continuous time regime (see Refs. 57 and 58) and have been recently considered in discrete time settings.^{42,59} Here, we review the theory of Bloch oscillations and Landau–Zener transitions and investigate their phenomenology in our quantum walk protocol.

*m*= 0,

*w*controls the width of the wave packet. We consider wavepackets with large values of

*w*so that these states are sharply peaked in quasi-momentum space. If the external force

*F*is small with respect to the minimum energy gap, the adiabatic approximation dictates that (i) the wavepacket remains in the original quasi-energy band during the whole evolution, (ii) the coin state rotates as $u\xb1(q0)\u2192u\xb1(q0+Ft)$, and (iii) the center of mass follows the equation of motion: $m(t)=(1/F)\u222bq0q0+Ftvg(q)dq$, where

*v*

_{g}(

*q*) =

*∂*

_{q}

*E*

_{±}(

*q*) is the group velocity. In particular, after a period

*τ*= 2

*π*/

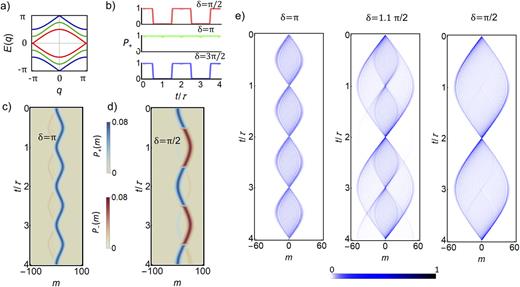

*F*, the wavepacket gets back to the original state. This result is illustrated in Figs. 2(b) and 2(c) for the case in which the initial state is in the upper band. In panel (b), we plot the probability that the walker is found in the upper energy band, which remains approximately equal to one across the evolution. In panel (c), we report in a single plot the probability

*P*

_{±}(

*m*,

*t*) that, at the time step

*t*, the walker is found on the lattice site

*m*in the upper (lower) band. A different scenario occurs for a closed energy gap (for instance, at

*δ*=

*π*/2). In this case, the adiabatic approximation breaks up when the wavepacket reaches the region of the Brillouin zone where

*E*

_{g}is minimum. The Landau–Zener theory

^{54}predicts that the transition to the lowest band occurs with unit probability in the case of zero gap. We clearly observe this phenomenon in our simulations [see Figs. 2(b) and 2(d)]. After a period

*τ*, the wavepacket is entirely found in the lowest band as a consequence of a LZ transition. However, at

*t*= 2

*τ*, a second transition takes place and the input state is restored. Remarkably, the same dynamics is observed for

*δ*= 3

*π*/2, where the gap between the two bands vanishes at

*E*(

*q*= 0) = ±

*π*. Such a situation can only appear in a Floquet system.

*τ*steps is given by

*F*≪

*E*

_{g}, we find (see Appendix A for details)

*γ*

_{g}

^{60}appears as a global phase and does not play an important role here. We rather focus our attention to the dynamical phases acquired by the eigenstates when undergoing a complete Bloch oscillation, which are given by

*q*in the limit of small

*F*, and hence, they can be factored out from the integrals. Therefore, if at

*t*= 0, only one band is occupied, the final state coincides with the initial one apart from a global phase factor. When the system is initially prepared in a state occupying both bands, complete refocusing can be observed when the difference between the dynamical phases, Δ

*γ*=

*γ*

_{+}−

*γ*

_{−}, is a multiple of 2

*π*. In general, the final state will be different from the initial one due to the additional relative phase acquired by the states over the two bands. In particular, for Δ

*γ*=

*π*, the final state is orthogonal to the initial one, even though it is still localized at the initial lattice site.

At *δ* = *π*, the difference Δ*γ* is 2*π* for *F* = 2*π*/2*l*, with *l* being an integer, and *π* for *F* = 2*π*/(2*l* + 1). In the first case, we can observe refocusing of the full quantum state after a number of steps that is a multiple of *τ* = 2*π*/*F*, as shown in Fig. 2(e). For a vanishing gap, this description breaks down in proximity of the gap-closing point. However, also in this case, a refocusing of the input state can be observed at time step multiples of 2*τ* as a result of the even number of Landau–Zener transitions occurring for each eigenstate^{54,61} [see Fig. 2(d)]. This is confirmed by the results of numerical simulations reported in Fig. 2(e) for a QW with *δ* = *π*/2. The evolution at *δ* = 3*π*/2 is actually identical to the latter case. Indeed, the two single step operators are the same, apart from a global phase factor exp(*iπ*) and a *π* shift of the whole BZ.

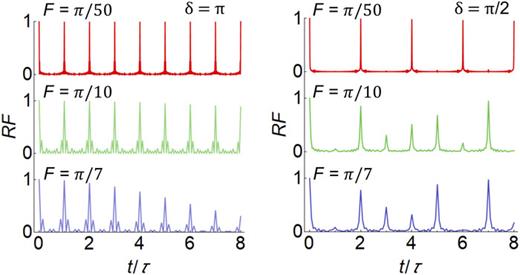

A quantitative analysis of non-adiabatic effects in QWs with *δ* = *π* and *δ* = *π*/2 is provided in Fig. 3, depicting the refocusing fidelity $RF=\u27e8\psi (n\tau )|\psi (0)\u27e92$. When *δ* = *π*, the RF is peaked at *t* = *nτ*, and it is approximatively equal to one for small values of the force, while the peak value decreases with the increase in *F*. In the case *δ* = *π*/2, for small values of the force (*F* = *π*/50), a good refocusing is observed at *t* = 2*nτ* (with *n* integer). For stronger forces (e.g., *F* = *π*/10 and *F* = *π*/7), the behavior at longer times appears more complicated due to the effect of residual Bloch oscillations responsible for the peaks at odd multiples of *τ*.

## V. DOUBLE LZ TRANSITIONS WITHIN A SINGLE OSCILLATION PERIOD

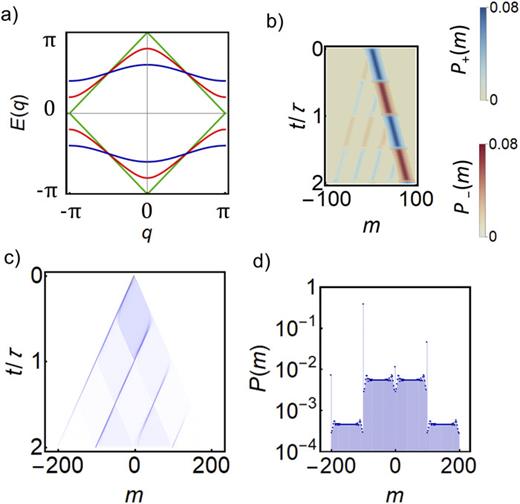

Before discussing the experimental results, we illustrate an additional QW dynamics in the very peculiar case where both energy gaps at *E* = 0 and *E* = *π* are made small so that LZ can take place with high probability twice when crossing the Brillouin zone. This is a unique feature of Floquet systems. We consider a protocol defined by the single step operator *U*_{0}(*δ*) = *T*(*π*)*L*(*δ*). In Fig. 4(a), we plot the quasi-energy spectrum for three values of *δ*. The minimum energy gaps around *E* = 0 and *E* = *π* are located at quasi-momentum values *q* = 0 and *q* = *π*, respectively, and have the same amplitude. Their value can be tuned by adjusting *δ*. Figure 4(b) depicts the walker evolution in the case *δ* = 0.9 *π*, considering as the input state a wavepacket entirely localized on the upper band. It is clear that within a single period *τ* two LZ transitions take place. The fraction of the wavepacket that undergoes two transitions keeps moving in the same direction, as its group velocity does not change sign. Figure 4(c) shows the evolution in the case of a localized input state. Also in this case, at each transition, the wavepacket splits into a component that keeps moving in the same direction and another that is reflected, similarly to a beam splitter. The interplay between these two mechanisms gives rise to a complex dynamics, where at each period *τ* the wavepacket is concentrated on a set of lattice sites that are equally spaced, as shown in Fig. 4(d).

## VI. EXPERIMENTAL RESULTS

^{62}Experimental probability distributions |

*ψ*

_{E}(

*m*)|

^{2}are compared with theoretical simulations |

*ψ*

_{T}(

*m*)|

^{2}, with their agreement being quantified by the similarity

^{63}

*ψ*

_{E}(

*m*)|

^{2}and |

*ψ*

_{T}(

*m*)|

^{2}are normalized. In Figs. 5 and 6, we report the similarity

*S*averaged over the results for each step. All the experimental errors were obtained by repeating each experiment four times.

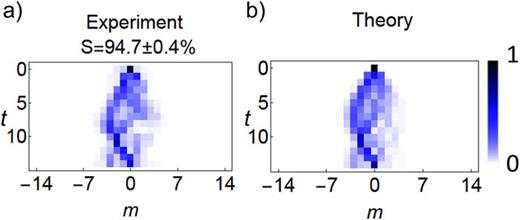

To confirm experimentally the results discussed in Sec. IV, in Fig. 5(b) we show an electric quantum walk characterized by a force *F* = *π*/7. Here, a complete refocusing is observable at the time step *t* = 14, corresponding to the last step of our evolution. The evolution corresponds to the case *δ* = *π* so that the force is still smaller than the energy gap, even if interband transitions are not completely negligible. Besides being mostly localized at *m* = 0, the final state is expected to have the same polarization of the input beam, since refocusing happens after an even number of steps. Defining $\varphi \tau $ as the polarization state measured for the optical mode with *m* = 0 after *τ* steps, we calculated the coin refocusing fidelity $R=\u27e8\varphi 0|\varphi \tau \u27e92$ (not to be confused with the refocusing fidelity of the whole quantum state *RF* considered in Fig. 3) that measures the overlap between the two coin states. We obtain *R* > 98% for three different input states, as shown in Appendix B. This is in agreement with the adiabatic model we developed earlier, where we showed that, for *F* = 2*π*/*τ*, with *τ* being an even number, the initial state is fully reconstructed after *τ* steps.

The contribution of Bloch oscillations is completely suppressed for *δ* = *π*/2, where the energy spectrum presents a gap closing point and the revival of the input state cannot occur. This is shown in the evolution depicted in Fig. 5(c). After 28 steps, an approximate refocusing is expected due to double Landau–Zener transitions (see Sec. IV). To observe this effect in our apparatus, we doubled the value of the force, that is, *F* = 2*π*/7. The results are shown in Fig. 6. After 14 steps, the wavefunction is again sharply peaked at the origin, with some broadening in agreement with numerical simulations. Refocusing in the regime of LZ transitions has been observed in the continuous time domain in bent waveguide arrays, ^{52} but not in Floquet systems like ours.

## VII. CONCLUSIONS

In this work, we studied electric QWs in one spatial dimension, relying on a platform where the walker degree of freedom is encoded in the transverse wavevector of a paraxial light beam.^{19} The presence of an external force is mimicked by applying a step-dependent lateral displacement of the liquid-crystal plates, increasing linearly with the step number. By tuning the energy gap of our system, we studied experimentally the interplay between Bloch oscillations and Landau–Zener transitions, which influence the emerging of revival of the input distribution of the walker wave packet. This allowed us to show experimentally that Landau–Zener oscillations, i.e., a revival of the probability distribution due to multiple Landau–Zener tunneling (already demonstrated in the continuous time regime^{52}), can be observed in discrete-time processes. Moreover, we investigated a regime with two transitions in a single Bloch oscillation by tuning the two gaps of our QW at *E* = 0, *π*, which is a possibility unique of Floquet systems. We plan to extend these studies to the regime of irrational forces and to study their interplay with static and dynamic disorder. Moreover, we aim to realize similar experiments in a two dimensional system with the same technology.^{19} Interesting phenomena could be observed by feeding our system with quantum light, investigating two photon interference induced by Bloch oscillations^{64} or bunching and antibunching effects on NOON states.^{65,66} Furthermore, recent theoretical results predict peculiar effects for electric quantum walks in the non-Hermitian regime,^{67} where Landau Zener tunneling can occur irreversibly, contrary to what happens in Hermitian systems.

## DATA AVAILABILITY

The data that support the findings of this study are available from the corresponding authors upon reasonable request.

## ACKNOWLEDGMENTS

The authors thank M. Maffei and C. Esposito for their valuable help in the early stage of this project. A.D.’E., R.B., L.M., and F.C. acknowledge financial support from the European Union Horizon 2020 programme under European Research Council [ERC, Grant No. 694683 (PHOSPhOR)]. A.D.’E. acknowledges support by Ontario’s Early Research Award (ERA), Canada Research Chairs (CRC), and the Canada First Research Excellence Fund (CFREF). R.T. acknowledges financial support from the IMT-Bucharest Core Program “MICRO-NANO–SIS–PLUS” 14N/2019 (Project No. PN 19160102) funded by MCE and from a grant of the Romanian Ministry of Research and Innovation, PCCDI-UEFISCDI (Project No. PN-III-P1-1.2-PCCDI-2017-0338/79PCCDI/2018) within PNCDI III. Al.D. acknowledges financial support from the European Union Horizon 2020 program, under European Research Council (ERC) Advanced Grant (AdG) NOQIA (Grant No. 833801) and the FET-OPEN OPTOLogic (Grant No. 899794), from the the Spanish Ministry of Economy and Competitiveness under the Severo Ochoa program for Centres of Excellence in RD (Grant No. CEX2019-000910-S) and under the Plan National FISICATEAMO and FIDEUA PID2019-106901GB-I00/10.13039/501100011033, Formacion de personal investigador (FPI), from the Generalitat de Catalunya under the AGAUR Grant (No. 2017 SGR 1341), the CERCA program and the QuantumCAT U16-011424 (co-funded by ERDF Operational Program of Catalonia 2014-2020), from the MINECO-EU QUANTERA MAQS (funded by State Research Agency (AEI) (PCI2019-111828-2/10.13039/501100011033), and from the National Science Centre, Poland-Symfonia (Grant No. 2016/20/W/ST4/00314). Al.D. also acknowledges financial support from the following private foundations: the Fundacio Privada Cellex, Fundacio Mir-Puig, and the La Caixa Foundation (ID 100010434, fellowship code LCF/BQ/PR20/11770012).

### APPENDIX A: DERIVATION OF EQ. (13)

*q*

_{t}=

*q*+

*Ft*. In the adiabatic approximation, we have ⟨

*u*

_{±}(

*q*

_{t+1})|

*u*

_{∓}(

*q*

_{t})⟩ ≪ 1, i.e., interband transitions between successive steps happen with low probability. Within this approximation, the whole unitary evolution can be approximated by retaining the terms up to the first order in

*F*,

*q*

_{0}=

*q*

_{τ}. In the limit of small

*F*, the contributions $\u220ft=1\tau \u27e8u\xb1(qt)|u\xb1(qt\u22121)\u27e9$ are equal to $exp(i\gamma z\xb1)$, where $\gamma z\xb1$ are the Zak phases

^{60,68}associated with the single energy bands. In our QW, $\gamma z+=\gamma z\u2212=\gamma z$. The term

*U*

_{LZ}is an

*O*(

*F*) contribution related to interband transitions. In the following, we show that its amplitude is negligible for

*F*≪

*E*

_{g}, where

*E*

_{g}is the energy gap defined in the main text (see also Ref. 14).

*U*

_{LZ}in order to show that it is negligible in the adiabatic approximation.

*U*

_{LZ}is given, to order

*O*(

*F*), by a sum $ULZ=\u2211t*=0\tau ULZ(t*)$, where

*U*

_{LZ}(

*t*

^{*}) describes a process where a single Landau–Zener transition happens at $q=qt*$,

*O*(

*F*) contributions to

*U*

_{LZ}are obtained setting ⟨

*u*

_{±}(

*q*

_{t+1})|

*u*

_{±}(

*q*

_{t})⟩ ≈ 1,

*F*≪

*E*

_{g}),

*P*

_{+−}is negligible (see also Ref. 14 for split-step quantum walk protocols). In particular, we have

*P*

_{+−}< 0.1 at

*δ*=

*π*for

*F*<

*π*/7. In this regime, we can thus discard the term

*U*

_{LZ}, and substituting Eq. (A2) in Eq. (12), we obtain Eq. (13).

### APPENDIX B: EXPERIMENTAL DATA FOR THE EVALUATION OF REFOCUSING FIDELITY

To show that, for *δ* = *π*, the measured central spot of the final probability distribution has the same polarization as the input state, we measured the projections on the three mutually unbiased bases: ${H,V}$, ${A,D}$, and ${L,R}$, which allows us to reconstruct the full coin state. Here, $A,D=(L\u2213iR)/2$, and $V=i(L\u2212R)/2$. We obtained *R* = 98% ± 2% for $\psi (0)=H,m=0$, *R* = 99% ± 2% for $\psi (0)=(L\u2212iR)0/2$, and *R* = 99% ± 3% for $\psi (0)=L0$. Fidelities are calculated by using intensities recorded in a square of 4 × 4 pixels centered on the maximum of each spot.
