Nitrogen-vacancy (NV) centers feature outstanding properties such as a spin coherence time of up to 1 s as well as a level structure offering the possibility to initialize, coherently manipulate, and optically read-out the spin degree of freedom of the ground state. However, only about 3% of their photon emission is channeled into the zero phonon line (ZPL), limiting both the rate of indistinguishable single photons and the signal-to-noise ratio (SNR) of coherent spin-photon interfaces. We here report on the enhancement of the SNR of the optical spin read-out achieved by tuning the mode of a two-dimensional photonic crystal (PhC) cavity into resonance with the NV-ZPL. PhC cavities are fabricated by focused ion beam milling in thin reactive ion etched ultrapure single crystal diamond membranes featuring modes with Q-factors of up to 8250 at mode volumes below one cubic wavelength. NV centers are produced in the cavities in a controlled fashion by a high resolution atomic force microscope implantation technique. On cavity resonance, we observe a lifetime shortening from 9.0 ns to 8.0 ns as well as an enhancement of the ZPL emission by almost one order of magnitude. Although on resonance the collection efficiency of ZPL photons and the spin-dependent fluorescence contrast are reduced, the SNR of the optical spin read-out is almost tripled for the cavity-coupled NV centers.

The nitrogen-vacancy (NV) center, a point defect in diamond consisting of a lattice vacancy and an adjacent nitrogen substitution, has attracted a lot of interest during the past years owing to its outstanding optical and spin properties.1 The triplet ground state exhibits two sublevels attributed to two spin projections ms = 0 and ms = ±1 of the NV electron spin.2 In addition to an ultralong spin coherence time of more than 1 s at liquid helium temperatures,3,4 the NV center features spin-conserving optical transitions.5 Furthermore, the electron spin may be coherently manipulated by microwave signals6 and purely optically initialized as well as read-out.7 Spin initialization and read-out are enabled by a spin-selective intersystem crossing (ISC) toward the singlet system: the long lifetime in the singlet system facilitates a spin-dependent fluorescence and a preferred decay toward the ms = 0 ground state,8,9 allowing for fast spin initialization. Spin polarizations of about 80% at room temperature10,11 and over 99% at liquid helium temperature5 may be reached, as well as spin-dependent fluorescence contrasts of up to 30% for an optical spin read-out under nonresonant laser excitation.12

Besides the spin-dependent fluorescence contrast, the reliability of an optical spin read-out, designated as the signal-to-noise ratio (SNR), also depends on the detected photon count rate. The SNR for an optical measurement distinguishing between the two possible spin projections ms = 0 and ms = ±1 of a NV center is defined as13

SNR=N0N1N0+N1.
(1)

Here, N0 (N1) is the expectation value for the detected photon count rate when preparing the NV center in the spin projection ms = 0 (ms = ±1). Due to the Poisson-distribution of the photon count rate, we expect that the random variables N0 and N1 are also Poisson-distributed;14 hence, their difference is Skellam-distributed with variance σ2 = N0 + N1.15 As apparent in Eq. (1), the SNR is mainly determined by the difference N0N1. Normalized by N0, we obtain the already mentioned spin-dependent fluorescence contrast C = (N0N1)/N0. With this measure, we get the relation

SNR=N0C2C.
(2)

As visible from Eq. (2), a large SNR of optical spin read-out requires both a large collected photon rate and a large contrast of spin-dependent fluorescence.16 In view of applications, a sufficiently large SNR improves the use of NV centers as quantum sensors for temperature,17 pressure,18 as well as magnetic fields on the nanoscale.19–22 Furthermore, it facilitates the NV based verification of fundamental principles of quantum mechanics, e.g., as demonstrated by a loophole free Bell test.23 Furthermore, a high enough SNR in combination with the long spin coherence time enables the coupling of NV centers to nearby nuclear spins used as quantum bits24–27 or as building blocks of quantum repeaters.28,29 In particular, for an aspired scaling of quantum systems toward quantum networks,30 a speed-up of the entanglement generation is a central requirement and hence a preferably large SNR desirable.

The photon detection rate is usually limited by a nonperfect photon collection. Consequently, several approaches to enhance the collection efficiency have been followed by modifying the directivity of emission such as using an optimal crystal orientation,31 fabricating solid immersion lenses around NV centers,5,32 or incorporating NV centers in nanopillars,33,34 nanowires,35 waveguides,36,37 or metalenses.38 Furthermore, the collection efficiency can be modified by coupling NV centers to whispering gallery,36,39 photonic crystal (PhC),40–44 or fiber-based cavities45,46 as well as to plasmonic structures.47,48 In addition, by such a coupling, the local density of states at the emitter’s position and hence its spontaneous emission rate may be enhanced or, correspondingly, the spontaneous emission lifetime reduced by the Purcell-factor F.49 In addition, the coupling of NV centers to a cavity has the advantage that more than the usual 3% of the photons are emitted into the zero phonon line (ZPL). Hence, entanglement generation by interference of ZPL photons at a beam splitter23,50–52 may be further sped up by coupling to a cavity featuring a mode in resonance with the NV-ZPL. However, a modification of the population dynamics, such as Purcell enhancement of emission, also influences the spin-dependent fluorescence contrast C. Bogdanov et al. showed that for NV ensembles in nanodiamonds, the contrast decreases when reducing the emitter’s lifetime by coupling to plasmonic islands.48 Furthermore, Babinec et al. in a theoretical study found that the spin read-out SNR achieves a maximum value for Purcell-factors on the order of 1.53

In this article, we report on the SNR enhancement achieved by coupling NV centers to a two-dimensional PhC cavity. Successful coupling of NV centers to low mode volume, tunable cavities was recently also demonstrated employing thin diamond membranes embedded into Fabry-Pérot microcavities.45 While this approach includes a lower level of fabrication complexity compared to PhC cavities, the diamond membranes need to feature a very smooth surface (roughness ≲1 nm rms) to avoid intracavity scattering losses.54 The design of open Fabry-Pérot microcavities advantageously provides both spectral and spatial tunability to selected emitters but at the same time, gives rise to sensitivity to vibrations in the experimental setup. Typically, vibrations have to be kept below ≈0.1 nm rms to couple a large fraction of the NV ZPL emission to the cavity mode.54 On the other hand, PhC in diamond are monolithic, on-chip cavity systems. Due to the monolithic design, spectral tuning requires elaborate modifications of the dielectric boundary conditions, e.g., by changing the diamond membrane thickness by oxidation or gas adsorption (see Sec. III). At the same time, however, cavity resonances are not prone to vibrations, as demonstrated by the results of this work where we did not find any differences in cavity Q factors for operation at ambient conditions or cryogenic temperatures in a closed-cycle cryostat. In addition, we did not observe any drifts, instabilities, or degradation of cavity resonances over the time span of a few weeks operating time in the cryostat.

We here report on a fabrication process starting from ultrapure single crystal diamond membranes bonded on a sacrificial silicon substrate. After thinning by reactive ion etching (RIE), two-dimensional PhC cavities are fabricated by focused ion beam (FIB) milling at thoroughly characterized and carefully selected membrane positions.55 NV centers are subsequently incorporated into the PhC cavities by a high resolution atomic force microscope (AFM) implantation technique.56 A FIB-milled hole in the AFM-tip serves as an aperture, which enables the accurate implantation of nitrogen into the cavities. We activate the NV centers by extensive post processing, i.e., annealing and cleaning procedures. We further report on the deterministic spectral tuning of a cavity mode into resonance with the NV-ZPL using thermal oxidation of diamond as well as condensation of residual gas in the cryostat. We finally experimentally measure and theoretically simulate the modification of spin-dependent fluorescence contrast C and SNR on resonance.

The Purcell-factor F, quantifying the lifetime reduction achieved by the emitter-cavity-coupling, is directly proportional to the ratio of quality factor Q and modal volume V of a PhC cavity mode. The Q-factor is strongly dependent on the precision of fabrication and deviations from the design parameters. In order to produce PhC cavities with modes featuring a high Q-factor and a spectral position close to the NV-ZPL, diamond membranes with a precise thickness are required. However, due to polishing wedges as well as local deviations in the etching rate during RIE-thinning, the thickness typically varies over the diamond film by several hundred nanometers.55 Therefore, the thinned membranes need to be characterized carefully in order to select suitable spots for the subsequent cavity production. The challenge in FIB milling of the PhC array is the fabrication of regularly hole patterns with vertical hole sidewalls. Conical shapes with typically observed inclination angles of as large as 9° may degrade the Q-factor by one order of magnitude.55,57 The fabrication process and characterization methods are described in detail in our previous publication.55

The sample system is depicted in Fig. 1(a). As starting material, we use 30 µm thick, chemical vapor deposition (CVD) grown, (001)-oriented, ultrapure, single crystal diamond membranes (electronic grade quality, ElementSix) with a nitrogen concentration below 5 ppb. We note that other diamond orientations, especially (111), would orient the NV center’s dipoles more optimal with respect to the PhC cavity mode. However, (001)-oriented diamond still provides the highest material quality and highest availability. We note that, in principle, anisotropic RIE recipes are transferable to (111)-diamond, e.g., as demonstrated via fabrication of (111)-oriented nanopillars.58

FIG. 1.

(a) A silicon substrate structured with windows on the scale of 150 × 150 µm2 is spin-coated with a 50 nm thick HSQ layer. A CVD-grown, ultrapure, single crystal diamond film is positioned on the HSQ layer generating an air suspended diamond membrane. After RIE thinning from the topside, the diamond has a final thickness of a few hundred nanometers. PhC cavities are produced by FIB milling at preselected defect-free spots with a suitable thickness. (b) Scheme of a M0-cavity generated by a slight shift of two adjacent holes. (c) Photoluminescence (PL) spectroscopy of a M0-cavity at room-temperature. The cavity mode at 644.8 nm features a FWHM of 0.078 nm, corresponding to a Q-factor of 8250. The spectra were taken with an integration time of 30 s under nonresonant laser excitation at 532 nm and a laser power of 1 mW.

FIG. 1.

(a) A silicon substrate structured with windows on the scale of 150 × 150 µm2 is spin-coated with a 50 nm thick HSQ layer. A CVD-grown, ultrapure, single crystal diamond film is positioned on the HSQ layer generating an air suspended diamond membrane. After RIE thinning from the topside, the diamond has a final thickness of a few hundred nanometers. PhC cavities are produced by FIB milling at preselected defect-free spots with a suitable thickness. (b) Scheme of a M0-cavity generated by a slight shift of two adjacent holes. (c) Photoluminescence (PL) spectroscopy of a M0-cavity at room-temperature. The cavity mode at 644.8 nm features a FWHM of 0.078 nm, corresponding to a Q-factor of 8250. The spectra were taken with an integration time of 30 s under nonresonant laser excitation at 532 nm and a laser power of 1 mW.

Close modal

At first, the diamond film is etched by RIE in an Ar/O2-plasma to remove 5 µm of the surface material as its quality is degraded due to the polishing process.59 After acid-cleaning, the remaining 20 µm thick diamond film is, mediated by a spin-coated 50 nm thick layer of hydrogen silsesquioxane (HSQ XR-1541-002, DowCorning), bonded to a silicon substrate containing prefabricated windows. Curing the sample system at 600 °C renders the bond persistent during the postprocessing and cleaning procedure required after FIB milling as well as for removing damages in the diamond crystal lattice after nitrogen implantation (see Sec. II B). Furthermore, the stable bond allows measurements at liquid helium temperatures. The final membrane thickness of a few hundred nanometers is finally reached by further RIE thinning from topside.

The membranes are subsequently characterized by laser-scanning microscopy, cross section measurements, and quantitative dispersive X-ray spectroscopy. The combination of these methods maps the thickness of the diamond films as well as the surface structure with high resolution, and we select defect-free spots featuring a suitable thickness for the fabrication of PhC cavities.

M0-cavities generated by a shift of two adjacent holes [Fig. 1(b)] are fabricated by FIB milling. We chose PhC’s hole radii of R = 68 nm and the lattice constant of a = 250 nm such that the cavity modes match the NV-ZPL position at 637 nm. In addition, the M0-cavity is optimized by slight changes in position and/or radii of holes close to the point-defect.60 The simulated Q-factor of the cavity mode is 320 000 at a mode volume of 0.35 (λ/n)3.

In order to obtain a conical hole shape below 4° with sharp and well-defined hole edges at optimized positions, we employ several optimizations. First, we use overmilling and drift control programs during the FIB process. This is accompanied with chamber pressures below 5 × 10−6 mbar and a temperature stabilization of the ion-column. Eventually, a metal protection layer prior to the FIB milling is employed. After an extended postprocessing, consisting of annealing steps in vacuum at 1000 °C and acid-cleaning, the fabricated cavities are analyzed in a home-built confocal setup. The PhC cavities feature modes with Q-factors up to 8250, as depicted in Fig. 1(c). Hence, the Q-factors obtained here are on par with Q-factors of two-dimensional PhC cavities with small modal volumes (around one cubic wavelength) at the wavelength of NV centers, as currently observed from RIE fabrication methods.40,44,61

This section summarizes how we generate NV centers located at the field maximum of the PhC via nitrogen ion implantation. In the past few years, several high resolution implantation techniques were developed, most of them masking the sample surface by spin-coated photoresist films,62,63 Mica layers,64 transferred silicon hard masks,65 as well as structured AFM-tips.56 Each of the methods features small holes as apertures. Also, a maskless FIB-implanter was realized.66 The last two techniques have the outstanding advantage that the implantation spot can be positioned relative to previously produced nanostructures with an accuracy at the nanoscale. Whereas the lateral resolution of a nitrogen FIB implantation is about 100 nm at a typical acceleration voltage of 30 kV, nitrogen may be implanted through an AFM-tip with a lateral resolution of up to 20 nm at a typical implantation energy of 5 keV.67 As precise positioning is crucial for efficient cavity coupling, we here use the AFM-tip technique.

The home built AFM-setup combines a conventional low-energy ion source for generation and acceleration of nitrogen ions with an AFM-unit. A small hole is FIB-milled close to the apex of the pyramidal AFM-tip which is positioned over the implantation spot [Fig. 2(a)]. To align the AFM-tip relative to the sample, AFM-scans are performed prior to every implantation [Fig. 2(b)]. The lateral implantation resolution with regard to the diameter of the AFM-aperture of 70 nm, the alignment accuracy of the tip to the sample of about 1 nm, and the ion straggle in diamond of 3 nm at the chosen implantation energy of 5 keV yields a total accuracy of 74 nm. Note that small straggling effects of ions at the edges of the 70 nm aperture are not included in the analysis above and are under present investigation. The expected implantation depth of the nitrogen ions in (001)-oriented diamond samples is 13 nm on average,68 and the expected yield is about 0.8%.69 The implantation dose aiming at one NV center per cavity is calculated to 2.7 × 1012 ions/cm2. As the generation of NV centers is a statistical process, the final implantation doses were varied between half and triple of the calculated value.

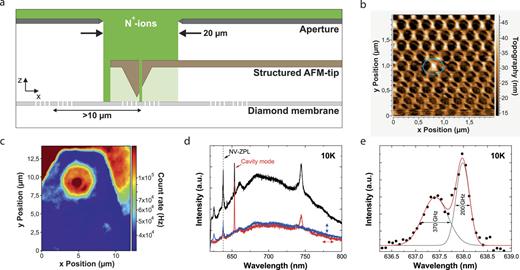

FIG. 2.

AFM implantation: (a) The prefocused nitrogen ion beam is at first narrowed down to a diameter of 20 µm by an aperture and subsequently focused by electrostatic lenses (not sketched) on the backside of the AFM-tip. The final beam diameter of 70 nm is defined by a FIB-milled hole drilled through the AFM-tip. After the alignment of the AFM-tip relative to the sample, nitrogen ions are implanted into the cavities. The surrounding nanostructure is protected by the AFM-cantilever against unintended ion bombardment. (b) Topography of a M0-cavity recorded by an AFM-scan (noncontact mode). The cavity area is clearly visible (marked blue). (c) Spatially resolved PL image of a M0-cavity with a resolution of 100 nm. The count rate is detected in a filter window between 650 nm and 750 nm on the NV sideband and scaled logarithmically. [(d) and (e)] PL spectra of the very same M0-cavity at a temperature of 10 K. (d) The cavity mode has a Q-factor of 2060. In addition, a spectral line around 638 nm is observable, attributed to the NV-ZPL. The blue and the red curve are spectra with a horizontal/vertical polarization filter in the detection path. (e) By zooming into the spectrum around 638 nm, two peaks get clearly visible, which can be fitted by Gaussian lines (gray). The spectra were taken with an integration time of 120 s. The laser excitation in (c)–(e) was carried out at a wavelength of 532 nm and a laser power of 500 µW.

FIG. 2.

AFM implantation: (a) The prefocused nitrogen ion beam is at first narrowed down to a diameter of 20 µm by an aperture and subsequently focused by electrostatic lenses (not sketched) on the backside of the AFM-tip. The final beam diameter of 70 nm is defined by a FIB-milled hole drilled through the AFM-tip. After the alignment of the AFM-tip relative to the sample, nitrogen ions are implanted into the cavities. The surrounding nanostructure is protected by the AFM-cantilever against unintended ion bombardment. (b) Topography of a M0-cavity recorded by an AFM-scan (noncontact mode). The cavity area is clearly visible (marked blue). (c) Spatially resolved PL image of a M0-cavity with a resolution of 100 nm. The count rate is detected in a filter window between 650 nm and 750 nm on the NV sideband and scaled logarithmically. [(d) and (e)] PL spectra of the very same M0-cavity at a temperature of 10 K. (d) The cavity mode has a Q-factor of 2060. In addition, a spectral line around 638 nm is observable, attributed to the NV-ZPL. The blue and the red curve are spectra with a horizontal/vertical polarization filter in the detection path. (e) By zooming into the spectrum around 638 nm, two peaks get clearly visible, which can be fitted by Gaussian lines (gray). The spectra were taken with an integration time of 120 s. The laser excitation in (c)–(e) was carried out at a wavelength of 532 nm and a laser power of 500 µW.

Close modal

After implantation, an extensive postprocessing is required in order to restore a good diamond crystal quality and to activate NV centers. To this end, the samples are first annealed in vacuum (p ≤ 10−6 mbar) at 900 °C for 10 h. Subsequently, oxidation of the samples at 450 °C for 3 h in air atmosphere and acid cleaning (5 h in a tri-acid mixture of perchloric, sulfuric, and nitric acid) removes graphitic residuals from the surface and provides an oxygen termination. Hence, the possibility to obtain negatively charged NV centers within the PhC cavity is enhanced.70

In Fig. 2(c), a typical spatially resolved photoluminescence (PL) image after postprocessing is shown. Generated NV centers are localized in the PhC cavities as well as outside the area masked by the AFM-cantilever. This observation is in agreement with the results of additionally performed optically detected magnetic resonance (ODMR) measurements, which reveal a dip at frequencies around 2.87 GHz, characteristic for NV centers,7 inside the cavities, and no hints of NV centers within the surrounding PhC arrays. The cavities were further examined with PL spectroscopy at low temperatures. In Figs. 2(d) and 2(e), PL spectra of the M0-cavity with the lowest applied implantation dose are shown. Besides, the cavity mode spectral lines around 638 nm are visible featuring Gaussian shapes with half widths (FWHM) of 200 GHz and 370 GHz, respectively. We performed photon correlation (g2) measurements to estimate the number of generated NV centers. As the g2 results did not show a dip but Poissonian photon statistics, we have to assume that a few NV centers were created inside the cavity volume. The deviation from the expected implantation yield might be explained by a large number of defects in the material as a consequence of the PhC fabrication process, providing a high density of vacancies for NV center creation. In addition, the emission lines might be shifted by local strain and strongly broadened by spectral diffusion due to nearby charges.71,72 For applications requiring single NV centers such as spin-photon interfaces, a mean number of one NV center per cavity could be achieved by reducing the implantation dose. Quantum sensing applications (e.g., detecting magnetic fields), however, profit from the N scaling of the sensitivity with the number N of NV centers.

In the past few years, several techniques have been developed for the deterministic tuning of cavity modes into resonance with the ZPL of color centers. A well-established but irreversible method is the oxidation of diamond in an air or oxygen atmosphere.41,73 At temperatures above 450 °C, the diamond surface starts to oxidize and the thickness of the diamond membrane decreases with an accompanying enlargement of the hole diameters. Both effects lead to a spectral blue shift of the cavity modes: Finite Difference Time Domain (FDTD) simulations predict a blue shift of 12 nm for our M0-cavity if 5 nm of diamond are removed from the surface. On the other hand, cavity modes have been successfully redshifted by condensing inert gases like xenon or nitrogen on the sample’s surface,41,74,75 thereby increasing the sample thickness and reducing the hole radii. In contrast to the oxidation technique, a tuning by gas adsorption is a reversible process where heating the sample enables the residual-free removal of the condensed layers.75

In the following, we focus on the M0-cavity implanted with the lowest implantation dose of 1.35 × 1012 ions/cm2, featuring a cavity mode with a Q-factor of 2060 [spectra in Figs. 2(d) and 2(e)]. At first, the oxidation technique described above, using a temperature of 525 °C, is applied to tune the cavity mode to shorter wavelengths. After tuning and acid-cleaning, the resulting mode position is 634 nm. In a second step, the residual gas present in the sample chamber of the cryostat (Attodry 2100, Attocube) is adsorbed to the sample, allowing a redshift of the cavity mode under continuous optical control: we observed that during PL measurements at room-temperature and a pressure of 10−4 mbar, cavity modes show a red shift under continuous laser excitation at 532 nm. Furthermore, only the modes of a cavity directly irradiated with laser light are affected and the observed shift rates scale with the power. All these observations may be explained as follows: as the vacuum pump is attached at the topside of the cryostat, pumping leads to an efficient removal of lightweight molecules, whereas heavy gas molecules, e.g., hydrocarbons, partly remain in the sample chamber. Based on the observations, we assume a light-assisted adsorption of residual gas molecules onto the sample’s surface.75,76 Under illumination with 1.5 mW of laser light at 532 nm, we observe a shift rate of the cavity modes of approximately 1.8 nm/h. The Q-factor remains almost unchanged with Q = 2021 after tuning. Importantly, after further pumping and cooling to liquid helium temperatures, no further mode shifts are observable under laser illumination (over the duration of the experiment of several weeks) within the resolution limit of our spectrometer (<0.1 nm). We point out that the described tuning by gas adsorption is a reversible process. Heating the sample to 400 °C in air atmosphere resets the sample to the initial state before the gas adsorption.

The PL spectra depicted in Fig. 3(a) show a strong enhancement of the ZPL intensity by tuning the cavity mode on resonance. We further observe an enhancement of the saturation count rate filtered in a 2.5 nm wide window by a factor of 2.8 from 13.6 kHz to 37.5 kHz [Fig. 3(b)]. Furthermore, the emitter’s lifetime decreases from 9.0 ns at a spectral mode position of 634 nm to 8.0 ns in resonance with the NV-ZPL. The recorded lifetime traces [Fig. 3(c)] feature a double exponential decay. The second time constant on the order of 1 ns may be attributed to fast decaying fluorescence in the diamond membrane (background). Moreover, PL spectra allow for the estimation of the fraction of emission into the cavity mode as well as the resulting Purcell-factor. The deduced spontaneous emission coupling factor on resonance is β* = Imode/Itotal = 18.3% [Fig. 3(d)]. As the incorporated NV centers feature an off-resonant Debye-Waller factor of 2.1%, we conclude that the emission fraction into the ZPL is strongly enhanced due to the cavity coupling.

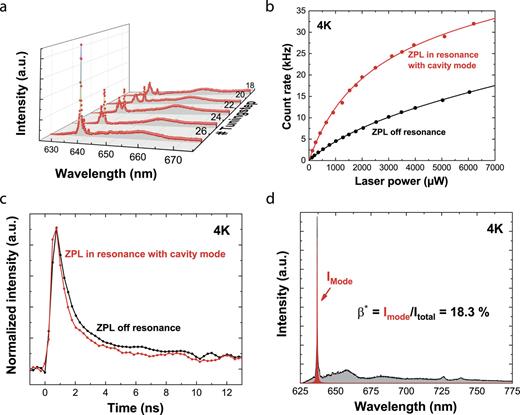

FIG. 3.

Tuning the mode of a M0-cavity into resonance with the NV-ZPL at 637.4 nm. (a) PL spectra after different tuning steps. (b) Comparison of a resonant (red) to an off-resonant (black) saturation measurement and (c) comparison of a resonant (red) to an off-resonant (black) lifetime measurement. The off-resonant measurements were performed with the cavity mode tuned to 634 nm. The ZPL photons were detected in a filter window around 638 nm featuring a spectral width of 2.5 nm. (d) Estimation of the emission fraction into the cavity mode from the PL spectrum. The ratio of the area below the Lorentzian line (red) and the area below the entire curve (gray + red) yields the corresponding intensity ratio.

FIG. 3.

Tuning the mode of a M0-cavity into resonance with the NV-ZPL at 637.4 nm. (a) PL spectra after different tuning steps. (b) Comparison of a resonant (red) to an off-resonant (black) saturation measurement and (c) comparison of a resonant (red) to an off-resonant (black) lifetime measurement. The off-resonant measurements were performed with the cavity mode tuned to 634 nm. The ZPL photons were detected in a filter window around 638 nm featuring a spectral width of 2.5 nm. (d) Estimation of the emission fraction into the cavity mode from the PL spectrum. The ratio of the area below the Lorentzian line (red) and the area below the entire curve (gray + red) yields the corresponding intensity ratio.

Close modal

The β*-factor finally enables us to calculate the total Purcell-factor to be 1 + F* = 1.224. For comparison with theoretical expectations, we modeled the total Purcell-factor 1 + F* on resonance by using a phonon assisted cavity coupling model presented in Ref. 77. With the Q-factor and modal volume V of the cavity mode as well as the measured linewidths of the ZPL and the sideband transitions of the NV centers, a Purcell-factor of 1 + F* = 4.9 is predicted. The experimentally determined value of 1 + F* = 1.224 is reduced due to a nonperfect lateral positioning of the implanted NV centers relative to the mode field, a shallow implantation depth, as well as a nonperfect dipole orientation in the used (001)-oriented diamond samples. The model further correctly predicts the experimentally observed lifetime reduction.

To analyze the NV-ZPL in detail, a photoluminescence excitation (PLE) spectrum was recorded for wavelengths between 636.2 nm and 638.5 nm. In the spectrum depicted in Fig. 4, it is notable that only one of the previously detected two emission lines [see Fig. 2(e)] remains. In the PLE spectrum, this line at 637.4 nm has a half width of 360 GHz, in good agreement with the value of 370 GHz deduced from the PL spectra. The absence of the second line is most likely due to the removal of shallow implanted NV centers during the extended tuning steps by oxidation.

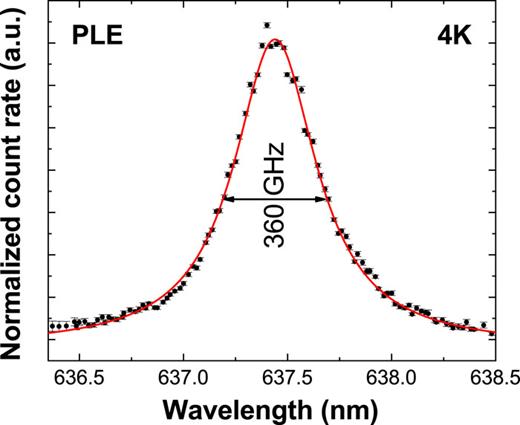

FIG. 4.

PLE spectrum of the NV-ZPL in the M0-cavity. The count rates detected on the NV sideband in a filter window ranging from 650 nm to 750 nm are normalized to the laser power of a tunable diode laser and fitted by a Lorentzian line (red).

FIG. 4.

PLE spectrum of the NV-ZPL in the M0-cavity. The count rates detected on the NV sideband in a filter window ranging from 650 nm to 750 nm are normalized to the laser power of a tunable diode laser and fitted by a Lorentzian line (red).

Close modal

To estimate the SNR enhancement due to the emitter-cavity-coupling, we at first have to consider the change in the photon count rate N0. For this, we have to take into account the shortening of the emitter’s lifetime as well as the change in collection efficiency. Furthermore, for the SNR, the change in spin-dependent fluorescence contrast C has to be considered. To this end, a reliable methodology is required to compare the contrast before and after tuning the cavity mode in resonance with the NV-ZPL.

We simulate the emission of the cavity-coupled NV centers using finite element software (FDTD solutions, Lumerical) by modeling the emission of an electric dipole point source positioned in the mode field maximum. The simulated photonic nanostructure features the same number of holes as the produced M0-cavity where the holes have a conical shape with an inclination angle of 4° (see Sec. II). We calculate the emission fractions in the two half-spaces above and below the PhC as well as the collection efficiency for a microscope objective (NA = 0.8) positioned vertically above the diamond membrane. Each simulation is performed for an Ez dipole oriented vertically to the diamond film as well as for the in-plane dipoles Ex and Ey. These dipoles are oriented such that the cavity mode is fed by the Ey dipole, whereas the Ex dipole has orthogonal polarization. The orthogonality of the dipoles also allows us to calculate the emission for arbitrary dipole orientations as discussed below.

As an example, we show in Fig. 5(a) a simulation for the Ey dipole. We find that the collection efficiency drops to 3.4% at the resonance wavelength of the cavity mode, whereas for other wavelengths within the photonic bandgap, collection efficiencies around 25% are achieved. This minimum arises from a modified directional characteristic of the emitted light. Two factors play a role here: first, the fraction of photons emitted in the top half-space decreases from over 50% in the bandgap to below 12% at cavity resonance [Fig. 5(a)]. Second, a smaller part of the photons emitted in the top half-space (below 57% instead of over 62%) can be collected within the NA at the resonance wavelength of the mode [Fig. 5(b)].

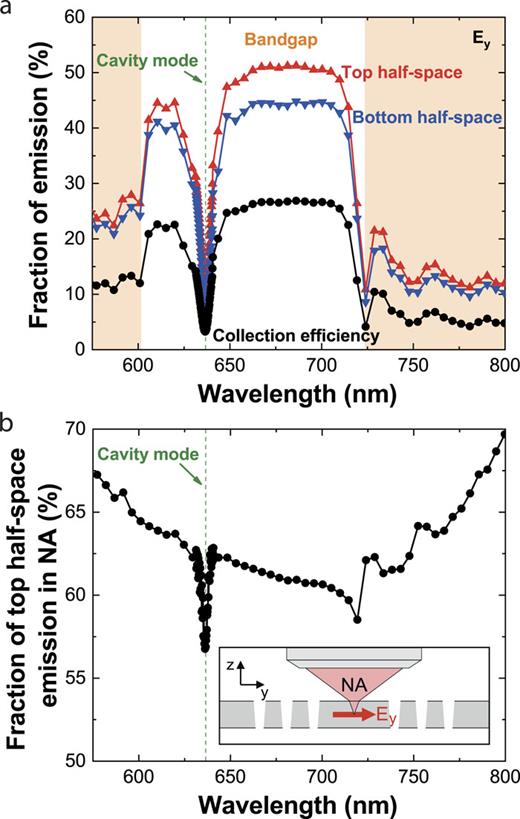

FIG. 5.

Simulation of the light emission from a M0-cavity for a dipole oriented in the y-direction (Ey). (a) Collection efficiency (black), fraction of the emitted photons into the top half-space (red) and the bottom half-space (blue). Sectors outside the photonic bandgap of the underlying PhC array are marked orange. (b) Fraction of the top half-space light emitted in farfield angles ≤51.13°, which may be collected by a microscope objective with NA = 0.8.

FIG. 5.

Simulation of the light emission from a M0-cavity for a dipole oriented in the y-direction (Ey). (a) Collection efficiency (black), fraction of the emitted photons into the top half-space (red) and the bottom half-space (blue). Sectors outside the photonic bandgap of the underlying PhC array are marked orange. (b) Fraction of the top half-space light emitted in farfield angles ≤51.13°, which may be collected by a microscope objective with NA = 0.8.

Close modal

The NV emission dipoles are oriented in the (111)-plane of the diamond lattice. For the small NV ensemble in our experiment, we average over all possible dipole orientations within the (111)-plane. As the used diamond material features a (001)-orientation, the ⟨111⟩-axis exhibits an angle of 35.3° to the xy-plane (membrane plane). The projection of the averaged NV dipoles onto the x-axis or y-axis amounts to 24% and 52% onto the z-axis. To calculate the resulting collection efficiency for our NV ensemble, also the Purcell-factors for the three dipole orientations have to be considered. The emission directivity of photons emitted into the cavity mode is only determined by the mode emission directivity. Further, the emission directivity of off-resonant photons is defined by the photonic nanostructure. Considering this, we first calculated the spontaneous emission rates γ̃i of the projections of the averaged NV dipoles onto the x-, y-, and z-axis considering the corresponding Purcell-factors Fi as follows:

γ̃i=γFiki
(3)

with the free-space spontaneous emission rate γ, ki = 0.24 for i = x, y and ki = 0.52 for i = z. Subsequently, the fraction of emission produced by the averaged NV dipole projected to the x-, y-, or z-axis may be calculated by normalizing the spontaneous emission rates γ̃i to the sum over all these rates. To finally calculate the collection efficiency at the given dipole orientation, the simulated collection efficiencies for a dipole oriented in x-, y-, or z-direction are weighted with the respective fraction of emission and the resulting values summed up.

For the optical read-out of the NV electron spin, we can distinguish between two fundamental cases. In the first case only ZPL photons are considered. This is, for instance, the case if indistinguishable photons are required. On the other hand, for projective spin read-out, generally all the emitted photons are used, e.g., if NV centers are used as magnetic field sensors on the nanoscale.19–22 The simulations predict a collection efficiency of 3.9% for the off-resonant mode position at 634.0 nm, which is slightly reduced to 3.4% in resonance with the NV-ZPL. Hence, if for the spin read-out only ZPL photons are used, the collection efficiency drops by a factor of 0.87. If in the second case, all emitted photons are used for the spin read-out, the collection efficiency drops only by a factor of 0.97. The reduction in the second case is smaller as only a fraction of the emitted photons is affected by the dominant decrease in collection efficiency at the resonance wavelength of the cavity mode.

We apply a protocol composed of three succeeding measurements for the reliable and reproducible determination of the time-resolved, spin-dependent fluorescence contrast of the cavity-coupled NV centers. For the considered off-resonant coupling (PhC cavity mode at 634 nm) at first, an ODMR-measurement under continuous laser and microwave excitation is performed. An external magnetic field of 2 mT is applied to split the two ground state sublevels ms = −1 and ms = +1. Hence, in the ODMR-spectrum in Fig. 6(f), two dips are visible belonging to the resonance frequencies of the ground state transitions from ms = 0 to ms = −1 and ms = +1, respectively. In the following, we only focus on the transition to the ms = +1 sublevel featuring a resonance frequency of ν+1 = 2.917 GHz. For all presented measurements, the optical excitation of the NV centers is carried out in the PL saturation regime.

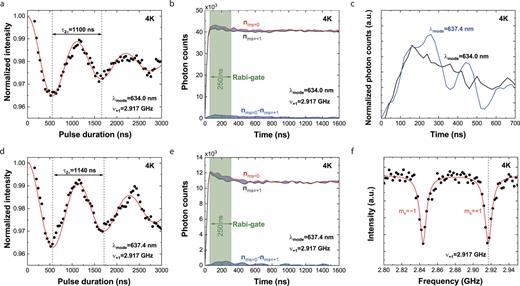

FIG. 6.

Fluorescence measurements at liquid helium temperature for the cavity-coupled NV centers off [(a) and (b)] and on [(d) and (e)] resonance. [(a) and (d)] Rabi measurements. The NV ensemble is initialized in ms = 0 using a 2 µs laser pulse at 532 nm followed by a resonant microwave pulse of variable length. During a read-out laser pulse, the fluorescence is detected in a 250 ns wide photon detection gate. The data are fitted by exponentially damped sinusoids (red). [(b) and (e)] Time-resolved fluorescence for the NV centers prepared in the ms = 0 state (red) and ms = +1 state (black) as well as the resulting time-resolved fluorescence contrasts (blue). The fluorescence contrasts plotted in (c) are normalized to the corresponding photon counts in the steady state. (f) Continuous wave ODMR measurement at an external magnetic field of 2 mT. The excitation is carried out by an off-resonant laser at 532 nm in the PL saturation regime. The photons are detected on the NV sideband between 650 nm and 750 nm. The detected photon count rates are background corrected.

FIG. 6.

Fluorescence measurements at liquid helium temperature for the cavity-coupled NV centers off [(a) and (b)] and on [(d) and (e)] resonance. [(a) and (d)] Rabi measurements. The NV ensemble is initialized in ms = 0 using a 2 µs laser pulse at 532 nm followed by a resonant microwave pulse of variable length. During a read-out laser pulse, the fluorescence is detected in a 250 ns wide photon detection gate. The data are fitted by exponentially damped sinusoids (red). [(b) and (e)] Time-resolved fluorescence for the NV centers prepared in the ms = 0 state (red) and ms = +1 state (black) as well as the resulting time-resolved fluorescence contrasts (blue). The fluorescence contrasts plotted in (c) are normalized to the corresponding photon counts in the steady state. (f) Continuous wave ODMR measurement at an external magnetic field of 2 mT. The excitation is carried out by an off-resonant laser at 532 nm in the PL saturation regime. The photons are detected on the NV sideband between 650 nm and 750 nm. The detected photon count rates are background corrected.

Close modal

To determine the population inversion time, a Rabi measurement on the transition ms = 0 to ms = +1 is performed [Fig. 6(a)]. From the observed damped Rabi oscillations, a π-time of 550 ns and a spin coherence time of T2*=1.5μs are deduced. As the Rabi frequency ΩR<1/T2*, the measured coherence time should not be influenced by decoupling effects (typically requiring ΩR1/T2*) but might be reduced by technical noise such that the given value for T2* is a conservative estimate. Furthermore, the value of T2* is in accordance with typical spin coherence times observed for shallow NV centers in nanophotonic structures based on single crystal diamond78 and the spin coherence time T2*=2.1μs of a small ensemble of NV centers implanted into the same sample but outside the cavity region. This indicates that our PhC fabrication process does not adversely influence the NV spin coherence properties.

In Fig. 6(b), we present the time-resolved, spin-dependent fluorescence. Here, after spin initialization, a resonant microwave π-pulse is applied, resulting in a preparation of the NV centers in the ms = +1 state. During the spin read-out, a 50 ns wide photon detection gate is temporally shifted. For each gate position, the measurement is repeated for a NV preparation in the ms = 0 state and the difference of the two fluorescence curves is calculated, yielding the time-resolved fluorescence contrast. As expected, the fluorescence curves at first rise for both spin states, whereas the count rate for the ms = 0 state (bright state) is generally higher as for the ms = + 1 state (dark state) with a maximum contrast of C = 4.2%. With progressing laser excitation time, both fluorescence curves converge toward a joint value, indicating an equilibrium, spin-mixed state. Whereas the fluorescence contrast measured on single NV centers under zero magnetic field can reach values of 20%79 to 30%,12 for NV ensembles in a magnetic field, contrasts of only a few percent are expected.80 Possible reasons are lattice and surface defects introduced by FIB milling, impairing charge state stability and spin coherence of the shallow implanted emitters.80,81 Furthermore, a strain gradient may locally alter the ground state splitting. Hence, different emitters of the considered small NV ensemble may feature slightly different resonance frequencies.

Subsequently, the cavity mode is tuned into resonance with the NV-ZPL (see Sec. III). As for the tuning process, the sample has to be dismounted from the cryostat, a repositioning of the microwave antenna, an air suspended gold wire loop mounted on a positioner, is required after remounting the sample. To establish comparable experimental conditions, we position the antenna in such a way that a π-time of 570 ns is reached [Fig. 6(d)], in good agreement with the π-time of 550 ns [Fig. 6(a)] for the NV-ZPL off resonance with the cavity mode. We follow the same protocol as in the off-resonant case to measure Rabi oscillations [Fig. 6(d)] as well as fluorescence curves [Fig. 6(e)] on resonance. When comparing the resulting time-resolved fluorescence contrast on- and off-resonance [Fig. 6(c)], we find a small reduction in contrast of 1.5% on resonance [integrated over the entire time interval in Fig. 6(c)].

To analyze the measured spin-dependent fluorescence contrast, we setup a rate equation model following Wolf et al.14 In this model, a NV center is adopted as a five level system [Fig. 7(a)], consisting of the two ground states ms = 0 and ms = ±1, respectively, the corresponding excited states and a long-living singlet state. For the modeling, we assume that the excitation rates out of the two ground states are identical for the nonresonant laser excitation.82 Furthermore, it is assumed that the emission rates from the excited to the ground states of the triplet system are spin independent.83 In addition, the transition rate from the excited ms = 0 state to the singlet state is neglected as this rate is four orders of magnitude smaller than the corresponding transition rate for the ms = ±1 state.8,83,84 As a further assumption, the transition rate from the singlet state to the ms = ±1 ground state is neglected because the rate to the ms = 0 ground state is about six times larger.8,9 By reason of these assumptions, a spin-mixing, leading to a statistical mixture of ms = 0 and ms = ±1 states due to the spin-selective intersystem crossing, is already included in the model. Such a spin-mixing was both theoretically predicted9,14,48 and experimentally confirmed.8

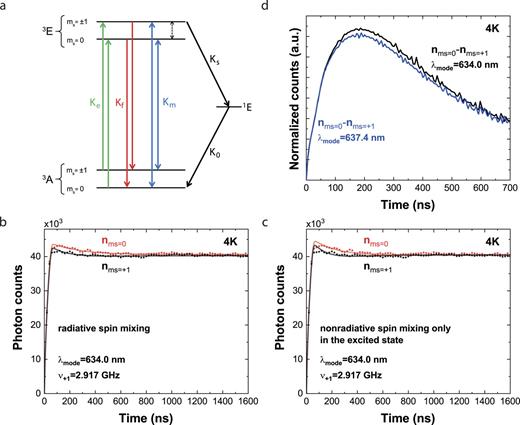

FIG. 7.

Rate equation model. (a) NV center modeled as a five level system. The radiative triplet transitions [both spin-conserving (green, red) and spin-mixing (blue)] are illustrated as colored and the ISC transitions are illustrated as black arrows. The dashed arrow indicates a scenario where nonradiative spin-mixing happens in the excited state. [(b) and (c)] Measured time-resolved, spin-dependent fluorescence after preparing the NV centers in the ms = 0 state (red dots) and ms = ±1 state (black dots) for the NV centers off resonance with the cavity mode. The modeled curves (red and black lines) were adapted for the rates Ke = Kf = 111 MHz under the assumption of a radiative spin-mixing (b) and a nonradiative spin-mixing in the excited state (c), respectively. (d) Simulated fluorescence contrast of NV centers off (black curve) and on (blue curve) resonance with the cavity mode under the assumption of a spin-mixing due to ISC and by radiative transitions in the triplet system.

FIG. 7.

Rate equation model. (a) NV center modeled as a five level system. The radiative triplet transitions [both spin-conserving (green, red) and spin-mixing (blue)] are illustrated as colored and the ISC transitions are illustrated as black arrows. The dashed arrow indicates a scenario where nonradiative spin-mixing happens in the excited state. [(b) and (c)] Measured time-resolved, spin-dependent fluorescence after preparing the NV centers in the ms = 0 state (red dots) and ms = ±1 state (black dots) for the NV centers off resonance with the cavity mode. The modeled curves (red and black lines) were adapted for the rates Ke = Kf = 111 MHz under the assumption of a radiative spin-mixing (b) and a nonradiative spin-mixing in the excited state (c), respectively. (d) Simulated fluorescence contrast of NV centers off (black curve) and on (blue curve) resonance with the cavity mode under the assumption of a spin-mixing due to ISC and by radiative transitions in the triplet system.

Close modal

If, however, the only spin-mixing process was due to ISC, the modeled population would end up in the ms = 0 state for sufficient long-lasting laser excitation and the modeled fluorescence would thus be maximized. Instead, the spin-dependent fluorescence curves in our experiment [Figs. 6(b) and 6(e)] as well as for other NV centers (see, e.g., Refs. 11 and 13) show a convergence toward a steady state. Therefore, a further spin-mixing has to be included in the model. Wolf et al. propose on the one hand a radiative spin-mixing between the excited and ground states of the triplet system and on the other hand a purely nonradiative spin-mixing between the excited states.14 As can be seen in Figs. 7(b) and 7(c), respectively, the measured data may be fitted well under the assumption of a radiative spin-mixing and, in particular, better than under the assumption of a nonradiative spin-mixing in the excited state. However, Kalb et al. demonstrated that a radiative spin-mixing occurs only with a probability of well below 1% and hence should not be the dominant spin-mixing mechanism in our experiments.8 Instead, the reason for the additionally observed spin-mixing mechanism is that in our experiments, we apply an external magnetic field to split the ground states of the NV centers (see Sec. IV B). As the diamond sample features a (001)-surface and the magnetic field an orientation vertical to the diamond’s surface, the magnetic field exhibits an angle of 54.7° to the magnetic dipole axis of the NV centers. As now both ground and excited states consist of a superposition of bare, zero-field spin states, optical transitions with spin flips become allowed resulting in an effective radiative spin mixing.85 Furthermore, the rates of ISC transitions are modified. Therefore, in summary, the data are fitted appropriately under the assumption of a spin-mixing due to ISC and by radiative transitions in the triplet system.

In the following, we assume for simplicity that the spin-mixing induced by the off-axis magnetic field is the same for excitation and emission. With this, the following rate equations are setup, determining the internal dynamics of a NV center,

ḂG,0=(Ke+2Km)BG,0+KfBE,0+KmBE,1+K0BS,ḂG,1=(Ke+Km)BG,1+KfBE,1+2KmBE,0,ḂE,0=KeBG,0(Kf+2Km)BE,0+KmBG,1,ḂE,1=KeBG,1(Kf+Ks+Km)BE,1+2KmBG,0,ḂS=KsBE,1K0BS.
(4)

BG,0 and BG,1 are the populations of the ground states ms = 0 and ms = ±1, BE,0 and BE,1 are the populations of the corresponding excited states, and BS is the population of the singlet state. Ke and Kf are the spin-preserving excitation and emission rates, Ks is the transition rate from the excited ms = ±1-state to the singlet state, K0 is the transition rate from the singlet state to the ms = 0 ground state, and Km is the rate of the radiative spin-mixing induced by the off-axis magnetic field. As the measurements are performed in the PL saturation regime, the relation Ke = Kf holds in the following.

According to the measured off-resonant lifetime value of 9.0 ns, a decay rate of Kf = 111 MHz is set in the model. With the parameters Ke and Kf fixed, the rate equations are solved and the simulated time-resolved fluorescence is fitted to the measured curves by varying the free parameters K0, Ks, and Km [Fig. 7(b)]. From this fit, a spin-mixing rate of Km = 1.35 MHz, a transition rate to the singlet state of Ks = 1.79 MHz, and a transition rate to the ms = 0 ground state of K0 = 5.80 MHz are determined.

These rates together with the model [Eq. (4)] allow us to theoretically predict the time-resolved, spin-dependent fluorescence contrast for on- and off-resonant coupling [see Fig. 7(d)]. The theoretically predicted fluorescence contrast on resonance is slightly lower than for the off-resonant case. This is expected as the emission rate Kf scales with the Purcell-factor and the probability for spin-mixing is the larger the more fluorescence cycles occur per time unit. Depending on the position as well as the size of the temporal read-out window, a reduction in the fluorescence contrast by tuning the mode into resonance with the NV-ZPL of up to 5% is theoretically predicted. For a realistic read-out photon gate of 250 ns, as, for instance, typically used for the acquisition of Rabi measurements, the fluorescence contrast would be reduced by 4.1%. Such a reduction is conformable with the experimental results (see Sec. IV B).

We now discuss the modification of the spin measurement SNR induced by the modified photon collection and modified spin-dependent fluorescence contrast due to the cavity coupling. With Eq. (1) as well as the appropriate assumption of small contrasts, we arrive at

ζ=SNR*SNRN0*N0C*C,
(5)

where variables with (without) a star indicate the on- (off-) resonant case. Based on the presented measurements as well as the theoretical modeling, we assume in the following, a reduction in the spin-dependent fluorescence contrast by 4.1%, i.e., C*/C = 0.959. Due to the lifetime reduction, the number of emitted photons is increased by a factor of 1.13, when the mode is tuned into resonance with the NV-ZPL. If we, in a first scenario, consider only ZPL photons for spin read-out, the collection efficiency is reduced by a factor of 0.87 (see Sec. IV A). Furthermore, the fraction of photons emitted into the ZPL is modified from 2.1% off resonance to 18.3% on resonance [see Fig. 3(d)], resulting in an enhancement factor of 8.7. The total estimated enhancement of the collected photons by applying a narrow-band photon detection around the ZPL is hence N0*/N0=1.13×0.87×8.7=8.5. Consequently, following Eq. (5), the SNR is enhanced by a factor of ζ = 2.8. As a result, the SNR is almost tripled by tuning the mode into resonance with the NV-ZPL. Figure 8(a) shows a simulation of Purcell factor 1 + F* and spin measurement contrast C as a function of the cavity quality factor Q, assuming realistic parameters as determined above. We find that the Purcell factor saturates at values Q ≈ 5000, whereas the spin measurement contrast C monotonically decreases due to the enhanced spin mixing and also saturates for similar Q factors. Under these realistic coupling conditions, the maximum achievable SNR enhancement [Fig. 8(b)] is ζ = 3.2, demonstrating that our system was operating close to the optimum cavity Q factor.

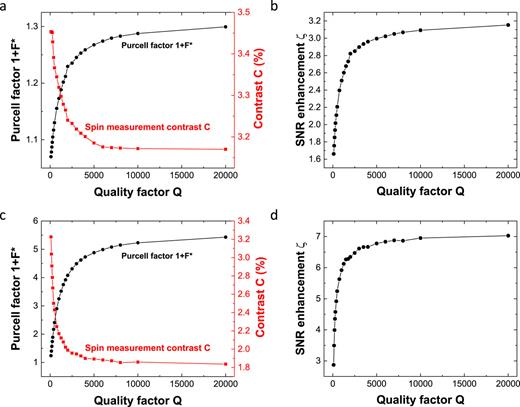

FIG. 8.

Purcell factor 1 + F* and spin measurement contrast C [(a) and (c)] as well as the resulting SNR enhancement ζ [(b) and (d)] as a function of the cavity Q factor. The values were calculated with the here presented rate equation model. For the upper graphs [(a) and (b)], realistic coupling parameters reached by our cavity coupling were applied, taking into account a nonperfect lateral positioning of the implanted NV centers, a shallow implantation depth as well as a nonperfect dipole orientation. For the lower graphs [(c) and (d)], an ideal cavity coupling was assumed.

FIG. 8.

Purcell factor 1 + F* and spin measurement contrast C [(a) and (c)] as well as the resulting SNR enhancement ζ [(b) and (d)] as a function of the cavity Q factor. The values were calculated with the here presented rate equation model. For the upper graphs [(a) and (b)], realistic coupling parameters reached by our cavity coupling were applied, taking into account a nonperfect lateral positioning of the implanted NV centers, a shallow implantation depth as well as a nonperfect dipole orientation. For the lower graphs [(c) and (d)], an ideal cavity coupling was assumed.

Close modal

If we, in a second scenario, consider the collection of all photons for the spin read-out, we cannot benefit from the higher emission fraction into the ZPL anymore, but the number of emitted photons is still enhanced by a factor of 1.13 due to the lifetime shortening on resonance. The collection efficiency is here reduced by a factor of 0.97 (see Sec. IV A). Altogether, the number of detected photons by applying a broad-band photon detection is enhanced by a factor of N0*/N0=1.13×0.97=1.10, resulting in a very small SNR enhancement of about 0.5%. In summary, the cavity coupling of NV centers as demonstrated here leads to a spin read-out SNR enhancement of up to a factor of ≈3. This factor is within the same order of magnitude as the SNR enhancement achieved by other methods for improving the photon collection efficiency.5,13,31

In summary, we reported on the SNR enhancement of the optical spin read-out achieved by tuning the mode of a two-dimensional PhC cavity into resonance with the NV-ZPL. To achieve this, ultrapure (001)-oriented CVD-grown diamond films were used as starting material for the RIE fabrication of thin, air-suspended membranes. An extended characterization allowed us to select defect-free spots featuring a suitable thickness for the subsequent fabrication of PhC cavities by FIB milling. The analyzed cavity modes showed Q-factors of up to 8250 at mode volumes of less than one cubic wavelength. The application of a high-resolution implantation technique using a pierced AFM-tip allowed the subsequent generation of NV centers in the cavities. The combination of two spectral tuning methods, an oxidation technique for the blue shift and a gas adsorption technique for the red shift, facilitated the reliable and precise tuning of a cavity mode. For the considered cavity-coupled NV centers, the SNR was almost tripled. A theoretical model, taking into account the measured shortening of the emitter’s lifetime, the measured and theoretically predicted change in fluorescence contrast as well as the simulated modification of the collection efficiency reproduces the experimental findings very well.

Whereas the reported SNR enhancement is on par with simpler methods for photon collection enhancement,5,13,31 it could be still increased by a further optimized cavity coupling: a (111)-oriented diamond sample with an optimal dipole orientation may lead to a fourfold enhancement of the total Purcell-factor. For an optimal implantation depth in the center of the diamond film, instead of the shallow implantation, the Purcell-factor may be further increased by a factor of 3.2. In total, for an optimal cavity coupling, our theoretical model predicts a SNR enhancement by a factor of up to 7. A possible method to reach this ideal coupling scenario is a change of the fabrication order such that at first, NV centers are implanted into the diamond film and subsequently a PhC cavity is fabricated around. This scenario is displayed in Figs. 8(c) and 8(d), showing a simulation of Purcell factor 1 + F* and spin measurement contrast C as a function of the cavity quality factor Q for ideal emitter-cavity coupling. In comparison to the realistic case, both Purcell factor and contrast saturate at even smaller values of Q. This again demonstrates that large SNR enhancements do not require very large cavity Q factors.

A change of the fabrication order would allow a maskless implantation with higher energies resulting in deeper implanted NV centers. Subsequently, NV centers could be precharacterized and suitable single emitters chosen, featuring an ideal dipole orientation. Alternatively, also improved nanoimplantation techniques such as a maskless FIB-implantation of ions with high lateral resolution are in reach.86 Eventually, the here generated NV centers feature an optical linewidth of several hundred gigahertz, whereas narrow line widths below 100 MHz are accessible,87 at least in micrometer-thin RIE-etched diamond membranes. Smaller linewidths would further increase the total Purcell-factor. Therefore, in conclusion, higher SNR enhancements are within reach with the method presented here.

We thank B. Lägel and S. Wolff (Nano Structuring Center, University of Kaiserslautern) for helpful discussions on nanofabrication and use of their facilities. We further thank Alexander Huck and Simeon Bogdanov for helpful discussions on fluorescence contrast measurements and modeling. This research has been partially funded by the European Quantum Technology Flagship Horizon 2020 (No. H2020-EU1.2.3/2014-2020) under Grant No. 820394 (ASTERIQS). EU funding for the project AME-Lab (European Regional Development Fund Grant No. C/4-EFRE 13/2009/Br) for the FIB/SEM is acknowledged. E. Neu acknowledges funding via the NanoMatFutur program of the German Ministry of Education and Research (BMBF) under Grant No. FKZ13N13547 as well as a PostDoc Fellowship by the Daimler and Benz Foundation.
