Optical materials are undergoing revolutionary transformations driven by nanotechnology. Our ability to engineer structures at a scale smaller than the wavelength of light enables new properties and functionalities otherwise not available in natural bulk optical materials. A class of such components—dielectric metasurfaces—employs two-dimensional arrays of designer resonant nanoscale elements whose optical response is defined by their geometry. While linear regimes of interactions between dielectric metasurfaces and moderately intense light have already formed a mature field of applied research and engineering, new frontiers are being actively explored in the nonlinear optical regime describing interactions of metasurfaces with strong optical fields. In this Research Update, we cover the most recent progress along with several directions of research within the field of nonlinear optics of dielectric metasurfaces. Specifically, we review approaches to design and fabricate metasurfaces with high local field enhancements that facilitate nonlinear light–matter interactions, outline nonlinearity-enabled functionalities of dielectric metasurfaces, explore resonant metasurfaces in the strong-field non-perturbative regime, and discuss the implications of the time-variant refractive index in metasurfaces that interact with strong optical fields produced by laser pulses.

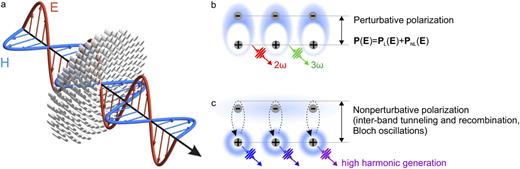

A sufficiently intense beam of light interacting with a material can temporarily modify the optical properties of the material, with the magnitude of such modification being nonlinearly proportional to the amplitude of the electromagnetic field of the incident light. Examples of nonlinear light–matter interactions are sketched in Figs. 1(a)–1(c). Nonlinear regimes of light–matter interactions open a plethora of new optical phenomena, such as the alternation of the frequency of the output light, multiphoton absorption, and strong self-action effects, among others. Usually, nonlinear interactions are weak and become observable only after light travels through a material over relatively long distances consisting of many thousands of wavelengths. Many conventional nonlinear optical systems typically require the combination of bulk volumes of a material with a confining cavity, which increases the photon lifetime, thus strengthening light–matter interactions. However, the recent developments of resonant nanostructures facilitating strong light concentrations opened the path toward efficient nonlinear processes on a scale smaller than the wavelength of light.
In the recent past, many demonstrations were performed with engineered metallic nanoparticles.1–4 Metals were an attractive choice as they exhibit extremely high intrinsic nonlinearities. In addition, the support of plasmon resonances allows for dramatic light confinement and local intensity enhancement near plasmonic hot spots. However, the overall efficiency of the nonlinear processes in plasmonic nanostructures remained low,5,6 limited by ohmic losses, small mode volumes confined within metal surfaces, and low laser damage thresholds.
All-dielectric nanostructures have recently been suggested as an alternative way to enhance the nonlinear efficiency beyond the limits associated with plasmonics. High refractive index nanoparticles can support multiple different types of optical modes, including optically induced magnetic dipole resonances, higher-order multipoles, and composite resonances.7–10 High field enhancements near the magnetic dipole modes and composite resonances increase the efficiency of nonlinear processes by orders of magnitude compared to their plasmonic counterparts. Low or negligible absorption at the pump wavelength allows the electric field to penetrate in nanostructures and grant access to the nonlinear response of the whole volume of its material. Another relevant consequence of transparency at the pump wavelength is the high laser damage threshold of all-dielectric nanoresonators.
Material platforms employed in the field of nonlinear metasurfaces include high refractive index dielectric and semiconductor materials, such as Si and Ge11–13 [high values of (3) nonlinear susceptibility tensor], and the group of III–V semiconductors, such as GaAs and GaP14–16 [high values of (2) nonlinear susceptibility tensor], among others. Lithium niobate,17–19 titanium dioxide,20 and barium titanate21 were employed for nonlinear metasurfaces in spectral ranges down to ultraviolet (UV) wavelengths. Novel emerging classes of materials are actively explored, including epsilon-near-zero materials, such as ITO,22–24 phase-change materials,25 and 2D materials, such as WS2,26 GaSe,27 and multi-quantum-well heterostructures.28,29 Recently, liquid-phase dielectrics have also been explored as metasurface materials.30
Engineered optical resonances play a central role in the field of nanoscale nonlinear optics. Resonant effects can intensify electromagnetic fields within nonlinear materials by orders of magnitude, thus dramatically enhancing the efficiency of nonlinear light–matter interactions.31,32
II. ENHANCEMENT OF NONLINEAR LIGHT–MATTER INTERACTIONS AT THE NANOSCALE
In the recent past, several different strategies have been explored for the enhancement of nonlinear light–matter interactions in metasurfaces via engineered resonances. Here, we overview some of the approaches. We attempt to provide, where applicable, a figure of merit for efficiencies of nonlinear light–matter interactions that we discuss below. We note, however, inherent limitations of any quantitative figure of merit as the reviewed experiments vary by multiple parameters (laser source pulse duration, repetition rate, peak, and average power). To this end, we predominantly focus on nonlinear frequency doubling and frequency tripling effects [second-harmonic generation (SHG) and third-harmonic generation (THG)], for which multiple experiments have been conducted by several groups. We evaluate the strength of the nonlinear interaction in the following form of the ratio of the peak powers of the pump and generated harmonic for second-harmonic and third-harmonic generations, respectively:
Here, is the incident peak power of the pump beam at the fundamental frequency (FF) and and are the peak powers of SHG and THG, respectively. The coefficients β and γ have units of W−1 and W−2, respectively, and can be useful as they mitigate some dependencies on the exact parameters of a particular excitation laser source.
Nonlinear generation of second and third optical harmonics in dielectric nanostructures has been demonstrated at the level of both isolated nanoresonators and their 2D layouts—metasurfaces. We, therefore, discuss the resonant characteristics of both the individual elements and the collective effects induced by the lattice and the coupling between adjacent elements. The enhancement of nonlinear phenomena is determined by different factors: the quality factor (Q-factor) of the resonance at the pump wavelength, the Q-factor of the harmonic resonance, the spatial and spectral overlap between pump and harmonic resonances, and the efficiency of the coupling of the pump beam to the resonator. Since second- and third-order nonlinear light–matter interactions depend correspondingly on the second and third powers of the electric field inside the nonlinear material, a prime approach to enhance the efficiency of these phenomena is to enhance the quality factor of the resonance and the pump mode. Below, we briefly outline several approaches for engineering optical resonances in subwavelength dielectric structures.
A. Mie resonances
Mie resonances were introduced as the exact Mie solutions of Maxwell’s equations describing light interactions with spherical particles.33,34 In a more recent past, numerical approaches allowed application of the concept of Mie resonances to small objects of arbitrary shapes. Mie resonances have attracted attention because they can support both electric and magnetic type resonances of comparable strengths.7,31,35,36 Typically, individual low-order Mie resonances have quality factors below ten, and some of the best demonstrations of SHG and THG based on the magnetic dipole resonant pump yield β = 2 × 10−8 W−137 and γ = 2.6 × 10−14 W−2,38 respectively. Nevertheless, the fact that multiple resonances can interfere with one another opens new pathways to enhance the mode Q-factor in nanostructures.
B. Toroidal moments
Toroidal multipoles represent another example of fundamental solutions of Maxwell’s equations. While Mie resonances are conventionally calculated from the expansion of electromagnetic potentials and charges into a series of multipoles, toroidal multipoles can be derived via decomposition of the momentum tensors.39,40 The electromagnetic field produced by a toroidal dipole moment resembles the field produced by an electric current wire wrapped into a coil, with the coil being further arranged into a torus shape, which gives rise to an effective magnetic current loop. The concept of toroidal resonances has also been generalized to higher-order toroidal moments of both electric and magnetic nature. Toroidal moments were introduced to metamaterials and metasurfaces first in microwaves.41 Later on, optical all-dielectric metasurfaces supporting toroidal moments have been proposed theoretically42–44 and demonstrated experimentally.45,46 The enhancement of nonlinear light–matter interactions by toroidal moments has been studied in optics in plasmonic metasurfaces47 and suggested theoretically in all-dielectric designs.42
C. Isolated nanoparticles: Anapole modes
Toroidal moments of light gave birth to the concept of optical anapoles. The first-order anapole excitation is achieved when an electric dipole and toroidal dipole moments of the nanoparticle have the same or similar amplitude and are out-of-phase.48 The electric field radiated by a toroidal dipole moment matches the one that is radiated by an electric dipole, and thus, if the previous condition is satisfied, the radiation patterns of these two multipoles interfere destructively, canceling the output channels of radiation leakage. This leads to a non-trivial radiationless current distribution in the nanoparticle. In general, this interference mechanism is not enough to suppress outward radiation from the nanoparticle: for external excitation (e.g., illuminating the nanoparticle with a laser beam), magnetic quadrupole and electric octupole moments that accompany the toroidal moment remain radiative. Nevertheless, this condition leads to an enhancement of the field intensity inside the nanoparticle. Anapole modes were demonstrated to reach Q-factors estimated around 10–50.49–52 The quality factors of anapole resonators are mainly limited by the existence of other multipoles within the same spectral range. One technique to enhance the electric field confinement by anapoles employed hybrid dielectric-metallic nanostructures.53,54 A nanodisk supporting the anapole condition is surrounded by a gold ring possessing a plasmonic resonance at the same wavelength. Another recently proposed technique to increase the Q-factor of anapole resonances utilized a metallic substrate underneath the nanoresonator. The metallic plane, to a first approximation, created a mirror image of anapole modes, allowing it to achieve destructive interference in the radiation pattern of parasitic multipoles, and thus improving mode confinement and yielding Q ∼ 50 in Ref. 49. This method enabled the demonstration of THG from Si nanodisks with γ = 3.9 × 10−7 W−2 [see Fig. 2(c)].
D. Isolated nanoparticles: Bound states in the continuum
One more promising approach to engineer high-Q modes in single nanoresonators has recently emerged, inspired by the physics of bound states in the continuum (BIC).55 The BIC originates from the complete destructive interference of two or more waves, effectively suppressing all radiative losses. This requires infinitely large structures or materials with either zero or infinite permittivity. Nevertheless, dielectric nanoparticles host a wide variety of leaky optical modes that can be geometrically tuned. When leaky modes with similar far-field profiles are found at similar frequencies, they can eventually undergo a strong coupling regime featuring avoided resonance crossing. This results in one of the two leaky modes exhibiting an extraordinarily high Q-factor for isolated nanoparticles. Such a condition is called accidental BIC or quasi-BIC,59 owing to the similar physics with the Friedrich–Wingten BIC.60 The Q-factor that such structures can achieve at near-infrared frequencies is on the order of .14,55,61,62 Recent experiments traced the evolution of scattering spectra of isolated nanoparticles vs their geometrical parameter demonstrating the quasi-BIC regime for optimal parameter settings.63 The scattering spectra are fundamentally related to the dynamics of a Fano resonance. It was shown that the collapse of the leaky mode into the quasi-BIC state is associated with a divergence of a Fano line shape parameter (q → ∞). The high Q-factor of BICs in nanoparticles is very promising for nonlinear applications. After initial theoretical predictions for both SHG62 and THG61 with BIC systems, experimental demonstration of SHG in GaAs nanodisks on an engineered substrate enabled β = 1.3 × 10−6 W−1,14 which is illustrated in Figs. 2(a) and 2(b).
E. Collective modes in metasurfaces: Fano resonances
The Fano resonance occurs when a dark (high-Q) mode is coupled via near-field to a bright (low-Q) mode. This results in a reflectance or transmittance spectrum exhibiting a Fano line shape.64,65 As the dark mode is excited via the near-field coupling, the achievable Q-factor can be very high. In Ref. 56, a disk-bar configuration was adapted for THG. The Q-factor of the metasurfaces at the pump wavelength was Q = 466, and the measured THG nonlinear coefficient was γ = 1.9 × 10−13 W−2 [see Fig. 2(d)].
F. Collective modes in metasurfaces: Symmetry-protected bound states in the continuum
In systems possessing reflection or rotational symmetries, optical modes of different symmetry classes decouple. In subwavelength metasurfaces, the only radiative channels are plane waves propagating in the normal direction with respect to the metasurface plane. In this case, the electric and magnetic field vectors are odd upon C2 rotations; thus, modes that are even with respect to the same transformation are completely decoupled from the continuum of radiation and form a BIC. Such BICs have recently been thoroughly investigated in metasurfaces.59 The Q-factor of BICs in its pure mathematical sense is infinite; thus, excitation of these modes is forbidden. Nevertheless, maintaining an excitation beam that normally impinges on the metasurface, once the symmetry of the unit cell is broken, coupling of free-space radiation can be achieved. Asymmetry limits the Q-factor to a finite value opening radiation channels and converting the resonance in a so-called “quasi-BIC.” Remarkably, the exact value of the Q-factor can be fine-tuned by the level of introduced asymmetry.66 In particular, one can define an asymmetry parameter, α, and in the limit of small perturbations, the Q-factor is shown to scale as 1/α2. This approach has been adapted for both SHG,67 demonstrating a β = 9.6 × 10−8 W−1, and THG,68 demonstrating a γ = 1.5 × 10−14 W−2. The Q-factor of the two works was Q = 500 for the SHG metasurface and Q = 100 for the THG metasurface. More recently, in Ref. 57, the authors proposed a symmetric approach for breaking the symmetry of the meta-atom that enabled a significant improvement of the Q-factor 1.8 × 104. Such a high-Q mode was used as a pump for THG, yielding a nonlinear coefficient of γ = 1.4 × 10−8 W−2 [see Fig. 2(e)].
A remarkable approach was recently demonstrated by Jin et al. in Ref. 51. Researchers studied a nanopatterned silicon membrane supporting multiple symmetry-protected BICs. By judiciously designing geometrical parameters of the nanopattern, Jin and co-authors were able to overlap multiple bound states in the continuum in the momentum space. As a result, an order of magnitude increase in the Q-factor was measured experimentally under the condition of merged BICs reaching a Q-factor of 4.9 × 105 [see Fig. 2(f)]. Such super-BIC resonances may find their applications in nonlinear optics as well as pave the way toward a general strategy of increasing quality factors of nanostructures via novel interference scenarios of several resonant modes.
G. Machine learning
Theoretical models, such as anapoles, Fano resonances, and BICs, provide guidelines for efficient designs of nonlinear nanostructures. However, determination of final details of nanostructure’s geometries typically relies on iterative 3D numerical full-wave simulations, such as finite-element method (FEM), finite-difference time-domain (FDTD) method, and others, which are computationally demanding, especially for solving nonlinear problems. To reduce the number of trial-and-error iterations of full-wave simulations, various optimization strategies are often implemented, such as genetic algorithms and gradient descent methods.69–71
Radically different emerging approaches for the design of subwavelength photonic structures are based on machine learning.72–74 Among the various machine learning methods, deep neural network (DNN) techniques have demonstrated great potential. DNNs usually contain multiple hidden layers that provide a sufficient number of units, which can be used to represent complicated functions to uncover hidden relations between variables, such as between nanophotonic structure geometries and their electromagnetic responses.75–78 This makes DNN-based techniques promising for solving the inverse problem in nanophotonics: to predict the geometry with given properties, such as to predict design parameters of a metasurface hosting a high-Q resonance. To this end, the DNN-based methods have been demonstrated to predict accurately amplitude72,79–82 and phase80,83–85 spectra of metasurfaces. Employment of DNNs for nonlinear nanophotonics, in particular, for the enhancement of the efficiencies of light–matter interactions at the nanoscale sounds particularly appealing, given the complexity of the wide range of nonlinear optical interactions.
H. From pulsed to continuous-wave nonlinear nanophotonics
Due to the intrinsically low magnitude of the optical nonlinear response of the materials, nonlinear nanophotonics is dominated by interactions between matter and short laser pulses with typical durations on the order of tens and hundreds of femtoseconds. Such short pulses may reach high levels of peak power, thus enhancing nonlinear light–matter interactions while minimizing parasitic effects such as heating and free-carrier dispersion. However, as the Q-factor of the nanoresonators increases, extreme field intensities can be achieved even from more modest pump power levels. Moreover, the spectral overlap between the bandwidth of the pump and the resonance plays a key role in the enhancement of conversion efficiencies.86 Thus, in view of the most recent progress in resonant nanophotonics, nonlinear light–matter interactions between nanostructures and continuous-wave (CW) lasers with much lower peak powers compared to their pulsed counterparts may be within reach. This road has already been followed in other nonlinear optics research areas such as photonic crystals and microcavities. In a recent paper, gallium phosphide metasurfaces with Q-factors varying from Q = 60 to Q = 2 × 103 have been used in both femtosecond and CW regimes58 [see Fig. 2(g)]. It was shown that the increase in the Q-factor in the CW regime consistently improved the nonlinear response of the structure. In contrast, in the femtosecond regime, the SHG conversion efficiency saturated as a function of the Q-factor after the bandwidth of the resonance has become comparable to the bandwidth of the excitation pulse.
III. FUNCTIONALITIES ENABLED BY NONLINEAR LIGHT–MATTER INTERACTIONS
Nonlinear light–matter interactions hold promise to expand the range of application of metasurfaces as nonlinearity-enabled properties and functionalities go beyond the limitations of linear optics. Here, we discuss several recent demonstrations of metasurfaces with functionalities derived from their nonlinear optical response.
A. Nonlinear wavefront control
Several approaches for engineering the wavefront of parametric waves have been suggested and demonstrated experimentally. The methods rely on full control over the phase of generated light within the 0–2π range, thus allowing wavefront shaping.
A method that relies on resonant phase accumulation was suggested and demonstrated in Refs. 11, 87, and 88. The approach relied on the generalized Huygens’ principle in nonlinear optics. This method was used to demonstrate experimentally a nonlinear metasurface beam deflector, a vortex beam generator11 [see Fig. 3(a)], a nonlinear lens87 [see Fig. 3(b)], and nonlinear holograms.88
Another demonstrated approach to control the wavefront of parametric waves based on geometric phase generalized for nonlinear light–matter interactions.89–91 Geometric phase metasurfaces, also known as Pancharatnam–Berry phase metasurfaces, achieve a continuous phase change linked to a rotation angle of a low-symmetry nanoresonator. In the nonlinear case of the generation of optical harmonics, the geometric phase approach connects the rotation angle of a single nanoresonator to the phase shift at the generated harmonic. The nonlinear geometric phase was adopted in the dielectric metasurface from their plasmonic counterparts.92 Using this method, nonlinear beam deflectors89 and holograms90,91 have been demonstrated in all-dielectric metasurfaces for both second-89 and third-harmonic generation processes.90,91
B. Nonlinear lenses
The advancement in all-dielectric metasurfaces led to the development of flat lenses of submicrometer thickness. The concept has been transferred to the field of nonlinear metasurfaces, while nonlinear focusing and holography96 and second-harmonic imaging97 have been demonstrated first in plasmonic metasurfaces. More recently, all-dielectric nonlinear metalenses were demonstrated for focusing nonlinear imaging of objects as well as higher-order correlations of light from objects.87 Interestingly, the wavefront control by nonlinear metasurface lenses was not grasped by conventional lens equations routinely used in linear optics, and modified nonlinear lens equations were suggested phenomenologically. Moreover, since the superposition principle of waves does not hold in the regime of nonlinear optics, such lenses were also demonstrating image formations accompanied by the autocorrelation function of the order of optical harmonics, thus carrying information about the coherence of light.
C. Optical switching and ultrafast tuning
Nonlinear metasurfaces have also been suggested as ultra-compact optical switches. Several nonlinear optical processes have been applied in proof-of-concept demonstrations, including resonantly enhanced nonlinear absorption in silicon93 [see Fig. 3(c)], nonlinear change in a refractive index at low optical power in chalcogenide glasses,98 injection of free carriers,99 and nonlinear absorption saturation100 in direct bandgap semiconductors, such as GaAs, which were employed for metasurface-based switches.
D. Nonreciprocity and optical isolation
Optical nonreciprocity is the enabling property for several key functionalities in photonics, including optical isolation. The majority of optical systems are reciprocal, and nonreciprocity may be achieved in only a few conceptual pathways, one of which relies on nonlinear light–matter interactions.
Several theoretical proposals on achieving optical nonreciprocity in dielectric metasurfaces have been made recently for a different design starting from single-layer silicon structures94 [see Fig. 3(d)] and then two-layer structures,101 which due to Kerr nonlinearities of the material may be employed to realize a diode-like functionality in nanoscale optics. A theoretical proposal of an optical resonator made from Si and ITO was suggested in Ref. 102. The design exploited optical nonlinearities of ITO in its epsilon-near-zero-regime,103 suggesting nonreciprocal far-field radiation patterns.
E. Asymmetric control of light
Closely related to nonlinearity-induced nonreciprocity are processes of asymmetric frequency conversion and mixing in nonlinear nanoresonators and metasurfaces. Plasmonic designs with asymmetric nonlinear responses have been explored in the past theoretically104,105 and experimentally.106 Recently, all-dielectric translucent metasurfaces have been demonstrated that produced images in the visible spectral range via third-harmonic generation when illuminated by infrared radiation95 [see Fig. 3(e)]. By design, the metasurfaces generated completely independent images for the opposite directions of illumination. This has been achieved via engineered bi-anisotropic coupling between electric and magnetic Mie resonances supported by the metasurfaces.
IV. HIGH OPTICAL HARMONIC GENERATION AND NON-PERTURBATIVE NONLINEAR REGIMES
Nonlinear optics of dielectric metasurfaces was originally dominated by second- and third-order nonlinear processes such as SHG and THG, examples of which were discussed above. These nonlinear processes are conventionally described within a perturbative framework, that is, assuming that the nonlinear component of material polarization is only a small perturbation to its linear counterpart. However, sufficiently intense optical excitations can bring materials beyond the boundaries of the perturbative approximation.
One of the most exciting outcomes of intense-field light–matter interactions is the effect of high-harmonic generation (HHG). HHG was observed in the decades following the development of the first lasers. Some of the milestone observations were the generation of optical harmonics up to the 11th order in gas plasma in 1977107 [see Fig. 4(a)] and 33rd harmonic generation in 1988.108 The physics of high-harmonic generation differs fundamentally from that of typical lower-order nonlinear processes, such as second- and third-harmonic generation. One consequence of the perturbative approximation is the scaling law of intensities of optical harmonics as , where Iω is the intensity of the pump beam and Inω is the intensity of the n-th harmonic beam. This becomes inapplicable for descriptions of high-harmonic generation processes. One of the remarkable features of HHG is that the intensity of harmonics tends to a plateau, thus deviating strongly from the predictions of the perturbative model. Another striking difference is that HHG generation exhibits a cutoff frequency after which no harmonics can be observed.
The high-harmonic generation that was first studied in gasses and plasma could be commonly described with the three-step recollision model109,110 within a framework of the strong-field approximation.111 At the first step, an atomic gas undergoes ionization via the quantum tunneling mechanism upon optical excitation. During the second step, the ionized free electron is accelerated by the oscillating optical field initially from and then toward the parenting ion. At the final third step, the electron recollides with the ion. High-harmonic generation in atomic gases and plasma has been studied for decades, which has led to its applications in extreme-UV light sources,112 generation of ultra-short light pulses,113 and diagnostics techniques at atomic and molecular levels, such as probing of molecular orbitals.114 Gas-phase HHG, however, involves expensive vacuum setups and complicated methods to confine the source gas within the interaction volume, thus limiting its applicability. More recently, HHG from solids has been demonstrated115 [see Fig. 4(b)], revealing rich new physics116 and offering systems with more compact form factors. Bulk solids, thin films,117 and 2D materials118,119 have been studied. Processes of HHG from solids were found to contradict predictions of both the perturbative theory of nonlinear optics and the three-step recollision model within the strong-filed approximation used to describe HHG in gases. Although details of the solid-state HHG mechanism remain a topic for debate,116 the major differences with gas-state HHG originate from the high density of solids, leading typically to significant overlap of neighboring atomic orbitals. Another significant difference of solid-state systems is that due to their high density, the electron has a chance of recombining not with its parenting core but a neighboring core. Finally, the intensity scaling law of HHG as a function of pump intensity may be linear115 in striking difference with the quadratic behavior typically observed in gas-phase HHG. Various approaches toward the detailed descriptions of the solid-state HHG can be found in Ref. 116 and references therein. Links between HHG from gases and solids have been studied recently120 and remain an area of active research.
A. HHG in dielectric subwavelength structures and metasurfaces
Solid-state platforms allowed HHG to enter the realm of nanoscience, and several pathways to nanoscale HHG have been explored, including plasmonic nanostructures124 as well as all-dielectric Fano-resonant metasurfaces121 and gratings.127 Some of the first experiments on HHG in subwavelength structures were conducted using plasmonic materials. Vampa et al. employed an array of gold nanoantennas to enhance optical harmonic generation in the underlying silicon substrate.124 They observed up to ninth order harmonic generation and were able to achieve ten times overall enhancement of the harmonic generation intensity and estimated a 103–104 times enhancement in optical hot spots created by the antennas. Han et al. employed arrays of hybrid gold-sapphire truncated nanocones to generate harmonics up to 13th order in the extreme-UV spectral region at wavelengths as short as 60 nm.122 The all-dielectric design further mitigated limitations of metallic nanostructures, such as relatively low laser damage threshold and absorption losses. Liu et al. demonstrated generation of optical harmonics up to 11th order in a silicon metasurface121 that facilitates a sharp resonance mode that is associated with an optical analog of electromagnetically induced transparency. A similar design was conceptualized earlier for third-harmonic generation56 and described in terms of Fano resonances. This leads to a multi-fold enhancement of optical fields inside silicon resonant elements. Zograf et al. demonstrated the generation of up to 11th optical harmonics in dielectric metasurfaces hosting optical modes associated with bound states in the continuum.123 A set of metasurface hosting detuned quasi-BIC modes was developed, which allowed tracing transitions between perturbative and non-perturbative nonlinear regimes experimentally. The use of non-centrosymmetric materials, such as GaP, enabled the generation of both even and odd high harmonics in transparent metasurfaces over the entire visible range.126 Even-order optical harmonics up to sixth order and odd harmonics up to ninth order have been observed. Importantly, to avoid laser-induced damage and utilize ultrahigh power excitation, single-shot experiments have enabled a unique physical regime, where the electrons acquire enough momentum to cross the Brillouin zone edges and engage in highly nonlinear Bloch oscillations.128
HHG generation at the subwavelength scale differs substantially from HHG in bulk solids. The formation of electron–hole plasma can significantly alter the optical properties of the material during the interaction, which, in turn, changes the optical properties of subwavelength structures. In particular, the resonant wavelength and Q-factor, among other parameters, become dynamically dependent on the optical excitation regimes and nonlinear light–matter interactions. We would expect to see a development of new design principles for non-perturbative nonlinearities that would take into account dynamic changes in the index of refraction and absorption occurring on ultrafast time scales.86,129
At present, non-perturbative nonlinear processes at the nanoscale require a self-sufficient ansatz that includes both the non-perturbative response of the underlying materials and the field-dependent resonant properties of the nanostructures. Research on lower-order perturbative nonlinearities at the nanoscale rests on extensive developments of the past covered in multiple reviews.7,89,130–132 One of the first steps toward bridging the gap between perturbative and non-perturbative nonlinearities at the nanoscale was attempted by Zograf et al. in Ref. 123. In that study, researchers merged together two approaches: design principles of BIC metasurfaces,66 used successfully for perturbative nonlinear optics,68 with the Keldysh model of free-carrier generation accounting for tunneling and multiphoton absorption processes,133 used in the past for non-perturbative nonlinear optics. Calculations of field enhancements via the BIC mechanism together with calculations of plasma-hole density generated in resonant hot spots via non-perturbative light–matter interactions led to a successful description of experimentally observed processes of generation of optical harmonics transitioning from perturbative to non-perturbative regimes.
Illuminating resonant nanostructures with pulse trains at intensities that drive non-perturbative processes may result in unwanted effects such as temperature and free-carrier plasma buildup, as well as multi-pulse laser damage.134 In order to study the responses of nanostructures bypassing the side effects of pulse trains, in Ref. 126, a single-pulse excitation scheme has been employed. The metasurface was driven into the regime where the Bloch frequency, ωB = eEa/ℏ (e is the elementary charge, E is the electric field strength in the metasurface, a is the crystal lattice period, and ℏ is the reduced Planck’s constant), has reached the values exceeding the pump frequency by a factor of four, therefore enabling a transition between the perturbative and non-perturbative regimes of harmonic generation.
V. TIME-VARIANT METASURFACES
As shown above, metasurfaces have provided unique ways of controlling the flow of light by employing spatial arrangements of resonant subwavelength particles of designer shapes. The optical properties of metasurfaces are governed by a three-dimensional distribution of the complex refractive index , which often can be considered static. However, this constraint has been recently lifted by time-variant metamaterials and metasurfaces, whereby temporal modulations of the metamaterial’s refractive index can expand the physics of their optical response and offers novel functionalities. Here, we analyze the recent reports that utilize the temporal dimension to control the frequency and propagation flow of light and outline the potential directions of this exciting area of metaphotonics.
Spatiotemporal light control with metamaterials and metasurfaces135,136 has attracted a lot of attention through extending the versatility of light wave control in metasurfaces to the temporal dimension. Figure 5(a) outlines this idea: in a conventional metamaterial, the unusual optical properties are achieved via a judiciously chosen distribution of the refractive index in space. In a time-variant metamaterial, an additional degree of freedom is added by controlling the refractive index as both functions of space and time . Being spatially inhomogeneous, metasurfaces can alter amplitude, phase, polarization, and angular momenta of light, leading to scattering, diffraction, and spatial mode mixing. Analogously, in a temporally inhomogeneous metamaterial, frequency modes can be mixed, whereby the harmonic function in the form of is no longer a solution of Maxwell’s equations. Marrying the spatial refractive index engineering with nanotechnology and the temporal refractive index engineering via nonlinear light–matter interactions opens new approaches to demonstrate various effects in photonics using time-variant metasurfaces, such as frequency conversion and nonreciprocal propagation at the nanoscale.
A. Frequency conversion in time-variant metasurfaces
A parametrically modulated electromagnetic system can act as a frequency mixer.142 The simplest examples include radio-frequency circuits with parametrically changing elements and FM radio. In nonlinear optics, examples of phenomena induced by parametric modulation include sideband generation through Raman or Brillouin scattering.143 In metasurfaces, two distinct approaches to time modulations can be identified: harmonic modulation and step-like modulation. While the first approach can provide a wider range of accessible frequency detunings, the second approach is generally more efficient in transferring energy between frequency modes. These approaches provide different outlooks on the range of attainable frequency, which, in both cases, is approximately determined by the Fourier spectrum of the parametrically driving stimulus.
Usually, the harmonic modulation of the material’s parameters is achieved via a high-frequency electrical drive. Harmonically modulated metasurfaces have been demonstrated in a wide spectral range, from radio frequencies,137 THz138 to near-infrared.144 Figure 5(b) conceptualizes the idea of a harmonically driven metasurface that generates frequency sidebands at ω ±Ω, where ω is the free-space radiation frequency and Ω is the driving frequency. Here, the metasurface is engineered to perform various operations on the sideband radiation, including spatial discrimination, lensing, and other operations associated with metasurfaces. The authors showed a variety of frequency-multiplexed functionalities at microwave frequencies using varactor diodes as tunable elements. A potential application based on these effects is a compact beam deflector that could steer one or more generated sidebands at different directions and scan them over the full 4π solid angle. This functionality could benefit the development of new compact radar systems for full-angle and multitarget detection.
A step-like perturbation of the metasurface’s refractive index can be achieved through pumping with strong optical pulses. An ultrashort laser pulse rapidly generates free-carrier plasma that can shift the center frequency of a resonator by an amount proportional to the Drude term in the permittivity of the plasma,
where is the static, unperturbed refractive index of the material; is the plasma frequency; and γc is the inverse collision time. Here, represents dynamic modifications of both the refractive index of a material and its absorption coefficient. First demonstrations of frequency conversion in rapidly generated gaseous plasmas date back to the 1970s and 1980s;145,146 however, ultrahigh power laser radiation was needed to generate sufficiently dense plasma. It has recently been established that metasurfaces can provide a platform for frequency conversion in semiconductor plasmas at orders-of-magnitude less intensities, making it possible to create frequency converters on a chip. Frequency conversion due to step-like modulation of the refractive index has been reported in THz138,147 and infrared139–141 spectral ranges.
The process of frequency conversion in time-variant metasurfaces with a single optical mode can be described using temporal coupled-mode theory,148
where is the amplitude of the metasurface’s mode, is the time-variant eigenfrequency of the mode, is the time-variant damping factor, is the external excitation, and κ is its coupling constant to the metasurface’s mode. If and can be externally controlled by either high-frequency electrical drive or an optical pump, the emitted radiation, given, for instance, by , can contain frequency components that have not been present in the initial excitation. A general experimental setup for demonstrating the frequency conversion effects in time-variant metasurfaces triggered by an optical pump is given in Fig. 5(d). Here, the probe pulse is exciting the mode of the metasurface before the pump comes at a time τ > t. The pump imposes a certain step-like dynamics onto and ; the result is monitored by measuring the normalized spectrum of the output pulse , where FT denotes the Fourier transform. A typical spectrum output from a GaAs metasurface driven by femtosecond pulses139 is shown in Fig. 5(d). Here, it can be seen that at certain frequencies, denoting frequency conversion due to time modulation, which was also verified in metasurfaces based on amorphous germanium.149
VI. CONCLUSIONS AND OUTLOOK
Dielectric nonlinear metasurfaces constitute a rapidly developing field of research driven by the advancements in the design and nanofabrication of subwavelength optical resonators. In this Research Update, we provided a brief overview of strategies and future directions of nonlinear light–matter interactions in dielectric metasurfaces.
We surveyed various analytical approaches in designing resonant nanostructures via composite resonances, including anapole modes, Fano resonances, and bound states in the continuum. As a general trend, the research pursued an increase in the Q-factor of the optical modes at play for boosting the efficiency of the nonlinear interactions in nanoresonators and metasurfaces. A remarkable recent achievement enabled by careful engineering of high-Q modes was the demonstration of a nonlinear optical process in a metasurface under continuous-wave excitation. This is in striking contrast to common experimental approaches employing short-pulse, high peak power laser sources. Nonlinear nanophotonics in the CW regime of moderate light intensities enabled by recent and ongoing efficiency enhancements in high-Q metasurfaces bear promise for both fundamental and applied research.
We discussed the perspectives of employing machine learning to facilitate further advancements of nonlinear metasurfaces. The progress of machine learning applications to photonics will lead to the rigorous prediction of the nonlinear response, where every aspect of the complex process of nonlinear light–matter interactions can be taken into account. This could facilitate substantially further developments of nonlinear metasurfaces and open up an avenue of opportunities for advanced nonlinear metasurface designs and functionalities.
We reviewed several emerging research directions facilitated by the advancements of dielectric nonlinear metasurfaces. Ultra-strong optical fields coupled with resonant nanostructures provide exciting new opportunities for efficient high-harmonic generation and non-perturbative light–matter interactions at the nanoscale. We expect to see developments in the fundamental understanding of non-perturbative nonlinear processes and, in particular, HHG in dielectric and semiconductor structures engineered on the subwavelength scale. We further expect to see the development of applied aspects of nanoscale HHG toward the miniaturization of novel light sources, such as extreme-UV and attosecond pulse lasers.
We concluded our Research Update by surveying effects in time-variant metasurfaces, an important extension of exiting capabilities of dielectric metasurfaces to control the frequency of light. While frequency conversion in time-variant metamaterials has seen tremendous interest in the past couple of years, there are other exciting directions where the temporally driven meta-atoms can shine. One of them is in creating nonreciprocal devices,144,150,151 which utilizes the Lorentz reciprocity breaking. The exotic cases of radio-frequency camouflage have been enabled by quasirandom temporal modulation.152 The possibility of information encoding in orbital angular momentum degrees of freedom has been enabled.153,154 One of the fundamental tenets of electromagnetic resonators, the time-bandwidth limit, has been challenged in resonators with time-variant parameters.86,155 Finally, a plethora of effects related to Floquet-type temporal Hamiltonians, traditionally associated with topological photonics,156 can utilize the synthetic frequency dimension in time-variant resonators,157 opening avenues for novel topological systems based on time-variant metasurfaces.
We believe that the nascent field of strong-field effects in dielectric metasurfaces can provide unique conditions and materials with tailored nonlinear responses,158 seeking applications in novel compact light sources and all-optical telecommunications.
