A growth diagram for chemical beam epitaxy of GaP_1−xN_x alloys on nominally (001)-oriented GaP-on-Si substrates Open Access

The incorporation of small amounts of N into GaP, besides decreasing the lattice parameter, induces an indirect-to-direct bandgap transition well described by the band anticrossing model.^1,2 Remarkably, for a N mole fraction x = 0.021, the ternary compound GaP_1−xN_x is lattice matched to Si with a direct bandgap of about 1.96 eV at room temperature, making this material rather unique for the monolithic integration of pseudomorphic red-light emitters and III–V photovoltaic solar cells with the widespread, highly scalable, and cost-effective Si technology.^3–10 Nevertheless, despite the great potential of this compound, commercial red-light emitting devices are still based on Al_xIn_yGa_1−x−yP alloys¹¹ and the efficiency of GaP_1−xN on Si photovoltaic solar cells remains too low as to consider this material combination a competitive technology.⁸ This situation arises from: (i) The challenging synthesis of GaP_1−xN alloys with high structural perfection. Specifically, the material quality of dilute-nitride compounds is known to degrade as the N content and the layer thickness are increased, as reported for thin films and devices grown, for instance, by metal-organic vapor phase epitaxy (MOVPE) and plasma-assisted molecular beam epitaxy (PA-MBE).^3,12–16 (ii) The common use of highly misoriented (4°–6°) instead of on-axis Si(001) substrates to avoid the creation of anti-phase domains,^12,17,18 a solution that undermines the integration of GaP_1−xN_x-based devices with the standards of Si technology.

Chemical beam epitaxy (CBE), an ultra-high-vacuum epitaxial growth technique characterized by the use of gaseous precursors in the form of molecular beams for both group-III and group-V elements,¹⁹ offers important advantages over alternative methods for the synthesis of GaP_1−xN_x compounds. On the one hand, the ultra-high-vacuum environment enables the use of powerful techniques to optimize and monitor the growth, such as reflection high-energy electron diffraction (RHEED). On the other hand, as N is not produced by a radio-frequency N₂ plasma source, there is no crystal-damage associated with the impingement of energetic ionized N species,²⁰ a major issue in PA-MBE that enforces the realization of ex situ rapid-thermal annealing treatments to improve the material quality.^16,20–22 Furthermore, from technical and safety points of view, CBE is also advantageous as compared to PA-MBE because the residual gases can be easily extracted during and after the growth process. Therefore, it is possible to reduce the risks associated with the accumulation of hazardous P-containing materials inside the epitaxial reactor. So far, however, reports on the synthesis of GaP_1−xN_x compounds by CBE are scarce, limited to the analysis of individual growth parameters on the chemical composition, and restricted to the use of either bulk GaP(001) or misoriented Si(001) substrates.^10,23,24 There is thus the need of comprehensively exploring the chemical beam epitaxy of GaP_1−xN_x alloys on nominally (001)-oriented Si substrates to elucidate the potential of CBE for pseudomorphically integrating GaP_1−xN_x devices on Si.

In this work, we investigate the chemical beam epitaxy of GaP_1−xN_x alloys on CMOS-compatible GaP-on-Si(001) substrates, as desired for the integration of III–V compounds on Si, with the aim of establishing how to control the chemical composition and properties of these compounds in CBE. Upon independently analyzing the influence of growth temperature and the fluxes of the group-V precursors on the incorporation of N into GaP_1−xN_x, all results are summarized in a universal equation that we used to construct a growth diagram. This diagram, which illustrates the dependence of the chemical composition on the growth conditions as well as the impact of the growth parameters on both the chemical homogeneity and the surface morphology, can be used as a guide to control the properties of GaP_1−xN_x compounds grown by CBE. Finally, on the basis of the studies presented here, we conclude on the feasibility of CBE to produce chemically homogeneous and flat GaP_1−xN_x layers lattice matched to Si.

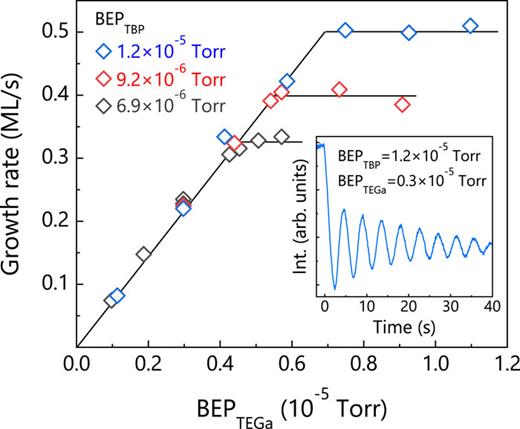

We prepared the samples in a Riber CBE32 system using triethylgallium (TEGa), tertiarybutylphosphine (TBP), and 1,1-dimethylhydrazine (DMHy) as gas sources for Ga, P, and N, respectively. Low-temperature (120 °C) gas injectors were used for both TEGa and DMHy, while a high-temperature one (820 °C) was employed for TBP to increase its cracking efficiency, as attested by quadrupole mass spectrometry. The growth chamber is equipped with an infrared optical pyrometer for monitoring the substrate temperature, a 15 keV RHEED gun, and an ion gauge that can be placed at the position of the substrate holder during growth to assess the beam equivalent pressure (BEP) of each gas precursor, a magnitude directly proportional to its flux. In the cases of Ga and P, we previously correlated the BEP values of the gas precursors with their actual effective fluxes (i.e., the amount of material that is actually incorporated per time and area units) in equivalent growth rate units of monolayers per second (ML/s) by measuring the growth rate of GaP for different values of BEP_TEGa and BEP_TBP. We note that 1 ML corresponds to $2/aSi2$⁠, where a_Si is the Si lattice constant, i.e., 1 ML = 6.78 × 10¹⁴ atoms/cm². The correlation between the BEP values and the fluxes is illustrated in Fig. 1, where the growth rate of GaP, extracted from the frequency analysis of RHEED intensity oscillations, is represented as a function of BEP_TEGa for three different values of BEP_TBP. As can be observed, the growth rate linearly increases with BEP_TEGa (P-rich regime) until becoming limited by BEP_TBP (Ga-rich regime). Further technical details about the CBE system can be found elsewhere.²⁵

All samples were grown on 2 × 2 cm² GaP-on-Si(001) substrates diced from a 12 in. wafer purchased from NAsP_III/V. This wafer, despite its nominally exact (001) orientation, exhibits a slight miscut of $≈0.3°$ toward one of the four $110$ directions, as determined by high-resolution x-ray diffraction (HRXRD). The GaP layer, free of dislocations, stacking faults, and twins, is 25 nm thick and possesses a smooth surface (root mean square roughness of 0.3 nm) without anti-phase domains. The substrates were In-bonded onto Mo holders and outgassed under TBP supply inside the growth chamber at 610 °C until observing the appearance of a clear (2 × 4) surface reconstruction. The latter reflects the complete thermal desorption of the native oxide layer formed on the purchased wafer due to air exposure. Upon desorbing the oxide, we prepared a 15 nm thick GaP buffer layer at 580 °C to planarize the surface and bury possible impurities. This layer was grown under P-rich growth conditions with BEP_TBP = 1.2 × 10⁻⁵ Torr and BEP_TEGa = 0.3 × 10⁻⁵ Torr, values that correspond to fluxes of 0.5 and 0.22 ML/s, respectively (see Fig. 1). Under these conditions, GaP grows layer-by-layer, as evidenced by the observation of strong RHEED intensity oscillations (see the inset of Fig. 1). After the growth of the GaP buffer layer, GaP_1−xN_x was grown for 60 min, which results in a thickness of about 210 nm. As discussed below, different series of samples were prepared to independently investigate the impact of growth temperature and the fluxes of DMHy and TBP on N incorporation taking as the starting point the V/III ratio employed for the growth of the GaP buffer layer, i.e., 2.3.

High-resolution x-ray diffraction measurements were performed with CuK_α1 radiation (wavelength λ = 1.540 56 Å) using a BEDE D3 diffractometer equipped with a four-bounce Si(220) double-crystal monochromator and a Göbel mirror. Both reciprocal space maps (RSMs) and ω/2θ scans were acquired with a 0.5 mm slit in front of the detector. All measurements were performed along the direction of the miscut. The chemical composition and the strain state of the layers were deduced from the peak locations in RSMs recorded along symmetrical 004 and asymmetrical 115 Bragg reflections. As can be observed in the exemplary RSMs shown in Fig. 2, we clearly resolve the GaP_1−xN_x, GaP, and Si reflections. To calculate the chemical composition and the strain, we took into account the possible tilt of the epitaxial layers with respect to the normal of the Si substrate surface, γ, as described in Refs. 26 and 27. The obtained values of γ are $≈10$ arc sec, i.e., one order of magnitude smaller than those reported for GaP layers grown on misoriented Si(001) substrates.²⁸ The GaP_1−xN_x stiffness constants were estimated according to Vegard’s law. The GaP and GaN stiffness constants and lattice parameters were taken from Ref. 29.

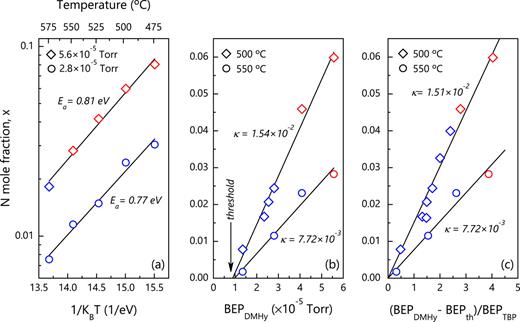

In this section, we systematically analyze the individual impact of the growth temperature and the fluxes of DMHy and TBP on the incorporation of N into GaP_1−xN_x. Figure 3(a) shows the N mole fraction x as a function of growth temperature for BEP_TBP = 1.2 × 10⁻⁵ Torr and two different values of BEP_DMHy, namely, 2.8 × 10⁻⁵ and 5.6 × 10⁻⁵ Torr. The N mole fractions shown in Fig. 3 are mean values, as some samples exhibit evidence of chemical phase separation (the x values of phase-separated samples are shown using red color in Fig. 3). We will return to this point in Sec. III B. Regardless of the BEP_DMHy value, we observe an exponential decrease in x with increasing growth temperature. Specifically, as the growth temperature is varied between 475 and 575 °C, x decreases from 0.03 to 0.008 for BEP_DMHy = 2.8 × 10⁻⁵ Torr and from 0.081 to 0.018 for BEP_DMHy = 5.6 × 10⁻⁵ Torr. The maximum N mole fraction achieved here using DMHy as N source, 0.08, is significantly higher than the previous values reported for GaP_1−xN_x layers grown by CBE using either NH₃²³ or monomethylhydrazine (MMHy)²⁴ (x = 0.0008 for Ref. 23 and 0.0189 for Ref. 24). Returning to Fig. 3(a), the observed temperature dependencies of x are well described by the Arrhenius law. The fits to the experimental data included in Fig. 3(a) yield activation energies of (0.77 ± 0.05) and (0.81 ± 0.05) eV for BEP_DMHy = 2.8 × 10⁻⁵ and 5.6 × 10⁻⁵ Torr, respectively. The activation energies are thus rather similar when taking into account the experimental uncertainties. Hence, the incorporation of N as a function of growth temperature can be written as

where k_B is Boltzmann’s constant, by using the mean activation energy value of E_a = (0.79 ± 0.05) eV and a BEP_DMHy dependent exponential prefactor A. In the present case, we found A = 2.05 × 10⁻⁷ for BEP_DMHy = 2.8 × 10⁻⁵ Torr and A = 2.97 × 10⁻⁷ for BEP_DMHy = 5.6 × 10⁻⁵ Torr. The decrease in x with growth temperature is comparable to those reported for samples grown by plasma-assisted gas-source molecular beam epitaxy (GS-MBE)³⁰ and MOVPE using DMHy.^31,32 In the case of MOVPE, the temperature dependence of x was also well described by the Arrhenius law, but with slightly higher activation energies, specifically, 0.94–1 eV.^31,32 In accordance with previous reports, we attribute the decreasing N content with increasing growth temperature to the desorption of N-related by-products resulting from the dissociation of DMHy (NH₂CH₃, NH₃, and NH₂) and/or to the direct desorption of N atoms from the GaP_1−xN_x surface.^31–34

Next, we investigate the influence of the impinging fluxes of DMHy and TBP on the incorporation of N. In principle, one would expect a dependence of x on the BEPs of DMHy and TBP given by

where s₁ and s₂ are coefficients including both the sensitivity of BEP measurements to the particular precursor molecules (caused by their specific ionicity) and the incorporation efficiencies of N and P atoms with respect to the fluxes of DMHy and TBP, respectively.³⁵ Since dilute nitrides are characterized by small x values, s₁BEP_DMHy ≪ s₂BEP_TBP, and Eq. (2) can thus be approximated by

with κ = s₁/s₂ representing the ratio between the N and P incorporation efficiencies with respect to the BEP values of DMHy and TBP. Notice that, according to Eq. (1), κ must depend on the growth temperature.

Let us see now whether the incorporation of N as a function of the impinging fluxes is actually well described by Eq. (3). Figure 3(b) presents the variation of the mean N mole fraction x with BEP_DMHy at two different growth temperatures, 500 and 550 °C, using a constant flux of TBP given by BEP_TBP = 1.2 × 10⁻⁵ Torr. The experimental data show a nearly linear dependence with a temperature dependent slope. The values of κ derived from the fits are (1.54 ± 0.09) × 10⁻² and (7.72 ± 0.9) × 10⁻³ for 500 and 550 °C, respectively. Consequently, within the investigated temperature range, N incorporation is about two orders of magnitude less efficient than P incorporation with respect to the BEP values of DMHy and TBP. Interestingly, the linear fits do not intercept the x-axis at zero, as predicted by Eq. (3). There is, however, a BEP_DMHy threshold to overcome in order to incorporate a measurable amount of N. We attribute this threshold to the thermal desorption of N-reactive species and/or N atoms. On this basis, we rewrite the dependence of x on the impinging fluxes as

where BEP_th represents the above threshold. The values of BEP_th extracted from the fits shown in Fig. 3(b) are 7.84 × 10⁻⁶ and 9.75 × 10⁻⁶ Torr for the series of samples prepared at 500 and 550 °C, respectively. In consequence, BEP_th increases, as expected, with the growth temperature, but the variation is small when compared with the values of BEP_DMHy.

To further challenge Eq. (4), we plot in Fig. 3(c) x vs (BEP_DMHy-BEP_th)/BEP_TBP for the samples shown in Fig. 3(b) as well as for three additional samples. These last three samples were grown at 500 °C with BEP_DMHy = 2.8 × 10⁻⁵ Torr using different BEP_TBP values than the one used to prepare the samples shown in Figs. 3(a) and 3(b), namely, 8.4 × 10⁻⁶, 1 × 10⁻⁵, and 1.3 × 10⁻⁵ Torr. The linear fits included in Fig. 3(c) demonstrate that Eq. (4) correctly describes all our growth data [the fit for the series prepared at 550 °C is analogous to the one presented in Fig. 3(b), but it is shown here again for the sake of completeness]. The κ value derived for the samples grown at 500 °C, (1.51 ± 0.05) × 10⁻², is almost identical to the one found before. Therefore, these results reinforce the validity of Eq. (4) to describe the dependence of x on the impinging fluxes for N mole fractions up to at least 0.06, i.e., the maximum x value shown in Fig. 3(c).

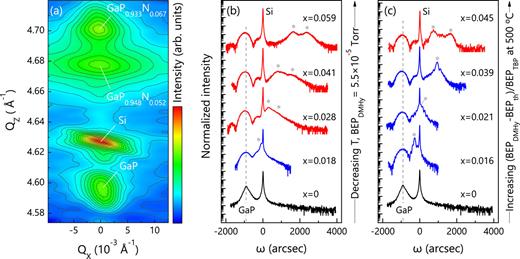

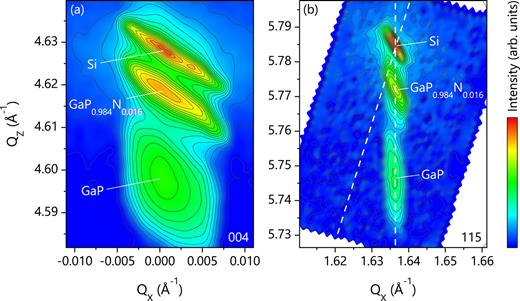

The N mole fractions shown in Fig. 3 are the mean values because some GaP_1−xN_x layers are chemically phase separated, as discussed here. The blue and red data points in Fig. 3 correspond to the single- and phase-separated samples, respectively. The single-phase samples are characterized by exhibiting a unique well-defined GaP_1−xN_x peak in RSMs, as exemplarily illustrated in Fig. 2. In contrast, phase-separated samples exhibit two GaP_1−xN_x peaks, as shown in Fig. 4(a), for a sample with a mean N mole fraction of 0.06 grown at 500 °C with BEP_DMHy = 5.6 × 10⁻⁵ Torr and BEP_TBP = 1.2 × 10⁻⁵ Torr. For this sample, the GaP_1−xN_x peaks detected in the RSM seem to be originated from regions with N mole fractions of 0.052 and 0.067. In general, we found that the relative deviation of the chemical composition of the two different phases with respect to the mean chemical composition (Δx/x) is always below 25%.

As can be observed in Figs. 3(a) and 3(c), phase separation occurs as the N mole fraction is increased by either lowering the temperature or increasing the (BEP_DMHy-BEP_th)/BEP_TBP ratio. The transition between single- and phase-separated GaP_1−xN_x layers as the growth parameters are varied is exemplified in Figs. 4(b) and 4(c), where we present ω/2θ HRXRD scans around the symmetric 004 Bragg reflections of GaP_1−xN_x, GaP, and Si for two different series of samples. The blue scans correspond to the single-phase samples, and the red scans correspond to the phase-separated samples. As reference, we include in Figs. 4(b) and 4(c) the scan of a 250 nm thick GaP layer prepared on the same type of substrate as our GaP_1−xN_x layers. The 004 GaP peak of the reference sample appears at the same angular position as for the GaP_1−xN_x/GaP samples, but it is narrower due to its higher thickness. In Fig. 4(b), it can be seen how the GaP_1−xN_x peak, labeled *, shifts toward larger angles as the N content is increased by lowering the growth temperature while keeping constant the impinging fluxes with BEP_DMHy = 5.5 × 10⁻⁵ Torr and BEP_TBP, 1.2 × 10⁻⁵ Torr. For these particular fluxes, phase separation starts at some point between x = 0.018 and 0.028, as revealed by the split of the GaP_1−xN_x reflection in two different peaks for x ≥ 0.028. Analogously, Fig. 4(c) illustrates the onset of phase separation as the N content is increased by raising BEP_DMHy at 500 °C with BEP_TBP = 1.2 × 10⁻⁵ Torr. Importantly, despite of the similar trend as x increases, it is worth noting that in this case it is possible to obtain single-phase samples with comparatively higher N mole fractions, up to a value between 0.039 and 0.045. Therefore, our results reveal that phase separation is not just determined by the N content, but it also depends on the specific growth parameters. Within the framework of this study, the maximum N mole fraction we achieved without phase separation was 0.039.

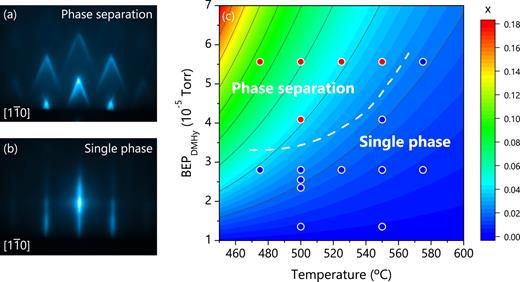

Last but important, the in situ monitoring of the growing surface by RHEED revealed a univocal correlation between the growth mode of the GaP_1−xN_x layer and the ex situ detection of chemical-phase separation by HRXRD. As shown in Fig. 5(a), upon the growth of phase-separated GaP_1−xN_x layers, we observed a three-dimensional RHEED pattern along the $[11̄0]$ azimuth (RHEED azimuths were assigned according to Ref. 36). The RHEED pattern is composed of chevrons revealing the formation of well-defined facets. According to the mean value of the chevron angles, as measured on raw RHEED screen images, (46 ± 3)°, the roughing is likely caused by the formation of {113} facets. In contrast, the RHEED pattern of single-phase samples along the $[11̄0]$ azimuth is streaky, indicating a flat surface morphology [see Fig. 5(b)]. These results allow us to conclude that (i) phase separation can be inferred in situ during growth by RHEED, and (ii) up to at least x = 0.039, it is possible to synthesize by CBE single-phase GaP_1−xN_x layers with flat surface morphologies.

All previous results are summarized here in a growth diagram that describes how the chemical and morphological properties of GaP_1−xN_x alloys grown by CBE depend on the growth parameters. Coming back to the control of the alloy composition, by combining Eqs. (1) and (4), the dependence of the N mole fraction on growth temperature and the BEP values of the N and P precursors can be written in a compact form as

where β is a constant that might depend only on the impinging flux of the Ga precursor. By taking the mean values of E_a and BEP_th as 0.79 eV and 1.2 × 10⁻⁵ Torr, we derived from the values of A and κ reported in Sec. III A a β value of 1.15 × 10⁻⁷ for the TEGa flux used in this study, corresponding to 0.22 ML/s.

Figure 5(c) depicts a growth diagram, which visualizes according to Eq. (5) the impact of growth temperature and BEP_DMHy on the incorporation of N into GaP_1−xN_x. This diagram quantitatively holds for BEP_TBP = 1.2 × 10⁻⁵ Torr and the TEGa flux used in this work. Nevertheless, analogous diagrams could be constructed for arbitrary values of BEP_TBP using Eq. (5). Regarding the role of the actual TEGa flux, it could affect the specific values of x, but we expect a comparable qualitative dependence of the N mole fraction on the growth temperature and BEP_DMHy.

Besides the variation of x with growth temperature and BEP_DMHy, we also indicate in the growth diagram both the growth conditions of the samples grown in this study with BEP_TBP = 1.2 × 10⁻⁵ Torr (solid symbols) and the approximate boundary between the growth parameters resulting in single-phase and phase-separated GaP_1−xN_x layers (dashed line), as determined by the analysis of the samples by HRXRD. This boundary also applies to distinguishing between growth conditions leading to flat and rough surface morphologies, as single-phase and phase-separated samples exhibit two- and three-dimensional RHEED patterns, respectively, as discussed above. The accuracy of our growth diagram was tested by comparing the N mole fractions shown in there with the actual ones measured by HRXRD for the samples prepared using the parameters indicated by the solid symbols shown in Fig. 5(c). The relative mean deviation between the expected and actual x values (Δx/x) is $≈10%$⁠. Figure 5(c) thus provides a rather satisfactory description of x when considering all experimental uncertainties. Hence, Eq. (5) can be used to predict, with the aforementioned precision, the chemical composition of GaP_1−xN_x layers grown under unexplored growth conditions, at least for x values within the range analyzed here, i.e., 0 < x < 0.09.

To conclude, the growth diagram also reflects that identical chemical compositions can be achieved by combining different growth temperatures and BEP_DMHy values, as these two parameters play opposite roles for the incorporation of N. It is also important to note that the phase-separated growth regime tends to extend toward the lower values of x as the growth temperature is increased. Because of this effect and the exponential temperature dependence of x on the growth temperature, we recommend using moderate growth temperatures to prevent phase separation as well as to minimize the impact of possible temperature deviations on the final alloy composition. Nevertheless, it remains to be seen the impact of growth temperature on point defect formation.

We have comprehensively investigated the incorporation of N into GaP_1−xN_x layers grown on (001)-oriented GaP-on-Si substrates by CBE using as gas sources DMHy, TBP, and TEGa. According to our study, the N mole fraction (i) exhibits an Arrhenius-like temperature dependence characterized by an apparent activation energy of (0.79 ± 0.05) eV, (ii) increases linearly with the flux of DMHy, and (iii) is inversely proportional to the flux of TBP. The results are summarized in an empirical universal equation that can be used to predict the N mole fraction within the compositional range analyzed in this study, 0 < x < 0.09, with a relative degree of uncertainty of $≈10%$ over the targeted value. All results are further illustrated in a growth diagram, which does not only visualize the dependence of x on growth temperature and the flux of DMHy for given fluxes of TBP and TEGa but also emphasizes under which growth conditions it is possible to obtain single-phase and flat GaP_1−xN_x layers. Importantly, although as a general trend chemical phase separation is triggered as the N mole fraction is increased, the threshold for the onset of phase separation is not just determined by x; it also depends on the specific growth parameters. The maximum value of x we achieved for single-phase and flat GaP_1−xN_x layers was 0.039. This value is well above 0.021, i.e., the required N mole fraction for the synthesis of GaP_1−xN_x layers lattice matched to Si(001). This work thus evidences the feasibility of CBE for the monolithic integration of pseudomorphic GaP_1−xN_x-based optoelectronic devices on Si.
