Role of the ferroelastic strain in the optical absorption of BiVO₄ Open Access

Bismuth vanadate (BiVO₄) has recently attracted considerable attention for photocatalytic applications.^1–4 This is primarily due to its optical absorption properties in the visible range: the reported bandgap value⁵ of 2.5 eV is close to the optimal value⁶ of 2.2 eV desired for an efficient use of the solar spectrum. The position of the valence band edge of BiVO₄ is also well suited for efficient band-alignment for photoanodes in water splitting devices.⁷ Besides, bismuth vanadate exhibits high chemical- and photo-stability in aqueous electrolytes,⁸ and hence does not require a protective layer. To fully understand and optimize the behavior of BiVO₄ as a photoabsorber, a detailed understanding of its electronic and optical properties is highly desirable. This task, however, is relatively complex compared to classical semiconducting materials, due to the chemical complexity of BiVO₄, its optical anisotropy, and its polymorphism.

BiVO₄ has three common crystal forms whose accessibility depends on the synthesis method:⁹ the zircon structure with a tetragonal symmetry and two scheelite structures with the monoclinic and tetragonal symmetry.^9,10 It is known that only the monoclinic scheelite BiVO₄ possesses optical properties suitable for applications in photocatalysis.¹¹ In its scheelite structure, BiVO₄ exhibits a reversible second-order ferroelastic phase transition at T_c = 523 ± 5 K from a high-temperature tetragonal symmetry (space group I4₁/a) to a low-temperature monoclinic symmetry [space group I2/a – C2/c (15) in the standard setting].^12–15 This phase transition is driven by a spontaneous shear strain developed in the plane perpendicular to the tetragonal axis; it was studied in detail in the past as a rather uncommon example of a proper ferroelastic transition.^16–22

The electronic and optical properties of scheelite BiVO₄, in contrast, have been under focus much more recently, and are still under discussion. While the value of the bandgap, around 2.5 eV, is agreed on, its nature remains controversial. On the one hand, several experimental works report a direct bandgap.^23–25 On the other hand, most density functional theory (DFT) studies conclude that the bandgap is indirect, but also predict a direct transition only a few hundreds of meV above the indirect bandgap.^10,26 This scenario is difficult to confirm by classical methods, such as optical spectroscopy or ellipsometry. Only recently, Cooper et al. confirmed by resonant inelastic X-ray scattering that the fundamental bandgap is indeed indirect with a direct band-to-band transition only 200 meV above it.⁵ In addition, early single crystal studies have reported strong changes in color with varying temperatures.²¹ This raises important questions on whether the direct and the indirect transition show the same temperature dependence, and how reliable the comparison of the experimental room temperature data with 0 K-DFT calculations is. Finally, because of the anisotropic structure of scheelite BiVO₄, dichroism is expected and has indeed been predicted by several groups through DFT calculations^10,26,27 but has not been confirmed experimentally.

Here, we address these questions by a linear spectroscopy study of scheelite BiVO₄ single crystals as a function of temperature. We quantify the thermochromic behavior and the anisotropy of the optical absorption and show that it is sensitive to the ferroelastic phase transition. Specifically, we show that, in the monoclinic phase, the shift of the absorption edge is dominated by the ferroelastic shear strain.

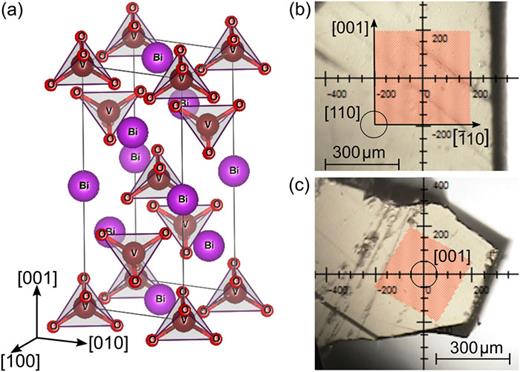

Two samples were cut and polished from a larger single crystal pulled by the Czochralski-method. Figure 1(a) shows the tetragonal unit cell of scheelite BiVO₄; all forthcoming indications of orientations are given with respect to this tetragonal unit cell. Note that the tetragonal 4-fold axis becomes the monoclinic 2-fold axis, and thus remains the principal axis in both phases. The first sample has a (110) surface orientation and a thickness of 360 μm; the second sample has a (001)-oriented surface and a thickness of 100 μm, see Figs. 1(b) and 1(c). The transmittance and reflectance measurements were performed with a Jasco MSV-370 microspectrophotometer. The spectrophotometer operates a deuterium lamp for the UV and a halogen lamp for the visible and near infrared light range and collects the light using non-dispersive Schwarzschild objectives. The samples were placed in a Linkam THMS600 heating stage. Using an aperture, the measurement areas were set to 400 × 400 μm² and 300 × 300 μm² for the (110)-oriented sample and the (001)-oriented sample, respectively. In all cases, great care was taken to position the measurement area on the sample in homogeneous regions, i.e., free of domain walls or surface cracks. For all reflectance measurements, an aluminum mirror was used for calibration.

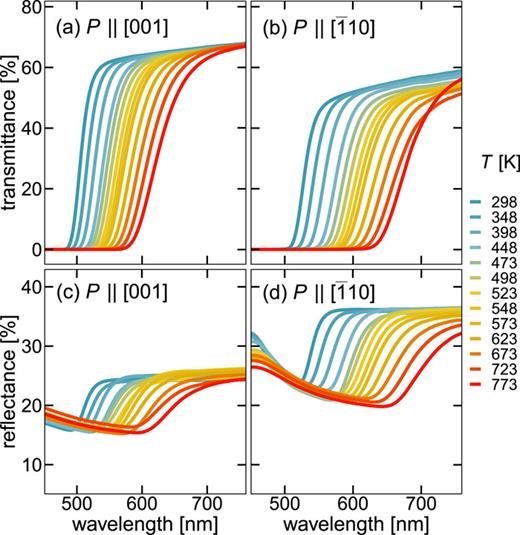

We first discuss the results for the (110)-oriented sample. Experiments were performed with two different directions of the linear light polarization P: first, with P parallel to the crystallographic axis [001] and second, with $P∥[1¯10]$⁠, see Fig. 1(b). The data are shown in Fig. 2. For both light polarization directions, reflectance and transmittance data show a pronounced temperature dependence, with an absorption edge shifting to longer wavelengths as temperature increases. To investigate the nature of the bandgap and its possible change with temperature, the absorption coefficient was calculated. In the spectral range of the fundamental absorption edge, the absorption coefficient α is approximated by

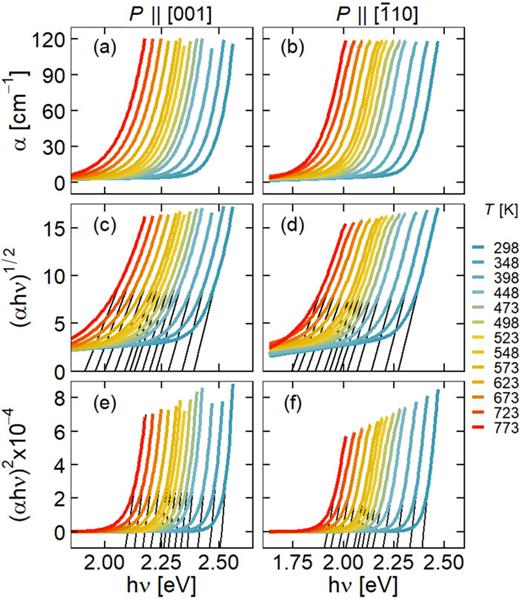

where T is the transmittance, R the reflectance, and t the sample thickness.²⁸ Figures 3(a) and 3(b) show the absorption coefficient vs temperature for both polarization directions. The theory of interband optical absorption reveals that the absorption coefficient α varies with the photon energy according to the well-known relation (αhν)ⁿ = A(hν − E_opt), where A is a constant and E_opt is the optical absorption edge.²⁹ Here, n characterizes the nature of the transition process, which dominates the optical absorption. We have n = 2 for a direct band-to-band transition and n = 0.5 for an indirect band-to-band transition. Usually, the value of E_opt is determined by plotting (αhν)ⁿ vs the photon energy hν in a so-called Tauc plot. Hence, data are described by a straight line for n = 2 in the case of a direct bandgap and for n = 0.5 in the case of an indirect bandgap. This allows us to determine the nature of the bandgap. E_opt is given by the intercept of the linear fit with the photon-energy axis. Figures 3(c) and 3(d) show the Tauc plots for both light polarizations assuming indirect (n = 0.5) and Figs. 3(e) and 3(f) for direct (n = 2) transition. In all four cases, the data can be described by a straight line making it difficult to conclude on the nature of the transition with this measurement alone. Considering the similar curve shape of the absorption coefficient at each temperature, there are no indications that first, the nature of the transition differs from one to the other light polarization and second, the nature of the transition changes with temperature. Following the recent conclusions by Cooper et al. on the indirect nature of the bandgap, we extract an energy for the absorption edge of 2.27 eV for $P∥[1¯10]$ and of 2.39 eV for P ∥ [001] at room temperature.

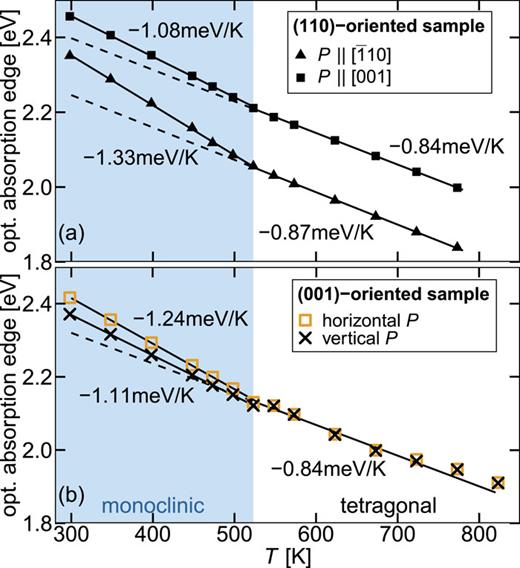

In the next step, we investigated the anisotropy of the optical absorption. To analyze the data without having to rely on any particular hypothesis on the nature of the bandgap, we define the absorption edge as the inflexion point of the transmittance curve. We determined this point by fitting the first derivative of the transmittance curve with an asymmetric Gaussian function. This function was chosen because it produces a satisfactory fit for all data and provides a consistent analysis, although we do not claim any particular physical meaning for it. The results are shown in Fig. 4. In first approximation, the evolution of the absorption edges was fitted linearly, with separate fits above and below T_c. Figure 4(a) shows the absorption edge obtained for the (110)-oriented sample for both polarizations. We notice that first, the absorption is clearly anisotropic in the tetragonal phase, with an energy difference of ≈0.2 eV between the two polarizations. This difference remains constant for temperatures above T_c, and the absorption edge decreases at the same rate of ≈−0.85 meV K⁻¹ for both light polarizations. Second, we observe a clear kink at T_c in the temperature evolution of the absorption edge for both light polarizations. Below T_c, in the monoclinic phase, the evolutions for both light polarizations remain linear, albeit with different slopes. This demonstrates that the absorption edge is sensitive to ferroelastic strain. These findings are robust even if alternative methods to extract the absorption edge are used. The corresponding plots are provided in the supplementary material.

In the monoclinic phase, the optical absorption is expected to be anisotropic also in the plane perpendicular to the principal axis. To estimate the magnitude of this anisotropy, we performed a similar experiment with the (001)-oriented sample. We first measured the transmittance at room temperature, at a fixed wavelength of 515 nm, as a function of the polarization direction (see supplementary material). We then positioned the crystal in such a way that the extrema of this curve were found for vertical and horizontal light polarization [Fig. 1(c)], and proceeded to the measurements over the full wavelength range. The difference in absorption edges measured in this configuration amounts to 45 meV at room temperature. Transmittance spectra were also collected with increasing temperature, and the corresponding absorption edges are shown in Fig. 4(b). The energy difference decreases with increasing temperature and vanishes at T_c, as expected from the tetragonal symmetry. This should be considered as a first estimation, notably because we neglect here the effect of birefringence. A detailed study of the anisotropy in the monoclinic plane would require further experimental work. For the purpose of the present work, we simply observe that the anisotropy in this plane is comparatively small so that the fundamental bandgap is found for the light polarized perpendicular to the principal axis at room temperature and above.

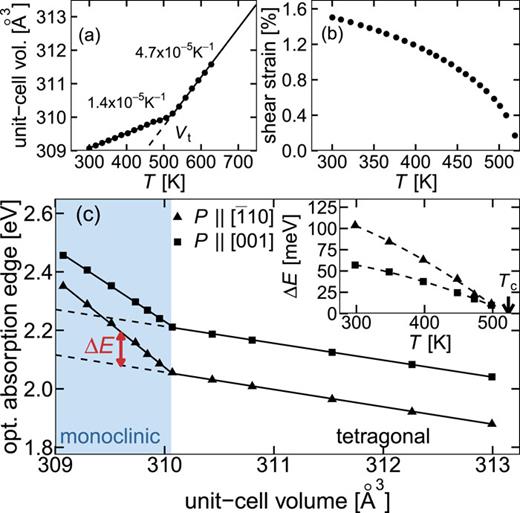

Having established that the optical absorption is clearly sensitive to the ferroelastic transition, it is insightful to decompose the observed variations of the absorption edges as a function of the different components of strain. For that purpose, we use the detailed knowledge of the volume, lattice constants, and strains across the phase transition in Ref. 21, and focus here on the (110)-oriented sample. Figure 5(a) shows the evolution of the unit-cell volume across the phase transition and the corresponding thermal expansion coefficients. In the high-symmetry tetragonal phase, only thermal expansion is present and both absorption edges follow linear and parallel evolutions at an average rate of ≈−0.85 meV K⁻¹ for a volumetric thermal expansion coefficient of ≈4.7 × 10⁻⁵ K⁻¹ (details of the calculations are provided in the supplementary material). At the transition, the volume exhibits a kink and the thermal expansion is reduced to 1.4 × 10⁻⁵ K⁻¹ below T_c. Assuming the same scaling, this would account for a change in the absorption edge of ≈−0.25 meV K⁻¹, which is only a small fraction of the total change shown in Fig. 4(a). We conclude that the ferroelastic shear strain dominates the evolution of the optical bandgap in the monoclinic phase. This spontaneous shear strain develops in the (ab) plane, has B_g symmetry, and is the primary order parameter of the transition.²¹ In Fig. 5(b), we show the temperature evolution of the total shear strain calculated from the a, b, and γ lattice parameters as defined by Aizu³⁰ and reported in Ref. 21. The respective influences of volume vs shear strain to the optical absorption are best illustrated in Fig. 5(c), where we show the absorption edges vs the unit-cell volume. The contribution of the simple volume change in the monoclinic phase is shown by the extrapolated dashed line and is clearly marginal. In the inset of Fig. 5(c), we also show the difference in optical bandgap ΔE caused by the phase transition as a function of temperature for both polarizations. In both cases, the evolution deviates from linearity, which again is an indication that they scale predominantly with the shear strain.²¹

Finally, we discuss our observations in the light of the current theoretical understanding of the optical absorption in scheelite BiVO₄.^10,26,27,31 Our experimental observations, as described above with our tentative Tauc plots, are consistent with the facts given in the introduction, at all temperatures up to 773 K. We confirm the strong anisotropy of the optical absorption. At all temperatures, and irrespective of the anisotropy in the (001)-plane, the lowest absorption edge is found when the light is polarized perpendicular to the principal axis. For a quantitative comparison of the bandgap value(s) and the anisotropy, one should bear in mind the strong temperature dependence, and therefore extrapolate the experimental values down to 0 K. This extrapolation is not trivial because the behavior at low temperatures is non-linear for various reasons: the strain dependence described above, and a possible saturation of the order parameter at low temperatures,³² and also the usual non-linear lattice anharmonicity and electron–phonon interactions.³³ The first effect can be taken into account by fitting a power law $ΔEopt=A(Tc−T)β$ to the data below T_c—this yields an extrapolated value of 2.62 eV at 0 K. Saturation of the order parameter in BiVO₄ can be neglected, as demonstrated by birefringence studies.³⁴ On the other hand, the other non-linear effects cannot be neglected a priori. In the supplementary material, we use physical arguments to show that they could lead to an additional lowering of the extrapolated value by as much as ≈0.3 eV. In any case, the experimental value agrees well with the calculated value of 2.47 eV from Ref. 10. On the other hand, we find a significant difference in the magnitude of the anisotropy between the light polarized parallel and perpendicular to the principal axis; because of the influence of the shear strain, the difference between absorption edges is reduced to 90 meV at 0 K, which is much weaker than the theoretical value¹⁰ of 0.5 eV. In light of the sensitivity to shear strain described above, we hypothesize that these disagreements find their origin in the accuracy with which the calculation captures the small monoclinic distortion of the scheelite structure. Better quantitative predictions may require a particular attention to these structural aspects.

In summary, the optical absorption in scheelite bismuth vanadate has been measured over a wide temperature range, and the importance of its ferroelastic transition has clearly been established. The bandgap of 2.27 eV extracted at room temperature is in good agreement with the bandgap values published previously. While our data do not directly provide conclusive support for the indirect nature of the bandgap, they do show that its nature remains unchanged in the investigated temperature range. We find that the high-symmetry tetragonal phase exhibits a constant anisotropy in optical absorption of 0.2 eV, depending on whether the light is polarized parallel or perpendicular to the principal axis. The fundamental bandgap was found for the light polarized perpendicular to the principal axis, consistent with the expectations from DFT calculations, pointing to the possibility to activate different band-to-band transitions by playing with the polarization of the light. We show that the position of the absorption edge of bismuth vanadate is very sensitive to the onset of the spontaneous shear strain that develops in the low-symmetry phase, dominates the evolution, and enhances the thermochromic behavior. These results suggest that the optimization of the optical properties of BiVO₄-based light absorbers would benefit from a careful control of the crystallite orientation. The sensitivity to strain could also be exploited via interface effects, epitaxy, nano-size effects, or cation substitution.

See the supplementary material for a description of alternative methods to extract the absorption edge from optical spectra, details on the positioning of the (001)-oriented sample, details on the calculation of the thermal expansion, and a discussion of the non-linear evolution of the absorption edge at low temperatures.
