We report on record electron mobility values measured in lightly Si doped homoepitaxial β-Ga2O3 grown by metal-organic chemical vapor deposition. The transport properties of the films were studied using temperature-dependent Hall measurements. Numerous (010) β-Ga2O3 layers grown at different conditions showed peak electron mobility exceeding 104 cm2/V s at low temperature (LT), with the highest value of 11 704 cm2/V s at 46 K. The room temperature electron mobilities of the films were between 125 cm2/V s and 160 cm2/V s with the net background charge concentration between ∼5 × 1015 cm−3 and ∼2 × 1016 cm−3. The obtained LT mobility values for β-Ga2O3 were found to be comparable to or higher than the highest LT electron mobilities in bulk SiC and GaN films in the literature. The results demonstrate the capability of metalorganic chemical vapor deposition (MOCVD) for growing high quality ultrapure β-Ga2O3 epitaxial films that are suitable for high power electronic device applications.

β-Ga2O3 has attracted broad interest for power electronic applications owing to its superior material properties, including a large bandgap energy of ∼4.9 eV,1 a high critical breakdown field of ∼8 MV/cm,2,3 and the availability of freestanding high quality β-Ga2O3 substrates grown directly from the melt.4,5 The high critical breakdown field (Ec) leads to a large Baliga’s figure of merit (BFOM =εμEc3, where ϵ is the dielectric constant and μ is the carrier mobility)6 of ∼3400,2 which is four to ten times higher than that of GaN and SiC. Moreover, the controllable n-type doping3,7,8 and compensating acceptor doping9–11 achievable using various growth methods provide a suitable platform for realizing β-Ga2O3 based power devices. Its application for power electronics has already been demonstrated in key power devices, including MESFETs,2 Schottky barrier diodes (SBDs),12–15 and MOSFETs.16–18 To achieve the optimal performance of these devices, including high breakdown voltage and low on-resistance, realizing β-Ga2O3 drift regions with high electron drift mobility and low charge concentration is essential. This necessitates high quality epitaxial films with low dislocation density and defect density, as well as low background or minimal unintentional impurity concentration in the film.

Recently, the first high electron mobility of ∼2800 cm2/V s at low temperature (LT) was demonstrated in a two-dimensional electron gas (2DEG) developed by molecular beam epitaxy (MBE) using the modulation-doped β-(Αl, Ga)2O3/β-Ga2O3 heterostructure.19 The high 2DEG mobility was attributed to better screening of the scattering centers and reduced impurity scattering due to the spatial separation between the dopant impurities and the 2DEG, but the mobility calculations indicated the existence of ∼1 × 1017 cm-3 background impurities in the UID Ga2O3 layer.19 Following this, subsequent improvement in the material quality of bulk homoepitaxial β-Ga2O3 films grown by metalorganic chemical vapor deposition (MOCVD) and hydride vapor phase epitaxy (HVPE) produced films with enhanced LT electron mobilities ranging between ∼3500 cm2/V s and ∼5000 cm2/V s.20–22 These improvements are primarily due to the reduced total background impurity concentrations to the low 1016 cm−3 range, which are unintentionally incorporated into the β-Ga2O3 films.21–24 Theoretical calculations show that for a clean β-Ga2O3 sample with no compensation acceptors (Na = 0) and low donor concentration (Nd ∼ 1 × 1015 cm−3), an electron mobility of >104 cm2/V s can be achieved at low temperatures.25 Similarly, in our recent work, where we demonstrated a RT mobility of 176 cm2/V s with a free charge density of 7.4 × 1015 cm−3 and a peak mobility of ∼3500 cm2/V s at 54 K, we predicted the possibility of achieving an LT mobility of 104 cm2/V s by growing clean β-Ga2O3 films with the shallow donor concentration of 5 × 1015 cm−3 and the compensation acceptor density of ∼1 × 1015 cm−3.22

In this letter, we present our recent experimental data that demonstrate the growth of superclean β-Ga2O3 epitaxial films with electron mobility over 104 cm2/V s by MOCVD. The highest LT electron mobility obtained in this work is 11 704 cm2/V s, which is the record value ever reported for β-Ga2O3, exceeding the theoretically predicted value for a clean β-Ga2O3.22,25 The obtained results are comparable with the highest LT mobility value of 12 400 cm2/V s reported for UID 4H-SiC films26 and higher than the highest LT mobility value of 7386 cm2/V s27 obtained in bulk GaN grown by hydride vapor phase epitaxy.

In this work, four ∼2.5 to 3.2 µm thick (sample Nos. 1–4) lightly Si doped β-Ga2O3 thin films were grown on Fe-doped (010) β-Ga2O3 substrates (Novel Crystal Technology) using Agnitron Technology’s Agilis R&D MOCVD system.22,28–30 Triethylgallium (TEGa) and pure oxygen (5N) were used as a precursor for Ga and oxidation, respectively. Ar (6N) gas was used as a carrier to deliver the TEGa vapor into the reactor. The Ar and O2 gases were passed through point-of-use purifiers to reduce the impurity to below the parts per million level. The layers were grown at ∼1 µm/h using growth pressure, substrate temperature, and O2/TEGa ratio in the ranges of 50–150 Torr, 800–1000 °C, and 1000–2500, respectively. The films’ thicknesses were measured using Filmetrics by growing the films on sapphire substrates that were simultaneously loaded into the reactor along with the β-Ga2O3 substrates. Silicon was introduced into the films using silane (SiH4) diluted in helium precursor. For each of the four films, the molar flow rate of silane was held constant to 2.5 × 10−12 mol/min.

The surface morphologies and crystal qualities of the films were analyzed by atomic force microscopy (AFM) and high-resolution x-ray diffraction (HRXRD). The results have shown comparable crystal and surface qualities for each film, and here, we present representative data for one of the films. Figure 1(a) shows the 2D AFM image of the representative film (sample No. 3) measured from a 20 × 20 µm2 scan area. The surface showed elongated grooves along the [001] crystal orientation and an rms roughness of ∼1.4 nm. The observed features are characteristics of step-bunching growth, which was previously observed for the films grown by MBE31 and MOCVD.7 In Fig. 1(b), the HRXRD (020) peak of the same epilayer is shown. The XRD full width at half maximum (FWHM) of the (020) peak from a 2θ-ω scan is ∼43 arc sec, which is comparable to the literature values reported for epitaxial films22,32 and bulk Ga2O3 substrates.33

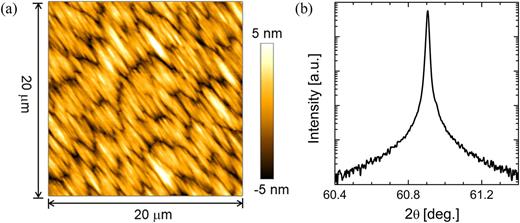

FIG. 1.

2D AFM image (a) and HRXRD (020) pattern (b) for MOCVD grown representative (010) β-Ga2O3 epitaxial film (sample No. 3). The AFM image is measured on a scan area of 20 × 20 µm2, which shows an rms surface roughness of 1.4 nm. The 2θ-ω XRD full width at half maximum is ∼43 arc sec.

FIG. 1.

2D AFM image (a) and HRXRD (020) pattern (b) for MOCVD grown representative (010) β-Ga2O3 epitaxial film (sample No. 3). The AFM image is measured on a scan area of 20 × 20 µm2, which shows an rms surface roughness of 1.4 nm. The 2θ-ω XRD full width at half maximum is ∼43 arc sec.

Close modal

The electronic properties of the samples were characterized using temperature-dependent Hall measurement in van der Pauw configuration. Ohmic contact pads with a metal stack of Ti/Pt/Au (50 nm/20 nm/150 nm, Fig. 2(a)) were deposited by electron beam evaporation at the corners of the rectangular samples. This was followed by a rapid thermal annealing at 500 °C in a N2 environment. The contacts remained Ohmic in the entire measurement temperature range from RT to 45 K as confirmed by the current-voltage measurements of the contacts. Representative current-voltage (IV) characteristics of the metal contacts of sample No. 2 measured at RT and 45 K are shown in Figs. 2(b) and 2(c), respectively. This Ohmic behavior ensured the reliability of the Hall measurements, especially in the cryogenic temperature range.

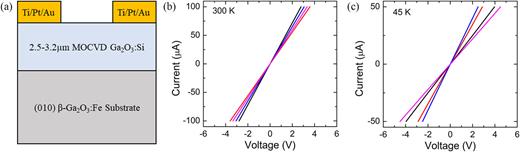

FIG. 2.

(a) Schematic structure of MOCVD grown lightly Si doped β-Ga2O3 layers studied in this work. The Ti/Pt/Au (50 nm/20 nm/150 nm) metal stacks were deposited as Ohmic contacts using the electron beam evaporator. Representative current-voltage (IV) characteristics measured for sample No. 2 at 300 K (b) and 45 K (c) confirmed Ohmic contact throughout the entire temperature range, which ensured reliable Hall measurements down to the cryogenic temperature range.

FIG. 2.

(a) Schematic structure of MOCVD grown lightly Si doped β-Ga2O3 layers studied in this work. The Ti/Pt/Au (50 nm/20 nm/150 nm) metal stacks were deposited as Ohmic contacts using the electron beam evaporator. Representative current-voltage (IV) characteristics measured for sample No. 2 at 300 K (b) and 45 K (c) confirmed Ohmic contact throughout the entire temperature range, which ensured reliable Hall measurements down to the cryogenic temperature range.

Close modal

Figures 3(a) and 3(b) present the temperature-dependent Hall mobility and sheet resistance of the films, respectively. The measured RT electron mobility for the films ranges between 125 cm2/V s and 160 cm2/V s with the corresponding free carrier concentration between ∼5 × 1015 and 2 × 1016 cm−3 (Table I), which are comparable to RT electron mobilities previously obtained using MOCVD.22,34–36 As the temperature reduces, the electron mobility increases, showing peak LT values of 7750 cm2/V s, 10 194 cm2/V s, 11 211 cm2/V s, and 11 704 cm2/V s, for sample Nos. 1–4, respectively. These peak mobilities are substantially higher than the recently reported LT electron mobilities of 4984 cm2/V s20 and 5000 cm2/V s21 for MOCVD and HVPE grown homoepitaxial Si doped Ga2O3 films, suggesting further improvement in the materials quality obtained in this work.

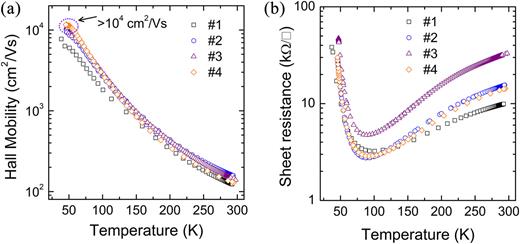

FIG. 3.

Temperature-dependent Hall electron mobility (a) and sheet resistance (b) for the four MOCVD grown films (sample Nos. 1–4). The peak electron mobilities are obtained in the temperature range of 40–50 K, while the lowest sheet resistance values are found at ∼93 K.

FIG. 3.

Temperature-dependent Hall electron mobility (a) and sheet resistance (b) for the four MOCVD grown films (sample Nos. 1–4). The peak electron mobilities are obtained in the temperature range of 40–50 K, while the lowest sheet resistance values are found at ∼93 K.

Close modal
TABLE I.

Measured room temperature (μRT) and peak or low temperature (μLT) electron mobilities for sample Nos. 1–4 as compared to the best available literature values on epitaxial films and bulk Ga2O3. Record mobilities reported for SiC and GaN bulk films are also included for comparison.

GrowthμRTnRTμLT
Samplesmethod(cm2/V s)(cm−3)(cm2/V s)TPeak (K)References
No. 1 MOCVD 125 2.2 × 1016 7 750 39 This work
No. 2 MOCVD 160 8.7 × 1015 10 194 46 This work
No. 3 MOCVD 146 5.3 × 1015 11 211 47 This work
No. 4 MOCVD 130 1.5 × 1016 11 704 46 This work
2DEG β(Al, Ga)2O3/β-Ga2O3 PAMBE 180 2.1 × 1012 (2DEG) 2 790 50 19
UID β-Ga2O3 MOCVD 150 2.9 × 1016 1 350 75 34
UID β-Ga2O3 MOCVD 176 7.4 × 1015 3 481 54 22
β-Ga2O3: Si MOCVD 160 2.7 × 1016 4 984 45 20
β-Ga2O3: Si HVPE 145 1.0 × 1016 5 000 80 21
UID (2¯01) β-Ga2O3 Bulk … … 890 85 37
4H-SiC APCVD … … 12 400 50 26
GaN HVPE … … 7 386 48 27
GrowthμRTnRTμLT
Samplesmethod(cm2/V s)(cm−3)(cm2/V s)TPeak (K)References
No. 1 MOCVD 125 2.2 × 1016 7 750 39 This work
No. 2 MOCVD 160 8.7 × 1015 10 194 46 This work
No. 3 MOCVD 146 5.3 × 1015 11 211 47 This work
No. 4 MOCVD 130 1.5 × 1016 11 704 46 This work
2DEG β(Al, Ga)2O3/β-Ga2O3 PAMBE 180 2.1 × 1012 (2DEG) 2 790 50 19
UID β-Ga2O3 MOCVD 150 2.9 × 1016 1 350 75 34
UID β-Ga2O3 MOCVD 176 7.4 × 1015 3 481 54 22
β-Ga2O3: Si MOCVD 160 2.7 × 1016 4 984 45 20
β-Ga2O3: Si HVPE 145 1.0 × 1016 5 000 80 21
UID (2¯01) β-Ga2O3 Bulk … … 890 85 37
4H-SiC APCVD … … 12 400 50 26
GaN HVPE … … 7 386 48 27

Table I compares the RT and peak (LT) electron mobilities measured from the epitaxial layers grown in the current work with the previously reported state-of-the-art values both for the epitaxial films grown by various methods and bulk substrates.19–22,34,37 As shown in Table I, sample Nos. 1–4 have comparable RT electron mobilities, but higher LT electron mobilities than the previously reported results. For a pure or lightly doped β-Ga2O3 material, the RT electron mobility is dominantly limited by the long-range interaction between electrons and polar optical phonons.21,25,38 The relatively lower RT mobility values below 150 cm2/V s for sample No. 1 and 4 are attributed to the existence of a low mobility parasitic channel near the substrate surface. The frequently observed unintentional but heavy accumulation of donor impurities at the film/substrate interface (e.g., Si with up to 1 × 1019 cm−3 concentration as measured by SIMS)32,39 and surface riding of Fe into the epilayers from the substrate40 could contribute to this low mobility channel near the substrate interface. Better surface treatment or introducing a semi-insulating layer at the beginning of the growth should eliminate the parasitic channel and further improve the RT mobility close to the theoretically predicted value of ∼200 cm2/V s.10,11,25,35

As the temperature decreases, the scattering from ionized impurities becomes increasingly important in controlling the LT electron mobility.25,37 The peak electron mobilities measured for sample Nos. 2–4 are more than 104 cm2/V s, surpassing the theoretically predicted values for an ideal sample with a donor concentration of <1 × 1015 cm−3 and no compensating acceptors in the material.25 This suggests that the lightly doped MOCVD grown β-Ga2O3 films in the current work are remarkably pure.

The mobility values obtained here are also compared to the highest LT electron mobilities for bulk UID SiC and GaN films reported in the literature.26,27,41 As summarized in the table, the results obtained for our films are comparable to the peak values reported for SiC grown by atmospheric pressure chemical vapor deposition (APCVD)26 but much higher than the LT electron mobility reported for a freestanding GaN grown by hydride vapor phase epitaxy (HVPE).27 This suggests that the material purity of epitaxial β-Ga2O3 films realized using MOCVD growth is comparable to or higher than what is achievable for the state-of-the-art SiC and GaN materials. Therefore, in addition to the excellent fundamental material properties of β-Ga2O3,1,2 the capability of the growth of high quality films indicates the superiority of β-Ga2O3 for power electronics applications over its competing wide bandgap semiconductors, such as SiC and GaN. With such bulk film purity, the 2DEG at the β-(Αl, Ga)2O3/β−-Ga2O3 heterostructure interface could potentially reach much higher RT and LT electron mobilities since the quantum confinement at the heterojunction enables better screening of both the phonon and impurity scattering centers.19,42,43

In Fig. 3(b), the temperature-dependent sheet resistance curves for the same samples are presented. At room temperature, the sheet resistance of the films is between ∼10 kΩ/□ and ∼35 kΩ/□. The resistance values then decrease with temperature, following the increasing trend of electron mobility, until they reach the minimum values ranging between 2.7 kΩ/□ and 4.7 kΩ/□ at ∼93 K. At lower temperatures below 93 K, the sheet resistance increased exponentially due to the freezeout of bulk carriers.44

The measured Hall charge density as a function of the inverse temperature (1000/T) is shown in Fig. 4. At RT, Hall carrier densities ranging between ∼5 × 1015 cm−3 and ∼2 × 1016 cm−3 were measured for the samples (Table I). To estimate the background impurity concentration and the compensation level in the β-Ga2O3 layers, the temperature dependence of the Hall charge density was fit using the charge neutrality equation. Based on our analysis, the best fit to the experimental data was obtained by including three donor states and a compensating acceptor, with the charge neutrality equation expressed as45

where n is the free electron density and Na is the concentration of compensating acceptors. Nd1, Nd2, and Nd3 represent concentrations of the three donors corresponding to donor energies of Ed1, Ed2, and Ed3, respectively. EF is the Fermi level at the measurement temperature (T), which can be estimated by n=Nce(EcEF)/kBT, where Ec is the energy of the conduction band edge, Nc is the effective density of state in the conduction band, and kB is the Boltzmann constant. Here, Nc is estimated analytically45 using an electron effective mass of m*=0.313m0,19 but Nd1, Nd2, Nd3, Ed1, Ed2, Ed3, and Na were free parameters extracted from the best fit, as shown in Fig. 4.

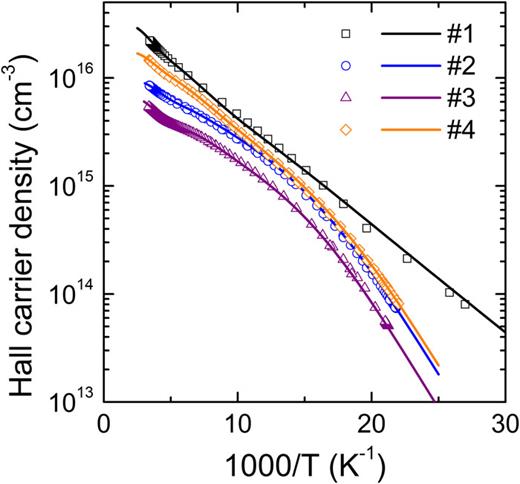

FIG. 4.

Hall carrier density (Log scale) as a function of inverse temperature (1000/T) for the four MOCVD grown samples. The symbols are the measured data, and the solid lines present the fitting of the charge density calculated from the charge neutrality equation using the three-donor model. Room temperature free carrier densities are 2.2 × 1016 cm−3 (No. 1), 8.7 × 1015 cm−3 (No. 2), 5.3 × 1015 cm−3 (No. 3), and 1.5 × 1016 cm−3 (No. 4). The extracted donor and acceptor concentrations and donor levels are summarized in Table II.

FIG. 4.

Hall carrier density (Log scale) as a function of inverse temperature (1000/T) for the four MOCVD grown samples. The symbols are the measured data, and the solid lines present the fitting of the charge density calculated from the charge neutrality equation using the three-donor model. Room temperature free carrier densities are 2.2 × 1016 cm−3 (No. 1), 8.7 × 1015 cm−3 (No. 2), 5.3 × 1015 cm−3 (No. 3), and 1.5 × 1016 cm−3 (No. 4). The extracted donor and acceptor concentrations and donor levels are summarized in Table II.

Close modal

The values of the extracted parameters for the four samples are summarized in Table II. For each sample, the three donor levels are identified at activation energies of Ed1 = 35.2 meV, Ed2 = 60 meV, and Ed3 = 120–140 meV below the conduction band edge with the corresponding donor concentrations for each sample presented in the table. Temperature-dependent charge density in previous studies20,22,34,46 was well fitted by a two donor model in which two donor activation energies were extracted. The source of the shallow donor level (i.e., Ed1 ∼20 to 35 meV) was attributed in every case to the contribution from Si incorporated into the material either intentionally or unintentionally during the material growth.5,20,22,34,37,46,47 For the second donor activation energy, values of 60 meV,34 80 meV,22 110 meV,46 and 120 meV20 were reported at different times. The origin of these donors has not yet been conclusively identified, but possible sources, including antisites, interstitials, and extrinsic impurities such as Si occupying the octahedrally coordinated Ga(ii) site, were suggested.46 In our samples, the best fit was obtained using the three donor model, where the extracted shallow donor located at Ed1 = 35.2 meV is attributed to Si impurity, but the origin of the second and third higher activation energy donors still needs further investigation.

TABLE II.

Extracted parameters from fitting the temperature dependence of the Hall charge density using the charge neutrality equation.

SamplesEd1 (meV)Nd1 (cm−3)Ed2 (meV)Nd2 (cm−3)Ed3 (meV)Nd3 (cm−3)Na (cm−3)
No. 1 35.2 5.0 × 1015 60.0 1.2 × 1016 120.0 1.6 × 1016 …
No. 2 35.2 4.6 × 1015 60.0 2.5 × 1015 120.0 3.5 × 1015 8.0 × 1014
No. 3 35.2 2.6 × 1015 60.0 2.0 × 1015 140.0 3.0 × 1015 8.0 × 1014
No. 4 35.2 4.7 × 1015 60.0 7.5 × 1015 120.0 6.5 × 1015 7.0 × 1014
SamplesEd1 (meV)Nd1 (cm−3)Ed2 (meV)Nd2 (cm−3)Ed3 (meV)Nd3 (cm−3)Na (cm−3)
No. 1 35.2 5.0 × 1015 60.0 1.2 × 1016 120.0 1.6 × 1016 …
No. 2 35.2 4.6 × 1015 60.0 2.5 × 1015 120.0 3.5 × 1015 8.0 × 1014
No. 3 35.2 2.6 × 1015 60.0 2.0 × 1015 140.0 3.0 × 1015 8.0 × 1014
No. 4 35.2 4.7 × 1015 60.0 7.5 × 1015 120.0 6.5 × 1015 7.0 × 1014

The third donor level extracted from the fittings for the samples studied in this work could potentially originate from a parasitic channel near the substrate surface. This low mobility parasitic channel could adversely impact the measured RT electron mobility and lead to slightly lower RT mobility values as compared to the previous reports, as shown in Table I. The compensating acceptor concentrations extracted for sample Nos. 2–4 are 8.0 × 1014 cm−3, 8.0 × 1014 cm−3, and 7.0 × 1014 cm−3, respectively, while it is difficult to get reliable fitting of Na for sample No. 1, suggesting even lower acceptor concentration. The fraction of donor compensation by the acceptors is estimated using Na×100%/i=13Ndi, providing, correspondingly, the compensation levels of 7.5%, 10.5% and 3.7% for the samples. The low compensation charge density along with the lightly doped layers is the basis for the high electron mobility at low temperatures,48 which is crucial for developing high performance power electronics. Nevertheless, detailed characterizations such as deep level transient spectroscopy (DLTS) may be helpful, but are beyond the scope of this work, to understand the origin of the higher activation energy donors. If the origins of these donors are identified and understood so that they can be minimized, then MOCVD grown β-Ga2O3 epitaxial films with much higher electron mobilities could be feasible.

In summary, high purity lightly Si doped homoepitaxial β-Ga2O3 films with good surface morphology and crystalline quality were realized by MOCVD. The transport properties of the films were studied using temperature-dependent Hall measurement, exhibiting peak electron mobilities consistently exceeding 104 cm2/V s for multiple samples. In particular, one of the epitaxial films showed a peak electron mobility of 11 704 cm2/V s at 46 K, setting a record for β-Ga2O3. The samples were found to exhibit RT electron mobilities ranging between 125 cm2/V s and 160 cm2/V s with the corresponding free carrier density between ∼5 × 1015 and ∼2 × 1016 cm−3. We postulate the existence of a parasitic channel near the substrate surface, which could have lowered the RT mobility while inactive at low temperatures due to carrier freezeout. The mobility values obtained for β-Ga2O3 were found to be comparable to or higher than the highest LT electron mobilities reported for SiC and GaN in the literature. The results presented here demonstrate the capability of MOCVD for growing high quality ultrapure epitaxial β-Ga2O3 films required for its practical use in high-performance power device electronics.

The work at Agnitron Technology was supported by the Air Force Office of Scientific Research (AFOSR, Program Manager Dr. Ali Sayir) and the Office of Naval Research (ONR, Program Manager Mr. Lynn Petersen) through Grant Nos. FA9550-19-C-0030 and N6833518C0192, respectively. Support at UCSB was provided by the AFOSR through Program No. FA9550-18-1-0059 and GAME MURI Award No. FA9550-18-1-0479 monitored by the project manager, Dr. Ali Sayir. Additional support at UCSB was provided through a subcontract from Agnitron Technology through ONR Program No. N00014-16-P-2058 and from DTRA through Program No. HDTRA 11710034.
