Perspective: Nanophotonic electro-optics enabling THz bandwidths, exceptional modulation and energy efficiencies, and compact device footprints Open Access

For more than a decade, international technology market demands and governmental/professional society studies have emphasized^1–5 that chip-scale integration of photonics and electronics is critical for next generation information technology.^6,7 The size disparity between photonic and electronic circuits has historically inhibited the realization of this goal. Recently, the advent of nanophotonic technologies (silicon photonics, plasmonics, meta-surface devices, etc.) has facilitated photonic/electronic circuit integration and resulted in dramatic improvements in bandwidth, modulation efficiency (voltage-length performance, V_πL), and energy efficiency for information technology applications.^7,8 This transition to nanophotonic architectures has the highest impact for devices relying on the Pockels effect. Device lengths have been reduced from centimeters to micrometers while maintaining CMOS level drive voltages.^7,9 The transformative improvement in voltage-length performance (as much as a factor of 10 000) stems from two effects: (1) concentration and improved overlap of low frequency (radio frequency/microwave/millimeter wave) fields and telecommunication wavelength (1.3 and 1.55 µm) optical fields between nanoscale electrode separations; and (2) theory-guided improvement of in-device electro-optic (EO) activity of organic materials, which can deliver a particularly high Pockels response.^7,9

However, the transition from mesoscale to nanoscale dimensions substantially changes design considerations for such high-performance organic materials, including requiring close coordination between the design of materials and device architectures. Interfacial interactions between EO materials and device drive electrodes become highly significant in the smallest devices with the highest optical mode confinement.^7,10,11 The reduction of electrode separation to nanoscopic dimensions has made sequential synthesis processing, in which materials are quasi-deterministically grown from a surface, viable. This is due to the much smaller number of layers required compared to the number required for mesoscopic devices. Covalent coupling/sequential synthesis permits the avoidance of attenuation of EO activity in the vicinity of electrodes and avoids the problem of attenuation of poling-induced EO activity due to conductance effects [eliminating the need for charge blocking layers between electrodes and organic electro-optic (OEO) materials]. With conventional poling and slot waveguide architectures, acentric order is attenuated in the narrowest slots due to interfacial effects. Sequential synthesis^6,7 has the highest order at the interface, maximizing potential performance in narrower slots and affording the best prospects for further performance improvements and production scalability in nanoscale hybrid EO devices.

There are additional benefits resulting from OEO material deposition techniques like sequential synthesis. While poling a single device is straightforward, simultaneously poling hundreds of devices per chip or thousands of devices per wafer may impose challenges to the adoption of the technology due to potentially limited production throughput and yield issues. Robotically-implemented sequential synthesis can provide a robust and reproducible OEO processing technique that is scalable from device to chip to wafer. Furthermore, since the chromophore multilayers will be attached to one another through chemical bonds, they will exhibit excellent thermal and photochemical stability, matching or exceeding what is achievable with the best crosslinked electrically poled materials. A final advantage of sequential synthesis is that it would enable the use of chromophores with exceptional hyperpolarizabilities (β) that are not processible (or difficult to process) by electric field poling due to leakage current related concerns at poling (material glass transition) temperatures. Previously, it was found that some of the highest β chromophores had too high a leakage current to be poled at high density and could only be poled in a polymer host,¹² which dilutes the EO effect; sequential synthesis alleviates these concerns. However, electric field poling will continue to be the processing protocol of choice for certain device architectures and applications. However, nanophotonics has facilitated an important expansion of processing options.

Integration of EO materials into nanophotonic device architectures has also forced a change in perspective with respect to the consideration of material propagation loss. The propagation loss of active EO materials becomes important only when that loss approaches the propagation loss of passive photonic/plasmonic circuit elements (silicon photonic, plasmonic, and meta-surface elements). Compact device architectures with short interaction (propagation) lengths lead to low total insertion loss.^7,8

While photonic integration was initially driven by telecom and datacom applications, the application space has increased dramatically with emerging applications related to sensors, displays, and metrology, e.g., LIDAR and autonomous vehicles, which are of growing importance for environmental monitoring, agriculture, archeology, transportation, and defense.

To understand the optimization of electro-optic devices, a brief review of the fundamental symmetry requirement of second-order nonlinear optical (NLO) activity is necessary. Second order NLO activity (EO modulation, optical rectification, second harmonic generation, sum, and difference frequency generation) of organic materials requires that fundamental molecular units (chromophores) exhibit not only molecular asymmetry (dipolar, noncentrosymmetric, or acentric symmetry), but also that the supramolecular organization of these chromophores is acentric.^6,13 For such materials, acentric organization is accomplished by crystal growth (under special conditions), self-assembly/sequential synthesis, or electric field poling.^6,7 For photonics applications, ordering via electric field poling has proven to be the only viable option for mesoscopic OEO materials.^6,7,14 Crystal growth has been found to be impossible for organic chromophores with the largest molecular first hyperpolarizabilities, and too many sequential synthesis steps are required for mesoscale materials.^6,7 Guidance from multi-scale modeling has permitted dramatic improvements in both molecular first hyperpolarizabilities via the use of quantum mechanical calculations^{7–9,12,15–17} and electric field poling induced acentric chromophore organization via statistical mechanical methods.^7,18–20 With respect to electro-optics, mesoscale device architectures inhibited Pockels effect materials from significantly exceeding the performance of nanoscale electro-absorptive (EA) devices, even though devices based on EA materials¹ suffer from high optical loss (absorption), limited bandwidth (due to excited state lifetimes), and poor signal linearity (signal distortion due to simultaneous changes in absorbance and index of refraction called “chirp”).

The converse of electrical-to-optical signal transduction (electro-optics) is optical-to-electrical signal transduction (optical rectification), which is another aspect of second order optical nonlinearity. Mesoscale optical rectification devices are even more disadvantageous relative to conventional inorganic photodetector devices based on electron excitation (absorption) followed by free carrier generation. This is the case even though optical rectification does not involve electron excitation to excited states and thus enables lower optical loss—“Transparent photodetection,” which has a lower noise floor and a larger bandwidth.^7,9,21–23

The performance of second-order NLO materials has been dramatically improved with integration into nanophotonic device architectures, which has been key to chip-scale integration of electronics and photonics as well as improving the size, weight, power, cost, and performance (SWaP-CP) of devices and systems. The concentration of radio frequency/microwave/millimeter wave, and telecommunication [1.3 µm (O band) to 1.55 µm (C band) wavelength] optical fields in devices of nanoscale dimensions dramatically enhances effective optical nonlinearity.⁷ Such field concentration occurs in silicon photonic,^5,7,24–63 plasmonic,^{7,8,10,15,61–98} and plasmonic meta-surface devices.^7,99–115 All of these emerging technologies are critical to the chip-scale integration of electronics and photonics.^7,90 Component-level improvement in performance (e.g., V_πL) as a function of reducing device dimensions is illustrated for hybrid devices in Fig. 1.⁷ The use of thin film lithium niobate (TFLN) in silicon photonic device architectures permits modulation efficiencies as low as ∼50 V mm. Incorporation of third generation OEO materials in plasmonic organic hybrid (POH) devices delivers large improvements in both RF/optical mode confinement and overlap and the enhanced Pockels effect from high performance OEO materials. The slow light effect⁶⁵ can also contribute, becoming dominant in plasmonic devices (relative to silicon photonic devices) for slot widths of 20–30 nm. POH devices afford low RC time constants and THz bandwidths. Energy efficiency on the order of 10 s of attoJoules(aJ)/bit is possible.^7,95 The electrical power consumption of a device scales with capacitance and voltage as C V². Photonic devices can be made longer than plasmonic devices while maintaining acceptable insertion loss, enabling lower drive voltages, and providing another route to lower power use. Exploiting the full potential of current >1000 pm/V mesoscopic OEO materials in even narrower waveguides would enable modulation efficiencies below 0.005 V mm, critical for achieving energy efficiencies <10 aJ/bit and sub-μm² device footprints as well as THz bandwidths. These schemes represent an important material design paradigm shift necessitated by nanophotonic architectures.^7,8

However, it should be kept in mind that the hybrid integration of Pockels effect materials (OEO, lithium niobate, or barium titanate) with silicon and/or silicon nitride photonics is a highly competitive technology that enables lower optical loss.^{7,24–47,49–52,59,60,116,117} Different applications have different requirements for modulation efficiency (voltage-length performance, V_πL), bandwidth, energy efficiency, optical insertion loss, and device footprint, and thus no single material/device technology is ideal for all applications. In like manner, a given material processing protocol, such as electric field poling or sequential synthesis, may be preferred for one device architecture but not another. Obviously, crystal growth is an important processing methodology for inorganic materials. Control of optical signals can also be accomplished using thermos-optic and MEMS devices and phase-change materials; however, such devices typically have much lower bandwidths (Hz–MHz) and will not be discussed here.

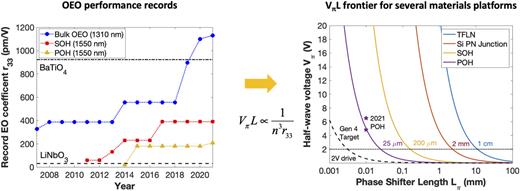

The V_πL for various device architectures and the relationship to a material’s Pockels effect response are graphically depicted in Fig. 2, right. Fig. 2, left, illustrates the evolution of the electro-optic activity (r₃₃) for electrically-poled organic materials with time. The reduction of r₃₃ in SOH and POH devices relative to values for mesoscopic thin films is due to electrostatic interaction between chromophores and electrodes and to electric conductance through organic films at poling temperatures. As will be discussed in more detail shortly, this attenuation can be eliminated by the covalent coupling/sequential synthesis material processing schemes.

The situation is equally dramatic for optical rectification,^7,9,21–23 permitting potential improvement in photodetection responsivity R from values orders of magnitude below inorganic photodiodes to values comparable to photodiodes at high GHz frequencies (∼1 ampere/watt, A/W), and exceeding values for photodiodes at THz frequencies. However, photodetection technology is rapidly evolving, including with the introduction of new materials such as graphene.^94,118–124

Integration of second order NLO (Pockels effect) materials into nanophotonic device architectures has significant implications for device optical insertion loss (the sum of propagation and coupling loss).^6,7 The optical propagation loss at telecommunication wavelengths associated with passive silicon photonic (∼2 dB/mm) and plasmonic (∼0.2 dB/μm) waveguides is typically higher than that of lithium niobate (<0.2 dB/cm), silicon nitride (<0.2 dB/cm), and macroscopic organic materials (1–10 dB/cm).^7,8,61,65,71 Short device dimensions are thus required—but also feasible—for hybrid silicon photonic and plasmonic devices. The propagation loss associated with active materials becomes relevant only when such losses are comparable to the optical loss of passive waveguide elements.^7,74 Coupling losses can be comparable or even greater than propagation losses and are a challenge for nanophotonic devices, but they are being reasonably addressed.^6,7,125,126

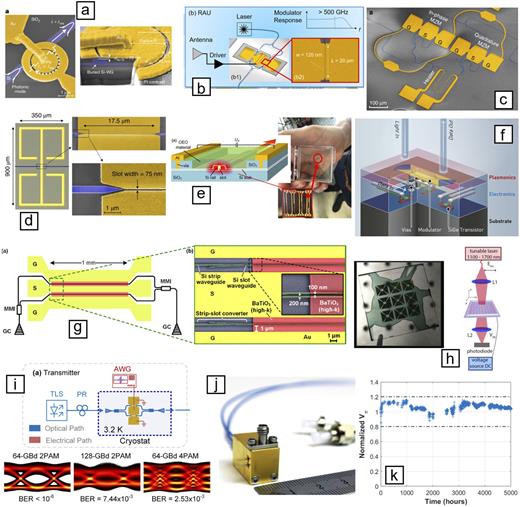

Second order nonlinear optical waveguide devices (e.g., EO modulators) can be divided into three categories: (1) traveling wave and lumped element devices (e.g., phase shifters arranged in an interferometric configuration to form an amplitude modulator);^6–8,61,71 (2) resonant devices, such as ring resonators, that involve multiple passes of light through devices (with the number of passes quantified by the device’s quality factor, Q^6,7); and (3) resonant antennas.^7,69,70,78 Resonant architectures yield compact devices and improved sensitivity because of the longer effective interaction length between the optical and RF fields in the device, but this increased sensitivity comes at the expense of bandwidth (as the dwell time of interacting fields in the device is increased). Resonant devices such as ring resonators permit special applications such as wavelength division multiplexing (WDM) and comb generation (including Pockels and Kerr effect hybrid devices) to be accomplished straightforwardly and, in special configurations, can be used to achieve low insertion loss.^7,76,77 The sensitivity of sensors can be improved using resonant devices; device energy efficiency is also improved by the Q of resonant devices (e.g., the energy efficiency of state-of-the-art simple phase modulators is on the order of 70 aJ/bit,^7,95 but even modest Q resonant devices can yield energy efficiencies <10 aJ/bit). The fundamental building block of electro-optical signal conversion for telecommunications is the phase modulator; combining two phase modulators in an interferometer configuration yields a balanced Mach–Zehnder amplitude modulator, and combining two Mach–Zehnder modulators yields an in-phase-quadrature (IQ) modulator that permits control of both amplitude and phase for telecommunication signals, enabling higher-order modulation schemes.^{7,8,32,36,44–47,68,79,93} A final EO device architecture that is critical for telecommunication and other applications is the resonant antenna^7,69,70,78 In these devices, an antenna is coupled directly to an EO modulator, allowing electrical-to-optical conversion of wireless/free space signals, extending their applicability to millimeter wave wireless and satellite communications applications, and permitting the elimination of low noise amplifiers (LNAs).^7,69,70,78 Representative recent advances are graphically highlighted in Fig. 3.

In the following, we discuss the theory-guided development of organic materials suitable for exploiting nanophotonic device architectures. We divide the discussion into three sections: (1) improvement of the first molecular hyperpolarizability of fundamental chromophore units relevant to different types of device architectures;^{6,7,11,12,17,128,130–140} (2) improvement and retention of the acentric order of chromophores in nanophotonic devices, including consideration of interfacial effects involving chromophores and electrodes;^{6–8,10,18–20} and (3) expansion of processing options (sequential synthesis in addition to electric field poling) for nanophotonic devices and influence on in-device material activity and material thermal/photochemical stability.^6,7

Optimizing molecular first hyperpolarizability under optical loss constraints.^{7,11,12,14,17,128,130–140} Initially, quantum mechanical calculations aimed at understanding and improving molecular first hyperpolarizability (β) evolved through two stages. The first focused on finding computationally efficient yet accurate computational approaches for single-molecule calculations for chromophore development and characterization. This has largely focused on developing improved density functional theory (DFT) calculations benchmarked against higher order calculations such as MP2 and coupled cluster methods, etc.^{128,130,132,137} An important aspect of this approach was understanding linear optical properties, such as absorption loss (k), as well as optical nonlinearity (including β). This undertaking has been highly successful, particularly with respect to understanding the variation of β and k with changes in chromophore structure and conformation.^7,12,17,139 DFT calculations have also increased our understanding of the effects of the dielectric environment (permittivity) on chromophore properties.^12,133

A complementary effort has focused on computing the effect of intermolecular chromophore–chromophore electronic (excitonic) interactions on properties.^15,140 An important component of this second stage of computation was the use of chromophore ensemble information obtained from coarse-grained statistical mechanical (e.g., Monte Carlo) calculations to carry out quantum mechanical calculations on realistic chromophore distributions.⁷ An important observation of this effort was that for materials with low acentric (poling-induced) order, the effect of excitonic interactions on molecular hyperpolarizability largely averaged out,⁷ though such calculations may be needed for more highly ordered systems developed with sequential synthesis.

More recent single-molecule calculation efforts have focused on the identification of optimum β values for materials with acceptable optical loss for specific device architectures. The transition from mesoscale to nanophotonic hybrid devices has altered requirements for optical propagation loss in OEO materials; instead of being the primary contributor to optical loss, loss is constrained by the loss of the underlying passive waveguide (e.g., silicon photonic or plasmonics). To be desirable, OEO materials should not substantially increase that loss unless they also yield an improvement in modulation efficiency that is substantially more than the insertion loss penalty, a trade-off already experienced in silicon vs plasmonic platforms. This change in design requirements, combined with an improved understanding of reliable methods for predicting chromophore optical properties using density functional theory,^{12,15,136,142} enabled a search for chromophores with higher hyperpolarizabilities and propagation losses that would not have been acceptable for mesoscale devices.^12,16,17 In general, hyperpolarizability increases with smaller band gaps, with the typical relation given by the two-level model.^131,143 Searches have been performed under the constraints of ground-state dipole moments and shape similarity with existing high-performance chromophores. These searches demonstrated that substantial headroom still exists for improving hyperpolarizability, as previously suggested by theory,^20,131,135 and have led to chromophores with greatly enhanced hyperpolarizability in solution based on stronger electron donating moieties.^7,12,17 However, further optimization was required to translate to material-level performance due to the high dielectric sensitivity of chromophore optical properties and excessive optical loss. Gradual reduction of donor strength permitted the realization of high material performance with lower loss by shifting the chromophores further from the cyanine limit (where the HOMO and LUMO are essentially degenerate in energy and the bandgap is thus extremely small); contributions of multiple electron-donating moieties of different strengths may also play a role in obtaining high hyperpolarizability without excessive absorption due to an excessively red-shifted primary charge transfer band.¹⁷ Constraints are more acute for O-band systems (1.3 µm), where the operating wavelength is closer to the principal charge transfer band edge, and for quantum information science systems on low-loss photonics platforms. This has led to applying similar techniques to those that have been used for improving hyperpolarizability for reducing optical loss at the cost of some EO response while minimizing that reduction in response to maximizing r₃₃/k, where r₃₃ is the EO coefficient and k is absorption loss. If ultra-high bandwidth is not required, in some cases, a longer device may still permit lower total insertion loss on platforms with less lossy passive components.

Understanding and optimizing chromophore ordering considering intermolecular interactions including understanding and mitigating interfacial interaction effects.^{6–8,10,18–20,144} Fully atomistic molecular dynamics (MD) methods are extensively used to simulate the behavior of molecular ensembles.^7,145–147 However, the slow timescale of poling-induced alignment vs local dynamics has limited the applicability of conventional MD to OEO materials to date.^15,18,20 The essential interactions for the organization of electrically-poled chromophores include chromophore-poling field interactions and spatially anisotropic electrostatic and non-electrostatic chromophore–chromophore interactions, including the rearrangement of flexible side chains. Coarse-graining of chromophores via the Level-of-Detail (LoD) method,^7,18–20 together with enhancing the rate of convergence of simulations via the Adiabatic Volume Adjustment (AVA) method,^18,20,148 has permitted efficient simulation of the effect of these interactions and identification of the effect of chromophore shape and charge distribution on material EO activity. Ensemble organization from these coarse-grained calculations can in turn be mapped back to fully atomistic models to investigate the effect of chromophore–chromophore excitonic interactions using quantum mechanical methods.^15,138,140 Simulations of poling-induced acentric order (and hence EO activity and index of refraction properties) exploiting the LoD and AVA methods have led to efficient and accurate simulations of the dependence of properties on chromophore structure.^7,20

Driven by the observation of reduced EO activity in narrower slot waveguides, theoretical and computational methods have also been used to investigate the effect of interfacial interactions between chromophores and poling electrodes (see Fig. 4).^{7,8,10,11,15,144} Simulation results showed a fall-off in ordering due to dipole-induced/dipole interactions between the chromophores and the (gold or doped semiconductor) walls of the slot waveguide (electrodes), consistent with experiment and with a scaled freely rotating dipole-based theoretical model.^11,17,144

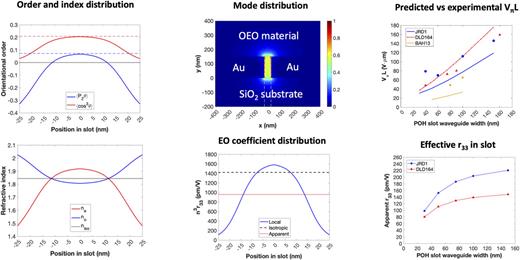

Simulations of the centric order parameter, ⟨P₂⟩, in POH devices show that this attenuation is associated with chromophores lying parallel to the electrode surfaces (orthogonal to the poling field direction) due to interaction between chromophore dipoles and induced dipoles in the gold electrodes. The order along the poling field axis at the interface leads not only to a reduction in average EO activity in the waveguide but also to a mismatch between the regions of the highest optical field intensity and the highest electro-optic response. This information has motivated a reconsideration of sequential synthesis/self-assembly processing protocols, where covalent bonds between chromophores and electrodes support the organization of chromophores along the normal vector to the electrode surface.

Material processing utilizing sequential synthesis versus electric field poling.^{6,7,149–173} Sequential synthesis is a poling-free processing technique that deposits and covalently bonds aligned OEO molecules one monolayer at a time in a controlled fashion, building up to aligned chromophore multilayers (Fig. 5). The coupling chemistry to attach the layers is built upon established techniques for self-assembled monolayers,^{150,152,160,166,171} layer-by-layer deposition,^{13,156,167,172} click chemistry,^158,174 and automated protein synthesis^149,157 and is a solution-phase analog to fabrication processes such as atomic/molecular layer deposition, in which repeated applications of precursors enable high-quality conformal coatings.^{154,164,165,170,173}

The design of chromophores for sequential synthesis is inspired by prior work on OEO materials,^154,161 nanostructured dielectric layers,¹⁶⁸ and surface grown polymers, as well as on our state-of-the-art, high β chromophores.^17,128 Pioneering sequential deposition of OEO materials was performed by the Katz and Marks groups.^{151,153–155,159,161,163,168,169} They developed a robust process to deposit aligned, low β OEO multilayers with a respectable EO coefficient of r₃₃ = 120 pm/V at 1064 nm. However, three limitations kept this technology from being pursued further at the time: first, only relatively low β chromophores were used in these OEO multilayers, which resulted in lower EO coefficients than could be achieved with contemporary poled higher β materials. Second, OEO molecules have large dipole moments, and intermolecular repulsion at high densities reduces the maximum achievable order (Fig. 5, top left).¹⁶¹ Third, while high acentric order could be achieved in the initial layers, monolayer defects and the propagation of defect disorder had a multiplicative effect in thicker films, preventing the realization of effective EO activity for the hundreds of multilayers that were needed to span the ∼1–2 µm spacing of mesoscale devices.¹⁵⁴ Such work, however, laid a good foundation for achieving high acentric order without poling, and the aforementioned limitations can be overcome by the strategies described below.

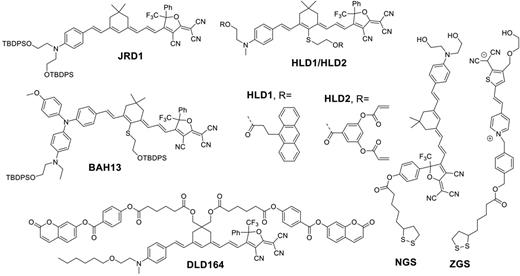

Modern high-performance chromophores such as JRD1¹⁷⁵ and BAH13¹⁷ (see Fig. 6 for the general structures of common chromophores) have more than an order of magnitude higher β than chromophores used in prior aligned multilayer sequential synthesis/self-assembly schemes, which enables dramatic improvements in performance.

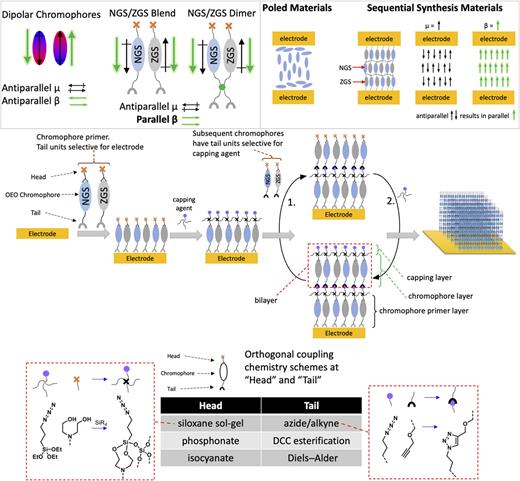

However, high dipole moment molecules (JRD1 and BAH13 type chromophores have dipole moments in the 26–31 D range) tend to align in an antiparallel fashion when in close proximity (Fig. 5, top left), resulting in centrosymmetric (χ² = 0) rather than acentric order (χ² > 0). Prior molecular engineering of these chromophores—through the addition of sterically bulky side-chain groups—allows us to mask dipolar attraction, which enables efficient poling, achieving moderate acentric order as neat materials.^{20,128,134,175} While such molecular engineering techniques may be sufficient to improve acentric order in high dipole moment sequential synthesis layers, a better way to solve the dipole moment problem is to use a dual chromophore system consisting of neutral ground state (NGS) and zwitterionic ground state (ZGS) chromophores (Fig. 5, top left and top right). NGS chromophores, such as our conventional chromophores, JRD1 and BAH13, have parallel dipole moments and β tensors. ZGS chromophores have antiparallel dipole moments and β tensors. Blending NGS and ZGS chromophores results in thermodynamically favored antiparallel dipole moment alignment and parallel (additive) β alignment (this antiparallel coupling of dipole moments is shown schematically as alternating blue and gray chromophores in Fig. 5).^176,177

Using model compounds, we have previously shown that this NGS/ZGS blending strategy produces Langmuir–Blodgett (LB) films with better net alignment and acentric order than corresponding single component monolayers.^7,176,177 While the LB technique shows a good way to circumvent the dipole repulsion problem, the LB method cannot be extended to a multilayer arrangement with net acentric hyperpolarizability order. Sequential synthesis, with covalent coupling, is necessary to control alignment layer to layer and retain it over a broad temperature range. Since the sequential synthesis is a solution process, dimerizing the NGS and ZGS chromophores (Fig. 5, top left) ensures that they reach the surface together and avoids potential phase separation in the monolayer, mitigating NGS/NGS and ZGS/ZGS antiparallel pairing in the solution that could result in slow monolayer formation rates and lower film quality.

Computational modeling, including DFT calculations for chromophore design and structure-property relationships as well as classical molecular dynamics for ordering and packing, can be used to fine tune the molecular structures and intermolecular interactions to optimize the acentric order in chromophore self-assembled monolayers. Several ZGS chromophores have been screened computationally thus far to identify ones that match well in dipole moment and β with leading NGS chromophores. Structural elements of the NGS and ZGS chromophore building blocks to be optimized include linker length (short or long), linker rigidity (aliphatic or aromatic), and attachment point to the acceptor, which impacts whether the molecule is linear or bent.

Following chromophore building block modeling of linkers and side chains to optimize acentric order, leading candidates are synthesized. Chromophore cores for sequential synthesis building blocks are based on previously synthesized high-β molecules such as JRD1 and BAH13. Next, the focus is on the coupling chemistry needed to build multilayers. Coupling chemistry is based on well-established self-assembled monolayer, molecular layer deposition (MLD), layer-by-layer deposition, click chemistry, sol–gel, metal/covalent organic framework, and solid phase peptide synthesis techniques. Like atomic layer deposition (ALD) and molecular layer deposition (MLD), sequential synthesis relies on two self-limiting surface reactions carried out sequentially, generating bilayers. To generate acentric alignment, the chromophore building blocks need to have different chemical coupling units on the “head” and “tail,” as shown schematically in Fig. 5. The tail unit is designed to selectively react with the electrode surface (or monolayer reactive surface groups for subsequent layers), generating a chromophore self-assembled monolayer (SAM). Sample NGS and ZGS chromophores capable of forming SAMs on gold are shown in Fig. 6, right. In a second subsequent reaction, the head unit reacts with a capping agent. These two reaction processes can be repeated multiple times to deposit bilayers (chromophore layer and capping layer). It is particularly attractive to develop this approach for nanophotonic devices because only a small number of sequential depositions are required. In modern POH devices, the electrode spacing has been as low as 40 nm, and even smaller is desired to reduce V_πL (Fig. 7). For an electrode spacing of 20–40 nm, fewer than 10 chromophore layers are required; based on previous experiments, a high degree of acentric order is expected. While proof-of-concept chemistry and processing have been carried out, functional POH devices have not yet been demonstrated, although this is the next step.

The head and tail coupling chemistries of the sequential synthesis process need to be selective (orthogonal), high yielding, rapid, and compatible with each other. Fortunately, there are numerous proven click chemistry techniques from which to choose. Some examples of orthogonal pairs of click chemistry reactions that are compatible with NGS and ZGS chromophore synthesis and multilayer deposition are shown in the table of Fig. 5, bottom. Examples using siloxane coupling at the head and azide/alkyne coupling at the tail are shown in more detail. The capping layer presents a new functional group to bind the next chromophore building block. The chromophores will be much farther apart vertically than horizontally, so we believe there will be little dipole moment influence from the layer below on the exact position of each molecule in the new layer. The capping layer forms a 2D sheet, cross-linking the chromophores at the top (and bottom), giving it structural rigidity to provide high thermal stability for the acentric order. Similar materials (self-assembled nanodielectrics, SANDS¹⁶⁸) have thermal stability >675 K, suggesting that acentric order thermal stability of >475 K is achievable. If necessary, additional stability can be achieved by attaching crosslinking units to the bridge of the chromophores and conducting a crosslinking step (thermal or UV) after all chromophore layers have been deposited. With this addition, EO thermal stability >500 K is anticipated.

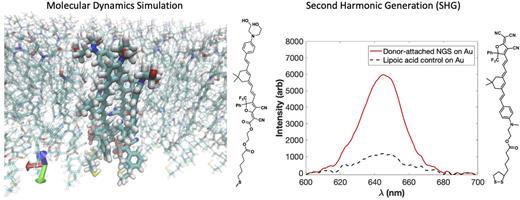

Simulation techniques remain important for these materials, additionally considering the impact of covalent bond restrictions on chromophore motion. The use of conventional MD approaches becomes much more viable. An example of chromophore monolayer organization from a classical MD calculation is shown in Fig. 8. The typical surface density of attachment units causes the chromophores to pack upright, perpendicular to the surface—an orientation leading to optimal EO activity.

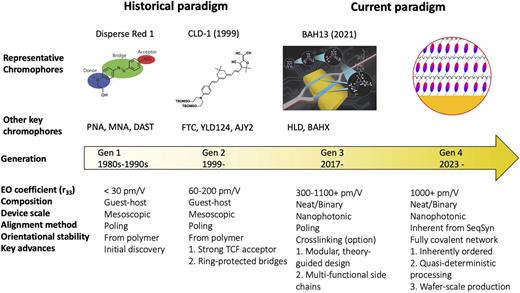

The transition from mesoscale to nanoscale devices has forced a transformative change in material design and development, which has been greatly facilitated by improved computational and theoretical methods (see Fig. 9).

The overarching change in perspective is that material development and performance require understanding the device architectures in which those materials are incorporated. Independent consideration of materials and devices leads to confusion in comparisons of theory and experiment and poor guidance with respect to the development of materials and new device architectures. Optical nonlinearity depends on field intensities (field concentration) as well as the inherent hyperpolarizability and acentric order of fundamental material units. The ratio of materials at interfaces to materials in the bulk increases dramatically for nanophotonic device architectures, and this forces a change in perspective with respect to material synthesis and processing options, e.g., sequential synthesis vs electric field poling. However, it should also be kept in mind that electric field poling processing will continue to be the protocol of choice for certain device architectures (e.g., mesoscale devices and larger nanoscale devices). Insights gained from studies involving sequential synthesis are relevant to optimizing electrically-poled materials, and hybrid processing methodologies are likely to be developed.

Current research involving organic OEO materials largely focuses on the second and third generations, with materials routinely yielding macroscopic EO activity values of several hundred pm/V,^{6,7,10,20,48,128,134,175,179–191} with exceptional materials yielding values more than 1000 pm/V.^7,9,16,17 Substantial progress has been made in improving thermal^{6,9,48,52,128,192} and photochemical^129,185 stability via crosslinking, yielding materials that surpass Telcordia standards.^{9,48,52,128,192} However, the marked attenuation of in-device EO activity in nanoscopic devices has driven fourth generation materials development to focus on sequential synthesis (Gen 4). Preliminary results based on the covalent coupling of chromophores to electrode surfaces show that ordered layers with a strong nonlinear response can be obtained with modern high-performance chromophores.⁷ The mixing of neutral ground state (NGS) and zwitterionic ground state (ZGS) chromophores provides a route to minimizing the effect of dipolar interactions of high hyperpolarizability chromophores.^7,176,177 The covalent bonds of chromophores assembled by sequential synthesis should consistently yield in-device electro-optic values >1000 pm/V and thermal stability values on the order of chromophore decomposition temperatures (>500 K) rather than being limited by material glass transition temperature (<400 K) as is the case with electric field poling.⁶⁷ An improvement in photochemical stability is also to be expected.

The perspective related to the impact of material propagation loss on device optical insertion loss also changes dramatically with the integration of materials into nanophotonic architectures—active material loss has meaning only relative to passive material loss. As optical nonlinearity is critical to the device lengths that can be utilized (voltage-length performance), a reconsideration of the optical nonlinearity/transparency (optical absorption loss) ratio becomes important. With improvement in the optical nonlinearity of Pockels effect materials, the attractiveness of hybrid integration of these materials vs semiconductor junction-based approaches changes dramatically. It is, however, important to keep in mind that there have been highly important advances for other materials (for example, transparent conducting oxides such as indium tin oxide)^193–198 used for EO applications. Another emerging competitive material is graphene,^94,118–124 and indeed, graphene is also emerging as an important electrode material for Pockels effect devices. A change in perspective with respect to material stability is required for nanophotonic architectures and new material processing options (e.g., crosslinking and sequential synthesis). In addition, the denser material matrices of materials prepared by sequential synthesis and crystal growth inhibit the in-diffusion of oxygen and moisture, leading to dramatically improved photostability.^6,7 Although the glass transition temperatures realized with electric field poling materials permit Telcordia standards to be surpassed,¹⁹² greater temperature stability is required for certain applications. Sequential synthesis and/or crosslinking also improve mechanical characteristics at reduced temperatures, particularly cryogenic temperatures. Cryogenic electro-optic operation has been demonstrated for a number of material types.^{127,199–208}

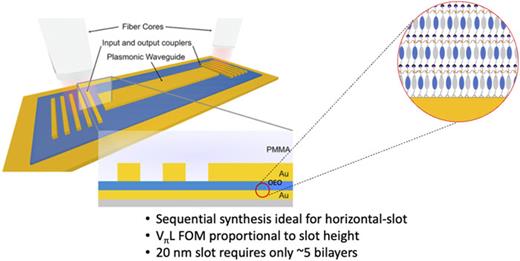

The improvements of in-device EO activity and thermal stability that are possible with sequential synthesis promise a significant improvement in V_πL, energy efficiency, bandwidth, and device footprint. The sequential synthesis should also permit a comparable improvement in optical rectification, dramatically improving the competitiveness of photodiodes based on electron excitation and charge generation.

An important event in the evolution of electronic/photonic integration has been the development of photonic foundry capability and increased access to these foundries by academic, government, and industrial researchers.⁷ While photonic foundries initially focused primarily on the integration of passive photonic circuitry (e.g., passive silicon photonics), this was rapidly followed by the development of active photonic devices such as germanium photodiodes and semiconductor junction modulators that enabled the creation of true photonic integrated circuits (PICs). The systematic optimization of these PICs enabled the current generation of silicon photonics products, such as optical transceivers for datacenter applications. More recently, the focus has turned to the integration of multiple materials technologies to enable performance beyond what is achievable in silicon photonics alone. The rapidly growing foundry ecosystem and the appearance of start-up companies focusing on silicon photonic hybrid and plasmonic hybrid technologies have been discussed elsewhere⁷ and promise a robust future for chip-scale integration of electronics and photonics.

Future prognosis for materials development and expansion of the application space. Future prognosis for R&D: Nanophotonic integration has dramatically influenced the size, weight, power, cost, and performance of information technology devices and is particularly impactful for airborne and satellite platforms. Nanophotonic EO device advances have already permitted modulation efficiencies (V_πL) to be improved to <0.04 V mm, bandwidths increased to THz frequencies, energy efficiencies to be improved to tens of aJ/bit for digital signal processing, and device footprints to be reduced to ∼10 µm², as well as achieving state-of-the-art spur free dynamics range (SFDR) and bit error ratio (BER) for analog and digital signal processing.⁷ Important for the implementation of nanophotonic technology have been the establishment of testbeds that permit the characterization of such small devices and foundry operations that permit the design and fabrication of such devices.⁷ In addition, the development of testbeds that permit R&D modeling of important applications such as fiber-wireless/free space telecommunication (see Fig. 10) and datacom systems has been important. In short, the implementation of R&D, fabrication, and testing infrastructure and electronic-photonic design automation (EPDA) software has started to come together and is (together with the growth of photonic foundries) dramatically accelerating technology development and implementation.

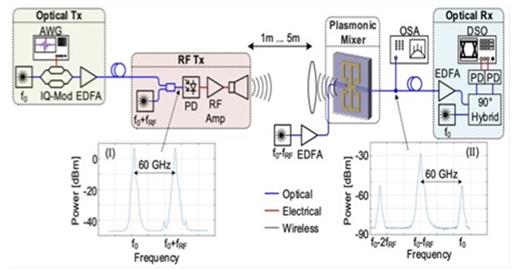

Expansion of the Application Space. The most important areas of initial focus for active nanophononics involved data center interconnects and radio-over-fiber for defense and satellite communication applications.^{5,7,8,31–36,38–47,50–63,65–68,71–73,75,77,79,80} Improvements in datacom capacity have been critical for applications such as video, telemedicine, the Internet of Things (IoT), the metaverse, cloud computing, etc. Furthermore, scaling of datacom capability has required developments in nonlinear optical comb generation and a variety of EO device architectures as well as passive optical circuitry.

While the primary focus of OEO research has been on C-band (1.55 µm), datacom research motivates consideration of the O-band (1.3 µm) operation as well due to lower dispersion for short-range interconnects. Electro-optic sensor technology is growing rapidly in importance with its capability for sensing a wide range of physical and chemical phenomena.^6,7 Embedded network sensing and point-of-care medical diagnosis are examples. Particularly noteworthy, LIDAR (especially when coupled with autonomous vehicle technology) is rapidly growing in importance and is being applied to fields ranging from environmental imaging and monitoring to agriculture, archeology, defense, and more.^7,209–212 Spectroscopy has been significantly impacted, as has metrology involving ranging and imaging. Optical gyroscopes are seeing commercial applications.²¹³ The advent of hybrid active meta-surfaces has permitted transformative changes in display and sensor technologies exploiting the control of amplitude, phase, and polarization of light that is possible with such meta-surfaces.^7,104 Meta-surfaces are also being applied to quantum technologies.¹¹⁵ In addition to these broader applications, a number of specific devices have been developed, including spatial light modulators, RF/millimeter wave beam steering (phased array radar), ultra-stable frequency generators (clocks), A/D converters, frequency shifters, acoustic spectrum analyzers, etc.^6,7 Recently, interest has increased in the use of EO modulation for novel optical computing modalities, such as providing nonlinearity at the output stage of optical perceptions in neuromorphic analog optical computing.²¹⁴ Artificial intelligence/machine learning (AI/ML)²¹⁵ and quantum technologies represent additional emerging applications.

Pockels effect modulation technology based on thin film lithium niobate (TFLN),^216–221 thin-film barium titanate (BTO),²²² as well as EA modulation technologies²²³ based on conducting oxides such as indium tin oxide (ITO),^193–198 merits comment. Competing with Pockels effect modulation are modulation techniques based on electro-absorption^224–227 (including modulation based on graphene as well as inorganic materials) and carrier dispersion effects.^{53,224,228–231} Each of these approaches has advantages and disadvantages. TFLN has the advantage of low optical propagation loss and even lower absorption loss that extend from the visible to the infrared, as well as an extensive history of the use of bulk lithium niobate in telecom.^{58–60,103,106,109,111,114,115,199,216–221,224,228–231} Disadvantages include a small EO coefficient, a velocity mismatch between radio frequency and optical fields, and lithium–ion migration, which poses a concern for integration with CMOS electronics. Significant progress has been made with respect to addressing these limitations of TFLN technology, but the low EO coefficient (and hence large V_πL) limits the size of devices and the potential for dense integration with electronics. Recent progress with devices based on BTO has allowed them to realize small V_πL values by capturing a large fraction of BTO’s high (>900 pm/V) Pockels response,^200,222 but they are limited in bandwidth and power consumption by BTO’s high dielectric constant. EA based modulators can also realize exceptional V_πL values, but demonstrations to date are often limited in bandwidth, loss, and power efficiency.²³²

Because of the rapid pace of improvement of all technologies, no tabular comparison of various technologies is presented, and the reader is referred to comparisons given in recent literature.^{8,57,61,224,225,228–231,233} The rapid pace of improvement of modulation and photodetection technologies is likely to continue with a corresponding expansion of applications. Different applications have different requirements with respect to operating wavelength range, operating temperature range, V_πL, bandwidth, energy efficiency, and size. No single material/device technology will be optimum for all applications. It can be noted that while the vast majority of OEO device research has focused on telecommunication wavelengths, visible wavelength devices can be achieved using shorter versions of high β chromophores.¹⁸⁴ A V_πL of 5.2 V mm has been demonstrated operating at a wavelength of 640 nm.¹⁸⁴ The relative competitiveness of various technologies for specific applications will likely continue to change with further research and development of individual technologies. The same can be said for material processing options and device architectures.

However, the opportunity for versatile design, synthesis, and processing options for organic second-order NLO materials suggests that the attractiveness of such materials will likely continue to increase, enhancing the performance and range of applications of hybrid silicon photonic, silicon nitride photonic, plasmonic, and meta-surface devices.
