Alkali antimonide semiconductor photocathodes provide a promising platform for the generation of high-brightness electron beams, which are necessary for the development of cutting-edge probes, including x-ray free electron lasers and ultrafast electron diffraction. Nonetheless, to harness the intrinsic brightness limits in these compounds, extrinsic degrading factors, including surface roughness and contamination, must be overcome. By exploring the growth of CsxSb thin films monitored by in situ electron diffraction, the conditions to reproducibly synthesize atomically smooth films of CsSb on 3C–SiC (100) and graphene-coated TiO2 (110) substrates are identified, and detailed structural, morphological, and electronic characterization is presented. These films combine high quantum efficiency in the visible (up to 1.2% at 400 nm), an easily accessible photoemission threshold of 566 nm, low surface roughness (down to 600 pm on a 1 μm scale), and a robustness against oxidation up to 15 times greater than Cs3Sb. These properties lead us to suggest that CsSb has the potential to operate as an alternative to Cs3Sb in electron source applications where the demands of the vacuum environment might otherwise preclude the use of traditional alkali antimonides.

High-brightness electron beams are an essential ingredient in a variety of modern scientific applications, which require high charge and ultrashort electron pulses. These applications range from x-ray free electron lasers (FELs)1,2 to fs-scale ultrafast electron microscopes3–5 and to electron-based hadron cooling systems and electron linear colliders.6–8 Generation of pulsed electron beams is accomplished via photoemission of electrons from specifically tailored materials characterized by high quantum efficiency (QE, photoemitted electrons per incident photon). To ensure high brightness of the resulting beam, the intrinsic emittance of the material (a measurement of the momentum spread of the photoelectrons) must be minimized9 by limiting the physical and chemical roughness of the surface of the sample.10 One class of materials identified by accelerator scientists as high efficiency photocathode candidates are alkali antimonide semiconductors: AA2Sb (A, A′ = Cs, K, Na, Rb, including A = A′).11 These compounds are characterized by QE’s of 10−2 to 10−1 at 550 nm12 and by mean transverse energies (MTEs) below 180 meV at 532 nm, which can be further reduced by operating near the photoemission threshold and at low temperature. These low MTEs are relevant, for example, for next generation high repetition rate FELs.11,13 Unfortunately, this class of materials is also extremely sensitive to oxidation—which tends to suppress the photocathode efficiency and enlarge the MTE.14 Alkali antimonides have stringent vacuum requirements, demanding pressures below 10−10 Torr to be handled without significant degradation,15 which limits the scope of their applicability. Additionally, the high vapor pressure of alkali metals at ambient temperatures presents a challenge to the synthesis of smooth, ordered films.16–19 Because surface disorder induces emittance degradation and reduces the utility of the photocathode, significant effort has been devoted to finding ways to reduce the crystalline disorder of these materials. Recent advances include both improving the as-grown film properties (smoothness, homogeneity) through new synthesis techniques20,21 as well as finding ways to increase their robustness against contamination and aging, for example by encapsulating them in 2D materials.22,23

In this article, we explore the phase diagram of CsxSb using a variety of in situ and operando probes of the structure, morphology, and photoemission properties of the resulting films. We identify another member of the alkali antimonide family, CsSb, as a visible light photoemitter, which can be grown in crystalline, ultra-flat films characterized by surface roughness better than 1 nm on a 1 μm scale and quantum efficiency up to 1.2% at 400 nm. This phase is found to be substantially more resilient to oxygen contamination than its more commonly synthesized cousin, Cs3Sb, which may extend the operational lifetime of the cathodes in the demanding environment of a photoinjector cavity. The photoemission threshold of CsSb is found to be around 566 nm, close to the second harmonic of many high repetition rate lasers currently used in linear accelerator photoinjectors (532 nm).24 This means that near-threshold operation of CsSb photocathodes would be achievable without major modification to existing optical assemblies, in addition to making use of alkali antimonide deposition systems already in use in several accelerator laboratories.

The recent achievement of epitaxial single-oriented Cs3Sb films19 was in large part made possible through the use of reflection high energy electron diffraction (RHEED) as a structural diagnostic during growth. This technique is a mainstay of traditional semiconductor, metal, and oxide film growth by molecular-beam epitaxy (MBE); however, to date, it has been infrequently employed in photocathode preparation, where the traditional operando diagnostic is the QE.25,26 By monitoring the structure of the sample during deposition, using RHEED, we identify various growth regimes of CsxSb as a function of the growth temperature, including the stabilization of ordered films of CsSb. We study the chemical composition of the resulting films using x-ray photoemission spectroscopy (XPS), their morphology using scanning tunneling microscopy (STM), and their electronic structure using angle resolved photoemission spectroscopy (ARPES).

We begin with an overview of the growth of CsxSb photocathodes over a range of conditions with the structure monitored during growth using RHEED and the QE measured directly afterward. Because the cesium desorption rate from the sample is strongly temperature dependent on the range explored here, adsorption control of the stoichiometry can be accomplished by oversupplying cesium and varying the substrate temperature, rather than by varying the Cs:Sb flux ratio. The quantum efficiency of a set of samples grown under similar flux conditions (cf. Sec. VIII A) is depicted in Fig. 1(a). Using RHEED, we identify three distinct regimes of film growth across the explored temperature range. At low temperatures, regime (I), around 40 °C, the high efficiency Cs3Sb phase is formed with QE ranging from 3% to 10%. When films are codeposited at this temperature, they are polycrystalline and form textured ring patterns in RHEED, shown in Fig. 1(b). Once formed, however, this phase is stable against Cs loss at higher temperatures and can be annealed up to 85 °C to order the domains and, on an appropriate substrate, produce an epitaxial film while maintaining 1% level QE in the green.19 When films are deposited at higher temperatures, 90 °C, regime (II), the RHEED patterns show less well-defined rings and some faint streaks. While the QE of these samples remains reasonably high (103 at 504 nm), RHEED indicates decreased crystallinity and a lack of ordering. However, when the substrate temperature is further increased, exceeding 100 °C, regime (III), a new phase emerges, which is characterized by the streaked RHEED pattern shown in Figs. 1(d) and 1(e). Spectroscopic measurements identify the stoichiometry of this phase to be CsSb. No azimuthal dependence of the RHEED streaks is observed, indicating no preferential in-plane orientation of the films. Nonetheless, the absence of rings indicates alignment of the out-of-plane axes of the grains, and the lack of vertical modulation indicates smooth, terraced growth of a so-called “fiber textured” film.27

FIG. 1.

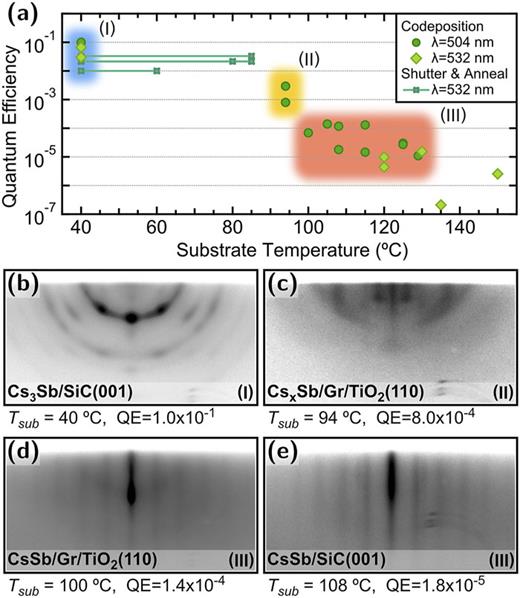

Quantum efficiency (QE) of CsxSb photoemitters, 1 ≤ x ≤ 3. (a) QE (in the green) as a function of growth temperature. Samples grown by codeposition at a single temperature are shown as circles and diamonds; samples using the solid-phase epitaxy approach of Ref. 19 are depicted as lines connecting the deposition and annealing temperatures. (b) RHEED pattern of a 18.6 nm thick, textured, high-efficiency Cs3Sb film grown at low temperature. (c) RHEED pattern of a 14 nm thick, textured, medium-efficiency film in the intermediate regime. (d) and (e) RHEED patterns of 14 nm thick, fiber-texture CsSb films codeposited at temperatures above 100 °C. (b)–(e) A logarithmic intensity scale is used; quoted QEs are measured at 504 nm.

FIG. 1.

Quantum efficiency (QE) of CsxSb photoemitters, 1 ≤ x ≤ 3. (a) QE (in the green) as a function of growth temperature. Samples grown by codeposition at a single temperature are shown as circles and diamonds; samples using the solid-phase epitaxy approach of Ref. 19 are depicted as lines connecting the deposition and annealing temperatures. (b) RHEED pattern of a 18.6 nm thick, textured, high-efficiency Cs3Sb film grown at low temperature. (c) RHEED pattern of a 14 nm thick, textured, medium-efficiency film in the intermediate regime. (d) and (e) RHEED patterns of 14 nm thick, fiber-texture CsSb films codeposited at temperatures above 100 °C. (b)–(e) A logarithmic intensity scale is used; quoted QEs are measured at 504 nm.

Close modal

The sample thicknesses can be estimated from the measured Sb flux and the areal number densities of the identified phases. All regime (III) samples were 14 nm thick, while the regime (II) samples were 14 nm [QE(504 nm) = 0.8 × 10−3] and 74 nm [QE(504 nm) = 3 × 10−3] thick. For comparison, the QE of the epitaxial Cs3Sb samples, which are less than 10 nm thick,19 is about 2% at 532 nm. Therefore, the QE values associated with the three regimes are distinct, despite the expected variations due to thickness. Although the QE of films grown in regime (III) is reduced (ranging from 1.1 × 10−5 to 1.4 × 10−4 at 504 nm) compared to Cs3Sb, these films remain visible light photoemitters. The growth window for this particular phase is ∼30 °C wide, with the quantum efficiency dropping below 10−5 at higher growth temperatures. For this film series, the growth windows were identified using Cs fluxes of 1.63.0×1013 at/cm2/s; in general, the temperature boundaries are expected to depend on the chosen elemental flux owing to competition between deposition and re-evaporation of the Cs vapor at elevated growth temperatures.

The remainder of this work is concerned with the study of films in regimes (II) and (III), including their morphology and photoemission properties. We note that in regime (III), fiber-textured films are produced on both of the substrates investigated here, 3C–SiC (100) and monolayer graphene deposited on rutile TiO2 (110). No discernible differences in either the RHEED patterns or QE were observed between films grown on the two substrates, indicating that they both provide reasonable platforms for the synthesis of CsSb.

In Figs. 2(a) and 2(b), we report the Cs 3d and Sb 3d XPS spectra of three CsxSb samples grown on graphene/TiO2 (110) at different substrate temperatures (Tsub): one in growth regime (II) (Tsub = 94 °C) and two grown at higher temperature in regime (III). In Fig. 2(a), the Cs 3d5/2 peak position is close to the Cs+ reference energy (752.2 eV) for all the samples, though some shift toward higher binding energies was observed with decreasing Tsub. The peak at 730.9 eV is attributable to the Mg Kα3 satellite of the Cs 3d3/2 peak, although the intensity ratio between the peaks, exceeding 8%, does not exclude some plasmon contribution. In contrast to measurements of high QE Cs3Sb28 and metallic Cs,29 no strong plasmon peaks were observed in these samples. The Sb 3d5/2 peak position, 527.45–527.65 eV, falls between the binding energies of Sb0 metal (528.3 eV) and Sb3− in Cs3Sb (526.1 eV) reference samples (a comparison is reported in the supplementary material). In previous studies of Cs–Sb compounds, this binding energy value has been attributed to Sb0 (either bulk or “atomic”),30,31 while others attributed it to different phases of the Cs–Sb system, such as CsSb or Cs5Sb4.14 However, evaluation of the Sb Auger parameter in the present films is consistent with reduced Sb in Cs3Sb rather than with Sb metal. Estimates of the sample composition, reported in Table I, are close to Cs:Sb = 1:1, which leads us to attribute the observed Sb 3d5/2 binding energy value to Sb1− species.

FIG. 2.

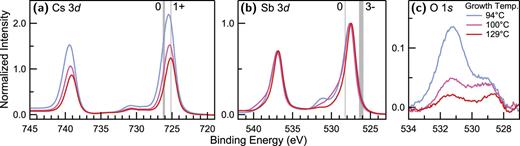

Background subtracted XPS spectra in the (a) Cs 3d, (b) Sb 3d, and (c) O 1 s regions for 14 nm thick samples grown at different substrate temperatures; intensity is normalized to the Sb 3d5/2 peak. Literature reference energies for Cs0, Cs1+, and Sb3− are provided as gray lines32–34 in addition to a metallic Sb sample (Sb0) measured in the same XPS system.19 Measurements presented here were performed at a grazing emission angle of 70°; normal emission data are available in the supplementary material.

FIG. 2.

Background subtracted XPS spectra in the (a) Cs 3d, (b) Sb 3d, and (c) O 1 s regions for 14 nm thick samples grown at different substrate temperatures; intensity is normalized to the Sb 3d5/2 peak. Literature reference energies for Cs0, Cs1+, and Sb3− are provided as gray lines32–34 in addition to a metallic Sb sample (Sb0) measured in the same XPS system.19 Measurements presented here were performed at a grazing emission angle of 70°; normal emission data are available in the supplementary material.

Close modal
TABLE I.

Composition of 14 nm thick CsSb samples obtained by XPS as a function of growth temperature, Tsub, and photoelectron emission angle: normal emission = 0°, grazing emission = 70°. At grazing emission, the probe depth is reduced by a factor of 3, enhancing sensitivity to the sample surface.

Tsub (°C)70°
94 Cs0.51O0.12Sb0.37 Cs0.53O0.21Sb0.26
100 Cs0.48O0.11Sb0.41 Cs0.51O0.13Sb0.36
129 Cs0.48O0.07Sb0.45 Cs0.49O0.09Sb0.41
Tsub (°C)70°
94 Cs0.51O0.12Sb0.37 Cs0.53O0.21Sb0.26
100 Cs0.48O0.11Sb0.41 Cs0.51O0.13Sb0.36
129 Cs0.48O0.07Sb0.45 Cs0.49O0.09Sb0.41

To enhance surface sensitivity and examine the presence of surface oxidation, the spectra of Fig. 2 were collected in glancing emission.15 The O 1s spectrum ([528, 534] eV) overlaps with the Sb 3d peaks; the spin–orbit splitting of the Sb 3d3/2–3d5/2 peaks can be exploited to isolate the oxygen contribution using the methods of Ref. 15; the results are shown in Fig. 2(c). In all three samples, we observe some contribution from oxygen species, likely originating from exposure during the vacuum suitcase sample transfer between the MBE and STM-XPS systems.19,25 For comparison, the XPS spectra measured in situ, reported in Figs. S5(c) and S6(a) of the supplementary material, do show appreciable spectral weight at the O 1s binding energies. We observe O 1s binding energies of 531.2 and 528.7–529 eV, the latter close to the expected Sb 3d3/2 satellite (528.4 eV). Both energies fall into the range associated with metal oxides,29 and in particular, the former is close to the binding energy associated with peroxide species in Cs2O2 (529.9–531.0 eV)35 or with antimony suboxide.36

The surface composition of the samples of Fig. 2 was obtained from the integrated intensity of Cs 3d, Sb 3d, and O 1s spectra normalized by their relative sensitivity factors and photoelectron escape depth; the results are reported in Table I. From the less surface-sensitive normal emission measurements, we observe that the Cs:Sb ratio is closest to 1:1 for the sample grown at higher temperature and that Cs content increases with decreasing growth temperature. All samples were stored and transferred simultaneously from the MBE to the STM-XPS system; thus, they received identical exposure to residual gasses. Therefore, the observed correlation between the lower oxygen content and reduced Cs:Sb ratio in samples grown at higher Tsub indicates that stoichiometric CsSb has an increased oxidation resistance over the Cs rich phases. The Cs and O content is higher in the more surface sensitive measurements at grazing emission, which is consistent with surface oxidation. However, the differences between the spectra at different emission angles (supplementary material) indicate that the compositional gradient through the samples is minor, when compared to the typical behavior of Cs3Sb where Cs segregation is observed in response to any oxygen exposure.15,25 Using the methods described in Refs. 30 and 37, the XPS data can be modeled by a bottom layer with composition Cs:Sb 1:1 covered by a surface layer with composition Cs:O 1:1, consistent with a layer of Cs2O2, although the model parameters cannot be unequivocally determined using only two emission angles. The observed shift of the Cs 3d binding energy, and the less pronounced one of the Sb 3d peak, can be explained by band-bending induced by Cs2O2,38 analogous to observations of superficially oxidized Cs3Sb.15 While a Cs2O2 layer is necessary to activate photoemission from GaAs at visible or infrared wavelengths, the absence of O 1s peaks in in situ XPS measurements performed immediately following the in situ QE measurements indicates that the oxide layer is not required for visible light photoemission in this material.

The development of high-quality alkali antimonide thin films has been stymied by their propensity to form rough or disordered surfaces during growth, contributing to high MTEs of the photoemitted electrons.10,39 Recent advances, including the careful choice of substrate and growth temperature, have helped to mitigate the surface roughness of Cs3Sb films,17,19,21 but the synthesis of atomically ordered films still requires a delicate multi-step shuttered growth procedure. One advantage of CsSb indicated by the RHEED patterns in Figs. 1(d) and 1(e) is that smooth, terraced films may be produced by codeposition at a single temperature. To quantify this, the morphology of a set of MBE-grown CsSb films [on monolayer graphene coated TiO2 (110)] was investigated using STM, and the results are summarized in Fig. 3 and in the supplementary material. A sample grown in regime (II) at a lower temperature of 94°C shows a rough and disordered grain structure with a characteristic grain size of 85 nm (equivalent disk radius) and a root-mean-square (rms) roughness of 1.4 nm averaged over grains. The surface roughness averaged over a 1 × 1 μm2 area is found to be 2.3 nm. In contrast, samples grown at higher temperatures, in regime (III), show flat, smooth terraces, examples of which are shown in Figs. 3(b) and 3(c). The terrace-averaged rms roughness observed in Fig. 3(b) is only 240 pm (averaged over a lateral scale of 200 nm) and is 600 pm when averaged on the 1 μm scale. The sample grown at higher temperature, in Fig. 3(c), shows a slightly increased rms roughness of 750 pm on the 1 μm scale. These roughness values compare favorably to state-of-the-art codeposited films of Cs3Sb on SiC21 and SrTiO3.17

FIG. 3.

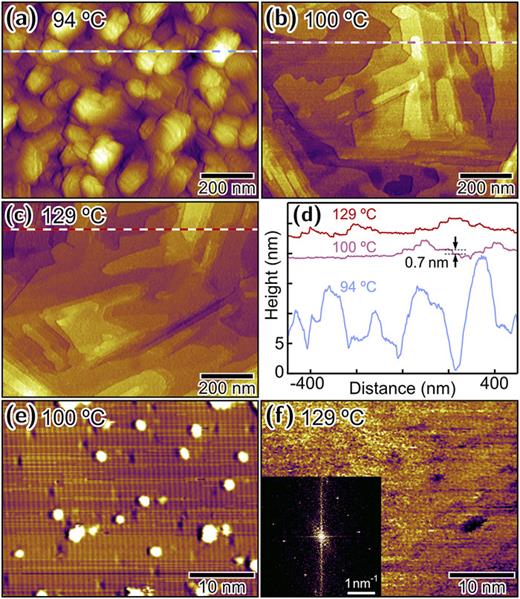

STM images of 14 nm thick CsxSb films grown on graphene coated TiO2 (110) substrates. (a)–(c) 1.0 × 0.76 μm2 images of samples grown at 94 , 100 , and 129 °C, respectively. (d) Line cuts from the marked areas in the prior three images; traces are offset for clarity. (e) and (f) Higher magnification images of terraces imaged in samples in (b) and (c), respectively; the inset shows the Fourier transform of the STM image.

FIG. 3.

STM images of 14 nm thick CsxSb films grown on graphene coated TiO2 (110) substrates. (a)–(c) 1.0 × 0.76 μm2 images of samples grown at 94 , 100 , and 129 °C, respectively. (d) Line cuts from the marked areas in the prior three images; traces are offset for clarity. (e) and (f) Higher magnification images of terraces imaged in samples in (b) and (c), respectively; the inset shows the Fourier transform of the STM image.

Close modal

Figure 3(d) shows a set of representative line cuts from the previous three images. The blue line cut shows the morphology of a rough surface, while the pink and red lines show terrace widths and heights for the flat samples of Figs. 3(b) and 3(c). The terraces are separated by steps of roughly 0.7 nm, though there is some variation in the step heights measured across the STM maps, and step heights between 0.5 and 0.9 nm are observed. A higher magnification image of one of the terraces is given in Fig. 3(e), which shows atomic rows with both pits and islands, likely due to the presence of both atom vacancies and adatoms on the sample surface. The inter-row spacing is 0.79 nm, and the atomic rows change orientation at grain boundaries (cf. the supplementary material) as expected from the fiber-texture diffraction pattern observed in RHEED. Taken together, the RHEED and STM indicate that the films grow locally in ordered crystalline domains, with length scales of 100–200 nm, which are rotationally misaligned to form an even distribution on the macroscale. As shown in Fig. 3(c), the terraced structure of the films is preserved throughout regime (III); from the Fourier transform of the STM image [Figs. 3(f) and 3(a)], a similar in-plane lattice constant of 0.76–0.78 nm can be extracted.

The aforementioned STM measurements of the film morphology are also consistent with prior studies of the bulk crystal structure of CsSb. It has been shown previously that bulk CsSb may crystallize in one of the two related structures; it was originally discovered that at higher temperatures (>500°C) and longer reaction times (>100 h), a NaP-type orthorhombic phase with space group P212121 forms.40 Later, it was observed that at lower temperatures (440°C) and shorter reaction times (∼1 h), a monoclinic phase may form with space group P21/c.41 Following Emmerling et al.,41 we term the high-temperature orthorhombic phase as α-CsSb and the lower temperature monoclinic phase as β-CsSb. Although the crystal symmetries differ, the α and β phases share a common structural motif, being composed of extended chains of Sb atoms surrounded in a cage of Cs ions—it is the relative orientation of the chains and their stacking sequence, which differentiates the two phases. A visualization of the β phase based on crystallography data reported in Ref. 41 is provided in Fig. 4, and the discussion of the α phase is provided in the supplementary material. For consistency, in both structures, we take the axis along the chains to be the [010] direction. In the β phase, the chirality of the Sb chains alternates across the (001) planes and the relative rotation of the chains alternates across (100). The β phase is composed of monolayers of chains stacked along the [100] direction with an expected spacing of 0.70 nm, which is also consistent with the measured STM step heights. Additionally, the row spacing expected from bulk measurements for (100) oriented β-CsSb is 0.72 nm, which is consistent with the above STM measurements. Note that presence of the α phase cannot be ruled out entirely by the measurements performed here as determination of the crystal symmetry by ex situ x-ray diffraction was not possible due to the air-sensitivity of the samples. Further refinement of the structure using in situ x-ray diffraction would help to clarify the precise phase stabilized under these growth conditions.

FIG. 4.

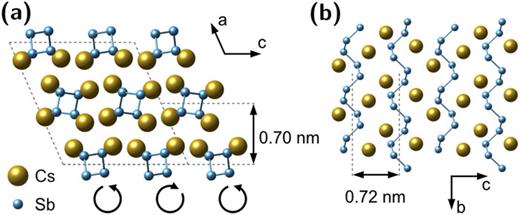

Visualization of the crystal structure42 of the monoclinic phase, β-CsSb, measured in Ref. 41. (a) Projection along [010] showing the layered structure of the Sb spirals. Alternating layers have opposing tilts, and alternating columns have alternating chirality. (b) Structure of a single β-CsSb monolayer, viewed down the [100] axis, illustrating the quasi-1D structure of the Sb spirals.

FIG. 4.

Visualization of the crystal structure42 of the monoclinic phase, β-CsSb, measured in Ref. 41. (a) Projection along [010] showing the layered structure of the Sb spirals. Alternating layers have opposing tilts, and alternating columns have alternating chirality. (b) Structure of a single β-CsSb monolayer, viewed down the [100] axis, illustrating the quasi-1D structure of the Sb spirals.

Close modal

Using in situ ARPES measurements and density functional theory (DFT) calculations, we can compare the measured electronic structure of the MBE-grown CsSb films with the predicted band structure from prior bulk studies. A calculation of the band structure for bulk-like β-CsSb is shown in Fig. 5(a), and the corresponding calculation for the α phase is included in the supplementary material. Given the quasi-one-dimensional crystal structure, it is perhaps unsurprising that the resulting electronic structure is also quasi-one-dimensional. Paths parallel to the [010] axis (highlighted in blue) show dispersive features corresponding to hopping along the Sb–Sb chains. In contrast, paths perpendicular to [010], i.e., hopping across a more ionic Sb–Cs–Sb bond, show much flatter dispersion. Qualitatively, the band structures of the α and β phases are quite similar—the main difference arises from band splittings corresponding to the larger number of inequivalent Sb sites in the monoclinic cell. The DFT bandwidth of the near EF manifold, primarily composed of Sb 5p states, is calculated to be 3.12 eV in the β phase and 3.06 eV in the α phase. These bandwidths are both substantially larger than those measured for the valence bands of Cs3Sb, 1.2 eV,19 meaning that determination of the density of states by ARPES is a good metric for discriminating between the two phases [e.g., see the comparison in the supplementary material, Fig. S6(b)].

FIG. 5.

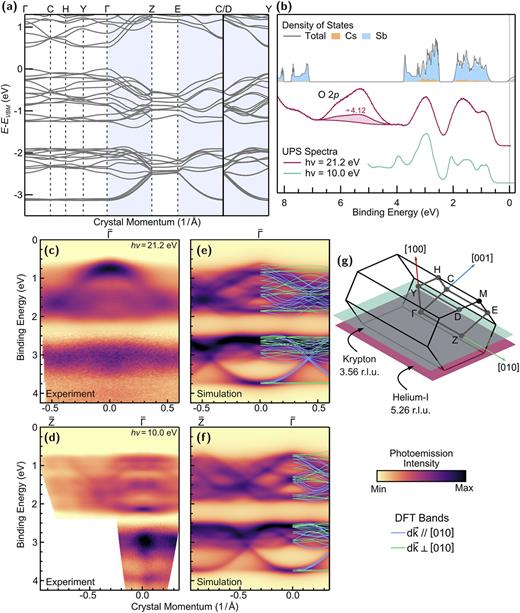

Calculated and measured electronic structure of 14 nm thick CsSb films grown on SiC (100). (a) DFT calculation of the band structure of monoclinic β-CsSb. Cuts taken along directions parallel to the [010] axis are highlighted in blue. (b) Calculated density of states, with Cs and Sb contributions highlighted in orange and blue. Angle-integrated photoemission spectra illustrating the structure of the near EF Sb 5p manifold in green and magenta. O 2p states are observed between 4.4 and 6.7 eV; their adjusted weight (divided by the ratio of the O/Sb photoemission cross sections 4.12) is shaded. Composite angle-resolved spectra taken with helium-I ( = 21.2 eV) and krypton-I ( = 10.0 eV) light are shown in (c) and (d), respectively. Corresponding simulated spectra for a fiber-textured (100) oriented film are displayed in (e) and (f) at out-of-plane momenta of 5.26 and 3.56 r.l.u. (1 r.l.u = 2π/d(100) with d(100) ∼ 13.92 Å). Bands originating from specifically oriented domains are overlaid. (g) Brillouin zone43,44 of β-CsSb with the k-space path from (a) outlined in gray. Positions, in the folded zone scheme, of the ARPES cuts in (c) and (d) are highlighted in magenta and green, respectively.

FIG. 5.

Calculated and measured electronic structure of 14 nm thick CsSb films grown on SiC (100). (a) DFT calculation of the band structure of monoclinic β-CsSb. Cuts taken along directions parallel to the [010] axis are highlighted in blue. (b) Calculated density of states, with Cs and Sb contributions highlighted in orange and blue. Angle-integrated photoemission spectra illustrating the structure of the near EF Sb 5p manifold in green and magenta. O 2p states are observed between 4.4 and 6.7 eV; their adjusted weight (divided by the ratio of the O/Sb photoemission cross sections 4.12) is shaded. Composite angle-resolved spectra taken with helium-I ( = 21.2 eV) and krypton-I ( = 10.0 eV) light are shown in (c) and (d), respectively. Corresponding simulated spectra for a fiber-textured (100) oriented film are displayed in (e) and (f) at out-of-plane momenta of 5.26 and 3.56 r.l.u. (1 r.l.u = 2π/d(100) with d(100) ∼ 13.92 Å). Bands originating from specifically oriented domains are overlaid. (g) Brillouin zone43,44 of β-CsSb with the k-space path from (a) outlined in gray. Positions, in the folded zone scheme, of the ARPES cuts in (c) and (d) are highlighted in magenta and green, respectively.

Close modal

The density of states calculated by DFT matches well with in situ measurements of the valence band structure, in terms of both the peak structure and overall bandwidth, which is measured to be 3.55 eV in Fig. 5(b). The measured position of the Fermi level, at 620 meV above the valence band maximum, can be attributed to pinning of the chemical potential in the gap. This shift is similar to the DFT-calculated gap value of 520 meV—indicating that the Fermi level may lie at or near the conduction band minimum. While this suggests native electron doping, no weight is observed at EF, so additional optical and electrical measurements are required to determine the true gap size and the carrier sign. We note that underestimation of the bandwidth (in this case by 14%) by the electronic structure calculation is similar to previous measurements of Cs3Sb/SiC (100), where the observed bandwidth of the valence states is between 10% and 20% larger than the local-density approximation (LDA) prediction.19 In addition to the expected Sb 5p and Cs 6s states near the Fermi level, an additional peak is observed between 4.2 and 6.8 eV of binding energy—associated with the presence of oxygen 2p states. The calculated photoemission cross section for oxygen is enhanced over that of antimony in this energy range by a factor of 4.12,45 so even superficial oxidation of the surface, as suggested by XPS measurements, may result in a large O 2p signal in ARPES. A more accurate representation of the oxygen DOS is included in the shaded region of Fig. 5(b) where the oxygen weight has been divided by its relative cross section. Finally, the weak peak observed at 7.5 eV is attributable to Sb 5s states, which have a diminished cross section (only 1.7% of σSb5p at = 21.2 eV).45

A consequence of the quasi-one-dimensional band structure is that when angle-resolved photoemission measurements are performed on these fiber-texture films, momentum resolved features are clearly visible, as shown in Figs. 5(c) and 5(d), taken with helium-I ( = 21.2 eV) and krypton-I ( = 10.0 eV) light, respectively. Using the fitted electron affinity, calculated bandgap, and measured work function, we estimate an inner potential46 of V0 ∼ 5.74 eV, placing the out-of-plane momenta at 5.26 and 3.56 r.l.u. (1 r.l.u = 2π/d(100), d(100) = 13.92 Å) for helium-I and krypton-I. At both photon energies, dispersive bands are visible between 0.75-2.25 and 2.50-4.00 eV, with a maximum observed at the center of the projected zone, consistent with the DFT calculation. The fact that the band structure is not completely washed away by the macroscopic rotational disorder is a consequence of the quasi-one dimensional nature of the structure: the measured spectrum is an incoherent sum over rotated domains with most of the dispersion arising from domains where [010] is nearly aligned to the electron analyzer slit. Domains of other orientations contribute primarily flat bands and add up to a nearly momentum independent background.

More quantitatively, the spectra can be simulated by calculating a spectral function from the DFT band structure for each rotated domain and then performing a sum over angles. The results of these calculations, at out-of-plane momenta corresponding to those of the ARPES measurements, are shown in Figs. 5(e) and 5(f). This simulation captures many of the salient features of the ARPES spectra even without taking into account optical matrix element effects. The most well-defined features and clearest dispersion are observed near the zone center, with the mismatched lattice constants of the rotated domains blurring the spectra at higher momentum. Nonetheless, the features from the neighboring zone are still recognizable in the ARPES spectrum Fig. 5(d), as predicted by the simulation in Fig. 5(f). As expected, the features corresponding to the highly dispersive direction along the Sb–Sb chains (shown in blue) are dominant with a lesser contribution from the flatter bands (shown in green) from paths perpendicular to the chains.

The presence of measurable momentum-resolved features in the ARPES spectra further evidences the high degree of surface order that can be achieved in this system, despite the macroscopic rotational disorder in the films. Additionally, the agreement between the measured spectra and calculated electronic structure from the monoclinic phase further corroborates that the phase of the films is predominantly CsSb rather than another member of the Cs–Sb phase diagram. We note, however, that due to the very similar structure of the Sb–Sb chains in the α and β phases, the general dispersive features of α- and β-CsSb are expected to be quite similar. Hence, while the measured dispersive features and DOS match well with calculations for β-CsSb, it is not possible to unequivocally rule out the presence of the α phase with photemission measurements alone. However, the valence band structure and dispersion observed in these measurements allow Cs3Sb and Sb metal to be confidently excluded as the dominant photoemitting phases of the film.

We finish with a discussion of the low-energy photoemission properties of CsSb, which are of primary importance to its application as a high-brightness photoemitter. To this end, the spectral response of two CsSb films was measured, and the results are summarized in Fig. 6(a), together with the measurement of a codeposited Cs3Sb reference sample. The films were synthesized on 3C–SiC (100) in a different MBE growth system than those discussed in previous sections; however, the structure was again monitored using operando RHEED and the growth temperatures were adjusted to take into account a different thermocouple and heater geometry. The resulting CsSb films exhibited the same fiber texture RHEED pattern observed in Figs. 1(d) and 1(e) and similar QEs of 104 at 504 nm. Following growth, the samples were transferred in vacuo to a storage chamber (to avoid reaction with residual Cs vapor in the growth chamber), where the spectral response was measured between 700 and 400 nm. The maximum QE observed in this range was ∼1.2% at 400 nm, which is comparable to Cs3Sb at 590 nm. The photoemission threshold for each cathode was estimated using the Dowell–Schmerge model47 modified for semiconductors. From this fitting, the threshold was estimated to be 2.19 eV for CsSb and 1.65 eV for Cs3Sb. A threshold of 2.19 eV corresponds to about 566 nm, which is a close to second harmonic of common laser gain media, including Nd:YAG, Nd:YVO4, and Nd:YAP. This would allow for near-threshold emission, at which the beam mean transverse energy is typically minimized,9 without the use of complex optical schemes, such as optical parametric amplification.

FIG. 6.

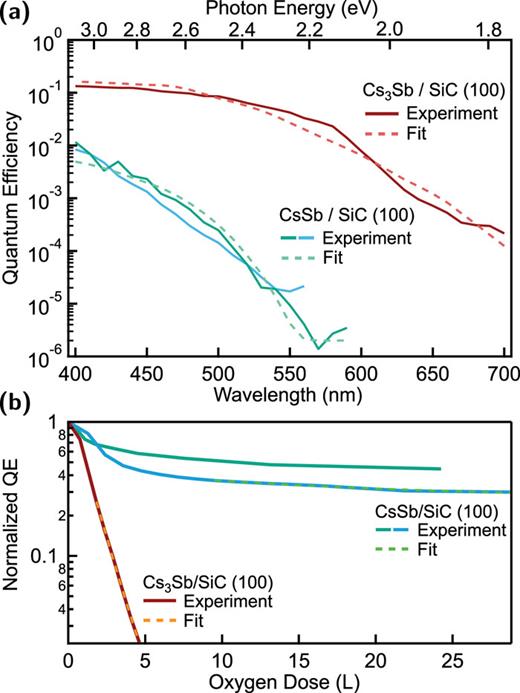

(a) Spectral response of CsSb and Cs3Sb thin films grown by codeposition; the film thicknesses are estimated to be 8 nm (blue) and 18 nm (green) for the CsSb films and 45 nm for the Cs3Sb film (red). Fitting of the response curves gives photoemission thresholds of ~566 nm and >650 nm for CsSb and Cs3Sb, respectively. (b) QE of the same CsSb and Cs3Sb films as a function of oxygen exposure. Dashed lines represent the best fit to an exponential decay; the ratio between the CsSb and Cs3Sb decay constants shown is 15.

FIG. 6.

(a) Spectral response of CsSb and Cs3Sb thin films grown by codeposition; the film thicknesses are estimated to be 8 nm (blue) and 18 nm (green) for the CsSb films and 45 nm for the Cs3Sb film (red). Fitting of the response curves gives photoemission thresholds of ~566 nm and >650 nm for CsSb and Cs3Sb, respectively. (b) QE of the same CsSb and Cs3Sb films as a function of oxygen exposure. Dashed lines represent the best fit to an exponential decay; the ratio between the CsSb and Cs3Sb decay constants shown is 15.

Close modal

Following spectral response measurements, the QE degradation of these CsSb photocathodes was measured as a function of oxygen exposure. The samples were exposed to controlled levels of O2 via a leak valve and nozzle with the O2 partial pressure maintained between 5 × 10−9 and 5 × 10−8 Torr; the chamber background pressure was below 10−9 Torr. The QE is reported as a function of nominal oxygen dose (in Langmuir, 1 L equivalent to 1 × 10−6 Torr × 1 s) in Fig. 6(b). As a control, a high efficiency Cs3Sb cathode was also synthesised in the same MBE growth system and dosed in an identical geometry for a comparable reference. Laser wavelengths of 400 and 532 nm were chosen to measure the QE of the CsSb and Cs3Sb samples, respectively. These wavelengths give similar excess energies (ϕ) for the two phases (0.87 eV for CsSb and 0.68 eV for Cs3Sb) as well as comparable starting QEs of 1%.

Measuring the QE degradation of the two distinct photocathode films starting from percent-level quantum efficiencies demonstrates the critical difference between CsSb and Cs3Sb. The CsSb films exhibit a resistance to oxidation more than 10 times that of Cs3Sb up to an exposure of 30 L. Such chemical stability means that the use of CsSb might extend the usable lifetime of alkali antimonide cathodes in photoguns by over an order of magnitude—extending their use to weeks or months instead of the days-long lifetimes of standard alkali antimonide photoemitters.48

We have demonstrated the synthesis of atomically smooth thin films of CsSb by codeposition of Cs and Sb on both 3C–SiC (100) and graphene/TiO2 (110). This compound, although less efficient than Cs3Sb, is characterized by 1% QE at 400 nm, and its photoemission threshold is close to 532 nm; both wavelengths are easily achievable from common laser gain media. This means that it would be equally easy to operate this cathode both at 1% QE and near the photoemission threshold, where the lowest emittance is expected. Note that the intrinsic emittance has been measured to be minimal at the photoemission threshold only on metal and alkali antimonide photocathodes,13 while Cs2Te is a notable exception,49 so further studies are needed to ascertain its photon energy dependence for CsSb. STM and RHEED studies of the morphology indicate that CsSb can be grown atomically smooth via codeposition at a single temperature, which sidesteps some of the challenges facing the growth of AA2Sb photoemitters, where physical and chemical roughness limit the realization of the intrinsic emittances of the material. We have shown that, despite the random in-plane orientation of domains in the film, the surface remains sufficiently ordered to display dispersion in ARPES. Finally, we observe that CsSb has a greatly improved resistance against oxidation over Cs3Sb. This allows for the preservation of the atomically ordered surface during vacuum suitcase transfers, as revealed by STM and XPS. This robustness would facilitate studies on the intrinsic emittance of ordered high efficiency semiconductors, providing a benchmark for the theoretical study of low-energy photoemission process on this class of materials. The superior resistance to oxidation, reasonably high quantum efficiency in the visible range, and exceptionally low surface roughness indicate that CsSb is worth considering as a photocathode for future photoinjector beamlines and light sources.

CsxSb thin films were grown on 10 × 10 mm2 3C–SiC (001) and graphene coated rutile TiO2(110) substrates affixed to custom niobium sample holders in a Veeco Gen10 MBE system (Pbase ∼ 3 × 10−9 Torr) at the PARADIM thin film facility (https://www.paradim.org/). Substrates were heated using a resistive heater and the temperature monitored via a thermocouple suspended behind the sample holder. Preceding growth, substrates were degassed at 650 °C for 15 minutes until a clear RHEED pattern was observed and then cooled in vacuum to the deposition temperature. Deposition was performed using molecular beams from an elemental Sb source and a Cs–In alloy source.19,50 Typical source temperatures were 288–310 and 407–420 C, giving fluxes of 1.6–3.0 × 1013 and 3.8–4.9 × 1012 for cesium and antimony, respectively. The ratio between the Cs and Sb fluxes was kept between 6 and 6.6 for all growths. Source fluxes were calibrated via quartz crystal microbalance, with an accuracy of ±15%, and the sample thicknesses were estimated using the measured Sb flux as well as the lattice constants and calculated number density of Sb atoms in each phase.

Following growth, samples were transferred through a UHV manifold (P < 2 × 10−9 Torr) to adjacent measurement chambers. The QE was measured using laser diodes, a positively biased collection coil, and a picoammeter. In situ ARPES measurements were performed at room temperature in an analysis chamber with base pressure better than 5 × 10−11 Torr using a Scienta Omicron DA30-L electron analyzer and a Fermion Instruments BL1200s plasma discharge lamp generating helium-I ( = 21.2 eV) and krypton-I ( = 10.0 eV) light. In situ x-ray photoelectron spectroscopy (XPS) measurements were performed in the same chamber using a non-monochromated Scienta Omicron DSX400 x-ray source. Selected samples were transferred using a UHV suitcase (P < 5 × 10−10 Torr) to a separate UHV system for further XPS and STM measurements. X-ray photoelectron spectra were analyzed with an Omicron Sphera II analyzer after excitation by an unmonochromated Mg Kα source (Omicron DAR 400). XPS spectra were collected at photoelectron emission angles of 0° and 70° from the sample’s surface normal. In the latter configuration, the reduced photoelectron escape depth (by 1/3) enhances the surface sensitivity, making the measurement sensitive to composition gradients and surface contaminants. STM analysis was performed at room temperature in ultrahigh vacuum using a W tip and a Omicron variable-temperature STM. The tunneling conditions were 50–100 pA at −0.5 to −0.8 V applied to the sample.

For the QE measurements and oxidation experiments depicted in Fig. 6, sample growth on 3C–SiC (100) substrates was reproduced in a custom-built MBE system equipped with operando RHEED and QE measurement capabilities. The 3C–SiC (100) substrates were annealed at 650 °C for 1 h before lowering to a temperature between 160 and 200 °C for deposition. Following growth, the samples were moved to an adjacent UHV chamber (P1010 Torr) to prevent further reaction with residual alkali metal vapor in the growth system. There, the spectral response of the samples was measured using an Oriel Apex Monochromator light source, a Newport optical powermeter (model 843-R), and an SRS 8340 lock-in amplifier. The photocurrent was collected by biasing a metallic coil placed 5 cm from the sample at +120 V.

For the oxygen dosing experiments, selected samples were returned to the growth chamber, where oxygen was introduced from a leak valve through a nozzle directed at the sample surface; the oxygen partial pressure was measured by using a residual gas analyzer. The QE was measured at a single wavelength, provided by a laser diode, and the photocurrent was measured by monitoring the drain current from the electrically floating sample holder (biased at −40 V). Dosing experiments were performed on both CsSb and Cs3Sb samples in the same configuration to rule out differences between the measured pressure at the gauge and the pressure at the sample surface arising to the chamber’s pumping layout. The QE vs oxygen dose curves have been fitted with a simple exponential decay. In particular, for the CsSb data, the initial faster decay within the first 10 L, visible in Fig. 6(b), was disregarded. The ratio between the decay constants of CsSb and Cs3Sb is found to be 715.

Plane-wave density functional theory calculations of α- and β-CsSb were performed using GGA-PBE exchange–correlation functionals51 and SG15 norm-conserving pseudopotentials52 implemented in JDFTx.53 For the monoclinic (β-CsSb) structure, a plane wave cutoff of 40 hartrees was used and optimized structural parameters of a = 15.50 Å, b = 7.50 Å, c = 14.55 Å, and β = 113.82° were obtained from a relaxation calculation; calculations of total ground state energy and DOS used a mesh of 5 × 7 × 5. To enable efficient interpolation of the electronic band structures to arbitrary crystal momenta and for more accurate calculation of the DOS, the Wannier interpolation technique54 was used to generate a maximally localized Wannier basis set55 using a supercell of 4 × 7 × 4 primitive cells using linear combinations of bulk Bloch bands at binding energies from 0 to 11 eV below the valence band maximum. To generate the simulated ARPES spectra in Figs. 5(e)5(f), a set of spectral functions A(k,ω)1/((ωεi,k)2+Σ2) was then generated from the Wannier interpolated eigenvalues, ɛi,k, and an imaginary self-energy of Σ″ = 75 meV.

See the supplementary material for additional RHEED and STM images, further display and analysis of XPS data, and a discussion of the crystal and electronic structure of the orthorhombic phase α-CsSb.

This work was supported by the U.S. National Science Foundation under Grant No. PHY-1549132, the Center for Bright Beams, and the National Science Foundation [Platform for the Accelerated Realization, Analysis, and Discovery of Interface Materials (PARADIM)] under Cooperative Agreement No. DMR-2039380. Work by C.T.P. and K.M.S. also acknowledges support from the NSF under Grant Nos. DMR-2104427 and AFOSR FA9550-21-1-0168. J.M.M. acknowledges support from DOE under Grant Nos. DE-AC02-76SF00515 and DE-SC0020144. This work made use of the Cornell Center for Materials Research Facilities supported by the National Science Foundation under Award No. DMR-1719875. Substrate preparation was performed, in part, at the Cornell NanoScale Facility, a member of the National Nanotechnology Coordinated Infrastructure (NNCI), which is supported by the National Science Foundation (Grant No. NNCI-2025233). Electronic structure calculations were carried out, in part, at the Advanced Research Computing at Hopkins (ARCH) core facility (rockfish.jhu.edu), which is supported by the National Science Foundation (NSF) under Grant No. OAC 1920103. The authors thank Sean C. Palmer for his assistance in substrate preparation and Betül Pamuk for her assistance in utilizing the high-performance computing resources.

The authors have no conflicts to disclose.

Sample synthesis was performed by A.G., C.T.P., C.A.P., E.E., and W.J.D. under the supervision of J.M.M., K.M.S, and D.G.S with assistance from H.P. QE experiments were performed by A.G., C.A.P., E.E., and C.T.P. C.T.P. and B.D.F. performed the in situ ARPES and XPS measurements with assistance from L.M. and C.H. and data was analyzed by C.T.P. and V.A. STM and angle-dependent XPS measurements were performed by J.B. and W.J.D., and A.G. performed quantitative XPS data analysis under the supervision of M.A.H. DFT calculations were performed by C.T.P. and J.K.N. under the supervision of K.M.S. and T.A.A., A.G., C.T.P., C.A.P. and J.M.M. prepared the manuscript with input from all authors.

C. T. Parzyck: Conceptualization (equal); Formal analysis (equal); Investigation (equal); Writing – original draft (equal). C. A. Pennington: Formal analysis (equal); Investigation (equal); Writing – original draft (equal). W. J. I. DeBenedetti: Formal analysis (equal); Investigation (equal); Writing – review & editing (equal). J. Balajka: Formal analysis (equal); Investigation (equal); Writing – review & editing (equal). E. M. Echeverria: Formal analysis (equal); Investigation (equal); Writing – review & editing (equal). H. Paik: Investigation (supporting); Resources (equal); Writing – review & editing (equal). L. Moreschini: Investigation (supporting); Resources (equal); Writing – review & editing (equal). B. D. Faeth: Investigation (supporting); Resources (equal); Writing – review & editing (equal). C. Hu: Investigation (supporting); Resources (equal); Writing – review & editing (equal). J. K. Nangoi: Formal analysis (supporting); Investigation (supporting); Resources (equal); Writing – review & editing (equal). V. Anil: Formal analysis (supporting); Writing – review & editing (equal). T. A. Arias: Formal analysis (supporting); Supervision (supporting); Writing – review & editing (equal). M. A. Hines: Formal analysis (equal); Resources (equal); Supervision (equal); Writing – review & editing (equal). D. G. Schlom: Resources (equal); Supervision (equal); Writing – review & editing (equal). A. Galdi: Conceptualization (equal); Formal analysis (equal); Investigation (equal); Supervision (equal); Writing – original draft (equal). K. M. Shen: Conceptualization (equal); Supervision (equal); Writing – review & editing (equal). J. M. Maxson: Conceptualization (equal); Supervision (equal); Writing – original draft (equal).

The data that support the findings of this study are available within the article and its supplementary material. Additional data related to the growth and structural characterization are available at DOI 10.34863/1eg8-ak52. Additional data connected to the study are available from the corresponding author upon reasonable request.
