Normally off beta-phase gallium oxide (β-Ga2O3) metal-oxide field-effect transistors (MOSFETs) on GaN-on-Si substrates were fabricated with a threshold voltage (VTH) of 3 V. β-Ga2O3 thin films were deposited using pulsed laser deposition. The device demonstrated an excellent breakdown voltage of ∼540 V at VGS = 0 V and an extremely low gate leakage current of ∼10−7 mA/mm. Additionally, it exhibited a low subthreshold swing (SS) of ∼167 mV/dec and a current on/off ratio of ∼106. The growth and fabrication of β-Ga2O3 MOSFETs on GaN-on-Si substrates are significant for high performance and their monolithic integration with GaN devices in future power-integrated circuits.
Beta gallium oxide (β-Ga2O3) has emerged as a leading ultra-wide bandgap (UWBG) semiconductor material with a bandgap of approximately 4.9 eV,1 significantly higher than other WBG materials such as silicon carbide (SiC) and gallium nitride (GaN).2,3 This large bandgap allows Ga2O3 to sustain a critical breakdown field of up to ∼8 MV cm−1, enabling its use in applications that require high-voltage and high-power capabilities.4 Furthermore, Ga2O3 exhibits a high Baliga's figure of merit,5 which is a key indicator of power semiconductor performance. These properties make Ga2O3 a promising candidate for a wide range of high-power and high-frequency applications, including power electronics, radio frequency (RF) devices, and solar-blind ultraviolet photodetectors.6–9 Despite its advantages, several challenges hinder the widespread use of Ga2O3 in commercial applications. These include its intrinsically low thermal conductivity,10 which limits the device's ability to manage heat during high-power operation, and the difficulty of achieving efficient p-type doping,11,12 which is essential for fabricating complementary devices like bipolar junction transistors.
To address these material limitations, heterogeneous integration of Ga2O3 with substrates such as silicon (Si), GaN, SiC, and diamond has become an important strategy.13–17 Heterogeneous substrates are crucial for enabling large-scale manufacturing, improving device performance, and overcoming thermal management issues. This integration can significantly enhance thermal conductivity by leveraging the properties of the underlying substrate while maintaining the high-performance characteristics of Ga2O3. Various methods have been proposed for fabricating Ga2O3 devices on foreign substrates, including techniques like wafer bonding,18 layer transfer,13,19 and direct epitaxy growth such as pulsed laser deposition (PLD),20 molecular beam epitaxy (MBE),21–23 and metalorganic chemical vapor deposition (MOCVD).24 Xu et al. reported the heterogeneous integration of Ga2O3 metal-oxide field-effect transistors (MOSFETs) on SiC and Si substrates through a method based on ion-cut technology.25
Although Ga2O3-on-SiC substrates offer the advantage of high thermal conductivity, they are expensive and not compatible with Si process technology for monolithic integration with different material systems. In contrast, Ga2O3-on-GaN buffer layers on Si substrates offer a more scalable, cost-effective solution without compromising performance. GaN serves as an excellent buffer layer due to its high thermal conductivity and wide bandgap, making it an ideal material to support Ga2O3-based devices while enabling the integration of Ga2O3 with Si substrates. This integration allows for the development of high-performance Ga2O3-based metal-oxide-semiconductor field-effect transistors (MOSFETs) that can be efficiently scaled for commercial use in power electronics and RF systems. Given Ga2O3’s higher breakdown voltage compared to GaN, it complements GaN's superior mobility. This allows high-speed control circuitry to be implemented with GaN technology, while high-power devices are realized using Ga2O3, leveraging both technologies to develop monolithic power-integrated circuits (ICs). This work showcases the feasibility of monolithically integrating Ga2O3 with GaN-based devices, paving the way for next-generation high-power and high-efficiency electronics.
Herein, we demonstrated the fabrication of enhancement-mode (E-mode) Ga2O3 MOSFETs on GaN buffer layers integrated onto silicon substrates. The devices exhibit a breakdown voltage of ∼540 V at VGS = 0 V, which is the highest reported for β-Ga2O3 MOSFETs on Si substrates. The threshold voltage (VTH) is measured at 3 V, and the low subthreshold swing (SS) is 167 mV/dec with gate leakage current of ∼10−7 mA/mm, which is comparable to or better than previously reported values for similar devices.20,26–29 These characteristics make the devices well-suited for high-power applications, such as power switching and RF amplification, where high-voltage handling and low losses are crucial.
The epitaxial information of the wafer is shown in Fig. 1(a). A ∼50 nm Si-doped β-Ga2O3 film was grown on semi-insulating 4.7-μm thick GaN buffer with a carbon doping concentration of 5 1019 cm−3 on p-Si (111) substrates. The laser ablation frequency was maintained at 5 Hz, the oxygen partial pressure at 5 mTorr, and the laser energy at 102 mJ throughout the growth process. The Hall measurement shows the electron concentration and bulk mobility of the β-Ga2O3 were ∼1.2 1018 cm−3 and ∼2.06 cm2 V−1 s−1, respectively. The relatively low bulk mobility of the epitaxial Ga2O3 film is primarily due to its polycrystalline nature, and lattice mismatch-induced defects from growth on GaN/Si substrates.24 Mobility can be improved by adopting advanced growth techniques such as MOCVD and applying post-growth high-temperature annealing to enhance crystallinity and reduce defect densities.30 Figure 1(b) shows the XRD pattern of the β-Ga2O3 film grown on GaN buffer-on-Si substrates. The XRD peaks at ( 201), ( 402), and ( 603) confirm the mono-orientation of the polycrystalline β-Ga2O3 film grown on heterogeneous GaN buffer-on-Si substrates.20 The atomic force microscopy (AFM) measurement was done before and after the growth of the β-Ga2O3 film. The root mean square (RMS) surface roughness of the GaN buffer before the growth of β-Ga2O3 film was ∼0.23 nm for a scanning area of 5 5 μm2 as depicted in Fig. 1(c). Furthermore, a slight increase in the RMS surface roughness was observed after the growth of the β-Ga2O3 film, measured at ∼0.57 nm for a scanning area of 5 5 μm2 as shown in Fig. 1(d).

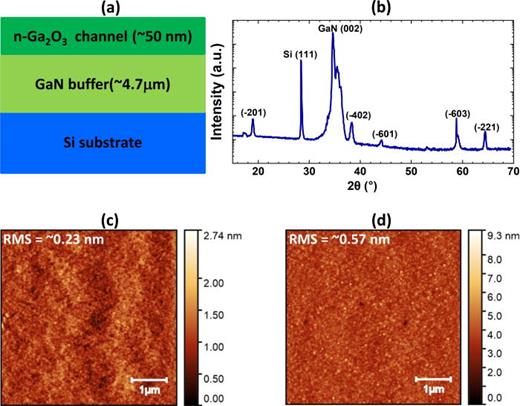

β-Ga2O3 film grown on GaN-on-Si substrates: (a) schematic representation of epitaxy information, (b) XRD pattern of β-Ga2O3/GaN/Si, (c) AFM image (of 5 5 μm2) of GaN surface before β-Ga2O3 film deposition, (d) AFM image (of 5 5 μm2) after β-Ga2O3 film deposition by PLD.
β-Ga2O3 film grown on GaN-on-Si substrates: (a) schematic representation of epitaxy information, (b) XRD pattern of β-Ga2O3/GaN/Si, (c) AFM image (of 5 5 μm2) of GaN surface before β-Ga2O3 film deposition, (d) AFM image (of 5 5 μm2) after β-Ga2O3 film deposition by PLD.
A 3D schematic, fabrication process, and scanning electron microscopy (SEM) of fabricated β-Ga2O3 thin film transistors (TFTs) on GaN-on-Si substrates is shown in Fig. 2. The fabrication begins with the wafer cleaning for 5 min in HF solution, followed by the growth of a ∼50 nm Si-doped β-Ga2O3 layer on GaN buffer using PLD at 700 °C. The source (S) and drain (D) Ohmic terminals using Ti/Au (20/150 nm) were formed. A ∼25-nm Al2O3 gate dielectric was deposited by atomic layer deposition (ALD) at 250 °C, followed by gate metal deposition of Ti/Au (20/100 nm). Finally, the S- and D-pads were opened by inductively coupled plasma reactive ion etching (ICP-RIE) of Al2O3 dielectric for probe contacts. A gate length (Lg) of 4 μm, source-to-gate (LSG) distance of 3 μm, and gate to-drain (LGD) distance of 18 μm were considered for device fabrication.

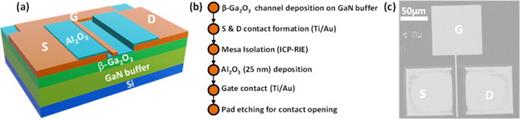

The device structure of fabricated β-Ga2O3 TFTs: (a) 3D schematic, (b) process flow, (c) SEM image of the device.
The device structure of fabricated β-Ga2O3 TFTs: (a) 3D schematic, (b) process flow, (c) SEM image of the device.
The fabricated device performance was characterized using a Keysight B1505A power device analyzer. An initial test of the metal–semiconductor interface was performed to achieve the effective operation of β-Ga2O3 TFTs. Contact resistance (RC) and transfer length (LT) were measured using a transfer length method (TLM). The test structure had 150 150 μm2 square contact with spacing between two contacts varying from 5 to 30 μm. Figure 3(a) shows the current–voltage (I–V) characteristics of the TLM structure on a linear scale, showing the Ohmic behavior of the contacts. The current decreased with increasing spacing between the two contacts as the on resistance (Ron) of the channel increased. Figure 3(b) displays the resistance vs different spacing between the contacts plot, yielding RC of ∼0.69 kΩ mm and LT of ∼0.75 μm. The RC can be further improved by incorporating a high-doped β-Ga2O3 layer for the contact formation. To ease the fabrication process, we have formed the contact directly on the moderately doped β-Ga2O3 channel.

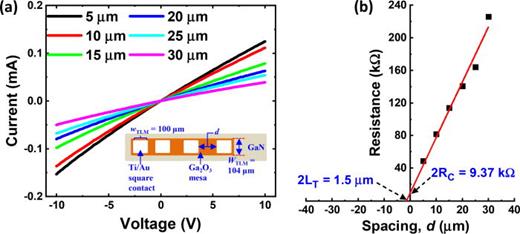

TLM measurement results of β-Ga2O3 thin film on GaN buffer: (a) I–V curve demonstrating an Ohmic contact and (b) RC and LT computed from the resistance vs spacing (d) plot.
TLM measurement results of β-Ga2O3 thin film on GaN buffer: (a) I–V curve demonstrating an Ohmic contact and (b) RC and LT computed from the resistance vs spacing (d) plot.
Figure 4 shows the I–V characteristics of E-mode β-Ga2O3 transistors fabricated on heterogeneous substrates (GaN-on-Si). The logarithmic transfer characteristic (IDS–VDS) at different drain-to-source voltage (VDS) from 1 to 5 V with a step size of 1 V is illustrated in Fig. 4(a). The low SS and high current on/off ratios (Ion/Ioff) of ∼167 mV/dec and ∼106 were calculated, respectively. The off-state gate leakage current (IGS, off) of ∼10−7 mA/mm was obtained for the forward gate-to-source voltage (VGS) of 8 V. The low IGS, off was realized due to Al2O3 gate dielectric based on metal-oxide-semiconductor (MOS) structure. The VTH of the fabricated E-mode β-Ga2O3 MOSFETs was calculated by linear extrapolation of the IDS–VGS curve at the maximum point of transconductance ( ) [Fig. 4(b)]. A positive VTH of 3 V was obtained at VDS = 5 V, showing advantages for fail-safe operation of power systems. The positive VTH of β-Ga2O3 MOSFETs is contributed by both the top-side and bottom-side depletion, along with possible phase-induced insulating regions near the β-Ga2O3/GaN interface.20 VTH of the fabricated device was controlled using the thickness of the β-Ga2O3 channel.

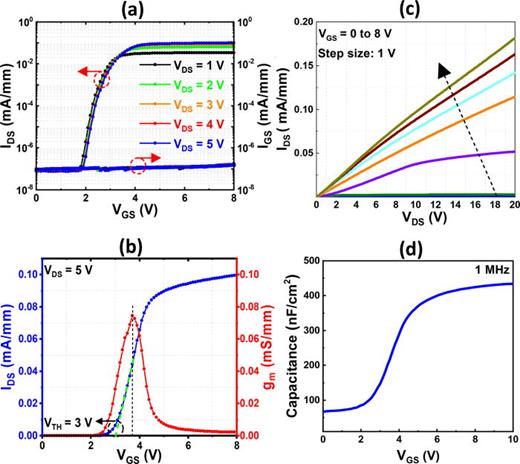

Electrical characteristics of β-Ga2O3 MOSFETs: (a) transfer characteristics (IDS–VGS) at different VDS, (b) VTH calculation by linear extrapolation of IDS–VGS curve at the maximum point of at VDS = 5 V, (c) output characteristics (IDS–VDS) at different VGS, (d) C–V measurement at 1 MHz frequency.
Electrical characteristics of β-Ga2O3 MOSFETs: (a) transfer characteristics (IDS–VGS) at different VDS, (b) VTH calculation by linear extrapolation of IDS–VGS curve at the maximum point of at VDS = 5 V, (c) output characteristics (IDS–VDS) at different VGS, (d) C–V measurement at 1 MHz frequency.

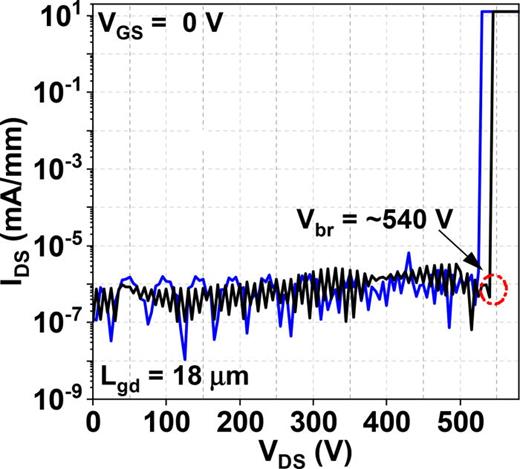

Breakdown voltage characteristics of β-Ga2O3 MOSFETs on GaN-on-Si substrates at VGS = 0 V.
Breakdown voltage characteristics of β-Ga2O3 MOSFETs on GaN-on-Si substrates at VGS = 0 V.
To provide a clearer perspective and comparison of device performance, Table I highlights the fundamental characteristics of β-Ga2O3 MOSFETs on heterogeneous substrates utilizing various growth techniques. Reported research to date indicates that β-Ga2O3 FET devices utilizing SiC substrates have demonstrated enhanced performance through different growth techniques. Nonetheless, despite advancements in β-Ga2O3 thin film growth technology via various growth methods on heterogeneous substrates, there is no demonstration of β-Ga2O3 power MOSFETs utilizing GaN buffer-on-Si substrates. Therefore, we assert that this study will initiate a new phase in the investigation of β-Ga2O3 MOSFETs on GaN buffer-on-Si substrates, utilizing the platform for integration with the GaN-based high-performance power and RF devices. The device demonstrated in this study, using PLD growth, exhibited the highest breakdown compared to β-Ga2O3 MOSFETs on Si substrates. The development of β-Ga2O3 thin films on GaN-on-Si substrates via PLD not only indicates enhanced device performance but also provides a path for further improvement in the quality of the epitaxy on GaN and heterogeneous integration at the circuity level for future power ICs.
Summary of electrical parameters in β-Ga2O3 TFTs on heterogeneous substrate.
Material preparation . | Substrate . | VTH (V) / mode of operation . | Ron (KΩ . mm) . | Ion/Ioff . | Vbr (V) . | References . |
---|---|---|---|---|---|---|
MOCVD | Sapphire | D-mode | ⋯ | >107 | 390 | 28 |
MOCVD | Sapphire | D-mode | ⋯ | ∼1011 | 400 | 29 |
MOCVD | AlN/Si | 2.17 | ∼0.177 | ∼108 | 178 | 32 |
PLD | GaN/Si | 3 | 13.6 | ∼106 | ∼540 | This work |
Exfoliation | SiO2/Si | 7.3 | ⋯ | >106 | 344 | 33 |
Exfoliation | SiO2/Si | 7 | 0.013 | 1010 | 185 | 26 |
Ion-cutting | Al2O3/Si | D-mode | ∼3 | ∼106 | 522 | 27 |
Ion-cutting | Al2O3/SiC | D-mode | 0.101 | ∼107 | 1000 | 34 |
Fusion bonding | Ga2O3/4H-SiC | 50 | 0.065 | ∼108 | ∼2000 | 35 |
Material preparation . | Substrate . | VTH (V) / mode of operation . | Ron (KΩ . mm) . | Ion/Ioff . | Vbr (V) . | References . |
---|---|---|---|---|---|---|
MOCVD | Sapphire | D-mode | ⋯ | >107 | 390 | 28 |
MOCVD | Sapphire | D-mode | ⋯ | ∼1011 | 400 | 29 |
MOCVD | AlN/Si | 2.17 | ∼0.177 | ∼108 | 178 | 32 |
PLD | GaN/Si | 3 | 13.6 | ∼106 | ∼540 | This work |
Exfoliation | SiO2/Si | 7.3 | ⋯ | >106 | 344 | 33 |
Exfoliation | SiO2/Si | 7 | 0.013 | 1010 | 185 | 26 |
Ion-cutting | Al2O3/Si | D-mode | ∼3 | ∼106 | 522 | 27 |
Ion-cutting | Al2O3/SiC | D-mode | 0.101 | ∼107 | 1000 | 34 |
Fusion bonding | Ga2O3/4H-SiC | 50 | 0.065 | ∼108 | ∼2000 | 35 |
In summary, we have effectively exhibited E-mode β-Ga2O3 MOSFETs on GaN buffer layers on Si substrates using PLD growth. The β-Ga2O3 MOSFETs have a threshold voltage of 3 V with a high breakdown voltage of ∼540 V at VGS = 0 V. The devices also showed a low subthreshold swing of ∼167 mV/dec with a low gate leakage current of ∼10−7 mA/mm in the forward bias operation of the transistors. These results highlight the significant potential of β-Ga2O3 MOSFETs for high-performance applications, demonstrating that economical and scalable PLD growth of β-Ga2O3 thin films on low-cost, commercially available GaN-on-Si substrates can be a promising route for the integration of GaN-based devices in future power and RF electronics.
The authors are grateful for the support of KAUST Nanofabrication Core Lab and funding support of the Baseline Fund BAS/1/1664-01-01.
AUTHOR DECLARATIONS
Conflict of Interest
The authors have no conflicts to disclose.
Author Contributions
Mritunjay Kumar: Conceptualization (equal); Data curation (equal); Formal analysis (equal); Investigation (equal); Methodology (equal); Validation (equal); Visualization (equal); Writing – original draft (equal); Writing – review & editing (equal). Vishal Khandelwal: Data curation (supporting); Formal analysis (supporting); Investigation (supporting); Validation (supporting); Writing – review & editing (supporting). Dhanu Chettri: Data curation (supporting); Formal analysis (supporting); Validation (supporting); Writing – review & editing (supporting). Ganesh Mainali: Formal analysis (supporting); Validation (supporting); Writing – review & editing (supporting). Glen Isaac Maciel García: Formal analysis (supporting); Validation (supporting); Writing – review & editing (supporting). Zuojian Pan: Formal analysis (supporting); Validation (supporting); Writing – review & editing (supporting). Xiaohang Li: Conceptualization (equal); Formal analysis (equal); Funding acquisition (equal); Methodology (equal); Supervision (equal); Validation (equal); Writing – review & editing (equal).
DATA AVAILABILITY
The data supporting the findings of this study are available from the corresponding author upon reasonable request.
