Enhanced superconducting transition temperature in electroplated rhenium

Development of superconducting materials with increased critical temperatures and practical integration into circuits and interconnects is important for many low temperature applications and experiments. Examples include high-speed, superconducting classical computers at liquid-helium temperatures, i.e., T ∼ 4 K, where the main goal is to improve energy efficiency^1–6 and also large-scale quantum information systems^7,8 at ultra-low temperature, T < 30 mK. For the ultra-low temperature systems, i.e., work involving adiabatic demagnetization and dilution refrigerators, it is important to have superconducting technology that is easily integrated into the many dc bias and radio-frequency (rf) drive lines. This will minimize dissipation to reduce heat load on the cryostats and help in preservation of quantum information as it propagates through the system.

To that end, there is a small set of superconductors that are widely used at 4 K and to bridge the gap to ultra-low temperatures. These include Nb and its binary and ternary alloys such as Nb-N, Nb-Ti, and Nb-Ti-N. These materials are useful in terms of high critical temperature, can be used in bulk or deposited as thin films, and can be connected using ultrasonic-wire bonding techniques. However, they tend to be difficult to work with mechanically and have poor soldering properties due to strong oxidation. While work arounds to these problems exist, they are not easily integrated into standard circuit fabrication, which typically employs primarily Cu and Au electroplated parts.

Other superconductors, e.g., Al, Pb, In, Sn, Re, and high critical temperature (T_c) oxides, are useful in many applications but have limitations due to low T_c, low melting point, difficulty making connections, or other problems. One element in the latter category, Re, stands out as a promising candidate. Re is a transition metal that is resistant to oxidation, with a melting temperature of 3186 °C.⁹ It is used widely in various industrial and scientific applications such as strengthening materials and in high-temperature thermocouples. Crystalline Re is a type-I superconductor with T_c(Re) ≈ 1.7 K.¹⁰ Under strain, Re changes to a type-II superconductor and T_c(Re) can be enhanced to about 3 K.^10–12 This is similar to effects seen in Re doped with W and Os.¹³ Moreover, Chu points out in Ref. 13 that there is a singularity close to the Fermi energy, E_F, which could drive anomalous behavior in the superconducting transition temperature through alloying, and it has been noted that sputtered Re-Mo alloys have T_c up to 13 K.^14,15 While both Re-Mo and epitaxially grown Re can be used for low-loss rf resonators in qubit circuits, they have no specific advantage over other traditional materials in that application.^16,17

On the other hand, it has been known for a long time that Re can be electroplated in aqueous solution compatible with noble metal plating.^18–23 In this process, the Re is deposited at the cathode in over-potential conditions, resulting in the concurrent production of hydrogen (H) in the plating region. This brings up the question of whether H or strain can be incorporated into the Re through electroplating and how that might affect its superconducting properties.²⁴

Here, we report on the superconducting nature of electroplated Re including electrical resistance, critical current, magnetization, and rf loss. We prepare the Re in multilayers with noble metals because carbonaceous deposits tend to form on bare Re films. Cu, Au, and Pd were used in order to see if there were element-specific interface effects. Re films grown on both Au/Si and Cu-clad circuit-boards were studied. Type-II superconducting behavior is obtained with high critical temperatures and critical current densities and low rf loss.

The Re was deposited using a dc power supply in constant-current mode at 8 A/dm² from an aqueous solution containing 11 g/L of KReO₄ with the pH adjusted to 0.9 using sulfuric acid, according to the recipe in Ref. 18. The deposition time was used to control the layer thickness. The anodes were platinized titanium. Moderate stirring was done with a magnetic bar coated with polytetrafluoroethylene (PTFE) on a standard laboratory hot-plate stirrer at temperatures of 25–30 °C. Under these conditions, the Re deposits were shiny and smooth, typically dark gray, with good adhesion. The various sample parameters are reported in Table I.

To begin the study, we first grew a reference, Sample 1, of Au/Re/Au/prime-Si in vacuum using e-beam evaporation for the Au and sputter deposition for the Re. This sample was used to compare against standard Re preparation methods.

Electroplated bilayers, trilayers, and multilayers of Re and Au were then grown on vacuum-prepared Au/Si substrates, Samples 2–4. A 20 nm seed layer of electroplated Au was typically applied before the Re. Multilayers of Re/Cu, Re/Au, and Re/Pd were also electroplated directly onto commercial Cu/PTFE circuit boards, Samples 5–7. The boards were also patterned with resonators in order to test the rf properties of the multilayers. PTFE was used for its low loss tangent, tan δ = 6.8 × 10⁻⁴, at 15 K.²⁵

Of particular concern in many low-temperature measurements is the dc resistance and rf loss, which can create ohmic heating and degradation of quantum information. Therefore, we characterized both types of transport properties. The measurements were conducted in both a liquid-He dewar-based system and an adiabatic demagnetization refrigerator (ADR). The samples on Si were measured with a dc 4-point probe. For the films on the 35 μm thick copper traces, it was necessary to use ac transport with a lock-in amplifier due to their low resistance.

The resistivity of the sputtered-Re layers on Si was measured on ∼0.6 mm slices cleaved from 5 mm wide strips. T_c taken was to be the first inflection point in the R vs. T curves. Samples were contacted by either wirebonding (25 μm Al wire for low current measurements) or soldering (standard Cu wire for high current measurements). All samples could be soldered using 60:40 Sn-Pb. No problems were encountered wirebonding to the thick Cu, whereas for Pd- and Au-capped samples, Al-wirebonds did not adhere as well.

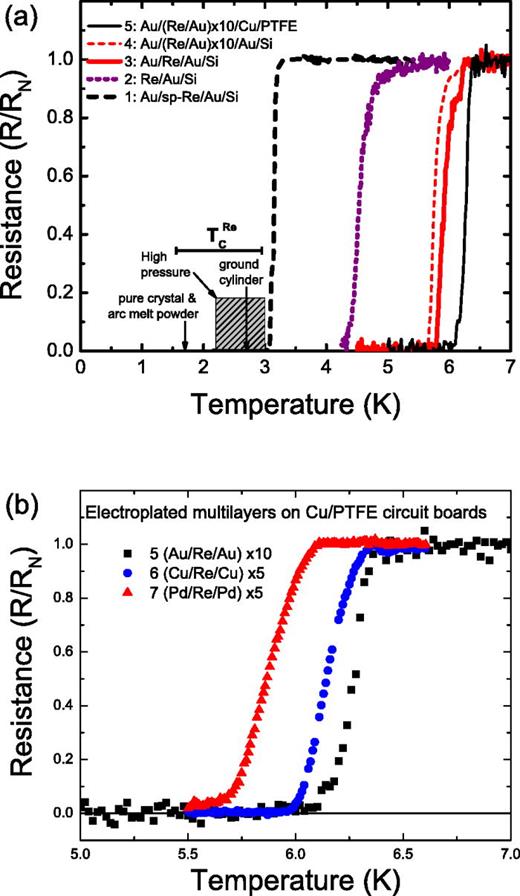

Turning to the data, for the sputter-deposited Re samples, we see a sharp transition to zero resistance in Fig. 1(a-1), with T_c slightly exceeding that of the highly strained Re from Ref. 10. This can be attributed to Au-Re interfacial strain that tends to expand the Re unit cell. Subsequent high temperature annealing, up to 400 °C, of this sample showed that T_c is stable within 0.1 K. This is in line with the high melting temperature of Re and its immiscibility with Au.^26–28

More surprisingly, for the electroplated samples on Si, a progression of T_c up to approximately 6 K was obtained. First, with the Re/Au bilayer sample in Fig. 1(a-2), we measured a range of transition temperatures from T = 4.3 K to 4.7 K. These samples tend to tarnish over a period of a few weeks due to the exposed Re surface. Therefore, we moved to capping the samples with electroplated Au films. This resulted in more stable films and reproducible T_c measurements. Moreover, T_c in these layered samples increased to T_c > 5 K, with multiple steps in the transition in some samples, as shown in Fig. 1(a-3). Experiments on these films, including sputtering the top Au film off and using much thicker Au layers, tend to depress the T_c. Subsequent samples grown as multilayers on Si, Fig. 1(a-4), demonstrated even higher enhancement of T_c. Thinner Re films were used in the multilayers because we observed that the 75–200 nm range gave sharper transitions. Thicker films occasionally had broad transitions with multiple steps.

We then looked at the multilayered films on commercial circuit boards, Fig. 1(a-5). Here, as T decreases, we see the first drop in the resistance for T ≈ 6.1 K. However, there are slight steps in these transitions with low resistance tails. The tails go down an additional 0.1–0.5 K, depending on the current, before the transition to zero resistance.

In light of the changes of T_c(Re) due to strain, as outlined above, the properties of the Re grown with a series of metal films, i.e., Cu, Au, and Pd, were compared. These metals all share a close-packed structure, fcc, which is similar to the hcp structure of Re. However, the near-neighbor distance in the close-packed plane for these three is 0.256, 0.275, and 0.288 nm, respectively.²⁹ This spans compressive, low, and expansive strain relative to the 0.274 nm near-neighbor spacing for elemental Re.²⁹ As shown in Fig. 1(b-1–3), all three types of multilayered films demonstrate enhancement of T_c. Both Re/Au and Re/Cu have a sharp drop in resistance well above 6 K, whereas the Re/Pd samples have a slightly lower, more rounded transition. This may be due to the fact that Re, Cu, and Au are immiscible, whereas Re-Pd tends to alloy.²⁷

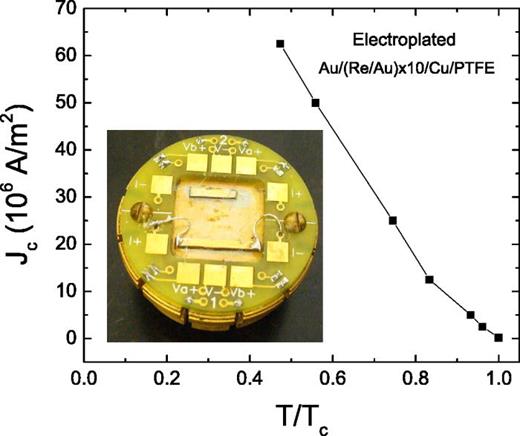

The versatility in connecting to the samples by soldering and wirebonding was important. This allowed us to achieve good thermalization while high current densities, J, are applied through the soldered contacts. In the same measurement, voltage leads could be wirebonded, as shown in the inset of Fig. 2. For samples on Si substrates, we measured critical current J_c ≈ 2.5 to 5 × 10⁸ A/m² for trilayers and multilayers, respectively. For films on Cu/PTFE, data in Fig. 2, we saw lower J_c ∼ 10⁷ A/m² due to the low-temperature tails.

While it is significant that the resistance drops to zero, it does not unequivocally demonstrate that the films are superconducting over their entire area. Magnetic measurements, which access two dimensions, are able to distinguish this behavior. For this study, the Au/(AuRe)×10/Si multilayer film, Sample 4, was cleaved into a rectangular sample, 5.0 mm × 5.6 mm, for measurement in a magnetometer based on a superconducting quantum interference device (SQUID). In magnetic measurements of superconductors, the apparent magnetic moment is due to the field produced by shielding currents and trapped magnetic flux. The moment was measured in a perpendicular field of μ₀H = 1 mT as a function of increasing temperature after cooling in zero field (ZFC) and after cooling in a field (FC) of μ₀H = 1 mT, Fig. 3(a). The critical temperature, T_c = 5.4 K, is the end point of a broad transition from the shielding state to the normal state seen in the ZFC curve. The almost zero FC moment for T < T_c is indicative of an incomplete Meissner effect (incomplete expulsion of magnetic flux upon cooling below T_c) due to strong flux pinning.

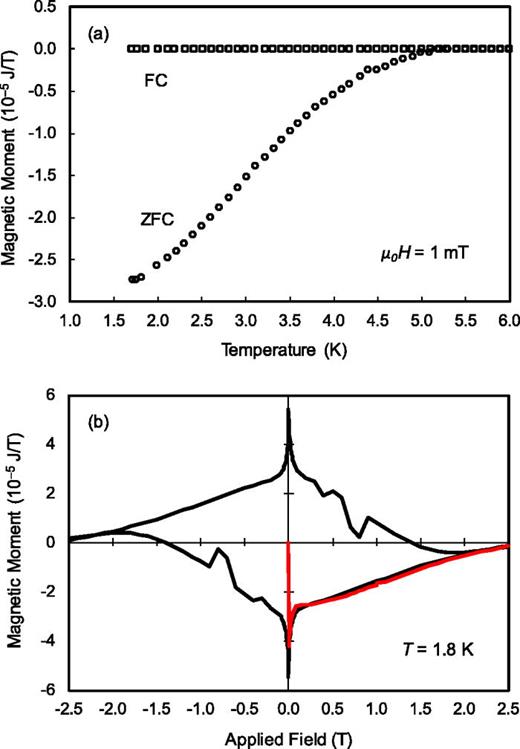

A hysteresis loop of magnetic moment as a function of field was measured at T = 1.8 K, Fig. 3(b). The shape of the loop is characteristic of type-II superconductors. The magnetic moment approaches zero at an upper critical field μ₀H_c2 ≈ 2.5 T. Symmetrical flux jumps are evident in the descending branches of the loop. A series of minor loops (not shown) with progressively higher maximum fields indicates the onset of hysteresis and therefore flux penetration and pinning, below only 0.4 mT. This is likely due to the large demagnetizing factor for the film in the perpendicular field.³⁰

For most superconducting applications, notably SQUID magnetometry and quantum computing, it is also important to establish that the films maintain low loss at rf into the gigahertz regime. Therefore, resonator loss tangent tan δ = 1/Q_T vs. temperature was compared for Au/Re plated (Sample 5) vs. bare copper traces. Here, Q_T is the total quality factor of the resonator. The samples were placed in a magnetically shielded environment and cooled to low temperature. The rf measurements were made using a vector network analyzer. Q_T was determined using a Lorentzian fit³¹ to the resonance from a 1 mm wide, 18.2 mm long, grounded-coplanar-waveguide resonator on a 0.59 mm thick PTFE board. The width and gap of the resonators were 0.81 and 0.076 mm, respectively. The coupling quality factor of the resonator to the feedline Q_C ∼ 2 × 10⁴. Because Q_T was significantly lower than Q_C, the internal loss tangent tan δ_i = 1/Q_i ≈ 1/Q_T, where Q_i is the internal quality factor. As shown in Fig. 4, for the bare copper board, tan δ_i ≈ 2 × 10⁻³ for T < 8 K. Below about T = 250 mK, a slight increase appears. This increase is consistent with two-level system (TLS) loss,³² most likely in the PTFE.

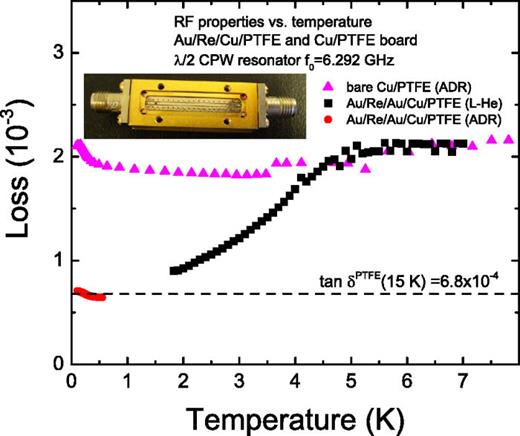

For the Re/Au electroplated circuit board, on the other hand, a decrease in tan δ_i for T < 5 K is seen in Fig. 4. This is expected in the case of a superconducting transition in the Re-Au plating. The loss drops to that of PTFE at low temperature,²⁵ and the TLS increase appears again at very low temperature. This shows that the loss is limited by the material of the circuit board and that including a layer of Re in traces will significantly improve performance at rf as well as dc.

In conclusion, this study shows that electroplated Re is superconducting with an enhanced T_c ≈ 6 K. This enhancement occurs when the Re is adjacent on both sides with noble metals, making it compatible with standard Cu and Au plated circuitry. It is weakly dependent on the type of metal, indicating that symmetry breaking at the interfaces likely plays a role along with possible bulk effects such as hydrogen incorporation and nano-structures.^21,24,33 This is corroborated by ongoing studies (not shown) of time-of-flight secondary-ion mass spectroscopy, which reveals high concentrations of H in the Re, and scanning transmission electron microscopy, which shows electron transmission through the Re layers with a striated pattern perpendicular to the plane of the film. Our own density-functional-theory calculations confirm the immiscibility of Au/Re and point to the possibility of an increase in the density of states near E_F as the Re lattice expands, in agreement with Ref. 13. These ongoing studies may help identify the relationship between morphology and superconductivity in Re.

We had helpful discussions with Xingzhong Li, Tom Ohki, Jerry Chow, Gene Hilton, Kyle McKay, and Bahman Sarabi. We thank Paul Blanchard and Chunsheng Tian at EAG Laboratories for preparing samples and measuring TOF-SIMS. This work was supported by the Intelligence Advanced Research Projects Activity (IARPA) LogiQ Program and the NIST Quantum Based Metrology Initiative. The use of the Center for Nanoscale Materials, an Office of Science user facility, was supported by the U.S. Department of Energy, Office of Science, Basic Energy Sciences, under Contract No. DE-AC02-06CH11357. This work is a contribution of NIST, not subject to copyright.
