The effects of surface topography modification on hydrogel properties

Hydrogel is defined as a three-dimensional (3D) network of polymer chains that can swell and retain a significant fraction of water inside its structure without dissolving in water. Its hydrophilic properties mainly come from the hydrophilic functional groups, while the interactions between the network polymer chains protect it from dissolving in water.^1,2 Due to the high water content, hydrogel has good biocompatibility, tunable biodegradability, and low toxicity, making it an ideal material for biological and medical applications both in vivo and in vitro.^3,4 For example, poly(ethylene glycol) (PEG) hydrogels have been used in controlled drug release;⁵ polyvinyl alcohol (PVA) hydrogels are used for contact lens, wound dressing, and artificial cartilage, and recently showed promise in vascular implanting and tissue-mimicking;⁶ gelatin methacryloyl (GelMA) hydrogels are suitable for fabricating functional bone scaffolds and biosensing;⁷ and silicone hydrogels have been developed mainly as contact lens materials.⁸

Despite the various advantages, the hydrogel has some common problems, such as unexpected bacteria adhesion,⁹ undesired protein adsorption,¹⁰ and lack of mechanical strength,¹¹ which are limiting its applications. To solve such problems and enhance the functions of hydrogel, surface modifications are frequently performed to improve the surface properties. Technologies have been developed to enhance surface properties of the hydrogel, including chemical, biochemical, and topographical modification.

In recent years, many studies have illustrated that the incorporation of surface topographies can alter material surface properties, such as hydrophilicity, surface energy, and cell interactions,^12–15 without affecting the bulk properties of the substrate material. This gave inspiration to the modification of hydrogels that their surface properties can also be changed via different surface topographies.

This review will discuss the effects of topographical modifications on hydrogel material properties, including hydrophobicity, protein deposition, bacteria adhesion, cell responses, and mechanical properties based on previous research. A summary of current topographical modification techniques will be provided. Also, the challenges for future development will be discussed.

Surface construction methods can be divided into two types depending on the final surface topographical conditions. The first category is the surface roughening method. Surface roughening methods aim to change the surface roughness and are usually applied to metallic or plastic materials. Surface roughness refers to the height or depth of asperities and irregularities on the surface in both macro- and microscales. The most commonly used parameters describing the roughness are average surface roughness (R_a) and root mean square surface roughness (R_rms), which can be calculated from the average and root mean square deviation of height values from the surface mean line, respectively. Examples of roughening methods include surface silanization,¹⁶ Taguchi design,¹⁷ and severe shot peening.¹⁸

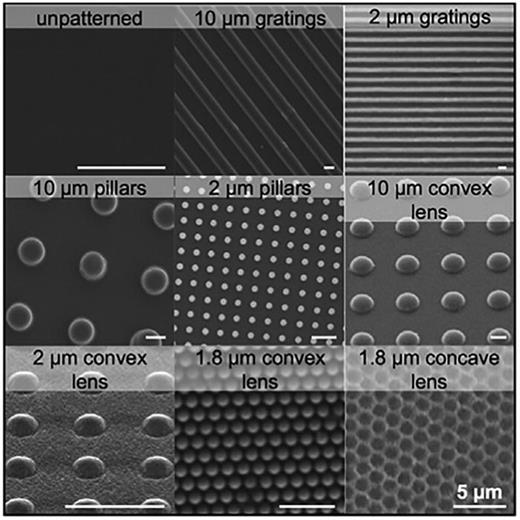

Different from roughening that mainly creates random and polydisperse surface features, surface patterning methods produce specific micro/nanoscale topographies on material surfaces that are periodic or precisely predesigned (Fig. 1). Based on specific requirements and designs of the material, various patterning methods have also been developed to be applied to different materials, such as soft lithography,¹⁹ template-based surface nanopatterning,²⁰ nanoimprinting,²¹ and direct laser interference patterning.²² The selection of methods depends on both the inherent properties of modified materials and the advantages and disadvantages of each method.

Due to the high water content, any change in volume of hydrogel resulting from swelling or deswelling can subsequently cause surface deformation, such as feature widening, making it difficult to precisely obtain the initially designed patterns. Also, extensive swelling can occur in hydrogels with higher precursor concentration, resulting in the undesirable detachment of the hydrogel layer from the substrate during the patterning process.^24,25 Compared to densely crosslinked stiff hydrogels, loosely crosslinked soft hydrogels are more prone to damage during the demolding step as they could easily break into debris under mechanical stress.²⁶ In addition to the fragility of hydrogel, the adsorption of protein-based hydrogel precursor onto templates, such as polydimethylsiloxane (PDMS) without surface treatment, due to the nonspecific protein adsorption onto surfaces, could also affect the demolding process.^24,27,28 Therefore, it is challenging to apply conventional surface patterning techniques mentioned above to hydrogel materials directly.

The casting method is one of the most commonly used methods for hydrogel patterning. Cross-linking hydrogel solution is usually poured onto the surface of a prepared negative mold with specific patterns, so the precisely predefinable patterned hydrogel can be obtained after demolding the crosslinked hydrogel from the mold.^23,25,29,30 Another popular way to fabricate surface topographically patterned hydrogel is photolithographic patterning technique, where the mixed solution of photoinitiator and monomer are layered onto the photoactive hydrogel substrate and exposed to UV light through the photolithographic mask with desired patterns.^31,32 Other commonly used methods, such as nanoimprinting,^23,33–35 3D printing,^36–38 electrospinning,^39–41 multiphoton patterning,^42–45 e-beam lithographic patterning,^46,47 Self-assembly wrinkle technique,^48,49 ion-induced nanopatterning,⁵⁰ and swelling-induced patterning,^51,52 also have their own specific fabrication mechanism and process. In addition, many research groups have also developed effective methods to add patterns to hydrogel substrates. For example, dithiol macromolecular linker that can both bond to gold covalently and entangle the PEG hydrogel network was used to transfer a cell-adhesion-available gold microarray from the initial glass substrate to a cell-adhesion-resistant PEG hydrogel surface;⁵³ and Peng's group has successfully obtained surface patterned hydrogels via ion inkjet printing.⁵⁴ Features of these techniques and the resolution they can reach have been listed in Table I.

In general, due to the special physical and chemical properties of hydrogel materials, several techniques have been developed from conventional surface construction methods to pattern hydrogels. Based on the hydrogel type and the desired application, these techniques could also vary from each other in detail.

While the changes in chemical moiety will be an important property to characterize for surface modifications, most studies on surface topography patterning focused on the changes in interfacial surface energy with limited characterization on the surface chemistry of hydrogel. Part of the reasons could be attributed to the study design of the surface patterning studies, as most of the studies compared the patterned and unpatterned surfaces fabricated by the same technology,^45,56 or chemical modification would also be performed on the patterned hydrogel.^57,58

Looking at the examples of the impact of fabrication method on the surface chemistry of topographically patterned polymers, the impact on surface chemistry could vary with patterning technique or methods, and it will also depend on the polymer or hydrogel materials. Various patterning methods could cause surface chemistry changes. Electrospinning has been shown to alter the fluorine surface concentration of polymethyl methacrylate random tetrahyrdroperflourooctyl acrylate.⁵⁹ Liu et al. compared the degree of denaturation of collagen between acetic acid‐spun fibers and 1,1,1,3,3,3 hexafluoroisopropanol‐spun fibers. They demonstrated a lower degree of denaturation in acetic acid-spun fibers, indicating that the solvent used in electrospinning plays a major role in affecting the ultimate surface chemistry of electrospun fibers.⁶⁰ In the process of soft lithography fabrication of polydimethylsiloxane (PDMS), silanization of the master surface is frequently carried out to produce passivated surfaces to prevent irreversible bonding with PDMS.^61,62 Silanization has been shown to increase surface hydrophobicity. Ion-induced lithography also changes surface chemistry depending on ion beam parameters and the reactivity of ion species. XPS results showed that Ar⁺ and O₂⁺ irradiation introduces contaminants, such as iron, molybdenum, calcium elements, on the surfaces.⁶³ An ultrafast multiphoton laser has also been reported to cause chemical changes in polyimide films.⁶⁴ In addition, many researchers have explored patterning approaches to fabricate surfaces with controlled topographies and surface chemistry. e-beam lithography has been used with plasma treatment to create a chemically patterned surface, suggesting that e-beam lithography could be used to alter surface chemistry.⁶⁵ Similarly, 3D printing has been applied with wet chemical modification to fabricate surfaces with controlled functionality and microstructure.⁶⁶ The combination of lithography with coating also generated surfaces with tunable wettability.⁶⁷

To the knowledge of the authors, a number of studies have examined hydrogel's surface chemistry change after surface patterning and showed that the patterning method showed minimum impact on the surface chemical moiety. For example, the surface elemental composition of PVA hydrogel samples fabricated from casting and thermo-based nanoimprinting was verified by x-ray photoelectron spectroscopy, and no noticeable difference was observed between these samples.²³

While the primary objective of introducing a topographical pattern would be to alter the interfacial energy, understanding how the patterning fabrication could alter the chemical moiety would be essential to study the surface properties. The limited number of studies with thorough chemical characterization identifies a knowledge gap that researchers should also examine the potential changes in chemical moiety induced by surface patterning in the future.

Hydrogel surface topography is an important modulator of surface properties, and the stability of the topography can critically influence its performance. Stability of patterned features will include (1) the patterning fidelity and the maintenance of the fidelity, for example, if the features could be easily collapsed; (2) the stability of dimensions, for example, if there will be changes of pattern dimension upon rehydration; and (3) the stability of features over time.

The pattern fidelity mainly depends on the pattern features and patterning methods. It is generally noted that soft, high-aspect-ratio microstructures, such as high pillars, could buckle under their own weight. When the spacing distance between pillars decreases, collapse can possibly occur that neighboring pillars bend laterally and adhere to each other.⁶⁸ In addition to weight, pillars can also be attracted or repelled from each other due to the capillary force when they are partially immersed in liquid,⁶⁹ as is shown in Fig. 2. Such structure deformation is usually undesirable and should be avoided.

The patterning method is another influential parameter to affect the pattern fidelity on the hydrogel. For example, as one of the most commonly used methods, the casting method can create patterns on the hydrogel surface by demolding the crosslinked hydrogel from the pre-patterned negative molds. However, those microstructures can be easily damaged during the demolding process due to excessive stress. The development of the demolding damage-free method, therefore, draws attention as well.⁵⁵

Hydrogel is known to be able to absorb and retain a large amount of water inside the polymer matrices, and the phenomena of dehydration and rehydration are common during the fabrication process and in various biomedical applications. The swelling or deswelling behaviors occurring in these processes would depend on the swelling ratio of the hydrogel and can also cause feature deformation.⁷⁰ As is introduced above, hydrogel-induced swelling behavior can even be employed as a specific patterning method. The swelling behavior utilized in these methods will be controllable and precisely designed. However, undesirable structure deformation upon dehydration or rehydration could exist and affect the structure dimension. For example, the feature dimensions of the cast PVA hydrogel were measured by scanning electron microscopy (SEM) after dehydration in air, the diameter values of both 10 μm pillars and 10 μm convex lenses were reduced to 6 and 7.5 μm, respectively.²³ The degree of cross-linking could also determine if hydration will significantly affect the dimensions. The dimensions of the topographical structure on sequential crosslinked GelMA (GelMA+) were measure before and after hydration.⁵⁶ The height and width of the grating pattern were not significantly different upon hydration. However, the characterization of the changes in dimension upon hydration could be technically challenging for sub-micrometer topographical structures. Most of the conventional surface microscopy techniques have limited capacity to characterize the hydrated hydrogel surface with high resolution, and these challenges will be further discussed in Sec. VIII B.

The third factor in determining the stability of hydrogel surface topography is the stability over time. Depending on the specific usage and application, different patterned hydrogels were designed for studies of different durations. Most studies in the literature focused on developing the hydrogel for a specific application to be used within a limited time period or for a short duration. Some studies have designed and developed dynamic, stimuli response topographical-patterned hydrogels, such as photodegradable or photoresponsive hydrogel pattern,^71,72 thermos-responsive hydrogel pattern,^73–75 or biodegradable patterns.⁵⁶ Thus, the stability or the responsiveness of the patterned feature could also depend on the properties of the hydrogel, such as the thermal-stability, cross-linking, and biodegradation.

A few papers examined the topographical features directly or indirectly over a period of time. For example, surface patterned PVA hydrogel has been shown to maintain its surface topography for 4 weeks after in vivo implantation and after one year in the sterile phosphate-buffered saline (PBS) solution.²³ However, the stability of patterned hydrogels over time is largely unexplored, which deserves future study.

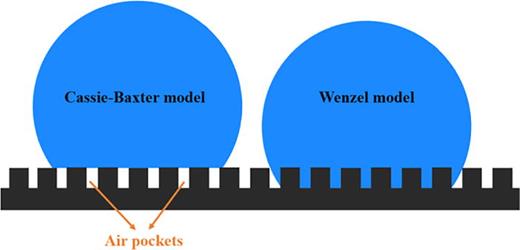

In the past few decades, many studies have shown that the wetting state can be changed by adding different surface topographies, in addition to being determined by the intrinsic hydrophobic or hydrophilic properties of the material.^76–80 Two models, the Cassie–Baxter model and the Wenzel model, have been proposed to describe the process when a droplet is placed on a solid surface. In the Cassie–Baxter model, the droplet will only touch the top of the topography, when air would be trapped between the micrometer-sized asperities. While in the Wenzel model, the microstructures will penetrate the droplet (Fig. 3).^81–83 Dai et al. have identified that the magnitude of the interaction between the droplets and substrates can be varied by the height and width of pillar structures. When the water contact angle on a smooth surface is larger than 93.13°, increasing the height of pillars (2.82 nm width) to 3.76 nm can change the wetting state of the surface from Wenzel state to Cassie–Baxter state. However, when the water contact angle on the smooth surface is smaller than 85.1°, such influence of pillar dimensions on the wetting state was abolished.⁸⁴

Hydrophobicity is one of the most significant properties in material surface science. The hydrophobicity of hydrogels can affect their performance in different applications critically. For example, the delivery of hydrophobic drugs by hydrogels has been limited, as hydrophobic drugs are generally less compatible with hydrogels due to the hydrophilic matrix of hydrogel polymers.^85,86 By altering the hydrophobicity, hydrogels could be adapted to be able to expand their application in hydrophobic drug delivery as well. Also, it has been demonstrated that hydrogel hydrophobicity can modulate cell behaviors, such as cell adhesion and migration.^87,88 Inspired by the topographical effect on hydrophobicity and wettability of various materials, such as silicon⁸³ and aluminum,⁸⁹ Cutiongco et al. measured the water contact angle of cast PVA hydrogel with different topographies. Among several patterns including pillars, concave lenses, and gratings, 2 μm gratings showed significantly higher contact angle compared to flat hydrogel samples.²³ Similarly, cast pHEMA hydrogel with lotus leaf topography has been measured to have much higher water contact angles compared with flat hydrogel samples.⁸¹ Another test was also performed on the pHEMA hydrogel. In the test, the water droplet was replaced by a Ga/In/Sn liquid alloy, because the water was immediately incorporated by the prepared hydrogel network. However, it still showed some interesting phenomenon related to the effect of surface microstructure on the liquid state. The pHEMA hydrogel was structured to have 165 × 170 μm² rectangular pillars with 1500 μm height and 700 μm center-to-center distance. Compared to the smooth pHEMA surface, the liquid contact angle on the patterned pHEMA surface was significantly higher.⁹⁰ The above studies show that the surface topography has an effect on hydrogel material hydrophobicity, which supports further research on commercial hydrogel products.

As a critical component in human body fluids, proteins can adsorb onto the surface of the material within seconds, once being exposed to a biomaterial.⁹¹ Such adsorption is essential in inducing cell responses;^92,93 on the other hand, the adsorption can lead to unexpected pathological phenomenon. For example, the adsorption of blood proteins on blood-contacting biomaterials can trigger the activation of coagulation and complement pathways, followed by blood cell activation, which will lead to thrombus formation on the surfaces.¹⁰ Also, in the area of contact lens research, adsorption of tear film substances onto the lens material, including proteins and lipids, can lead to wearer discomfort or even severe eye symptoms.⁹⁴ Developing biomaterials with the ability to prevent unspecific protein adsorption will be significant for anti-fouling surfaces, and other applications with defined chemistry or with specific and desirable bioactivities.

Recent studies have shown that adding topography onto hydrogel surface can alter protein adsorption. PEG is reported to be protein- and cell-repellent. Schulte et al. formed hydrogel with 6-arm star-shaped poly(ethylene glycol) (star-PEG) macromonomers by UV lithography. Both flat star-PEG hydrogel and patterned star-PEG hydrogel samples were washed in sterile water and PBS to remove toxic residuals before fibroblast cell culture. Two patterns were selected, pillars with 3 μm diameter, 3 μm height, and 6 μm center-to-center distance and lines with 5 μm depth and different spacing distances from 5 to 50 μm. No cell spreading was observed on the flat hydrogel surfaces as expected, while on the patterned surfaces, cells spread on pillar tops and wrapped around the structures. One possible reason why cell adhesion was successful in patterned PEG was that the amount and type of proteins adsorbed on the structured areas were different from that on flat surfaces. To further support this hypothesis, they continued experiments on the adsorption of proteins onto patterned hydrogel surfaces, including bovine serum albumin (BSA), bovine fibronectin (FN), and bovine vitronectin (VN). Both bovine FN and bovine VN showed a preference to adhere on the groove walls on surfaces with line patterns.^95,96 Similarly, Cutiongco et al. reported that the human umbilical vein endothelial cells (HUVEC) had significantly higher adhesion on cast cyclic RGD peptide (cRGD) modified PVA hydrogel films with 2 μm gratings than the unpatterned control. The result again showed the possible effect of surface topography on protein adsorption.⁹⁷

Mechanical properties of a hydrogel, such as stiffness, strength, and elasticity, can be tuned by adjusting polymer concentration, precursor molecular weight, cross-linking methods, and cross-linking density to meet the requirements in various application fields. The modulus of hydrogels is usually within the range of 10⁰ to 10⁴ kPa.⁹⁸ Generally, surface topography will not change the material stiffness. The relative modulus is mainly determined by the modulus of the bulk material unless the features are high-aspect-ratio pillars.^99–101 Surface patterning of hydrogels has been shown to alter the surface properties of hydrogel without compromising the mechanical properties. For example, flat and patterned star-shaped poly(ethylene oxide-stat-propylene oxide) hydrogel [Acr-sP(EO-stat-PO) hydrogel] samples (range of modulus 100 kPa–1 MPa) were prepared by casting from micropatterned and blank silicon masters, respectively. Patterns were 10 μm height gratings with different widths ranging from 5 to 50 μm. No significant difference was observed between the stiffness of patterned and blank samples, and the only factor that can alter the hydrogel stiffness was the cross-linking density, which could be controlled by adding different amounts of cross-linking agent and photo initiator.¹⁰²

However, the mechanical properties of hydrogels can also be manipulated via the patterning processes as part of the design. A digital plasmonic patterning method which was developed to pattern PEG hydrogels has been shown to directly vary the hydrogel stiffness from 17 to 350 kPa by controlling the laser intensity and the writing speed.¹⁰³ Similarly, poly(ethylene glycol) diacrylate (PEGDA) hydrogel (100 kPa) was reported to become stiffer after patterning with photolithographic patterning technique. The pattern stripes were fabricated in a way that low molecular weight PEGDA molecules diffused and crosslinked into the high molecular weight PEGDA hydrogel network under the predesigned photomask. As a result, the stiffness of the patterned area was higher than the base hydrogel, and the whole patterned PEGDA hydrogel samples also showed higher stiffness along the pattern stripe orientation.¹⁰⁴ Electrospinning is another way to produce a hydrogel matrix with anisotropic mechanical property.^105,106 For example, the anisotropic collagen hydrogel (456 kPa for aligned scaffolds and 349 kPa for random scaffolds) can be fabricated from the hydrogel's anisotropic contraction by lyophilizing the collagen solution repeatedly.¹⁰⁷ These designs make it possible to fabricate hydrogels with different mechanical properties in different local regions, and the cell response can be further studied on such hydrogel because stiffness can direct the cell behaviors. Classical mechanical measurement methods, such as static tensile/compression tests, are generally more suitable to characterize the hydrogel mechanical properties in macroscopic scale,¹⁰⁸ while an atomic force microscopy (AFM)-based method called force spectroscopy mapping (FSM) can provide more microscopic information on the anisotropy of hydrogels. Two hydrogels with similar bulk roughness and stiffness have been demonstrated to have a significant difference in their nanomechanical properties.¹⁰⁹ Therefore, it is essential to develop a better understanding of how hydrogel mechanical property can be influenced by surface topography.

In addition to the bulk material mechanical properties, studies in the literature have also demonstrated the aspect ratio of topographical features could change the effective substrate stiffness or the relative mechanical properties that would be sensed by cells interacting with the materials.^110,111 For example, the aspect ratio of pillars can affect the effective stiffness of the microarray of the pillar. The bending force was reported as F = (3EI/L³)δ, where F, E, I, L, and δ are the bending force, Young's modulus, moment of inertia, length, and resulting deflection of the post, respectively in Tan et al.,¹¹² or as F = (3/4πE(r4/L3)), where r is the radius of the pillar, L its height, E Young's modulus, and Δx is the deflection of the post, respectively, in du Roure et al.¹¹³ The mathematical relationship between the Young modulus of the materials and the bending or collapsing force of the patterned features has been developed.^68,100 As discussed in Sec. II B, the aspect ratio and mechanical properties would also affect the maintenance of structure fidelity. The reader is referred to a study by Chandra and Yang for extended reading on the stability of high-aspect-ratio micropillar array.⁶⁸ In Secs. V and VI of this review, we will focus on discussing the topographical features with aspect ratio of height to width around or less than 2 and their influences on microbial adhesion and mammalian cell interaction.

Microbial adhesion or biofilm formation on medical devices could lead to serious health problems. Patients can suffer from infections or even death with pathogenic bacteria adhesion on medical devices, such as implants and catheters. In recent years, several methods have been developed to reduce or prevent microbial adhesion of biomaterials, including adding antimicrobial reagents or toxic biocides into coatings and substrates.^114,115 However, such toxic reagents added into the biomaterials could possibly harm human cells or tissues, especially in close proximity or with close contact. The effectiveness of the biocides could also be unstable for biocides with a short half-life.^116,117 In order to provide a safer microenvironment for medical use, numerous efforts have been made to develop a more efficient and user-friendly technique that can reduce microbial adhesion. Surface roughness and surface topography are factors that are newly discovered to be able to significantly affect the interactions between bacteria and material surfaces. Both of them have been applied on biomaterials to control microbial adhesion in biomedical applications. The effects and mechanism of each type of surface modification are different, and they are further discussed below.

Surface roughness mainly shows heights and depths of surface irregularities, which can be measured via two parameters R_a and R_rms, respectively. Yong et al. tested the adhesion of Staphylococcus aureus and Pseudomonas aeruginosa onto the Etafilcon A hydrogels with different surface roughness values. A significant positive correlation existed between the hydrogel roughness and colony forming units (CFUs) of the two bacteria.¹¹⁸ Similarly, Staphylococcus epidermidis adhesion onto five kinds of hydrogels (Omafilcon A, Ocufilcon B, Nelfilcon A, Senofilcon A, and Comfilcon A) with varied R_a and R_rms values measured by AFM was studied.¹¹⁹ In the result, hydrogels with lower R_a values were observed to have lower CFUs, and the authors suggested that it is probably because the colonization of microorganism could be affected by the surface roughness.¹¹⁹

However, the two parameters R_a and R_rms are not sufficient to describe and characterize the surface properties. Only the information about the variation of asperities heights can be given by the surface roughness values. For example, although the shapes, slopes, or sizes of irregularities can be different on two surfaces, the calculated values of R_a can still be very similar to each other when values of peaks and valleys are canceled out (Fig. 4).^119,120 Therefore, these two surfaces with similar roughness value could perform differently in different specific applications. The effect of material surface roughness on bacterial adhesion has been controversial. Some researchers argued that rougher surfaces lead to higher adhesion forces of bacteria, while others argued that the surface roughness had nothing to do with the bacteria adhesion or even prevented the adhesion.^{118,119,121–123} Such a debate also reflects the controversy of the actual effects of surface random roughness. Due to this problem, precisely designed topographies, in which researchers can engineer the dimension, shape, and geometry of the topography systematically, can be more useful and promising in studying how surface patterning affects the interactions between bacteria and biomaterial surfaces (Fig. 5).

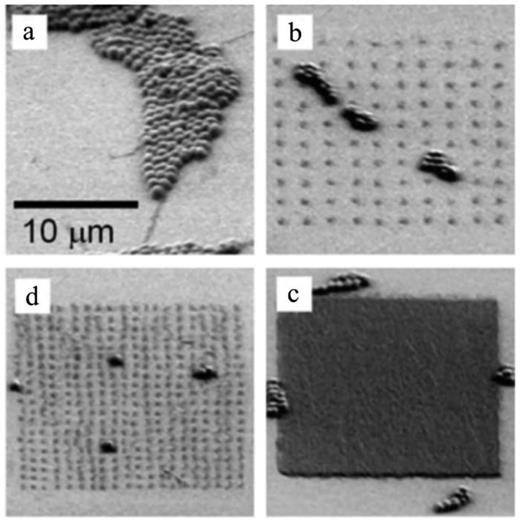

Bacterial motility on the surface can be led by the interaction between the topography and bacteria appendages, such as flagella and pili. According to the shape and size of the topography, different bacteria also show distinct motion preferences and responses to the surface, such as near-surface swimming and surface-anchored spinning.¹²⁴ Surface topographies can achieve antibacterial functions by providing anti-adhesion surfaces or bactericidal surfaces. Anti-adhesion surfaces aim to prevent bacterial cells from attaching to a surface via unfavorable surface topography. It has been discovered that topographies with smaller sizes work more efficiently to decrease bacterial adhesion than large structures. Bactericidal surfaces refer to surfaces with specific structures, such as closely spaced nanoscale pillars that can directly pierce through the bacteria cell membrane and kill the bacteria within several minutes.^116,125

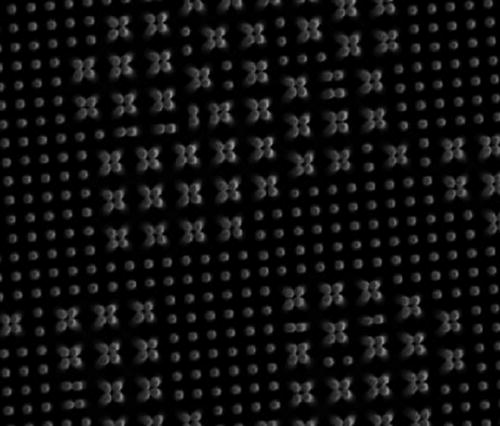

In nature, many animals or plants have evolved surfaces with specific topographies that can either support self-cleaning or protect themselves from bacteria. Such inherent functional surfaces provided inspiration in applying these bio-inspired micro/nanostructures into other synthetic materials to give them antibacterial properties.^126–129 Nanopillars on the wings of cicada (Psaltoda claripennis) with a height of 200 nm and center-to-center distance of 170 nm have been demonstrated to be able to puncture the membranes of P. aeruginosa and kill them within 3 min.¹³⁰ The inner and outer membranes of Escherichia coli were damaged and separated from each other on dragonfly (Orthetrum villosovittatum) wings due to the existence of nanopillars with heights in the range of 189 to 311 nm and diameters in the range of 37 to 57 nm.^131,132 Black silicon surfaces with similar biomimicking high-aspect-ratio nanofeatures could kill S. aureus and P. aeruginosa bacteria effectively at an estimated killing rate of 450 000 cells min⁻¹cm⁻².^116,133 The adhesion of E. coli and S. aureus on micropatterned PDMS were also observed to be reduced when the bacteria size is larger than that of the pattern groove.^125,134 Microbial adhesion on more rigid materials with surface topography, such as implant topography, has also been extensively studied. However, as the current paper focuses on topography on hydrogel, readers can refer to excellent review papers for further extended reading.^135–137

As a popular biomaterial, hydrogels with organized surface textures have also been fabricated to study their antimicrobial performance. However, most studies are designed to target bacterial adhesion on hydrogels, while adhesion of other microbes, such as fungi or virus, is much less taken into account. Pseudomonas aeruginosa was cultured on both cast flat and surface patterned chitosan hydrogel films for 18 h, and CFUs were then counted on agar plates to see if the surface topography could inhibit the bacteria growth.¹³⁸ Compared to the flat hydrogel films, P. aeruginosa cultured on nanopillars with 120 nm diameter and 230 nm height showed 31% lower CFUs. Nanopillars with 190 nm diameter and 400 nm height exhibited even better antibacterial property with 52% lower CFUs compared to flat chitosan films. The adhesion of E. coli onto the patterned PEG hydrogel was examined in another study.¹³⁹ In the research by Koh et al., PEG hydrogel with 30 × 30 μm² square microwells fabricated by UV lithography was attached covalently to the silicon substrate surface via a 3-(trichlorosilyl) propyl methacrylate (TPM) monolayer. After incubating the samples with microstructured PEG hydrogel in suspended E. coli solution for 6 h, the E. coli bacteria were observed to be confined within the three-dimensional trenches of the hydrogel, showing the active resistance of microstructured PEG hydrogel to the E.coli adhesion. Similarly, another group also incorporated patterned PEG hydrogel coating onto a silanized glass substrate by e-beam lithography method to study the bacteria adhesion compared with common biomaterials, including silicone rubber, poly(methyl methacrylate) (PMMA), and tissue culture polystyrene (TCPS).¹⁴⁰ The diameter of the hydrogel pattern was designed to be 2.5, 5, and 10 μm with 5 or 10 μm interpatch spacing distance. Staphylococcus aureus was first allowed to adhere onto the samples for 30 min, and the lowest bacteria adhesion was observed on patterned PEG hydrogel coatings. Then, murine macrophages were added to see how different surfaces would affect the phagocytosis of the bacteria. Interestingly, the unpatterned PEG hydrogel coated surface exhibited the lowest phagocytosis rate, but this rate was significantly increased on hydrogel patterned surfaces, depending on the patch diameter and the interpatch spacing. The underlying detailed mechanism was still not clear due to lack of research. However, these studies provide the directions for further research on the relationship between bacteria, macrophages, and patterned surfaces. To prevent bacterial contamination more effectively, Papi et al. have combined graphene oxide (GO) hydrogels with Cancer pagurus (crab) carapace surface patterns by laser printing, as GO can cause membrane disruption to kill microorganisms and C. pagurus carapace is a natural antibacterial surface.¹⁴¹ The result again illustrated that the patterns on GO hydrogel surfaces reduced the colony area by around 70% for S. aureus, 65% for E. coli, and 45% for C. albicans. Also, a surface-patterned PEG hydrogel crosslinked on the silanized glass substrate by e-beam lithography has been demonstrated to effectively control the adhesion of S. epidermidis and to prevent the development of large bacteria colonies (Fig. 6).¹⁴²

Cells are surrounded by a complex microenvironment with geometrically defined structures in vivo. The extracellular environment provided three-dimensional (3D) physical cues in micrometer and sub-micrometer scale, which plays an essential role in diverse cell processes. To mimic natural extracellular environment, micro- and nanotopographies have been fabricated on substrates and implants to modulate cell processes in vitro and regulate cell behaviors in vivo. A number of review papers have summarized the cell responses to different topographies.^143–146

Hydrogels are attractive candidates for cellular studies and tissue engineering application. Due to their high water content, tunable physical and biochemical properties and compatibility with various types of cells, hydrogels can be engineered to resemble native extracellular matrix and generate artificial organs. Various types of hydrogel with rigidity that matches the rigidity of body tissues have also been developed as platform to study mechanobiology. Different cell behaviors, such as desirable cell adhesion, controlled cell migration, increased or decreased cell proliferation, and guided stem cell differentiation, may be required depending on the application fields. These responses can be regulated by altering the biophysical and biochemical properties of a hydrogel. Inspired by the findings of the role of topographies in cell reposes, various dimensions of topographies have been incorporated to hydrogels to mimic native 3D extracellular environment. Examples of topographies on hydrogels for different application including pHEMA hydrogel,¹⁴⁷ PVA hydrogel,¹⁴⁸ collagen/gelatin hydrogel,¹⁴⁹ PEG hydrogel¹⁵⁰ and polyacrylamide (PAM) hydrogel^151–153 have been summarized in Table II. In this section, we will discuss how topographies are used to guide cell behaviors, including adhesion and morphology, migration, proliferation and differentiation on hydrogel for different application purposes.

Cell adhesion is essential in cell communication and signaling. However, adhesion of cells on hydrogels that lack of cell binding anchorage or do not support ECM adsorption is challenging. Topographical modification is one of the commonly used modifications on hydrogel surfaces that have been used to enhance cell adhesion on non-adhesive hydrogels.

Poly(2-hydroxyethyl methacrylate) (pHEMA) is a commonly used hydrogel for contact lens. Nanosized rippled patterned¹⁵⁴ and Lotus leaf topographies⁸¹ have been introduced to pHEMA by laser treatment and casting methods, respectively, to increase human corneal epithelial cell attachment and growth. Poly(vinyl alcohol) (PVA) is a biocompatible material and has shown potential for small diameter vascular graft; however, the lack of cell adhesion sites limits its application. Our group has developed patterned PVA hydrogels with different dimensions of isotropic and anisotropic topographies by casting and nanoimprinting methods.^23,155 We found that vascular endothelial cells had substantially enhanced attachment on 2 μm gratings both in vitro and in vivo, while had minimal attachment on unpatterned PVA, as shown in Fig. 7. Cells can sense topographies from nanometer to micrometer scale. The promotion effects of topographies on cell adhesion are dependent on topography dimensions. Hepatocytes attachment on heparin hydrogels with gratings of different pitch sizes, fabricated by UV lithography, were compared, and gratings with height of 300 nm and pitch of 400 nm supported markedly better attachment.¹⁵⁶ Similarly, fibroblasts exhibited good adhesion on polyethylene glycol hydrogels with 3 μm pillars and grooves prepared by casting method,⁹⁵ and grooves with 10 μm in width, which is in the range of the cells' own size, induced significantly better cell adhesion and spreading.¹⁰²

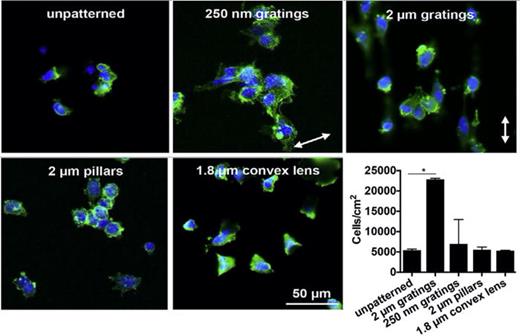

In addition to cell adhesion, substrate topographies can also induce cell morphology change, cell alignment and cytoskeletal re-arrangement. Hydrogels with aligned microfibers and nanofibers were well documented to induce cell alignment along the fibers.^157–159 Alginate hydrogels made by wet spinning were exposed to shear force to reshape the hydrogel fiber into aligned sub-micrometer topography.⁹⁵ Cells were shown to orient along with fiber axis and formed cell-matrix dual alignment. 3D laminin-rich matrices with alignment fibers were also shown to induce cell alignment.¹⁵⁷ The aligned cells showed extended protrusions parallel or perpendicular to aligned fibers, and the focal adhesion mainly diffused in the cytoplasm, with few puncta localized at the protrusions.¹⁵⁷ Similarly to aligned fiber, hydrogels with micro- and nanogroove structures were also effective in inducing cell alignment parallel to the grooves.^{45,147,149,160–162} The dimension of grooves was shown to affect cell alignment differently. Robert et al. showed that hydrogels with 1.9 μm of grooves by casting method were effective in inducing cell alignment, but cells aligned poorly on grooves with depth less than 1 μm.¹⁶³ Adipose-derived stem cells were also shown to exhibit alignment when the topography width is larger than 0.60 μm and height larger than 170 ± 100 nm on elastin-based hydrogel.¹⁶⁴ Fibroblasts were cultured on PAM hydrogels with 5 μm wide and 1 μm high lines with stiffness of 13, 37, and 145 kPa. Cell elongation was induced by topography on all substrates. Topography-induced elongation was more obvious on stiff substrates. Primary intestinal epithelial cells were cultured on patterned substrate with stiffness (13 kPa) comparable to basement membrane and stiffer substrate (145 kPa). Cells spread more on harder hydrogels and the epithelial clusters expanded a twice larger area on stiff substrate than soft substrates.¹⁶⁵ Cells on microwell and micropillar structures exhibited distinct morphology compared to on grating structures. Rat bone marrow mesenchymal stem cells were shown to form a large spherical shape in a pillar substrate but not in a grooved substrate fabricated by lithography.¹⁶⁶ Preadipocytes on poly(ethylene glycol) (PEG) hydrogel with imprinted nanowell structures exhibited spherical but more confined shape compared to unpatterned surfaces.¹⁶⁷ Al‐Haque et al. investigated the responses of cardiac fibroblasts to topographies on both soft and stiff polyacrylamide (PAM) hydrogels. Cells on substrates of intermediate stiffness (18 and 50 kPa) had most significant topography-induced cell elongation. Cells on soft substrate (1 kPa) were also able to elongate along the topography, while cells on stiff substrates (143 kPa) did not exhibit appreciable topography-induced elongation.¹⁵²

Hydrogels have also attracted broad interest for use as in vitro cell culture scaffolds. Recent studies have introduced microscale topographies on hydrogel cell culture scaffolds to control cell location and configuration. Mesenchymal stem cells cultured on PAM hydrogels with an array of microposts with varied shape, width, and spacing prepared by casting method were studied.¹⁶⁸ Cell bodies tended to locate in 15 μm and wider gaps while located on top of posts that were 5 μm and smaller. Cardiomyocytes were found to be confined within 50 μm microgrooves on gelatin methacryloyl (GelMA) hydrogels fabricated by photo nanoimprint and formed uniform and highly aligned cardiac tissues.¹⁶⁹ This modulation behavior of topographies on hydrogels made it suitable for single cell arraying and controlled cell culture. Pasturel et al. have designed a light-based toolbox to photoprint hydrogel topographies, which work as templates to direct cells to grow and self-organize into standardized structures.¹⁷⁰ Gelatin-based hydrogels with microsized undulation topography by casting method was shown to be suitable for cells to grow in the shape pf undulation and formed multiple monolayers to resemble skin.³⁰ Non-adhesive hydrogels with programmable geometries have also shown the capability to control self-organization of cellular aggregates.¹⁷¹ In addition, chitosan hydrogels with microwells prepared with molding processes facilitated the co-culture of hepatocyte spheroids and fibroblast monolayers, enabling the study of heterotypic cell–cell interaction.¹⁷²

Substrate topographies have been documented to provide contact guidance, accelerating cell migration, which has been mainly observed on surface with groove structure or on aligned fibers.^{143,173–175} Mechanism underlying this phenomenon has been proposed to be topography-induced geometry constraint of cell adhesion sites, which results in cell alignment, polarization and directional migration. Review papers from Petrie et al.¹⁷³ and Anselme et al.¹⁷⁶ have summarized studies about the effects of topographies on cell migration. Inspired by those findings, researchers have also fabricated aligned fibers and grooved structures on hydrogels to increase the directional cell migration both in vitro and in vivo.^177–179

PEG-based hydrogel with microgrooves prepared by casting increased the rate of corneal epithelial cell migration in vitro.^177,178 Corneal epithelial cells on microgrooved substrates were found to explore larger space and migrated on an average of 100 μm parallel to the ridge and groove topographies.¹⁷⁷ They also exhibited 50% higher wound healing rate compared to unpatterned surfaces.¹⁷⁸ Electrospun fibrin hydrogel with 3D hierarchically aligned fibers were implanted in a rat dorsal hemisected spinal cord injury model to study its function in spinal cord injury recovery.¹⁷⁹ Accelerated directional host cells invasion along the fibers in vivo was observed in the first week after surgery, and the locomotor performance of the aligned fibrin group recovered much faster than random fibrin hydrogel. The efficiency of grooved structure in promoting cell migration was shown to be dependent on groove width and the slope of groove walls. Vicente et al. found the orientation of migration tracks with pattern appeared to increase with the decreasing of linewidth.¹⁸⁰ Cells were shown to migrate randomly inside wide channels that were larger than cell size, while on narrow channels, cell migrated parallel to the pattern direction. Fibroblasts appeared to adhere, align, and elongate more on denser patterns on polyurethane-amide (PUA) hydrogels with variable groove width of 1–9 μm prepared by UV-assisted capillary molding.¹⁸¹ The migration speed of cells was affected by pattern density with the fastest speed frequently occurring at intermediate ridge density. Epithelial cells were shown to increase their motility by threefold on the microgrooved PEG hydrogel prepared via casting than non-patterned hydrogels.¹⁸² By varying the slope of the microgroove walls, the authors found that relatively upright walls are necessary for increased cell migration.¹⁸²

Cell proliferation is regulated by the extent and strength of cell adhesion and was reported to be positively correlated with cell flattening.¹⁸³ Substrate topographies play a role in cell proliferation through by affecting cell spreading on the substrates. However, different cell types exhibited distinct proliferation responses to topographies. Microsized circular topographies on epoxy resin and poly(dimethylsiloxane) (PDMS) were shown to be promising in controlling epithelial cell proliferation.^184,185 Corneal endothelial cells were shown to proliferate significantly faster on micropillars on PDMS^186,187 and tissue cultured polystyrene (TCPS).^186,188 The proliferation rate of vascular endothelial cells were not significantly affected by topographies on PDMS,^189,190 while that of smooth muscle cells was shown to be reduced on nanogrooved structures.¹⁷⁵ A detailed review by Anselme et al. listed examples of various cell proliferation responses to substrate topography.¹⁷⁶

Based on these findings, topographies have been incorporated on hydrogel scaffolds to improve or suppress cell proliferation depending on different application purposes. Silk-graphene hybrid hydrogels with aligned nanofibers were shown to have preferable stiffness for nerve cell study.¹⁹¹ Proliferation of multiple nerve cells was shown to be promoted by the aligned fibers on the hydrogels, indicating the potential of this hydrogel for use as platform for nerve regeneration. Electronspun fibrin nanofiber hydrogels with hierarchically aligned fibers were designed to promote peripheral nerve regeneration.¹⁵⁹ The nanofibers were shown to have the capability to direct Schwann cells migration and proliferation and accelerating axonal regrowth.¹⁵⁹ On the contrary, microsized gratings seem to hinder the proliferation of smooth muscle cells. Human aortic smooth muscle cells had significantly lower proliferation on microgrooved tetronic-tyramine hydrogels (10, 25, and 80 μm) prepared by casting method than unpatterned hydrogel, independently from groove size.¹⁹² Human corneal endothelial cells were seeded on GelMA+ hydrogel, which was sequential hybrid crosslinked with physical followed by UV cross-linking to achieve stronger mechanical strength. GelMA+ with 1 μm pillar structures prepared by capillary force lithography had higher cell density compared to the unpatterned control.⁵⁶ To study cell responses to multiple stimuli, patterned PVA hydrogels prepared by casting with different stiffness were used as scaffolds to study human pancreatic cancer cell responses.¹⁹³ Cells exhibited significantly better adhesion and proliferation on nanopillars structures on fibronectin functionalized PVA hydrogels, and the cells appeared to favor nanopatterned surfaces over micropatterned and flat surfaces.¹⁹³ A recent study also studied corneal endothelial cells responses to hexagonal patterns on PAM hydrogels with stiffness comparable to native Descemet's membrane. Cells on small patterns (2000 hexagons/mm²) had significantly higher proliferation rate than those on large patterns (400 hexagons/mm²).¹⁹⁴ In addition, topographies have also been incorporated in 3D cell culture scaffolds to maintain desired cell viability, proliferation, and maturation. 3D PAM hydrogel cell scaffolds with hexagonally ordered spherical cavities with diameter of 97 μm were shown to be suitable for in vitro 3D cell culture.¹⁹⁵

Stem cells have emerged as important cell source for regenerative medicine due to their differentiation and self-renewal capability. Stem cells have been demonstrated to respond to biophysical and biochemical cues in their natural niche. Stiffness is considered as a key parameter in the microenvironment that directs cell differentiation, and the underlying mechanisms have been discussed in several reviews.^196,197 Topography is another key feature that can be harnessed to provide 2D and 3D niche to direct cell fate. The influence of topography features, such as geometry, size and curvature, on stem cell fate has been extensively reviewed.^198–201

The stiffness of hydrogels can be adjusted by changing parameters, such as polymer concentration and cross-linking density, and thus hydrogels have been used as platforms for studying cell differentiation. Hydrogels with topographies showed potential for culturing stem cells and providing niche for directed stem cell differentiation in vitro and in vivo. Microgrooved structures have been documented to induce neuron differentiation.^202–204 Neuron differentiation of human embryonic stem cells was shown to increase as groove pitch decreased, and 2 μm microgrooves can improve neuron growth by 1.7-fold.²⁰³ Sthanam et al. compared neuronal differentiation of human mesenchymal stem cells (hMSCs) and mouse embryonic stem cells (mESCs) on microgrooved PAM hydrogels prepared by casting. hMSCs maximally elongated and expressed neuronal markers on soft 5 kPa gels containing 10/15 μm grooves. However, mESCs were unable to sense the topographies when cultured directly on grooved gels. The authors introduced a priming step where the mESCs were cultured on a soft 1 kPa flat gel for 7 days before replating the cells onto the grooved gels. With the priming step, neuronal differentiation was improved in mESC, and the authors suggested that soft substrates are essential for inducing topography-mediated neuronal differentiation in mESCs.²⁰⁴ The observations were in agreement with earlier studies to show that cytoskeletal contractility is essential for topography-sensing and topography-induced neuronal differentiation of human ESCs.²⁰⁵ Undifferentiated pluripotent stem cells including hESCs²⁰⁵ and mESCs²⁰⁶ have lower acto-myosin contractility compared to differentiated cells, while the acto-myosin contractility increased during differentiation process. This explained why a priming step in the study by Sthanam et al. could help to rescue or promote the mESC topography sensing and differentiation on the grooved gel. Aligned fibers also enhanced neuronal differentiation. Hierarchically aligned fibrillar fibrin hydrogel prepared by electrospinning was shown to induce cytoskeletons alignment of human umbilical cord mesenchymal stem cells (hUMSCs), upregulate neural lineage specific markers, and encourage rapid neurite outgrowth.²⁰⁷ In addition to groove structures, nanopillars were also found to be promising to enhance neural stem cell differentiation and regulate neurite outgrowths.²⁰⁸ In addition to neuronal differentiation, micro- and nanogroove structures have been shown to promote osteogenic differentiation,^209,210 myogenesis and myotube alignment,²¹¹ and chondrogenic differentiation.²¹²

In vitro stem cell expansion, especially pluripotent stem cells, is frequently required to scale up cell production while maintaining pluripotency. Conventional stem cell culture requires feeder layers or addition of growth factors.^213,214 Novel methods have focused on using topographical cues to retain pluripotency of stem cells.^{213,215–217} PEG hydrogels with microwells of 40 to 150 μm in diameter and 20–35 μm in height prepared by capillary force lithography can initiate embryoid bodies. The embryoid bodies generated on the patterned substrates remained viable with controllable size and shape and could be easily harvested.²¹⁸ Lü et al. studied the stemness of mESCs on PAM hydrogels with microgrooves and square micropillars prepared by soft contact lithography.²¹⁹ The results showed topography manipulate stemness of mESCs via the formation of different shapes of colony. Groove or pillar substrate induced a relatively flattened colony, while a spheroid colony was preferred on a hexagonal substrate. The role of topography in retaining cell stemness was found to be more effective in retaining cell stemness on stiff, hexagonal, or pillar-shaped substrates.

The mechanisms of regulation behaviors of topographies on cells on hydrogels have been studied. As discussed in Sec. IV, the topography alters protein adsorption on hydrogels. This topography-directed protein adsorption was reported to contribute to the improved cell adhesion. The presence of serum proteins was speculated for improved cell adhesion on patterned PEG hydrogels.⁹⁶ The presence of serum proteins, especially vitronectin, in culture medium was shown to be essential for initial cell attachment and topography is important for establishing durable adhesion and cell spreading. In addition, topography-induced differentiation have also been observed to associate with changes in cell adhesion and morphology, which could be due to geometry-dependent cytoskeletal arrangement,⁹⁵ changes in actomyosin contractility,²⁰⁵ and focal adhesion signaling.²²⁰ Actin filaments preferentially form and elongate along the directions with least resistance, and consequently leads to aligned cell shape. Similar to the cells on other patterned substrates, the role of focal adhesion formation has also been stressed when investigating the mechanism of cell elongation on hydrogels with grating structures. Yip et al. reported that fibroblasts formed protrusions in the grating grooves on a polyacrylamide (PAM) hydrogel with 2 μm gratings.²²¹ Focal adhesions also aligned parallel to the gratings, which also resulted in aligned actin stress fiber formation in the direction parallel to the grating, leading to polarized traction stresses which drive cell elongation. Smooth muscle cells cultured on microgrooved tetronic-tyramine hydrogels were reported to form localized focal adhesions on the ridges of grooves and less organized focal adhesions in the 2 μm depth of the grooves, which contributed to the alignment of actin networks along the grooves.¹⁹² Similarly, human mesenchymal stem cells also formed long and aligned focal adhesion on 3D printed microchanneled gelatin hydrogels, while formed small and randomly distributed focal adhesions on unpatterned hydrogels.²²² In addition, the roles of integrins have been emphasized in topography induced cell responses.^223,224 Micro- and nanosized topographies have also been elucidated to promote integrin cluster formation between cells and the extracellular matrix.^225,226 The authors would like to introduce recent studies on the topography-sensing mechanism of mammalian cells. However, the focus of the paper is about patterning of hydrogel, we would refer readers to other excellent recent review papers on mammalian cells.^{176,227–229}

While the influence of surface topography on hydrogel surface properties is still far from being fully understood, this method has already been introduced into certain biomedical products to improve their efficacies.

Wound dressing works to protect damaged skin from dehydration and infection. Traditional wound dressing methods, such as cotton wools, bandages, and gauze dressing, can provide significant support in the initial stage of wound healing. However, the removal of these dressing materials often strips off the newly formed epidermis. They are also unsuitable to be used on effectively debrided wounds due to the nonselective debridement.^231,232 To overcome the drawbacks of the traditional wound dressing, many new materials have been developed, and hydrogel is one of them. Hydrogels can not only keep the moisture content of the necrotic tissue, but also facilitate autolytic debridement by increasing the production of collagenase.²³³ For example, graphene hydrogel has drawn attention as a promising candidate for wound dressing due to its high water absorption, excellent biocompatibility and pain reduction effect.^114,232 To further increase the healing efficacy, different surface topographies have been applied. A prototype hydrogel wound dressing was surface patterned by casting from the Si mold with different column structures. All these microfeatures on the hydrogel surface showed the ability to protect the adherent cells from shear damage, among which column structures with 250 and 500 μm width exhibited the best performance that more than 80% of the initial cell population was retained, while on blank hydrogel samples, only 35% of the initial cells survived.²³⁰ Similarly, an alginate/poly-L-ornithine/gelatin hydrogel with 10 μm gratings surface structure was investigated on its ability to enhance wound healing. The features can not only prompt endothelial cell proliferation but also encourage the secretion of growth factor PDGFB.²³⁴ However, these studies did not evaluate the antimicrobial performance of these surface textures. Ruiz et al. also pointed out that graphene hydrogel does not show antibacterial properties, so contamination with microbes, such as gram-negative Escherichia coli (E.coli) and gram-positive S. aureus, and wound infection can occur.^9,235 To solve such a problem, silver nanoparticles and iodine were still incorporated into the graphene hydrogel and the prototype hydrogel as the antimicrobial agent to increase antibacterial ability, respectively.^114,230 As the hydrogel wound dressing can generally provide higher user comfort and reduced pain, they will be more popular if the surface topography modification could maximize the wound healing and minimize the microbial contamination simultaneously.

Another example is contact lens. Nowadays, soft contact lenses are commonly used in vision correction, and colored contact lenses are also used for decorative and cosmetic applications. In addition to wearing comfort, potential risks and health threats of contact lens wear, such as microbial contamination, have also been known but yet to be addressed.^236,237 The temperature that is close to body temperature and hydrated environment on surface of hydrogel contact lens provides a suitable environment for bacterial adhesion and biofilm formation. The proteins, mucin, and lipids from tear fluid could deposit onto the contact lens surface during wear, supporting the formation of biofilm and making it difficult to eliminate the bacteria.^236,238 Many studies have shown that both gram-positive cocci, such as Staphylococci cocci, and gram-negative rods, such as P. aeruginosa, which have been isolated from worn contact lenses, have been associated with keratitis.²³⁹ The microbial keratitis can lead to eye pain, excessive tearing, and even severe vision impairment. As soon as the contact lens meets a fluid, such as tear, both bacteria and organic matter will diffuse toward the surface of the contact lens. The organic matter diffuse faster than bacteria because of their smaller size, thus forming a “conditioning film” for bacteria adhesion. The excreted exo-polymeric substances gradually change the initial reversible bacteria adhesion to irreversible adhesion. The growth of infectious biofilms can also be sustained when the contact lens is in contact with the human cornea for a long time.^119,239 Again, in addition to adding extra antimicrobial agents, roughening or patterning the hydrogel contact lens surface could be a possible way to prevent the microbial contamination.¹¹⁹ Due to the potential commercial value of the application and market competition between companies, most of the studies on contact lens surface patterning are patented. For example, a US patent shows that different regions on the contact lens surface could be patterned with different microstructures, such as microwells and microchannels. The dimensions of the features are all less than 200 nm, and they have been tested to increase the lubricity during eye blinking and demonstrate no influence on the optical clarity.²⁴⁰ Another Japanese patent in 2012 also showed how the negative effects on the light transmittance can be reduced by adding nanoscale patterns onto their hydrogel lens surface.²⁴¹ The above published patents show that it is feasible to improve the performance of hydrogel contact lens by applying the surface patterning techniques.

This review paper aims to provide a review of the current progress of topographical patterning on hydrogel materials, in particular, on the aspects of patterning technologies compatible with hydrogel fabrication, the impact of topographical patterning on surface energy, mechanical properties, and the subsequent influences on hydrogel–microbial and hydrogel–cell interactions. These changes in surface properties could affect the utilization of hydrogel in biomedical applications.

However, due to technological limitations, which will be further discussed in Sec. VIII B, important hydrogel properties, such as the changes in chemical moiety by topographical patterning, have been scarcely reported in the literature. Most of the studies that applied topographical patterning on hydrogel are interested in examining the changes in the interfacial energy changes. The most commonly used control unpatterned samples in most studies have been fabricated with the same methods. While a few studies reported the chemical characterization of the patterned hydrogel, thorough chemical moiety characterizations were not commonly reported. Therefore, this review paper also focused on changes in interfacial energy and hydrophobicity.

The topographical pattern design or optimal pattern for each different application has yet to be identified. The current approaches employed in topographical pattern design would be mainly biomimetic design, such as using lotus-leaf topography or performing a systematic screening of different patterns.

Moreover, we acknowledge that the hydrogel family also includes vast diversity of materials, and the hydrogel is a very versatile material with many potential applications. This review paper has only been focusing on the discussion on the examples of surface patterning of hydrogel for biomedical applications.

Although topographically modified hydrogels have been demonstrated to show altered properties, some problems and challenges still exist in applying this technique for broader use.

As hydrogels can be used in different applications, the requirements they need to meet are also different. A hydrogel that can be ideally used in one area may not be suitable in another area. For example, an antibacterial hydrogel may not be suitable for cell culture design as the adhesion of cells could also be inhibited. Therefore, still a lot of work is necessary for each kind of hydrogel and each application.

Also, the relationship between topography features and their effects is still far from being well understood. There can be more than thousands of different patterns by varying their shape, height, spacing distance, and arrangements. However, most studies only selected one or several specific patterns for testing without showing the reason why those patterns were chosen. The exact mechanism of the pattern features and the changes they can make for hydrogels has not been thoroughly elucidated yet. This reduces the repeatability of a pattern to be used in various applications.

Surface characterization of patterns on hydrogel is another challenge. Common techniques that can be used to characterize micro- or nanoscale features, such as atomic force microscope (AFM), scanning electron microscope (SEM), and noncontact confocal base surface profiler, are challenging for hydrogels. These techniques were developed for the characterization of dry, hard, and/or refractive materials, while hydrogels are usually soft, hydrated, and transparent with low refractive index similar to air and water. Although AFM characterization can be performed in liquid chamber, specific setup and skilled operator would be needed. Additional processing steps, such as dehydration, freezing, and sputter coating, are necessary for hydrogel sample preparation for SEM and AFM characterization in air; however, these sample preparations may affect or even destroy the patterns. If the actual surface pattern on the hydrogel cannot be precisely detected, the analysis on how and why surface topography could alter surface properties will also be difficult.

Finally, while a pattern can modify properties of hydrogel, not all properties can be changed to the desired condition because material properties are coupled to and influenced by each other. To determine a suitable and successful material for a specific application, careful selection and optimization would be necessary to modify the surface without sacrificing other desirable properties. When topography is incorporated on a hydrogel, other properties, for example, surface hydrophobicity, may also be altered. For example, in the surface hydrophobicity altered by topography, the resulted changes in protein adsorption and the topography can affect cell response behaviors, making it more difficult to guarantee the effectiveness.

Hydrogel is a promising biomaterial. The ability to modify the surface properties independently from the bulk properties could further enhance the use of hydrogel in biomedical applications. In this reviewer paper, we have discussed the applications of the topographically patterned hydrogel as tools in studying mechanobiology,^42,171,227 wound healing and contact lens applications,^232,240 and tissue engineering applications.^{23,56,81,97,154} However, hydrogels have also been developed as stimuli-responsive materials,²⁴² materials for cell encapsulation,²⁴³ drug delivery vehicles,^244,245 microfluidic devices,^246,247 or materials for constructing biosensors.^248,249 The incorporation of topographical patterning could further enhance the cell- or protein-interaction with the materials. The ability to change the interfacial energy could also be employed to develop hydrogel for medical adhesive,^250,251 or in the development of soft robotics.^252,253

In the post-pandemic era, surface properties for infection controls would be an essential aspect for further research. Nanopatterning and nanoparticles have already been demonstrated and used in anti-microbial applications.^254,255 The application of topographical patterning could be used together with other infectious control methodology on medical devices.

Compared with other biomaterials, hydrogels have shown outstanding performance, such as high hydrophilicity and biocompatibility. In order to further modify hydrogel properties for specific applications in different areas, different modifications were developed. Among them, surface topography modification provided new ideas on changing hydrogel surface properties. Several studies have successfully figured out the techniques that can be used to pattern hydrogels. Adding topographies onto hydrogel surfaces has been shown to affect the hydrophobicity, microbial adhesion, protein deposition, and cell behaviors on the hydrogel, making it a promising method to expand the applications of hydrogels. However, further systematic research will still be essential and necessary in understanding the relationship between topography features and their effects.
