Alloy disorder modulated electron transport at Mg_xZn_1-xO/ZnO heterointerface

High-mobility electrons in two dimensions have provided the foundation for a number of applications, such as high-frequency devices,¹ as well as to explore fascinating quantum phenomena.² While the discovery of new phenomena in these two-dimensional electron systems (2DES) always correlated with significant gains in the sample quality, new applications were also proposed over time which can employ high-quality heterostructures. For instance, the topological quantum computation³ using even-denominator fractional quantum Hall states requires high-quality heterostructures for their successful realization, thus emphasizing the continuous demand to improve the sample quality.

The quality of 2DES is assessed by mobility $(μ)$ as a measure of cleanness, which is related to transport scattering time $(τtr)$ as $μ=eτtr/m*$⁠, where e is the elementary charge and m^* is the effective mass. Alternately, quantum scattering time $(τq)$ is another measure of the cleanness directly reflecting the phase coherence of electrons. While all the scattering events are equally represented in $τq$⁠, backscattering events with a large scattering angle $(θ)$ dominantly influence $τtr$ over small-angle (forward) scattering events due to the $(1−cosθ)$ weighting factor present in its definition.⁴ Hence, in the absence of backscattering, very high values of $τtr$ can be obtained even with high probability of forward scattering events. For example, in the case of remotely delta-doped high-mobility 2DES in AlGaAs/GaAs heterointerface, the reported maximum mobility exceeds 30 million cm² V^-1 s^-1, which corresponds to $τtr$ ∼ 1 ns.^5–7 However, the probability of small-angle scattering from the remote ionized dopants is not negligible, leading to about two orders of magnitude smaller value for $τq$ (∼ 10 ps). Therefore, the comparison between $τtr$ and $τq$ enables identification of the dominant scattering factors, giving invaluable knowledge for improving the quality of 2DES.^4,8,9

In this context, it is interesting to investigate $τtr$ and $τq$ in the 2DES at the Mg_xZn_1-xO/ZnO heterointerface, which has recently attained a mobility exceeding 1 million cm² V^-1 s^-1 (Refs. 9 and 10) and exhibited the unique fractional quantum Hall effect with even-denominator filling factors.^11,12 Unlike the 2DES in GaAs/AlGaAs, where a remote delta-doped layer is the source of the 2DES at the interface, the discontinuity of polarization on account of Mg doping between Mg_xZn_1-xO and ZnO gives rise to accumulation of 2DES owing to the structural deformations of Zn and oxygen tetrahedra along c axis in the wurtzite crystal structure, which induces spontaneous polarization.^13,14 This polarization doping, being free from ionized dopants, is advantageous to achieving long scattering times. Without ionized dopants, the remaining possible sources of scattering would be unintentional background impurities, remote surface disorders, and alloy disorder^15,16 The influence of background impurities, causing long-range scattering potential, may be mitigated by increasing carrier density thereby enhancing screening or otherwise by drastic reduction of impurities themselves. On the other hand, the alloy disorder, acting as short-range scattering, is also associated with Mg content (x). Thus in the case of carrier accumulation by polarization discontinuity, the variation in x simultaneously changes the carrier density and scattering time/disorder, and hence influences of screening and alloy disorder cannot be independently studied.

In this study, in order to modulate the alloy disorder independently of carrier density, we have modified the interface of Mg_0.01Zn_0.99O/ZnO with inserting a thin (∼ 2 nm) Mg_xZn_1-xO interlayer where x ranges from 0.005 to 0.4. With this modification at the interface, we intend a systematic change in the short-range alloy disorder while limiting changes in charge density to be much lower than that associated with increasing the uniform doping of the capping layer. As a result, we find a significant decrease in $τtr$ in the presence of the interface layer acting as a short-range scatterer, but a negligible change in $τq$⁠. This indicates that alloy scattering is not a dominant factor even with large x in the Mg_xZn_1-xO interlayer, and a fundamental decrease in the background impurities or remote surface disorders are necessary towards further advancement of quantum Hall physics.

The films were grown by molecular beam epitaxy using pure ozone under identical growth conditions as reported previously.^10,17 The structure of the samples consisted of 500 nm-thick ZnO buffer layer followed by a 2 nm-thick Mg_xZn_1-xO layer (0.005 ≤ x ≤ 0.4) and a 500 nm-thick Mg_0.01Zn_0.99O capping layer as shown in the inset of Fig. 1(a). The typical growth rate was 600 nm/hour. For x = 0.01, this structure is the same as the standard sample with a single interface, which is denoted by “S” in Fig. 2. For magnetotransport measurements, indium contacts were soldered onto the edges of the 4 × 4 mm² samples cleaved out of the wafer in Van der Pauw geometry. The samples were measured with a $He3$ cryostat for T ≥ 500 mK and in a dilution refrigerator at further low temperatures.

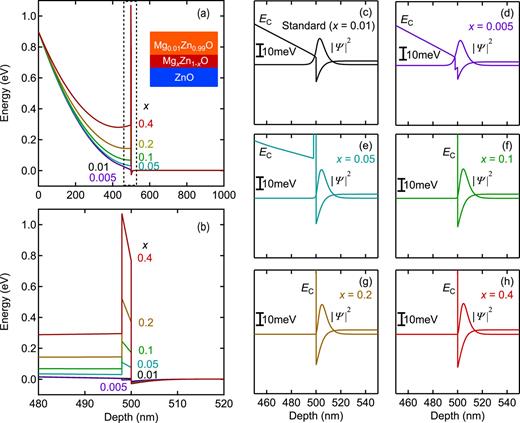

For obtaining an insight into the effects of the Mg_xZn_1-xO interlayer, the potential profiles and electron distributions are calculated by solving the one-dimensional (1D) Schrödinger-Poisson equation using nextnano3 (Ref. 18) as shown in Fig. 1. Figure 1(a) shows the depth profiles of the conduction band edges for all the samples investigated in this study. The conduction band of the Mg_0.01Zn_0.99O capping layer surface is assumed to be pinned at a potential of 0.9 eV, although the choice of this value does not make a significant difference in the following discussions. As shown in Fig. 1(b) [magnification of Fig. 1(a) around the interfaces], the conduction band discontinuities between the ZnO and Mg_xZn_1-xO layers increases as x increases. This modification in the potential profile leads to the variation of the electron distribution $(|Ψ|2)$ for different values of x as shown in Figs. 1(c)–1(h). As seen from the Figures, the electrons are more confined to the quasi-triangular quantum well with an increase in x. While a higher x could result in higher probability of alloy scattering, the electrons less distribute (penetrate) within the Mg_xZn_1-xO layer due to the larger conduction band offset. The dominance of these competing effects is experimentally assessed by the mobility measurement as will be discussed subsequently.

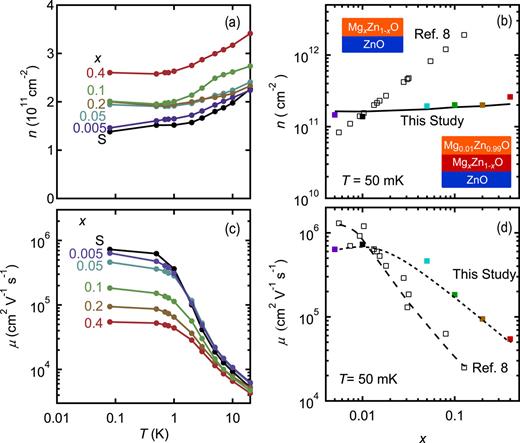

Figure 2(a) shows the carrier density (n), extracted from the low-field Hall effect, for different x in the Mg_xZn_1-xO interlayer. In order to compare the x dependence of carrier density for the samples investigated in the present study and that of the Mg_xZn_1-xO/ZnO samples with a single interface investigated in the previous study,⁹ the carrier density at the lowest temperature is plotted as a function of x in Fig. 2(b). Compared to the previous experiments, the carrier density only modestly varies, thereby allowing us to selectively investigate effects of alloy disorder. The carrier density calculated by solving the 1D Schrödinger-Poisson equation also follows the same trend as the experimental value (solid black curve). For these samples, the mobility $(μ)$ is plotted in Fig. 2(c) as a function of temperature. As in the previous study, the mobility shows a progressively upward increase down to 1 K, which is interpreted in terms of Bloch-Gruneisen regime for the acoustic phonons,^19,20 followed by saturating behavior below the temperature. The low-temperature mobility of the standard sample is comparable to that reported previously at the same x (Ref. 9). The low temperature mobility is plotted in Fig. 2(d) as a function of x in comparison with the mobility in the previous study with uniform Mg concentration in the barrier layer. μ decreases with increasing x, which indicates that the influence of alloy scattering in both sets of samples.

Here, it is noted that increasing Mg content in the Mg_xZn_1-xO layer gives rise to two counter effects on electron mobility. With increasing Mg content, we expect that alloy scattering itself is enhanced, while the larger band discontinuity makes the fewer electrons distributed in the Mg_xZn_1-xO layer, which may effectively reduce alloy scattering. In fact, we notice that the mobility of the sample with x = 0.005 is lower than the standard sample with x = 0.01 as a result of the enhanced penetration of electron distribution into the interlayer as shown in the calculations of Fig. 1(d). However, in the case of polarization doping, it is not generally easy to de-convolve the two contributions since the electron distribution and alloy disorder cannot be independently varied. On the other hand, in a standard semiconductor heterostructure such as in GaAs, the effect of alloy disorder has been selectively investigated using uniformly Al-doped Al_xGa_1-xAs quantum well structures with varying x.^21,22 In the ultra-high mobility 2DES of GaAs, alloy disorder was actually found to be a limiting factor of electron mobility,²¹ and thus we may expect the same trend of mobility also in the case of ZnO 2DES.

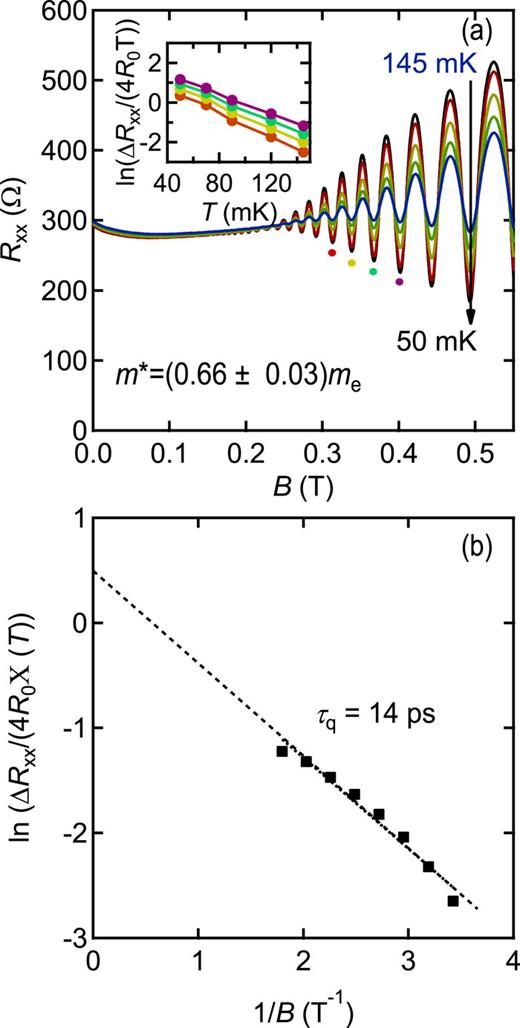

In order to further investigate the scattering mechanism in detail, we examine small-angle scattering originating from the long-range potential, which is well evaluated by $τq$⁠. To determine $τq$ we describe the amplitude of the Shubnikov-de Hass (SdH) oscillations using the expression,^9,23 $ΔRxx=R0X(T)exp(−π/ωcτq)$⁠, where $X(T)=Ψ/sinhΨ$ gives the thermal damping factor with$Ψ=2π2kBT/ℏωc$ and $ωc=eB/m*$ . At a fixed temperature the plot of $ln((ΔRxx/4R0X(T))$ vs $1/B$ (Dingle Plot) gives a straight line whose slope determines $τq$⁠. Similarly, the effective mass can be evaluated from the temperature dependence of the SdH oscillations assuming $τq$ to be temperature independent by plotting $ln(ΔRxx/4R0T)$ vs T. An example of this procedure is depicted in Fig 3 for x = 0.4 sample. The temperature dependence of low field SdH oscillations is shown in Fig. 3(a). We adjusted the magnetic field angle $(θ)$ against the 2DES plane so that the cyclotron energy and the Zeeman energy coincide [to the j (= $g*m*/2mecosθ)$ = 2 coincidence condition, where g^* and m_e is the effective g-factor and the bare electron mass, respectively], the details of which are explained in Ref. 24. From this temperature dependence of the SdH oscillations we estimate the effective mass to be m^* = (0.66 ± 0.03) m_e (m_e is the bare electron mass) as shown in the inset of Fig. 3(a). With this value of the effective mass the quantum scattering time is estimated to be 14 ps from the slope of the Dingle plot in Fig. 3(b). A slight non-linearity was seen in the dingle plots for all the samples at high magnetic fields indicative of small inhomogeneity in the samples,²³ which means the $τq$ determined by this procedure would be slightly underestimated.²⁵ Similar analyses were made for all the samples for x = 0.005-0.4, resulting in similar effective masses of (0.7±0.1)m_e.

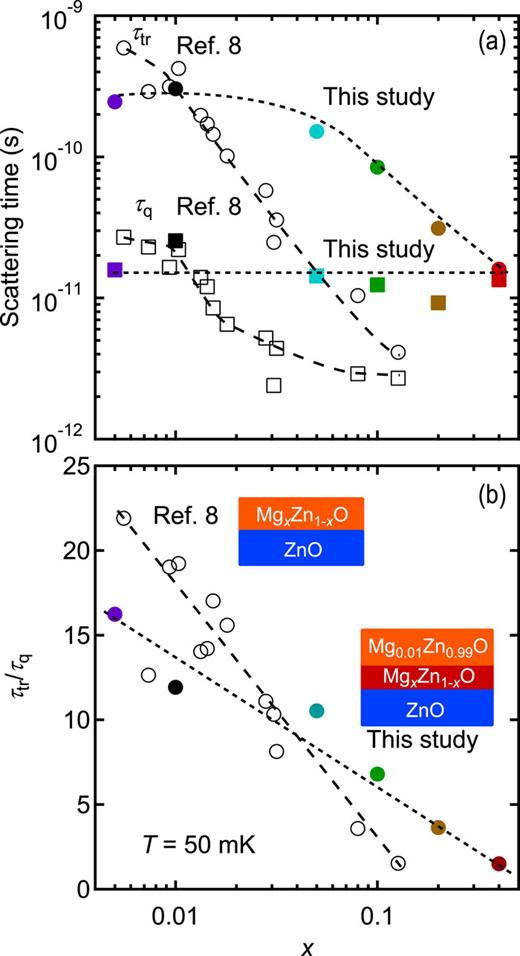

Given these analyses, x dependence of $τtr$ and $τq$ is plotted in Fig 4(a). In stark contrast to $τtr$⁠, which decreases with increasing x, strikingly $τq$ is nearly invariant even if Mg content x in the Mg_xZn_1-xO interlayer varies by almost two orders of magnitude from 0.005 to 0.4. As $τq$ equally takes into account all the scattering, including small-angle forward scattering and large-angle backward scattering, this result indicates that scattering probability is almost independent of x. The dominance of long-range potential over short-range potential can be parameterized by the ratio $τtr/τq$ shown in Fig. 4(b). With increasing x, $τtr/τq$ decreases from about 16 at x = 0.005 to 1.5 at x = 0.4, indicating that the scattering mechanism shows a crossover from long-ranged to short-ranged with increasing x. The value of $τtr/τq$ ∼ 1 at the highest x indicates almost isotropic scattering originating from dominant short-range alloy scattering. In contrast, for x = 0.005, $τq$ is limited mainly by small-angle scattering likely from the background impurities or the remote surface disorders. The above behavior of $τtr$ and $τq$ are compared with a high-mobility 2DES in AlGaAs/GaAs. The ratio $τtr/τq$ is about ∼10 for background impurities and $τtr/τq> 10$ for remote surface charges.²⁶ Contrary to Ref. 9 (where the carrier density varies by an order of magnitude), at a nearly constant carrier density (corresponding to the highest mobilities) we find that the alloy disorder which apparently reduces μ $(τtr)$ is not a dominant scattering mechanism in limiting $τq$⁠. Theoretical studies on partially alloyed GaAs quantum wells have recently claimed the quantum scattering time to be limited only by remote ionized donors,²⁷ and experimentally the purity of Ga source was found to be a dominant factor.⁷ As intentionally incorporated remote ionized donors are absent in ZnO heterostructures, the fundamental quality of 2DES in ZnO, measured by $τq$⁠, can go far beyond that of GaAs by substantial reduction of background impurities.

In summary, we have fabricated samples of Mg_0.01Zn_0.99O/Mg_xZn_1-xO/ZnO, where, alloy disorder is modulated preferentially over the charge density by modifying x. The analysis of the scattering times reveals that, with increasing x, the scattering is predominantly short-ranged, while long-range scattering is dominant at low x. The invariance of $τq$ reveals that in the high mobility heterostructures, the quality as judged by the quantum scattering time is limited by factors other than alloy disorder hence giving insights for improving the quality in the future. Specifically, reducing the background impurity or remote surface disorders may be the most effective way to improve the fundamental quality of the 2DES in ZnO. Since the fascinating even-denominator fractional quantum Hall effect in GaAs has been found to relatively insensitive to alloy disorder, if this is also true for ZnO, we may expect that the reduction of such extrinsic effects dramatically stabilize the recently found $ν=3/2$ quantum Hall state in ZnO,¹¹ which remains to be investigated in the future.
