This work is an attempt to predict tool wear for turning EN24 material by the hybrid Taguchi-ANN (Taguchi-Artificial Neural Network) method. The objective is to minimize the tool wear. The independent factors are cutting environment, feed rate, depth of cut, nose radius, and tool type. A Spinner numerical control lathe is used to assess performance. As per the Taguchi orthogonal array, 27 experiments are conducted for each value of the uncontrollable factor (spindle vibration). Optimal setting is structured by Taguchi analysis and the response table. The additive model is used to predict the response. Conformity test is carried out to check whether the predicted and experimental values of response are within the range given by the confidence interval. Furthermore, the ANN is used to predict and analyze the tool wear. The result showed that the supremely important parameter is depth of cut and the least important parameter is tool type. The ideal set found is A3, B3, C3, D1, and E3. Through ANN analysis, it is observed that the experimental values are very close to the predicted values of tool wear. The predicted value at optimal setting is 0.0401 mm. The experimental values at optimal setting is 0.0422 mm. In addition, the study showed that when the feed rate and nose radius are both set to high levels and the depth of cut is medium, using an uncoated tungsten carbide tool with minimal lubrication results in the least amount of tool wear.

In the metal-removing process, the reduction in tool cost minimizes the manufacturing cost. Wear found in tools increases this cost. Tool wear has a huge direct impact on surface roughness, power consumption, dimensional precision of the finished part, and chatter in the tool and machine tool. More tool wear means less surface finish, more power consumption, less dimensional accuracy, and more vibration in the tool and machine tool. This ultimately increases the production cost. Hence, it becomes important to minimize tool wear through optimization techniques. In this work, the optimization is carried out by the Taguchi method along with an artificial neural network (ANN) to find the optimal setting of process parameters. Furthermore, the additive model is used to predict the optimal output parameter. The ANN has a wide range of applications in the prediction of responses. The systematic optimization capabilities of the Taguchi method are merged with the predictive power of artificial neural networks. Once the hybrid Taguchi-ANN model is trained and validated, it is used to predict tool wear for different sets of cutting parameters. This can help in the optimization of machining processes to minimize tool wear and improve efficiency. Hence, an effective tool wear prediction system for turning EN24 material is developed, which can lead to significant improvements in machining efficiency and cost savings. Figure 1 shows the combined Taguchi optimization and ANN for the turning process.

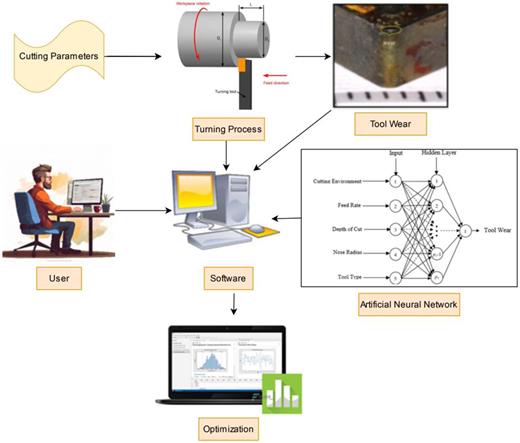

FIG. 1.

Combined Taguchi optimization and ANN.

FIG. 1.

Combined Taguchi optimization and ANN.

Close modal

In the turning process, just like in other metal-removing processes, product quality in terms of finished surface and production rate in terms of MRR (material removal rate) are the most significant concepts. If MRR is increased, roughness in the surface gets increased, and vice versa. If a tool with minimal or no wear is used, the surface finish will increase even though the MRR is higher. In manufacturing industries, metal-removing methods such as turning, milling, drilling, etc., have special importance. Hence, advancement in such processes is always needed. The prediction of responses by new techniques such as artificial neural networks will fulfill this need. The main objective of this research is to predict tool wear using the ANN and the Taguchi method for turning EN24 material. A lot of work is carried out with respect to the application of the ANN in machining processes. Some important literature reviews are summarized here. The ANN, along with response surface methodology, can be used to predict the surface roughness and MRR of turning Ti–6Al–4.1 ANOVA revealed that the most significant parameter is speed for surface roughness and depth of cut for MRR. Also mentioned is that the ANN exhibited 5.04% and 10.66% errors for surface roughness and MRR, respectively. The percentage error is very low in the ANN with respect to response surface modeling (RSM). The Taguchi method is also used for 16MnCr5 steel material for optimization of Computer Numerical Controlled (CNC) turning process parameters such as surface roughness and MRR. The workpiece material used is 16MnCr5 steel, and the tool material is a TiN-coated cutting tool. Taguchi orthogonal is adopted. The result revealed that feed and depth of cut are the most significant factors for surface roughness and MRR, respectively.2 Multi-optimization was successfully performed by a genetic algorithm for hard turning in previous studies with 42CrMo4 alloy workpiece material.3 A full factorial method was used for the Department of Energy (DOE). The analysis of variance (ANOVA) result specified that cutting speed and hardness are the significant factors for cutting temperature and surface roughness, respectively. In a previous study, the ANN was used for the prediction of MRR and OC. Five input parameters, viz., feedforward neural network (FNN), Cable News Network (CNN), recurrent neural network (RNN), General Regression Neural Network (GRNN) (general regression neural network), and long short-term memory (LSTM), are used as NN models. These NN- Neural Network (NN) models successfully predict the responses.4 LSTM is able to solve problems with disappearing and exploding gradients during training. Experiments with the NN approach to predict tool wear are used to train the data.5 The Levenberg–Marquardt algorithm, Bayesian regularization, and scaled conjugate gradient are used for training the data. The result revealed that the NN can be successfully implemented with a very minimal variation in experimental and predicted values.

Particle swarm optimization, as a multiple optimization method, can be used for frequency division multiplexing (FDM). The process parameters used are layer thickness, build orientation, infill density, and extrusion temperature, whereas compressive strength and build time are response parameters.6 In a previous study,7 RSM and Grey Relational Analysis (GRA) were used to optimize Wire Electrical Discharge Machining (WEDM) process parameters. Inconel 690 was used as the workpiece material. The Box–Behnken design of response surface methodology is implemented for data analysis. Experimental and numerical methods can be used to optimize the injection-molded polymer gears.8 Shrinkage and sink marks have been investigated experimentally in previous studies. The responses time and cost to create the appropriate shape are considered. The result concluded that the depth of sink marks was optimized to 0.07 mm. The ANN is utilized for the prediction of cutting force, surface finish, and material removal rate for turning the titanium alloy Ti6Al4V. A full factorial method is adopted for the data analysis. Cutting speed, feed, depth of cut, and rake angle are the process parameters. Comparative studies are made for experimental and predicted values. It is observed that prediction accuracies are very high, which indicates the model’s effectiveness.9 The NN tool is capable of predicting the surface roughness during the end milling process.10 The conventional models are compared with vision-based approaches for prediction. The experimentation is carried out on a Taguchi L27 orthogonal array. The input parameters are spindle speed, feed/tooth, and depth of cut. ANOVA revealed a p-value of less than 0.01 with a 99% confidence level. Neural networks are trained, and the extracted features are used to predict the surface roughness. The outcome showed a better result for the ANN architecture 5-3-1 with three hidden layers. The multi-objective optimization method of gray relational analysis, along with the ANN, is also used.11 The material used is Al5059/SiC/MoS2. ANOVA suggested that SiC% and the feed rate are the most significant parameters. Particle size has a negligible effect on response. The ANN and Taguchi method are used to optimize surface finish and cutting force for milling AA7039/Al2O3. The L8 Taguchi OA is used for the DOE. ANOVA determined the effect of input parameters on response, such as cutting force and surface roughness. The ANN is used to predict the responses.12 The ANN and Taguchi method are also used for laser welding optimization.13 Data analysis is carried out to find the optimum level of process parameters. Neural network training validated the optimum solution. The Taguchi method was also used in the dry-turning process to optimize the responses.14 Signal-to-noise and ANOVA are imposed to predict the level of optimization. A confirmation test is further performed, and it is found that the experimental and predicted outputs have only an 8% deviation.

The Taguchi method is used along with the ANN and fuzzy inference systems to optimize the responses.15,16 The workpiece material used is AISI 4340. It is observed that the ANN and FIS can be implemented successfully. The ANN is used to predict Ra for the milling process.17 The Taguchi method is adopted to find the number of experiments and data analyses. ANN training is performed by the Marquardt algorithm. It can be concluded that the ANN is a powerful technique for predicting Ra. It is concluded that the feed rate is the most significant parameter. A predictive model of output parameters for the turning process was also presented in a previous study.18 The ANN is used with the regression model. The comparative study demonstrated that the ANN, or the neural network, model produced a better result than the regression model for tool wear. The reviews on tool wear monitoring by the ANN are also available in the literature.19 The different types of wear and their measurement techniques are elaborated on. The publications are classified by considering features such as time, frequency statistics, and time-frequency domain. The application of the ANN and Taguchi method for estimation and optimization of process parameters in hard turning is also presented.11 The three levels of all input parameters are considered. A Taguchi OA is used for experimentation. ANOVA and the S/N ratio are used for analysis. The methods of regression and adaptation are adopted for prediction. The result stated that the NN model is better than the regression model. According to the aforementioned literature review, there is a research gap because few studies have used the ANN with Taguchi approach to predict tool wear, very few have experimented with spindle vibration as a noise factor, and no studies have used EN24 as a workspace material. The hybrid Taguchi ANN can be a possible solution for tool wear prediction.20

Through the use of a hybrid Taguchi-artificial neural network technique, the purpose of this study is to make an attempt to estimate tool wear when turning EN24 material. The wear on the tools should be reduced as much as possible. The variables that are considered independent include the cutting environment, feed rate, depth of cut, nose radius, and tool type. The cutting environment is referred to as CE. The spinner CNC lathe is utilized so that performance may be improved.

The work station for experimentation is Minar Hydro Ltd., MIDC, Nagpur. Experimentation is performed on a Spinner 15 CNC lathe. A Taguchi L27 OA (Orthogonal Array) is implemented. A total of 81 observations [27 × 3 (spindle vibration level)] are performed. The machine tool and experimental set up are shown in Fig. 2.

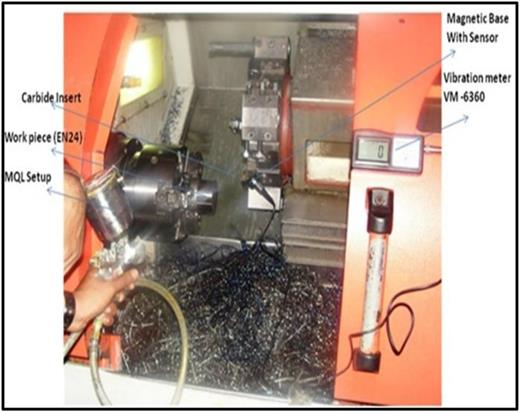

FIG. 2.

Experimental setup.

FIG. 2.

Experimental setup.

Close modal

Five input parameters and three levels of each parameters are considered.16  Table I shows the independent parameters and their level. Table II shows the L27 Taguchi design matrix with actual values.

TABLE I.

Control parameters and their number of levels.

Process parameterLevel
L-1L-2L-3
CE (cutting environment)
NR (nose radius) (mm)
FR (feed rate) (mm/rev)
DOC (depth of cut) (mm)
TT (tool type)
Process parameterLevel
L-1L-2L-3
CE (cutting environment)
NR (nose radius) (mm)
FR (feed rate) (mm/rev)
DOC (depth of cut) (mm)
TT (tool type)
TABLE II.

L27 orthogonal array design matrix.

RunCENRFRDOCTool type
DRY 0.4 0.15 0.5 UNCOATED
DRY 0.4 0.25 PVD
DRY 0.4 0.35 1.5 CVD
DRY 0.8 0.15 CVD
DRY 0.8 0.25 1.5 UNCOATED
DRY 0.8 0.35 0.5 PVD
DRY 1.2 0.15 1.5 PVD
DRY 1.2 0.25 0.5 CVD
DRY 1.2 0.35 UNCOATED
10 WET 0.4 0.15 0.5 UNCOATED
11 WET 0.4 0.25 PVD
12 WET 0.4 0.35 1.5 CVD
13 WET 0.8 0.15 CVD
14 WET 0.8 0.25 1.5 UNCOATED
15 WET 0.8 0.35 0.5 PVD
16 WET 1.2 0.15 1.5 PVD
17 WET 1.2 0.25 0.5 CVD
18 WET 1.2 0.35 UNCOATED
19 MQL 0.4 0.15 0.5 UNCOATED
20 MQL 0.4 0.25 PVD
21 MQL 0.4 0.35 1.5 CVD
22 MQL 0.8 0.15 CVD
23 MQL 0.8 0.25 1.5 UNCOATED
24 MQL 0.8 0.35 0.5 PVD
25 MQL 1.2 0.15 1.5 PVD
26 MQL 1.2 0.25 0.5 CVD
27 MQL 1.2 0.35 UNCOATED
RunCENRFRDOCTool type
DRY 0.4 0.15 0.5 UNCOATED
DRY 0.4 0.25 PVD
DRY 0.4 0.35 1.5 CVD
DRY 0.8 0.15 CVD
DRY 0.8 0.25 1.5 UNCOATED
DRY 0.8 0.35 0.5 PVD
DRY 1.2 0.15 1.5 PVD
DRY 1.2 0.25 0.5 CVD
DRY 1.2 0.35 UNCOATED
10 WET 0.4 0.15 0.5 UNCOATED
11 WET 0.4 0.25 PVD
12 WET 0.4 0.35 1.5 CVD
13 WET 0.8 0.15 CVD
14 WET 0.8 0.25 1.5 UNCOATED
15 WET 0.8 0.35 0.5 PVD
16 WET 1.2 0.15 1.5 PVD
17 WET 1.2 0.25 0.5 CVD
18 WET 1.2 0.35 UNCOATED
19 MQL 0.4 0.15 0.5 UNCOATED
20 MQL 0.4 0.25 PVD
21 MQL 0.4 0.35 1.5 CVD
22 MQL 0.8 0.15 CVD
23 MQL 0.8 0.25 1.5 UNCOATED
24 MQL 0.8 0.35 0.5 PVD
25 MQL 1.2 0.15 1.5 PVD
26 MQL 1.2 0.25 0.5 CVD
27 MQL 1.2 0.35 UNCOATED

The unconventional method, i.e., image processing method, is used to measure the tool wear. The specially designed canny algorithm is implemented in MATLAB. CANNY shows some special features such as low disturbances in image handling and processing. This method is simple and quick, which also has high precision. Figure 3 shows the flowchart of the edge detection method for tool wear measurement disturbances.

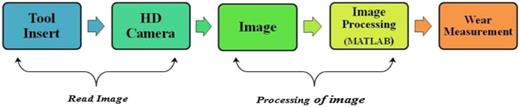

FIG. 3.

Flow chart of tool wear measurement.

FIG. 3.

Flow chart of tool wear measurement.

Close modal

The main steps of tool wear measurement are image reading, image processing, and measuring wear. In the image reading step, a high definition camera is used for image capturing. This captured image shown in Fig. 4 is sent as an input to MATLAB software. Then in the image processing step, the raw image is converted into a gray scale image to achieve good quality. Figure 5 shows the gray scale image. The shadow is removed by the CANNY algorithm. The weak edges are detected and then further included in the output. They are conspired as the output if they have strong edges. Then image can be saved in “jpeg” format for next processing. Finally in the measuring wear step, flank wear conditions are adopted for wear measurement. Confirmation of the suggested image is done by the MATLAB environment. The wear area is read by the 2D image process by the algorithm. Measurement of the depth is the limitation of this method. Figure 6 shows tool wear measurement by the algorithm.

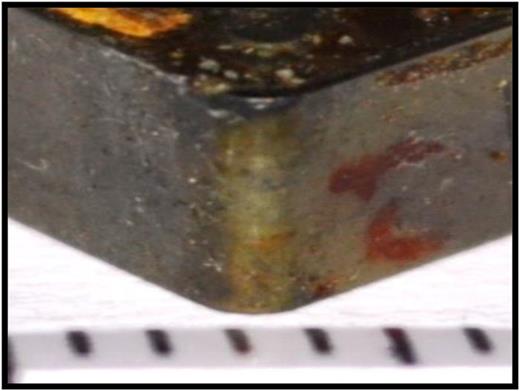

FIG. 4.

Actual image of the tool.

FIG. 4.

Actual image of the tool.

Close modal

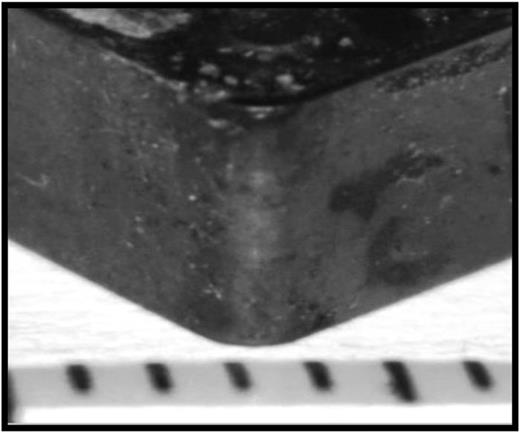

FIG. 5.

Gray scale image.

FIG. 5.

Gray scale image.

Close modal

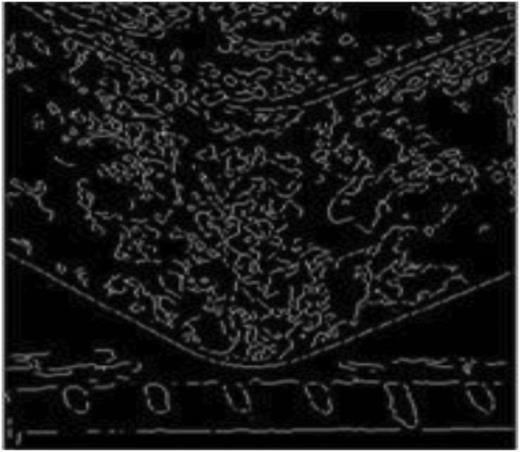

FIG. 6.

Tool wear measurement by the algorithm.

FIG. 6.

Tool wear measurement by the algorithm.

Close modal

The tool wear is measured for each level of the noise factor (spindle vibration). Table III shows the observation table with measured values of tool wear for every level of spindle vibration and the average value of tool wear. It also shows the signal to noise ratio for tool wear.

TABLE III.

Average TW and its signal/noise ratio.

RunCENRFRDOCTool typeTW_NF1TW_NF2TW_NF3AverageS/N
DRY 0.4 0.15 0.5 UNCOATED 0.124 0.125 0.195 0.148 16.5912
DRY 0.4 0.25 PVD 0.087 0.087 0.136 0.103 19.7259
DRY 0.4 0.35 1.5 CVD 0.130 0.131 0.204 0.155 16.2009
DRY 0.8 0.15 CVD 0.102 0.102 0.160 0.121 18.3176
DRY 0.8 0.25 1.5 UNCOATED 0.140 0.141 0.220 0.167 15.5590
DRY 0.8 0.35 0.5 PVD 0.060 0.060 0.094 0.071 22.9192
DRY 1.2 0.15 1.5 PVD 0.145 0.146 0.228 0.173 15.2281
DRY 1.2 0.25 0.5 CVD 0.051 0.052 0.081 0.061 24.2507
DRY 1.2 0.35 UNCOATED 0.066 0.066 0.103 0.078 22.1032
10 WET 0.4 0.15 0.5 UNCOATED 0.142 0.143 0.223 0.169 15.4207
11 WET 0.4 0.25 PVD 0.104 0.105 0.163 0.124 18.1235
12 WET 0.4 0.35 1.5 CVD 0.147 0.148 0.231 0.175 15.1231
13 WET 0.8 0.15 CVD 0.119 0.120 0.187 0.142 16.9645
14 WET 0.8 0.25 1.5 UNCOATED 0.158 0.158 0.247 0.188 14.5329
15 WET 0.8 0.35 0.5 PVD 0.078 0.078 0.122 0.093 20.6475
16 WET 1.2 0.15 1.5 PVD 0.163 0.164 0.256 0.195 14.2181
17 WET 1.2 0.25 0.5 CVD 0.069 0.069 0.108 0.082 21.7015
18 WET 1.2 0.35 UNCOATED 0.083 0.084 0.130 0.099 20.0913
19 MQL 0.4 0.15 0.5 UNCOATED 0.114 0.114 0.178 0.136 17.3603
20 MQL 0.4 0.25 PVD 0.076 0.077 0.119 0.091 20.8517
21 MQL 0.4 0.35 1.5 CVD 0.119 0.120 0.187 0.142 16.9347
22 MQL 0.8 0.15 CVD 0.091 0.092 0.143 0.109 19.2653
23 MQL 0.8 0.25 1.5 UNCOATED 0.129 0.130 0.203 0.154 16.2385
24 MQL 0.8 0.35 0.5 PVD 0.049 0.050 0.078 0.059 24.5961
25 MQL 1.2 0.15 1.5 PVD 0.135 0.136 0.212 0.161 15.8569
26 MQL 1.2 0.25 0.5 CVD 0.041 0.042 0.065 0.049 26.1409
27 MQL 1.2 0.35 UNCOATED 0.055 0.056 0.087 0.066 23.6159
RunCENRFRDOCTool typeTW_NF1TW_NF2TW_NF3AverageS/N
DRY 0.4 0.15 0.5 UNCOATED 0.124 0.125 0.195 0.148 16.5912
DRY 0.4 0.25 PVD 0.087 0.087 0.136 0.103 19.7259
DRY 0.4 0.35 1.5 CVD 0.130 0.131 0.204 0.155 16.2009
DRY 0.8 0.15 CVD 0.102 0.102 0.160 0.121 18.3176
DRY 0.8 0.25 1.5 UNCOATED 0.140 0.141 0.220 0.167 15.5590
DRY 0.8 0.35 0.5 PVD 0.060 0.060 0.094 0.071 22.9192
DRY 1.2 0.15 1.5 PVD 0.145 0.146 0.228 0.173 15.2281
DRY 1.2 0.25 0.5 CVD 0.051 0.052 0.081 0.061 24.2507
DRY 1.2 0.35 UNCOATED 0.066 0.066 0.103 0.078 22.1032
10 WET 0.4 0.15 0.5 UNCOATED 0.142 0.143 0.223 0.169 15.4207
11 WET 0.4 0.25 PVD 0.104 0.105 0.163 0.124 18.1235
12 WET 0.4 0.35 1.5 CVD 0.147 0.148 0.231 0.175 15.1231
13 WET 0.8 0.15 CVD 0.119 0.120 0.187 0.142 16.9645
14 WET 0.8 0.25 1.5 UNCOATED 0.158 0.158 0.247 0.188 14.5329
15 WET 0.8 0.35 0.5 PVD 0.078 0.078 0.122 0.093 20.6475
16 WET 1.2 0.15 1.5 PVD 0.163 0.164 0.256 0.195 14.2181
17 WET 1.2 0.25 0.5 CVD 0.069 0.069 0.108 0.082 21.7015
18 WET 1.2 0.35 UNCOATED 0.083 0.084 0.130 0.099 20.0913
19 MQL 0.4 0.15 0.5 UNCOATED 0.114 0.114 0.178 0.136 17.3603
20 MQL 0.4 0.25 PVD 0.076 0.077 0.119 0.091 20.8517
21 MQL 0.4 0.35 1.5 CVD 0.119 0.120 0.187 0.142 16.9347
22 MQL 0.8 0.15 CVD 0.091 0.092 0.143 0.109 19.2653
23 MQL 0.8 0.25 1.5 UNCOATED 0.129 0.130 0.203 0.154 16.2385
24 MQL 0.8 0.35 0.5 PVD 0.049 0.050 0.078 0.059 24.5961
25 MQL 1.2 0.15 1.5 PVD 0.135 0.136 0.212 0.161 15.8569
26 MQL 1.2 0.25 0.5 CVD 0.041 0.042 0.065 0.049 26.1409
27 MQL 1.2 0.35 UNCOATED 0.055 0.056 0.087 0.066 23.6159
Data analysis is performed using the Selection of Quality characteristic of the Taguchi method (signal to noise ratio). Tool wear should be minimum. Therefore, the equation of the S/N ratio for the smaller the better is selected. The following equation shows the S/N ratio for the smaller the better:
(1)
By using Eq. (1), the signal to noise ratio for every run is calculated. Table III shows the S/N ratio. The average S/N ratio is calculated for every input parameter and for each level. The average S/N ratio is shown in Table IV. The highest value of delta for the parameter shows its first rank. Lowest values of delta show the last rank. First rank indicates the most significant parameter, and last rank indicates the least significant parameter. Analysis of variance (ANOVA) is used to find the percentage contribution of the significant parameters. It is shown in Tables V and VI. The main effect plot is drawn with the help of a response table. This helps in identifying the optimum level of each parameter. Figure 7 shows the residual plots for S/N ratios. Figure 8 shows the main effect plot. From the main effect plot, the optimum level is identified. The highest value of the average S/N ratio indicates the optimum level of the input parameter. Then the response is predicted by the additive model. Finally, confirmatory test is performed, and then it is further predicted by the artificial neural network. Table IV shows the average S/N ratio. It is calculated for each level of all the parameters.
TABLE IV.

Average S/N ratios.

LevelCENRFRDOCTT
18.988 17.370 16.580 21.070 17.946
17.425 18.782 19.681 19.895 19.130
20.096 20.356 20.248 15.544 19.433
Delta 2.671 2.986 3.668 5.526 1.487
Rank
LevelCENRFRDOCTT
18.988 17.370 16.580 21.070 17.946
17.425 18.782 19.681 19.895 19.130
20.096 20.356 20.248 15.544 19.433
Delta 2.671 2.986 3.668 5.526 1.487
Rank
TABLE V.

Analysis of variance for S/N.

Process parametersDegree of freedomSum of squareMean sum of squareFP(%) Contribution
Cutting environment (A) 32.412 16.206 5353.34 0.000 10.43
Nose radius (B) 40.164 20.082 437.85 0.000 12.92
Feed rate (C) 70.155 35.077 5 764.80 0.000 22.57
Depth of cut (D) 152.570 76.285 1663.25 0.000 49.08
Tool type (E) 11.117 5.558 5 121.20 0.000 3.58
A ∗ B 0.817 0.204 25 4.45 0.089 0.26
A ∗ C 0.155 0.038 75 6.29 0.051 0.05
A ∗ D 2.312 0.578 12.60 0.015 0.74
Residual error 0.183 0.045 75   0.06
Total 26 310.885    100.00
Process parametersDegree of freedomSum of squareMean sum of squareFP(%) Contribution
Cutting environment (A) 32.412 16.206 5353.34 0.000 10.43
Nose radius (B) 40.164 20.082 437.85 0.000 12.92
Feed rate (C) 70.155 35.077 5 764.80 0.000 22.57
Depth of cut (D) 152.570 76.285 1663.25 0.000 49.08
Tool type (E) 11.117 5.558 5 121.20 0.000 3.58
A ∗ B 0.817 0.204 25 4.45 0.089 0.26
A ∗ C 0.155 0.038 75 6.29 0.051 0.05
A ∗ D 2.312 0.578 12.60 0.015 0.74
Residual error 0.183 0.045 75   0.06
Total 26 310.885    100.00
TABLE VI.

Analysis of variance for tool wear.

Process parametersDegree of freedomSum of squareMean sum of squareFP(%) Contribution
Cutting environment (A) 0.005 111 0.002 556 8.49 0.000 10.05
Nose radius (B) 0.004 304 0.002 152 7.15 0.000 8.46
Feed rate (C) 0.010 758 0.005 379 17.87 0.000 21.16
Depth of cut (D) 0.027 686 0.013 843 45.99 0.000 54.45
Tool type (E) 0.001 754 0.000 877 2.91 0.000 3.45
A ∗ B 0.000 011 0.000 003 0.01 0.828 0.02
A ∗ C 0.000 009 0.000 002 0.01 0.926 0.02
A ∗ D 0.000 012 0.000 003 0.01 0.640 0.02
Residual error 0.001 204 0.000 301   2.37
Total 26 0.050 849    100.00
Process parametersDegree of freedomSum of squareMean sum of squareFP(%) Contribution
Cutting environment (A) 0.005 111 0.002 556 8.49 0.000 10.05
Nose radius (B) 0.004 304 0.002 152 7.15 0.000 8.46
Feed rate (C) 0.010 758 0.005 379 17.87 0.000 21.16
Depth of cut (D) 0.027 686 0.013 843 45.99 0.000 54.45
Tool type (E) 0.001 754 0.000 877 2.91 0.000 3.45
A ∗ B 0.000 011 0.000 003 0.01 0.828 0.02
A ∗ C 0.000 009 0.000 002 0.01 0.926 0.02
A ∗ D 0.000 012 0.000 003 0.01 0.640 0.02
Residual error 0.001 204 0.000 301   2.37
Total 26 0.050 849    100.00

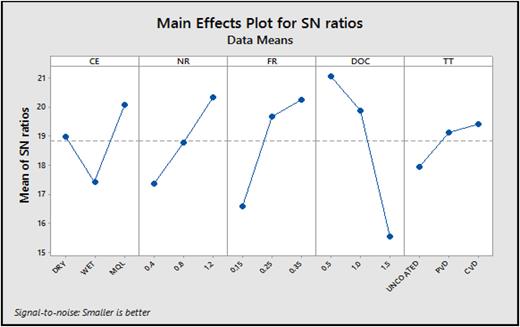

FIG. 7.

Main effect plot.

FIG. 7.

Main effect plot.

Close modal

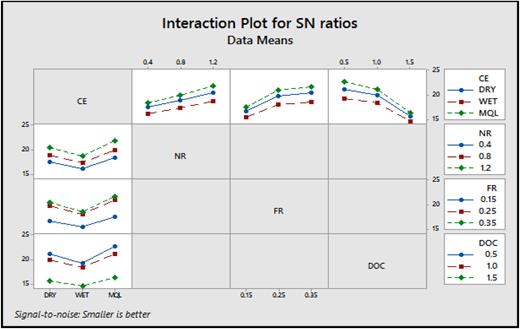

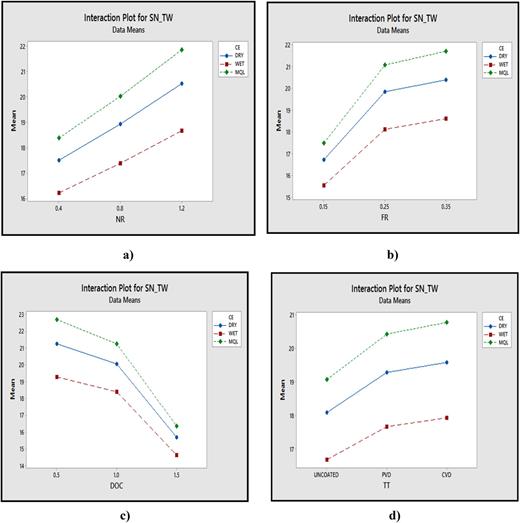

FIG. 8.

Interaction plot of the signal to noise ratio for tool wear.

FIG. 8.

Interaction plot of the signal to noise ratio for tool wear.

Close modal
Figure 7 shows the mean S/N for tool wear. The high level of CE shows the highest value of S/N. It means the optimum value for CE is MQL (A3). In the same manner, the optimum value of the remaining parameters is identified. “A3, B3, C3, D1, and E3” is the optimal setting to acquire the minimum TW. Figure 8 shows the interaction plot of the signal to noise ratio for tool wear. Equation (2) shows the additive model. This is used to predict the response,
(2)
The predicted value of TW is 0.0401 mm. In the conformity test, for confidence level = 95%, the CI (Confidence Interval) is computed by Eq. (3). The conformity experiment is performed, and the results are shown in Table VII. The average TW is 0.042 mm. There is a negligible variation in the predicted and experimental TW,
(3)
TABLE VII.

Confirmatory experiment for TW (mm).

Tool wear (mm)
SampleNF1NF2NF3
1.7 (m/s2)4.3 (m/s2)6.9 (m/s2)
0.0338 0.0346 0.0588
0.0339 0.0368 0.0549
0.0342 0.0357 0.0568
Average 0.0340 0.0357 0.0568
Total average 0.0422
Tool wear (mm)
SampleNF1NF2NF3
1.7 (m/s2)4.3 (m/s2)6.9 (m/s2)
0.0338 0.0346 0.0588
0.0339 0.0368 0.0549
0.0342 0.0357 0.0568
Average 0.0340 0.0357 0.0568
Total average 0.0422

The 95% confidence interval of the population is [μTW − CI] < μTW < [μTW + CI], i.e., 0.0731 < 0.0911 < 0.109.

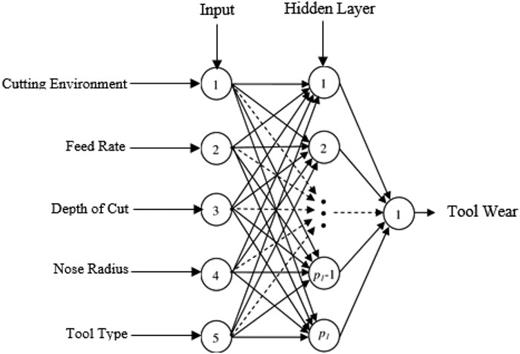

The architecture of the neural network is shown in Fig. 9. It is constructed for five input parameters, one hidden layer, and one output parameter. The ANN is performed in MATLAB 2019a software. It is accomplished by data input, ANN training, and validation of the ANN model.

FIG. 9.

Architecture of the ANN.

FIG. 9.

Architecture of the ANN.

Close modal

Implementation of the ANN is carried out by data input, ANN training, and validation of the ANN model. One input file containing five input parameters is created and is fed as data in MATLAB software. In addition, one target file containing one output (tool wear) is created. This is treated as a target file to software. Table VIII shows the input data and target data to the ANN.

TABLE VIII.

Input data for the ANN.

RUNCENRFRDOCTool typeTW
DRY 0.4 0.15 0.5 UNCOATED 0.148
DRY 0.4 0.25 PVD 0.103
DRY 0.4 0.35 1.5 CVD 0.155
DRY 0.8 0.15 CVD 0.121
DRY 0.8 0.25 1.5 UNCOATED 0.167
DRY 0.8 0.35 0.5 PVD 0.071
DRY 1.2 0.15 1.5 PVD 0.173
DRY 1.2 0.25 0.5 CVD 0.061
DRY 1.2 0.35 UNCOATED 0.078
10 WET 0.4 0.15 0.5 UNCOATED 0.169
11 WET 0.4 0.25 PVD 0.124
12 WET 0.4 0.35 1.5 CVD 0.175
13 WET 0.8 0.15 CVD 0.142
14 WET 0.8 0.25 1.5 UNCOATED 0.188
15 WET 0.8 0.35 0.5 PVD 0.093
16 WET 1.2 0.15 1.5 PVD 0.195
17 WET 1.2 0.25 0.5 CVD 0.082
18 WET 1.2 0.35 UNCOATED 0.099
19 MQL 0.4 0.15 0.5 UNCOATED 0.136
20 MQL 0.4 0.25 PVD 0.091
21 MQL 0.4 0.35 1.5 CVD 0.142
22 MQL 0.8 0.15 CVD 0.109
23 MQL 0.8 0.25 1.5 UNCOATED 0.154
24 MQL 0.8 0.35 0.5 PVD 0.059
25 MQL 1.2 0.15 1.5 PVD 0.161
26 MQL 1.2 0.25 0.5 CVD 0.049
27 MQL 1.2 0.35 UNCOATED 0.066
RUNCENRFRDOCTool typeTW
DRY 0.4 0.15 0.5 UNCOATED 0.148
DRY 0.4 0.25 PVD 0.103
DRY 0.4 0.35 1.5 CVD 0.155
DRY 0.8 0.15 CVD 0.121
DRY 0.8 0.25 1.5 UNCOATED 0.167
DRY 0.8 0.35 0.5 PVD 0.071
DRY 1.2 0.15 1.5 PVD 0.173
DRY 1.2 0.25 0.5 CVD 0.061
DRY 1.2 0.35 UNCOATED 0.078
10 WET 0.4 0.15 0.5 UNCOATED 0.169
11 WET 0.4 0.25 PVD 0.124
12 WET 0.4 0.35 1.5 CVD 0.175
13 WET 0.8 0.15 CVD 0.142
14 WET 0.8 0.25 1.5 UNCOATED 0.188
15 WET 0.8 0.35 0.5 PVD 0.093
16 WET 1.2 0.15 1.5 PVD 0.195
17 WET 1.2 0.25 0.5 CVD 0.082
18 WET 1.2 0.35 UNCOATED 0.099
19 MQL 0.4 0.15 0.5 UNCOATED 0.136
20 MQL 0.4 0.25 PVD 0.091
21 MQL 0.4 0.35 1.5 CVD 0.142
22 MQL 0.8 0.15 CVD 0.109
23 MQL 0.8 0.25 1.5 UNCOATED 0.154
24 MQL 0.8 0.35 0.5 PVD 0.059
25 MQL 1.2 0.15 1.5 PVD 0.161
26 MQL 1.2 0.25 0.5 CVD 0.049
27 MQL 1.2 0.35 UNCOATED 0.066

In ANN training, input is trained by providing the number of iterations and hidden layer. This is a crucial step, in which the output depends on the proper training of the input.

Table IX shows the coefficient of correlation (R) values for three topologies of three input parameters with one output parameter. The ANN model is trained on the basis of three algorithms, viz., Levenberg–Marquard, Bayesian regularization, and scaled conjugate gradient. The model is trained, tested, and validated for the three above- mentioned algorithms. It is observed that the overall R value is highest for topology 3-5-1, which used Levenberg–Marquard algorithm, as compared to that of 3-3-1 and 3-4-1 topologies. The model is further checked for mean square error (MSE), and it is also observed that the Levenberg–Marquard algorithm has the lowest value of MSE with the 3-5-1 topology.

TABLE IX.

Coefficient of correlation (R) for different algorithms.

Coefficient of correlation (R)
Topology of ANNAlgorithmTrainingTestingValidationMSE
3-3-1 Levenberg–Marquard 0.9387 0.9449 0.9350 0.000 340
Bayesian regularization 0.9520 0.9097 0.8241 0.000 722
Scaled conjugate gradient 0.8126 0.9568 0.9689 0.000 301
3-4-1 Levenberg–Marquard 0.9442 0.9827 0.7515 0.000 371
Bayesian regularization 0.8110 0.9888 0.8771 0.000 412
Scaled conjugate gradient 0.9381 0.8708 0.7983 0.000 458
3-5-1 Levenberg–Marquard 0.9087 0.9992 0.9979 0.000 162
Bayesian regularization 0.9632 0.8442 0.9845 0.000 378
Scaled conjugate gradient 0.9206 0.9679 0.7838 0.000 487
Coefficient of correlation (R)
Topology of ANNAlgorithmTrainingTestingValidationMSE
3-3-1 Levenberg–Marquard 0.9387 0.9449 0.9350 0.000 340
Bayesian regularization 0.9520 0.9097 0.8241 0.000 722
Scaled conjugate gradient 0.8126 0.9568 0.9689 0.000 301
3-4-1 Levenberg–Marquard 0.9442 0.9827 0.7515 0.000 371
Bayesian regularization 0.8110 0.9888 0.8771 0.000 412
Scaled conjugate gradient 0.9381 0.8708 0.7983 0.000 458
3-5-1 Levenberg–Marquard 0.9087 0.9992 0.9979 0.000 162
Bayesian regularization 0.9632 0.8442 0.9845 0.000 378
Scaled conjugate gradient 0.9206 0.9679 0.7838 0.000 487

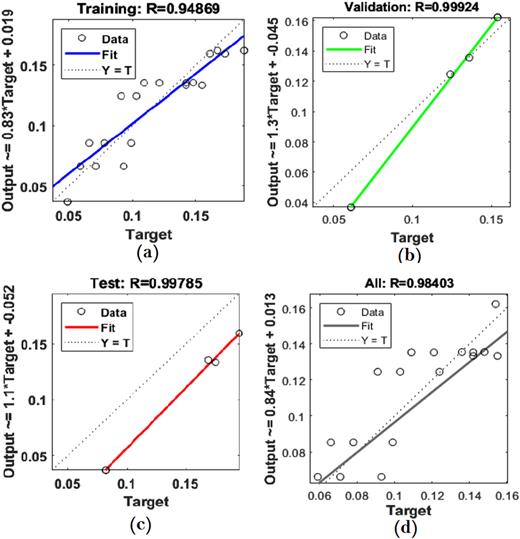

After training the ANN, regression can be drawn out. Figure 10 shows the regression graph for training, testing, validation, and overall data with an overall value of R = 0.984 03. Figure 10(a) shows the training input data. The dotted line reveals a smooth fit. The direct fit is indicated by a blue color line. The model of ANN training is structured by projected value = 0.83 ∗ target value + 0.019. This presents the best relation in experimental and projected values. In Fig. 10(b), the dotted line and red line are shown. The model of ANN testing is structured by the equation projected value = 1.1 ∗ target value + 0.052. After training, validation of the model is performed. Figure 10(c) shows the validation of the ANN. Figure 11 shows the performance plot for the best validation when the model is trained, tested, and validated. The best mean square error is 0.000 162 31.

FIG. 10.

Regression plot: (a) ANN training, (b) testing, (c) validation, and (d) all.

FIG. 10.

Regression plot: (a) ANN training, (b) testing, (c) validation, and (d) all.

Close modal

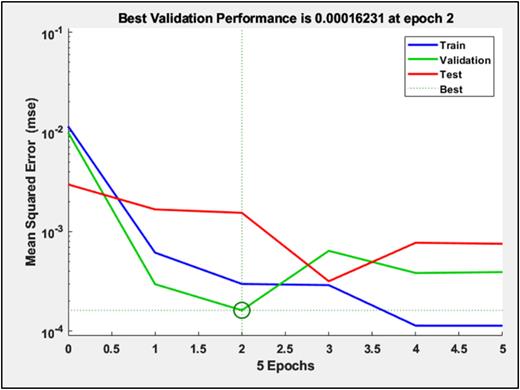

FIG. 11.

Performance plot.

FIG. 11.

Performance plot.

Close modal

The Taguchi method is implemented successfully. The results of ANOVA (Table V) indicate that depth of cut is the most significant factor to achieve the best value of tool wear followed by feed rate, nose radius, cutting environment, and tool type. The optimal setting of process parameters are the cutting environment at level 3 (A3 = MQL), nose radius at level 3 (B3 = 1.2 mm), feed rate at level 3 (C3 = 0.35 mm/rev), depth of cut at level 1 (D1 = 0.5 mm), and tool type at level 3, E3 = coated (CVD) or A3B3C3D1E3. The interaction effect of cutting environment on the nose radius, feed rate, depth of cut, and tool type for tool wear is shown in Figs. 1214, and it is observed that there is the synergic relationship between the parameters. As the relationship is synergic, the obtained optimal setting will be acceptable. The predicted value at optimal setting is 0.0401 mm. The experimental value at optimal setting is 0.0422 mm. Figure 12(a) shows the interaction plot for the mean S/N ratio and nose radius. The plot shows a synergetic relationship between input and output values. As per the Taguchi method, this type of relationship is acceptable for the analysis. The same type of relationship is obtained for feed rate, depth of cut, and tool type, shown in Figs. 12(b)12(d), respectively.

FIG. 12.

Interaction plot of (a) CE and NR, (b) CE and FR, (c) CE and DOC, and (d) CE and TT.

FIG. 12.

Interaction plot of (a) CE and NR, (b) CE and FR, (c) CE and DOC, and (d) CE and TT.

Close modal

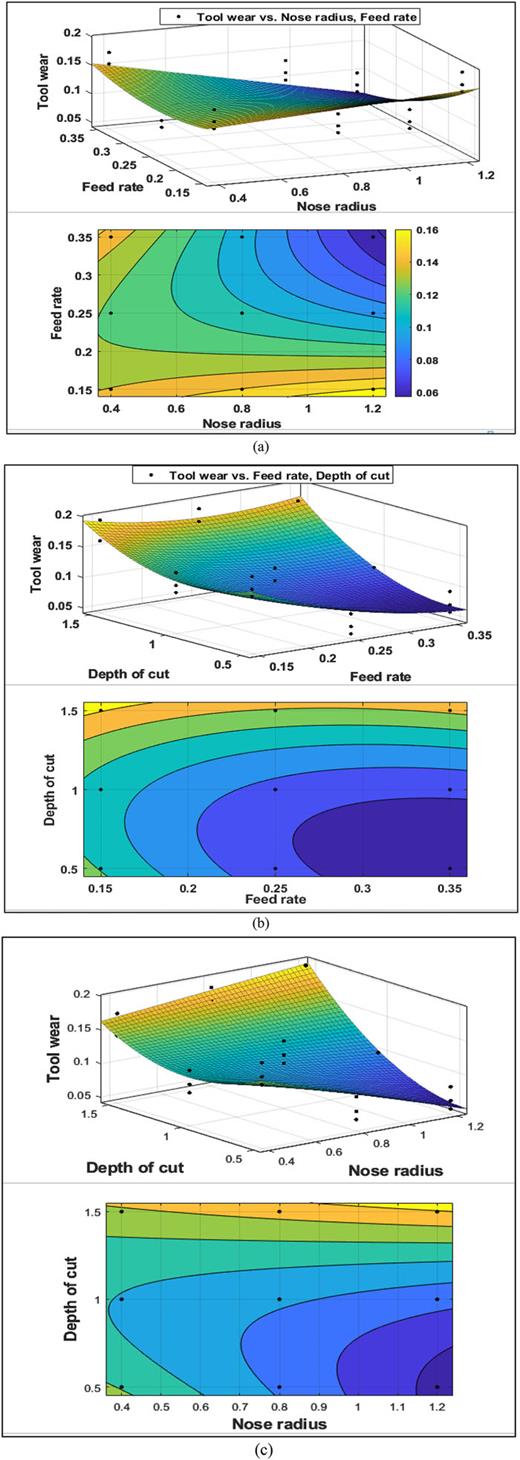

FIG. 13.

Surface plot of tool wear vs (a) NR and FR, (b) FR and DOC, and (c) NR and DOC.

FIG. 13.

Surface plot of tool wear vs (a) NR and FR, (b) FR and DOC, and (c) NR and DOC.

Close modal

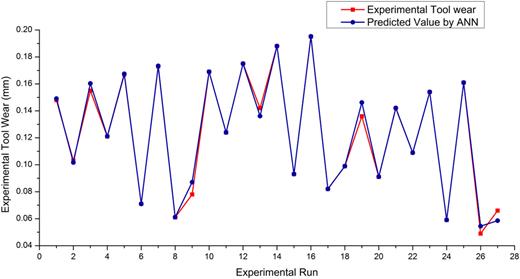

FIG. 14.

Experimental vs predicted tool wear.

FIG. 14.

Experimental vs predicted tool wear.

Close modal

These outputs obtained by optimal setting are also confirmed in Fig. 13. This figure shows that the increase in NR and FR reduces the tool wear. Figure 13(b) shows that a higher value of FR and lower value of DOC reduce the tool wear. Figure 13(c) shows that a higher value of NR and lower value of DOC reduced the tool wear. The established ANN is trained for input and output factors. 1000 epochs are implemented. Network simulation is carried out for nondependent values. Neural network training is successfully completed for the input during test readings. The input and the target are compared with the real output. Finally, the predicted (TW) and experimental values (TW) are compared. A negligible variation is seen. The surface plots are important to show the corresponding changes in the output with respect to each level of the input.20 The experimental vs predicted tool wear is shown in Table X and Fig. 14. The predicted output values obtained by the Taguchi-ANN method are very close to the experimental output values. Hence, the Taguchi-ANN method is best suited for the current configuration.18

TABLE X.

Experimental vs predicted surface roughness.

RunExperimental tool wearPredicted value by ANN
0.148 0.149 079 161
0.103 0.101 682 989
0.155 0.160 330 191
0.121 0.121 189 586
0.167 0.167 479 408
0.071 0.071 011 534
0.173 0.173 377 437
0.061 0.061 161 483
0.078 0.087 102 028
10 0.169 0.168 997 705
11 0.124 0.123 993 428
12 0.175 0.175 026 583
13 0.142 0.136 134 766
14 0.188 0.188 033 565
15 0.093 0.093 114 251
16 0.195 0.195 220 605
17 0.082 0.082 089 583
18 0.099 0.098 939 469
19 0.136 0.146 223 972
20 0.091 0.091 149 731
21 0.142 0.142 116 134
22 0.109 0.108 919 677
23 0.154 0.154 012 537
24 0.059 0.059 139 587
25 0.161 0.160 956 455
26 0.049 0.054 453 789
27 0.066 0.058 551 596
RunExperimental tool wearPredicted value by ANN
0.148 0.149 079 161
0.103 0.101 682 989
0.155 0.160 330 191
0.121 0.121 189 586
0.167 0.167 479 408
0.071 0.071 011 534
0.173 0.173 377 437
0.061 0.061 161 483
0.078 0.087 102 028
10 0.169 0.168 997 705
11 0.124 0.123 993 428
12 0.175 0.175 026 583
13 0.142 0.136 134 766
14 0.188 0.188 033 565
15 0.093 0.093 114 251
16 0.195 0.195 220 605
17 0.082 0.082 089 583
18 0.099 0.098 939 469
19 0.136 0.146 223 972
20 0.091 0.091 149 731
21 0.142 0.142 116 134
22 0.109 0.108 919 677
23 0.154 0.154 012 537
24 0.059 0.059 139 587
25 0.161 0.160 956 455
26 0.049 0.054 453 789
27 0.066 0.058 551 596

The artificial neural network combined with Taguchi philosophy is successfully implemented for optimization and prediction of tool wear. The hybrid Taguchi-ANN method is used in the present study to obtain the output results precisely. The current methodology shows the best possible outcomes compared to other existing methods. The tool wear is minimized to 0.041 mm. The optimal setting obtained is A3, B3, C3, D1, and E1. The most significant factor is depth of cut (49.08% contribution), and the least significant factor is tool type (3.58% contribution). A cutting environment of MQL, a nose radius of 1.2 mm, a feed rate of 0.35 mm/rev, and a depth of cut of 1.0 mm with the uncoated tool are observed to provide the lowest tool wear of tungsten carbide for turning EN24 material. ANOVA analysis revealed that the depth of cut and feed rate significantly affected the tool wear around 54% and 21%, respectively. The cutting environment and nose radius achieved moderately significant tool wear by nearly 10% and 8%, respectively. The tool type is the least significant to tool wear. Its contribution is only 3.45%. The analysis further exposed that tool wear is minimum when the nose radius and feed rate are at a high level and the depth of cut is at medium for the uncoated tungsten carbide tool under minimum quantity lubrication. The conformity test discovered that the experimental and predicted tool wear is within the range given by the confidence interval. Negligible variation is found between the experimental and predicted tool wear. The regression model obtained by the ANN for training, testing, and validation is close to the ideal value of 1.

The authors have no conflicts to disclose.

All authors contributed equally to the conceptualization, formal analysis, investigation, methodology, and writing and editing of the original draft. All authors have read and agreed to the published version of the manuscript.

Prashant D. Kamble: Writing – original draft (equal); Writing – review & editing (equal). Jayant Giri: Conceptualization (equal); Resources (equal). Emad Makki: Formal analysis (equal); Investigation (equal); Resources (equal). Neeraj Sunheriya: Methodology (equal); Writing – review & editing (equal). Shilpa B. Sahare: Formal analysis (equal); Investigation (equal); Validation (equal). Rajkumar Chadge: Data curation (equal); Formal analysis (equal); Software (equal). Chetan Mahatme: Investigation (equal); Validation (equal); Visualization (equal). Pallavi Giri: Methodology (equal); Resources (equal). Sathish T.: Formal analysis (equal); Supervision (equal). Hitesh Panchal: Project administration (equal); Resources (equal).

Data sharing is not applicable to this article as no new data were created or analyzed in this study.

1.
M. S.
Surya
,
G.
Prasanthi
,
A. K.
Kumar
et al, “
Optimization of cutting parameters while turning Ti–6Al–4V using response surface methodology and machine learning technique
,”
Int. J. Interact. Des. Manuf.
15
,
453
462
(
2021
).
2.
S.
Agarwal
,
R.
Suman
,
S.
Bahl
et al, “
Optimisation of cutting parameters during turning of 16MnCr5 steel using Taguchi technique
,”
Int. J. Interact. Des. Manuf.
(published online,
2022
).
3.
S.
Saha
,
P. B.
Zaman
,
M. I. H.
Tusar
, and
N. R.
Dhar
, “
Multi-objective genetic algorithm (MOGA) based optimization of high-pressure coolant assisted hard turning of 42CrMo4 steel
,”
Int. J. Interact. Des. Manuf.
16
,
1253
1272
(
2022
).
4.
K.
Dey
,
K.
Kalita
, and
S.
Chakraborty
, “
Prediction performance analysis of neural network models for an electrical discharge turning process
,”
Int. J. Interact. Des. Manuf.
17
,
827
845
(
2023
).
5.
P. J.
Bagga
,
M. A.
Makhesana
,
D. L.
Bhavsar
et al, “
Experimental investigation of different NN approaches for tool wear prediction based on vision system in turning of AISI 1045 steel
,”
Int. J. Interact. Des. Manuf.
17
,
2565
(
2022
).
6.
A.
Dey
,
D.
Hoffman
, and
N.
Yodo
, “
Optimizing multiple process parameters in fused deposition modeling with particle swarm optimization
,”
Int. J. Interact. Des. Manuf.
14
,
393
405
(
2020
).
7.
A.
Raj
,
J. P.
Misra
,
D.
Khanduja
et al, “
Design, modeling and parametric optimization of WEDM of Inconel 690 using RSM-GRA approach
,”
Int. J. Interact. Des. Manuf.
(published online,
2022
).
8.
B.
Singh Solanki
,
T.
Sheorey
, and
H.
Singh
, “
Experimental and numerical investigation of shrinkage and sink marks on injection molded polymer gears: A case study
,”
Int. J. Interact. Des. Manuf.
16
,
1653
1667
(
2022
).
9.
S.
Kosaraju
,
D.
Aruri
,
M.
Kolli
et al, “
Study on machinability of Ti6Al4V with coated inserts-cutting force, surface finish and material removal rate prediction using ANN
,”
Int. J. Interact. Des. Manuf.
(published online,
2022
).
10.
D. V. N.
Prabhakar
,
A. G.
Krishna
, and
M. S.
Kumar
, “
Analysis on significance of various statistical texture features in vision-based surface roughness prediction in end milling process
,”
Int. J. Interact. Des. Manuf.
17
,
1563
(
2023
).
11.
S.
Ajith Arul Daniel
,
R.
Pugazhenthi
,
R.
Kumar
, and
S.
Vijayananth
, “
Multi objective prediction and optimization of control parameters in the milling of aluminium hybrid metal matrix composites using ANN and Taguchi -grey relational analysis
,”
Def. Technol.
15
(
4
),
545
556
(
2019
).
12.
Ş.
Karabulut
, “
Optimization of surface roughness and cutting force during AA7039/Al2O3 metal matrix composites milling using neural networks and Taguchi method
,”
Measurement
66
,
139
149
(
2015
).
13.
A. G.
Olabi
,
G.
Casalino
,
K. Y.
Benyounis
, and
M. S. J.
Hashmi
, “
An ANN and Taguchi algorithms integrated approach to the optimization of CO2 laser welding
,”
Adv. Eng. Software
37
(
10
),
643
648
(
2006
).
14.
D.
Philip Selvaraj
,
P.
Chandramohan
, and
M.
Mohanraj
, “
Optimization of surface roughness, cutting force and tool wear of nitrogen alloyed duplex stainless steel in a dry turning process using Taguchi method
,”
Measurement
49
,
205
215
(
2014
).
15.
P. D.
Kamble
,
A. C.
Waghmare
,
R. D.
Askhedkar
, and
S. B.
d Sahare
, “
Prediction of response parameter for turning AISI 4340 steel using hybrid Taguchi-ANN method (HTAM)
,” in
Recent Advances in Material, Manufacturing, and Machine Learning: Proceedings of 1st International Conference (RAMMML-22)
(
CRC Press
,
2023
), Vol.
1
, p.
184
.
16.
P. D.
Kamble
,
A. C.
Waghmare
,
R. D.
Askhedkar
, and
S. B.
Sahare
, “
Taguchi–Fuzzy inference system (TFIS) to optimize process parameters for turning AISI 4340 steel
,” in
Soft Computing: Theories and Applications
,
Advances in Intelligent Systems and Computing
, edited by
M.
Pant
,
K.
Ray
,
T.
Sharma
,
S.
Rawat
and
A.
Bandyopadhyay
(
Springer
,
Singapore
,
2018
), Vol.
583
.
17.
P. G.
Benardos
and
G.
Vosniakos
, “
Prediction of surface roughness in CNC face milling using neural networks and Taguchi’s design of experiments
,”
Robot. Comput.-Integr. Manuf.
18
(
5–6
),
343
354
(
2002
).
18.
T.
Ozel
and
Y.
Karpat
, “
Predictive modeling of surface roughness and tool wear in hard turning using regression and neural networks
,”
Int. J. Mach. Tools Manuf.
45
(
4–5
),
467
479
(
2005
).
19.
B.
Sick
, “
On-line and indirect tool wear monitoring in turning with artificial neural networks: A review of more than a decade of research
,”
Mech. Syst. Signal Process.
16
(
4
),
487
546
(
2002
).
20.
M.
Natarajan
,
T.
Pasupuleti
,
J.
Giri
,
N.
Sunheriya
,
L. N.
Katta
,
R.
Chadge
,
C.
Mahatme
,
P.
Giri
,
S.
Mallik
, and
K.
Ray
, “
Machinability of titanium grade 5 alloy for wire electrical discharge machining using a hybrid learning algorithm
,”
Information
14
(
8
),
439
(
2023
).
