High wave vector non-reciprocal spin wave beams Open Access

Non-reciprocity is an essential properties of today’s information systems.¹ The ability to inhibit signal flow in one direction while allowing it in the reverse direction is crucial to either protect devices from reflection, isolate transmitters and receivers in radar architecture, or even shield qubits from its environment in quantum computers. Most of the current non-reciprocal functionalities rely on the gyrotropic nature of the magnetization dynamics in field-based ferrimagnetic systems (namely Yttrium Iron Garnet - YIG), which tend to be large, and costly to assemble.² Future progress in communication systems, and most critically in quantum technologies, rely heavily on the possibility to miniaturize and integrate these non-reciprocal devices.³

The field of magnonics, which implements magnetic excitation called spin waves -or their quanta magnons-, is actively involved in the search of non-reciprocal scalable solutions.⁴ Extensive research in the last decade revealed the possibility to engineer both amplitude and frequency non-reciprocity of spin waves in many different ways.⁵ Firstly, the well-known Damon-Eshbach (DE) configuration, where the equilibrium magnetization of a thin film lies in the plane of the film and perpendicular to the wavevector,⁶ displays non-reciprocal dynamic amplitude across the thickness for oppositely traveling waves, which couple chirally to an excitation antenna.⁷ Moreover, this non-reciprocity was recently proven to be strongly enhanced in the presence of magnetic nanostructures, where unidirectional transmission of spin waves was achieved using the chiral coupling between the FMR of Co nanowires and exchange spin waves in a thin YIG film.^8,9 Secondly, small frequency non-reciprocity (namely f(k) ≠ f(−k)) was demonstrated more recently in various systems, either with asymmetrical surface anisotropies between top and bottom surfaces,¹⁰ or with the coupled dynamics of ferromagnetic multilayers,¹¹ or also with the interfacial Dzyaloshinskii-Moriya interaction (DMI) of a ferromagnetic layer coupled to a high spin–orbit material.^12–14 Additionally, asymmetric spin-wave dispersion was recently predicted in non-planar geometries due to a topographically induced dynamic dipolar effect.¹⁵ Nevertheless, all these frequency non-reciprocity effects only becomes significant when the magnons wavelength reaches sub micrometric sizes. Finally, non-reciprocal functionalities have also been predicted very recently using an innovative inverse design approach.^16,17

In this communication, we further miniaturized the method of Chen et al.⁸ and demonstrate the possibility of shaping non-reciprocal spin wave beams in a continuous thin YIG film. This paper is organized as follows: In Sec. II, we present the sample design and the experimental protocol used to measure broadband multi-modes spin waves transmission. In Sec. III, we present the non-reciprocal spin wave beams spectra, and address through a spin wave spectroscopy study the peculiarities encountered in shaping narrow spin wave beams via this method.

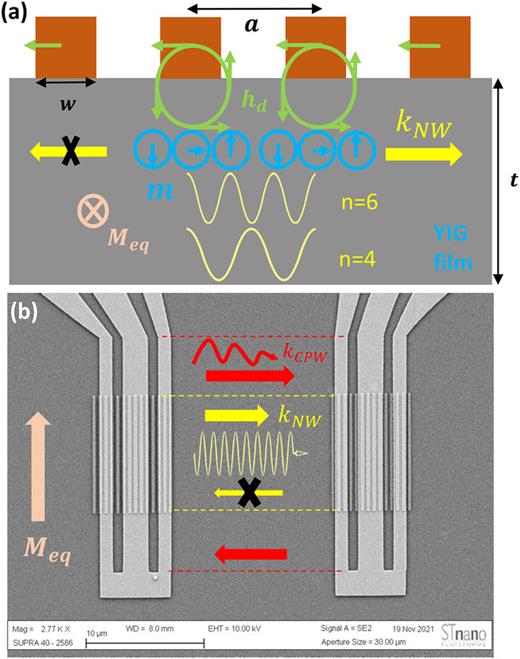

The chiral excitation of propagating spin waves is achieved by coupling the ferromagnetic resonnance (FMR) of magnetic nanowires array (NWA) to a low damping continuous film such as YIG. As illustrated in Fig. 1(a), the phase profile of a propagating spin wave excited by the dynamic dipolar field of nanowires, all precessing in phase, only matches for a single propagation direction. The degree of chirality depends strongly on the ellipticity of the dynamic dipolar field of the NWA.¹⁸ Typically, the elliptical polarization of the Kittel mode in flat rectangular nanowires breaks the perfect chirality. For this reason we made the nanowires 60 nm thick to come as close as possible to an aspect ratio t/w = 1 which produces circularly polarized dipolar field. Moreover, the Kittel mode frequency of the nanowires can be tuned up with decreasing their width w, therefore the NWA can excite propagating modes (k_NW) with much higher wavevector than the one directly coupled by the microwave field of the antenna (k_CPW). In the case of an extended array of NWA, these high vector (k_NW) correspond simply to integer values of $2πa$ accordingly with the periodic boundary conditions of the phase precession,^19,20 minus some possible extinction related to the ratio of w/a. In order to study the dependence of the NWA array density on the excitation efficiency of the spin wave beam, we designed two devices with different width w and lattice constant a. Namely, for device I, w = 300 nm and a = 500 nm; and for device II, w = 200 nm and a = 400 nm. The NWA length of 10 μm was kept the same for both devices. Such a localized distribution of excitation field produces a focused emission of spin waves in a similar fashion to the spin wave beam excited from a constricted CPW.^21,22 In the present geometry, the distance of propagation is well within the near-field region defined as the ratio L²/λ_NW, with L being the antenna length and λ_NW the magnon wavelength, so that the near-field diffraction pattern from such a localized excitation follows very closely its shape. For this reason, the emission of k_NW magnons remains confined within the length of the NW, thus forming a spin wave beam of width closely equal to 10 μm as sketched in Fig. 1(b).

Fig. 1(b) shows a SEM image of device I. The sample fabrication required two steps of e-beam lithography followed by e-beam evaporation lift-off process on a 55 nm thick liquid phase epitaxy YIG film.²³ To circumvent the insulating nature of the substrate, we resorted to an extra layer of conductive resist AR Electra 92²⁴ on top of PMMA. In the first step, we structured the 60 nm thick Ni₈₀Fe₂₀ (permalloy) using a 3 nm thin Ti adhesion layer, and a 8 nm Au capping layer via e-beam evaporation. In the second step, we aligned for both devices the same 20 μm long coplanar wave guides (CPW) with the following lateral dimensions: 2 μm wide central line and 1 μm wide ground lines each spaced by 1 μm with the central line. These pairs of spin wave antenna made of 4 nm Ti + 80 nm Au also via ebeam evaporation. The center-to-center distance D between the two CPW are respectively 20 μm for device I, and 15 μm for device II.

We incorporated an home-made confined electromagnet onto a PM8 probe station to perform VNA spin wave spectroscopy using a Rohde & Schwarz ZNA43GHz Vector Network Analyzer, calibrated via a SOLT procedure with 150 μm pitch picoprobes. The sample is carefully placed within the 11 mm gap of the electromagnet, whose poles are 15 mm in diameter, and produce an homogeneous in-plane field along the poles axis (namely less than 0.3% variation at most) up to 500 mT at 3 A. Due to the small hysteresis of the electromagnet, we always initialize a measurement with a high current of 5 A in order to be consistent with the calibration of our magnet.

We performed broadband frequency sweep in the [0.5;20] GHz range at constant applied field acquiring 3201 points with a resolution bandwidth of 100 Hz in order to resolve widely spread-out multi-modes transmission spectra. We measure 2-ports S-parameters for several field values, which we translate into the corresponding Z_ij impedance matrices. Furthermore, due to the small area of NWA (namely 10 × 5 μm²), the typical range of S_ij signal amplitudes are of the order of 10⁻⁴ in linear scale (or −80 dB in log scale), while the noise floor lays at 10⁻⁶. We retrieve a flat base line by subtracting the measurement at given field with a reference measurement at another field value H_ref far enough that there are no dynamic feature in the frequency span. Finally, as the coupling of the spin wave to an antenna is of inductive nature, we chose to represent our relative measurements in units of inductance defined as:^21,25,26

where the subscripts (i, j) = 1 or 2 denote either a transmission measurement between two antennas (i ≠ j), or a reflection measurement done on the same port (i = j).

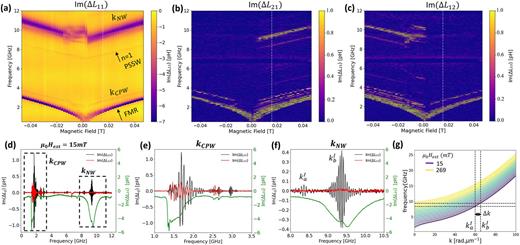

We present in Fig. 2 a mapping in the (f,H) plane of the spectra ΔL₁₁, ΔL₂₁, and ΔL₁₂ acquired with device I for field gradually changing from +46 mT to −46 mT. We observe a myriad of modes that we can separated into two main regions. The first region at lower frequencies corresponds to all the k_CPW modes coupled directly by the microwave field of the antenna, and which range typically from k ≈ 0 (namely the section of the CPW around the picroprobes) to k ≈ 15 rad μm⁻¹ (the 8th satellites peak of the antenna). As shown in Fig. 2(e) with the spectra measured at μ₀H_ext = +15 mT, some partial non-reciprocity occurs between ΔL₂₁ and ΔL₁₂ due to the ellipticity of the microwave field of the antenna as mentioned above. The second region above 8 GHz corresponds to the higher k_NW modes mediated by the FMR of the permalloy NWA. In this frequency region, Figs. 2(b) and 2(c) show a perfect 100% non-reciprocal transmission of spin waves. Namely, at positive field values, ΔL₂₁ shows large oscillations, while no transmission occurs from port 2 to port 1. Conversely at negative fields, the non-reciprocity is reversed, and no transmission occurs from port 1 to port 2. We emphasize that the dynamic range employed for our measurements (iBW = 100 Hz, P = −10d Bm) gives a noise floor of about 5 fH, while typical transmission amplitude are of the order of 100 fH. Besides, one notices between 0 and −15 mT that the transmission for ΔL₁₂ is somewhat dispersed, indicating that the magnetization of the permalloy NWA do not conserve an anti-parallel orientation with the YIG magnetization, and that a gradual switching of the Py NWA is likely occurring. Furthermore, as shown with the spectra at +15 mT of Fig. 2(f), a closer look in this region shows an additional perfectly non-reciprocal mode around 8.4 GHz on top of the more pronounced mode at 9.4 GHz. Nevertheless, the frequency spacing between these two modes is much smaller than expected, as the wavevector difference between two adjacent modes, $kn+1−kn=2πa$ would result in a frequency difference of about 3 GHz, as can be deduced from Fig. 2(g). We investigate further the nature of these k_NW multimodes in Sec. III B.

We make use of several distinct peaks to characterize the propagation of high k-vector magnons on both devices I and II. To begin with, we use the Kittel mode to fit the lower branch of the reflection spectra in Fig. 2(a), which corresponds to the quasi k = 0 FMR resonance of the YIG happening in the larger portion of the CPW close by the picoprobe and far from the NWA. From this analysis, we extract a value of the gyromagnetic ratio of γ/2π = 27.7 ± 0.2 GHz T⁻¹ and an effective magnetization μ₀M_eff = 185 ± 1 mT, which is identical to the saturation magnetization M_s,²³ suggesting no in-plane anisotropy. Then, we track the small reflection peak visible in between the two regions [e.g., the peak at 7.4 GHz in Fig. 2(d)], which corresponds to the first perpendicular standing spin wave (PSSW) mode, and we fit the difference of the square of the frequencies between the PSSW and the Kittel modes:²⁷

where Λ = $2Aexμ0Ms2$ is the exchange length. In doing so, we obtain the following exchange constant A_exch = 3.85 ± 0.1 pJ m⁻¹. At last, we study the field dependence of the several k_NW modes features. For this purpose, we use a simple Gaussian function multiplied by a cosine to fit the oscillations of each transmission peak [see colored fit in Figs. 3(a) and 3(c)], which gives us the peak position, its amplitude, and the period of oscillation. This leaves us fitting the field dependence of the frequency of each mode with only the wavevector as fitting parameter.

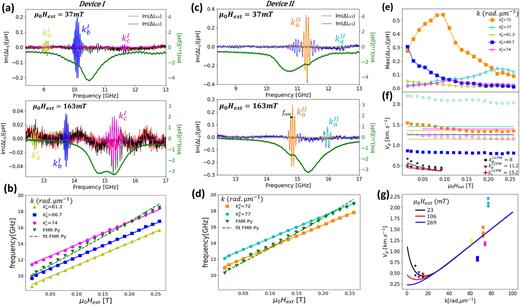

We show in Fig. 3 the results of this methodology. For device I with a lattice constant a = 500 nm, we followed three modes which correspond to $kaI$ = 61.3 rad μm⁻¹, $kbI$ = 66.7 rad μm⁻¹, and $kcI$ = 74 rad μm⁻¹; and for device II with a = 400 nm, we tracked two modes $kaII$ = 72 rad μm⁻¹, and $kbII$ = 77 rad μm⁻¹.

It may seem curious at first that none of these wavevectors corresponds to an integer value of $2πa$⁠. However, the Fourier transform of the NWA dynamic dipolar field distribution, which gives the spectral efficiency of the excitation,²⁵ is rather complex to depict as it consists of the modulation of the NWA periodicity with the field distribution of the CPW. We therefore perceive these k_NW modes to be neighboring ripples of a convoluted spectral distribution that depends on the lattice periodicity, the width of the nanowire, and the antenna field distribution.

We also reported the field dependence of the mode amplitudes in Fig. 3(e), which shows non-monotonous behavior. As one can see in the spectra of Figs. 3(a) and 3(c), the efficiency of the coupling to a particular mode will be all the stronger that its frequency matches with the one of the NWA FMR. As the gyromagnetic ratio of YIG is smaller than the one of Permalloy (γ_Py/2π = 29.5 GHz T⁻¹), the NWA dispersion will gradually cross the k_NW multimodes dispersion across the field range. Unfortunately, this non-monotonous field dependence of the excitation efficiency makes it arduous to characterize the attenuation of these high k-vector with just one kind of device. A series of devices with different distance D would be more suited for determining the attenuation length of these high-k SWB.

Finally, from the period of oscillation f_osc of the transmission spectra, we estimate the group velocity according to v_g = f_osc * D.²¹ We compare our measurement of v_g with the theoretical expression in Figs. 3(f) and 3(g). Although the agreement at lower wavevector is fair, we observe some significant discrepancies in the group velocity among the k_NW modes. We foresee that an additional phase delay must occur through the propagation path. Namely, considering that the length of NWA is comparable to the propagation distance D, one can expect the static stray field of the wires to cause some inhomogeneities in the static field distribution between the two antennas.

We carried out a spin wave spectroscopy study on two different 50 μm² Ni₈₀Fe₂₀ nanowire arrays resonantly coupled to a continuous 55 nm thin YIG film. We demonstrated unidirectional transmission of 10 μm wide spin wave beams up to 77 rad μm⁻¹ in the [8;20] GHz frequency range. An attempt to characterize the propagation properties of these high k-vector spin wave beams reveals several peculiarities regarding the modes selection, their coupling efficiency, and possible additional phase lag due to inhomogeneous stray field from the nanowires. These findings serve as a guideline for future miniaturization of nonreciprocal magnonic devices.
