A simple and inexpensive method to generate plasma using a kitchen microwave oven is described in this paper. The microwave-generated plasma is characterized by spectroscopic analysis and compared with the absorption spectra of a gas discharge tube. A Paschen-like curve is observed as the microwave plasma initiation time is plotted as a function of the pressure of the plasma chamber. We have also demonstrated that this microwave-generated air plasma can be used in a multitude of applications such as: (a) surface modification of a substrate to change its wettability; (b) surface modification to change electrical/optical properties of a substrate; and (c) enhancement of adhesive forces for improved bonding of polymeric microfluidic molds, such as bonding polydimethylsiloxane (PDMS) chips to glass covers. These simple techniques of plasma generation and subsequent surface treatment and modification applications may bring new opportunities leading to new innovations not only in advanced labs, but also in undergraduate and even high school research labs.

Plasma is ubiquitous in nature and readily observed as lightning on a stormy night, or as a static electric spark the moment before touching a door knob on a dry winter day.1 It is also found naturally occurring in stars,2 solar winds,3 upper atmospheric lighting,4 and the awe-generating lightning glow known as St. Elmo's fire5 that sailors wondered about for centuries. Practical applications of plasma span a vast domain including, but not limited to, fusion energy generation,6–9 plasma TV displays,10 plasma enhanced chemical vapor deposition (PECVD),11 sputtering,12 semiconductor device fabrication,13,14 substrate cleaning,15 and sterilization.16 Plasma is also referred to as the fourth state of matter.17 As the addition of energy to material in a solid or first state initiates a phase change to a liquid second state and then to a gaseous third state, adding a sufficient amount of energy to a gas may ionize the gas by ejecting electrons from the outer shells and/or through collisions of individual ions. Plasma, the fourth state,17 is thus composed of a conducting soup of energised charged particles, electrons, and ionized atoms/molecules that are normally generated by the application of strong electromagnetic or heat energy. Once this highly charged gas is brought in contact with a surface, some energy is transferred from the plasma to the substrate surface, in turn changing the surface property of the substrate.

Unfortunately, plasma instrumentation remains somewhat sophisticated and expensive, preventing its widespread use in teaching and research environments for institutions with small budgets. In the past, some attempts were made to bring plasma research and analysis to high school and undergraduate teaching and research labs;18–20 however, they involve either high temperature flames21 or gas discharge tubes that require high voltage and vacuum levels for the proposed experiments, raising potential safety concerns and related issues in elementary labs. Beck et al.22 also computed trajectories of electrons in a weakly coupled plasma obtained from particle simulations. However, the goal of nearly all of these earlier theoretical or experimental papers for undergraduate students was to characterize plasma and experimentally/numerically verify the theory of plasmas. In a recent paper,23 the popular science activity of forming plasma in a microwave with grapes showed that grapes act as spheres of water, which, due to their large index of refraction and small absorptivity, form leaky resonators at 2.4 GHz. When brought together, Mie resonances in isolated spheres coherently add up so that the aqueous dimer displays an intense hotspot at the point of contact. When this hotspot is sufficient to field-ionize available sodium and potassium ions, it ignites a plasma.

In contrast to the previous works, here we show that a simple plasma treatment apparatus can be constructed from an inexpensive household microwave oven and a modified vacuum flask and show many modern applications of this microwave-generated plasma. Although some previous works have shown that plasma can be sparked when a gas held at low pressure is subjected to microwave radiation,24–35 this technique has never received the attention it deserves when it comes to a low-cost laboratory technique for a wide range of surface treatments. We demonstrate a number of cutting-edge applications of the plasma device that we have constructed which includes the modification of opto-electrical properties of semiconductors, changing wettability of substrates, enhancement of bonding between certain polymers such as PDMS and glass, and reduction of graphene oxide to graphene for electronics purposes, etc.

Before going into the details of the microwave-generated plasma generation process, we believe a comprehensive discussion about past works on microwave breakdown of air, including similarities and differences between previously observed breakdown phenomena and our plasma generation observation, is necessary to put our work in proper perspective. Breakdown of plasma in air has been studied by many authors. In general, the plasma generation process under DC conditions is relatively well understood, where avalanche multiplication of electrons in a neutral gas is produced through electron impact ionization (or photoionization) when electrons or photons with sufficient energy collide with neutral atoms and molecules present in the medium.36 However, under the influence of an oscillating electric field instead of a DC field, the ions and electrons oscillate back and forth in between the electrodes, and for a very high frequency only a very small number of charged particles are able to reach the boundary electrodes, reducing the diffusive loss of electron energy.

The first serious investigation of microwave breakdown in air was conducted by Herlin and Brown.32 The theoretical basis of their analysis consists of solving the continuity equation for the electron number density in their custom-made cavity geometry, accounting for the source of electrons as impact ionization and loss terms by diffusion and attachment to the gas in use. Breakdown in air in a wide range of conditions occurs when the rate at which electrons are produced by ionization exceeds the rate at which they are lost by diffusion from the plasma region or by attachment to neutral molecules and atoms. Their custom-made microwave source was a continuous-wave tunable magnetron that operated at about 3 GHz. In order to isolate the microscopic phenomena leading to breakdown they used specifically designed cavities (i.e., cavities that resonated at the TM010 mode) so that gas pressure and electric field strength were at all times well-known. A radioactive source was placed near the discharge that provided a small amount of ionization in the cavity to start with, and the microwave field in the cavity was increased until the cavity suddenly began to glow (at which time the microwave field abruptly decreased). The radioactive source in their case was the supplier of the triggering electrons. They found that the breakdown field was smaller at about 3 Torr than it was at higher or lower pressures under these conditions. This minimum also appeared to be a weak function of cavity size. They also found that the dominant mechanism for breakdown of a low pressure gas at microwave frequencies is ionization by collision of electrons with neutral gas molecules rather than loss by diffusion to the walls of the discharge tube.

Afterwards considerable research was done using fundamentally the same apparatus. Gould and Roberts33 also used a cavity resonated at the TM010 mode and a 85 millicurrie, cobalt 60 radioactive source was placed on the cavity in order to ensure the presence of sufficient number of electrons in the discharge region even before the microwave source was turned on. They extended the theory to include an additional loss mechanism for electrons: the attachment of electrons to neutral molecules, creating negatively charged molecules. (Of note also is that recombination, the coalescence of an electron with an ion to form an atom, is negligible.)

MacDonald, Gaskell, and Gitterman34 extended the range of frequencies studied and investigated air, nitrogen, and oxygen independently. With the exception of some X-band cavities, all of their cavities were also cylindrical and resonant in the TM010 mode. They also reported the necessity of having a 5 mCi cobalt 60 gamma-ray source next to the cavities to produce sufficient ionization to get repeatable results for pulsed waves and a 5 μCi source for continuous wave process. Their measurements agreed with previous measurements. They critiqued the previous theory by noting it assumed an electron-molecule collision frequency that was independent of electron energy, when it had long been known that the electron-nitrogen collision frequency was in fact strongly dependent on electron energy. While unable to present an improved analytic theory, they were able to present an alternative representation that allowed an empirical method of calculating breakdown fields in a very large variety of conditions.

Table I.

Change of GO resistance before and after the microwave plasma treatment.

Substrate Initial resistance R i ( M Ω cm 2) Final resistance R f ( M Ω cm 2) Δ R (%)
Supported  5.4  0.2  96.3
Free-standing  10.5  0.1  99.0
Bursts  7.9  0.1  98.7
Substrate Initial resistance R i ( M Ω cm 2) Final resistance R f ( M Ω cm 2) Δ R (%)
Supported  5.4  0.2  96.3
Free-standing  10.5  0.1  99.0
Bursts  7.9  0.1  98.7

MacDonald, Gaskell, and Gitterman's work was extended to form the final chapter (and the  Appendix) of MacDonald's book.30 As had been the case in Herlin and Brown's work, in order to achieve reproducible results a radioactive source (5 mCi cobalt 60) was placed again near the cavity in this work. Bandel and MacDonald35 further measured breakdown electric fields in air, H2O, and air plus H2O at 3.06 GHz. In their case, triggering electrons for the discharge were supplied not by a radioactive source, but by photo-electric emission by ultraviolet light, introduced into the cavity from a synchronized spark discharge in room air. Care was taken to attenuate the uv as needed to avoid lowering of the breakdown threshold. They found that even in the presence of triggering electrons from photo-electric emissions, the breakdown field strengths for mixture of air plus 17.2 Torr of water vapor were up to about 25% greater than for dry air at the same total pressure, thus quantifying the effect of water vapor molecules in microwave plasma generation in their resonant cavity geometry.

In the case of breakdown fields required when using very short microwave pulses, MacDonald30 also confirmed that “in the absence of an electron from some auxiliary source, the breakdown field measured would be very large, since the initial electrons would have to be provided by field emission or other surface effects.”

There are some distinct differences between the previous studies and our present work. First, our plasma chamber is not specifically designed as a resonating cavity for any specific mode; rather, two different glass flasks and two different microwave ovens of different sizes produced similar qualitative results. Second, no external source of triggering electrons either in the form of radioactive sources or synchronized photo-electric emissions were necessary to generate plasma in a microwave oven as seen in the video.37 Third, theoretical calculations show that in a 700 W kitchen microwave (one of the microwaves that we used in our experiments) with a 0.34 m × 0.44 m inner floor, the peak electric field of the microwave38 is E 0 = 2 I ave / c ϵ 0, where average intensity I ave = P / A , c = 3 × 10 8 m/s is the speed of light, ϵ 0 = 8.85 × 10 12 C2/Nm2 is the permittivity of free space, P =700 W is the power, and A =0.15 m2 is the area of the base. The calculated minimum electric field inside the flask in our microwave oven is thus 10 V/cm to spark plasma, in comparison to 10 2 V/cm or more in most of the previous studies for our operational minimum pressure, i.e., 100 mTorr. Although some studies confirm the low electric field value inside an oven,39 some numerical simulations using COMSOL40 and passive measurements using a neon lamp41 show that the electric field inside a microwave oven can be much higher than the theoretically calculated value. A direct measurement of the electric field inside a microwave oven a few seconds after turning it on is thus needed to confirm the exact value of the minimum electric field needed in our experiments, and we invite the readers to design an experiment to do that.

The main component of this low-cost plasma etching system is a regular kitchen microwave oven and a vacuum flask/sample holder. Any robust, vacuum-gauge glass container will work, but we have found the Erlenmeyer flask is the simplest and least expensive. The flat bottom of this glassware gives extra stability during sample preparation which may be useful in a teaching environment. A valve must be attached to the flask stopper that can be opened while evacuating the chamber and closed again to seal and hold the vacuum. Speciality microwave-resistant valve parts can be purchased, but here we have sought a frugal alternative first. The ideal substitute for this part was determined to be the detachable two-part tips found on many burettes (Fig. 1). These parts consist of an all-PTFE housing and stopcock into which a glass tip is loosely inserted.

Fig. 1.

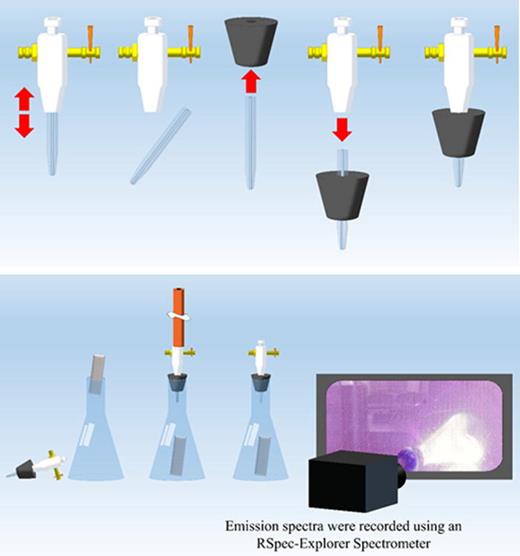

A schematic of the construction of the sample holder for the microwave-generated plasma. One of the crucial parts needed is a simple air-tight valve. An inexpensive one can be fabricated from specialty parts as shown here, by modifying a PTFE and glass burette tip and rubber stopper. Bottom left to right: The sample is inserted into the Erlenmeyer flask; the vacuum valve is opened and the vacuum pump is used to evacuate the flask; the valve is closed and the vacuum hose removed; the flask is transferred to the microwave oven, and as the microwave is turned on, plasma is sparked to treat the surface for the desired length of time (Ref. 37). To characterize the spectrum of the plasma, this process is repeated without a sample while placing a UV-Vis spectrometer in front of the microwave window.

Fig. 1.

A schematic of the construction of the sample holder for the microwave-generated plasma. One of the crucial parts needed is a simple air-tight valve. An inexpensive one can be fabricated from specialty parts as shown here, by modifying a PTFE and glass burette tip and rubber stopper. Bottom left to right: The sample is inserted into the Erlenmeyer flask; the vacuum valve is opened and the vacuum pump is used to evacuate the flask; the valve is closed and the vacuum hose removed; the flask is transferred to the microwave oven, and as the microwave is turned on, plasma is sparked to treat the surface for the desired length of time (Ref. 37). To characterize the spectrum of the plasma, this process is repeated without a sample while placing a UV-Vis spectrometer in front of the microwave window.

Close modal

The glass tip of the burette can be easily removed by twisting it slightly. Next, a rubber stopper with a hole in the center, such as those for inserting thermometers into reaction vessels, is used. This part is selected to fit the mouth of the Erlenmeyer flask described above. The glass burette tip above is then inserted through the bottom of the stopper until it protrudes from the top by about 10 mm. The PTFE stopcock housing is then placed back over the protruding burette tip. All of the edges of this system are then sealed with regular silicone glue. The seal is sufficient to hold a vacuum for many hours. We have also found that a properly matched microwave-safe PTFE/glass vacuum flow control adapters, such as StonyLab flow control adapters, attached to any glass container/flask, or modified Schlenk tube flasks with glass stopcock (GrowingLab), or similar stopcocks for glass vacuum desiccators can serve this purpose also (Fig. 2). The main point here is that the design of the container is not limited to the ones described here; rather, any microwavable vacuum container with a stopcock valve that can hold vacuum in the container can be converted into a plasma chamber. A vacuum hose can be directly attached to the top of the valve allowing the system to be evacuated to various pressures with a small vacuum pump. Once the properly evacuated flask is put in the microwave and the oven is turned on, after a few seconds glowing plasma forms inside the flask (please watch the video of plasma generation.37) The time difference between the first observation of plasma and the time of turning on the microwave oven, i.e., the plasma initiation time, is recorded for different vacuum pressures. Furthermore, by flushing the evacuated system using a three-way flow control adapter with various gases like argon, nitrogen, oxygen, etc., this system can be used to determine the effect of different plasma chemistries. A schematic of the whole process is shown in Fig. 1.

Fig. 2.

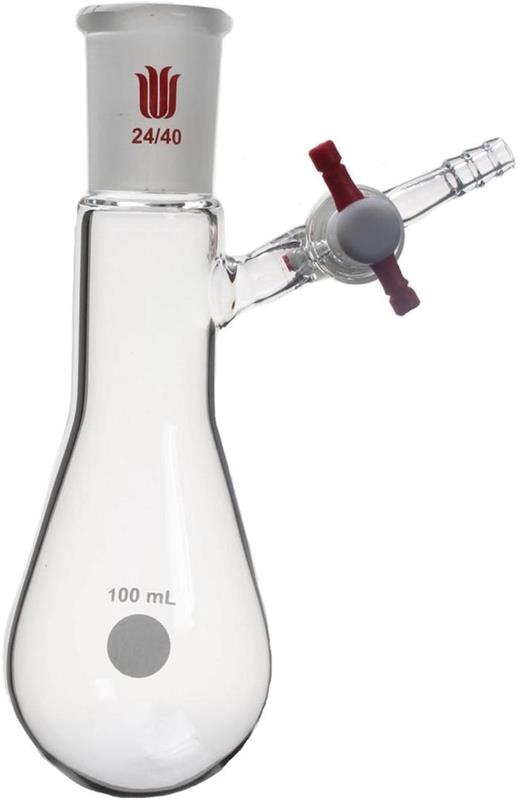

An alternative microwavable vacuum container to generate microwave plasma.

Fig. 2.

An alternative microwavable vacuum container to generate microwave plasma.

Close modal

In all of the following experiments, the substrate or sample is placed in an Erlenmeyer flask, the vacuum hose is attached, and the pressure is lowered with a vacuum pump to the desired value. The valve is then sealed and the flask transferred to the microwave oven. Once the microwave oven is turned on after a short delay the plasma sparks, and then the plasma is allowed to glow for the desired amount of time.

The plasma generated by this method is analyzed using two simple but revealing techniques: (a) recording plasma initiation time as a function of the vacuum pressure, which is also a measure of particle density at constant temperature, and (b) measurement of UV-visible emission spectra of the plasma glow. A Paschen-like graph42,43 is generated by plotting the plasma initiation time versus the vacuum pressure of the flask to varying level (Fig. 3). A trough-shaped curve resulted from this analysis, showing asymptotic tendencies at high and low vacuum pressures and a sweet-spot regime in between in which the plasma sparks within a matter of seconds. To generate a classical Paschen curve in a gas discharge tube, the breakdown voltage (or energy required for plasma initiation) between two electrodes is normally recorded as a function of pressure. However, in our system, the energy required for plasma generation is supplied through a constant power kitchen microwave, and the time the flask is exposed to microwave radiation determines the amount of energy supplied to the system. So, in our case we have plotted the microwave exposure time to initiate plasma as a function of the pressure of the flasks.

Fig. 3.

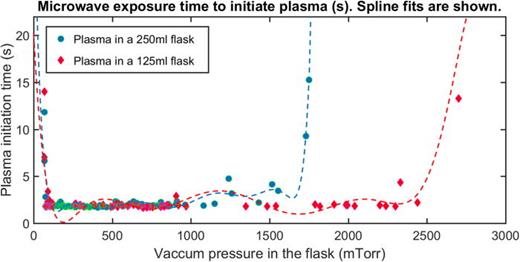

Plasma initiation time measured and plotted as a function of vacuum pressure in two different flasks. A Paschen-like curve is observed when the pressure of the flasks are reduced and placed in the microwave oven to record plasma initiation time. At ambient pressures and high vacuum, the initiation time grows asymptotically, while in the intermediate regime, plasma sparks consistently within a few seconds. If the pressure in the flasks becomes too low, higher initiation time is observed pointing towards a low number density of molecules in the flasks and corresponding lower collision cross section. Data for two flasks, one 125 ml and the other 250 ml, show similar asymptotic behavior.

Fig. 3.

Plasma initiation time measured and plotted as a function of vacuum pressure in two different flasks. A Paschen-like curve is observed when the pressure of the flasks are reduced and placed in the microwave oven to record plasma initiation time. At ambient pressures and high vacuum, the initiation time grows asymptotically, while in the intermediate regime, plasma sparks consistently within a few seconds. If the pressure in the flasks becomes too low, higher initiation time is observed pointing towards a low number density of molecules in the flasks and corresponding lower collision cross section. Data for two flasks, one 125 ml and the other 250 ml, show similar asymptotic behavior.

Close modal

In our experiments, the microwave creates a sky-blue plasma in the flask that is visible during the first 1–2 s after ignition (please see the figures in the supplementary material for illustrations). When the vacuum pressure is decreased further to 68 mTorr or less for a 250 ml flask and 69 mTorr or less for a 125 ml flask, the plasma ignition time tends towards infinity in this asymptotic limit. We have used two different kitchen microwaves with several different glass containers and the overall characteristic remains the same, although the plasma initiation times may vary slightly depending on the size and geometry of the microwave ovens.

UV-Visible absorption spectra of plasma are also recorded using a desktop CCD spectrometer (Exempler, B&WTek) and are shown in Fig. 4. The spectra of the microwave plasma clearly show the dominant nitrogen and oxygen peaks indicating ionization of these molecules. To understand and compare the microwave plasma generation with a DC discharge plasma, we also built a gas discharge tube with fixed electrodes, generated air plasma in it, and compared the spectra obtained from the gas discharge tube with that generated by the microwave. The reason behind this comparison is that gas discharge plasma is very well studied and the plasma generation mechanism of a gas under a constant strong electric field leading to Townsend avalanche is well known.42,44 The striking similarity of both the spectra (Fig. 4) lead us to confirm that although the source to energize gas is different in two cases: (a) DC electric field in a gas discharge tube, while (b) electromagnetic waves in microwave-generated plasma, the chain reaction is somewhat similar, as described in the  Appendix.

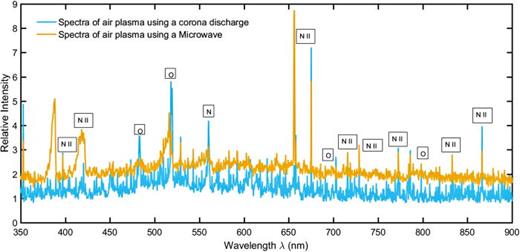

Fig. 4.

The microwave-generated plasma spectra are compared with the corona discharge (gas discharge) tube air plasma spectra. Nitrogen and oxygen lines are visibly identified in both spectra.

Fig. 4.

The microwave-generated plasma spectra are compared with the corona discharge (gas discharge) tube air plasma spectra. Nitrogen and oxygen lines are visibly identified in both spectra.

Close modal

This simple plasma generation demonstration can be integrated into undergraduate physics classrooms and labs to teach several key concepts, such as the nature of electromagnetic waves, the kinetic energy of ions and electrons in electromagnetic waves, dipole moment vectors, force and torque generated by an electric field, etc. We have created several concept cartoon-based clicker questions on these key concepts, given in the Supplementary Material,69 in order to explain this plasma generation process. We would encourage teachers and educators to use these concept cartoon-based clicker questions along with this paper and the featured article45 to engage students in the classroom, initiate both student-instructor and peer-to-peer discussions, and go through brainstorming sessions.

Plasma treatment is a well-known technique to remove any contaminant, change surface energy, and modify electrical and thermodynamic properties of a substrate for various purposes.46 A change in the surface energy of a substrate can easily be ascertained by measuring the contact angle of a liquid on the surface. The contact angle of a liquid drop, i.e., the angle measured where a three-component interface exists between a liquid drop, a solid surface, and the ambient air, is measured by first taking cross-sectional pictures of the drop using a camera and then analyzing the contour of the drop using software. Normally, the designation of a hydrophobic material is reserved for surfaces with a liquid contact angle of greater than 90 °. Contact angles of less than 90 ° indicate a hydrophilic material with good wetting properties.

A flat PDMS substrate is prepared by mixing the PDMS liquid elastomer and the curing agent (Sylgard 184) in 10:1 ratio followed by degassing and incubating for a couple of hours, resulting in a consistent, bubble-free soft solid block. Soft cured PDMS blocks are then cut to shape and placed in the vacuum flask. The flask is evacuated to 500 mTorr and placed in the microwave for plasma treatment. Once the plasma sparks, the PDMS blocks are treated for 2, 3, 4, and 5 s, respectively. The relative change in surface energy is evaluated by measuring the contact angle of a water micro-droplet placed first on an untreated and then on the treated surfaces using a micropipette. We have used the open source image-processing software ImageJ with DropSnake plugin to measure the contact angle of the sessile micro-droplet.47 Figure 5 clearly shows that the contact angle of water on the microwave-plasma treated PDMS sample increases nearly linearly with the treatment time indicating a direct relationship between the change in surface energy and microwave-plasma etching.

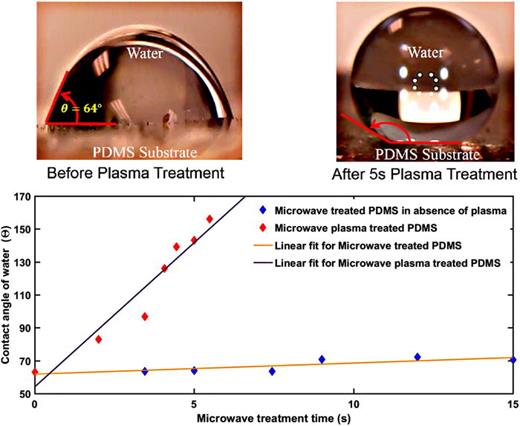

Fig. 5.

Change in contact angle of water in a microwave oven, with and without plasma. Droplet pictures at the top show increasing contact angle with extended plasma treatment time by adding sufficient surface energy of the soft cured PDMS polymer substrate. To differentiate the effects of microwave and microwave-plus-plasma, one can choose a suitable pressure (say 2000 mTorr) and put the substrate in a 250 ml flask. As this pressure is above the higher asymptotic limit of the Paschen-like curve (Fig. 3) turning the microwave on won't spark plasma in the chamber. However, if we put an identical sample in a 125 ml flask at the same 2000 mTorr pressure and turn the microwave on, the substrate can be treated with both microwave and plasma, thus giving us a way to differentiate the effects of microwave plasma quantitatively.

Fig. 5.

Change in contact angle of water in a microwave oven, with and without plasma. Droplet pictures at the top show increasing contact angle with extended plasma treatment time by adding sufficient surface energy of the soft cured PDMS polymer substrate. To differentiate the effects of microwave and microwave-plus-plasma, one can choose a suitable pressure (say 2000 mTorr) and put the substrate in a 250 ml flask. As this pressure is above the higher asymptotic limit of the Paschen-like curve (Fig. 3) turning the microwave on won't spark plasma in the chamber. However, if we put an identical sample in a 125 ml flask at the same 2000 mTorr pressure and turn the microwave on, the substrate can be treated with both microwave and plasma, thus giving us a way to differentiate the effects of microwave plasma quantitatively.

Close modal

Surprisingly, this observation is exactly opposite the effect observed in PDMS surfaces exposed to RF-generated O2 plasma48 and also microwave-oven-generated O2 plasma,49 where exposure to oxygen plasma lowers the contact angle and makes the substrate more wetting. To further investigate what role microwaves play in this reversal of contact angle, we have investigated the effect of microwaves on a PDMS substrate with and without plasma (Fig. 5). It shows that while microwave (without plasma) has some small effect on making the PDMS surface less wetting as the contact angle rises from 63 ° to 70 ° with 10-s treatment time, the effect of microwave plasma is much larger as the contact angle changes from 63 ° to 159 ° with just 5 s of plasma treatment. We propose that the adsorbed water molecules on the surface of the PDMS substrate play a crucial role here. One plausible explanation is that the surface adsorbed thin film of water gets heated up by the microwave component and simultaneously a rapid interaction with high density ions through the plasma contacts embeds ions on the soft-baked PDMS substrate surface leading the substrate towards superhydrophobicity. Also it is to be noted that the studies mentioned48,49 worked with a pure O2 plasma, while in the current work the plasma seems to be heterogenous. This microwave-plasma treatment technique is thus useful for making hydrophobic surfaces for water-resistant coatings and other applications, which cannot be achieved through gas discharge plasma treatment, as well as for bonding PDMS to glass substrates and other applications, as investigated in detail in Sec. III D.

Plasma treatment of a metal oxide thin film can also change its opto-electrical properties. A film of ZnO particles was prepared as previously described.50 Briefly, a suspension of ZnO particles were deposited on a glass microscope slide from a 60% (v/v) solution of ethanol. The film was air dried for several minutes and then annealed on a hot plate by ramping the temperature from ambient to 500 °C in 7 min. Previous work has shown that as the ZnO film cooled, a layer of ambient moisture and gases, as well as ethanol which is trapped in the bulk microstructure of the ZnO, deposits onto the ZnO surface.51 This is verified by a strong OH band centered at 3400 cm−1 in the FTIR spectrum of the film. The sample and substrate were transferred to the vacuum flask. The flask was then evacuated and the whole assembly was placed in the microwave oven as before. The plasma was sparked and allowed to interact with the ZnO surface for 4, 8, and 15 s. FTIR analysis of the treated surfaces in Fig. 6 shows a decrease in the overall intensity, especially of the OH band (centered at 3400 cm−1). Our previous work50 has shown that such modification of polycrystal and nanocrystal semiconducting films plays an important role in the electronic properties of the material.

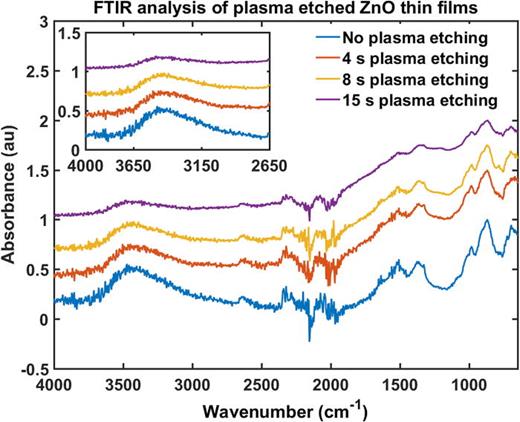

Fig. 6.

Result of plasma etching a ZnO nanowire thin film. The film was fabricated as for all devices (deposition from ethanol suspension) followed by sintering. The etching was conducted for 4, 8, and 15 s. The inset shows the band at 3400 cm–1 due to the -OH bond in alcohols. The intensity of this signal clearly diminishes as the film is etched indicating a loss of electron-withdrawing groups from the surface of the material. The large signal at around 2100 cm–1 is from CO2, and the band at around 900 cm–1 is due to a small amount of glass particles that were scraped off the device substrate. The graphs shown above are the FTIR analysis of ZnO nanowire thin films; however other ZnO thin films made of ZnO particles or nanoparticles also show similar behavior under plasma etching.

Fig. 6.

Result of plasma etching a ZnO nanowire thin film. The film was fabricated as for all devices (deposition from ethanol suspension) followed by sintering. The etching was conducted for 4, 8, and 15 s. The inset shows the band at 3400 cm–1 due to the -OH bond in alcohols. The intensity of this signal clearly diminishes as the film is etched indicating a loss of electron-withdrawing groups from the surface of the material. The large signal at around 2100 cm–1 is from CO2, and the band at around 900 cm–1 is due to a small amount of glass particles that were scraped off the device substrate. The graphs shown above are the FTIR analysis of ZnO nanowire thin films; however other ZnO thin films made of ZnO particles or nanoparticles also show similar behavior under plasma etching.

Close modal

Graphene is a 2D wonder material60–62 with many potential applications ranging from flexible electronics, energy storage, sensors to molecular sieving.63–66 One hurdle in further developing graphene applications commercially is the difficulty in preparation of bulk graphene in mass scale. One way of producing graphene is chemical vapor deposition (CVD), which is expensive and requires expensive instrumentation. Graphene is most easily produced in bulk by the reduction of graphite oxide solutions, but this can be time-consuming and is not an environmentally friendly process. Some recent works have shown alternative optical and thermal processes for obtaining reduced graphene oxide using a laser.67,68 Here we show that plasma generated by our simple system is capable of providing the local energy needed to reduce dielectric graphene oxide films to conductive graphene (Fig. 7).

Fig. 7.

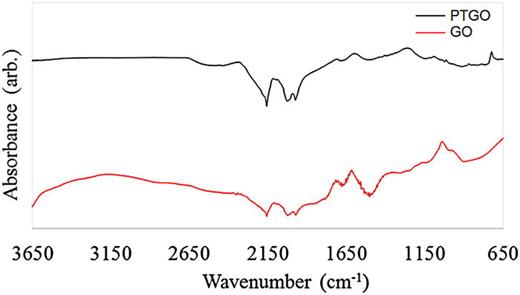

Raman spectra and absorption studies for graphene oxide (GO) and plasma treated graphene oxide (PTGO) films.

Fig. 7.

Raman spectra and absorption studies for graphene oxide (GO) and plasma treated graphene oxide (PTGO) films.

Close modal

First, graphene oxide (Graphenea Inc.) was drop casted onto polyethylene terephthalate (PET) film. After drying for 24 h at 50 °C, the GO-coated foil was cut into squares. The sheet resistance of each square was measured using a Keithley Source Meter with a four-point Kelvin probe. The resistance prior to plasma etching showed a large value on the order of 10 M Ω cm 2 (Table I).

One graphene oxide square was taped on either end to a glass substrate and then placed in the plasma etching flask. It was then evacuated for 1 min (to a pressure of 300 mTorr). The flask was placed in the microwave for 4 s. The other two squares were also treated for 4 s, but not affixed to substrates, and treated for 4 and 1 s intervals instead of continuous exposure. The third was exposed to plasma for 4 s continuously. The three types are referred to as “supported,” “bursts,” and “free-standing,” respectively, as shown in Fig. 8.

Fig. 8.

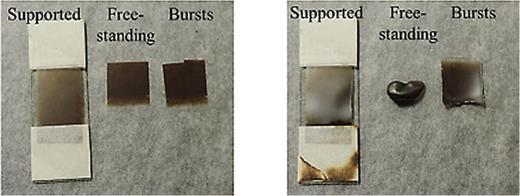

Graphene oxide films before (left) and after (right) treatment in 4 s of air plasma. Clearly, the free-standing sample is not very useful for applications despite its large change in resistance. A similar change in resistance was attained by treating the bursts-sample with four separate 1-s pulses of plasma, which prevented the plastic substrate from warping significantly.

Fig. 8.

Graphene oxide films before (left) and after (right) treatment in 4 s of air plasma. Clearly, the free-standing sample is not very useful for applications despite its large change in resistance. A similar change in resistance was attained by treating the bursts-sample with four separate 1-s pulses of plasma, which prevented the plastic substrate from warping significantly.

Close modal

The resistance following plasma etching was measured and showed a reduction of resistance of about two orders of magnitude. The lowest final resistance was obtained for the free-standing sample, but the heat from the plasma caused the plastic foil to warp, making this process less useful for flexible electronic applications.

Many materials like polypropylene (PP), polyether ether ketone (PEEK), PDMS, or polyoxymethylene (POM) are extremely hard to bond with other materials. Requirement of high bonding strength, durable and irreversible bonding of metal, glass, and plastics present special challenges for the manufacturing industry. Plasma treatment of a surface with other applied cleaning procedures produces better adhesion capability and bonding strength on the surfaces to be joined in comparison to untreated substrates.

Microfluidics is an emerging technology with fluid flow in micrometer or smaller channels and has tremendous applicability.52 Applications for microfluidics include mobile chemical analysis,53 medical diagnostics,54 drug delivery,55 soft robotics,56 RNA encapsulation,57 and nanomaterials synthesis58 to name a few. In order to fabricate robust microfluidic devices, it is necessary to have a strong bond between the microfluidic polymer mold (typically PDMS) and the substrate. A strong bond prevents the device from leaking, becoming damaged, or developing passages by which the confined solutions could escape the network of channels. Plasma has been used in this application extensively, as it converts the exposed surface of the PDMS into dangling silane groups, allowing a very strong bond to glass to be formed. We demonstrate that the plasma generated in our simple microwave system can be used for this purpose.

The following steps can be taken to create PDMS microfluidic channels bonded on glass: (1) A microchannel mold is created (typically using photolithography or other methods). (2) A mixture of liquid PDMS and cross-linking agent is then mixed in a 10:1 ratio and poured into the mold in a petri dish. The petri dish is kept in an incubator at 65 °C for a couple of hours. (3) The hardened PDMS is taken off the mold. A replica of the microchannels is obtained on the PDMS block. (4) To complete the microfluidic chip and to allow the injection of fluids for future experiments, the inlets and outlets of the microfluidic device are punched with a biopsy puncher whose diameter is slightly less than the size of the tubes to be connected. This will ensure tight fitting of the inlet/outlet tubes to the channels. (5) Finally, the side of the PDMS with open microchannels and the glass slide are treated with plasma to obtain closed channels with one flat inner wall of glass and all other walls of PDMS. (6) The plasma treatment irreversibly bonds PDMS with glass and makes the microfluidic chip.

A freshly made PDMS replica and a glass microscope slide in two different vacuum flasks were used in this experiment. The flasks were evacuated to 500 mTorr (0.5 Torr), and 3 s of plasma exposure was used on both of them. After plasma treatment, the glass slide was removed and placed on a flat surface. The PDMS sample was then removed and the treated surface is placed in the desired location on the glass slide; the two components were then pressed together gently and allowed to sit for ten minutes. A schematic of the whole process is shown in Fig. 9.

Fig. 9.

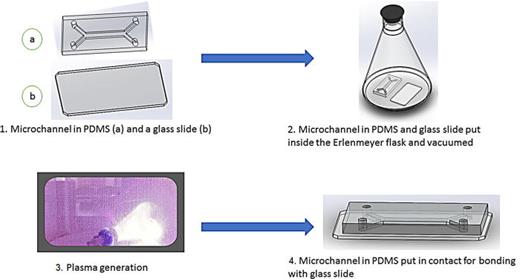

A schematic to bond PDMS mold to glass to make microchannels.

Fig. 9.

A schematic to bond PDMS mold to glass to make microchannels.

Close modal

We have also measured the adhesive force of a PDMS surface before and after treatment using the force-distance microscopy mode of an atomic force microscope (Nanosurf C3000 FlexAFM), and the representative graph is shown in Fig. 10. The relative change in adhesive force due to surface plasma treatment is shown in Fig. 11.

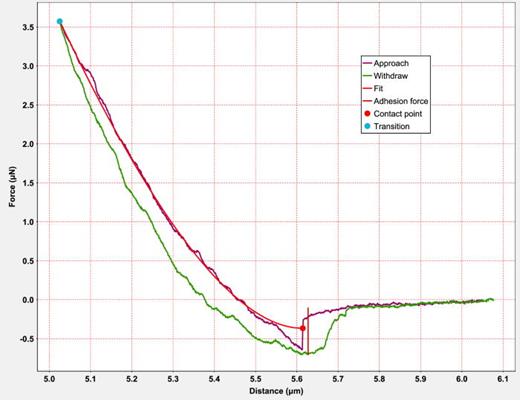

Fig. 10.

Adhesive force of the untreated PDMS surface is measured using the AFM force spectroscopy method.

Fig. 10.

Adhesive force of the untreated PDMS surface is measured using the AFM force spectroscopy method.

Close modal
Fig. 11.

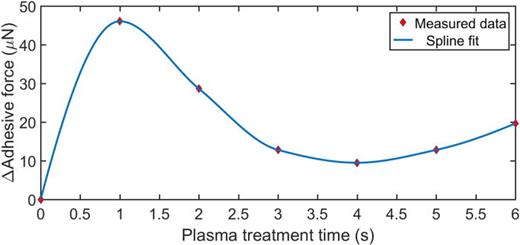

Adhesive force of the PDMS surface is measured using the AFM force spectroscopy method before and after various degrees of plasma treatment.

Fig. 11.

Adhesive force of the PDMS surface is measured using the AFM force spectroscopy method before and after various degrees of plasma treatment.

Close modal

In this work, we have demonstrated that a simple plasma generating device can be constructed from a household microwave oven and a vacuum flask. We have shown that this apparatus can be used in surface treatment of a substrate for several cutting-edge research applications. Varying degree of plasma exposure to a PDMS substrate leads to a change in surface energy, and hence a change in contact angle of a water droplet on the substrate was observed before and after the surface treatment. Upon exposure to plasma, a change in opto-electrical properties of a metal oxide semiconductor such as ZnO was demonstrated using FTIR spectra analysis. Significant change in electrical resistance of graphene oxide thin films was also observed as an effect of plasma exposure. Moreover, it was also shown that irreversible bonding between certain elastomers like PDMS and glass can be achieved to make microfluidic channels with this simple technique. Needless to say that the domain of these applications is enormous and our hope is that this paper, through classroom/lab integration and this frugal alternative to conventional and expensive plasma treatment, would enable more researchers to delve into these cutting edge research areas leading to more innovation and discovery.

This work was partially supported by the National Science Foundation (HBCU-UP Award # 1719425), the Department of Education (MSEIP Award # P120A70068) with MSEIP CCEM Supplemental award, and Maryland Technology Enterprise Institute through MIPS grant. K.D. would like to thank Dr. Jim Marty of Minnesota Nano-Science Center and NanoLink for providing support and materials for the photolithography process in microchannel fabrication and Dr. Aaron Persad of MIT for many helpful discussions and suggestions. The authors also thank MIT Technology Review for featuring this work.45

The plasma generation experiment using a kitchen microwave oven can be used as a classroom demonstration in an effort to engage students in discussions of some important concepts in electromagnetism in undergraduate physics. We have created a pool of multiple choice concept cartoon questions to explain our microwave generated plasma formation process and to initiate discussions on the key concepts of EM, such as the nature of electromagnetic radiation, the relationship between force/kinetic energy of a charge and the applied electrical field, dipole moment vector, and the torque applied by an oscillating electric field, collision cross section, cascading effect to generate a plasma, etc. Impact of similar cartoon questions in the classroom were measured and reported.59 The first slide is shown here in Fig. 12 as an example, and all nineteen are in the online Supplementary Material.69 High resolution pictures of these slides can also be obtained by emailing the corresponding author of this paper.
